Patton electronics SMARTNODE 4552 User manual

SmartNode 4552

ISDN SoHo VoIP Gateway Router

Quick Start Guide

Approbacion

Este aparato esta aprobado para conexion a red publica ISDN sobre interfaz BRI/So.

Approbation

Cet appareil est approuve pour la connexion au reseau ISDN public avec les interfaces BRI/So.

Zulassung

Zugelassen fur die Anshaltung an da offentliche ISDN Telekommunikatinosnetz an BRI/So- ISDN Schnittstellen.

Approval

This device is approved for connection to the public ISDN telecommunication network. over a BRI/So-ISDN interfaces.

Sales Office: +1 (301) 975-1000

Technical Support: +1 (301) 975-1007

E-mail: [email protected]

WWW: www.patton.com

Document Number: 13216U7-001 Rev. B

Part Number: 07MSN4552-QS

Revised: February 25, 2005

Patton Electronics Company, Inc.

7622 Rickenbacker Drive

Gaithersburg, MD 20879 USA

Tel: +1 (301) 975-1000

Fax: +1 (301) 869-9293

Support: +1 (301) 975-1007

Web: www.patton.com

E-mail: [email protected]m

Trademark Statement

The terms SmartNode, SmartWare and SmartView are trademarks of Patton

Electronics Company. All other trademarks presented in this document are the

property of their respective owners.

reserved.

The information in this document is subject to change without notice. Patton

Electronics assumes no liability for errors that may appear in this document.

Important Information

To use virtual private network (VPN) and/or AES/DES/3DES encryption

capabilities with the SmartNode 4552, you may need to purchase additional

licenses, hardware, software, network connection, and/or service. Contact

[email protected] or +1 (301) 975-1000 for assistance.

SmartNode™

SN4552 QUICK START GUIDE

This Quick Start Guide leads you through the basic steps to set up a new SmartNode and to download a

configuration. Please note that this guide does not replace the detailed Software Configuration Guide and the

Getting Started Guide available on the CD-ROM and online at www.patton.com/voip.

Your SmartNodes can be used for a wide variety of IP and voice over IP applications. To support and ease the

configuration of the SmartNodes configuration templates for the most important applications are available

online at http://www.patton.com/voip/appnotes.shtml .

Tthe main steps to set up a new SmartNode are shown below.

Connect a PC, login and configure the IP address

Connect the SmartNode to the Network

Download a configuration example, adapt to your network and load

onto the SmartNode

SmartNode™

Connect a PC, login and configure the IP address

Power Connection and Default IP Configuration

First the SmartNode must be connected to the mains power supply using the included power supply. Wait

until the ‘PWR' LED stops blinking and lights constantly. Now the SmartNode is ready.

The factory default IP settings are as follows:

LAN ports (green, ETH 0/1): IP Address: 192.168.1.1 Network Mask: 255.255.255.0

WAN port (red, ETH 0/0): IP Address: 172.16.40.1 Network Mask: 255.255.0.0

A DHCP Server with address space 192.168.1.10 – 192.168.1.19 is running on the LAN ports

Both Ethernet ports are pre-configured and active.

If these addresses conflict or do not match with your network they must be changed. Contact your network

administrator if you are not sure what IP address to use in your installation.

PC connection and Login

To access the SmartNode configuration connect a PC with Ethernet port to one of the LAN ports (green) of the

SN4552. Use the included black Ethernet cable for this purpose. Set your PCs TCP/IP configuration to DHCP

to automatically receive an IP address from the SmartNode.

Open a Telnet connection to the default LAN IP address of the SmartNode (192.168.1.1). Use the Terminal

program included with most PC operating systems (e.g. Hyper Terminal on Windows). The CD-ROM also

includes some recommended terminal programs.

The factory default login is

Password: <empty>

So use the name administrator after the login prompt and simply press the Enter key after the password

prompt.

password:

172.16.40.1>

SmartNode™

After you have successfully logged in you are in the operator execution mode, indicated by '>' as command

line prompt. With the commands enable and configure you enter the configuration mode.

172.16.40.1>enable

172.16.40.1#configure

172.16.40.1(cfg)#

Changing the IP Address

Select the context IP mode to configure an IP interface.

172.16.40.1(cfg)#context ip router

172.16.40.1(ctx-ip)[router]#

Now you can set your IP address and network mask for the WAN IP interface eth0. Contact your network

administrator if you are not sure what IP address to set. Within this example a private network (172.16.1.0) is

assumed. The IP address is set to 172.16.1.100.

172.16.40.1(ctx-ip)[router]#interface eth0

172.16.40.1(if-ip)[eth0]#ipaddress 172.16.1.100 255.255.255.0

2002-10-29T00:09:40 : LOGINFO : Link down on interface eth0.

2002-10-29T00:09:40 : LOGINFO : Link up on interface eth0.

172.16.1.100(if-ip)[eth0]#

Store this modified configuration and make it your new start-up configuration. On the next start-up the system

will come up using the modified configuration.

172.16.1.100(if-ip)[eth0]#copy running-config startup-config

172.16.1.100(if-ip)[eth0]#

Now the SmartNode can be connected to your IP network.

Connect the SmartNode to the Network

You now can connect the SmartNode to the IP Network and do any remaining configuration from any PC

connected to the same Ethernet segment.

SmartNode™

You can check the connection with the ping command. For the example above ping 172.16.1.100 from a PC on

the IP network.

You may now start to configure the SmartNode from scratch using the CLI commands. For a detailed

description of the CLI refer to the SmartWare software configuration guide (SCG) available on the CD-ROM

and online at: www.patton.com/voip.

We recommend however that you start your configuration from a template. See step three for further details.

Download a configuration example, adapt to your network and load

onto the SmartNode

We recommend that you use an application specific configuration template called “Application Note” to start

your SmartNode configuration. A selection of Application Notes is available on the CD-ROM and online from

http://www.patton.com/voip/appnotes.shtml. Select an Application Note which matches your requirements.

Adapt the configuration as described in the Application Note to your network (do not forget to modify the IP

address) and copy the modified configuration to a TFTP server. The SmartNode can now load its configuration

from this server.

In this example we assume the TFTP server is running on the PC with the IP address 172.16.1.10 and the

configuration named SN.cfg in the root directory of the TFTP server.

172.16.1.100(cfg)#copy tftp://172.16.1.10/SN.cfg startup-config

Download...100%

172.16.1.100(cfg)#

You now need to reload the SmartNode to activate the downloaded startup configuration. Type in the

following commands.

Note that you MUST answer NO when asked to overwrite the startup configuration.

172.16.1.100(cfg)#reload

Running configuration has been changed.

Do you want to copy the 'running-config' to the 'startup-config'?

Press 'yes' to store, 'no' to drop changes : no

Press 'yes' to restart, 'no' to cancel : yes

The system is going down

Additional Information

For detailed information about configuring and operating guidance, set up procedures and trouble shooting,

refer to the SmartNode Series SmartWare Software Configuration Guide and the SmartNode Hardware Installation

Guide on the enclosed Patton VoIP CD-ROM or at http://www.patton.com/voip/. On the CD-ROM you will

also find numerous freeware and shareware tools, including TFTP servers, Telnet clients, etc.

SmartNode™

EC Declaration of Conformity

(German version see below)

Product Description: SmartNode 1200 *)

SmartNode 1400 *)

SmartNode 2300 incl. Interface Cards IC-4BRV and IC-E1V

SmartNode 2400 incl. Interface Cards IC-4BRV and IC-E1V

The products described above in the form as delivered are in conformity with the provisions of the following

European Directive:

R&TTE 1999/5/EC

Guideline of the European Parliament and the Committee for the Harmonisation of the Legal

Regulations of the Member States concerning radio equipment and telecommunications terminal

equipment and the mutual recognition of their conformity.

The safety advices in the documentation accompanying the products shall be obeyed. The conformity

to the above directive is indicated by the CE sign on the device.

*) SmartNodes 1200 Version 5 and SmartNodes 1400 Version 1 (Model No. SN1200 0005-0001 resp. SN1400

0001-0001) must use at least the following Builds of SmartWare: Build 21211 for Release 2.01, Build 21209 for

Release 2.02, Build 21182 for Release, or any Build for all subsequent Releases.

The signed Declaration of Conformity can be downloaded from

http://www.patton.com/certifications/

Approval

The SmartNode is approved for connection to the public ISDN telecommunication network. Anybody may

connect the SmartNode to a BRI/S0- ISDN interface and put it into operation.

EG-Konformitätserklärung

(English version see above)

Produktbezeichnung: SmartNode 1200 *)

SmartNode 1400 *)

SmartNode 2300 inkl. Interface Cards IC-4BRV und IC-E1V

SmartNode 2400 inkl. Interface Cards IC-4BRV und IC-E1V

Die bezeichneten Produkte stimmen in der von uns in Verkehr gebrachten Ausführung mit den Vorschriften

folgender Richtlinie überein:

R&TTE 1999/5/EG

Richtlinie des europäischen Parlaments und des Rates zur Angleichung der Rechtsvorschriften der

Mitgliedstaaten über Funkanlagen und Telekommunikations-Endeinrichtungen und die gegenseitige

Anerkennung ihrer Konformität.

SmartNode™

Die Sicherheitshinweise in der mitgelieferten Produktdokumentation sind zu beachten. Die

Konformität mit der oben erwähnten Richtlinie wird durch das CE-Zeichen auf dem Gerät bestätigt.

*) SmartNodes 1200 Version 5 und SmartNodes 1400 Version 1 (Model No. SN1200 0005-0001 bzw. SN1400

0001-0001) müssen mindestens folgende SmartWare-Builds verwenden: Build 21211 für Release 2.01, Build

21209 für Release 2.02, Build 21182 für Release, oder irgendeinen Build für alle nachfolgenden Releases.

Die unterzeichnete Konformitätserklärung kann heruntergeladen werden von:

http://www.patton.com/certifications/

Zulassung

Der SmartNode ist für die Anschaltung an das öffentliche ISDN Telekommunikationsnetz zugelassen. Er darf

durch jedermann an eine BRI/S0- Schnittstelle angeschlossen und in Betrieb genommen werden.

Legal Notice

Inalp AG.

Patton -Inalp AG reserves the right to make changes in specifications and other information contained in this document without prior

notice. The information provided is subject to change without notice.

In no event shall Patton Inalp AG or its employees and associated companies be liable for any incidental, special, indirect or consequential

damages whatsoever, including but not limited to lost profits, arising out of or related to this manual or the information contained within

it, even if Patton -Inalp AG has been advised of, known, or should have known, the possibility of such damages.

Patton, the Patton logo, and Inalp SmartNode are trademarks of Patton Electronics Company and Inalp Networks AG. SmartWare and

SmartView Management Center are trademarks of Inalp Networks AG. All other trademarks mentioned in this document are property of

their respective owners.

Document Number: 13216U7-001 Rev. B

Part Number: 07MSN4552-QS

Revised: February 25, 2005

Other manuals for SMARTNODE 4552

This manual suits for next models

Table of contents

Other Patton electronics Network Router manuals

Patton electronics

Patton electronics 2121 User manual

Patton electronics

Patton electronics SMARTNODE 4552 User manual

Patton electronics

Patton electronics 3060/V24 User manual

Patton electronics

Patton electronics SMARTNODE 4110 Series User manual

Patton electronics

Patton electronics SmartNode 4830 Series User manual

Patton electronics

Patton electronics 4630 Series User manual

Patton electronics

Patton electronics IM2RC/I-100B User manual

Patton electronics

Patton electronics 3040/V35 User manual

Patton electronics

Patton electronics 4900 Series User manual

Patton electronics

Patton electronics OnSite 2800 Series User manual

Patton electronics

Patton electronics IPLink 3210 Series User manual

Patton electronics

Patton electronics SMARTNODE 4630 Series User manual

Patton electronics

Patton electronics SmartNode 4960 Series User manual

Patton electronics

Patton electronics Patton IPLink 2603 User manual

Patton electronics

Patton electronics SmartNode 4634 Series User manual

Patton electronics

Patton electronics SMARTNODE 4630 Series User manual

Patton electronics

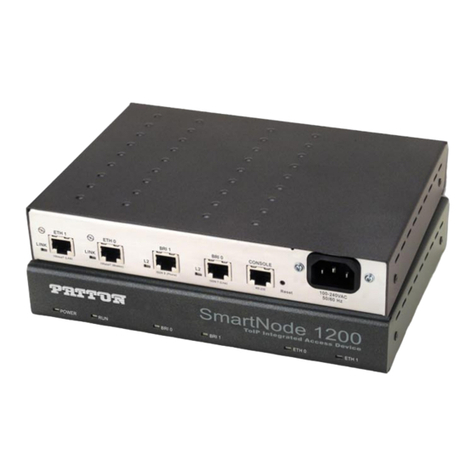

Patton electronics SMARTNODE 1200 User manual

Patton electronics

Patton electronics SmartNode 4960 Series User manual

Patton electronics

Patton electronics SmartNode 4960 Series User manual

Patton electronics

Patton electronics SL4020 User manual

Patton electronics

Patton electronics 2124 User manual

Patton electronics

Patton electronics SmartNode 07MSN5200-QS User manual

Patton electronics

Patton electronics ONSITE 2621 User manual

Patton electronics

Patton electronics OnSite 2884 User manual

Popular Network Router manuals by other brands

Allnet

Allnet ALL0333AU user guide

HomeSeer

HomeSeer HT-SEL Getting started guide

Sercomm

Sercomm Genesis OC3505D Quick installation guide

Billion

Billion BIPAC 5102 Series user manual

TP-Link

TP-Link TD-8817 QIG

Motorola

Motorola MR1900 user guide

Digi

Digi IX14 user guide

Cisco

Cisco NCS 540 Hardware installation guide

XAVi

XAVi X8821e user manual

BEC

BEC 6200WZL Quick installation guide

MikroTik

MikroTik hAP ac3 Series quick start

Korenix

Korenix JetNet 5428G Series user manual

NETGEAR

NETGEAR FS526T - Switch installation guide

Korenix

Korenix JetNet 5710G Series user manual

Automated Logic

Automated Logic ZN551 Technical instructions

Cisco

Cisco ASR 1000 Series Installation and configuration guide

EnGenius

EnGenius ESR-9710 quick start guide

Cisco

Cisco 805 Series Product overview
