PARKIT360 TRANSFORMER 15K User manual
READ CAREFULLY
BEFORE OPERATION
IMPROPER USE OF THIS DOLLY CAN
CAUSE DAMAGE TO YOUR TRAILER,
PERSONAL INJURY OR EVEN DEATH. DANGERDANGER
INSTRUCTION MANUAL
VERSION 4.1
TRANSFORMER 15K

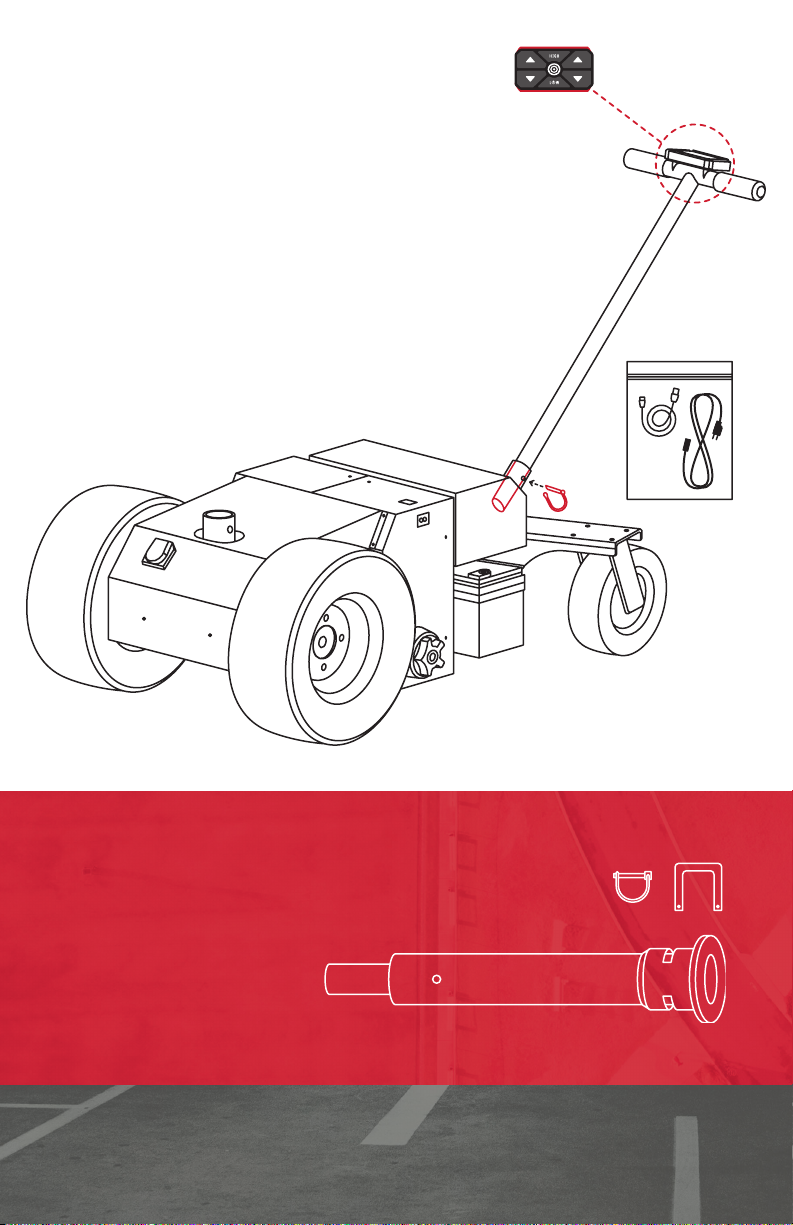

IN THE BOX
TRANSFORMER PACKAGES INCLUDE:
Transformer Dolly
Handle Shaft with Controller Mount
Two 12V U1 Batteries
Wireless Controller & USB C Cable
Charger Cable
FIFTH WHEEL ADAPTER
PACKAGE INCLUDES:
Kingpin Adapter
U Locking Pin with D-Clip
QUESTIONS? 1-888-926-5517 x1
WIRELESSWIRELESS
CONTROLLERCONTROLLER
1

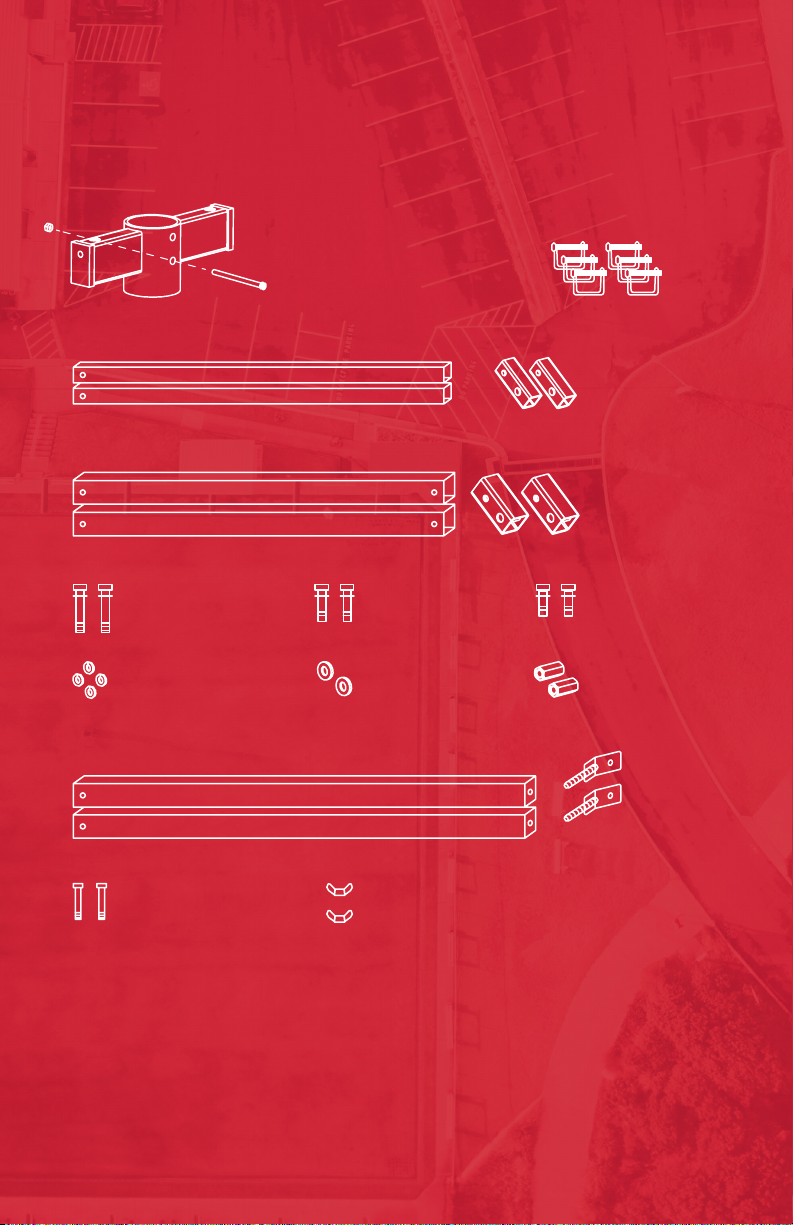

UNIVERSAL STABILIZER BARS
2 Landing Leg Tubes (1.5” x 1.5” x 43.5“)
2 Wing Nuts
(3/8”)
4 Lock Washers
(1/2”)
2 Flat Washers
(1/2”)
2 Coupling Nuts
(1/2” x 1 3/4“)
2 Large Bolts
(1/2“ x 2 1/2”)
2 Medium Bolts
(1/2” x 2”)
2 Small Bolts
(1/2” x 1 1/2”)
2 Inner Pivot Tubes
(1.25” x 1.25“ x 3.5”)
2 Outer Pivot Tubes
2 Landing Leg Bolts
(3/8”x 2.5”)
2 Landing Leg
Attachments
(Adjustable)
Mounting Ring Tube
with Through Bolt and Nut
(1/2” x 5“)
2 Inner Tubes (1.25” x 1.25“ x 32”)
2 Outer Tubes (1.5” x 1.5“ x 32”)
6 D-Pins
(3/8”)
THIS ALL-IN-ONE KIT INCLUDES:
SETUP & INSTALLATION
CHOOSE PREFERRED
CONNECTION POINT
CHOOSE YOUR PREFERRED CONNECTION POINT ON YOUR TRAILER:
KINGPIN BOX
PAGE 13-14
LANDING LEG
PAGE 15-16
(1.50" x 1.50" x 3.5")
2
12V U1 DEEP CYCLE
Both batteries arrive pre-connected
and ready to operate.
Battery Voltage is displayed on the
Volt Meter on the Dolly’s Module.
While in storage, charge every
2 months to preserve battery life.
Covered by an Interstate®1 Year
Warranty. (Page 14)
BATTERIES

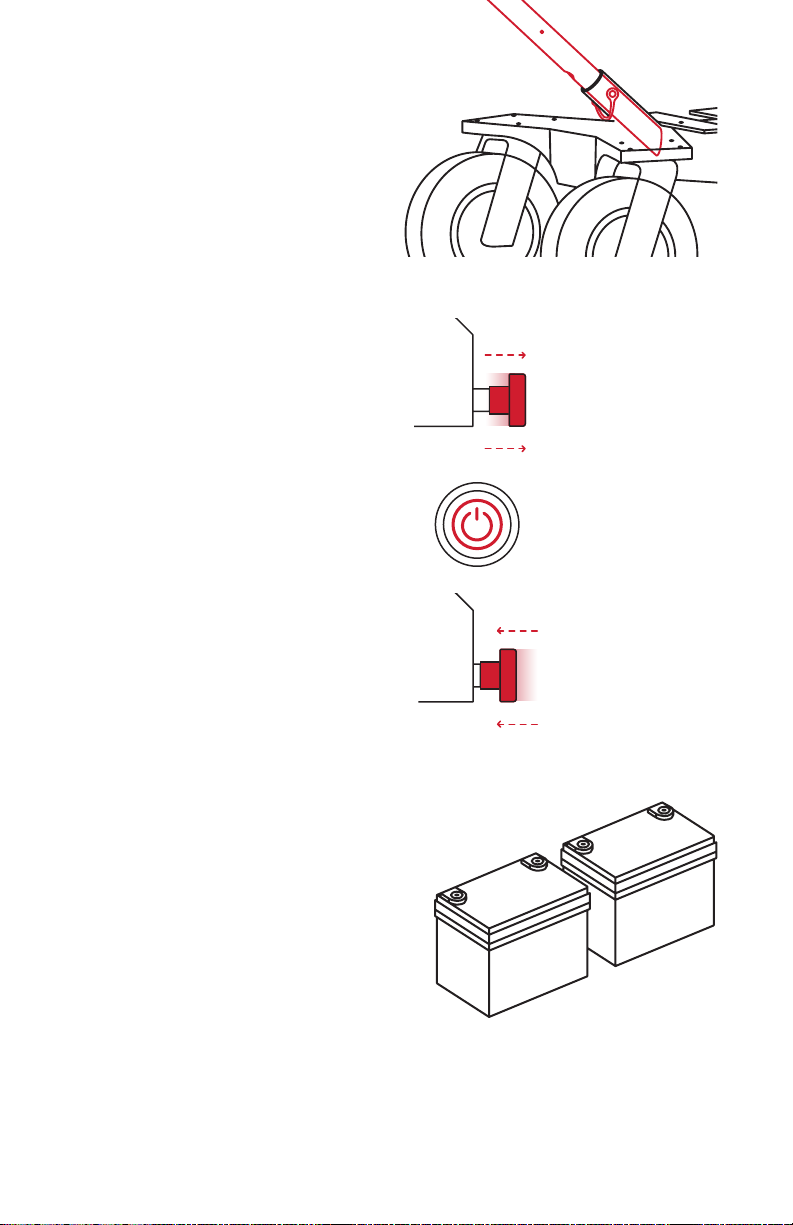

ASSEMBLY
HANDLE
Insert the Handle into the Dolly.
Secure with D-Clip.
POWER ON/OFF
TURN ON
Pull OUT on the Battery Disconnect.
Press and hold the Power Button until
the light illuminates.
TURN OFF
Press and hold the Power Button until
the light turns off.
Push the battery disconnect IN to
prevent battery drain during storage.
PULL OUT
Enables Battery Power.
PRESS & HOLD
To turn ON or OFF.
PUSH IN
Disconnects Batteries.
3

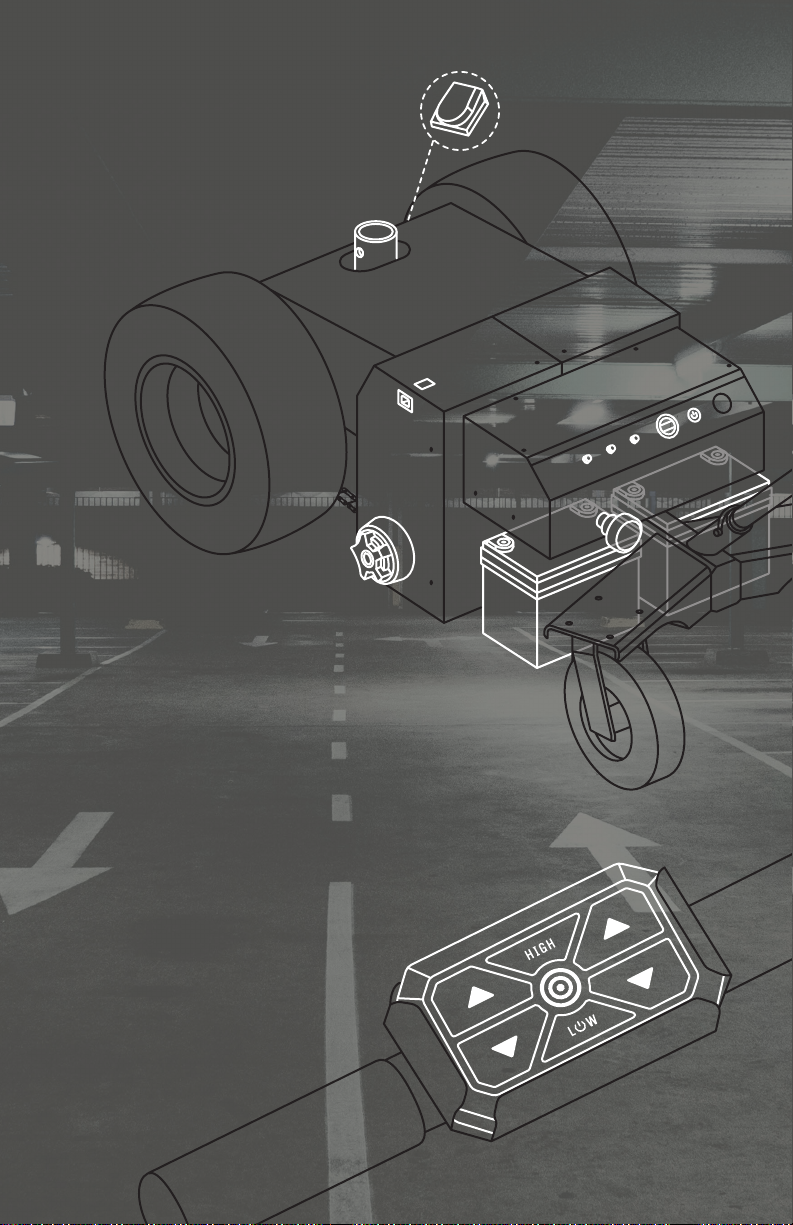

FEATURES
RECEIVER TUBE
Connect to the Trailer with either the
Kingpin or Gooseneck Adapter.
INTERNAL BATTERY CHARGER
Charges both on-board 12V U1
Batteries. Digital display shows
charging voltage and amperage.
(Page 7)
FREEWHEEL KNOBS
The Transformer wheels are
powered independently by
two 1.7 hp motors.
Engage both motors to move the
Dolly with power, or push by hand
in Freewheel mode.
(Page 8)
INTELLIGENT SPEED CONTROL
Use the Wireless Controller to switch
between High and Low speed for fast
or more precise parking.
Motors Start and Stop gradually for
a smoother parking experience.
(Page 6)
WIRELESS CONTROLLER
Control the Dolly from a distance
and switch speeds on the go!
Charge when not in use.
(Page 6)
SMART BRAKE
7-Way Power Plug that
Controls the Trailer’s
Electric or Surge Brakes.
(Page 5)
4

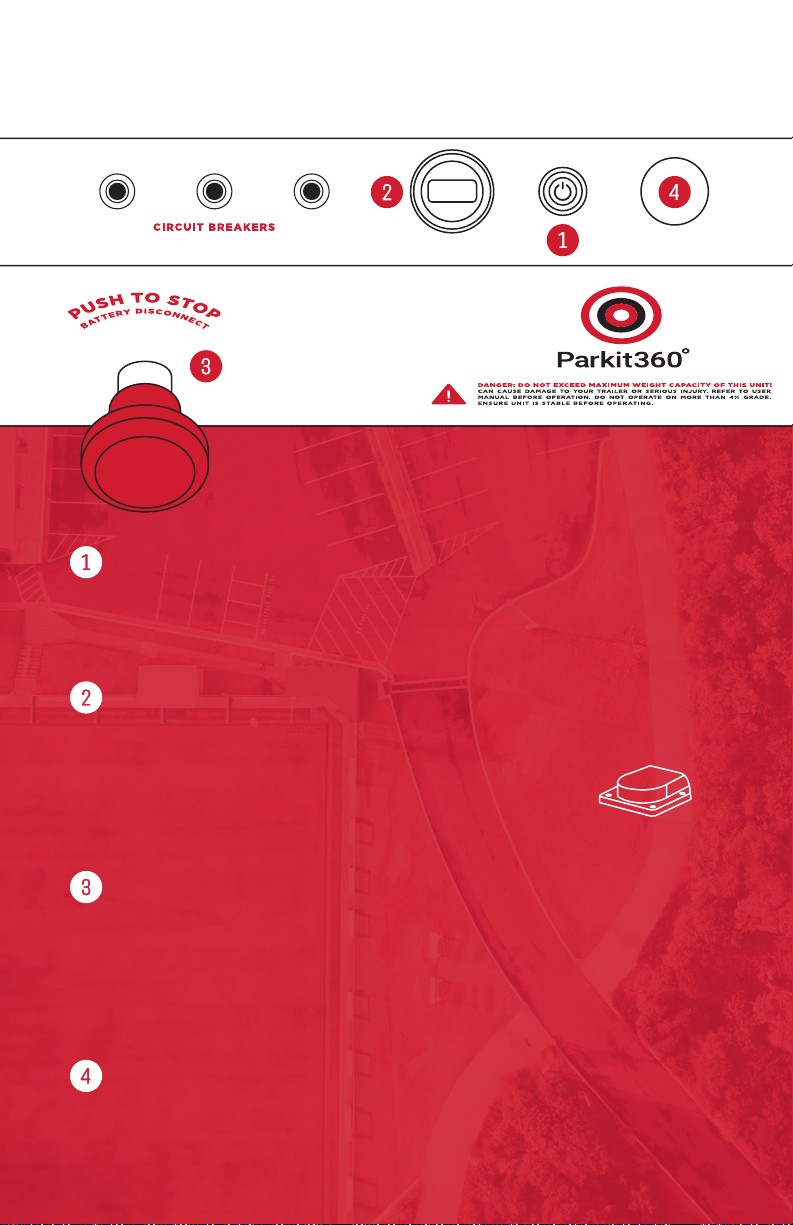

MODULE FEATURES
POWER ON/OFF
Press and Hold for 2 seconds
to turn ON or OFF.
WIRELESS RECEIVER
Connects controller to the Transformer.
VOLT METER
Allows you to monitor the
Battery Voltage during operation.
Fully charged batteries rest
between 12.6 to 13V.
BATTERY DISCONNECT
Push the big red button to cut off the
Dolly’s electrical connection. Used to
prevent battery drain while in storage
and as an emergency stop.
CIRCUIT BREAKERS
Provides overcurrent protection for the
Motors, Brakes and Control System.
If a breaker trips, the Reset Button will
extend up to 1/2” from the panel.
Allow 15 seconds for the system to
cool down, then press Reset.
SMART BRAKE
7-Way Power Plug that
Controls the Trailer’s Brakes:
Electric Brakes (RV Trailers):
Releases Trailer brakes when Dolly
motors are operating. Engages brakes
when the Dolly is powered ON and not
in motion.
Surge Brakes (Boat Trailers):
Locks out the Surge Brakes when
the Dolly is operating.
5

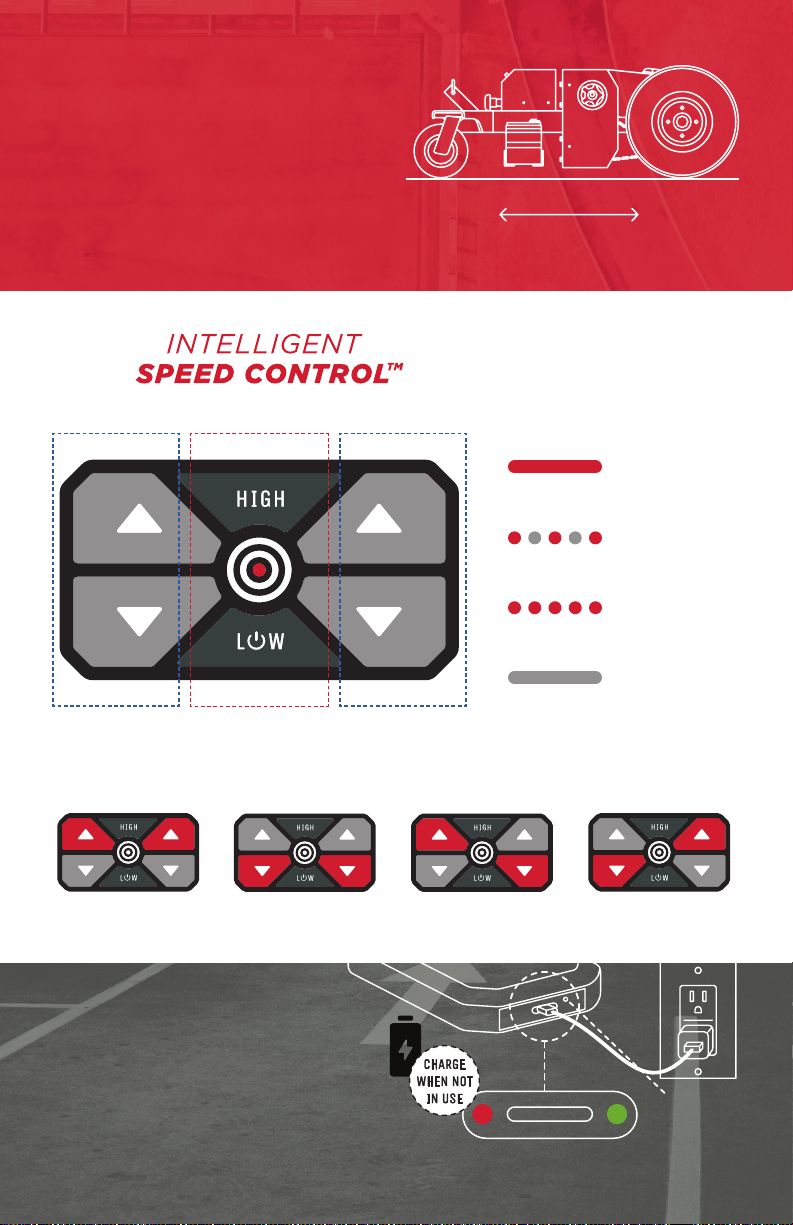

WIRELESS
CONTROLLER
Operating from the User’s perspective:
Behind the Dolly, facing the Trailer. FORWARD
(BACK UP TRAILER)
REVERSE
(TOWARDS USER)
LEFT WHEEL LOW SPEED
CONTROLLER ON
RIGHT WHEEL
HIGH SPEED
ON
In Use
Battery Low
Sleep Mode
LED INDICATOR LIGHT
Off - Enters this mode after
60 seconds of inactivity
Slow Blink - During Button Press
Steady - Press LOW to Activate
Fast Blink - Charge ASAP!
CHARGING THE CONTROLLER
The included braided USB C cable is
compatible with any charger block.
Once plugged in, two internal LED lights
will indicate the battery charge level: CHARGING BATTERY FULL
FORWARD REVERSE COUNTER-CLOCKWISE
CLOCKWISE
RESET PORT
6

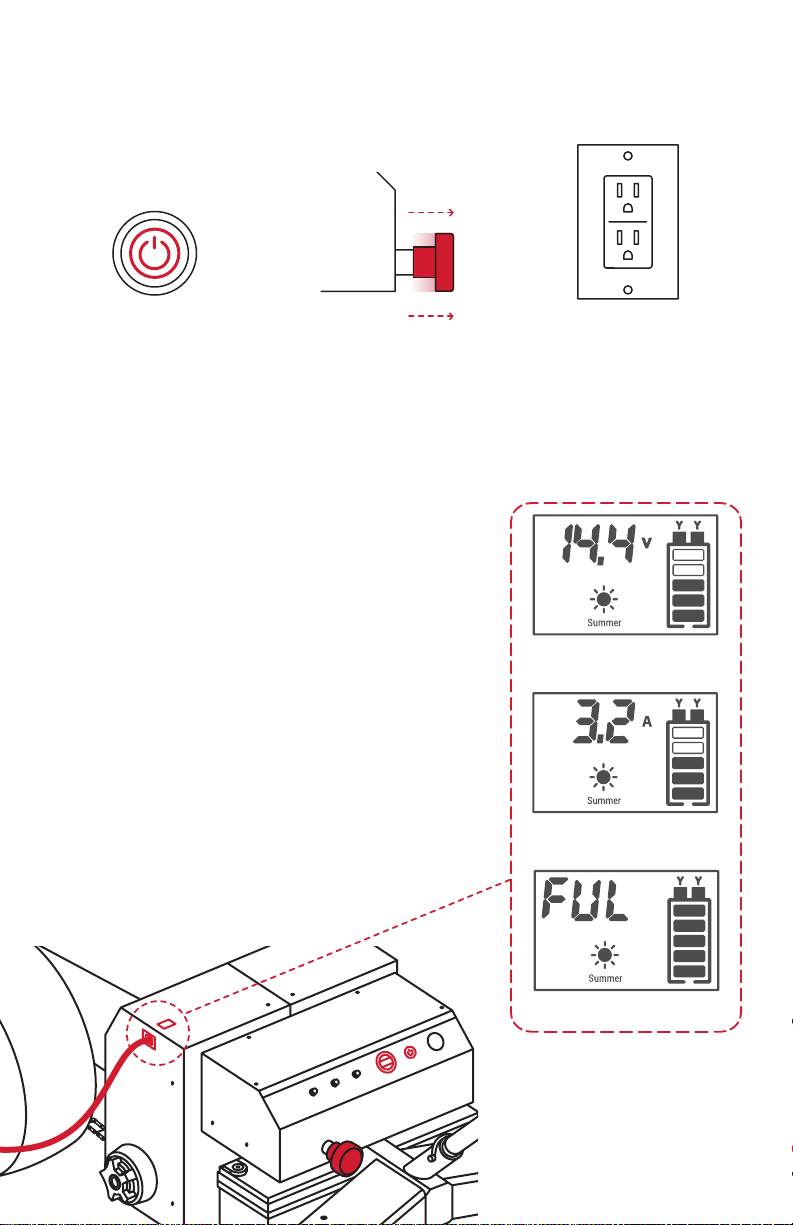

12V BATTERY CHARGING
CHARGER DISPLAY
Shows Charge Level of Battery when
connected to a 120V power outlet.
While charging, the display alternates between
Charging Amperage and Voltage. The battery
graphic shows the % complete.
When charging is complete, FUL is displayed
and the battery graphic is completely lled:
Get an Error Code? (ERR) Check the terminal
connections and Dolly plug to ensure they are
properly connected.
Get a Repair Code? You may have a faulty
battery. Please call us to order a replacement!
PULL OUT
Ensures Batteries are connected.
Monitor charger display
above charger plug.
POWER OFF
Press and hold for
2 seconds to turn the
Transformer Dolly OFF.
PLUG IN
Plug the Charger Cable
into the Dolly, then into
the nearest wall outlet.
PREPARING THE DOLLY
CHARGING VOLTAGE
CHARGING AMPERAGE
BATTERY FULLY CHARGED
7

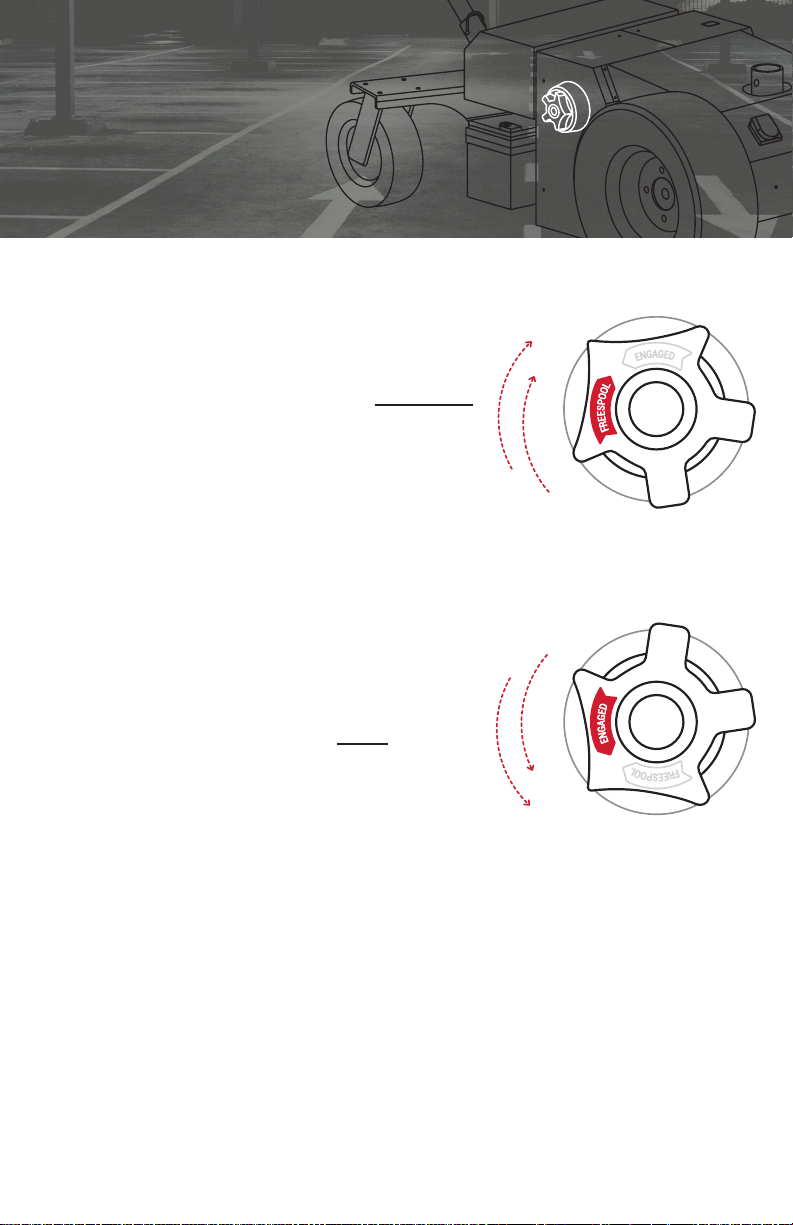

FREEWHEEL/SPOOL
NEUTRAL. MOVE THE DOLLY WITHOUT
POWER WHILE IT IS NOT UNDER LOAD.
Turn both of the Transformer’s motor knobs in the
direction of the Freespool arrow until it stops. Freely
move the Dolly to and from the trailer in this mode.
DRIVE
ENGAGE THE MOTORS TO CONNECT TO
THE TRAILER AND PARK WITH POWER.
Ensure the Dolly is in parking position underneath the
trailer hitch.
Turn both of the Transformer’s motor knobs in the
direction of the Engaged arrow until it stops and clicks
into position. Rock the Dolly back and forth to ensure
the motor is engaged.
Use the wireless controller to move the Dolly.
When pushed manually in this mode, the Dolly will only
move an inch forwards or backwards before stopping.
FREEWHEEL KNOBS:
SWITCHING GEAR
8
DANGER
DO NOT EXCEED DOLLY’S
MAX. WEIGHT CAPACITY
CAN CAUSE DAMAGE TO YOUR TRAILER,
SERIOUS INJURY, OR EVEN DEATH.
INSTALL UNIVERSAL
STABILIZER BARS
BEFORE MOVING TRAILER
CHOOSE A COMPATIBLE TRAILER CONNECTION POINT ON
THE TRAILER’S KINGPIN BOX, OR LANDING LEGS.
DO NOT OPERATE ON
MORE THAN 4% GRADE
RISK OF RUNAWAY TRAILER.
DO NOT OPERATE ON STEEP INCLINES.
FIFTH WHEEL / KINGPIN
UP TO 15,000 LBS GROSS
(3,000 LBS TONGUE)
GOOSENECK
UP TO 12,000 LBS GROSS
(1,500 LBS TONGUE)
9
