PARKIT360 TRANSFORMER 15K User manual
READ CAREFULLY
BEFORE OPERATION
IMPROPER USE OF THIS DOLLY CAN
CAUSE DAMAGE TO YOUR TRAILER,
PERSONAL INJURY OR EVEN DEATH. DANGER
INSTRUCTION MANUAL
VERSION 3.8
TRANSFORMER 15K

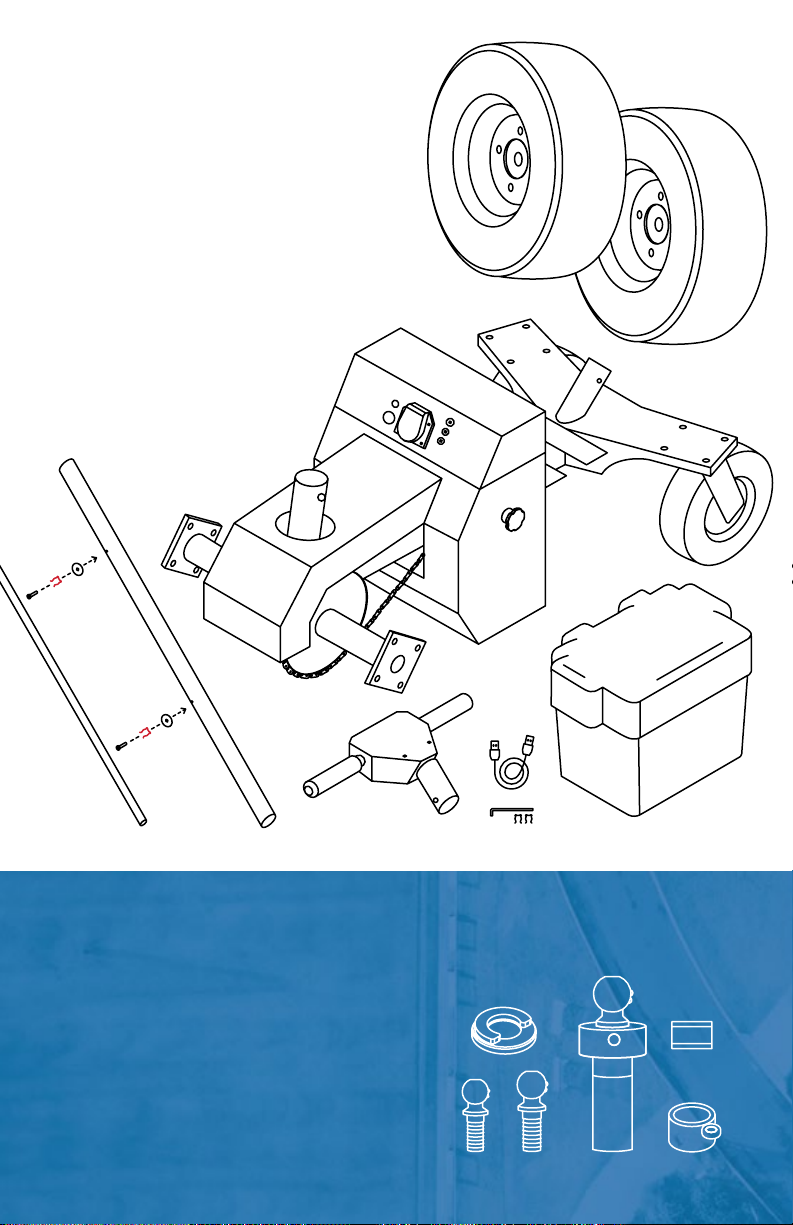

IN THE BOX
TRANSFORMER
PACKAGES INCLUDE:
Transformer Dolly Body
Two 6.5” Wide Tires
Handle Shaft & Tightening Bar
Battery Box (Battery NOT Included)
Wireless Controller & USB Cable
Hardware Kit:
• 2 Handle Spring Clips
• Allen Key
BALL MOUNT ADAPTER
PACKAGE INCLUDES:
Ball Mount & Thrust Washer
1 Torsion Loop with Ratchet Straps
1 Spacer Plate (see page 9)
1
FIFTH WHEEL ADAPTER
PACKAGE INCLUDES:
Kingpin Adapter
U Shaped Locking Pin with D-Clip

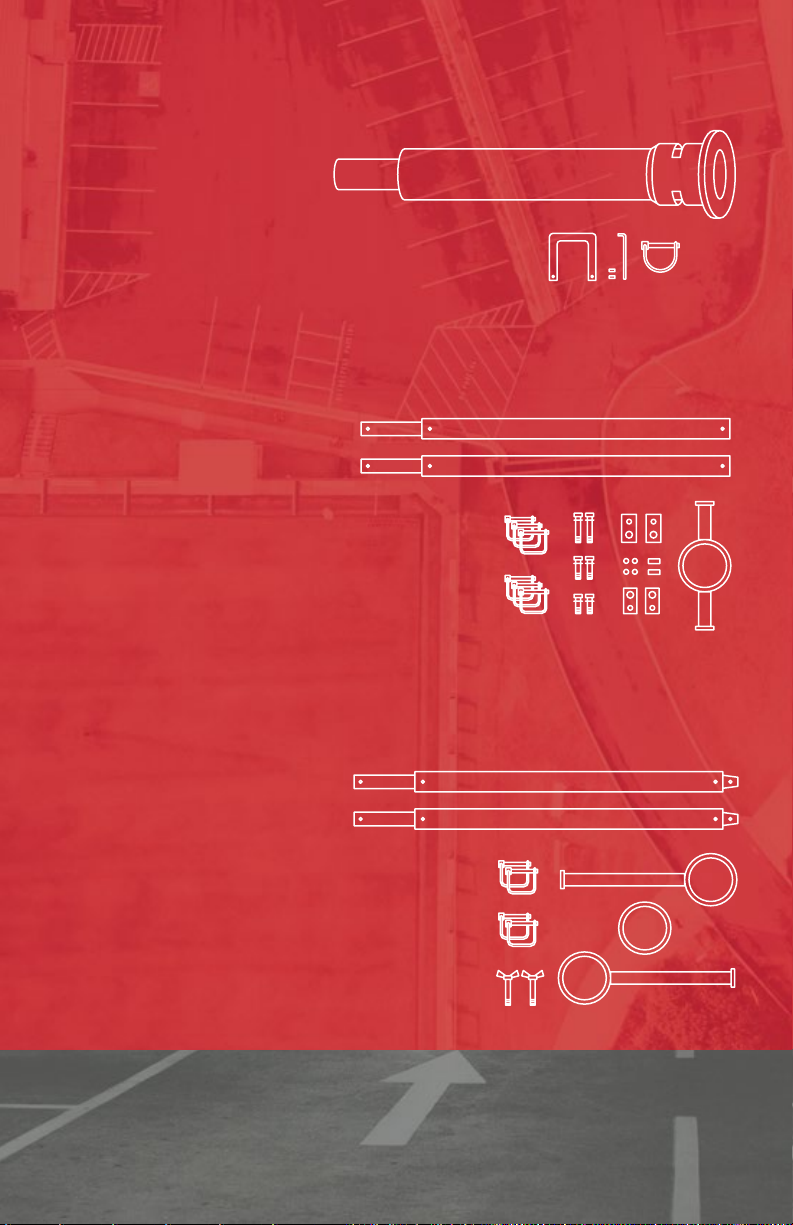

STABILIZER BARS
KINGPIN BOX PACKAGE:
1 Mounting Ring Tube
Hardware:
• 6 Square D-Clips
•
•
•
•
• 4 Flat Washers
LANDING LEG PACKAGE:
1 Support Ring
Hardware:
• 4 Square D-Clips
• 2 Bolts
• 2 Wing Nuts
QUESTIONS? CALL TOLL-FREE:
1-888-926-5517 ext.1 or 4
2

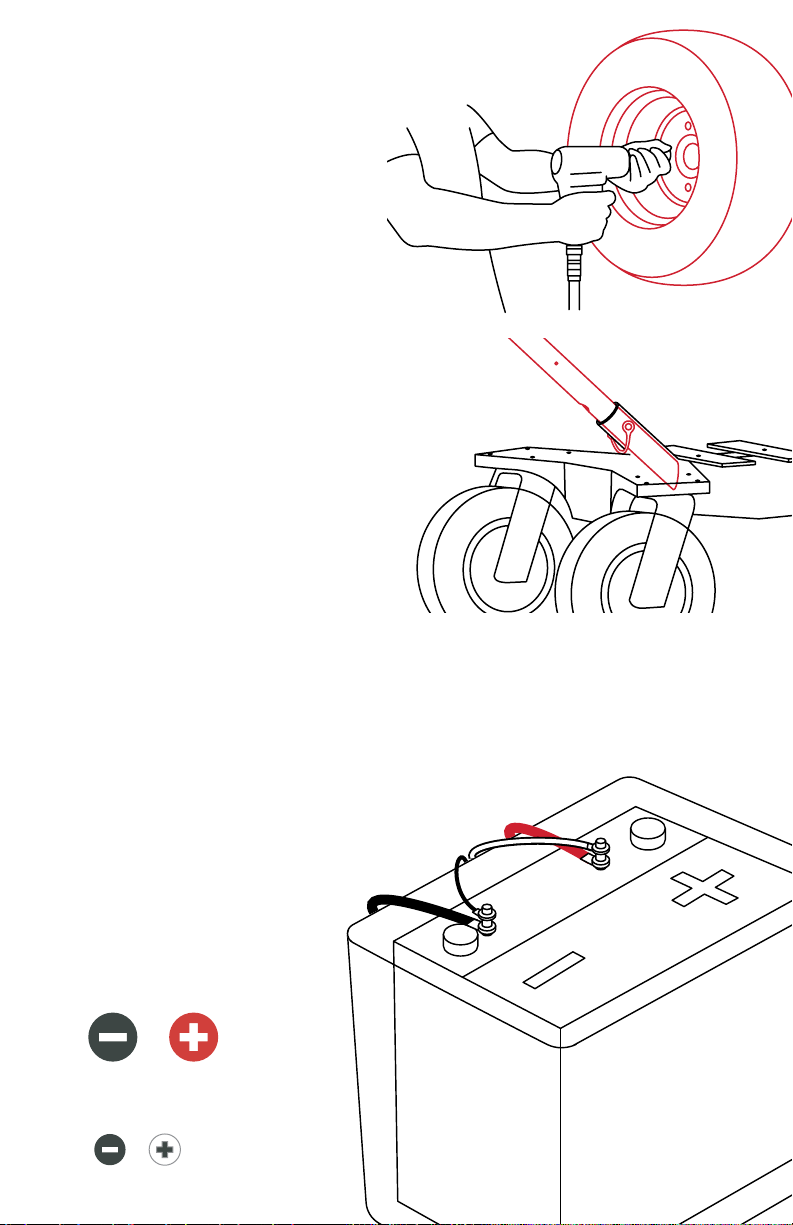

12V BATTERY
or Marine Battery into the Battery Box.
Batteries NOT included.
Available at most Hardware Stores.
Connect the Battery and Charger
cables to the Terminals:
BATTERY CONNECTION
BATTERY CABLES
BATTERY CHARGER
ASSEMBLY
6.5” WIDE TIRES
HANDLE & TIGHTENING BAR
Handle to store the Tightening Bar.
WIRELESS CONTROLLER
3

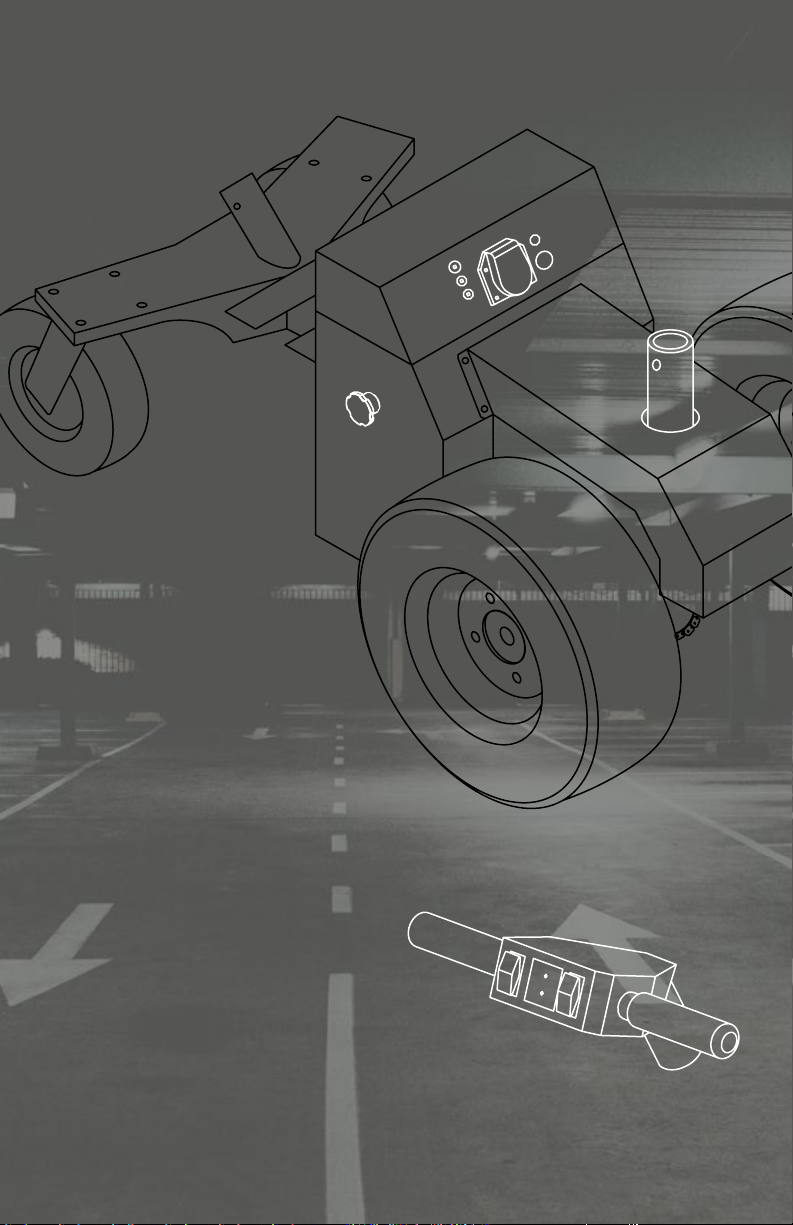

FEATURES
DUAL MOTORS
The Transformer wheels are powered
independently by Two 1.5hp Motors.
FREEWHEEL KNOBS
Engage or Disengage Both Motors to
(See page 8)
BATTERY CHARGER
into a Wall Socket. Stops charging
automatically when charger is full.
SMART BRAKE
7-Way Power Plug that Controls
the Trailer’s Electric or Surge Brakes.
(See page 5)
RECEIVER TUBE
Connect to the Trailer with either the
Ball Mount or Kingpin Adapter.
VOLT METER
Digital Meter that measures and
(See page 5)
WIRELESS CONTROLLER
Control the Dolly wirelessly from
(Setup - Page 6)
(Operation - Page 7)
4

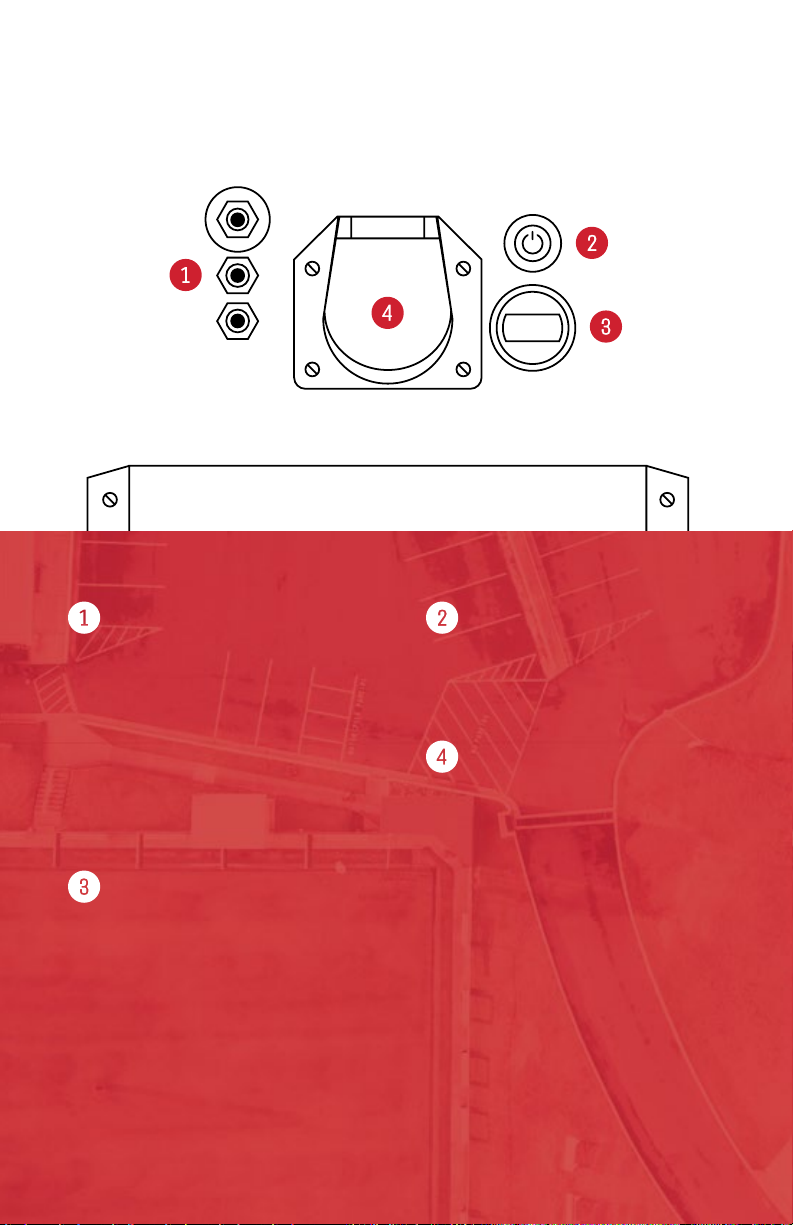

MODULE FEATURES
POWER ON/OFF
VOLT METER
Digital Meter that measures and
CIRCUIT BREAKERS
the Reset Button will extend up to
SMART BRAKE
7-Way Power Plug that Controls
the Trailer’s Brakes.
Electric Brakes (RV Trailers):
Engages brakes when the Dolly is
Releases when the directional
toggle switch is pushed.
Surge Brakes (Boat Trailers):
Releases the brakes as soon as
the plug is connected to the Dolly.
QUESTIONS?
1-888-926-5517
ext. 4 or 1
5
SET UP
Battery and Charger cables into the
USB CABLE
standard USB Phone Charger.
Due to Shipping Regulations, the lithium
battery is only charged up to 30% capacity.
WIRELESS
CONTROLLER
CHARGING

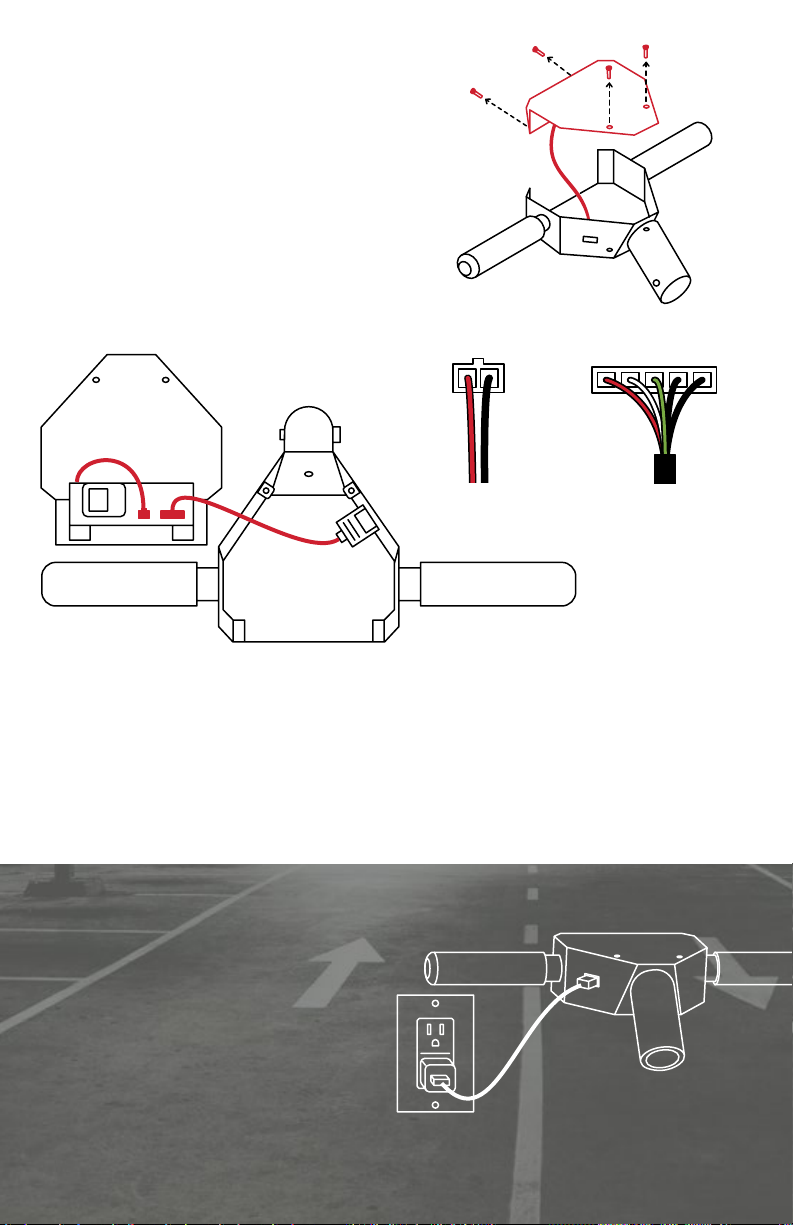

Battery Cable:
White Connector, 2 wires. There is
a notch on the top to ensure proper
polarity. Align this with the Notch
label written on the circuit board.
Charger Cable:
Black Connector, 5 wires. Align the
Red wire with the Red label written
on the circuit board. Controller
light will illuminate.
BATTERY USB CHARGER
6
WIRELESS SYNC
FORWARD FORWARD
REVERSE REVERSE
BATTERY CHARGE
LEFT WHEEL RIGHT WHEEL
All directional terms are from the
CONTROLLER
OPERATION
three-position rocker switches. Both switches may be operated
SLEEP MODE
The wireless system will go to sleep
up again when one of the Rocker
Switches is pushed.
WIRELESS SYNC LIGHT
Steady Light:
Wireless Connection Successful.
Slow Blink:
Fast Blink:
Controller Battery Low. Recharge.
FORWARD
(BACK UP TRAILER)
REVERSE
(TOWARDS USER)
7

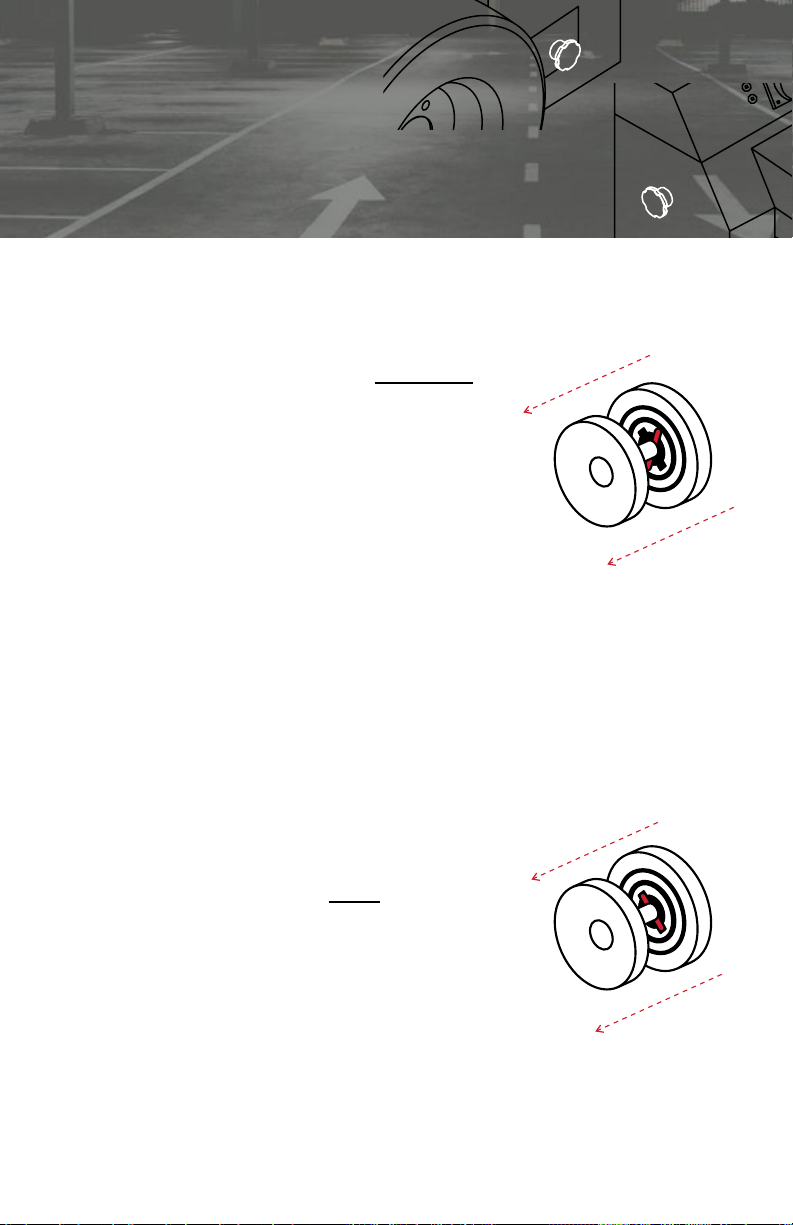

FREEWHEEL
NEUTRAL. MOVE THE DOLLY WITHOUT
POWER WHILE IT IS NOT UNDER LOAD.
backwards before stopping.
Rock the Dolly so the wheels rest in between
these two stop points. Pull on the Knob and turn
it clockwise. Rest the small pin on the outer
Repeat this on the other side of the Dolly.
ENGAGED
DRIVE. FOR CONNECTING TO THE
TRAILER AND PARKING WITH POWER.
Ensure the Dolly is in parking position and ready
to connect to the trailer hitch.
Pull on the Knob and turn it clockwise. Align the
small pin with the corresponding slot. Rock the
Dolly back and forth. The knob will pop in with a
Repeat this on the other side of the Dolly.
REST PIN OUTSIDE
PLACE PIN INSIDE
DRIVE MODES:
FREEWHEEL KNOBS
8
WHAT IS IT FOR?
The Spacer Plate is only used with
the Ball Mount Connection
in motion.
INSTALLATION
Chain Cover
to access the Receiver Tube.
Bolt found at the base of
Lay the Spacer Plate between the
Receiver Tube Brackets with the
notches facing down.
COMES PRE-INSTALLED
IN BALL MOUNT ONLY
TRANSFORMER PACKAGE.
DO NOT USE
WITH FIFTH WHEEL
ADAPTER.

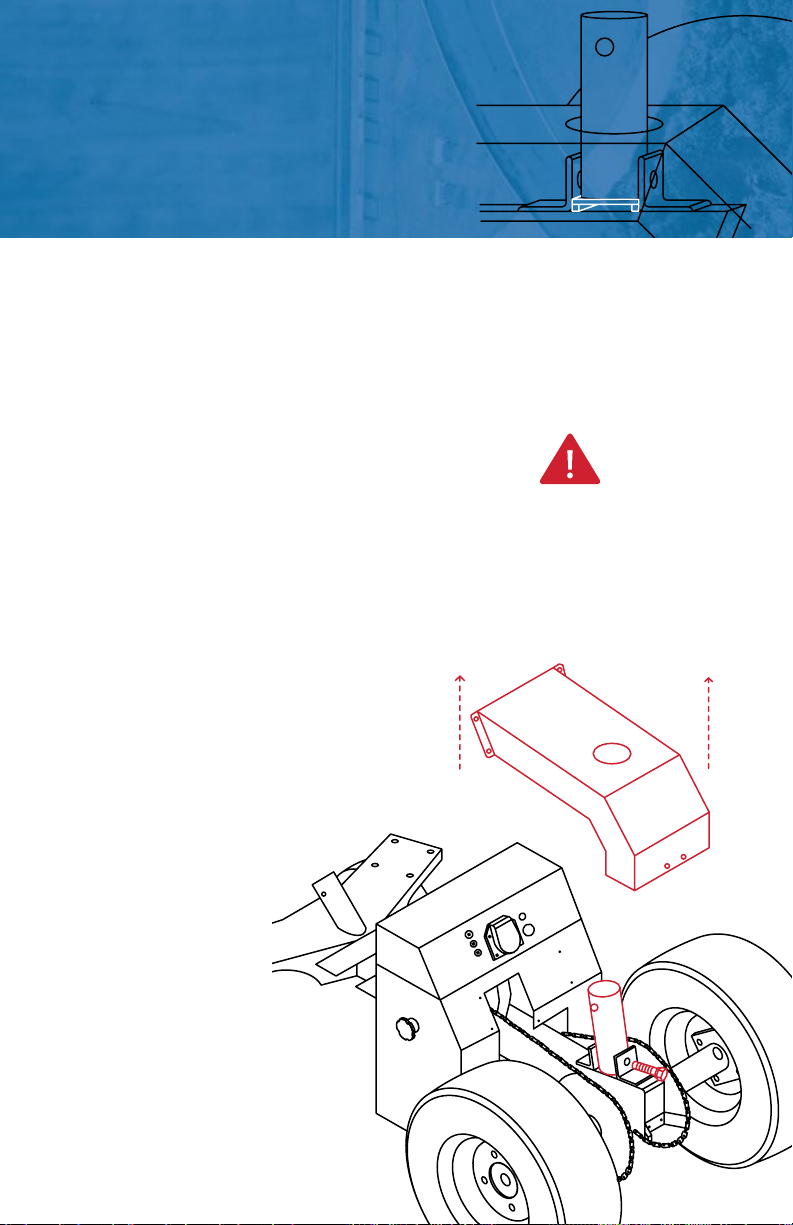

REMOVE THE
CHAIN COVER.
INSTALL THE
SPACER PLATE
UNDERNEATH THE
RECEIVER TUBE.
BALL MOUNT:
SPACER PLATE
9
