Parkinson Cowan CSIG 317 Quick start guide
Owners handbook
and
Installation Instructions
CSIG 317
Introduction
This gas cooker has been designed and manufactured to all the
necessary British Standards. It also carries the C.E. mark. The cooker
complies with European Council Directive 90/396/EEC.
It is important that you understand how to use and care for the
cooker properly before you use it for the first time.
We have written this booklet with your safety in mind. Read the
booklet thoroughly before you use the cooker. Keep the booklet in a
safe place so that anyone who uses the cooker can read it. Pass the
booklet on with the cooker if you give or sell it to someone else.
We have included several drawings to show the right and wrong way
of doing things.
The right way will have a smiling face by it.
A sad face shows something is wrong.
Do not remove the rating plate from the cooker as this may
invalidate the guarantee.
2
C S I G 3 1 7
For your safety
The cooker is designed for domestic use to cook food. You must
not use it for any other purpose. It is not designed for commercial
use.
Keep children, babies and toddlers away from the cooker at all
times.
The installation instructions tell you how and where it can be
fitted. If the cooker is already installed you must make sure that
all instructions have been followed. If you are in any doubt ask a
registered person. More details on installation on page 29.
Introduction
Contents
Lighting the cooker 4
The grill 7
The hotplate 10
The ovens 13
Oven cooking chart - main oven 16
- second oven 19
Slow cooking 22
Care and cleaning 24
Installing the cooker 29
General information 31
What is wrong and why? 33
Servicing 35
Installation instructions 37
Technical data 38
Safety requirements/ventilation 39
Location of appliance 40
Pressure testing 42
Notes 44
Contents Check List 46
3
C S I G 3 1 7
Contents
Page
Contents
Lighting the cooker
The ignition system works by means of a battery. Details on how to
replace the battery are given on page 31.

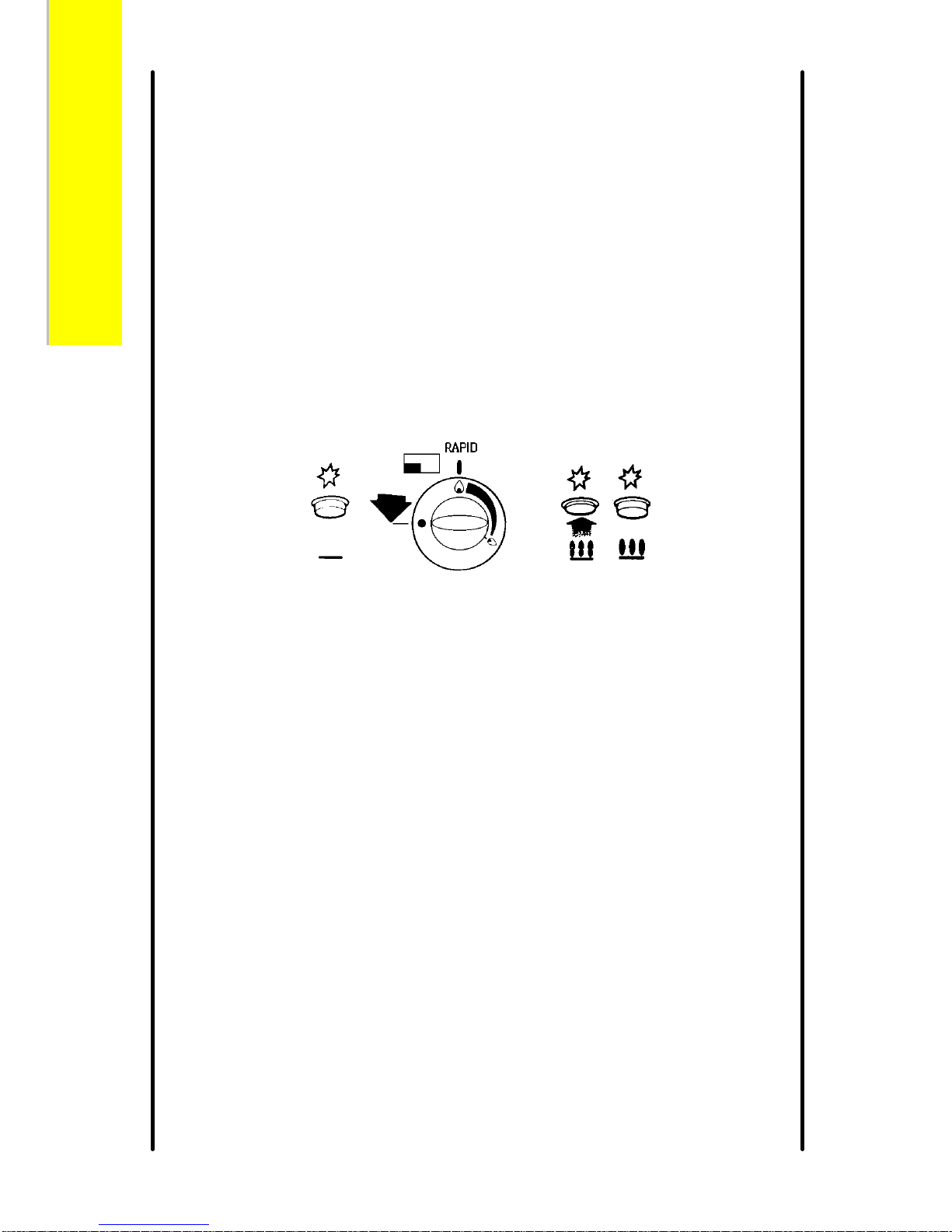

Hotplate
To light
Push in the control knob and turn to the large flame symbol (highest
setting), and press the ignition button immediately. When the burner has
lit release the button.
Warning: If the ignition button is not pressed immediately a build up of
gas may cause the flame to spread.
4
C S I G 3 1 7
Lighting the cooker

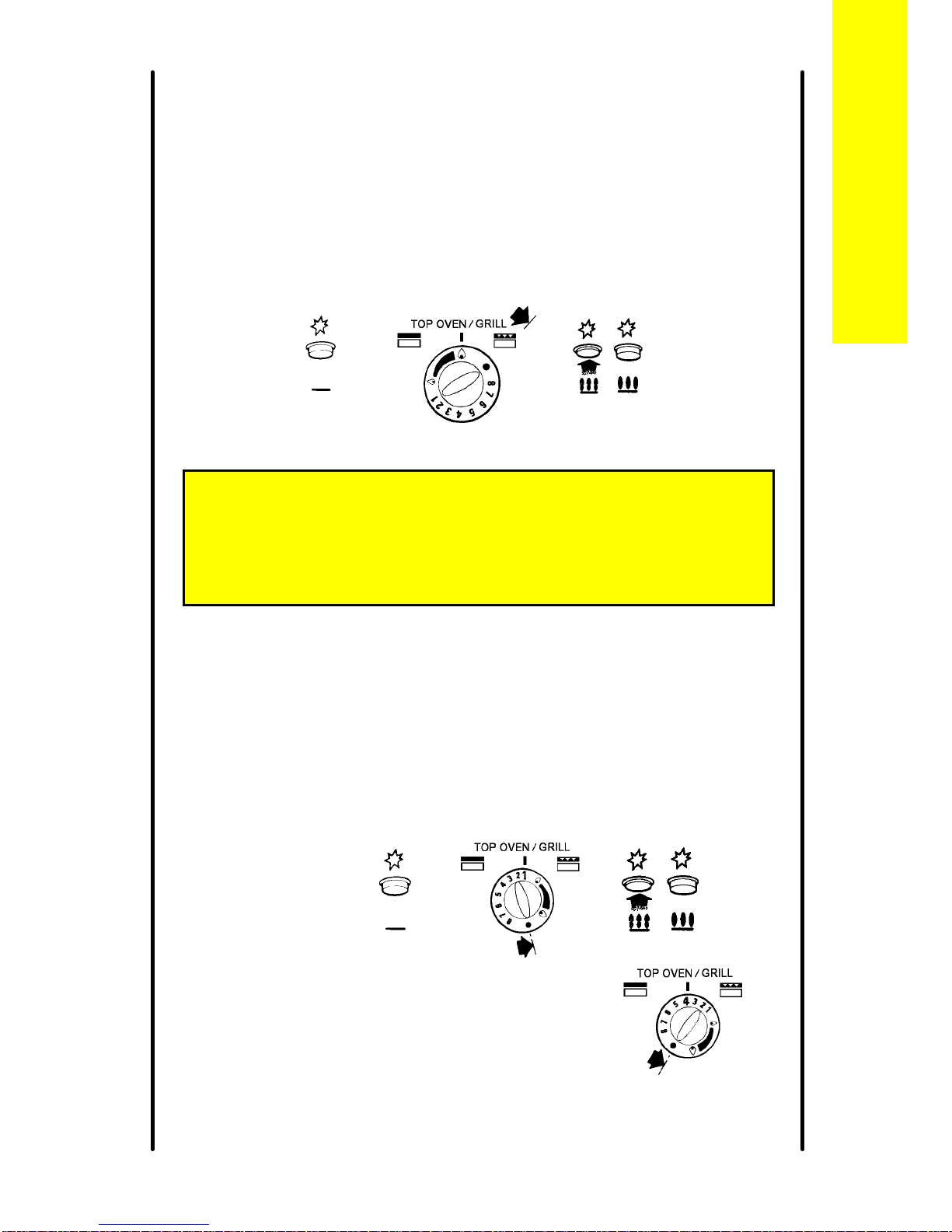

Grill/second oven
The grill and the second oven are operated by the same control so you
cannot use them both at the same time.
Grill
To light:
1 Open the door.
2 Push in the control knob and turn it to the right to the large flame
symbol (highest setting), press the ignition button immediately. When
the burner has lit release the button.
3 Leave the grill door open when you are using the grill.
Warning: If the ignition button is not pressed immediately a build up of
gas may cause the flame to spread.
Second oven
To light:
1 Open the oven door.
2 Push in the control knob and turn it to the left to gas mark 1. Press
the ignition button immediately. When the burner has lit release the
button. There will only be small flames at first.
3 Now turn the control knob to the
gas mark you want.
4 Wait until the burner is showing
large flames.
5 Close the oven door.
Important: Remember to remove the grill pan handle before you use
the second oven.
5
C S I G 3 1 7
Lighting the cooker
For your safety
Never cover the grill pan or grid with foil as this can lead to grill
fires
Main oven
To light:
1 Open the oven door.
2 Push in the control knob and turn it to gas mark 9, and press the
ignition button immediately. When the burner has lit release the
button. There will only be small flames at first.
3 Now turn the control knob to the
gas mark you want.
4 Wait until the burner is showing
large flames.
5 Close the oven door.
To turn off any burner
1 Push in the control knob and turn it to the off position. This is shown
by a large dot.
6
C S I G 3 1 7
Lighting the cooker
For your safety
When you are lighting any burner check that it has lit before you
leave the cooker.
When you are turning off a burner, do not leave the cooker until
the flame has gone out.
The grill
The grill is a high-speed grill. The instructions below tell you how to vary
the heat setting and how to change the height of the grid to suit the food
you are cooking. You should remember to turn the food regularly.
You should not use the grill to keep food warm as it will continue to
cook the food.
Heat control
The grill control has two heat
settings.
The control knob turns to the
right from 'OFF' to 'HIGH' and then
to 'LOW'. Use the high setting for
fast cooking such as toast. Use the
low setting to cook thicker food such
as chicken after you have browned
it on the high setting.
Cooking positions
There is only one position for the
grill shelf.
Most food should be cooked on
the grid in the grill pan. You can turn
the grid over to suit different
thicknesses of food.
You can place some dishes
straight onto the grill shelf. This is
useful when you are browning the
top of food such as cauliflower
cheese.
7
C S I G 3 1 7
The grill
For your safety
You must keep the grill door open when the grill burner is lit.
Caution
Accessible parts may be hot when the grill is used. Young
children should be kept away.
Never cover the grill pan or grid with foil as this can lead to
grill fires.
General
The shelf in the grill/second oven is different from the shelves in the
main oven. It is important that you do not swap them over. Only use the
shelf with the solid metal plate underneath it in the grill/second oven.
When you are not using the grill you should remove the handle and
store the pan on the shelf in the grill. Turn the grill burner off before you
store the pan. Remember that the pan will get hot when you are using
the main oven.
You can use the grill compartment to warm plates when you are
using the main oven.
Preheating
You don't usually need to preheat the grill. You may wish to preheat it for
a couple of minutes when you are cooking steak or browning food.
Positioning food on
the grid
Place food such as toast, tea-cakes
and muffins towards the centre of
the grid.
Place food which needs a gentle
heat, such as tomatoes and
mushrooms towards the edge of the
grid.
Arrange meat, meat products
and fish to suit their thickness and
how you like them cooked.
8
C S I G 3 1 7
The grill

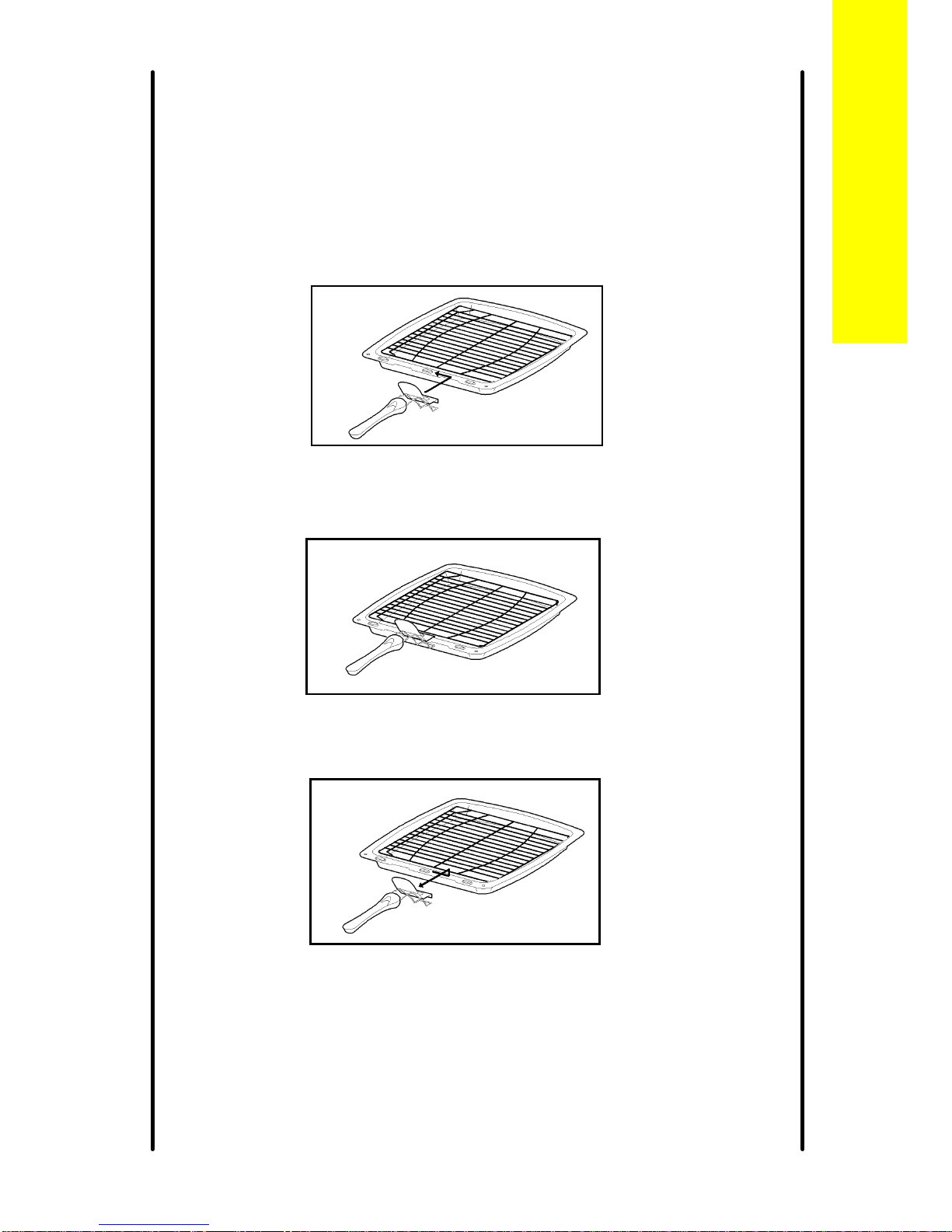

The grill pan and handle
The grill pan is supplied with a removable handle.
To attach the handle, place the wirework under the cut out in the pan so
that the metal plate hooks over the top of the grill pan.
Slide the handle to the left and over the central bump on the grill pan.
Ensure the handle is correctly located. It is not necessary to
remove the grill pan handle during grilling.
Place the grill pan on the shelf so that the pan is positioned centrally
beneath the grill.
To remove the handle, slide the handle to the right and lift the handle
away from the cut out on the grill pan.
Note
If you require an additional handle for your grill pan, this can be ordered
from your local Service Force Centre by quoting part number
311479800\6.
9
C S I G 3 1 7
The grill
The hotplate
If you have any trouble lighting a hotplate burner, turn all hotplate control
knobs off and make sure that the burner parts have been replaced
correctly. Now light the burner in the usual way. See page 25 for more
detailed information.
Heat control
The hotplate control knobs turn
anticlockwise from 'OFF' to 'HIGH'
and then to 'LOW'. You can adjust
the heat by turning the control
between the highest and lowest
settings. These are shown as a
large and a small flame symbol.
Burner sizes
The hotplate has three burner sizes
to suit different types of cooking:
Largest burner (Rapid) - use a large
pan for food such as chips.
Medium burners (Normal) - use for
everyday cooking.
Small burner (Simmer) - use for
simmering food such as soups and
stews.
The largest pan which you should use on any burner is 230mm (9"). The
base of the smallest pan should not measure less than 100mm (4").
10
C S I G 3 1 7
The hotplate
