Parker IQAN-LC5-C02 User manual

FAILURE OR IMPROPER SELECTION OR IMPROPER USE OF THE PRODUCTS AND/OR

SYSTEMS DESCRIBED HEREIN OR RELATED ITEMS CAN CAUSE DEATH, PERSONAL

INJURY AND PROPERTY DAMAGE.

This document and other information from Parker Hanniﬁn Corporation, its subsidiaries and authorized distributors provide

product and/or system options for further investigation by users having technical expertise. It is important that you analyze

all aspects of your application, including consequences of any failure, and review the information concerning the product or

system in the current product catalogue. Due to the variety of operating conditions and applications for these products or

systems, the user, through its own analysis and testing, is solely responsible for making the ﬁnal selection of the products

and systems and assuring that all performance, safety and warning requirements of the application are met.

The products described herein, including without limitation, product features, speciﬁcations, designs, availability and pricing,

are subject to change by Parker Hanniﬁn Corporation and its subsidiaries at any time without notice.

Installation IQAN-LC5-C02, -C03

master module

IQAN-LC5-C02/C03

Publ.no: HY33-8405-IS/UK

Ed. 02/2013

For further information see:

HY33-8404-IB/UK Instructions IQAN-LC5-C0x

(2004/108/EC)

100

125

-20

-40

-40 - +85°C

WARNING

Eng.no: M5036041A

Rev. C

Command

+100%

-100%

-18° 18°

Neutral

position

Axis DAC

Deflection

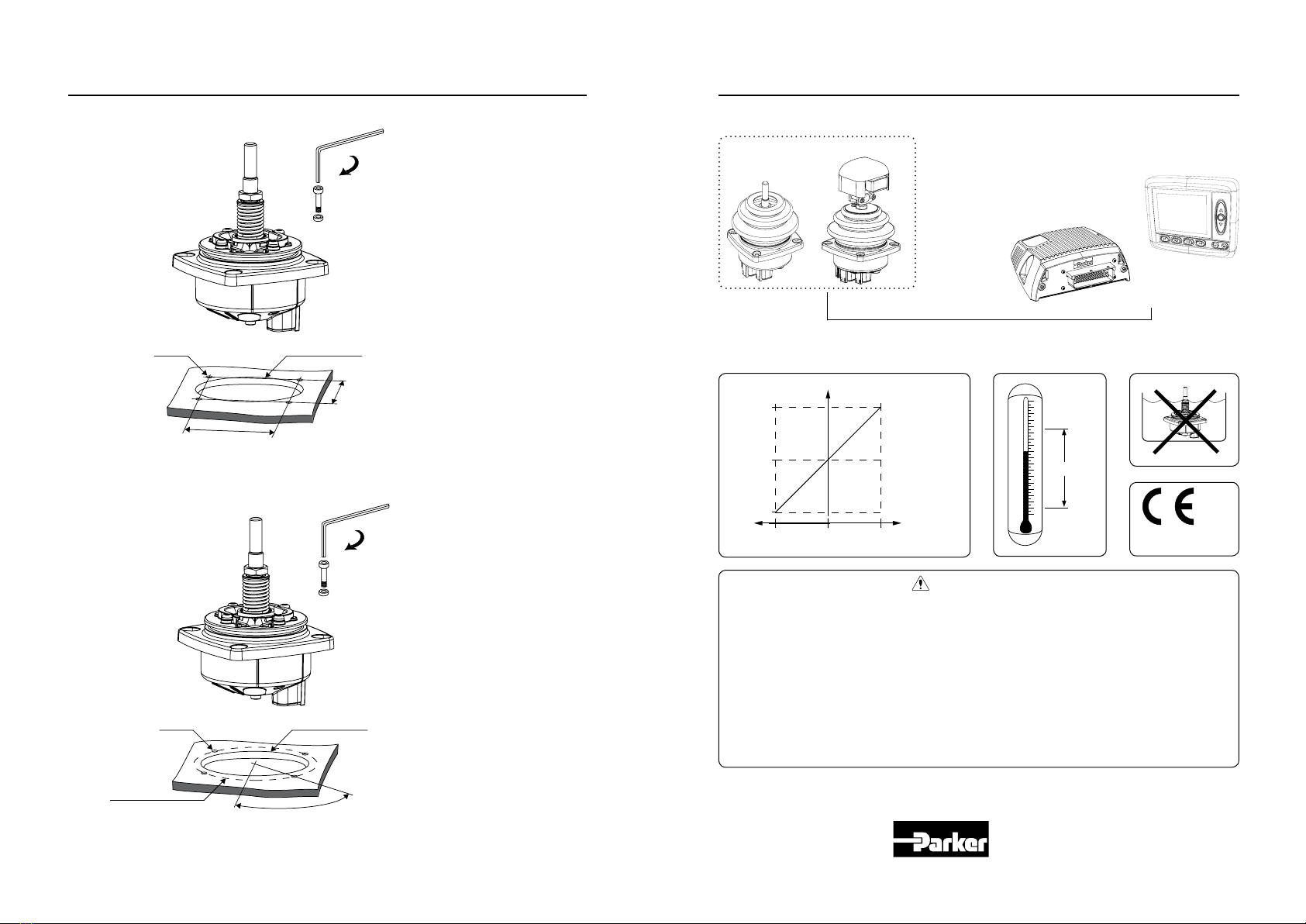

Mounting

Ø92 mm

Tt=1 Nm

Ø108 mm

45°

Ø92 mm

80 mm

Tt=1 Nm

Alternate hole dimensions

Mounting hole dimensions

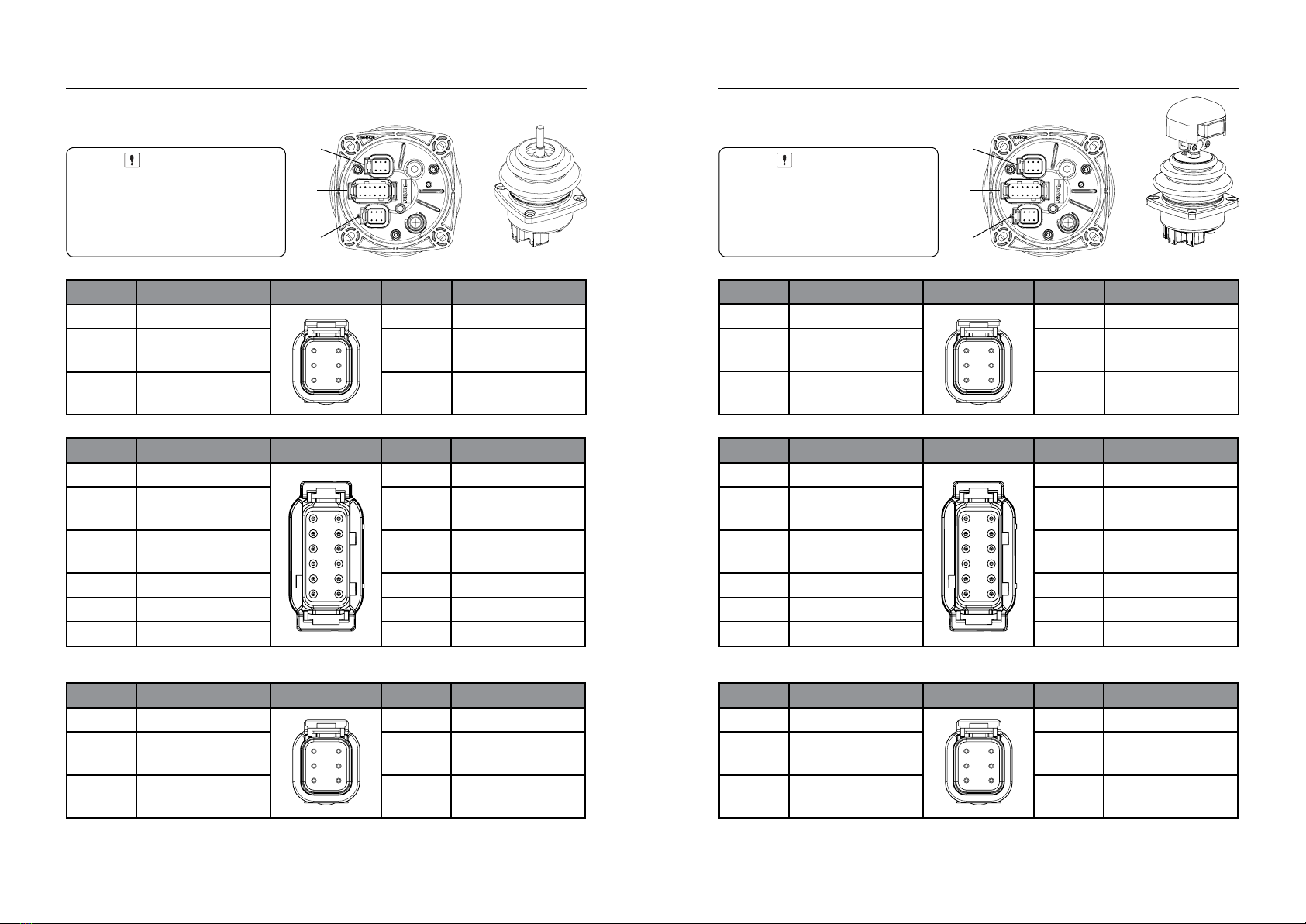

Wiring diagram, IQAN-LL-2U, -Nxx compatible

Pin Pos. Signal/Function C2 Pin Pos. Signal/Function

12 +VREF 1 -VREF

11 Not used 2 VIN-A

DIN-G**

10 DIN-F 3 VIN-B

DIN-H**

9 DIN-E 4 DIN-A

8 DIN-D 5 DIN-B

7 DOUT-A 6 DIN-C

Pin Pos. Signal/Function C1 Pin Pos. Signal/Function

6 +BAT (12/24Vdc) 1 GND

5 CAN-H 2 CAN-L

4 ADDR-H 3 ADDR-L

Pin Pos. Signal/Function C3 Pin Pos. Signal/Function

6 +VREF 1 -VREF

5* DIN-L

(DIN-J)

2* DIN-I

(DIN-G)

4* DIN-K

(DIN-I)

3* DIN-J

(DIN-H)

12 11 10 9 8 7

NOTICE

Connectors must be properly installed

to meet environmental speciﬁcation.

• Sealing plugs must be inserted in

all unused pin positions.

• All connectors must be installed.

Mating connectors kit: 5035007 * IQANdesign/(IQANdevelop) internal

channels, not used on IQAN-LL-2U

** used in IQANdesign only.

Wiring diagram, IQAN-LL-3G compatible

Pin Pos. Signal/Function C2 Pin Pos. Signal/Function

12 +VREF 1 -VREF

11 Not used 2 VIN-A

DIN-G**

10 DIN-F 3 VIN-B

DIN-H**

9 DIN-E 4 DIN-A

8 DIN-D 5 DIN-B

7 DOUT-A 6 DIN-C

Pin Pos. Signal/Function C1 Pin Pos. Signal/Function

6 +BAT (12/24Vdc) 1 GND

5 CAN-H 2 CAN-L

4 ADDR-H 3 ADDR-L

Pin Pos. Signal/Function C3 Pin Pos. Signal/Function

6 +VREF 1 -VREF

5* DIN-L

(DIN-J)

2 DAC-ZP

4* DIN-K

(DIN-I)

3 DAC-ZS

12 11 10 9 8 7

NOTICE

Connectors must be properly installed

to meet environmental speciﬁcation.

• Sealing plugs must be inserted in

all unused pin positions.

• All connectors must be installed.

Mating connectors kit: 5035007 * IQANdesign/(IQANdevelop) internal

channels, not used on IQAN-LL-3G

** used in IQANdesign only.

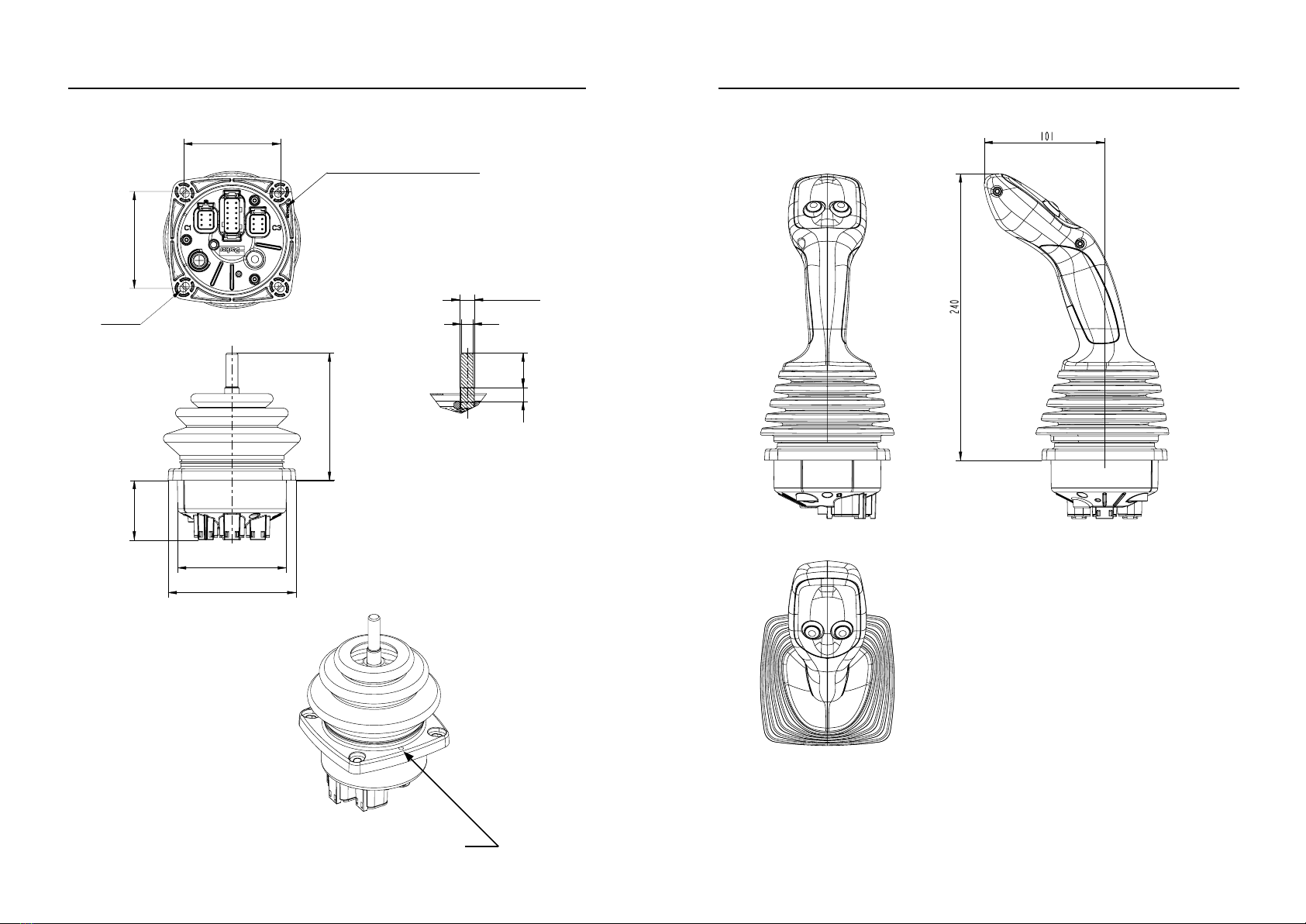

IQAN-LC5-C02-U2 IQAN-LC5-C03-G

IQAN-LC5-C02

105

49 80

Ø 6 (8x)

M12 x 1.25

(Ø 108)

Alternative mounting holes

unit = mm

stem detail

IQAN-LC5-C02

-MPB2W0T0 handle shown

(option to replace IQAN-LL-N2)

unit = mm

Y+ direction indicator

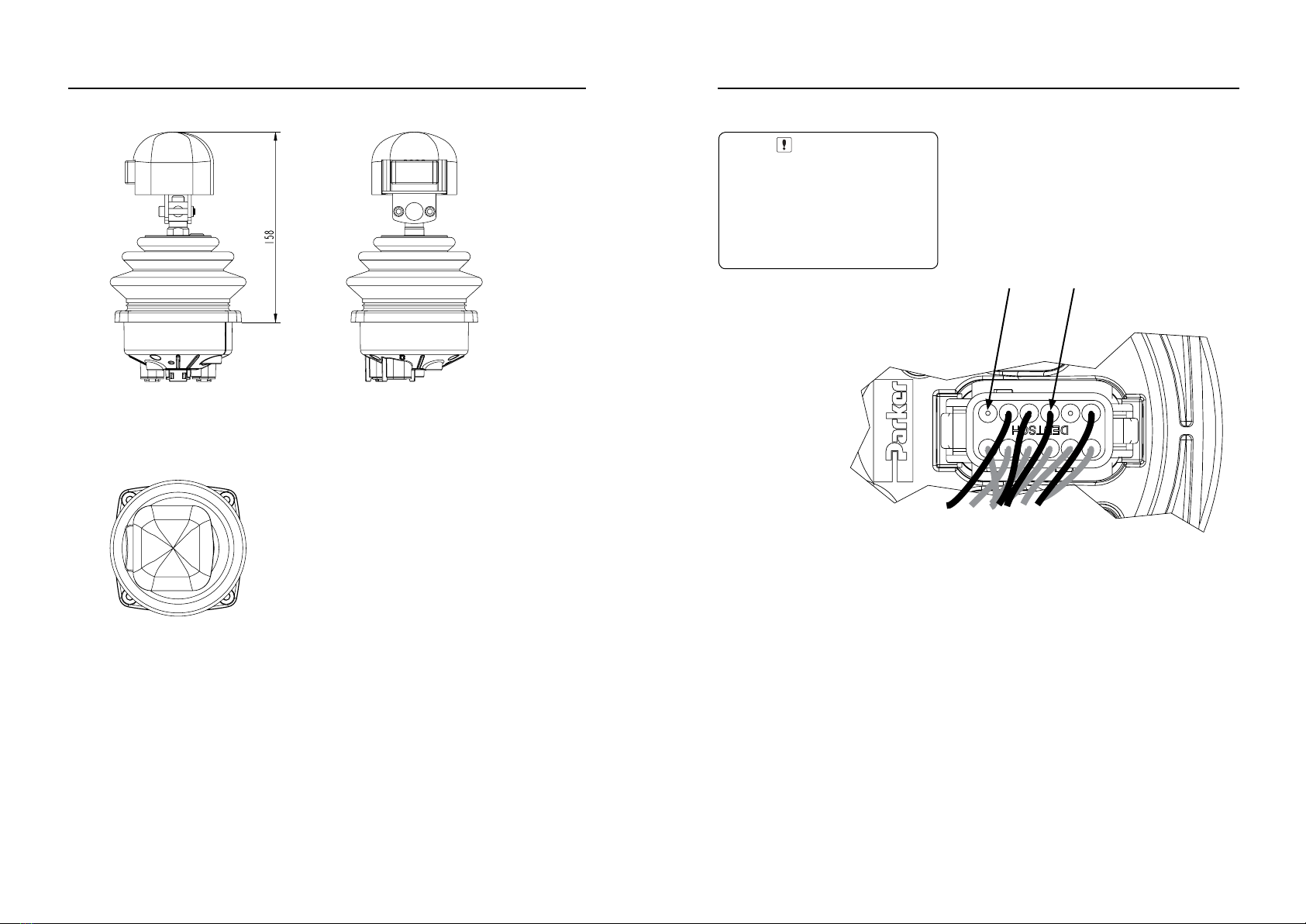

Adapter cable default connection, position C2:10, DIN-F.

Move wire to position C2:7 to get DOUT function.

NOTICE

Adapter cable 2830018 will connect

IQAN-LC5-C02 or IQAN-LC5-C03 to

an IQAN-LL harness.

• Adapter cable is conﬁgured for

use of DIN-F.

• To use DOUT, move wire in 12

pos. connector C2.

78910 11 12

C2:7

DOUT

C2:10

DIN-F

IQAN-LL adapter cable

unit = mm

IQAN-LC5-C03-G

-G handle
