HotWire Management Communications Controller (MCC) Card

Installation Instructions

Document Number 8000-A2-GN11-10

June 1997

What is an MCC Card?

A Management Communications Controller (MCC) card is a processor circuit

card assembly (CCA) that administers and provides diagnostic connectivity to all

of the Digital Subscriber Line (DSL) cards in a HotWire 8600 or 8800 DSL Access

Multiplexer (DSLAM) chassis. It acts as a mid-level manager and works in

conjunction with a Simple Network Management Protocol (SNMP) network

management system, such as Paradyne’s DCE Manager for HP OpenView, via

its Local Area Network (LAN) port. It gathers operational status for each of the

DSL cards and HotWire Remote Termination Units (RTUs) and responds to the

SNMP requests (via PROXY ARP). It also supports a serial port for local or

remote terminal access.

!HANDLING PRECAUTIONS FOR

STATIC-SENSITIVE DEVICES

This product is designed to protect sensitive components from damage

due to electrostatic discharge (ESD) during normal operation. When

performing installation procedures, however, take proper static control

precautions to prevent damage to equipment. If you are not sure of the

proper static control precautions, contact your nearest sales or service

representative.

Package Checklist

Verify that your package contains the following:

MCC CCA

DB25 adapter and cable (14 feet in length)

Warranty card

496-15104

2 8000-A2-GN11-10

June 1997

Tools Required

Small- to medium-size flat-blade screwdriver to install the MCC card.

Technical Specifications

Specifications Criteria*

Size 10.4 inches (L) x 11.15 inches (H) x .8 inches (W)

Weight approx. 1 lb

Approvals

Safety Certifications Refer to the equipment’s label for approvals on product.

Power The MCC card contains a DC-to-DC converter that

requires –48V power input. The –48V power is

distributed through the HotWire DSLAM backplane.

Maximum Power Dissipation = approx. 8 watts

Physical Environment

Operating temperature

Storage temperature

Relative humidity

Shock and vibration

32°to 122°F (0°to 50°C)

–4°F (–20°C) to 158°F (70°C)

5% to 85% (noncondensing)

Withstands normal shipping and handling.

* Criteria of technical specifications are subject to change without notice.

Planning the MCC Card Installation

Review the following list to help plan for the installation.

Obtain the applicable cables; refer to the next section,

Cables You Need

Make sure the HotWire DSLAM chassis is installed and power is supplied to

the chassis.

Determine the type of network management you will be using to monitor and

maintain the DSL cards.

— Management via an SNMP network management system or to a remotely

connected asynchronous terminal via a telnet session over the

LAN-connected diagnostic network

— Local Network Management via a directly connected terminal console or

computer

— Remote Network Management with a remotely connected asynchronous

terminal or a remotely connected SNMP manager via a dial-up modem

8000-A2-GN11-10 June 1997

-After the MCC card is installed, there are configuration instructions that must

be performed before you can begin to use the MCC card for network

management. Refer to the

HotWire Digital Subscriber Line Access

Multiplexer (DSLAM) User’s Guide,

Document No. 8000-A2-GB20, for more

information.

Cables You Need

The following cables and connectors are used with this product:

HAn 8-pin modular CAT5 (UTP5) unshielded twisted-pair cable for connection

from the HotWire DSLAM Management MCC port to a 10BaseT hub

connector (connected to an SNMP management system network).

HA serial cable (provided with this product) for connection from the HotWire

DSLAM SERIAL port to a terminal, computer, or modem. In addition, you will

also need a:

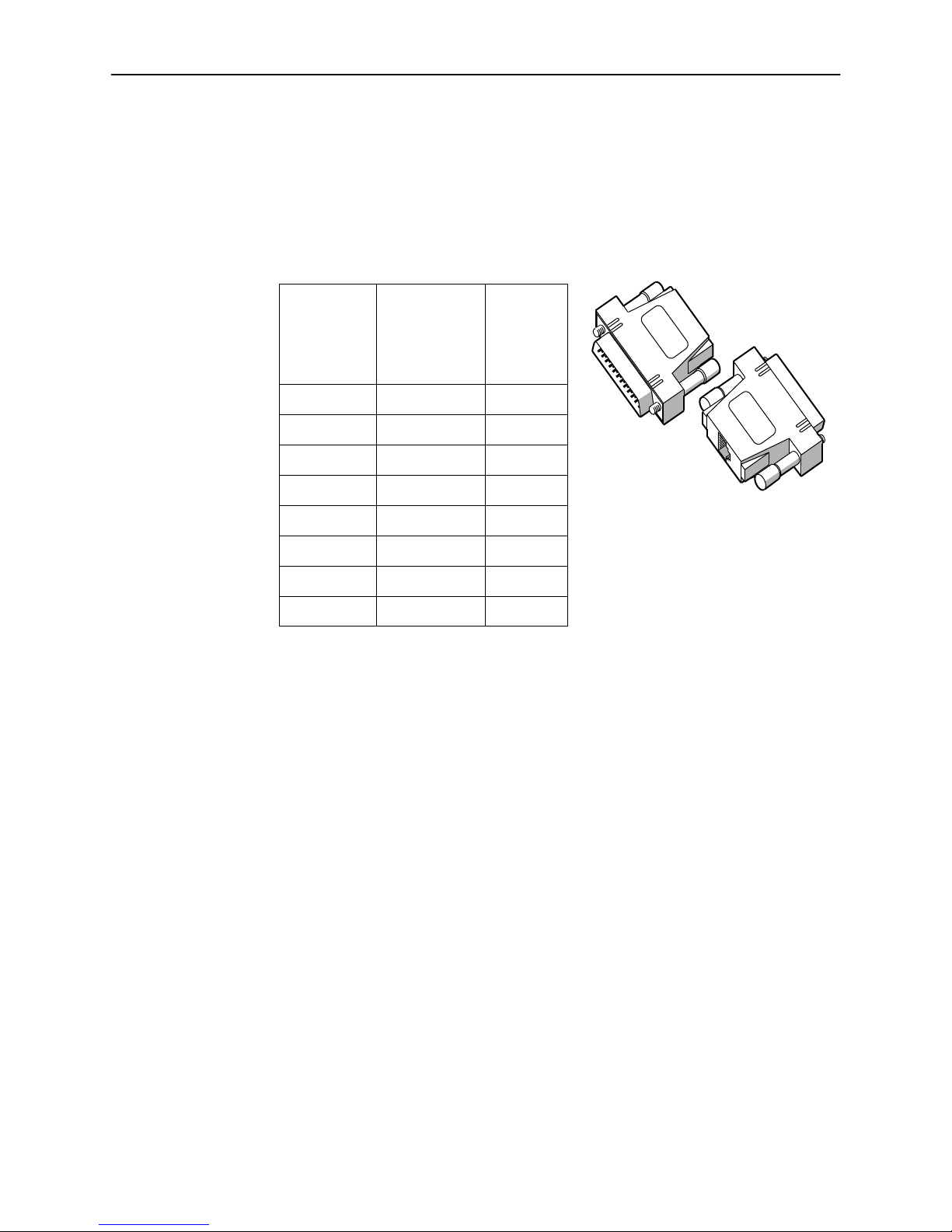

— NULL modem adapter (customer provided) and a DB25 adapter and

cable (provided with this product) when connecting to a modem, or

— DB25 adapter (provided with this product) when connecting to a terminal

or computer for local network management. If your terminal or computer

has a 9-pin serial port, you may need a (female) DB9 to (male) DB25

adapter.

If you are connecting to . . . Use an 8-pin modular . . .

Local terminal console DB25 adapter and cable.

SNMP network management system via a

10BaseT hub connector Straight-through cable.

Modem for remote management DB25 adapter, cable, and NULL

MODEM adapter.

Refer to

Pin Assignments

on page 8 for pinouts.

4 8000-A2-GN11-10

June 1997

Installing the MCC Card

When using a . . . Install the MCC card into . . .

HotWire 8600 DSLAM chassis Slot 1 of the base chassis (i.e., the chassis set at

Stack Position #1).

HotWire 8800 DSLAM chassis Slot 19.

NOTE:

You will need to remove the filler plate before proceeding to install the MCC

card.

Do not discard filler plates. Each slot in the chassis must contain a circuit

card or a filler plate to maintain the required EMI shielding and to prevent air

leakage from the forced air cooling. Air leakage could result in overheating

which may cause the power to the circuit cards to be shut off. Store all

unused filler plates in a safe place. You may need to use the filler plates to

cover open slots in the chassis at a later time.

"Procedure

To install the MCC card:

1. Remove the filler plate from the appropriate slot.

2. Insert the MCC card into the appropriate slot:

—On a HotWire 8600 DSLAM base chassis, hold the MCC card

horizontally with component side facing up and insert it into the left and

right card guides of Slot 1. Set the Stack Position Switch to position #1.

INPUT

48VDC CLASS 2 OR

LIMITED PWR SOURCE

RTN48V

AAB B

T5A

250V

SYSTEM

Alrm

Test

Col

ETHERNET

DSL PORT

RADSL

8546

97-15373-01

ETHERNET

MCC

8000

SYSTEM

Alrm

Test

Col

8000-A2-GN11-10 June 1997

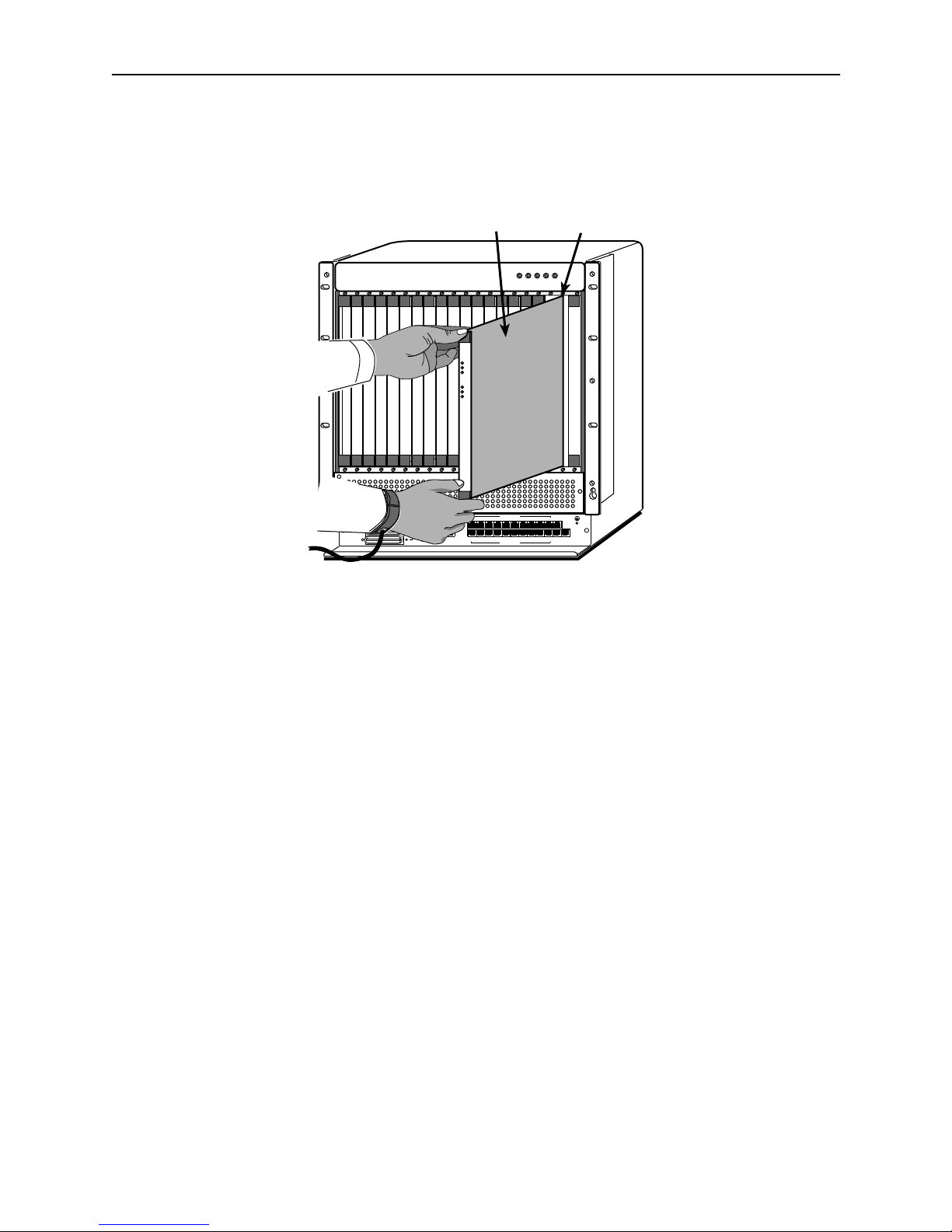

—On a HotWire 8800 DSLAM chassis, hold the MCC card vertically with

the component side facing right and insert it into the top and bottom card

guides of Slot 19.

ALARMS

Major MinorFanBA

POWER

97-15327

MGT

SERIAL

MGT

10BT ALARM

SLOTS 1 - 6

SLOTS 7-12

SLOTS 13-18

LINES

-48V (A)

-48V INPUT

-48V (B)

RET (A)

RET (B)

FR GND

246810 12 14 16 18

13579

11 13 15 17

LAN/WAN SLOT

MCC

SYSTEM

Alm

Test

ETHERNET

Coll

Slot 19MCC Card

3. Slide the MCC card into the slot. Gently, but firmly, push the card until it

properly seats in its mating connectors on the backplane.

CAUTION:

Do not force the MCC card into the slot. If it does not seat properly,

remove the card and re-install it. If it still does not seat properly, call for

service.

The MCC card performs a power-up self-test. All of the LEDs turn ON and

OFF briefly. When the self-test is completed successfully, the SYSTEM OK

LED indicator is ON (winking green).

4. Make sure the SYSTEM OK LED indicator on the MCC faceplate is ON

(green). If the LED is not ON, refer to the

Troubleshooting

chapter of the

appropriate HotWire DSLAM Installation Guide.

5. Secure the MCC card by fastening the screws on both ends of the faceplate.

6 8000-A2-GN11-10

June 1997

NOTE:

The MCC card may be replaced without disruption to user data (i.e., you can

remove and re-install the MCC card without powering down the chassis and

disrupting service to the other cards). To remove the MCC card from the

chassis, unfasten the screws on both ends of the faceplate. Then, simply

push the ejector handles outward and slide the card out.

When swapping the old MCC card with a new MCC card, it is important to

note that the HotWire DSLAM retains the Media Access Control (MAC)

address, also referred to as the physical address. This means that the new

MCC card will have the same MAC address as the old one.

Connecting to an SNMP Management System or to a

Remote Terminal via a Telnet Session

"Procedure

To connect the HotWire DSLAM chassis that contains the MCC card to an SNMP

management system or to a remote terminal via a telnet session over the

LAN-connected diagnostic network:

1. Plug the end of an 8-pin modular cable into the MANAGEMENT MCC port of

the HotWire DSLAM chassis.

2. Plug the other end of the cable into the 10BaseT hub connector to the SNMP

management system network or LAN-connected diagnostic network.

8000-A2-GN11-10 June 1997

Connecting to a Terminal or Computer for Local

Network Management

"Procedure

To connect the HotWire DSLAM chassis that contains the MCC card to a terminal

or computer:

1. Plug the 8-pin modular end of the CAT5 cable and DB25 adapter (provided

with this product) into the MANAGEMENT SERIAL port of the HotWire

DSLAM chassis.

2. Plug the other end of the cable (the DB25 interface side) into your terminal’s

(or computer’s) serial port. If your terminal or computer has a 9-pin serial

port, you may need a (female) DB9 to (male) DB25 adapter.

3. Configure your terminal or terminal emulator with the following settings:

— Baud Rate = 9600

— Data Bits = 8

— Parity = No Parity

— Stop Bits = 1

— Flow Control = XON/XOFF

— Terminal Type = vt100

Connecting to a Dial-Up Modem for Remote Network

Management

Before connecting the HotWire DSLAM chassis to a standard AT dial-up modem,

configure the modem with the following settings:

HSet the modem for auto answer. For example, ATS0=1.

HTurn off character echo. For example, ATE0.

HEnable result codes in originate mode only. For example, ATQ2.

HSet the modem to ignore Data Terminal Ready (DTR). For example, AT&D0.

"Procedure

To connect the HotWire DSLAM chassis that contains the MCC card to a

remotely connected asynchronous terminal or a remotely connected SNMP

manager via a dial-up modem:

1. Plug the 8-pin modular end of the CAT5 cable and DB25 adapter (provided

with this product) into the MGT SERIAL port of the HotWire DSLAM chassis.

97-15449

Pin 1 Pin 8

8 8000-A2-GN11-10

June 1997

2. Plug the other end of the cable into your modem’s serial port using a DB25

(RS-232 male) adapter and a NULL MODEM .

The following illustration shows the cable connection from the HotWire 8800

DSLAM to a dial-up modem:

97-15390

MGT

SERIAL

MGT

10BT ALARM

246810 12 14 16 18

1357911 13 15 17

LAN/WAN SLOT 20

LAN/WAN SLOT

Management Serial

Dial up

Modem

DB25

Adapter Null

Modem

Pin Assignments

8-Pin Modular Connector for MCC Management 10BaseT Connection

On a

HotWire 8600 DSLAM or HotWire 8800 DSLAM – the 8-pin modular

connector for the MCC Management 10BaseT Ethernet connection has the

following pin assignments:

Pin Number Use

1TX Data +

2TX Data –

3RX Data +

4 Reserved

5 Reserved

6RX Data –

7 Reserved

8 Reserved

97-15449

Pin 1 Pin 8

97-15321

Pin 1 Pin 8

MGT

SERIAL

8000-A2-GN11-10 June 1997

8-pin Modular Management Serial Connector for Asynchronous

Terminal Interface

On a HotWire 8600 DSLAM – the serial connector for an asynchronous terminal

interface (DCE type) has the following pin assignments:

NOTE:

The serial port is active only on the base 8600 chassis.

Pin Number Function

1 Reserved

2 Reserved

3 Reserved

4Signal Ground

5Receive Data

6Transmit Data

7 Reserved

8 Reserved

On a HotWire 8800 DSLAM – the serial connector for an asynchronous terminal

interface (DCE type) has the following pin assignments:

Pin Number Function

1 Reserved

2 Reserved

3 Reserved

4Signal Ground

5Receive Data

6Transmit Data

7 Reserved

8 Reserved

97-15388

10 8000-A2-GN11-10

June 1997

DB25 Adapter Pinouts

The DB25 (RS232 male) cable adapter is used to convert the 8-pin modular

serial interface to a standard RS-232 DB25 interface, which can then be

connected to a terminal, computer, or modem. The following lists the pin

assignments:

8-Pin

Modular

Serial

Interface

Pin Number Use

DB25

Interface

Number

1 Unused –

2 Unused –

3 Unused –

4Signal Ground 7

5Receive Data 3

6Transmit Data 2

7 Unused –

8 Unused –

This manual suits for next models

Table of contents

Other Paradyne Network Hardware manuals

Paradyne

Paradyne Jetstream CPX-1000 User manual

Paradyne

Paradyne 5030 User manual

Paradyne

Paradyne Hotwire 5446 Operation and maintenance manual

Paradyne

Paradyne Dual DSU 7511 User manual

Paradyne

Paradyne Hotwire 5216 User manual

Paradyne

Paradyne ACCULINK 316x Manual

Paradyne

Paradyne ACCULINK 3160 Manual

Paradyne

Paradyne BitStorm 2600 IP DSLAM User manual

Paradyne

Paradyne Hotwire 7995 User manual

Paradyne

Paradyne COMSPHERE 3610 Operation and maintenance manual

Paradyne

Paradyne BitStorm 4800 Express User manual

Paradyne

Paradyne 7112 User manual

Paradyne

Paradyne FrameSaver SLV 9124 Use and care manual

Paradyne

Paradyne Hotwire 5620 User manual

Paradyne

Paradyne COMSPHERE 6700 Series User manual

Paradyne

Paradyne Hotwire 5446 User manual

Paradyne

Paradyne COMSPHERE 3810 User manual

Paradyne

Paradyne COMSPHERE 3610 User manual

Paradyne

Paradyne COMSPHERE 3800 Series Instruction Manual

Paradyne

Paradyne COMSPHERE 3800PLUS Instruction Manual

Paradyne

Paradyne FrameSaver NP 100 User manual

Paradyne

Paradyne M/HDSL Standalone Termination Unit HOTWIRE... User manual

Paradyne

Paradyne 4929 DSLAM User manual

Paradyne

Paradyne JetFusion 2208 User manual

Popular Network Hardware manuals by other brands

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL product manual

B&B Electronics

B&B Electronics ZXT9-IO-222R2 product manual

Yudor

Yudor YDS-16 user manual

D-Link

D-Link ShareCenter DNS-320L datasheet

Samsung

Samsung ES1642dc Hardware user manual

Honeywell Home

Honeywell Home LTEM-PV Installation and setup guide

evertz

evertz 7700 Series manual

D-Link

D-Link ShareCenter DNS-343 Quick installation guide

Asante

Asante AsanteBridge 1012 user guide

FireBrick

FireBrick FB2700 user manual

Audiovox Electronics

Audiovox Electronics ARWH2T user manual

ADC

ADC DSX-1 Operational Procedures Guide

NetComm

NetComm NF2 user guide

Alcatel-Lucent

Alcatel-Lucent 5620 user guide

Dell EMC

Dell EMC XC6420 Series Solution guide

Lanner

Lanner NCA-1020A user manual

Allied Telesis

Allied Telesis AT-TN121-A Specifications

Arista

Arista CCA-ETM-Q12 quick start guide
