Paradyne Hotwire 5446 User manual

Hotwire5446 RTU Customer Premises

Installation Instructions

Document Number 5446-A2-GN10-60

May 1999

Before You Begin

The Hotwire5446 RTU (Remote Termination Unit) interoperates with the Hotwire 8546

DSL Card in the DSLAM (Digital Subscriber Line Access Multiplexer) system.

An optional POTS (Plain Old Telephone Service) splitter is available for the Hotwire

5446 RTU. When a POTS splitter is installed, the telephone and 5446 RADSL (Rate

Adaptive Digital Subscriber Line) RTU can function at the same time over the same pair

of copper wires. In order to confirm the RTU installation, the POTS splitter should be

installed first.

To install a POTS splitter, refer to the appropriate POTS splitter document:

Document Number Document Title

5030-A2-GN10

Hotwire 5030 POTS Splitter Customer Premises

Installation Instructions

5038-A2-GN10

Hotwire 5038 Distributed POTS Splitter Customer

Premises Installation Instructions

Contact your sales or service representative to order additional product documentation.

Paradyne documents are available on the World Wide Web at www.paradyne.com.

Select

Library

→

Technical Manuals.

Wiring and Cables Needed

The following wiring and standard connectors are used with this product:

New or existing unshielded twisted-pair wiring (CAT3 or better). The CAT3 wiring

must meet EIA/TIA-568 specifications with 24 AWG (.5 mm) or 26 AWG (.4 mm).

Standard RJ11 wall jack.

Standard Ethernet 8-pin, non-keyed modular plug for a PC or workstation. An

Ethernet straight-through or crossover cable is used. Refer to

Installing the Hotwire

5446 RTU,

page 8, for Ethernet cable details.

After the RTU is installed and powered on, there are additional requirements in order to

utilize the DSL and Ethernet connections. Refer to

Hotwire 5446 RTU IP Setup

page 16.

Package Checklist

Verify that your package contains the following:

-Model 5446 Remote Termination Unit (RTU)

-DSL interface cable with RJ11 connectors

-Power cord with power transformer

Refer to

Cables & Connectors,

page 17, for standard pin numbers.

Be sure to register your warranty at www.paradyne.com. Select

Service & Support

→

Warranty Registration

What Does the Hotwire 5446 RTU Do?

The Hotwire 5446 RTU is a component in the Hotwire RADSL Access System. This

system provides high-speed Internet or corporate LAN access over traditional

twisted-pair copper telephone wiring.

A POTS splitter blocks out the DSL signal and allows the POTS frequencies to pass

through. At the customer premises, the RADSL RTU and a telephone can function

simultaneously over the same pair of copper wires when either:

HA Hotwire 5030 or 5038 POTS Splitter is installed near the demarcation point for all

telephones on the same POTS line as DSL,

HA Hotwire 5038 Distributed POTS Filter is installed on each telephone on the same

POTS line as DSL.

DSL Access with a Hotwire 5030 or 5038 POTS Splitter

Copper pairs run from the central office (CO) to the customer premises (CP) to create

the local loop. The local loop terminates on the customer premises at the demarcation

point in a punchdown block or network interface device (NID).

The Hotwire 5030 POTS splitter is designed for outdoor or indoor installation. The

Hotwire 5038 POTS Splitter is designed for indoor use only.

When a Hotwire POTS splitter is used at both ends of the local loop, wiring is

connected:

HFrom the demarcation point to the CP POTS splitter, and

HFrom the demarcation point to the DSL jack.

NOTES:

In this document:

— End-user system is used to represent any PC with an Ethernet connection and

DSL-based service.

— Network Service Provider (NSP) is used to represent any Internet Service

Provider (ISP) or remote LAN access provider.

98-16105

Punchdown

Block or NID

DSL

Jack RTU

Customer Premises (CP)

DSL

Ethernet

Crossover

Cable Ethernet

Cable

Central

Office

(CO)

Demarcation

Point

Local Loop

POTS

Splitter

DSL – Digital Subscriber Line POTS – Plain Old Telephone Service

NID – Network Interface Device RTU – Remote Termination Unit

POTS

End-user

Systems

Network

Service

Provider

(NSP) Hub or

Router

New Wiring Connections Existing Wiring (POTS)

DSL Access with a Hotwire 5038 Distributed POTS Splitter

When a Hotwire 5038 Distributed POTS Splitter is used, one 5038 Distributed POTS

Splitter is installed as a filter for each telephone on the same POTS line as DSL.

98-15815-01

RTU

Customer Premises (CP)

Central

Office

(CO)

Local Loop

POTS

Splitter To End-user

Systems

DSL – Digital Subscriber Line POTS – Plain Old Telephone Service

NID – Network Interface Device RTU – Remote Termination Unit

POTS

Splitter

POTS

Splitter

Network

Service

Provider

(NSP)

Demarcation

Point

Punchdown

Block or NID

POTS/DSL

Optional

DSL Access without a POTS Splitter

When the Hotwire 5446 RTU is installed without a POTS splitter, a second telephone

wiring pair is needed for DSL access.

98-16104

Punchdown

Block or NID

DSL

Jack RTU

Customer Premises (CP)

POTS

DSL

Ethernet

Crossover

Cable Ethernet

Cable

Central

Office

(CO)

Demarcation

Point

Local Loop

Hub or

Router

End-user

Systems

DSL – Digital Subscriber Line POTS – Plain Old Telephone Service

NID – Network Interface Device RTU – Remote Termination Unit

Network

Service

Provider

(NSP)

New Wiring Connections Existing Wiring (POTS)

Installing the DSL Access Wiring

The local loop terminates at the punchdown block or NID. Wiring must be connected

from the customer premises side of the punchdown block or the NID to an RJ11 jack.

Typically, the punchdown block is installed in commercial locations and the NID is

installed in residential locations.

Procedure

1. Access the punchdown block or NID.

!WARNING:

Do not continue unless the DSL access line from the local loop has been

disconnected at the NID or punchdown block. Refer to

Important Safety

Instructions,

page 20.

2. Disconnect the DSL access pair from the local loop.

A punchdown block is used without a POTS splitter in the following example.

ABCD

DSL

Access

from Local

Loop

Wiring to

DSL Jack

Bridge Clip

Punchdown Block

97-15348

Demarcation Point

Customer Premises

3. Locate the DSL pair of T1/R1 connectors on the customer premises side of the NID

or punchdown block. Attach the wiring that will be connected to the DSL jack. In the

following example, a NID is used without a POTS splitter. It includes an existing

POTS line and a second pair installed for DSL access.

DSL/POTS

Access from

Local Loop

Wiring to

DSL Jack

Telephone Network Interface Device (NID)

Ground

Tip

(Green)

Ring

(Red)

97-15438-01

Existing POTS

Wiring to

Telephone

Demarcation Point

Customer Premises

DSL Pair

POTS Pair

97-15300a

RJ11 Wall Jack

The 5446 RTU connects to the local loop via wiring from the demarcation point to an

RJ11 wall jack. The DSL twisted-pair wiring from the local loop terminates at a new or

existing wall jack. It may be necessary to install a standard single RJ11 jack or replace

a single jack with a double RJ11 jack.

97-15343-02

DSL

RJ11

Jack

Central

Office

Punchdown

Block or NID

Customer Premises

POTS/DSL

Local Loop

Demarcation Point DSL

Twisted-pair

Wiring

RTU

Procedure

1. Wiring can be run from the

punchdown block or NID to a

new or existing wall jack. Match

the pair colors on both ends.

2. Label the DSL jack.

3. Reconnect the DSL access pair

at the punchdown block or NID.

Refer to

Installing the DSL

Access Wiring

, page 5

Tighten

both terminal screws with a flat-

blade screwdriver.

The RJ11 6-pin jack uses the center two pins. For pin assignments, refer to

Cables &

Connectors

, page 17.

Installing the Hotwire 5446 RTU

Place the Hotwire 5446 RTU on a flat surface with clearance for the rear connectors.

Procedure

1. Use the supplied RJ11 6-pin interface cable for the DSL connection. Insert one end

of the cable into the jack labeled DSL. Insert the other end into the wall jack labeled

DSL.

97-15300-01

DSL

Jack

POWER ETHERNET

DSL

Hotwire RTU

If the Hotwire 5446 RTU is installed on the same line as POTS, a Hotwire 5038

Distributed POTS Splitter can be used as a filter. One 5038 Distributed POTS

splitter is installed as a filter for each telephone, as shown below. To install the

Hotwire 5038 Distributed POTS splitter, refer to

Hotwire 5038 Distributed POTS

Splitter Customer Premises Installation Instructions.

98-15813

Distributed

POTS Splitter

Line from

RJ11 Wall Jack

PHONE

LINE DSL

PHONE

LINE DSL

PHONE

LINE DSL

Line from

RJ11 Wall Jack

Distributed

POTS Splitter

Distributed

POTS Splitter

Customer

Premises (CP)

Hotwire

RTU

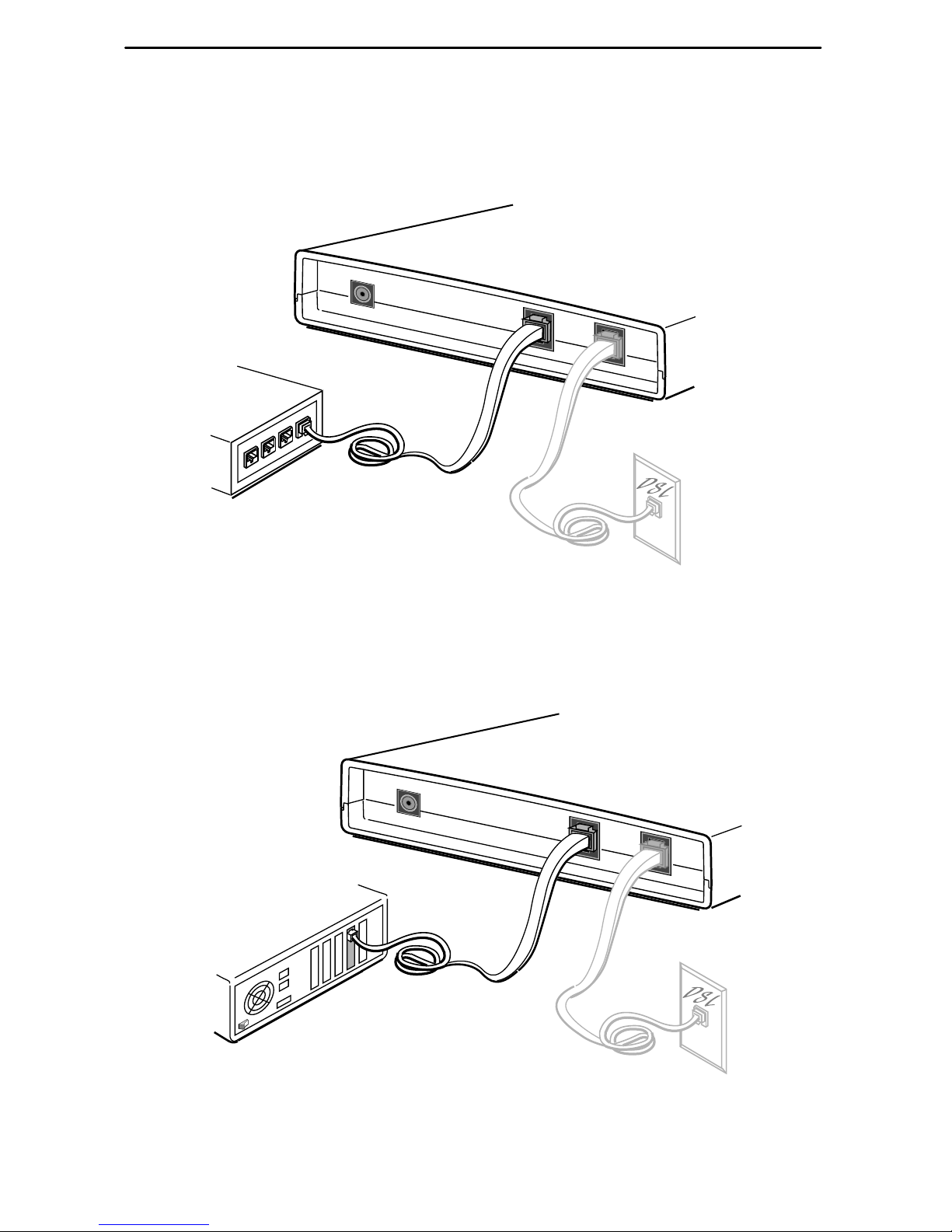

2. Use an 8-pin Ethernet cable for the Ethernet connection. Insert one end of the

cable into the jack labeled ETHERNET.

Use a straight-through cable and connect the other end to an Ethernet hub, or

97-15303-01

Ethernet

Hub

Ethernet

Line

POWER ETHERNET DSL

Hotwire RTU

Ethernet

Cable

Use an Ethernet crossover cable and connect the other end to a PC with an

Ethernet Network Interface Card (NIC) or router.

97-15303b

PC with Ethernet

Network Interface

Card

Ethernet

Line

POWER ETHERNET DSL

Hotwire RTU

Ethernet

Cable

For RTU cable pin assignments, refer to

Cables & Connectors

, page 17.

3. Insert the power cord’s round end into the jack labeled POWER. Plug the

transformer into an AC outlet.

98-15836

POWER ETHERNET DSL

Hotwire RTU

Power

Jack

Transformer

The RTU hardware installation is now complete. When the power cord is installed, the

RTU goes through a power-on self-test.

Power-On

When power is applied, the RTU performs self-diagnostics and the PWR LED is on. The

self-diagnostics includes a power-on self-test. During the power-on self-test, all of the

LEDs turn on for one second.

TST DSL ETHERNET

ALMPWR

97-15317

Power – green

Alarm – red

Test – yellow

Digital Subscriber Line – green

Ethernet Link – green

5446

Refer to

Troubleshooting,

page 14, for LED indications requiring action.

Other manuals for Hotwire 5446

Table of contents

Other Paradyne Modem manuals

Paradyne

Paradyne Hotwire 6390 User manual

Paradyne

Paradyne COMSPHERE 3920PLUS Series User manual

Paradyne

Paradyne COMSPHERE 3810 Owner's manual

Paradyne

Paradyne COMSPHERE 3821PLUS Operation and maintenance manual

Paradyne

Paradyne COMSPHERE 3800 Series Owner's manual

Paradyne

Paradyne COMSPHERE 3910 User manual

Paradyne

Paradyne HotWire 7915 Instruction Manual

Paradyne

Paradyne COMSPHERE 3820Plus User manual

Paradyne

Paradyne 6381-A3 Original operating instructions

Paradyne

Paradyne COMSPHERE 3830 User manual

Paradyne

Paradyne BitStorm 6200 User manual

Paradyne

Paradyne 3920 Quick start guide

Paradyne

Paradyne Hotwire 7976 User manual

Paradyne

Paradyne 39xx Series Operation and maintenance manual

Paradyne

Paradyne COMSPHERE 3810 Mounting instructions

Paradyne

Paradyne COMSPHERE 3910 User manual

Paradyne

Paradyne COMSPHERE 3811Plus User manual

Paradyne

Paradyne COMSPHERE 3825Plus User manual

Paradyne

Paradyne COMSPHERE 3920PLUS Series User manual

Paradyne

Paradyne COMSPHERE 3810Plus User manual

Paradyne

Paradyne StormPort 1020 User manual

Paradyne

Paradyne COMSPHERE 3810 User manual

Paradyne

Paradyne COMSPHERE 3811 User manual

Paradyne

Paradyne Hotwire 8775 User manual

Popular Modem manuals by other brands

Davicom

Davicom DM562AP Operation manual

EpiValley

EpiValley TATA indicom SXC-1080 user guide

Zte

Zte WiMAX user manual

Intelimax

Intelimax MA-2060 user manual

SMC Networks

SMC Networks D3CM1604V Administrator's manual

Telstra

Telstra Wi-Fi 4G Advanced Pro X user guide

Thrane&Thrane

Thrane&Thrane imarsat EXPLORER 300 user manual

Samsung

Samsung AceLink SAM-335A user guide

Enfora

Enfora Enabler-G Integration guide

iRZ

iRZ ATM2-232 user guide

Zhone

Zhone 6310 installation instructions

US Robotics

US Robotics 3453C datasheet

MaxTech

MaxTech Plug & Play Internal Voice/FAX/Data/SVD... user manual

Zte

Zte MF823 user guide

Four-Faith

Four-Faith F1403 user manual

Sierra Wireless

Sierra Wireless AIRLINK MP595W user guide

Gemtek

Gemtek WiMAX WIXFBR-103 user manual

Zoom

Zoom 1070 Series quick start
