Operating & Installation Instructions
Fully Automatic Washing Machine
(Household Use)
Model No. NA-FD18V1 NA-FD16V1 NA-FD14V1
AWW9901C8MC0-0C5
2
Safety Precautions
May cause serious injury or death.
WARNING
Children must not use it alone.
zThis appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
zChildren should be supervised to ensure that they do
not play with the appliance.

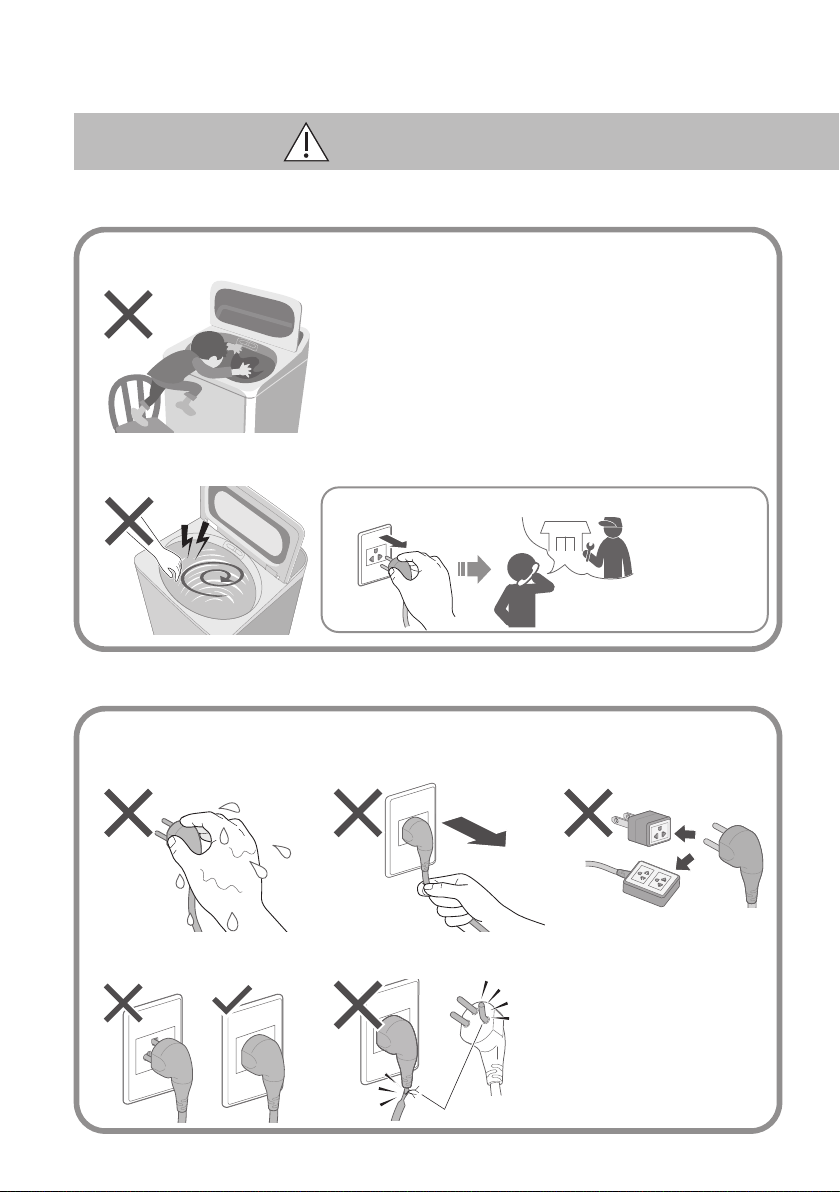

Do not touch the tub until it stops.
zIf the tub does not stop within 15 sec:
May cause fire or electric shock.
Do not touch it
with wet hands.
Do not hold or
pull on the cord.
Do not use.
Fully insert it. Do not use.
zIf the power cord is damaged,
it must be replaced by the
manufacturer, its service agent
or similarly qualified persons
in order to avoid a hazard.
Damaged
Plug adaptor
Extension cord
3

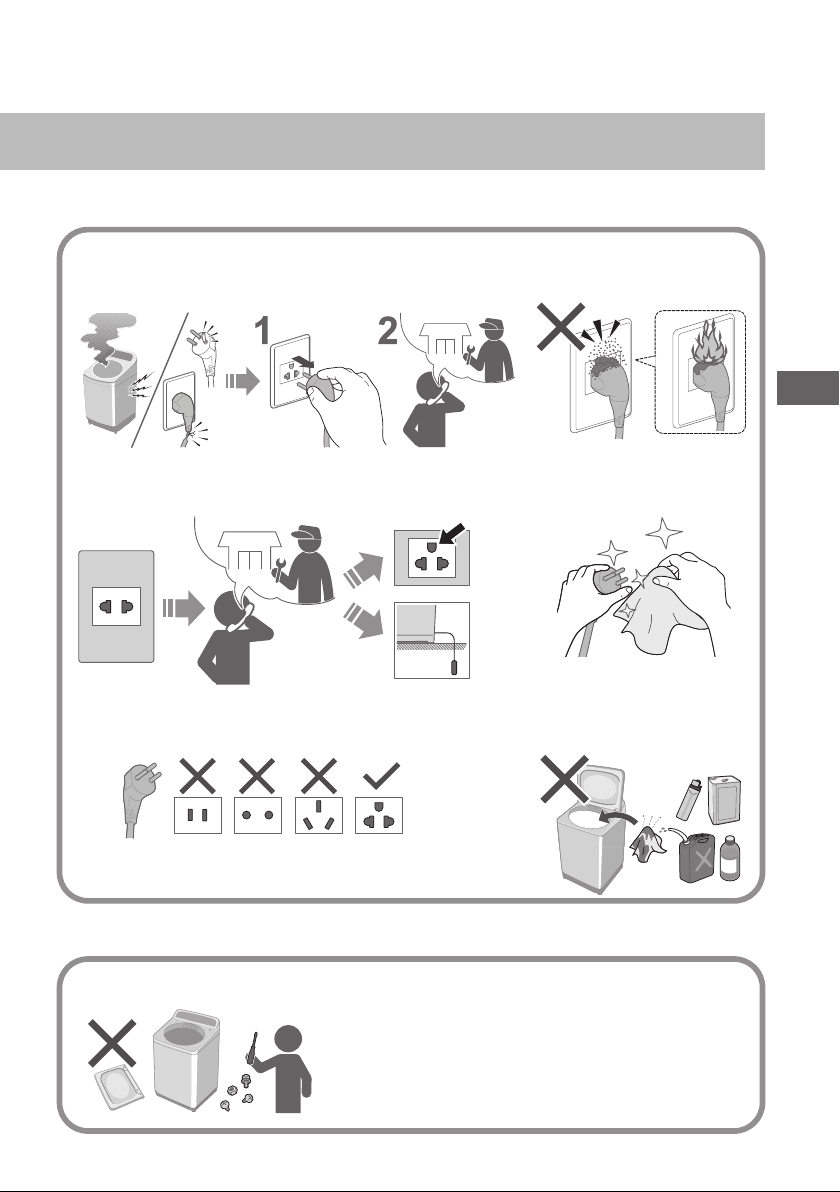

WARNING
May cause failure.
Never disassemble, repair or modify it by yourself.
In case of failure or damaged power cord,
stop use and ask the service centre.
Accumulated dust
may cause fire.
Securely insert the ground prong.
Call your local dealer for a new socket.
Wipe the power plug
periodically.
Use a socket appropriate for this
appliance.
Keep away from
flammable materials.
e.g.)
zThe plug shape, socket shape and rating
requirement varies with the region.
4
Safety Precautions (continued)
May cause injury.
Be careful not to get your fingers caught.
Do not climb or put objects on the appliance.
Do not touch when it is hot.
Be careful of your hands and feet.
May cause water leakage.
Turn off the water faucet. Use new hose-sets.
zNew hose-sets
supplied with the
appliance are to be
used and old hose-sets
should not be reused.
CAUTION
zIf the lid is broken,
immediately stop
using.
For maximum dry cloth and tap water pressure, see Page 32.
5
CAUTION
May cause failure.
Keep away from heat and direct
sunlight.
Do not wash waterproof
items.
Raincoats, wet suits, etc.
Do not obstruct. Do not use hot water.
zDo not obstruct
the openings of
the bottom face
with carpet, etc.
Over 50 ºC
For Machine-washable items only.
zThis appliance is intended to be used in household.
This appliance is not intended to be used in
applications such as:
- Staff kitchen areas in shops, oces and other
working environments;
- farm houses;
- by clients in hotels, motels and other residential type
environments;
- bed and breakfast type environments;
- areas for communal use in blocks of ats or in
launderettes.
6
Part Names / Accessories
External drain
water hose
Lint filter (P. 20)
Lid
Leveller (P. 27)
Power cord and
plug*
(P. 3)
* The plug shape
varies with the
region.
Adjustable leg
(P. 27)
Detergent and
softener drawer
(P. 12)
Accessories
Part names
Operation panel (P. 8) Water supply valve (P. 26)
Pulsator
Tub
Water supply hose (1)
(P. 26)
Length: 1.0 m
External drain water
hose (1) (P. 25)
Bottom cover (1) /
Screw (1) (P. 25)
Water tap adaptor (1)
(P 26)
7
Before Washing
Laundry preparation and check
Use laundry nets for delicates
Overpack
For “Stain Master +”
(P. 16)
zPretreatments for heavily stains
zObserve the clothes' care labels
zFor
• Shirts with stiff fabric
• Rubber clothes • Graphic shirts
• Coloured clothes
Pre-laundry check
Reverse
Clothes likely to pill
Paper diapers
To prevent colour staining
8
ECONAVI (P. 17)
Program selection (P. 10)
NOTE
zIn case of a power failure.
Operation will resume from where it stopped when the power recovers.
zIf you do not press within 10 minutes after power-on.
Auto power off.
zThe wash process setting of the “Stain Master +” and “Soak” programs
cannot be changed.
Stain Master + (P. 16)
Power On/Off
Air Dry (P. 17)
Start/Pause
Child Lock lamp (P. 18)
Operation Panel
Preset
(P. 14)
Detergent volume
Water level (L) Detergent *2
105 *188 81
74 66 59
52
46 38
33
*1 NA-FD18V1: 105 L
NA-FD16V1: 99 L
NA-FD14V1: 93 L
For water amount: 105L
display will show
*2 : 1 scoop of detergent
Change process
settings (P. 14)
Flashing
(in progress)
Tangle
Care
(P. 10)
Water amount
Approx.
5 sec
Remaining time
Auto Tub
Clean
(P. 18)
Heater On:
Lamp flashes
Refill (P. 19)
9
1
2
(P. 10)
Preset timer
3Measures the
amount of laundry.
10 sec 5 sec
20 sec
4
(P. 8)
(P. 12)
5
Washing
After pressing “Start”
zTo change each operation (while washing).
Pause Start
zTo check or change the water level (while washing).
zYou cannot change the program.
(P. 14)
10
Variety of Programs

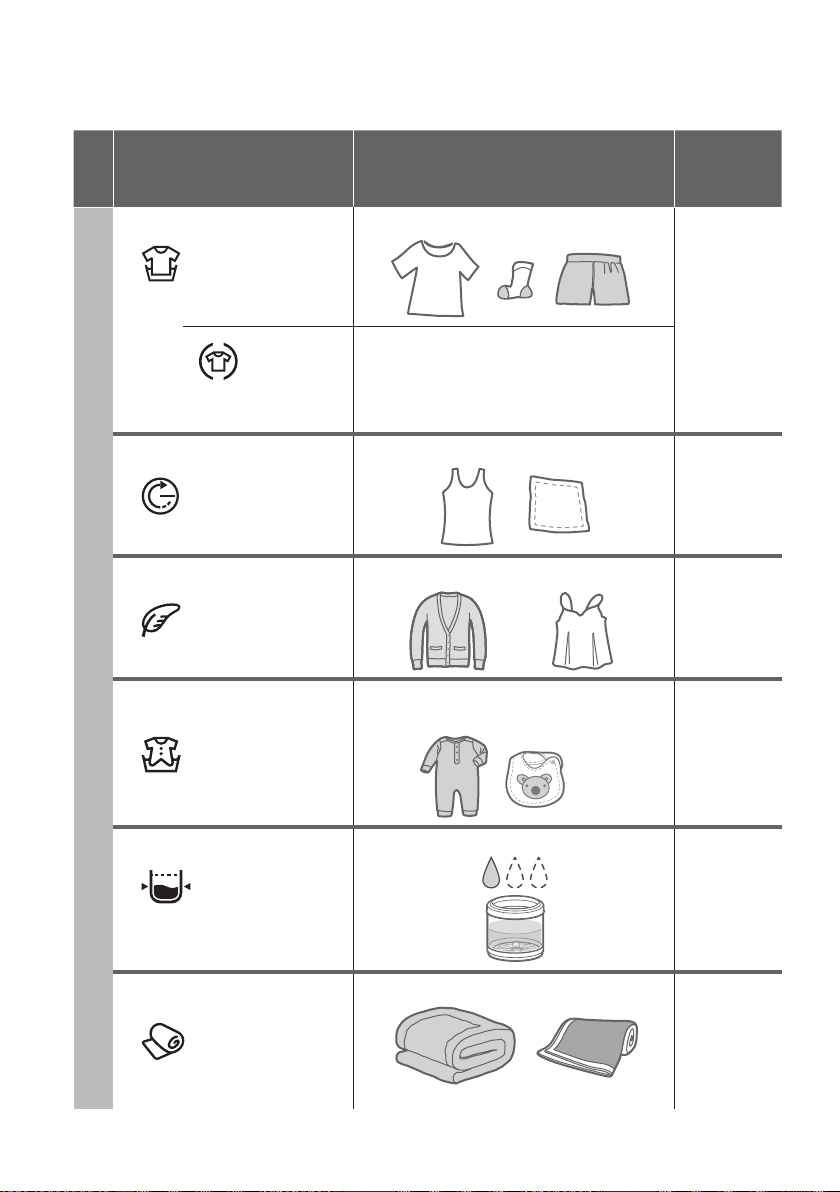

Program Purpose
Max.
capacity
(kg)
Wash
Normal (P. 9)
zEveryday clothes
18.0
16.0
14.0
zAnti-tangling
• Washing more gently than “Normal”to
reduce tangle.
• Disentangling clothes after spin:
8 kgor less.
Speedy (P. 9)
zFor light soil 18.0
16.0
14.0
Delicate (P. 15)
zWashing gently
5.0
Baby Care (P. 9)
zClothes for babies & sensitive skin
Rinsing thoroughly
18.0
16.0
14.0
Water Save
(P. 9)
zSaving water
18.0
16.0
14.0
Blanket (P. 15)
zComforters and blankets
With a machine-washable tag
4.2
Tangle
Care (P. 9)
