Panasonic KX-UT670 User manual
Getting Started
Smart Desk Phone
Model No. KX-UT670
Document Version: 2012-05
Thank you for purchasing this Panasonic product.
Please read this manual carefully before using this product and save this manual for
future use.
Note
• In this manual, the sufx of each model number (e.g., KX-UT670NE) is omit-
ted unless necessary.
Outline
This manual briey describes basic information about the installation of the unit.
Documentation for This Unit
The documentation for this unit consists of the following three manuals:
Getting Started (this manual)
Briey describes basic information about the installation of the unit.
Operating Instructions
Describes the parts of the unit, operation procedures, maintenance, etc.
Administrator Guide
Describes information about programming the unit.
Manuals and supporting information are provided on the Panasonic web site at:
http://panasonic.net/pcc/support/sipphone
Introduction
2
Introduction
Conventions Used in This Manual
• SD memory cards that can be used with this unit are collectively referred to as
"SD cards".
• Buttons on the key sheet (Page 11) are shown as . Other text that
appears on the screen is enclosed in square brackets and is shown in a bold
typeface: [Text].
Trademarks
• SDXC Logo is a trademark of SD-3C, LLC.
• Plantronics is a trademark or registered trademark of Plantronics, Inc.
• All other trademarks identied herein are the property of their respective
owners.
Open Source Software Notice
• Parts of this product use Open Source Software supplied based on the
conditions of the Free Software Foundation’s GPLs and/or LGPLs and other
conditions. Relevant conditions apply to this software. Therefore, please read
licence information about GPLs and LGPLs, and information about other Open
Source Software available from this product.
To view this information, press when the home screen is displayed,
and then tap [Settings] → [About phone] → [Legal information].
At least three (3) years from delivery of products, Panasonic System Networks
Co., Ltd. will give to any third party who contacts us at the contact information
provided below, for a charge of no more than the cost of physically distributing
source code, a complete machine-readable copy of the corresponding source
code and the copyright notices covered under GPL and LGPL. Please note that
software licensed under GPL and LGPL is not under warranty.
http://www.panasonic.net/corporate/global_network/
Introduction
3
Updating the Firmware
• Updating the rmware to the latest version provides you with the latest features
and improvements. For details, consult your administrator or dealer.
For Your Safety
4
For Your Safety
To reduce the risk of injury, loss of life, electric shock, re, malfunction, and damage
to equipment or property, always observe the following safety precautions.
Explanation of symbols
The following symbols are used to classify and describe the level of hazard and
injury caused when the denotation is disregarded and improper use is performed.
WARNING Denotes a potential hazard that could
result in serious injury or death.
CAUTION Denotes a hazard that could result in
minor injury or damage to the unit or other
equipment.
The following symbols are used to classify and describe the type of instructions to be
observed.
This symbol is used to alert users to a specic operating procedure that
must not be performed.
This symbol is used to alert users to a specic operating procedure that
must be followed in order to operate the unit safely.
WARNING
General Safety
Do not disassemble this unit. Dangerous electrical shock could result.
The unit must only be disassembled and repaired by qualied service
technicians.
Never attempt to insert wires, pins, etc. into the vents or other holes of
this unit.
For Your Safety
5
To prevent possible re or electric shock, do not expose this unit to rain or
moisture.
Do not splash water on the AC adaptor or the power cord, nor get them
wet. Doing so can result in re, electric shock, or injury. If they do get wet,
immediately disconnect the AC adaptor and power cord, and contact an
authorised service centre.
Do not touch the AC adaptor for extended periods of time. Doing so can
lead to low-degree burns.
Do not use the power cord with other products. Doing so can result in re
or electric shock.
Unplug this unit from the AC outlet and have the unit serviced by qualied
service personnel in the following cases:
A. When the power supply cord or plug is damaged or frayed.
B. If liquid has been spilled on the unit.
C. If the unit has been exposed to rain or water.
D. If the unit does not work normally by following the manual. Adjust only
controls covered by the manual. Improper adjustment may require
repair by an authorised service centre.
E. If the unit has been dropped, or damaged.
F. If the unit’s performance deteriorates.
If damage to the unit exposes any internal parts, immediately disconnect
the cable or cord. If the power is supplied from the network to the Smart
Desk Phone [Power-over-Ethernet], disconnect the Ethernet cables.
Otherwise, disconnect the AC adaptor cord. Then return this unit to an
authorised service centre.
This handset earpiece is magnetised and may retain small ferrous
objects.
The use of excessive sound volume through earphones, headphones, or
headsets may cause hearing loss.
Disconnect this unit from power outlet/the Ethernet cables if it emits
smoke, an abnormal smell, or makes unusual noise. These conditions can
cause re or electric shock. Conrm that smoke has stopped and contact
an authorised service centre.
For Your Safety
6
Installation
Do not make power connections that exceed the ratings for the AC outlet
or power equipment. If the power rating of a surge protector, etc. is
exceeded, it can cause a re due to heat buildup.
Do not bundle up the AC adaptor cord. The cord may become damaged,
which can lead to a re, electric shock, or electric short.
The unit should only be connected to a power supply of the type as shown
on the label on the unit.
Completely insert the AC adaptor into the AC outlet. Failure to do so may
cause electric shock and/or excessive heat resulting in a re.
Placement
Care should be taken so that objects do not fall onto, and liquids are not
spilled into, the unit. Do not subject this unit to excessive smoke, dust,
moisture, mechanical vibration, shock, or direct sunlight.
Do not place heavy objects on top of this unit.
Place this unit on a at surface.
Allow 10 cm clearance around the unit for proper ventilation.
Wall Mounting
Make sure that the wall that the unit will be attached to is strong enough
to support the unit (approx. 1.3 kg). If not, it is necessary for the wall to be
reinforced.
Only use the optional wall mount kit with the unit. The wall mount kit
includes the necessary screws, washers, and wall mounting adaptor.
When driving the screws into the wall, be careful to avoid touching any
metal laths, wire laths or metal plates in the wall.
For Your Safety
7
When this unit is no longer in use, make sure to detach it from the wall.
CAUTION
Keep the unit away from heating appliances and devices that generate
electrical noise, such as uorescent lamps, motors and televisions. These
noise sources can interfere with the performance of the unit. It also should
not be placed in rooms where the temperature is less than 0 ºC or greater
than 40 ºC.
Wipe the unit with a soft cloth. Do not clean the unit with abrasive
powders or with chemical agents such as benzine or thinner.
The SD card, the SD card slot cover, and the handset hook pose a chok-
ing hazard. Keep the SD card, the SD card slot cover, and the handset
hook out of reach of children.
When left unused for a long period of time, disconnect the unit from
the AC outlet. When the unit receives power from a PoE power supply,
disconnect the Ethernet cables.
When the unit is mounted on a wall, make sure the cables are securely
fastened to the wall.
Notice
•
If the unit does not operate properly, disconnect the AC adaptor cord and
Ethernet cables and then connect again.
•
If you are having problems making calls, disconnect the Ethernet cables and
connect a known working Smart Desk Phone. If the known working Smart Desk
Phone operates properly, have the defective Smart Desk Phone repaired by an
authorised service centre. If the known working Smart Desk Phone does not
operate properly, check the SIP server and the Ethernet cables.
•
Under power failure conditions, the Smart Desk Phone may not operate. Please
ensure that a separate telephone, not dependent on local power, is available for
use in remote sites in case of emergency.
•
For information regarding network setup of the Smart Desk Phone such as IP
addresses, please see the Operating Instructions.
•
If an error message is shown on your display, consult your phone system dealer
Important Safety Instructions
8
or the network administrator.
•
Use only the correct Panasonic handset.
Important Safety Instructions
When using this unit, basic safety precautions should always be followed to reduce
the risk of re, electric shock and injury to persons, including the following:
1. Do not use the unit near water, for example, near a bathtub, washbowl, kitchen
sink, or laundry tub, in a wet basement, or near a swimming pool.
2. Avoid using a telephone (other than a cordless type) during an electrical storm.
There may be a remote risk of electric shock from lightning.
3. Do not use the telephone to report a gas leak in the vicinity of the leak.
SAVE THESE INSTRUCTIONS
Accessory Information
9
Accessory Information
Included Accessories
If any parts are missing or have other problems, contact your dealer.
Handset (1) Handset Cord (1) Stand (1)
Note
• The illustrations may differ from the appearance of the actual product.
Optional Accessories
The following optional accessories are available for purchase:
AC Adaptor*1*2KX-A422CE (PNLV228)/KX-A422UK (PNLV228)/
KX-A422AL (PNLV228)/KX-A422X (PNLV228)
Wall Mount Kit KX-A434X
*1 To order an optional AC adaptor, please order using the "KX-A422" model
number.
*2 For users in Argentina, power can only be supplied by PoE.
Location of Controls
10

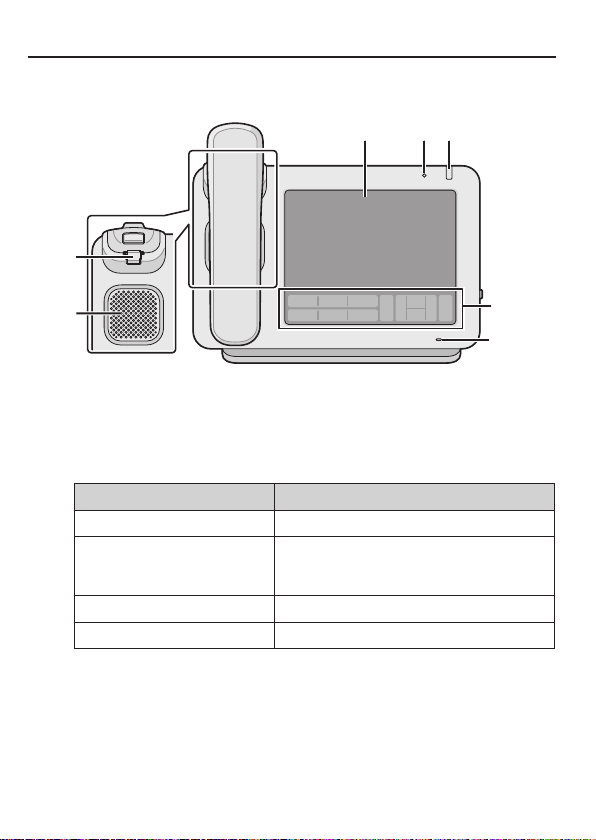

Location of Controls
Front View
A B C
E
D
G
F
ATouch Display
BAmbient Light Sensor
Detects the brightness of the ambient light and adjusts the brightness of the
display accordingly.
CMessage/Ringer Lamp
The colour of the lamp shows the unit’s status as follows:
Colour (state) Unit Status
Green (ashing rapidly) Receiving a call
Red (steady on) New voice message
Or, new voice message and
missed calls
Green (ashing slowly) Cleaning mode (for wiping the screen)
Green (steady on) Missed calls
DKey Sheet (Page 11)
EMicrophone
Used for hands-free conversation.
FHandset Hook
Keeps the handset stable when the unit is mounted on a wall.
GSpeaker
Other manuals for KX-UT670
10
Table of contents
Other Panasonic Telephone manuals
Panasonic
Panasonic KX-NS1000 User manual
Panasonic
Panasonic KX-T7735E User manual
Panasonic
Panasonic KX-DT 333 Series User manual
Panasonic
Panasonic KX-PRW130 User manual
Panasonic
Panasonic KX-FKN523 User manual
Panasonic
Panasonic KX-FPC91 User manual
Panasonic
Panasonic EBX70 - CELL PHONE User manual
Panasonic
Panasonic KX-TG2970B - GigaRange SecurityLink Plus Expandable Answering... User manual
Panasonic
Panasonic WT115CE User manual
Panasonic
Panasonic VB-9411ADSUK User manual
Panasonic
Panasonic KX-TG2396B User manual
Panasonic
Panasonic KXT2395 - PHONE/ANSWER MACHINE User manual
Panasonic
Panasonic T-Mobile KX-HDV130 User manual
Panasonic
Panasonic KX-TA824 Owner's manual
Panasonic
Panasonic K10059 User manual
Panasonic
Panasonic S-ICX User manual
Panasonic
Panasonic KX-TDA50 Owner's manual
Panasonic
Panasonic KX-TS500MXB User manual
Panasonic
Panasonic KX-TGF380 User manual
Panasonic
Panasonic KX-TGF850 User manual
