Panasonic KX-TDA50 User manual

7/17/2009 1

Revision 2

Cbeyond SIP Trunks Configuration Guide

PBX Platform: KX-TDA50

7/17/2009 2

Revision 2

Overview

This document describes the configuration procedures required for the KX-TDA50 to make full

use of the capabilities of Cbeyond SIP Trunks Services.

The KX-TDA50 is one of Panasonic platforms that support SIP trunks functionality. It implements

the Session Initiation Protocol (SIP) through a dedicated (Trunk) Gateway card (KX-TDA5450)

which offers 4-Channels of SIP trunks. Capacity of the SIP trunks can be increased by installing

an additional DSP daughter card (KX-TDA5451) which provides additional 4-Channels. The

maximum numbers of SIP Gateway cards to be installed into one PBX is one card.

This guide describes the specific configuration items for the SIP Gateway card in addition to the

PBX basic configuration related to SIP trunks functionality. It also describes basic Network

configuration to familiarize dealers with the network setup for the SIP Gateway card. It does not

describe the purpose and use of all configuration options on the SIP Gateway card. For those

details, see the KX-TDA5450 Installation Manual and the KX-TDA50 Manuals available from

Panasonic Communication Solutions.

7/17/2009 3

Revision 2

Architecture Overview

The following diagram illustrates simple VOIP networks connecting the SIP-GW4 card:

The Case of Cbeyond Setup: Cbeyond will provide its services over a dedicated Circuit

terminated at the CPE device

7/17/2009 4

Revision 2

Basic SIP-GW Settings for Cbeyond

1-Starting the SIP-GW4 Maintenance Utility

To start the SIP-GW4 Maintenance Utility, log in from your PC connected to the card

by specifying the default IP address, username, and password.

1. Start Internet Explorer from the Start menu.

2. Specify the URL of the SIP-GW4 Maintenance Utility with the IP address

http://192.168.0.1:8000/Exp.

3. a. The log-in screen is displayed.

In the User name box, type INSTALLER.

b. In the Password box, type 1234.

c. Click OK.

Now the menu screen of the SIP-GW4 Maintenance Utility is displayed

2-Network Settings

WAN Interface

Fixed IP address is the recommended method for Cbeyond setup,Check Fixed IP Address and

Click Set.

7/17/2009 5

Revision 2

Fixed IP Address Configuration

1. Assign each parameter, based on the information provided by the ITSP (Cbeyond),

Note

Do not assign an IP address and a subnet mask address from the same network as the LAN port,

for example:

LAN port: IP address 192.168.0.1, Subnet mask 24 (255.255.255.0)

WAN port: IP address 192.168.0.2, Subnet mask 24 (255.255.255.0)

If you do so, disconnect the cables from the LAN and WAN ports and reboot the SIP-GW4 card.

Then, connect the cable only to the LAN port, and reassign the IP address and subnet mask

address for the WAN port.

2. Click Set.

3. You will need to reboot The Gateway card for these settings to be effective

3- Channel & SIP Telephony

1. Click 1.2.1 Channel & SIP Telephony.

2. Specify Channel Attribute for each channel referring to the descriptions below.

7/17/2009 6

Revision 2

Note

Channels 5 through 8 are only available when the SIP-DSP4 card is mounted on the SIP-GW4

card.

3. Click the Reboot button that appears below the table after all the required configuration,

including the following SIP Telephony Basic Settings, is complete.

SIP Telephony Basic Settings

1-System Level Configuration:

This section describes system-wide configuration items that are generally required for

each KX-TDA50 to work with Cbeyond.

*Operation MenuÆ1.2 SIP settingsÆ1.2.1 Channel and SIP Telephony

Step Command Purpose

Step 1 Set Proxy Server<compulsory>.

(i.e. Sip-proxy.dal0.cbeyond.net)

Set the TDA50 SIP server to the

Fully Qualified Domain Name

(FQDN) for the Cbeyond

Application Server cluster.

The domain must match the domain

configured for the Cbeyond

subscriber’s line/port domain.

Step 2 Enable Registration.

Specifies whether to register on the

SIP server or not (if required).

Step 3 Set Registration Timer (Offer).

Specifies the length of time that

the card offers for

Registration to the SIP server (if

required).

Step 4 Set Register Server.

Specifies the domain name or IP

address of a Registrar server (if

provided). If an ITSP provides both

Proxy and Registrar Server

information, specify the Registrar

Server information.

Step 5 Set Domain name.

(i.e.sipconnect.dal0.cbeyond.net)

Specifies the domain name (if

provided besides proxy and registrar

server).

Step 6 Set ITSP Name.

Specifies the ITSP name (optional).

7/17/2009 7

Revision 2

*Operation MenuÆ1.2 SIP settingsÆ1.2.4 Options

*1: If the port number of the server is not "5060", enter ":" and the specified port number after the

domain name or IP address.

[Example]

• If you do not need to specify the port number of the server (i.e., the port number is 5060):

Domain name format: example.com

IP address format: 192.168.1.1

• If you need to specify the port number of the server:

Domain name format: example.com:7777

IP address format: 192.168.1.1:7777

The value range of the port number is 1024–65535.

*2: No need to change unless necessary.

*3: The actual length of time depends on the negotiation with the SIP server or the other device.

Therefore, the Registration Timer will not always function for the length of time set in advance.

Step Command Purpose

Step 7 Enable PRACK (“100rel” option).

Specifies whether the PRACK

feature is enabled or disabled.

Step 8 Enable Session Timer.

Specifies whether Session Timer is

enabled or disabled.

Step 9 Set Session Timer(Offer).

Session Timer(Offer) = 180

Specifies the length of time that

the card offers for

Registration to the SIP server (if

required).

Step 10 Set Session Timer Method. Specifies the method to be used for

Session Timer.

7/17/2009 8

Revision 2

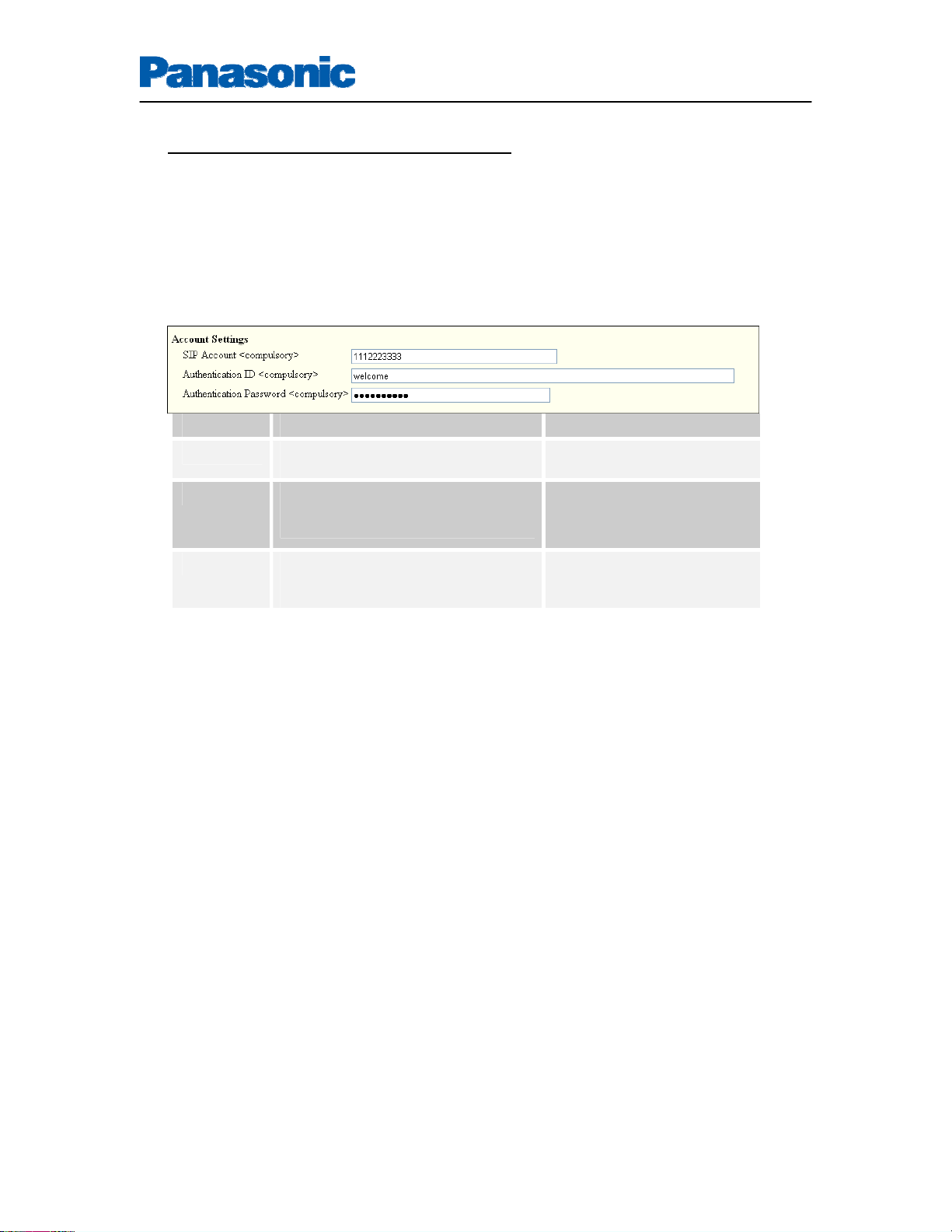

2-Subscriber Level Configuration Parameters

This section identifies the SIP service subscriber-specific parameters, including

registration and authentication. These settings must be unique for each account.

Provisioning a subscriber to register with Cbeyond allows calls to terminate to the

subscriber’s line. Registration requires that a unique address of record (AoR) is

provisioned on Cbeyond Application server cluster. A user name (SIP account) and a

password (Authentication Password) will be provided from Cbeyond to each

subscriber.

Step Command Purpose

Step 1 Set SIP Account<compulsory>.

The register user ID must correspond

with the line/port setting on Cbeyond

Step 2 Set Authentication ID

<compulsory>.

If the Authentication service is

configured on Cbeyond, these

parameters must be configured to

match the Cbeyond settings.

Step 3 Set Authentication Password

<compulsory>.

Specifies the password (compulsory).

4- NAT Traversal

Based on your network architecture you need to choose the proper method to perform the NAT

transversal.

If you have chosen the fixed IP address method and the WAN port of your SIP-GW card is

connected to the LAN side of your Broadband router, you have to Enable the NAT traversal and

specify the Fixed IP address of the Broadband Router.

Example ( SIP-GW WAN side IP address is Private IP address 192.168.10.100) and your SIP

account is authenticated over the Cbeyond Circuit IP address, Fixed IP address NAT traversal

has to be enabled

If the Authentication IP address is over the Private IP address of the WAN side of the SIP-GW

card, The NAT Traversal should be disabled.

7/17/2009 9

Revision 2

Essential PBX Configuration:

To Assign the DID numbers destinations, Go to 10-3.CO & Incoming CallÆDID table

Important note:

Make sure that you provide the 10 digits DID number in the DID number field to be able to

make use of the additional DID’s assigned by the Provider.

Minimum System Software requirements:

UPCMC V4.4.1.0 (Latest as of 02/10/09)

SIP-GW card V 4.002

TDA50 MPR V 5.0003

Useful Hints:

1- Update your system software once the update is available through the Dealer

website to make use of added features and improved functionality

2- Update your PCMC (Maintenance Tool) with the latest version available on the BTS

website and through Panasonic Tech support department

3- Back up your configuration file with the Good known settings

4- Consult with your network administrator prior to installation to guarantee a smooth

setup for your system over the existing network
