Panasonic KX-T7710 User manual

Quick Reference Guide

Model No. KX-T7710

Attention

When using the KX-T7710, keep the following conditions in mind.

If there is any problem, unplug the extension line and connect a known working phone.

If the known working phone operates properly, have the defective phone repaired by a

specified Panasonic Factory Service Centre. If the known working phone does not

operate properly, check the Panasonic KX series Business Telephone System and the

internal extension wiring.

Keep the unit away from heating appliances and electrical noise generating devices such

as fluorescent lamps and motors.

The unit should be kept free of dust, moisture and vibration, and should not be exposed

to direct sunlight.

Do not use benzine, thinner, or any abrasive powder to clean the cabinet. Wipe it with a

soft cloth.

Do not disassemble this product. Dangerous electrical shock could result. The unit

must only be disassembled and repaired by qualified service technicians.

Do not use any handset other than a Panasonic handset.

Never attempt to insert wires, pins, etc, into the vents or other holes of this unit.

When a failure occurs which exposes any internal parts, disconnect the telephone line cord

immediately and return the unit to a service centre.

WARNING:

TO PREVENT THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

PRODUCT TO RAIN OR ANY TYPE OF MOISTURE.

THIS HANDSET EARPIECE IS MAGNETISED AND MAY RETAIN SMALL FERROUS

OBJECTS.

Note:

In this manual, the suffix of each model number is omitted.

This Class B digital apparatus complies with Canadian ICES-003.

This product is intended to be connected to Panasonic KX series Business Telephone System.

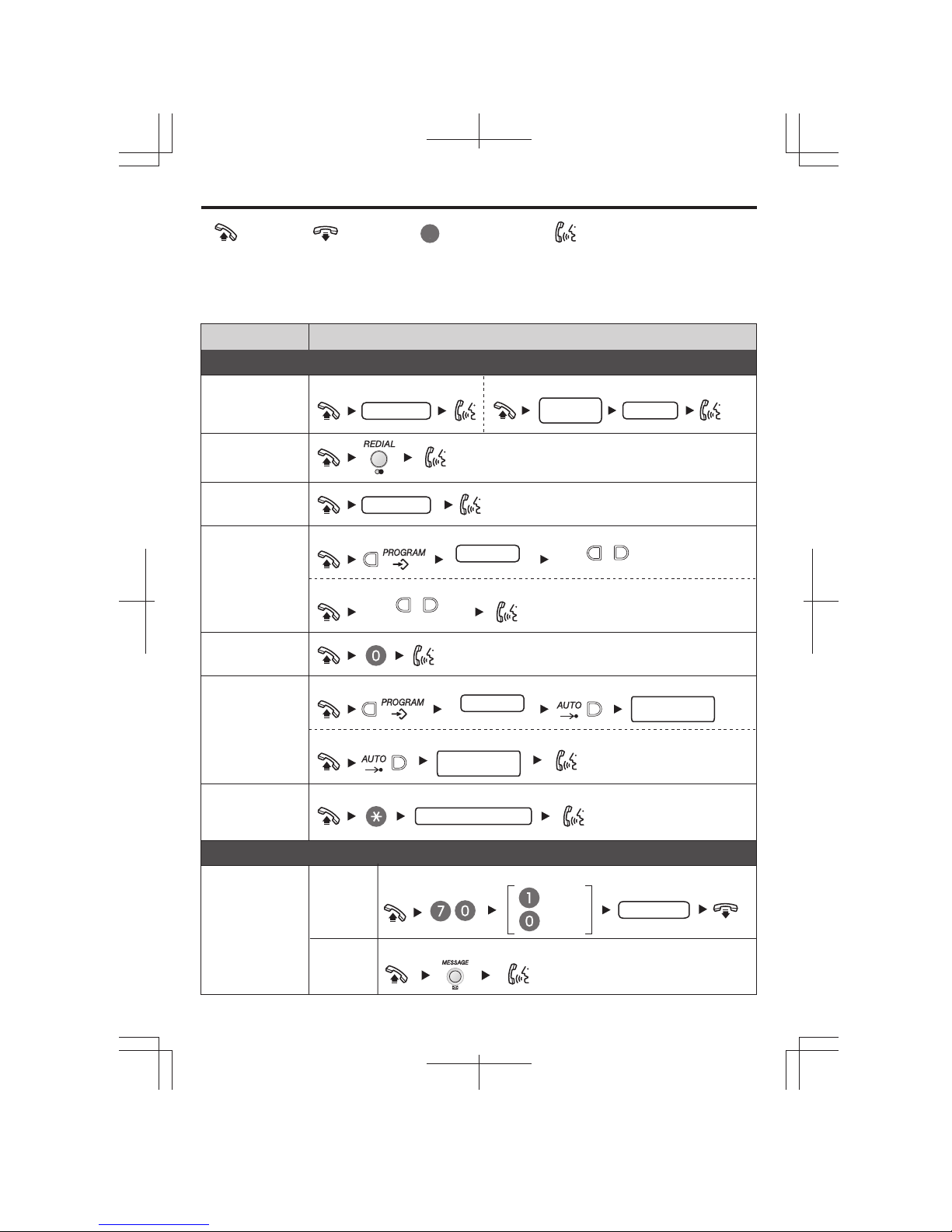

Off-hook On-hook Feature number Talk

*"Location of Controls" is shown on page 5.

Desired Function Operation

Calling

Redial

One-touch

Dialling

Calling an

operator

Station Speed

Dialling

To an extension To an external party

phone no.

extension no.

To dial

System Speed

Dialling

Making Calls

The REDIAL will dial the last number you called manually.

line access

no.

Press One-touch button.

Quick Dialling

quick dial no.

To dial

Station speed

dial no. (0-9)

System speed dial no.

To store

*The Feature numbers described in this manual are for KX-TD500 or KX-TD816/KX-TD1232.

If a different Panasonic KX series Business Telephone System is connected, please

refer to its manuals.

To store

desired no.

(max., 22 digits)

Press One-touch button.

desired no.

(max., 22 digits)

When the Dialled Extension is Busy/No Answer

Receiver

Sender

To call back

Message

Waiting

extension no.

Leave

Cancel

To leave/cancel a notification

Station speed

dial no. (0-9)

Features List

– 2 –

OPER

Desired Function

Operation

Holding To retrieve a call at the holding extension

Announce.

dial no.

Holding a call

Transferring

a call

During a Conversation

Paging

Announce.

All groups

Specific group

All external speakers

All groups & external speakers

group no.

To answer a page

Specific external speaker

external speaker no.

From a telephone speaker

From an external speaker

To page

To lock

To unlock

Useful Features

desired phone no.

Three-party

Conference

During a conversation

Locking your

extension

lock code lock code

lock code

❑

KX-TD500

❑

KX-TD816/KX-TD1232

Features List

– 3 –

❑

KX-TD500

❑

KX-TD816/

KX-TD1232

❑

KX-TD500

❑

KX-TD816/

KX-TD1232

– 4 –

Regarding other operations, please refer to the manuals

for the connected Panasonic KX series Business

Telephone Systems.

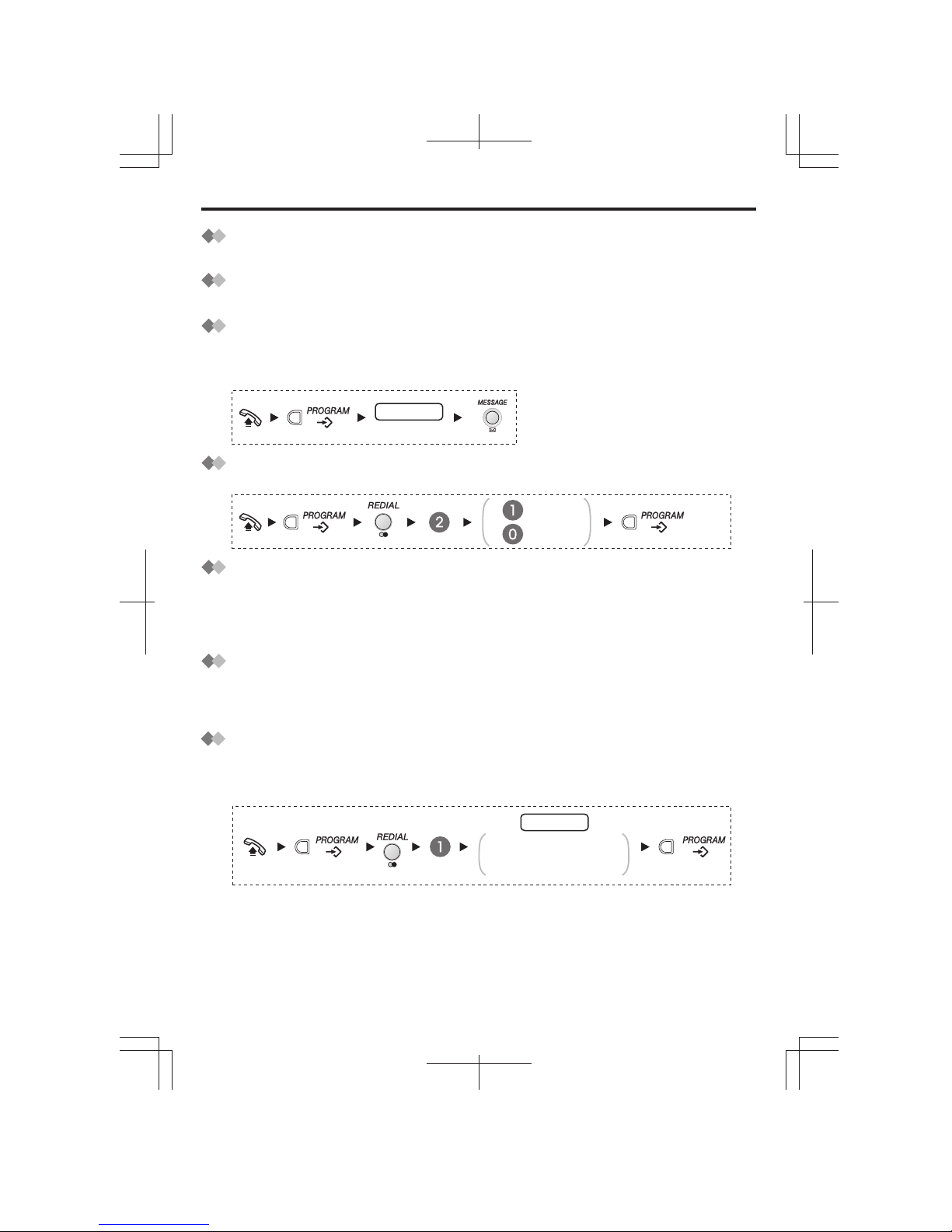

Setting Lock/Unlock

desired no.

(max., 22 digits)

You can lock the settings for one-touch buttons and MESSAGE button. [Default: Unlock]

To lock

To unlock

You can change the feature access number for the MESSAGE Button. [Default: 702]

For more detail, refer to the manuals for the connected Panasonic KX series Business

Telephone Systems.

One-touch buttons

Station Speed Dialling

Five One-touch buttons can be used as a One-touch dialling button or to access a feature.

You can store up to 10 Station speed dial numbers.

MESSAGE Button

Confirmation in Programming Mode

When programming, you can confirm your entry by three types of beep sound.

• One long beep: Your entry is accepted.

• Two beeps: Your entry is same as a previous entry.

• Three beeps: Your entry is rejected.

Memory Back Up

If the telephone line is disconnected for more than three days, the stored numbers

for One-touch dialling and Speed dialling will be erased. Please store them again.

Also, the settings for MESSAGE and Flash time will return to the default settings.

selection no.

1: 80 ms, 2: 90 ms, 3: 100 ms,

4: 110 ms, 5: 200 ms, 6: 300 ms,

7: 400 ms, 8: 600 ms

Flash Time

Operations in NORMAL Mode

Before programming the length of Flash time, make sure the position of the Mode

switch lever is "NORMAL". Enter the appropriate selection number for your country.

[Default: 600 ms]

Confirming the Mode

Adjusting the RINGER Volume

Adjust the RINGER volume selector lever (at the bottom of the unit) to

the desired setting. ( – LOW, – MIDDLE, – HIGH)

[Default: MIDDLE]

You can confirm the current mode by the position of the Mode switch

lever (at the bottom of the unit). [Default: NORMAL]

PAUSE: Used to insert a pause when

storing a telephone number.

AUTO: Used for Station Speed dialling.

PROGRAM: Used to enter the

programming mode.

MESSAGE: Used to call back the party who left the message

waiting indication.

Handset Volume Control Buttons: Used to adjust the handset volume.

One-touch Buttons (M1-M5): Used to

access a feature or as a One-touch

dialling button.

FLASH/RECALL: Used to send a flash signal in order to access a

PBX feature (eg., Hold, Transfer, or Three-party Conference).

REDIAL: Used to redial the last dialled number.

PBX mode

NORMAL mode

Connecting a Communication Device

Telephone Card: Has two sides (NORMAL mode, PBX mode).

DATA PORT

To connect a communication device such as a computer modem

to the telephone line, please use the DATA PORT (at the right

side of the unit). RJ11 modular jack is available.

PBX ModeNORMAL Mode

Message/Ringer Lamp: Flashes when you receive a call or when

someone has left you a message.

One-touch Buttons

(1-8): Used as a One-

touch button which is

set by the

Panasonic

KX series Business

Telephone Systems

; you

do not need to program

at your extension.

The KX-T7710 has two modes, NORMAL Mode and Panasonic PBX Mode*.

Please use the corresponding side of the Telephone Card depending on the mode.

*The PBX Mode may not be available depending on the model of the connected Panasonic KX series

Business Telephone Systems.

For more detail, please consult your dealer.

OPER

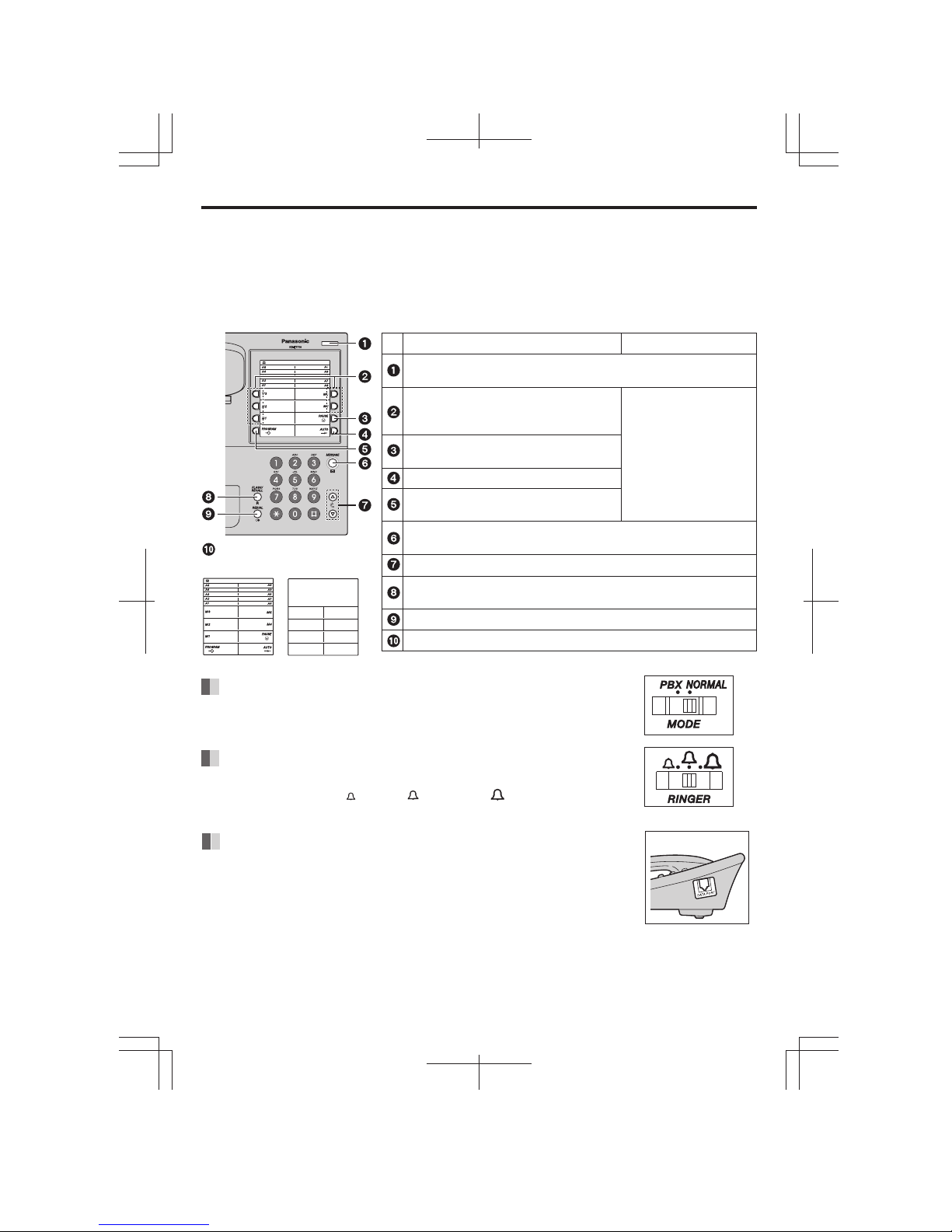

Location of Controls

– 5 –

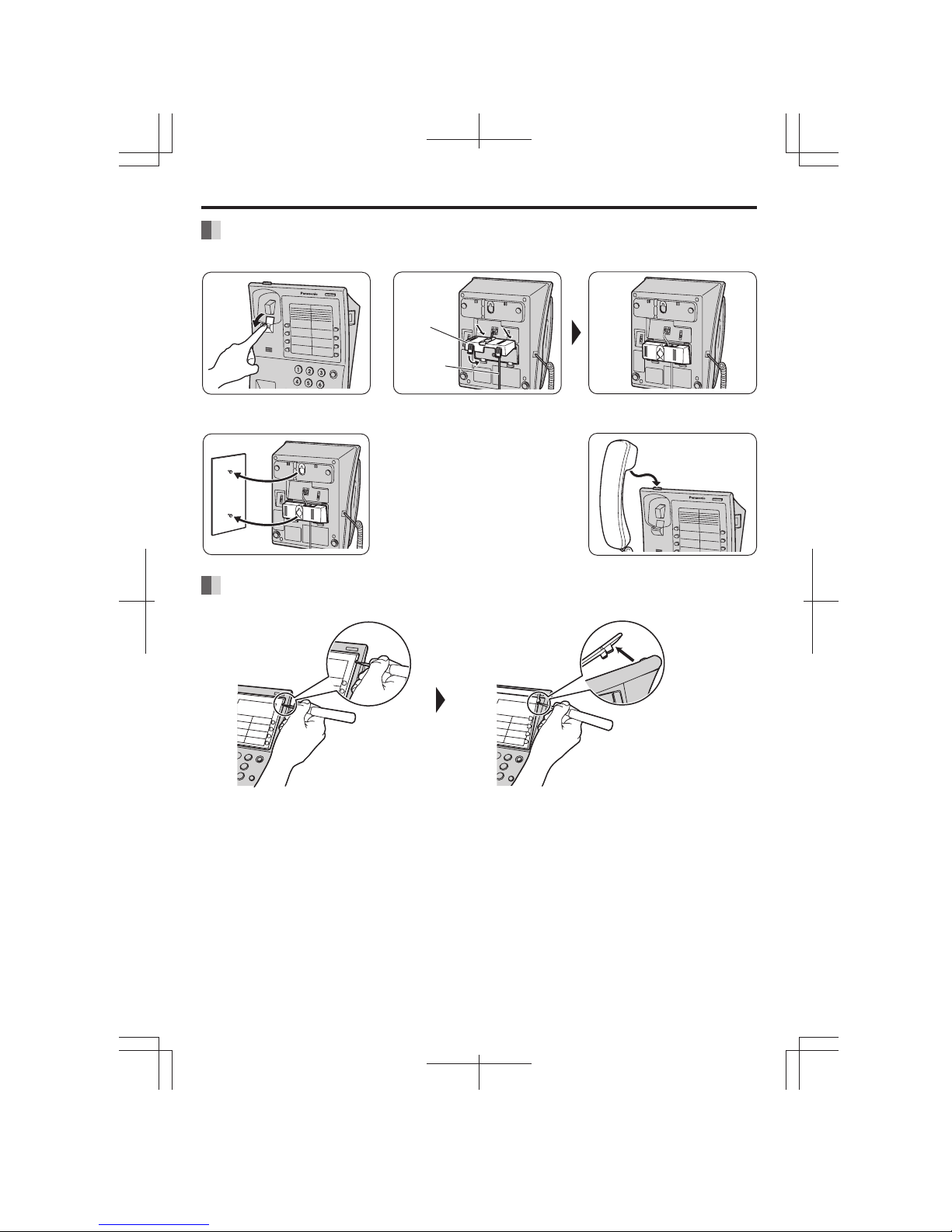

Removing the Telephone Card Cover

Telephone

line cord

Wall

mounting

adaptor

To temporarily

place the handset

down during a

conversation:

Wall Mounting

Things You Should Know

– 6 –

– 7 –

Important Information

NOTICE:

This equipment meets the applicable Industry Canada Terminal Equipment Technical

Specifications. This is confirmed by the registration number. The abbreviation, “IC:”, before

the registration number signifies that registration was performed based on a Declaration

of Conformity indicating that Industry Canada technical specifications were met. It does

not imply that Industry Canada approved the equipment.

Before installing this equipment, users should ensure that it is permissible to be

connected to the facilities of the local telecommunications company. The equipment must

also be installed using an acceptable method of connection. The customer should be

aware that compliance with the above conditions may not prevent degradation of service

in some situations.

Repairs to certified equipment should be coordinated by a representative designated by

the supplier. Any repairs or alterations made by the user to this equipment, or equipment

malfunctions, may give the telecommunications company cause to request the user to

disconnect the equipment.

Users should ensure, for their own protection, that the electrical ground connections of the

power utility, telephone lines and internal metallic water pipe system, if present, are

connected together. This precaution may be particularly important in rural areas.

Caution:

Users should not attempt to make such connections themselves, but should contact the

appropriate electric inspection authority, or electrician, as appropriate.

NOTICE:

The Ringer Equivalence Number (REN) assigned to each terminal device provides an

indication of the maximum number of terminals allowed to be connected to a telephone

interface. The termination on an interface may consist of any combination of devices

subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the

devices does not exceed 5.

The Ringer Equivalence Number (REN) of This Unit:

(found on the bottom of the unit).

Printed in Canada

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, ON L4W2T3

PSQW2023ZA KK0403TT0
