Panasonic SB-W40P User manual

ORDERNO. MD0512475C7

Subwoofer System

SB-W40P

Colour

(S)... Silver Type

SPECIFICATIONS

Specification

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

Type 1way, 1speaker system (Bass-ref.)

Speaker unit Impedance 6

Woofer 16 cm (6-1/2”) Conetype

Input power (IEC) 220 W(Max)

Output sound pressure

level 80 dB/W(1.0m)

Frequencyrange 34 Hz - 220 Hz (-16 dB)

38 Hz - 190 Hz (-10 dB)

Dimensions(WxH xD) 182 mm x392 mm x266 mm

7-3/16” x15-7/16” x10-1/2”

Mass 3.7kg(8.2lb.)

Notes :

1. Specificationsaresubject to changewithoutnotice. / Mass and

dimensionsareapproximate.

2. Total harmonicdistortion ismeasured bythedigital spectrum

analyzer.

System : SC-HT40P-S MusicCenter : SA-HT40P-S

Front Speaker : SB-PF40P-S

Surround Speaker : SB-PS40P-S

Center Speaker : SB-PC40P-S

Subwoofer : SB-W40P-S

System : SC-HT40PC-S MusicCenter : SA-HT40PC-S

Front Speaker : SB-PF40P-S

Surround Speaker : SB-PS40P-S

Center Speaker : SB-PC40P-S

Subwoofer : SB-W40P-S

System : SC-HT40GN-S MusicCenter : SA-HT40GN-S

Front Speaker : SB-PF41GN-S

Surround Speaker : SB-PS41GN-S

Center Speaker : SB-PC40P-S

Subwoofer : SB-W40P-S

System : SC-HT40EE-S MusicCenter : SA-HT40EE-S

Front Speaker : SB-PF41GN-S

Surround Speaker : SB-PS41GN-S

Center Speaker : SB-PC40P-S

Subwoofer : SB-W40P-S

System : SC-HT60EE-S MusicCenter : SA-HT60EE-S

Front Speaker : SB-FS61GN-S

Surround Speaker : SB-FS62GN-S

Subwoofer : SB-W40P-S

System : SC-HT60GN-S MusicCenter : SA-HT60GN-S

Front Speaker : SB-FS61GN-S

Surround Speaker : SB-FS62GN-S

Subwoofer : SB-W40P-S

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

Unauthorized copying and distribution isaviolation of law.

1. Assembling and Disassembling

“ATTENTION SERVICER”

Some chassis components mayhave sharpedges. Be careful whendisassembling and

servicing.

1. Thissection describes procedures for checking the operation of

the major printed circuitboards and replacing the main

components.

2. For reassemblyafter operation checks or replacement, reverse

the respective procedures.

Special reassemblyprocedures are described onlywhen required.

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

3. Select items from the following index when checks or

replacement are required.

4. Refer to the Parts No. on the page of “Parts Location and

Replacement Parts List” (Section 5), ifnecessary.

Belowis the list of disassemblysections

-Disassemblyof Front Cabinet Assembly

-Disassemblyof Woofer

1.1. Disassemblyflow chart

The following chart is the procedure fordisassembling the casing and inside parts forinternal

inspection whencarrying out the servicing.

To assemble the unit, reverse the steps showninthe chart as below.

1.2. Disassemblyof Front Cabinet Assembly

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

Step1: Upset the unit as shownabove.

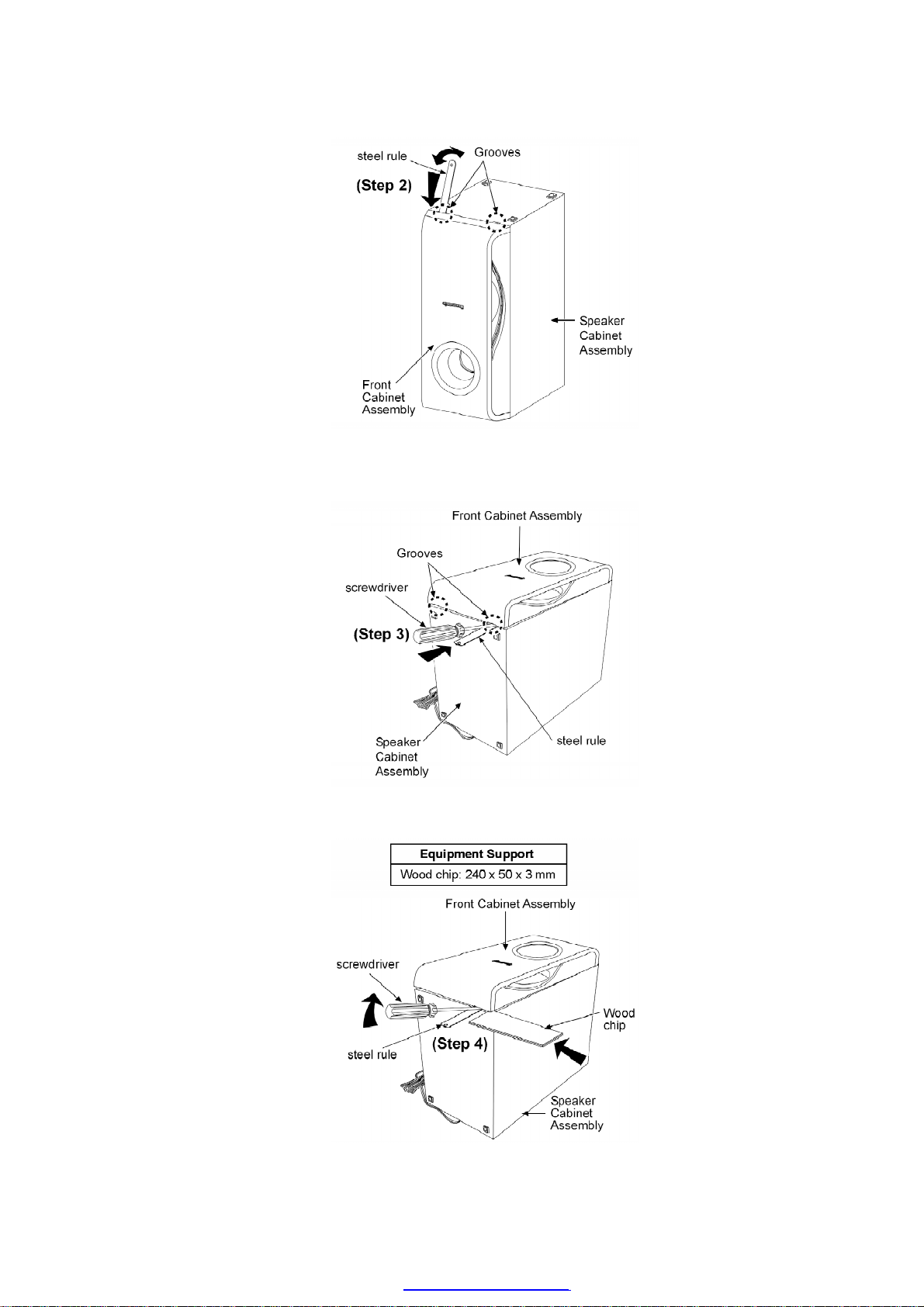

Step2: Insert a steel rule intothe grooves of the Speakerunit. Pushthe steel rule forwardand

backwardas arrowshown.

Step3: Insert a flatheadscrewdriverintothe grooves as arrowshown. Ensure that the

screwdriveris above the steel rule.

Step4: Use the screwdrivertoslightlypushup the Front Cabinet Assemblyas arrowshownand

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

insert the Wood chip.

Step5: At the boss area pushup as arrowshowntoopenthe bosses.

Caution:

Donot exert strong force as it maydamage the Front Cabinet Assembly.

1.3. Disassemblyof Woofer

Follow(step1) to(step5) of item1.2.

Step1: Remove all 4 screws fromthe Woofer.

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

Step2: Insert a steel rule betweenthe Wooferand SpeakerCabinet Assemblytopushout the

Woofer.

Step3: Take out the Wooferunit.

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

Step4: Remove the Wooferbydetaching the (+) white and (-) blue wires.

1.4. Assemblyof Subwoofer Unit

Step1: Scrape off using the scriberand cleanup the remaining glue at the 6 bosses and 6 holes

as arrowshownand replace withthe normal glue.

Step2: Fix the Front Cabinet Assemblyfirmlyback tothe SpeakerCabinet Assembly.

2. Connection of the Speaker Cables

-Besure to connect speaker cables before connecting the AC

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

power supplycord.

-The load impedance of anyspeaker used with thisunitmust be 6 .

-Besure to connect the cablefrom the right speaker to the right

terminal and the cablefrom the left speaker to the left terminal.

1. Stripoff the outer covering, and twist the center conductor. Make

sure the bare ends of the wires are not unravelled. (Iftheyare,

twist them tight again.)

2. Insert the wire to the rear panel of the unitand close the lever.

Notes :

-To prevent damage to circuitry, never short-circuitpositive (+)and

negative (-) speaker wires.

-Besure to connect onlypositive (white) wires to positive (+)

terminalsand negative (blue) wires to negative (-) terminals.

Incorrect connection can damage the speakers.

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

Positioning forbest effect

Howyou set up yourspeakers canaffect the bass and the sound field.

Note the following points.

-Place the speakers on flat secure bases.

-Placing speakers too close to floors, walls, and corners can result

inexcessive bass. Cover wallsand windowswith athick curtain.

Note

Keepyourspeakers at least 10 mm (13/32”) fromthe systemforproperventilation.

Place the front, center, and surround speakers at approximatelythe same distance fromthe

seating position. The angles inthe diagramare approximate.

Front speakers (left, right)

Place on the left and right of the TV at seatedearheight sothat there is good coherency

betweenthe picture and sound.

Centerspeaker

Place underneathorabove the centerof the TV. Aimthe speakerat the seating area.

Surround speakers (left, right)

Place on the side of orslightlybehind the seating area, higherthanearlevel.

Subwoofer

The subwoofercanbe placedinanyposition as long as it is at a reasonable distance fromthe

TV.

Note that some experimentation canyieldthe smoothest lowfrequencyperformance. Placement

neara cornercanincrease the apparent output level, but canresult inunnatural bass.
