Panasonic SB-W335EG User manual

ORDERNO. MD0506270C8

Subwoofer System

SB-W335EG

Colour

(S)... Silver Type

SPECIFICATIONS

Specification

Type 1way, 1speaker system (Bass-ref.)

Speaker unit(s) Impedance 4

Subwoofer 16 cm Conetype

Input power (IEC) 90 W(Max)

Output sound pressure 80 dB/W(1.0m)

Frequencyrange 29 Hz - 173 Hz (-16 dB)

33 Hz - 148 Hz (-10 dB)

Dimensions(WxH xD) 175 mm x345 mm x295 mm

Mass 3.3kg

Notes :

1. Specificationsaresubject to changewithoutnotice.

2. Mass and dimensionsareapproximate.

ForHT330

System : SC-HT330EB-

MusicCenter : SA-HT330EB-S

Front Speaker : SB-FS335EG-S

Surround Speaker : SB-FS335EG-S

Center Speaker : SB-PC335EG-S

ActiveSubwoofer : SB-W335EG-S

System : SC-

HT330GCPS

MusicCenter : SA-HT330GCPS

Front Speaker : SB-FS335EG-S

Surround Speaker : SB-FS335EG-S

Center Speaker : SB-PC335EG-S

ActiveSubwoofer : SB-W335EG-S

System : SC-

HT330GCSS

MusicCenter : SA-HT330GCSS

Front Speaker : SB-FS335EG-S

Surround Speaker : SB-FS335EG-S

Center Speaker : SB-PC335EG-S

ActiveSubwoofer : SB-W335EG-S

System : SC-

HT330GCTS

MusicCenter : SA-HT330GCTS

Front Speaker : SB-FS335EG-S

Surround Speaker : SB-FS335EG-S

Center Speaker : SB-PC335EG-S

ActiveSubwoofer : SB-W335EG-S

System : SC-HT330GN-

MusicCenter : SA-HT330GN-S

Front Speaker : SB-FS335EG-S

Surround Speaker : SB-FS335EG-S

Center Speaker : SB-PC335EG-S

ActiveSubwoofer : SB-W335EG-S

System : SC-HT330GS-

MusicCenter : SA-HT330GS-S

Front Speaker : SB-FS335EG-S

Surround Speaker : SB-FS335EG-S

Center Speaker : SB-PC335EG-S

ActiveSubwoofer : SB-W335EG-S

System : SC-HT330GC-

MusicCenter : SA-HT330GC-S

Front Speaker : SB-FS335EG-S

Surround Speaker : SB-FS335EG-S

Center Speaker : SB-PC335EG-S

ActiveSubwoofer : SB-W335EG-S

ForHT335

System : SC-HT335E-S MusicCenter : SA-HT335E-S

Front Speaker : SB-FS335EG-S

Surround Speaker : SB-FS335EG-S

Center Speaker : SB-PC335EG-S

ActiveSubwoofer : SB-W335EG-S

System : SC-HT335EE-

MusicCenter : SA-HT335EE-S

Front Speaker : SB-FS335EG-S

Surround Speaker : SB-FS335EG-S

Center Speaker : SB-PC335EG-S

ActiveSubwoofer : SB-W335EG-S

System : SC-HT335EG-

MusicCenter : SA-HT335EG-S

Front Speaker : SB-FS335EG-S

Surround Speaker : SB-FS335EG-S

Center Speaker : SB-PC335EG-S

ActiveSubwoofer : SB-W335EG-S

Unauthorized copying and distribution isaviolation of law.

1. Disassembly Process

1.1. Disassemblyof the Front Cabinet Assembly

Step1: Slot ina steel rulertomake a gapallowance betweenthe Front Cabinet Assemblyand

the SpeakerCabinet Assemblyas arrowshown.

Step2: Slot a piece of wood chipinbetweenthe Front Cabinet Assemblyand the steel ruleras

arrowshown.

Step3: Use the screwdrivertoslightlylift up the Front Cabinet Assemblyas arrowshown.

Ensure that the screwdriveris above the wood chipblock whendoing the process.

Note:

Be careful withthe bosses whichare gluedtothe SpeakerCabinet Assembly.

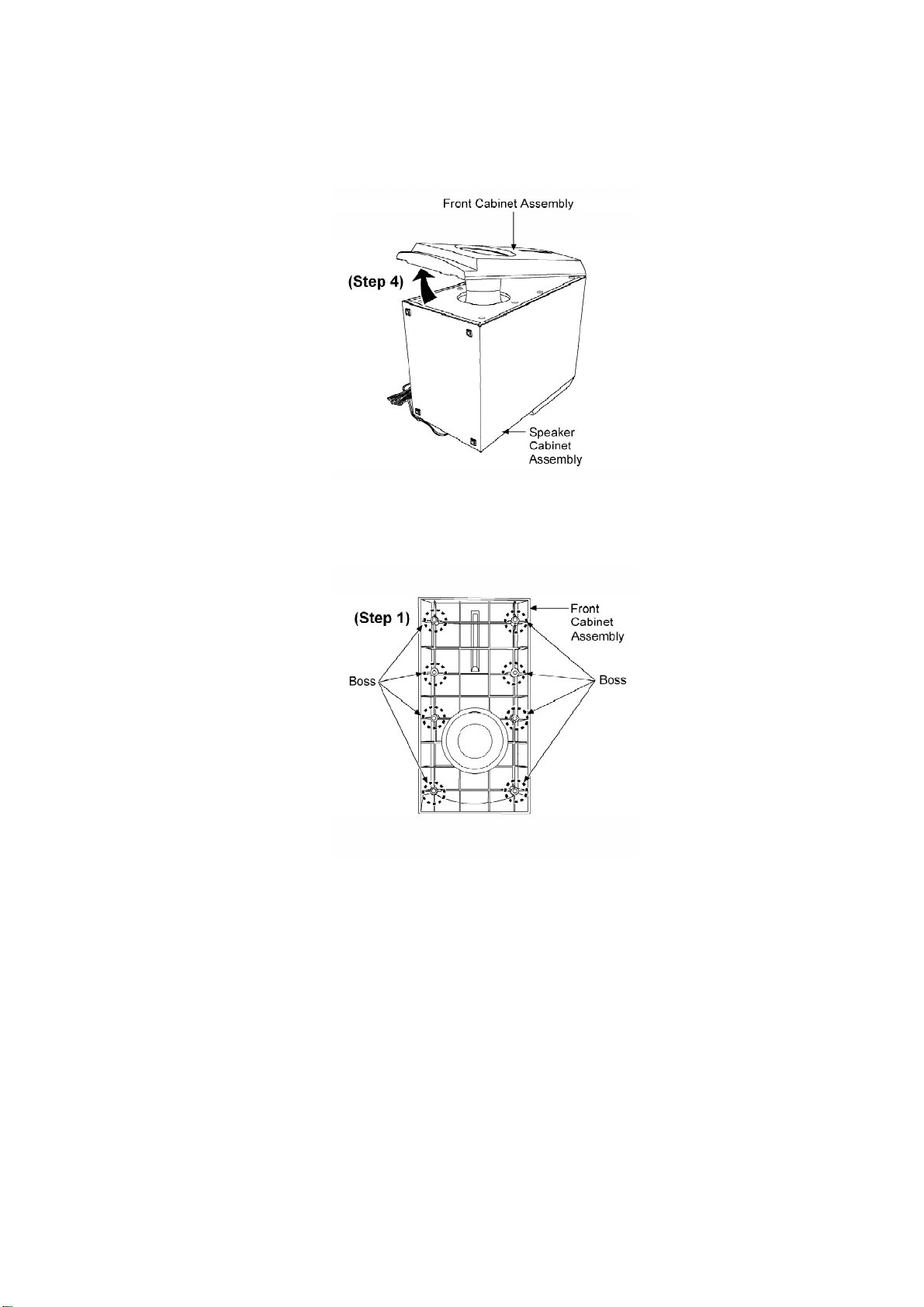

Step4: Remove the Front Cabinet Assemblyfromthe SpeakerCabinet Assemblyas arrow

shown.

1.1.1. Assemblyof the Front Cabinet Assembly

Step1: Cleanup the remaining glue at the 8 bosses as arrowshownand replace withthe

normal glue.

Step2: Replace the Front Cabinet Assemblyfirmlyback tothe SpeakerCabinet Assembly.

1.2. Disassemblyof the Woofer

Step1: Remove all 4 screws fromthe WooferGuard.

Step2: Take out the WooferfromSpeakerCabinet Assemblyas arrowshown.

Step3: Remove the Wooferbydetaching the (+) white and (-) blue wires.

2. Connection of the Speaker Cables

-Besure to connect speaker cables before connecting the AC

power supplycord.

-The load impedance of anyspeaker used with thisunitmust be 4 .

-Besure to connect the cablefrom the right speaker to the right

terminal and the cablefrom the left speaker to the left terminal.

1. Stripoff the outer covering, and twist the center conductor. Make

sure the bare ends of the wires are not unravelled. (Iftheyare,

twist them tight again.)

2. Insert the wire to the rear panel of the unitand close the lever.

Notes :

-To prevent damage to circuitry, never short-circuitpositive (+)and

negative (-) speaker wires.

-Besure to connect onlypositive (white) wires to positive (+)

terminalsand negative (blue) wires to negative (-) terminals.

Incorrect connection can damage the speakers.

3. Connection of Wiring Diagram

4. Cabinet Parts Location

5. Replacement Parts List

Notes :

-Important safetynotice :

When replacing anyof these components, be sure to use only

manufacturer’sspecified parts showninthe parts list.

-[M] indicates inthe Remarks columns indicates parts supplied by

PAVCSG.

Ref. No. PartNo. PartName& Description Remarks

CABINETAND CHASSIS

1RYBX0100-S FRONTCABINETASS’Y [M]

2RFKHBW335EGS SPK CABINETASS’Y [M]

3RMVX0090 WOOFER GUARD [M]

4RGNX0287-K SPEC LABEL [M]

5RKA0072-KJ LEG CUSHION [M]

6XTB4+25AF-K SCREW [M]

7RMFX0044 HIMELON (LONG) [M]

8RMFX0045 HIMELON (SHORT) [M]

9RMQX0135-1 EVAPACK (PORT) [M]

10 RMQX0136 EVAPACK (WOOFER) [M]

ACCESSORIES

A1 REEX0449B-1J SPEAKER CORD 4M [M]

A2 REEX0449E-1J SPEAKER CORD 8M [M]

PACKING MATERIALS

P1 RPNX0327 POLYFOAMSET(3PCS) [M]

P2 RPFX0138 MIRAMATBAG [M]

Ref. No. PartNo. PartName& Description Remarks

SPEAKER

SP1 L0AA16A00017 WOFFER UNIT [M]

6. Packaging (SB-HT335EG-S & SB-W335EG-S)

Note: The diagrambelowshows the packaging forSB-HT335EG-S & SB-W335EG-S.
