Panasonic WV-Q169A User manual

Before attempting to connect or install this product,

please read these instructions carefully and save this manual for future use.

The model number is abbreviated in some descriptions in this manual.

Operating Instructions

Included Installation Instructions

Ceiling Mount Bracket

Model No. WV-Q169A

FRANÇAIS DEUTSCH ENGLISHESPAÑOLITALIANO

РУССКИЙ

Contents

Features......................................................................................................................................... 2

Precautions ................................................................................................................................... 3

Precautions for installation............................................................................................................ 4

Major operating controls ............................................................................................................... 6

Installations ................................................................................................................................... 7

Specifications.............................................................................................................................. 14

Standard accessories.................................................................................................................. 14

The WV-Q169A is a ceiling embedded bracket that is exclusively designed to mount the color

CCTV camera and Network camera on a ceiling. Refer to the catalog or operating instructions of

the camera for further information about the compatible models. This bracket can be used for an

area with weak pull-out strength such as plasterboard in a double ceiling, and the embedded type

makes the visible part of the camera smaller.

* It is possible to use WV-Q169A instead of WV-Q169 for the models introducing WV-Q169 as an

available optional part.

Features

Precautions

Refer installation work to the dealer.

Installation work requires technique and experi-

ences.

Failure to observe this may cause fire, electric

shock, injury, or damage to the product.

Be sure to consult the dealer.

Avoid installing this bracket in the loca-

tions where salt damage occurs or corro-

sive gas is produced.

Otherwise, the mounting portions will deterio-

rate and accidents such as a fall of this product

may occur.

The screws and bolts must be tightened to

the specified torque.

Loosening of mounting screws or bolts may

cause a fall of the product resulting in injury or

accidents.

Do not use this bracket except with suit-

able cameras.

Failure to observe this may cause a drop result-

ing in injury.

Select an installation area that can sup-

port the total weight.

Selecting an inappropriate installation surface

may cause this product to fall down or topple

over, resulting in injury or accidents.

Installation work shall be started after sufficient

reinforcement.

Do not rub the edges of metal parts with

your hand.

Strong rubbing may cause injury.

Periodic inspections shall be conducted.

Rust on the metal parts or screws may cause a

fall of the product resulting in injury or acci-

dents.

Consult the dealer for the inspections.

The measures of protection against a fall

of this product shall be taken.

Failure to observe this may cause a drop result-

ing in injury or accidents.

Be sure to install the safety wire.

The exclusively designed mount bracket

shall be used.

Failure to observe this may cause a drop result-

ing in injury or accidents.

Use the exclusively designed mount bracket for

installation.

Do not install this product in locations

subject to vibration.

Loosening of mounting screws or bolts may

cause a fall of the product resulting in injury or

accidents.

Do not strike or give a strong shock to this

product.

Failure to observe this may cause fire or injury.

Install this product in a location high

enough to avoid people and objects from

bumping the product.

Failure to observe this may cause injury.

Do not hang down from this product or

use this product as a pedestal.

Failure to observe this may cause a drop result-

ing in accidents.

ENGLISH

Precautions for installation

All work related to the installation of this product should be made by qualified service

personal or system installer.

Panasonic assumes no responsibility for injuries or property damage resulting from fail-

ures arising out of improper installation or operation inconsistent with this documenta-

tion.

The installation should comply with local electrical code.

This product is designed to be used indoors.

This product is not operable outdoors.

Do not expose this product to direct sunlight for hours and do not install the product near a heater

or an air conditioner.

Otherwise, it may cause deformation, discoloration and malfunction. Keep this product away from

water and moisture.

Installation area for this product

Make sure that the installation area is strong enough to hold the total weight of the camera•

assembly before installation.

The installation area shall have 210 mm {8-9/32 inches} or more space behind the ceiling.•

The thickness of the ceiling board for installation can range between 9 mm {3/8 inches} and•

40 mm {1-9/16 inches}.

210 mm {8-9/32 inches}

or more

Ceiling board: between 9 mm {3/8 inches}

and 40 mm {1-9/16 inches}

Do not place this product in the following places:

Locations where it may get wet from rain or water splash (including under the eaves, etc.)•

Locations where a chemical agent is used such as a swimming pool•

Locations subject to moisture and oil smoke such as a kitchen•

Locations that have a specific environment that is subject to an inflammable atmosphere or sol-•

vents

Locations where a radiation, an X-ray, a strong radio wave or a strong magnetic field is gener-•

ated

Locations where corrosive gas is produced, locations where it may be damaged by briny air such•

as seashores

Locations where the temperature is not within the specified range (–45 °C to +50 °C {-49 °F to•

122 °F})

Locations subject to vibrations, such as on vehicles, marine vessels, or above product lines (This•

product is not designed for on-vehicle use.)

Locations subject to condensation as the result of severe changes in temperature•

Mounting method for this product

This product is designed to be used as a pendant mount camera. If the product is mounted on a

desktop or at a slant, it may not work correctly and its lifetime may be shortened.

Procure anchor bolts separately.

An anchor bolt for mounting the bracket on a ceiling is not supplied with the ceiling mount bracket.

Prepare them according to the material and strength of the area where the product is to be

installed.

Anchor bolt: M10, recommended•

Minimum pull-out strength: Make sure that more than 5 times of the total weight including the•

camera body can be supported.

Tightening the screws and bolts

The screws and bolts must be tightened with an appropriate tightening torque according to the•

material and strength of the installation area.

Do not use an impact driver. Use of an impact driver may damage the screws or cause tightening•

excessively.

When a screw is tightened, make the screw at a right angle to the surface. After tightening the•

screws or bolts, perform checks to ensure that the tightening is sufficient enough so that there is

no movement or looseness.

Make sure to remove this product if it will no longer be used.

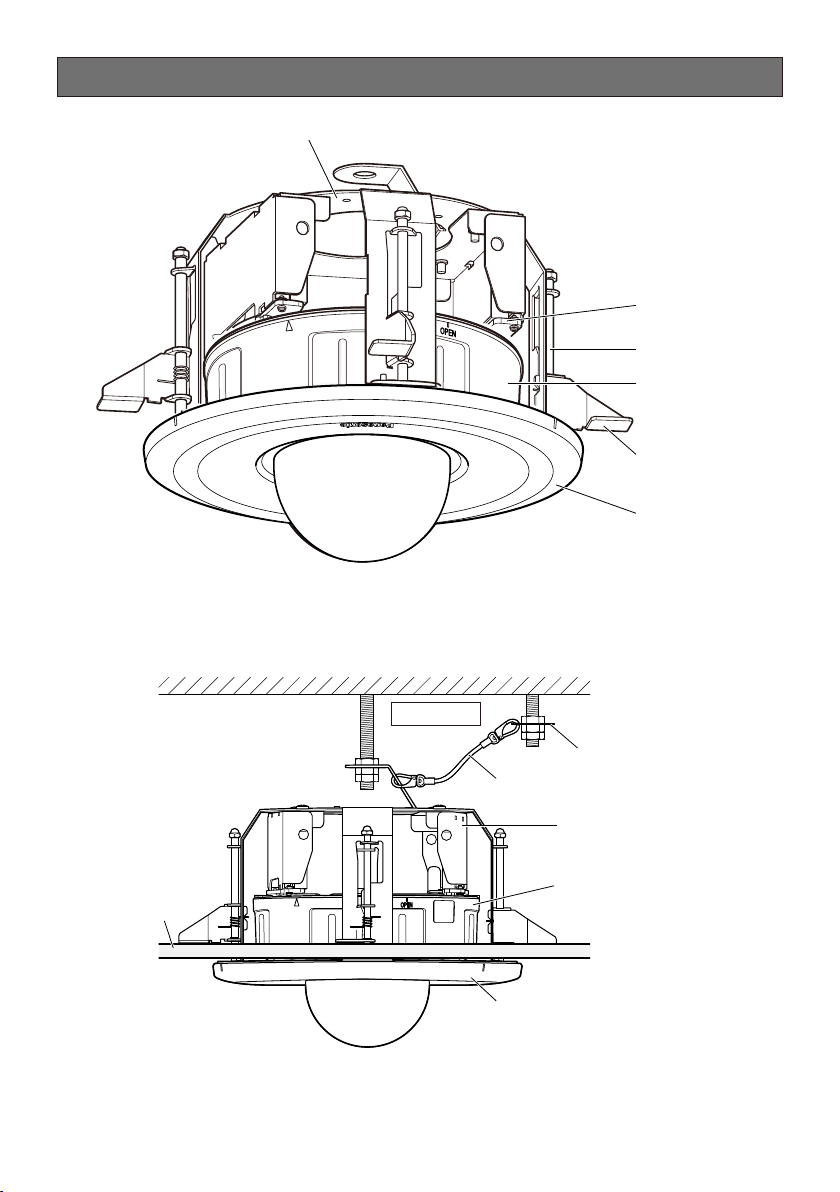

Major operating controls

Mounting chassis

Decorative cover

Camera body

Camera mounting

stage

Ceiling board fixing

screw (x4)

Ceiling board fixing bracket

(x4)

Ceiling board

Roof space

Safety wire angle (accessory)

Safety wire (accessory)

Ceiling mount bracket

Decorative cover

Camera body

Installations

Be sure to read “Precautions” (☞page 3) and “Precautions for installation” (☞page 4) before instal-

lation. Read the operating instructions for the camera to be installed as well.

Step 1

Put Template A (accessory) against the ceiling and make a hole.

Make 4 holes of 12 mm {1/2 inches} inq

diameter.

Remove the center part from the template.w

Make a hole of 180 mm {7-1/16 inches} ine

diameter.

The ceiling holes are shown

in the drawing at right. →

Step 2

Install two anchor bolts (locally procured: M10 recommended) into the ceiling.

One anchor is used for securing the mounting chassis, and the other anchor is used for connecting

the safety wire.

Determine the anchor bolt length (for securing the mounting chassis) by use of Template Bq

(accessory).

Position the nut by use of Template B (accessory) and mount the nut. (The distance between thew

bottom surfaces of the ceiling board and nut shall be 134 mm {5-1/4 inches}.)

Anchor bolt (for connecting

the safety wire)

wMount a nut

qDetermine the anchor bolt length

Install the anchor bolt in the center of the hole

134 mm {5-1/4 inches}

Template B

Ceiling board

Anchor bolt (for securing

the mounting chassis)

Camera body

Ceiling face ø12 mm {1/2"}

(4 positions)

ø180 mm

{7-1/16"}

Template A

Note:

When the existing anchor bolt that has been•

installed is used for connecting the safety

wire, the use of 2 spacer nuts is helpful.

Spacer nuts

Safety wire

Safety wire angle

Spacer nuts

Existing anchor bolt

Step 3

Secure the safety wire angle (accessory) to the

anchor bolt (for connecting the safety wire),

and connect the safety wire (accessory).

Mount a nut so that the safety wire angle isq

secured on the anchor bolt.

Disconnect the safety wire from the safetyw

wire angle.

Engage the face markede qwith the anchor

bolt.

Bend the face markedr w.

Connect the safety wire to the safety wiret

angle again.

Engage the nut from beneath, and securey

the safety wire angle with top and bottom

nuts.

Engage another nut from beneath to tightenu

and secure the nut that was engaged from

beneath in yin a double nut fashion.

IMPORTANT:

The pull-out strength of the anchor bolt shall be more than 5 times of the total weight of the•

installed devices (including the camera body, ceiling mount bracket, anchor bolts, and all other

parts).

When the existing anchor bolt is used as an anchor bolt for connecting the safety wire, make•

sure that the distance between the anchor bolt and camera mounting position is 1 m {3.28 feet}

or less.

Upper side

Lower

side

Safety wire

eInsert

w Disconnect

rBend

Mark w

Mark q

tConnect

Safety wire angle

Anchor bolt

* The nut is omitted in the illustration above.

Step 4

Attach the safety wire to the mounting chassis

as shown in the following drawing.

Step 5

Insert the anchor bolt (for securing the mount-

ing chassis) into the mounting hole of the

mounting chassis.

To adjust the position of the Panasonic logo on

the decorative cover, rotate the mounting chas-

sis. Note that the Panasonic logo will be

located at approximately 180 ° opposite side of

a hook for the decorative cover.

Safety wire

(Accessory)

Roof space

Ceiling board

Cables

Pass the loop

through the

tip of the

safety wire.

Mounting

chassis

Mounting hole

Approx. 10 °

Direction of brand logo

Hooks (x3)

Step 6

Secure the mounting chassis to the ceiling

board with the ceiling board fixing screws (4

positions).

Turning the ceiling board fixing screws clock-

wise provides ceiling board tightening between

the bottom of the mounting chassis and ceiling

board fixing bracket resulting in mounting chas-

sis securing.

(Recommended tightening torque:

0.78 N·m {0.58 lbf·ft})

IMPORTANT:

When securing this bracket on the ceiling,•

make sure that the four ceiling board fixing

brackets are open as shown in the following

figure.

Step 7

Use double nuts (locally procured) to secure

the mounting chassis after inserting the anchor

bolt (for securing the mounting chassis).

Anchor bolt

(for securing the mounting chassis)

Ceiling board

fixing screw

Ceiling board

fixing bracket

Turn clockwise

Double nuts

(locally procured)

Ceiling board

Anchor bolt

(for connecting the safety wire)

Note:

The mount bracket supplied with the cam-•

era is not used.

Mount the camera enclosure on the camerar

main body.

<Installing WV-CW504F, WV-CW504S,

WV-NW502S>

Mount the camera attachment (suppliedq

with the camera) to this chassis.

Use 4 M4-L8 screws (supplied with the

camera) to secure the camera attachment

firmly as shown in the drawing.

(Recommended tightening torque:

0.78 N·m {0.58 lbf·ft})

Connect the camera cables.w

FRONT TOP

Mounting

chassis

Camera attachment

(supplied with the

camera)

M4-L8 x4

(supplied with

the camera)

Step 8

Follow the procedure according to the model of

the camera to be installed.

Use the driver bit supplied with the cameraq

to remove the screws that secure the cam-

era enclosure and remove the enclosure

from the camera main body.

IMPORTANT:

Refer to the Operating instructions of the•

camera as well.

Perform camera wiring.w

Align the screw holes of the mounting chas-e

sis with the 4 mounting screws of the cam-

era main body and tighten them.

(Recommended tightening torque:

0.78 N·m {0.58 lbf·ft})

Screws of the main camera body

Mounting chassis

Screw hole

Table of contents

Languages:

Other Panasonic Rack & Stand manuals

Panasonic

Panasonic i-PRO WV-Q121B User manual

Panasonic

Panasonic PAW-GRDSTD40 User manual

Panasonic

Panasonic TY-ST85P12 User manual

Panasonic

Panasonic TY-ST10-M User manual

Panasonic

Panasonic TY-S37PX60W User manual

Panasonic

Panasonic TY-WK42PV20 User manual

Panasonic

Panasonic WV-Q154C User manual

Panasonic

Panasonic NNTK687S User manual

Panasonic

Panasonic ET-PKL100H User manual

Panasonic

Panasonic KX-A243 User manual

Panasonic

Panasonic KX-TCA717EX User manual

Panasonic

Panasonic TY-27SF24M User manual

Panasonic

Panasonic TY-WK65PR20 User manual

Panasonic

Panasonic TY-ST65P20 User manual

Panasonic

Panasonic WV-QCL500-S User manual

Panasonic

Panasonic NN-TK816CSCP User manual

Panasonic

Panasonic UE-608030 User manual

Panasonic

Panasonic WV-Q150CE User manual

Panasonic

Panasonic ET-JPF100BU User manual

Panasonic

Panasonic TY-CE85PS12 User manual

Panasonic

Panasonic TY-WK15TA2U User manual

Panasonic

Panasonic ET-JPC200BK User manual

Panasonic

Panasonic KX-TCA727EX User manual

Panasonic

Panasonic WV-Q119 User manual

Popular Rack & Stand manuals by other brands

Salamander

Salamander Acadia AC/W/L400/WH Assembly instructions

Fohhn

Fohhn VAT-09 Mounting instruction

ricoo

ricoo FS0522 quick start guide

AMSOIL

AMSOIL BMK-22 Installation and service instructions

Kargo Master

Kargo Master 48220 installation guide

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 installation instructions

ricoo

ricoo S1222 installation instructions

Ready-Set-Mount

Ready-Set-Mount RSMCM602 instruction manual

VidaBox

VidaBox VB MNT FFS2 installation guide

Welch Allyn

Welch Allyn 48960 Assembly instructions

Arkon

Arkon CM035-ST-2 installation instructions

PROEL

PROEL PLWIN60C user manual

Agilent Technologies

Agilent Technologies E2609B installation guide

Mustang

Mustang MV-ARM4 installation guide

Mounting Solutions

Mounting Solutions WRM-320 manual

Pyle

Pyle PMKSPAD1 manual

ShelterIt

ShelterIt 21208 installation instructions

SPL

SPL RackPack?4 1040 manual
