Panasonic CF-W4GWCZZ User manual
ORDER NO. CPD0511051C1
Personal Computer
CF-W4
Model No. CF-W4GWCZZ 1 2
1
: Operation System
B:Microsoft
® Windows® XP Professional
2
: Area
M: Refer to above area table
This is the Service Manual for
the following areas.
M …for U.S.A. and Canada
© 2005 Matsushita Electric Industrial Co., Ltd. All rights reserved.
Unauthorized copying and distribution is a violation of law.

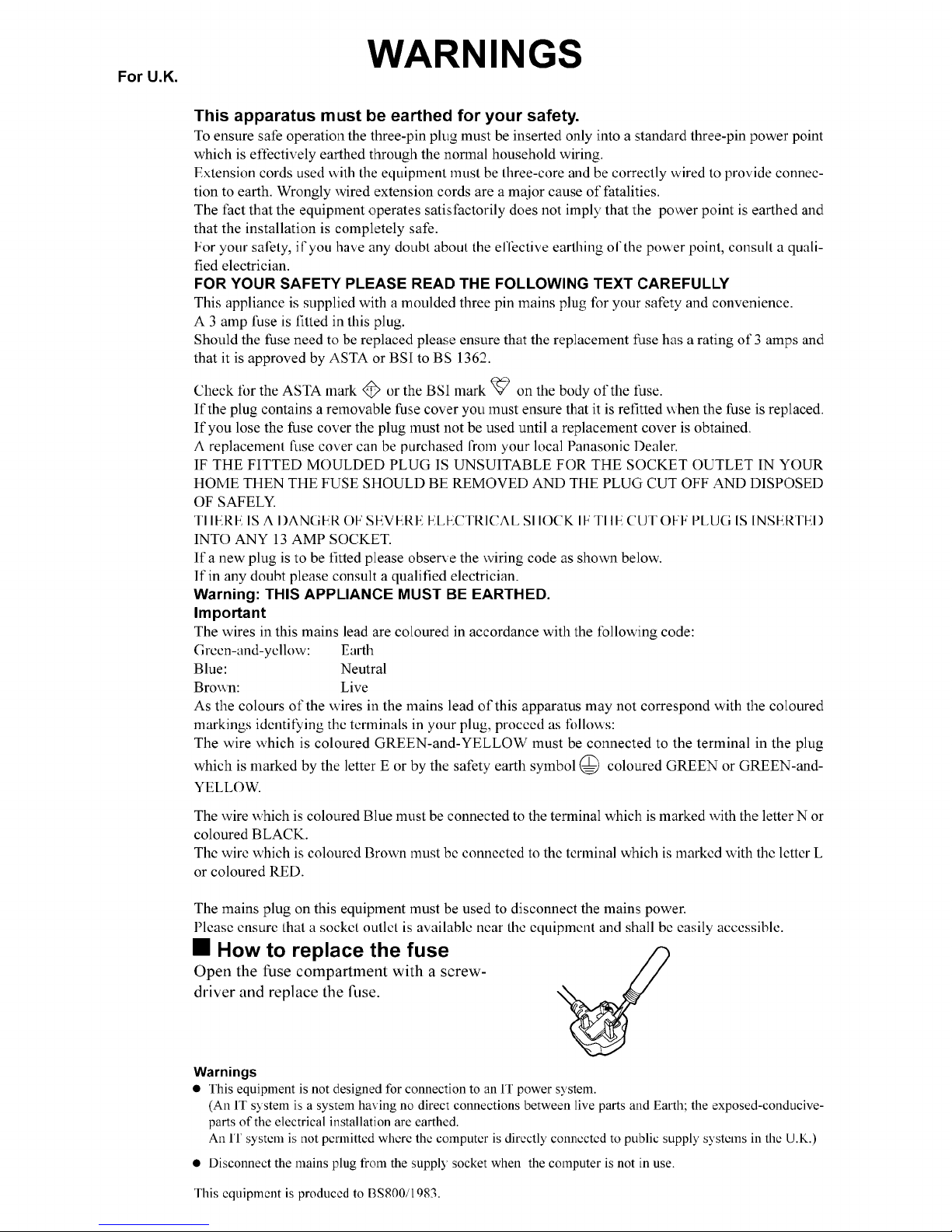

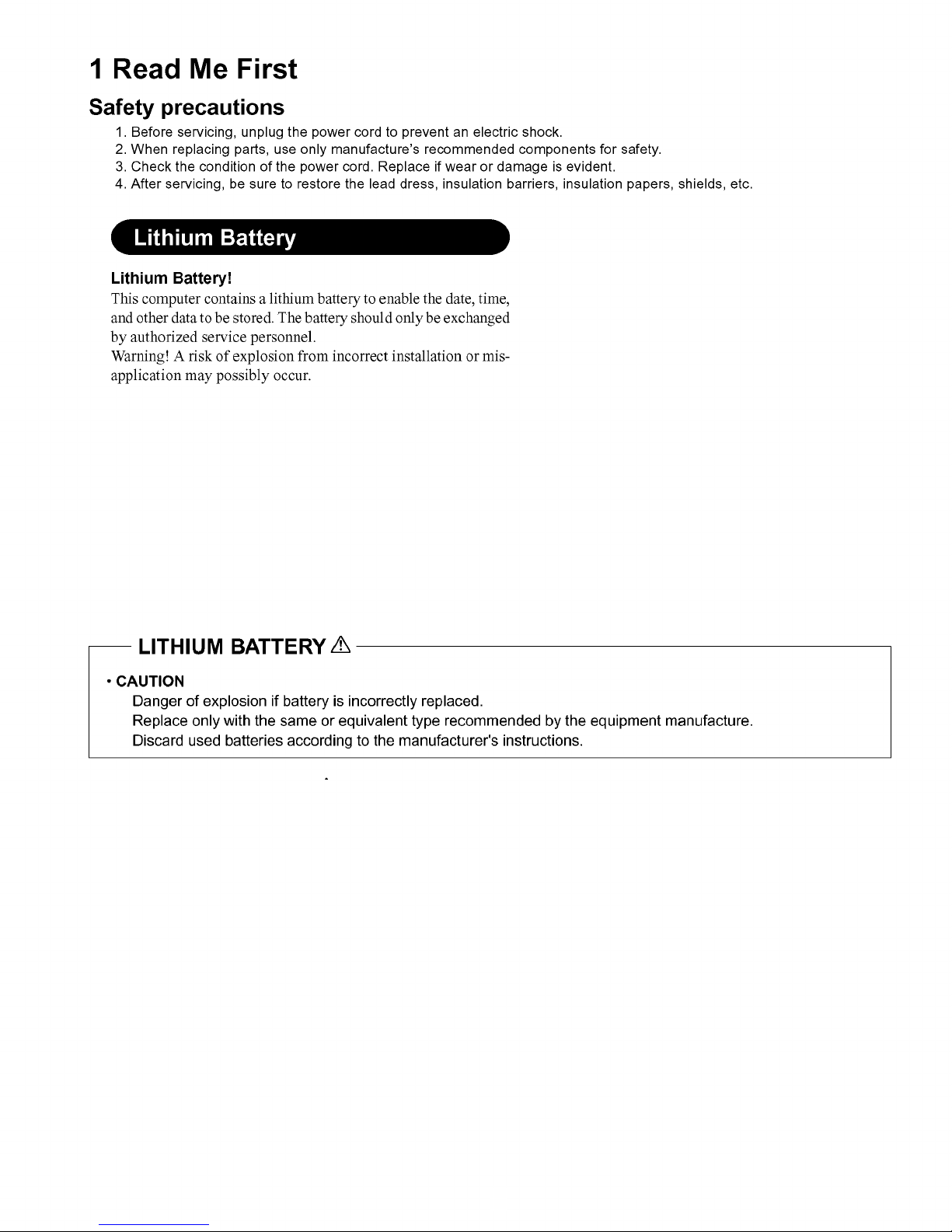

LASER SAFETY INFORMATION
For U.S.A
Class 1 LASER-Product
This product is certified to comply with DHHS Rules 21 CFR Subchapter J.
This product complies with European Standard EN60825 (or IEC Publication 825)
For all areas
This equipment is classified as a class 1 level LASER product and there is no hazardous LASER radiation.
Caution:
(1) Use of controls or adjustments or performance of procedures other than those specified herein may result
in hazardous radiation exposure.
(2)
The drive is designed to be incorporated into a computer-based system or unit which has an enclosing
cover. It should never be used as a stand alone drive.
Danger:
The serviceman should not remove the cover of drive unit and should not service because the drive unit is a
non-serviceable part.
Please check DANGER label on bottom cabinet of the equipment.
.Unplug the AC power cord and remove the battery pack from the equipment before opening the top cover of
the drive.
.When the power switch it on, do not place your eyes close to the top cover to look into the interior of the unit.
LASER Specification
Class 1 level LASER Product
Wave Length: DVD 650 660 nm
CD
778 787 nm
Laser safety information is appropriate only when drive with laser is installed.

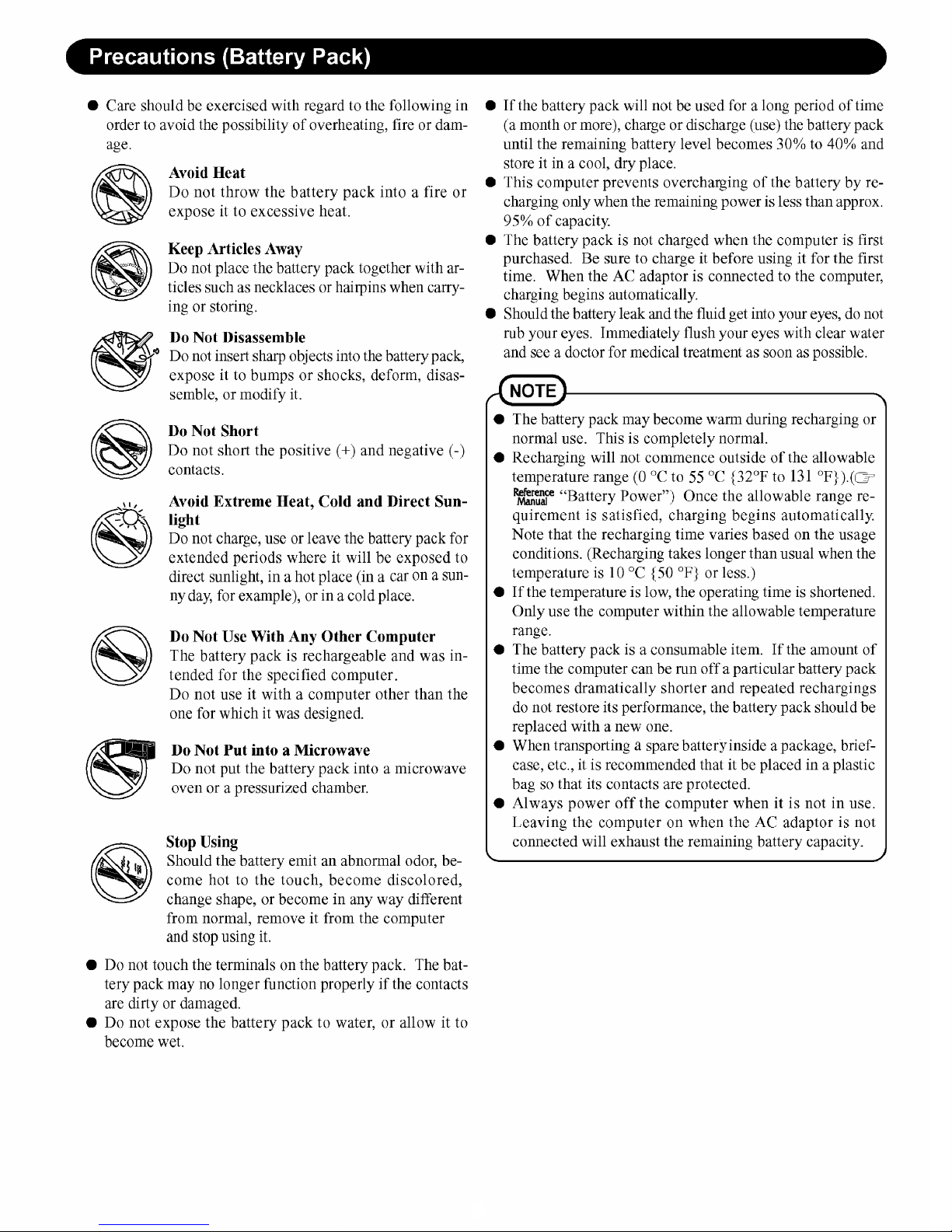

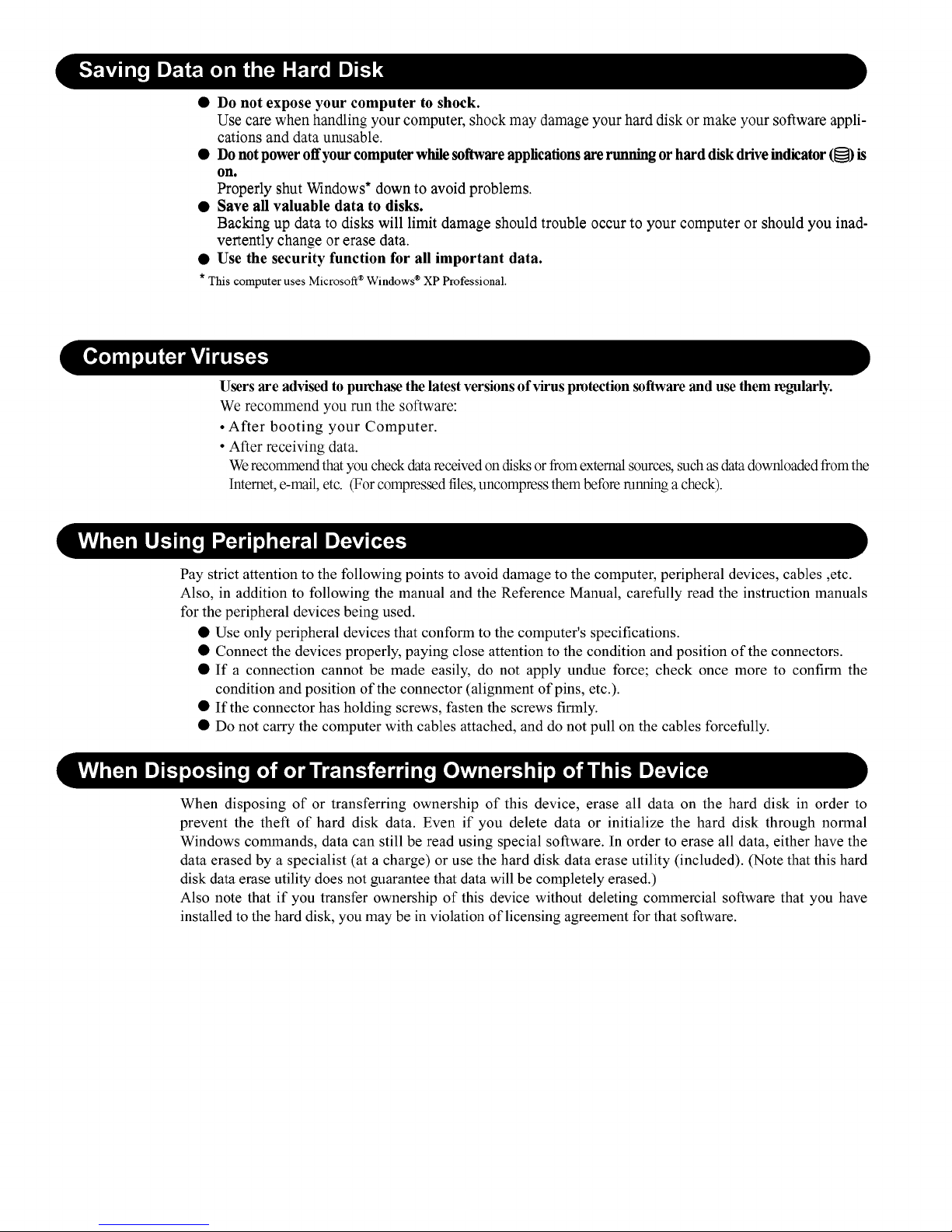

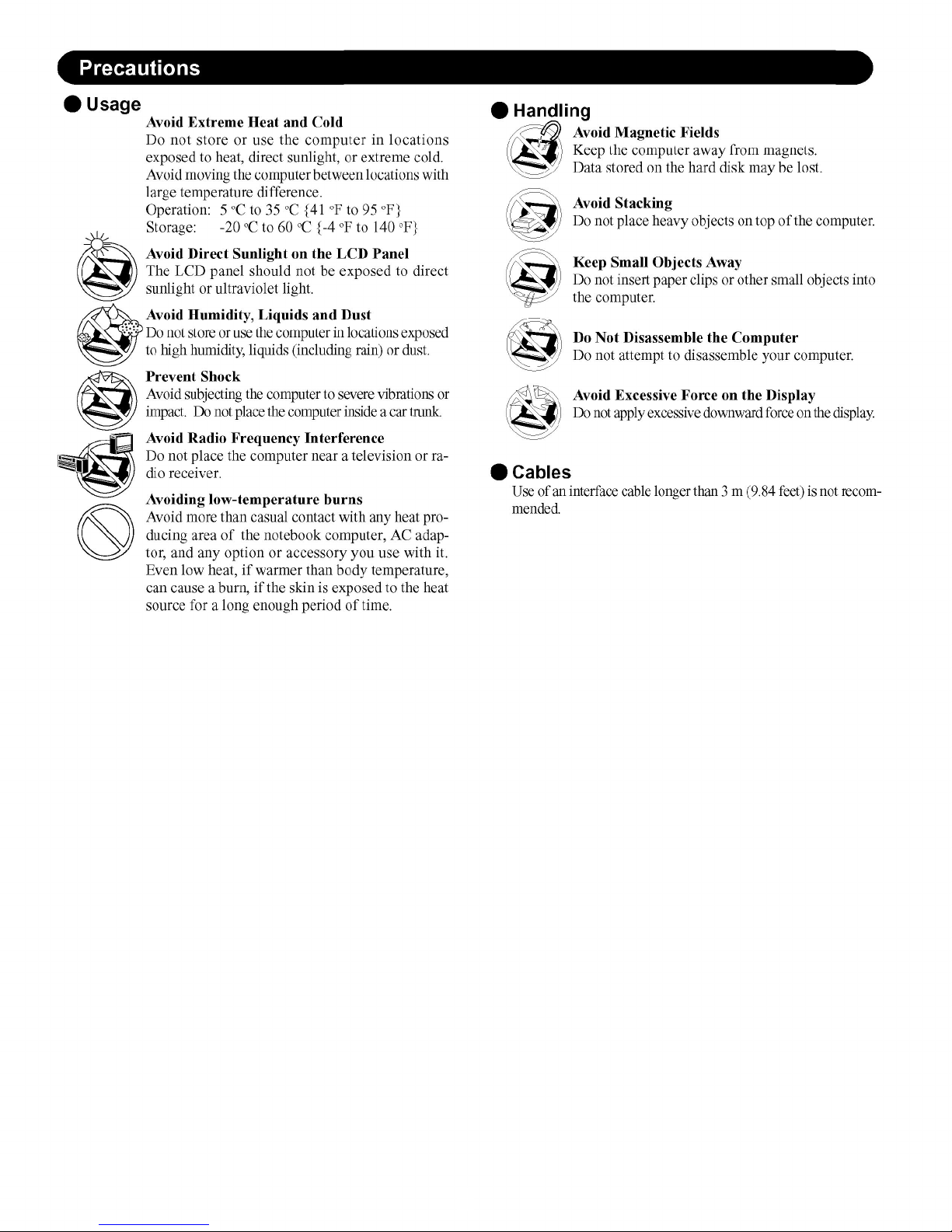

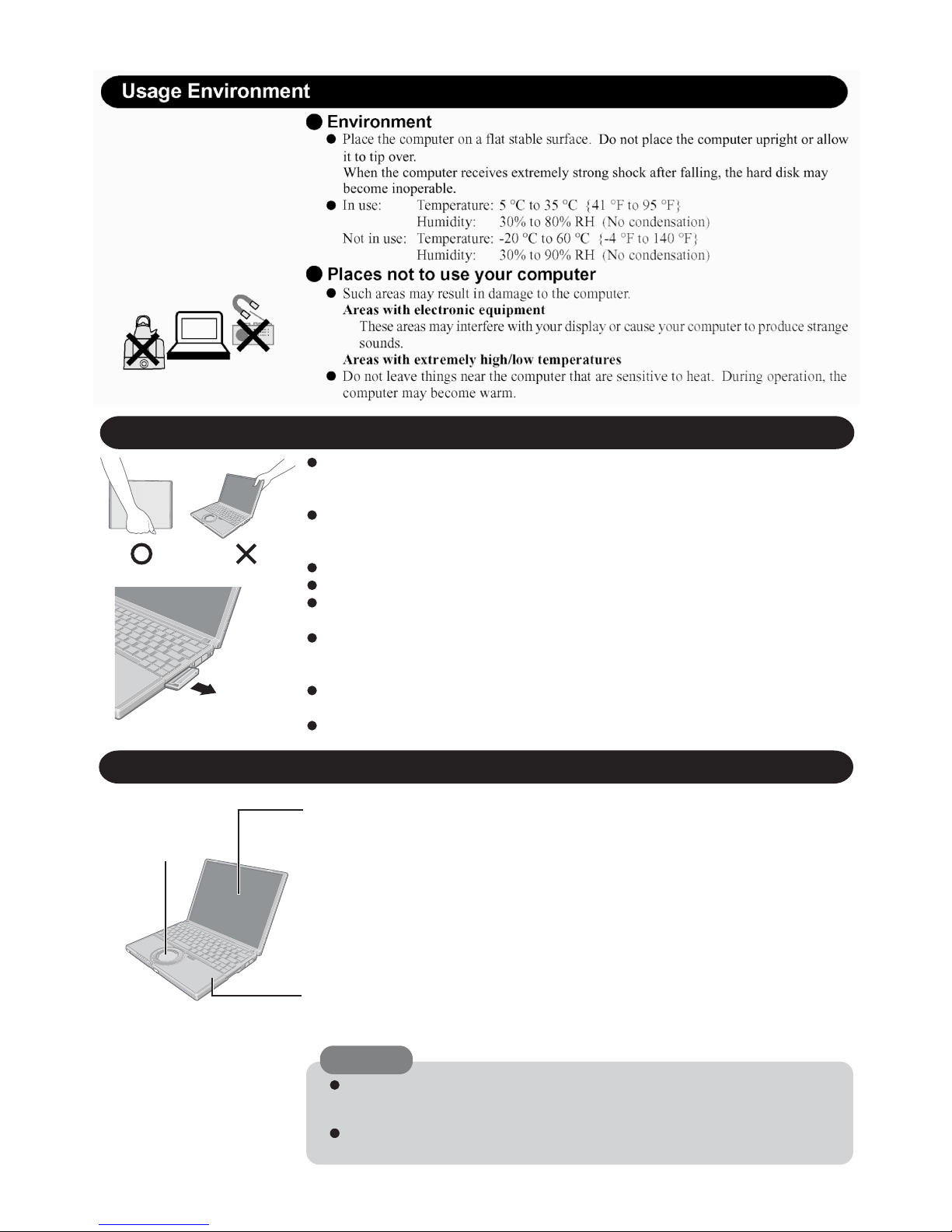

Handling
This computer has been designed so as to minimize shock to the LCD and hard disk drive, etc.,
but no warranty is provided against such trouble. Therefore, as a precision instrument, be
extremely careful in the handling.
Do not carry the computer while the display is open, or carry it by gripping the display or the
cabinet around the display (see figure A). When closing the display, ensure that the latch is
positioned correctly in the slot .
Do not carry your computer when the power is on.
Do not drop or hit your computer against solid objects.
Remove all external devices, cables, PC Cards sticking out of the computer (see figure B),
SD memory cards, and MultiMedia Cards before transporting the computer.
We recommend preparing a fully charged battery pack.
When transporting a spare battery pack inside a package, briefcase, etc., it is recommended
that it be placed in a plastic bag so that its contacts are protected.
Always carry your computer with you. Never check it in with luggage. For use of the com-
puter inside an aircraft, we recommend asking the airlines regarding their policy on this issue.
It is a good idea to make backup copies on disks and carry them with you.
A
B
Touch Pad
Display
Avoid using water when cleaning the panel. Ingredients included in water may leave scratches
and reduce readability of the screen.
<When cleaning dust/dirt>
Avoid rubbing off dust/dirt with cloth since it may leave scratch on the screen.
Sweep dust/dirt with fine brush, then wipe it with a dry soft cloth used for cleaning glasses.
<When cleaning oily surface>
Apply camera lens cleaner on a soft gauze and clean it with gentle force. Then, wipe with a
dry soft cloth used for cleaning glasses.
Areas excluding the display
Wipe these areas with a soft cloth, after applying water or detergent diluted with water to the
soft cloth and firmly wringing out excess water.
Maintenance
Do not use benzene, thinner, or rubbing alcohol. Doing so may adversely affect the
surface, e.g., discoloration. In addition, do not use commercially-available household
cleaners and cosmetics, as they may contain components harmful to the surface.
Do not directly add or spray water or detergent. If liquid enters the inside of the
computer, it may cause it to work improperly or be damaged.
CAUTION

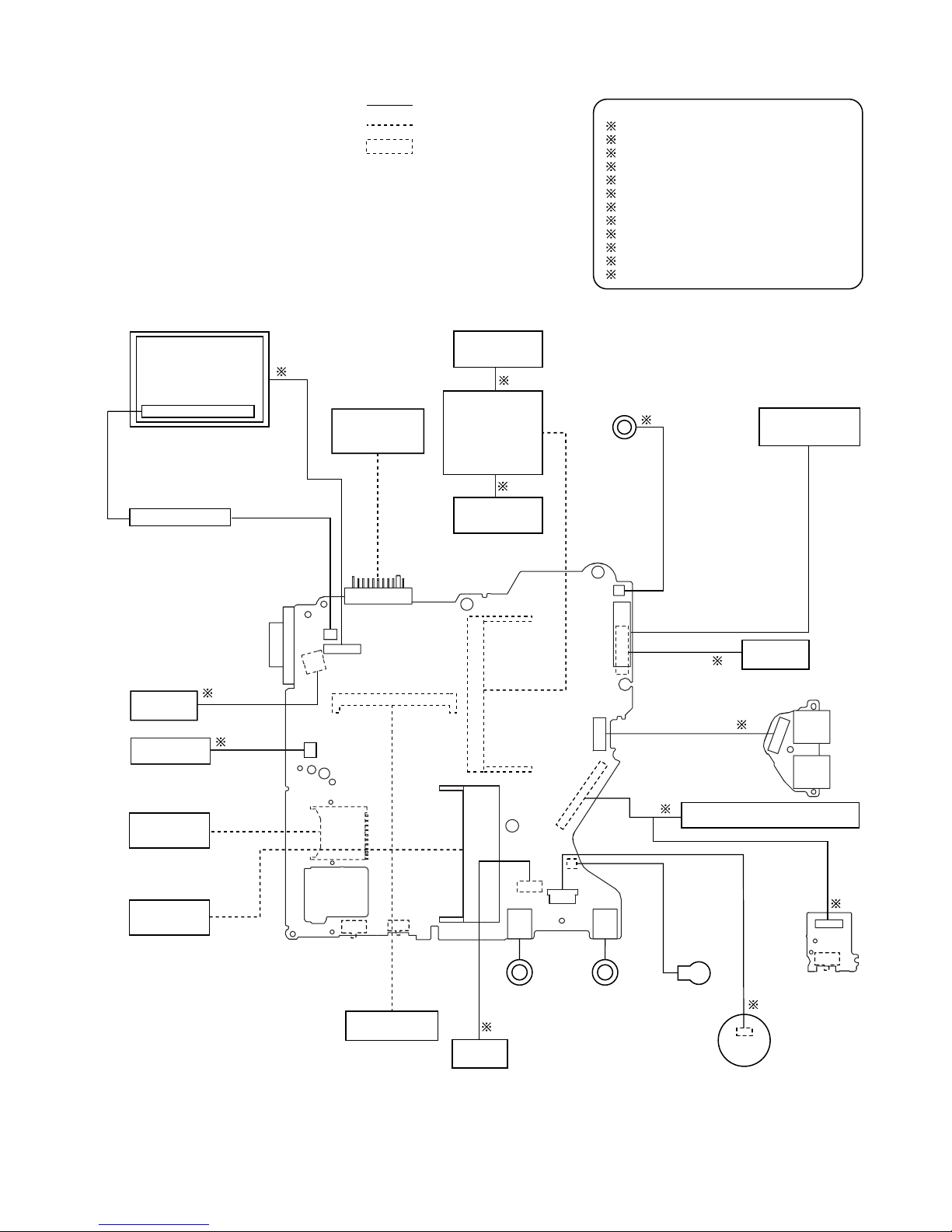

1 Connection Diagram
SD Card
Lithium Battery
Battery Pack
Inverter Board
DC-IN
PCMCIA
SLOT
Headphone Mic
ireless
LAN Module
Antenna Board
(L)
Antenna Board
(R)
Speaker
MODEM
S 6
PO ER S
Touch Pad
LAN
Keyboard
DIMM memory
(Option)
LCD
LCD Back Light
CN902
CN901
VGA
USB
USB
CN601
CN11
CN12
CN10
CN26
CN14
CN16
CN18
CN3
CN13
CN903
JK1
JK2
S 951
Open S
Main Board HDD
S 7
-LAN ON/OFF
CF-BAV0256U
CF-BAV0512U
CD-R ,DVD-ROM Drive
CN23
CN15
CN4
CN25
CN21
CN600 CN2 CN19
CN951
USB Board
S Board
Connection Cable
1 Drive FFC DFJK9000ZA
2 LCD Cable DFJS957ZA
3 Speaker Cable DFJS962ZA
4 S Board FFC DFJE20T108BB
5 Antenna PCB-L N1ZYYY000002
6 Antenna PCB-R N1ZYYY000001
7 Modem Cable DFJS959ZB
8 LAN Cable DFJS979ZA
9 PAD FFC DFJE12U112BB
10 HDD FPC Unit DL3UP1443AAA
11 DC-IN Cable DFJS961ZB
12 Main-Sub Cable DFJS960ZA
Connection by Cable
Direct connection Connectors
Parts on Bottom Side
7
11
1
3
8
10
4
12
9
5
6
2
1-1
2 Disassembly instructions
2.1. Disassembly Flow Chart
9.2.1.
9.2.2.
9.2.4.
9.2.6. 9.2.8.
Disk Cover
9.2.7. 9.2.9.
9.2.10.
Solenoid
9.2.11. 9.2.12. 9.2.13.
Drive Unit
9.2.3.
HDD
Main Board USB Board
9.2.14. 9.2.15. 9.2.16. 9.2.17.
9.2.19.
9.2.20.
9.2.18.
9.2.21.
9.2.5.
S Board
Main Unit
Display Unit
LCD Unit
Hinge Cover
LCD Unit / LCD Rear
Inverter Board
Antenna Board
(L, R) / DC-IN -LAN Module MODEM Card Bus ejector
Keyboard
Top Case
Touch Pad
LCD Knob
Speaker
Preparation
1. End the indows.
2. Turn off the Power, and then remove the AC Adaptor or Battery Pack.
3. Remove any optional DIMM Memory Cards or PCMCIA Cards.
4. Remove any other peripherals or Connected Devices.
9.2.1.
9.2.2.
9.2.3.
9.2.4.
9.2.5.
9.2.6.
9.2.7.
9.2.8.
9.2.9.
Battery Pack
DIMM Cover
Side Cover
Keyboard
HDD
HDD FFC
HDD Cover
Top Case
S Board
Disk Cover Open Knob
Disk Cover
Touch Pad
Touch Pad Knob
Touch Pad Ring
PAD FFC
LCD Knob
Speaker
9.2.10.
9.2.11.
9.2.12.
9.2.13.
9.2.14.
9.2.15.
9.2.16.
9.2.17.
9.2.18.
9.2.19.
9.2.20.
9.2.21.
Solenoid
Main Board
Drive Unit
USB Board
Antenna Board
Antenna Cover(L, R)
- LAN Module
Heat Spreader
MODEM
Card Bus ejector
LCD Unit
Hinge Cover
Hinge (L, R)
LCD Unit
LCD Rear
LCD Front
Inverter Board
LCD Cable
Main replaceable parts
2-1
