Panasonic CF-U1G Wiring diagram
This manual contains supplementary instructions regarding the use of the
computer. It explains the cases where the operation of the computer differs from
that in the Operating Instructions.
Your computer is equipped with the HSPA modem enabling you to communicate
using radio frequencies.
Contents
Description of Parts............................................................ 2
Inserting/Removing a SIM Card......................................... 2
Supplied Accessories......................................................... 2
Installing the Software........................................................ 3
Troubleshooting.................................................................. 5
Specifications...................................................................... 6
Appendix.............................................................................. 7
NOTE:Useful and helpful information.
CAUTION:Condition that may result in minor or moderate injury.
(Start) - [All Programs] :
Click (Start), and then click [All Programs].
[start] - [Run]: Click [start], and then click [Run].
You may need to double-click in some cases.
: Page in these Supplementary Instructions or in the
Reference Manual for the computer.
: Reference to the on-screen manuals.
Some of the illustrations in this manual may differ slightly in shape from the
actual items in order to make the explanation easier to understand.
About the abbreviations in this manual, refer to the table on page 7.
Terms and illustrations in this Manual
Supplementary Instructions
for HSPA Modem
Personal Computer
2
Description of Parts
Refer to the Operating Instructions for the computer.
Inserting/Removing a SIM Card
Before using the HSPA modem, set a SIM card to the SIM card slot.
Refer to the Operating Instructions for the computer.
Supplied Accessories
Wireless WAN (HSPA) Software CD-ROM ............................................................1
3
Installing the Software
Installing the Software
The steps below must be taken before using the HSPA modem.
1<Only for CF-H1/CF-U1 series>
Turn off the computer and set the computer to the Cradle.
<Only for CF-C1 series>
Turn off the computer and set the computer to the Port
Replicator.
2<Only for CF-H1/CF-U1 series>
Connect the CD/DVD drive and an external keyboard to
the Cradle.
<Only for CF-19 series>
Connect the CD/DVD drive to the computer.
3Turn on the computer, and run the Setup Utility by
pressing
F2
or
Del
while [Panasonic] boot screen is
displayed.
If [Enter Password] is displayed, input the Supervisor Password.
4Select the [Advanced] - [Wireless Configuration] menu,
and set [Wireless WAN] to [Enabled].
5Save the settings and exit the Setup Utility.
6Log on to Windows as an administrator.
If the [Found New Hardware Wizard] screen is displayed, click [Cancel] to
close the screen.
7Install the Wireless WAN software by following
procedures.
ASet the Wireless WAN (HSPA) Software CD-ROM into the CD/DVD
drive.
BFollow the on-screen instructions, and install the Wireless WAN
Software Installer.
If the installer does not start up, proceed as follows to install the Wireless
WAN software.
Click (Start) and enter “x:*1\gb2kpack\setup.exe” in [Search programs
and files], and press
Enter
.
4
Click [start] - [RUN], enter “x:*1\gb2kpack\setup.exe”, and click [OK].
*1“x:” is the drive letter of the CD/DVD drive. Change this to match the drive letter
on your own computer.
Installing the Software
Uninstalling the software
A
Click (Start) - [Control Panel] - [Uninstall a program] - [Wireless WAN
Software Installer for Gobi 2000], and then click [Uninstall] to uninstall the
software.
Click [start] - [Control Panel] - [Add or Remove Programs] - [Wireless WAN
Software Installer for Gobi 2000], and then click [Remove] to uninstall the
software.
If the [Found New Hardware Wizard] screen is displayed, click [Cancel] to
close the screen.
BAt [Uninstall Complete], confirm that [Yes, I want to restart my computer now]
is set and click [Finish].
The computer will restart.
5
Troubleshooting
Cannot
communicate.
• <Except for CF-H1 series>
Confirm that wireless switch is in ON.
•Confirm that [Wireless WAN] is set to [Enabled] in the
[Advanced] menu of the Setup Utility.
•Use the Wireless Switch Utility and confirm that the
wireless WAN is on.
•Confirm that the SIM card is inserted correctly.
If communication is not established after proceeding with
the above remedies, the wireless WAN device may not
be correctly recognized. Quit Windows, and restart the
computer.
<When using the
GPS function on
the model with
the built-in HSPA
modem>
GPS data is not
output when
the computer
resumes from the
sleep
/
standby or
hibernation.
• If the computer has entered the sleep /
standby or hibernation mode while the
GPS port is open on the map software, GPS data may not
be output when the computer resumes. If the computer
has entered the sleep /
standby or hibernation mode while the GPS port is open
on the map software, close the GPS port on the map
software and open it again after the computer resumes.
Cannot connect
to the mobile
broadband
network.
When you connect to the mobile broadband network for the
first time, proceed as follows.
AClick to open [Connect to a Network], select [Mobile
Broadband Network] and then click [Connect].
A message appears to show that connection has failed.
BRight-click [Mobile Broadband Network] and select
[Properties].
CSet the APN, user name and password.
DRepeat step
A.
6
Data Communication HSUPA Category 6, 5.7 Mbps
HSDPA Category 8, 7.2 Mbps
UMTS 3GPP Release 5
EDGE/
GPRS
MultiSlot Class 10
Other Features SMS Mobile Originated SMS (MO-SMS)
Mobile Terminated SMS (MT-SMS)
FAX No Support
Voice No Support
SIM 1.8/3V SIM Support
Specifications
7
Abbreviations
EDGE Enhanced Data rates for Global Evolution
GPRS General Packet Radio Service
HSDPA High Speed Downlink Packet Access
SIM Subscriber Identity Module
SMS Short Message Service
UMTS Universal Mobile Telecommunications System
HSPA High Speed Packet Access
HSUPA High Speed Uplink Packet Access
Appendix
© Panasonic Corporation 2010
Printed in U.K.
Importer’s name & address pursuant to the EU GPSD (General Product Safety
Directive) 2001/95/EC Art.5
ヱㄏㄔㄐㄏㄊチヤㄐㄎㄑㄖㄕㄆㄓチヱㄓㄐㄅㄖㄕㄔチユㄖㄓㄐㄑㄆネチヱㄏㄔㄐㄏㄊチヮㄓㄌㄆㄕㄊㄏㄈチ
ユㄖㄓㄐㄑㄆチヨㄎラ
Hagenauer Straße 43
65203 Wiesbaden
Germany
UK0110-1050
CPE02180YA
This manual suits for next models
2
Table of contents
Other Panasonic Laptop manuals
Panasonic
Panasonic Toughbook CF-27EB6GCAM User manual
Panasonic
Panasonic Toughbook CF-74JDMBD2M User manual
Panasonic
Panasonic Toughbook CF-50Y4KGUDM User manual
Panasonic

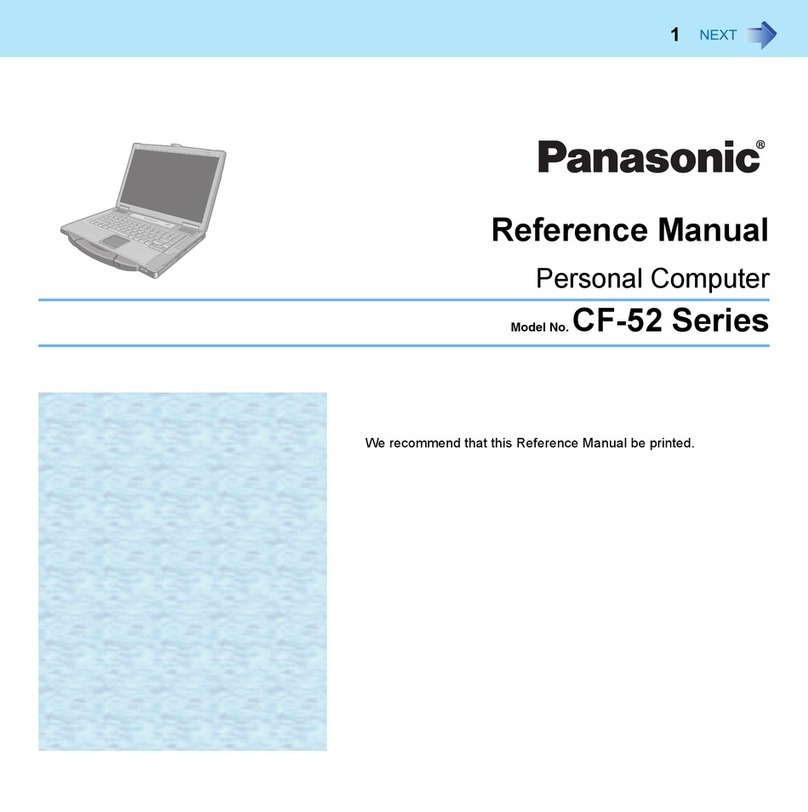

Panasonic Toughbook CF-52GUNBX2B User manual
