Panasonic KX-NT343 User manual

Thank you for purchasing an IP Proprietary Telephone (IP-PT).

Please read this manual carefully before using this product and save

this manual for future use. For more details, please refer to the

manuals of the PBX.

Note: In this manual, the suffix of each model number is omitted unless

necessary.

This unit supports the following optional devices and features:

Q: Available

*1 KX-NT366 is only available for KX-TDE100/KX-TDE200.

*2 KX-NT305 is only available for KX-TDE100/KX-TDE200.

*3 G.722 is only available for KX-TDE100/KX-TDE200.

•For information on connecting the KX-NT307, refer to the KX-NT307

Bluetooth®Module Installation Instructions.

This model supports the following PBX versions:

KX-TDA30: PSMPR Software File version 4.0000 or later

KX-TDE100/KX-TDE200: PMMPR Software File version 1.0000 or later

Trademark:

The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and

any use of such marks by Matsushita Electric Industrial Co., Ltd. is under

licence.

KX-NT343 KX-NT346 KX-NT366*1

Display 3-Line 6-Line 6-Line

Flexible Outside (CO) Line Buttons 24 24 48 (12×4)

Self Labelling Q

KX-NT303 Add-on 12 key module QQ

KX-NT305 Add-on 60 key module*2 QQ

KX-NT307(PSLP1528) Bluetooth

Module QQ Q

KX-A239AL/BX/X/EJ Optional AC

Adaptor QQ Q

CODEC G.729A, G.711, G.722*3

Quick Reference Guide

Model No. KX-NT343/KX-NT346/KX-NT366

IP Proprietary Telephone

<KX-NT346>

NT300X_QRG.fm Page 1 Friday, June 22, 2007 10:20 AM

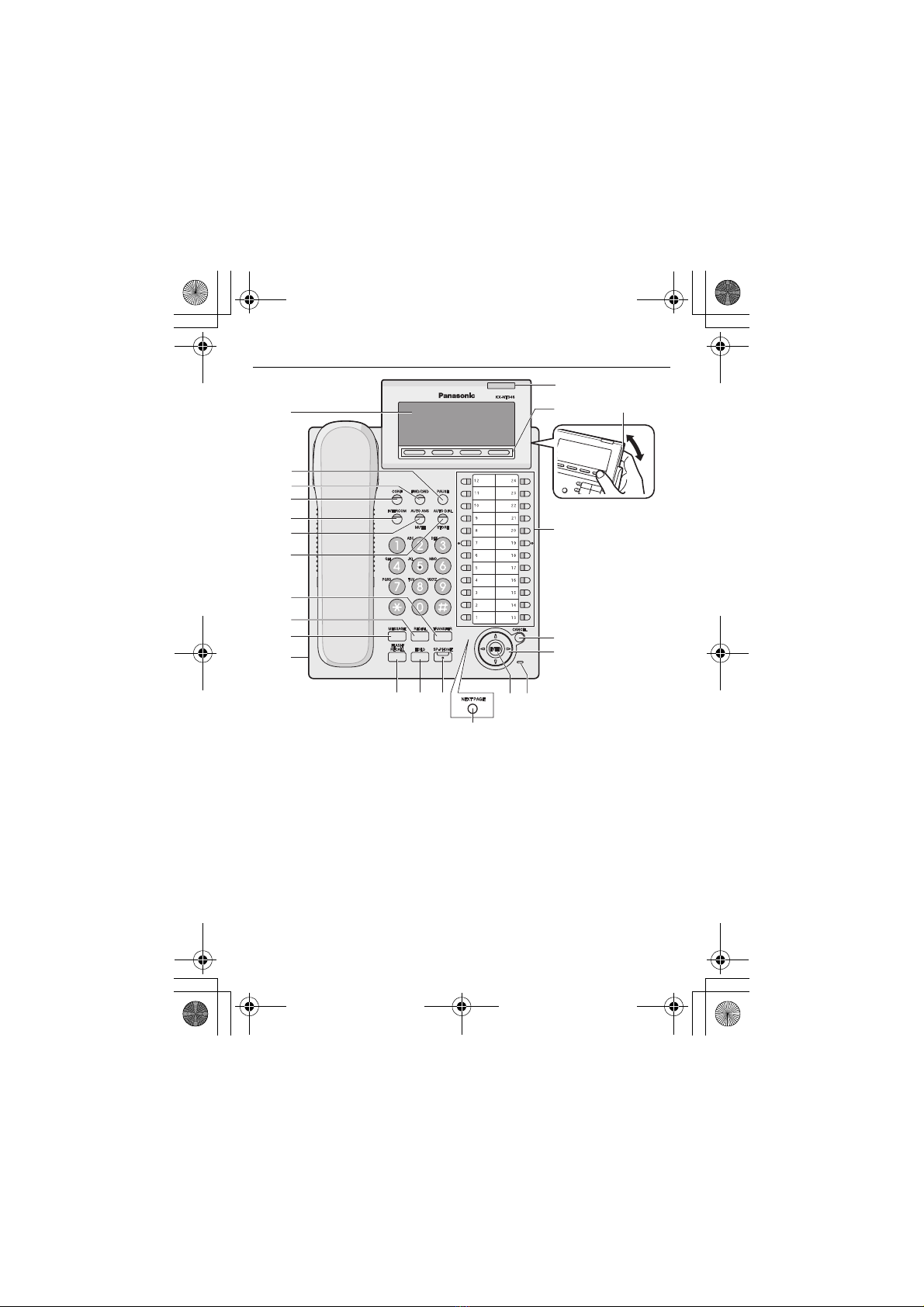

Location of Controls

ALCD (Liquid Crystal

Display)

BPAUSE: Used to insert a

pause when storing a

telephone number. This

button is also used for

programming this unit.

CFWD/DND (Call Forwarding/

Do Not Disturb): Used to set

Call Forwarding or Do Not

Disturb on your extension.

DCONF (Conference): Used to

establish a multiple party

conversation.

EINTERCOM: Used to make or

receive intercom calls.

FAUTO ANS (Auto Answer)/

MUTE: Used to receive an

incoming call in hands-free

mode or mute the

microphone/handset during a

conversation.

LMN

P Q

<KX-NT346>

NT300X_QRG.fm Page 2 Friday, June 22, 2007 10:20 AM

Location of Controls

GAUTO DIAL/STORE: Used

for System/Personal Speed

Dialling or storing programme

changes.

HTRANSFER: Used to transfer

a call to another party.

IREDIAL: Used to redial the

last dialled number.

JMESSAGE: Used to leave a

message waiting indication or

call back the party who left

the message waiting

indication.

KHeadset Jack

LFLASH/RECALL: Used to

disconnect the current call

and make another call without

hanging up.

MHOLD: Used to place a call

on hold.

NSP-PHONE

(Speakerphone): Used for

performing hands-free

operations.

ONEXT PAGE Key: Used to

switch the page for the Self

Labelling feature. (KX-NT366

only)

PENTER: Used to assign the

selected item.

QMicrophone: Used for hands

free conversations.

RNavigator Key: Used to

adjust the volume and the

display contrast or select

desired items.

SCANCEL: Used to cancel the

selected item.

TFlexible CO Buttons: Used

to seize an outside line or

perform a feature that has

been assigned to the key.

ULCD Panel: Can be adjusted

to the desired angle.

VSoft Buttons (S1-S4): S1-S4

(located from left to right) are

used to select the item

displayed on the bottom line

of the display.

WMessage/Ringer Lamp:

When you receive an

intercom call, the lamp

flashes green, and on an

outside call, the lamp flashes

red. When someone has left

you a message, the lamp

stays on red.

NT300X_QRG.fm Page 3 Friday, June 22, 2007 10:20 AM

Settings

*If you hear your own voice through the handset or headset, decrease the

volume.

Speaker volume

While in a hands-free conversation

Press Up to increase

or Down to decrease

the volume.

Handset/Headset

volume*

While using the handset or

headset

Ringer volume While on-hook or receiving a call

LCD Contrast

(for the main

display)

While on-hook

Ring Tone

LCD Backlight

While on-hook

PAUSE PAUSE

Press 2 times.

(CO)

PAUSE

STORE

INTERCOM AUTO DIAL

PAUSE

Automatic

Always ON

Always OFF

PAUSE

STORE

AUTO DIAL

STORE

AUTO DIAL

NT300X_QRG.fm Page 4 Friday, June 22, 2007 10:20 AM

Features List

Icon Meanings

= Flexible CO button = Off-hook = On-hook

= Feature number = Talk = Confirmation Tone

Making Calls

Calling

To an extension To an outside party

Redial

Quick Dialling

One-touch Dialling

To store (KX-NT343/KX-NT346) For storing on a KX-NT366, refer to page 13.

To dial

Personal Speed Dialling

To store

To dial

(

)

C. Tone

extension no.

(

)

outside phone no.

REDIAL

quick dial no.

(CO)

desired no.

(max. 32 digits)

*Enter outside line access

number before outside phone number.

STORE

AUTO DIAL

PAUSE PAUSE

assigned as a One-touch Dialling button

(

)

personal speed

dial no. (2 digits)

desired no.

(max. 32 digits)

C. Tone

*Enter outside line access number before

outside phone number.

personal speed dial no. (2 digits)

STORE

AUTO DIAL

NT300X_QRG.fm Page 5 Friday, June 22, 2007 10:20 AM

Features List

During a Conversation

Useful Features

System Speed Dialling

To dial

Doorphone Call

Call Hold

To hold To retrieve a call at the holding extension

To retrieve an outside call from another extension

Call Transfer

Multiple Party Conversation

To add other parties during a conversation (i.e., conference)

To leave a conference

system speed dial no. (3 digits)

STORE

AUTO DIAL

doorphone no. (2 digits)

C. Tone

HOLD

(CO)

/INTERCOM

(CO)

C. Tone

outside

phone no.

To an extension

To an outside party

extension no.

(CO)

TRANSFER

desired

phone no.

Talk to the

new party.

Talk with

multiple parties.

C. Tone C. Tone

CONF CONF

C. Tone

CONF

NT300X_QRG.fm Page 6 Friday, June 22, 2007 10:20 AM

Features List

Setting the Telephone According to Your Needs

Before Leaving Your Desk

Do Not Disturb

Timed Reminder

To set

To cancel To stop or answer the ring back

Call Forwarding

Both Calls

Outside Calls

Intercom Calls

Set

Cancel C. Tone

24 H

12 H

hour/minute

(4 digits)

hour/minute

(4 digits)

1 time

daily C. Tone

C. Tone /

INTERCOM

Busy

Cancel

No answer

Busy/

No answer

CO line

access no.

All calls

extension no.

outside

phone no.

Both Calls

Outside Calls

Intercom Calls

C. Tone

NT300X_QRG.fm Page 7 Friday, June 22, 2007 10:20 AM

Features List

Making Use of the Voice Mail Service

Listening to a message

From your own extension

* If you have no password, you can skip

the last step.

From someone else’s extension

* If you have no password, you can skip

the last step.

Leaving a message

Mailbox Password*

VPS extension no.

End Call

KX-TVM series

KX-TVP series

Listen to Message

Deliver Message

Mailbox Management

Automated Attendant

Message Notification

Other Features

End Call

Listen to Message

Deliver Message

Check Mailbox Distribution

Automated Attendant

Mailbox Management

Other Features

mailbox no.

VPS extension no.

Mailbox Password*

mailbox no.

From your own extension

From someone else’s extension

* If you have no password, you can skip the last step.

Enter the desired mailbox number Leave

a message

To send the message immediately

To set the delivery time

Follow the guidance

(KX-TVM series)

(KX-TVP series)

VPS extension no.

Mailbox Password*

NT300X_QRG.fm Page 8 Friday, June 22, 2007 10:20 AM

Features List

•Consult your dealer for more details regarding feature numbers.

•It is possible to assign flexible CO buttons as feature buttons.

•Control panel/button names and descriptions can be found in “Location of

Controls” on page 2.

During playback

Repeat Voice Guidance

Exit

NT300X_QRG.fm Page 9 Friday, June 22, 2007 10:20 AM

Accessing Features Using the Display

Using the LCD Display

It is possible to access the following directories, logs, and menus by

pressing left or right on the Navigator Key while this unit is idle:

Entering Characters

You can enter alphabetic characters and digits using the dialling

buttons. Pressing a dialling button repeatedly displays different

characters, as shown in the following tables. While entering

characters, you can move the cursor with the left and right Navigator

keys and delete characters with the TRANSFER button. To toggle

between Table 1 and Table 2, press the Soft button (S1) at any time

while entering characters. For a list of available characters, refer to

the following tables.

Table 1 (Standard mode)

Extension Number Directory

System Speed Dialling Directory

Personal Speed Dialling Directory

Outgoing Call Log

Incoming Call Log

?1"

BCabc2

EFdef3

HIghi4

KLjkl5

NOmn 6o

QRSpqrs7

UVt 8uv

XYZwxyz9

.,:;0

%& () #

/+—=<>

’

Times

Buttons

(space)

NT300X_QRG.fm Page 10 Friday, June 22, 2007 10:20 AM
