PLEASE READ BEFORE USE AND SAVE

This unit is an additional handset compatible with the following series of

Panasonic Digital Cordless Phone: KX-TG6501/KX-TG6511/KX-TG6521/

KX-TG6531/KX-TG6551/KX-TG6561

You must register this handset with your base unit before it can be used.

This installation manual describes only the steps needed to register and

begin using the handset. Please read the base unit’s operating instructions

for further details.

Supplied accessories

*1 Please read the base unit’s operating instructions for replacement battery

information.

*2 The handset cover comes attached to the handset.

Note:

•

Please read the base unit’s operating instructions for additional/replacement

accessories.

•

This equipment is designed for use in Germany, Spain, Portugal, Italy, Norway,

Sweden, Denmark, Finland, France, Austria, Belgium, Netherlands, Greece,

Switzerland, and Turkey.

•

In the event of problems, you should contact your equipment supplier in the first

instance.

•

For use in other countries, please contact your equipment supplier.

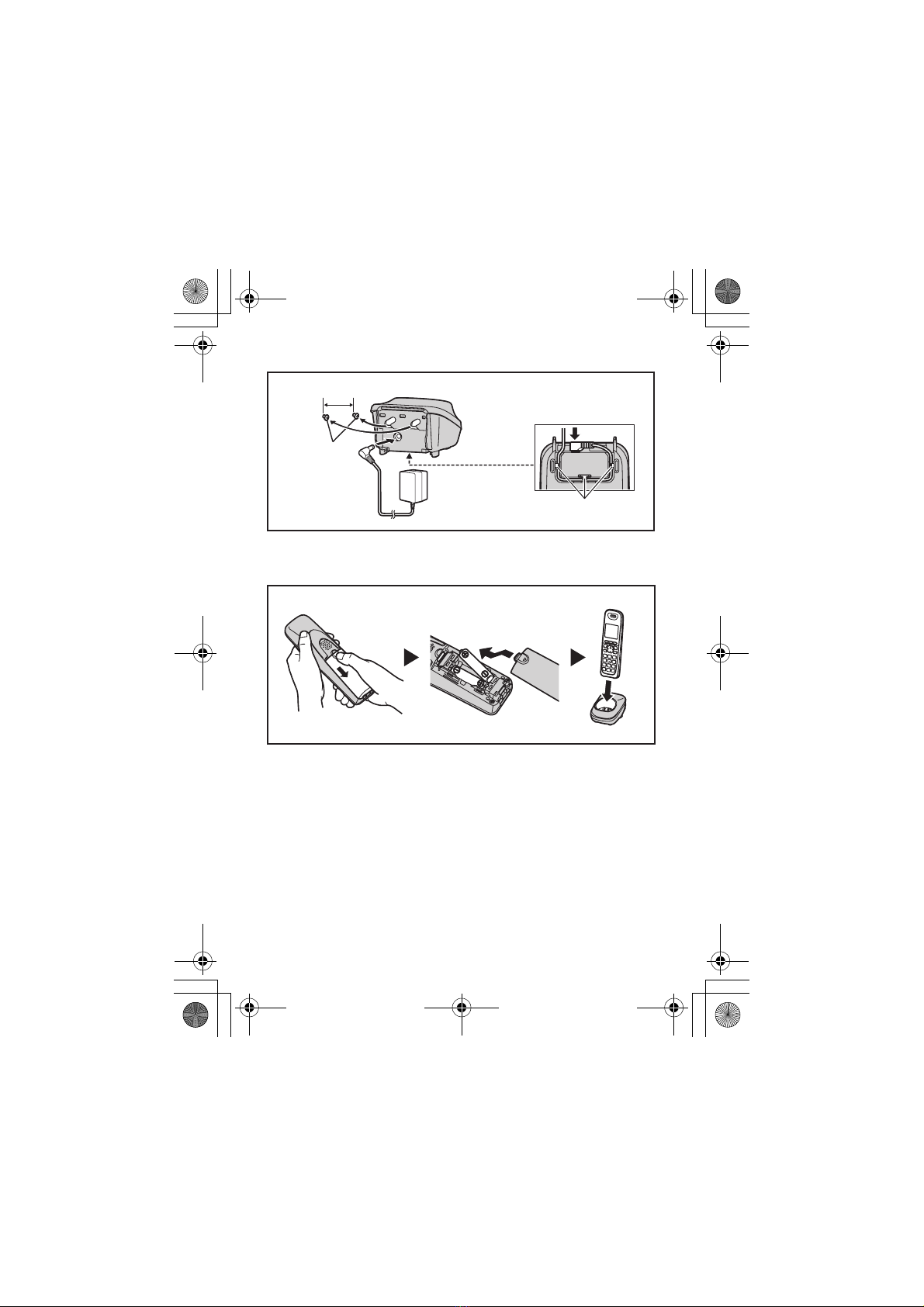

Connection

(page 2:

)

•

Use only the supplied Panasonic AC adaptor PQLV219CE.

•

The AC adaptor must remain connected at all times. (It is normal for the adaptor

to feel warm during use.)

•

Make sure that the wall is strong enough to support the weight of the unit.

Charger......................................... 1

AC adaptor (PQLV219CE) ........... 1

Rechargeable batteries

.............. 2

(HHR-55AAAB or N4DHYYY00005)

Handset cover

............................ 1

English

TGA651EX(ex).book Page 4 Tuesday, September 21, 2010 4:17 PM

Battery installation/Battery charge

(page 2:

)

Important:

•

Use the supplied rechargeable batteries. For replacement, we recommend

using the Panasonic rechargeable batteries noted in the base unit’s operating

instructions.

•

Wipe the battery ends (

) with a dry cloth.

•

Avoid touching the battery ends (

) or the unit contacts.

•

Confirm correct polarities (

•

USE ONLY Ni-MH batteries AAA (R03) size.

•

Do NOT use Alkaline/Manganese/Ni-Cd batteries.

Place the handset on the charger for about 7 hours before initial use.

Note:

•

The handset display may show

“

Please wait for 1 minute.

”

when the

handset is placed on the charger if it is not registered to the base unit.

•

If the batteries are fully charged, but the operating time seems to be shorter,

clean the battery ends (

) and the charge contacts with a dry cloth and

charge again.

Registering the handset to the base unit

Ensure that the handset is switched on. If it is not on, press and hold

}

for

few seconds to turn the handset on.

Handset:

Lift the handset and press

}

Base unit:

Proceed with the operation for your model.

KX-TG6501/KX-TG6511

Press and hold

{x}

for about 5 seconds. (No registration tone)

KX-TG6521/KX-TG6531/KX-TG6551/KX-TG6561

Press and hold

{x}

for about 5 seconds, until the registration tone sounds.

•

If all registered handsets start ringing, press the same button to stop. Then

repeat this step.

When the language selection is displayed after installing the batteries for the

first time, you can select your desired language.

{V}

{^}

: Select your desired language.

}

TGA651EX(ex).book Page 5 Tuesday, September 21, 2010 4:17 PM

Handset:

Place the handset on the base unit.

•

Continue the operation even when the handset display shows

“

Please wait for 1 minute.

”

With the handset still on the base unit, wait until a confirmation tone sounds

and

is displayed.

Note:

•

If an error tone sounds, or if

is displayed, register the handset according to

the base unit’s operating instructions.

•

The KX-TG6501/KX-TG6511/KX-TG6551 does not feature an answering

system.

•

Answering system features are available only when this handset is registered

to the KX-TG6521/KX-TG6531/KX-TG6561.

For your safety

To prevent severe injury and loss of life/property, read this section carefully before using the

product to ensure proper and safe operation of your product.

WARNING

Power connection

•

Completely insert the AC adaptor/power plug into the power outlet. Failure to do so may

cause electric shock and/or excessive heat resulting in a fire.

•

Regularly remove any dust, etc. from the AC adaptor/power plug by pulling it from the

power outlet, then wiping with a dry cloth. Accumulated dust may cause an insulation

defect from moisture, etc. resulting in a fire.

•

Unplug the product from power outlets if it emits smoke, an abnormal smell, or makes an

unusual noise. These conditions can cause fire or electric shock. Confirm that smoke has

stopped emitting and contact an authorised service centre.

Installation

•

To prevent the risk of fire or electrical shock, do not expose the product to rain or any type

of moisture.

•

Do not place or use this product near automatically controlled devices such as automatic

doors and fire alarms. Radio waves emitted from this product may cause such devices to

malfunction resulting in an accident.

CAUTION

Installation and location

•

The AC adaptor is used as the main disconnect device. Ensure that the AC outlet is

installed near the product and is easily accessible.

TGA651EX(ex).book Page 6 Tuesday, September 21, 2010 4:17 PM

Battery

•

We recommend using the supplied batteries or additional/replacement batteries noted in

the base unit’s operating instructions for replacement battery information.

USE ONLY

rechargeable Ni-MH batteries AAA (R03) size

•

Do not mix old and new batteries.

•

Do not open or mutilate the batteries. Released electrolyte from the batteries is corrosive

and may cause burns or injury to the eyes or skin. The electrolyte is toxic and may be

harmful if swallowed.

•

Exercise care when handling the batteries. Do not allow conductive materials such as

rings, bracelets, or keys to touch the batteries, otherwise a short circuit may cause the

batteries and/or the conductive material to overheat and cause burns.

•

Charge the batteries provided with or identified for use with this product only, in accordance

with the instructions and limitations specified in this manual.

•

Only use a compatible base unit (or charger) to charge the batteries. Do not tamper with

the base unit (or charger). Failure to follow these instructions may cause the batteries to

swell or explode.

Other information

•

Operating the product near electrical appliances may cause interference. Move away from

the electrical appliances.

•

Use only the power cord and batteries indicated in this manual. Do not dispose of batteries

in a fire. They may explode. Check with local codes for possible special disposal

instructions.

Routine care

•

Wipe the outer surface of the product with a soft moist cloth.

•

Do not use benzine, thinner, or any abrasive powder.

Notice for product disposal, transfer, or return

•

This product can store your private/confidential information. To protect your privacy/

confidentiality, we recommend that you erase information such as phonebook or caller list

entries from the memory before you dispose of, transfer, or return the product.

TGA651EX(ex).book Page 7 Tuesday, September 21, 2010 4:17 PM

Information for Users on Collection and Disposal of Old Equipment and used

Batteries

These symbols (

1, 2, 3

) on the

products, packaging, and/or accompanying

documents mean that used electrical and

electronic products and batteries should not

be mixed with general household waste.

For proper treatment, recovery and

recycling of old products and used batteries,

please take them to applicable collection

points, in accordance with your national

legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable

resources and prevent any potential negative effects on human health and the environment

which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please

contact your local municipality, your waste disposal service or the point of sale where you

purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national

legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or

supplier for further information.

Information on Disposal in other Countries outside the European Union

These symbols (

1, 2, 3

) are only valid in the European Union. If you wish to discard

these items, please contact your local authorities or dealer and ask for the correct method

of disposal.

Note for the battery symbol

This symbol (

) might be used in combination with a chemical symbol (

). In this case it

complies with the requirement set by the Directive for the chemical involved.

123

TGA651EX(ex).book Page 8 Tuesday, September 21, 2010 4:17 PM

VOR GEBRAUCH LESEN UND ANSCHLIESSEND

AUFBEWAHREN

Dieses Gerät ist ein zusätzliches Mobilteil das mit dem digitalen

schnurlosen Telefon von Panasonic der folgenden Serien kompatibel ist:

KX-TG6501/KX-TG6511/KX-TG6521/KX-TG6531/KX-TG6551/KX-TG6561

Bevor dieses Mobilteil verwendet werden kann, müssen Sie es an Ihrer

Basisstation registrieren. Diese Bedienungsanleitung beschreibt nur die

Registrierung des Mobilteils und die ersten Bedienschritte. Weitere

Einzelheiten finden Sie in der Bedienungsanleitung zu Ihrer Basisstation.

Mitgeliefertes Zubehör

*1 Weitere Einzelheiten zum Auswechseln der Akkus finden Sie in der

Bedienungsanleitung zu Ihrer Basisstation.

*2 Das Mobilteil wird mit angebrachter Akkufachabdeckung geliefert.

Hinweis:

•

Weitere Einzelheiten zu Zusatz-/Ersatz-Zubehör finden Sie in der

Bedienungsanleitung zu Ihrer Basisstation.

•

Dieses Gerät ist für den Gebrauch in Deutschland, Spanien, Portugal, Italien,

Norwegen, Schweden, Dänemark, Finnland, Frankreich, Österreich, Belgien,

den Niederlanden, Griechenland, der Schweiz und der Türkei geeignet.

•

Wenden Sie sich bei Problemen zunächst an Ihren Fachhändler.

•

Kontaktieren Sie Ihren Gerätelieferanten, wenn Sie das Gerät in anderen

Ländern verwenden möchten.

Verbindung

(Seite 2:

)

•

Verwenden Sie ausschließlich das mitgelieferte Netzteil PQLV219CE von

Panasonic.

•

Das Netzteil muss stets angeschlossen bleiben. (Es ist normal, dass sich das

Netzteil während des Betriebes warm anfühlt.)

•

Stellen Sie sicher, dass die Wand das Gewicht des Gerätes tragen kann.

Ladeschale ................................... 1

Netzteil (PQLV219CE).................. 1

Standardakkus

........................... 2

(HHR-55AAAB oder

N4DHYYY00005)

Akkufachabdeckung

.................. 1

Deutsch

TGA651EX(ex).book Page 9 Tuesday, September 21, 2010 4:17 PM

Einsetzen des Akkus/Aufladen des Akkus

(Seite 2:

)

Wichtig:

•

Verwenden Sie die mitgelieferten Akkus. Zum Austausch empfehlen wir die

Akkus von Panasonic, die in der Bedienungsanleitung der Basisstation genannt

werden.

•

Die Pole des Akkus (

) mit einem trockenen Tuch abwischen.

•

Achten Sie darauf, die Pole der Akkus (

) und die Kontakte des Gerätes

nicht zu berühren.

•

Achten Sie auf richtige Polung (

•

VERWENDEN SIE NUR Ni-MH-Akkus der Größe AAA (R03).

•

Verwenden Sie KEINE Alkali-/Mangan-/Ni-Cd-Batterien.

Legen Sie das Mobilteil vor dem ersten Gebrauch ca. 7 Stunden lang auf

das Ladegerät.

Hinweis:

•

Im Display des Mobilteils kann

“

Bitte 1 Minute warten.

”

angezeigt

werden, wenn das Mobilteil auf das Ladegerät gelegt wird und nicht an der

Basisstation registriert ist.

•

Wenn die Akkus vollständig geladen sind, aber die Betriebszeit dennoch kurz

zu sein scheint, wischen Sie die Pole des Akkus (

) und die Kontakte des

Geräts mit einem trockenen Tuch ab und wiederholen Sie den Ladevorgang.

Display-Sprache

{#}{1}{1}{0}

{V}

{^}

Wählen Sie die gewünschte Sprache aus.

}

Registrieren des Mobilteils an der Basisstation

Stellen Sie sicher, dass das Mobilteil eingeschaltet ist. Andernfalls halten Sie

}

einige Sekunden gedrückt, um das Mobilteil einzuschalten.

Wenn die Sprachauswahl nach dem erstmaligen Einsetzen der Akkus

angezeigt wird, können Sie die gewünschte Sprache auswählen.

{V}

{^}

: Wählen Sie die gewünschte Sprache aus.

}

TGA651EX(ex).book Page 10 Tuesday, September 21, 2010 4:17 PM

This manual suits for next models

Table of contents

Languages:

Other Panasonic Handset manuals

Panasonic

Panasonic KX-TGA6700 User manual

Panasonic

Panasonic KX-HNH100FX User manual

Panasonic

Panasonic KX-TGA680 User manual

Panasonic

Panasonic KX-TGA470 User manual

Panasonic

Panasonic KX-TGA717 User manual

Panasonic

Panasonic KX-TGA648FX User manual

Panasonic

Panasonic KXTGA935 - DIGITAL CORDLESS HANDSET INSTALL Instruction Manual

Panasonic

Panasonic KX-TGFA97 User manual

Panasonic

Panasonic KX-TGA731E User manual

Panasonic

Panasonic VL-WD613 User manual

Panasonic

Panasonic KX-TGA659 User manual

Panasonic

Panasonic KX-TGTA61 User manual

Panasonic

Panasonic KX-TWA50EX User manual

Panasonic

Panasonic KX-TGEA20C User manual

Panasonic

Panasonic KX-TGA523 User manual

Panasonic

Panasonic KX-TGA711FX User manual

Panasonic

Panasonic KX-TGA651B User manual

Panasonic

Panasonic KX-TGA661EXB User manual

Panasonic

Panasonic KX-TGA661E User manual

Panasonic

Panasonic KX-TCA130EX User manual

Panasonic

Panasonic KX-TGA685EX User manual

Panasonic

Panasonic KX-TGFA71 User manual

Panasonic

Panasonic KX-TPA60 User manual

Panasonic

Panasonic KX-TG939 User manual

Popular Handset manuals by other brands

Swissvoice

Swissvoice ePure HD manual

Philips

Philips TD6736/BH051P user manual

ASCOM

ASCOM I62 - user manual

LG-Ericsson

LG-Ericsson LIP-9010 user guide

GE 1583 user guide

iiNet

iiNet Handset Quick installation guide

ASCOM

ASCOM 9p23 user guide

AT&T

AT&T DLP70110 user manual

AirCell

AirCell ST 3100 user manual

Eaton

Eaton HHIR-LCD-PROG Basic operations

Mitel

Mitel 112 manual

SBC

SBC SBC-381H installation manual

Mitel

Mitel 5602 user guide

ASCOM

ASCOM d81 Messenger Safety instructions

SpectraLink

SpectraLink 7522 quick start guide

Avaya

Avaya L100 Series Release notes

ooma

ooma HD2 Handset quick start guide

Yealink

Yealink IPW56 Quick reference guide
