Panasonic KX-PW37CL User manual

Facsimile with Cordless Phone

Quick Reference Guide

KX-PW37CL

KX-PW47CL

KX-PW57CL

メ

ー

ル

Model No.

Table of Contents

Finding the controls ………………………………………………………2

Installations and connections …………………………………………4

Setting the date and time ………………………………………………8

Setting your facsimile telephone number …………………………8

Setting your logo …………………………………………………………9

Automatic dialing on the main unit …………………………………10

Automatic dialing on the portable handset ………………………11

Intercom between portable handsets ……………………………12

Sending faxes ……………………………………………………………13

Receiving faxes …………………………………………………………14

Operating the built-in answering device …………………………16

Using the hand scanner ………………………………………………17

Individual e-mail services ……………………………………………22

Specifications …………………………………………………Back cover

KX-PW37CL

Thank you for purchasing a Panasonic facsimile.

●This guide explains some basic features and operations, but not all of them.

For further details, see the Japanese operating instructions.

●This product is designed for use in Japan.

Panasonic cannot provide service for this product if used outside Japan.

●Any details given in this guide are subject to change without notice.

KX-PW37CL has one portable handset.

KX-PW47CL has two portable handsets.

KX-PW57CL has three portable handsets.

Finding the controls

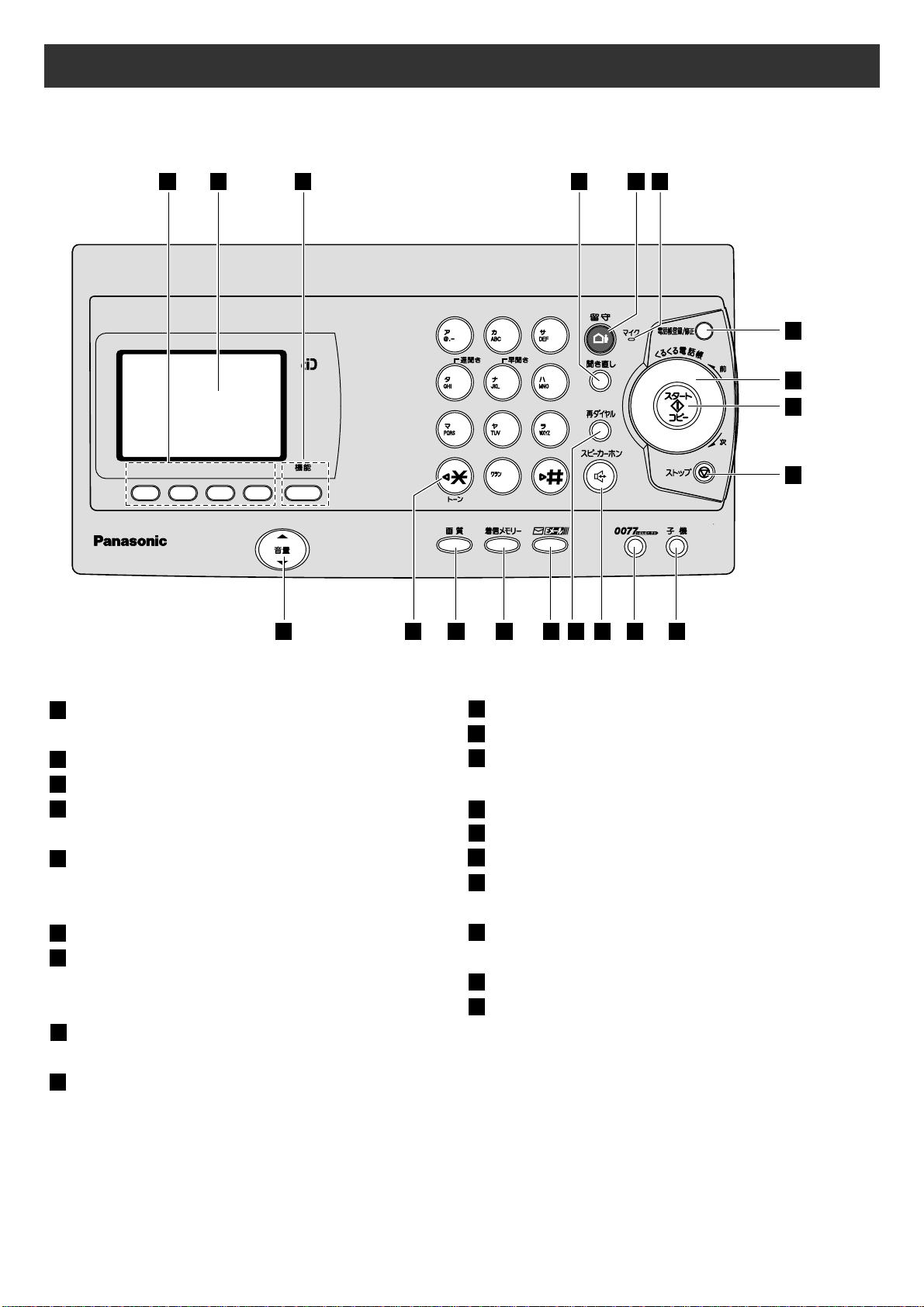

Main unit (control panel)

Multi-operation buttons refer to the

function displayed on the display panel.

Liquid crystal display

Function button initiates programming.

Replay button plays back recorded

messages.

Auto Answer button

—light on: answering device activated.

—light off: used as a regular telephone.

Microphone

Phonebook button stores and edits

information (phone numbers, names

etc.) into the telephone directory.

Search Dial searches the directory or

displays programming features.

Start/Copy button starts faxing or copying.

Stop button

Intercom button

77 SELECTY button & indicator

accesses 77 SELECTY services.

Speakerphone button

Redial/Pause button

E-Mail button & indicator

Call Memory button & indicator stores

the caller ID of incoming calls.

Resolution button selects the resolution

when faxing or copying.

Tone button switches to tone dialing.

Volume button adjusts ringer, speaker

and handset volume.

F 4F 3F 2F 1

KX-PW37CL-S

16171819 1112

2 3 54 6

(KX-PW37CL is shown.)

Portable handset

Finding the controls

増設

クリアー

キャッチ

ファクス

スピーカーホン



●



To adjust the volume.

●



To redial the last number

dialed.

●



To insert a pause.

●



To switch to Tone dialing

mode.

●



To make/answer calls.

●



To page the main unit or

another portable handset.

●



To change the character

input mode.

●



To end a call.

●



To end or exit from editing or

other operations.

●



To put a call on hold.

●



To start a search in the

Number Display log.

●



For call waiting service

users.

●



To clear letters/numbers.

●



To receive faxes.

●



To use the speakerphone.

●



Used when installing

additional portable

handsets.

●



To change settings.

●



To search in the

directory.

音量

切

外線

内線

文字切替

保留

着信メモリー



再ダイヤル

電話帳

and buttons refer to the function

displayed on the bottom of the display.

They function differently depending on

the mode.

Charge indicator

Dial buttons

Charging

Full Red

Off

LCD (with back light)

Speakerphone

Microphone

Do not cover the

microphone while

talking.

トーン



How to use buttons

How to use key

再ダイヤル

電話帳

音量

プライベートカナ

ｺｷ

登録機能

3 3



●



Displays battery strength, telephone

numbers etc.

Function menu that is

controlled by or .

Portable handset number

Battery strength

Displayed when entering

characters for the telephone

directory, etc.



Battery indicator

(Shows the amount of

battery power left)

Operation indicator

(Shows the condition of the scanner)

Delete button

(To delete the scanned contents) Resolution button

Memory indicator

(Shows the amount of memory being used)

Scanning width button

To start or stop scanning

Hand scanner

Installations and connections

Installing the ink film

Control panel

“T”shaped

gear (blue) New ink film

“T”shaped gear (blue)

Right slot

Blue core

“T”shaped

gear (blue) Ink film is slack.

Click

White core White core

2Take out the ink film from the bag, and find the “T”

shaped gear (blue).

5If the ink film is slack, tighten it by winding the gear.

4Insert the white core into the slots shown in the

picture below.

6Close the control panel by pressing down on both

sides.

●Make sure to close the control panel until it locks.

3Hold the ink film like in the picture below.

Insert the blue core into the right slot of the main

unit.

Insert the “T”shaped gear (blue) into the left slot

of the main unit.

1Press the control panel open button ( ) to open the

control panel ( ).

Installations and connections

Installing recording paper

(A4

size)

1Install the recording paper tray.

Insert the left tab on the recording paper tray into

the left slot of the main unit.

Insert the right tab into the right slot of the main

unit.

2Open the paper entrance cover until it locks.

3Fan the stack of recording paper (A4 size) and insert it

into the recording paper tray.

4Close the paper entrance cover by leaning it back.

Slot Tab

Recording

paper tray

Paper entrance cover

Printing

side is on

the back

Up to 30 sheets

Paper entrance cover

Recording paper

cover

Recording paper

tray

Recording paper cover

5Install the recording paper cover on the recording

paper tray by sliding it down from the top.

Installations and connections

Connecting the main unit

Telephone line cord Wall jack

Power cord

Power outlet

AC 100V

(電話回線へ)

回線

Click Click

Click

スタート

コピー

くるくる電話帳

(77 SELECTY indicator)

機能

1Extend the antenna and raise it vertically.

2Connect the cord and place the handset on the

main unit.

3Connect the telephone line cord.

4Connect the power cord.

➡You will hear the following message about

KDDI’s 77 SELECTY service in Japanese.

Thank you for purchasing a Panasonic facsimile.

This unit will automatically select using KDDI’s

“0077”long distance call service. If you do not want

to use this service, press “(Function)”, “

(77 SELECTY)”, and “”. Then, please make sure

the “(77 SELECTY indicator)”is turned off.

機能

5Decide if you want to subscribe to “77 SELECTY”service.

●If you press (Start) or leave the unit for about 2

minutes, the unit automatically starts to set up for

“77 SELECTY”service. If you do not want to subscribe

to this service, see the message in step 4 for

instructions.

This unit will automatically select the dialing mode

(Tone/Pulse).

Subscribing to “77 SELECTY”

An automatic online setup will start in an hour.

➡

After the

online setup

is completed, 77 SELECTY

indicator will light in green to show that 77 SELECTY

service is ready to be used.

●During the online setup, your telephone number will be

sent to KDDI.

スタート

コピー

3Charge the battery in the charger for 10 hours.

Plug

Charger AC adaptor

Power outlet

(AC 100 V)

Black

Red Connector

Battery Click

Battery cover

Charge indicator

–lights red:

while charging.

–lights off:

charging completed.

Setting up the portable handset

●After your Panasonic battery is fully charged,

it will last up to about 7 hours of conversation.

●The hand scanner battery is charged when the

hand scanner is inserted into the main unit.

Installations and connections

Setting up the hand scanner

2Slide open the battery cover by slightly pushing

part.

Imaging sensor

Battery cover

3Connect the battery to the hand scanner, and close

the battery cover.

1Press down the knob of the hand scanner, and pull

out the hand scanner from the main unit.

Cord(Red) Connector

Cord(Black)

4Insert the hand scanner, and charge the battery

for 10 hours.

Display

ﾖﾐﾄﾘﾏｲｽｳ

ﾏｲ



ｽｷｬﾅｰｾｯﾃｲﾁｭｳ

Bottom side

ｷﾉｳｱﾄｳﾛｸｱﾓｰﾄﾞ

ｱｱｱｱｱｱｱｱｱ[ｸﾙｸﾙ]

Cursor

TEL= ．．．．．．．．．．．

TEL=0980765043

ﾄｳﾛｸｱｼﾏｼﾀ

Setting the date and time

1Press (Function).

機能

1Press (Function).

機能

2Press .

3Enter the correct year/month/day.

Example: Nov. 3, 2000

Press .

ストップ

機能

ｷﾉｳｱﾄｳﾛｸｱﾓｰﾄﾞ

ｱｱｱｱｱｱｱｱｱ[ｸﾙｸﾙ]

Example :

Cursor

2000

年

月

日

ｱｱｱｱｱｱｱｱｱ[ﾄｳﾛｸ]

2Press .

2000

年

月

日

ｱｱｱｱｱｱｱｱｱ[ﾄｳﾛｸ]

3Enter your facsimile telephone number, up to 20

digits.

Example: 098 765 43··

TEL=80765043

4Press (Register).

登録

5Enter the correct hour/minute in a 24-hour clock entry.

Example: 15:45 (3:45 PM)

Press .

ｼﾞｺｸｱ

：

ｱｱｱｱｱｱｱｱｱ[ﾄｳﾛｸ] 4Press (Register).

登録

ｼﾞｺｸｱ

：

ｱｱｱｱｱｱｱｱｱ[ﾄｳﾛｸ]

6Press (Register).

登録

7Press (Stop).

ストップ

月

日

115

：

ﾖｳｹﾝｱﾛｸｵﾝｱ

ｹﾝ

5Press (Stop).

ストップ

Setting your facsimile

telephone number

ストップ

機能

音量

The (Space) button

replaces the digit with a space.

音量

2000

年

月

日

ｱｱｱｱｱｱｱｱｱ[ﾄｳﾛｸ]

ﾄｳﾛｸｱｼﾏｼﾀ

1Press (Function).

機能

2Press .

3Enter your logo, up to 30 characters, using the dial

keypad.

●To enter English characters easily, press

(Character input mode) repeatedly and select “英”

(English input mode).

●For details, see below.

文字切替

ｷﾉｳｱﾄｳﾛｸｱﾓｰﾄﾞ

ｱｱｱｱｱｱｱｱｱ[ｸﾙｸﾙ]

ﾅﾏｴ=

ストップ

機能

Example: Micah

1. Press once.

2. Press six times.

3. Press six times.

4. Press to move the cursor to the next space

and press four times.

5. Press five times.

Cursor

ﾅﾏｴ=

Mic

ﾅﾏｴ=

Mica

ﾅﾏｴ=

Micah

4Press (Register).

登録

ﾅﾏｴ=

Micah

ﾄｳﾛｸｱｼﾏｼﾀ

5Press (Stop).

ストップ

Character input and command key table

、。！？ / − ＃ ,;:｜.

()〔〕{ }<>「」

ワヲン゛°、。−

“英”English

“カナ” Katakana

アイウエオァィゥェォ @.-&＄¥%+=〜^

DEFdef

GHIghi

JKLjkl

MNOmno

PQRSpqrs

TUVtuv

WXYZwxyz

カキクケコ

サシスセソ

タチツテトッ

ナニヌネノ

ハヒフヘホ

マミムメモ

ヤユヨャュョ

ラリルレロ

“数”Numbers

ABCabc

Pressing the dial keys will select a character as shown below.

Setting your logo

Character

Dial key

Used to change the character input mode.

Used to move the cursor to the right.

Used to move the cursor to the left.

Used to delete a character.

Used to insert a space.

Command keys

(Main unit), (Portable handset)

内線

文字切替

文字切替

(Main unit), (Portable handset)

クリアー

キャッチ

クリアー

(Main unit), (Portable handset)

音量

●When entering e-mail address, the small letters are displayed before the capital letters.

●When entering e-mail address, you can not enter the following symbols: 、。− .「」

Automatic dialing on the main unit

ストップ

電話帳登録/修正

Handset

くるくる電話帳

スピーカーホン

Storing names and telephone

numbers in the search dial Making a voice call using the

search dial

1Press (Phonebook).

●“XXX”shows the

remaining station numbers

you can store.

●You can program up to

150 stations, including 5

pre-programmed stations.

電話帳登録/修正

1Rotate the (Search dial) until the desired name

is displayed.

くるくる電話帳

2Enter the name, up to 12 characters (see the table on

page 9 for instructions).

3Press (Register).

登録

2Lift the handset or press (Speakerphone).

スピーカーホン

4Enter the telephone number, up to 30 digits.

●To correct a mistake, press (Clear).

クリアー

5Press (Register).

登録

6If necessary, enter the group number (1–9).

ﾅﾏｴ=

ﾃﾞﾝﾜﾁｮｳｱｱｷ

×××

ｹﾝ

7Press (Register).

●To program other items, repeat steps 2–7.

登録

8Press (Stop) to exit the program.

ストップ

Editing a stored name or number

1Rotate the (Search dial) until the desired name

is displayed.

くるくる電話帳

2Press (Phonebook).

●If you do not need to edit the name, skip to step 4.

電話帳登録/修正

3Edit the name (see the table on page 9 for

instructions).

4Press (Register).

●If you do not need to edit the telephone number,

skip to step 6.

登録

5Enter the correct telephone number.

6Press (Register).

●If you do not need to change the group number,

skip to step 8.

登録

7If necessary, enter the correct group number.

8Press (Register).

登録

This manual suits for next models

Table of contents

Other Panasonic Fax Machine manuals

Panasonic

Panasonic UF-5500 User manual

Panasonic

Panasonic KX-FPG176 User manual

Panasonic

Panasonic KX-FPW111 User manual

Panasonic

Panasonic KX-FT25HG User manual

Panasonic

Panasonic KX-FPC165 Use and maintenance manual

Panasonic

Panasonic KX-FLB803EX User manual

Panasonic

Panasonic KX-F1200 Quick start guide

Panasonic

Panasonic KX-FP151E User manual

Panasonic

Panasonic KX-FP70CX User manual

Panasonic

Panasonic Panafax UF-4000 User manual

Panasonic

Panasonic KX-FM131AL User manual

Panasonic

Panasonic KX-F76 User manual

Panasonic

Panasonic KX-FPG379 User manual

Panasonic

Panasonic KX-F2510NZ User manual

Panasonic

Panasonic KX-FHD332 User manual

Panasonic

Panasonic KX-PD225DL User manual

Panasonic

Panasonic Panafax UF-766 User manual

Panasonic

Panasonic KX-FLB756AL User manual

Panasonic

Panasonic KX-FP215 User manual

Panasonic

Panasonic KX-FLB883EX User manual

Panasonic

Panasonic KX-FP151AL User manual

Panasonic

Panasonic KX-FLB851 - All-in-One Flatbed Laser Fax User manual

Panasonic

Panasonic KX-FPC141 User manual

Panasonic

Panasonic KX-PZ628DLE User manual

Popular Fax Machine manuals by other brands

Samsung

Samsung SF-515 user manual

Radio Shack

Radio Shack TFX-1031 owner's manual

imagistics

imagistics 2030 Operator's guide

Furuno

Furuno FAX-30 Operator's manual

Savin

Savin 3740 Setup

Sharp

Sharp FO-51 Operation manual

Muratec

Muratec MFX-C3035 user guide

Canon

Canon FAX-L400 Facsimile guide

Ricoh

Ricoh 1000L Field service manual

Sharp

Sharp FO-3150 Operation manual

Kyocera

Kyocera KM-F1060 operating instructions

Sharp

Sharp FO-2970M Operation manual

Canon

Canon JX510P instruction manual

Mita

Mita LDC-870 Instruction handbook

Brother

Brother MFC 640CW - Color Inkjet - All-in-One user guide

Samsung

Samsung FX100 Operator's guide

Sharp

Sharp MX-FXX1 Quick reference guide

Develop

Develop ineo 25e manual
