Panasonic ES-WD72 User manual
© Panasonic Corporation, 2012. All rights reserved.
Unauthorized copying and distribution is a violation
of law.
Order Number PCD1204M42AE
Epilator
Model No. ES-WD72
ES-WD62
ES-WD42
Middle East
TABLE OF CONTENTS
PAGE PAGE
1 Warning -------------------------------------------------------------- 2
2 Specifications ----------------------------------------------------- 2
3 Exploded View and Replacement Parts List ------------ 3
Please file and use this manual together with the service manual for Model No. ES-WD71, Order No.
PCD0906A61CE.
2
1Warning
Caution:
• Pb free solder has a higher melting point that standard solder; Typicall the melting point is 50 - 70°F (30 - 40°C) higher. Please
use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder-
ing iron, please be careful not to heat too long.
• Pb free solder will tend to splash when heated too high (about 1100°F / 600°C).

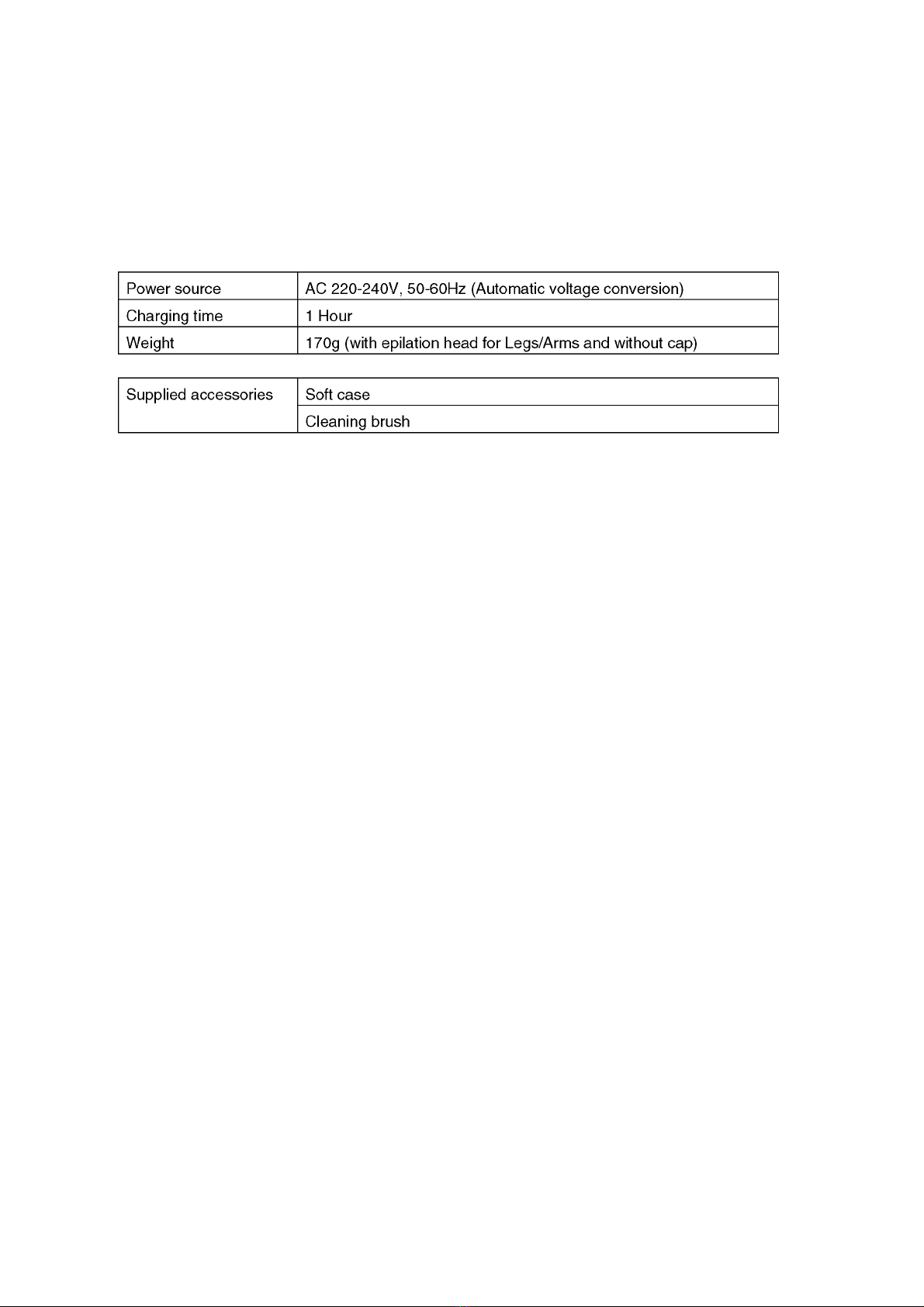

2 Specifications
3
3 Exploded View and Replacement Parts List

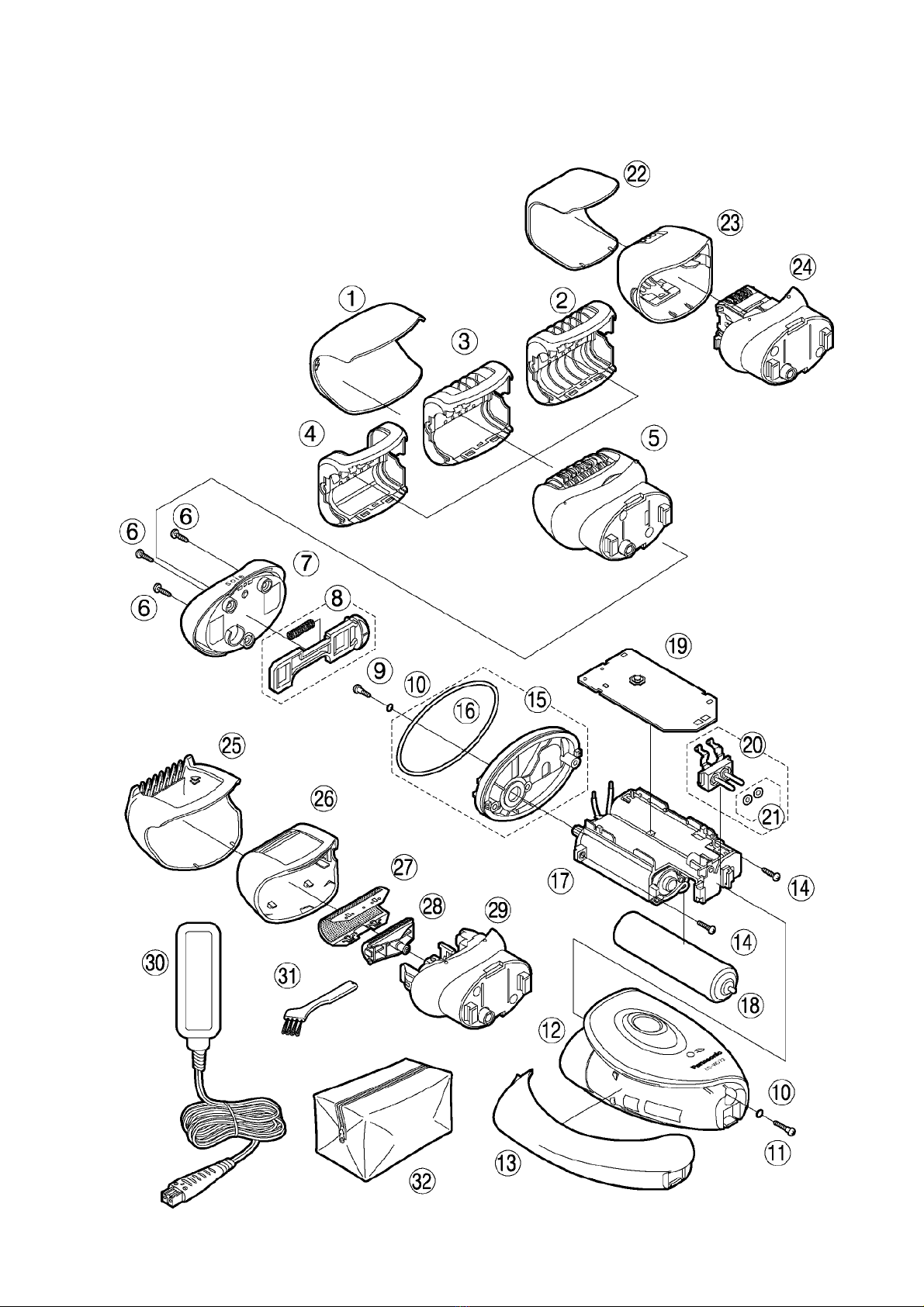

3.1. Exploded View for ES-WD72
4
3.2. Replacement Parts List for ES-WD72
Safety Ref. No. Part No. Part Name & Description Quantity Remarks
1 WESWD51X7157 PROTECTION CAP 1
2 WESWD88P3107 GENTLE CAP 1
3 WESWD72P3118 BEGINNER CAP 1
4 WESWD72P3128 FAST CAP 1
5 WESWD72W1068 EPILATION HEAD FOR LEGS/ARMS 1
6 WESWD51L9397 TAPPING SCREW 3 (K2-5)
7 WESWD72W3368 MOUNTING BASE B 1
8 WESWD92H3278 HEAD RELEASE BUTTON 1
9 WES2047S9707 SCREW 1 (K2-8)
10 WER504L0966 O-RING 2 (2PCS/PK)
11 WES701S9706 SCREW 1 (K2-12)
12 WESWD72P3050 HOUSING 1
13 WESWD92W3378 SIDE PANEL 1
14 WES331B9257 TAPPING SCREW 2 (K2-8)
15 WESWD92L0498 MOUNTING BASE A 1
16 WES2067L0997 HOUSING O-RING 1
17 WESWD92L1008 MOTOR ASSEMBLY 1
18 WESWD72L2508 RECHARGEABLE BATTERY 1 Li-ion TYPE
19 WESWD92L2108 MODULE 1
20 WESWD51L2157 PLUG CHASSIS 1
21 WES2047L0327 O-RING A 2 (2PCS/PK)
22 WESWD70X7158 PROTECTION CAP 1
23 WESWD72W3128 EPILATION HEAD FRAME 1
24 WESWD92W1078 EPILATION HEAD FOR UNDERARMS 1
25 WESWD51X3557 BIKINI COMB 1
26 WESWD51W4037 FOIL FRAME 1
27 WES9753E OUTER FOIL 1
28 WES9752E INNER BLADE 1
29 WESWD51W0787 SHAVER HEAD 1
30 WESWD71W7674 POWER ADAPTOR 1 BF-3 PLUG
31 WES2047H6767 CLEANING BRUSH 1
32 WESWD70S7008 SOFT CASE 1
- WESWD72P8001 INDIVIDUAL PACKAGE 1
- WESWD72P8101 OPERATING INSTRUCTIONS 1
5

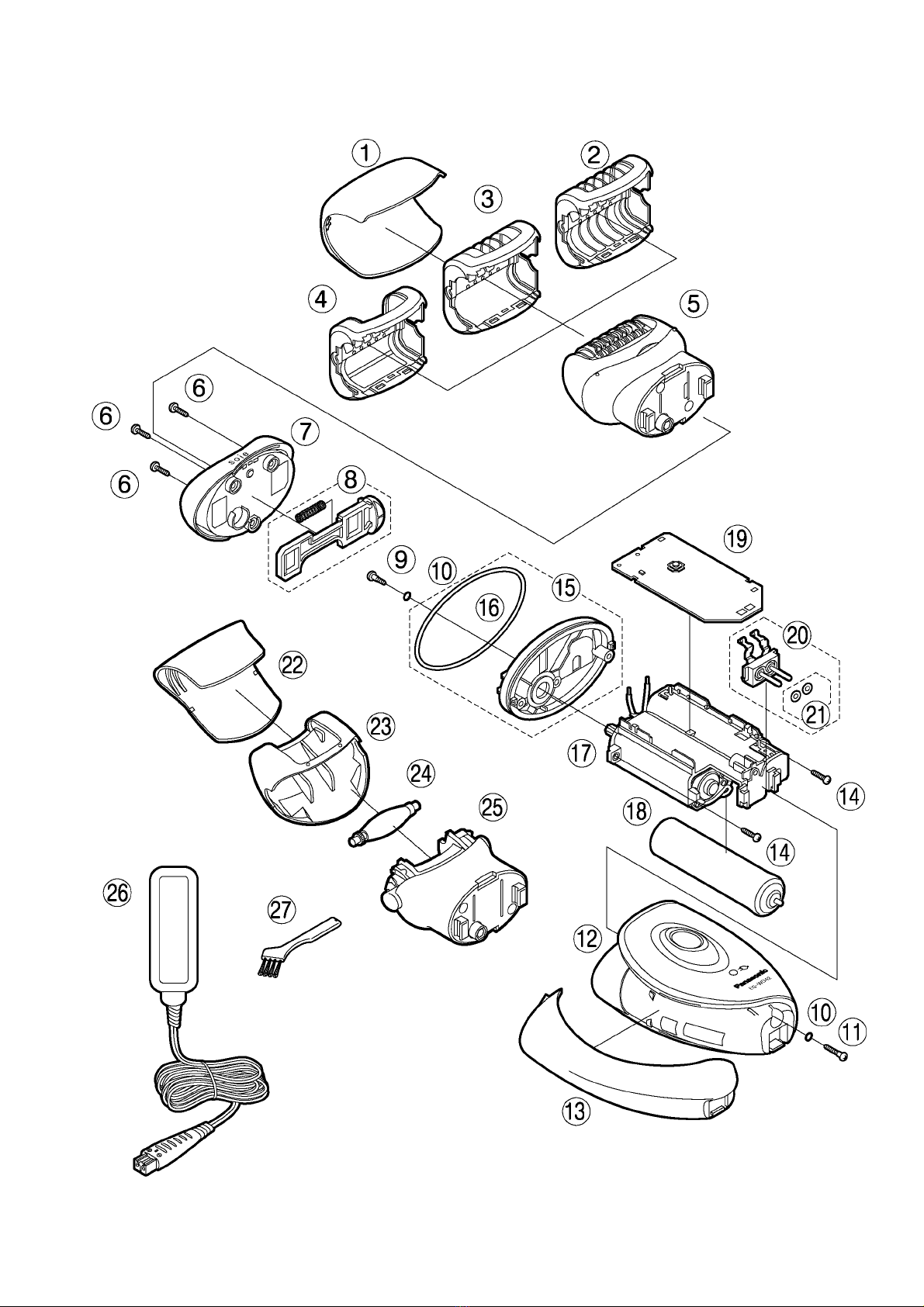

3.3. Exploded View for ES-WD62
6
3.4. Replacement Parts List for ES-WD62
Safety Ref. No. Part No. Part Name & Description Quantity Remarks
1 WESWD51X7157 PROTECTION CAP 1
2 WESWD52A3108 GENTLE CAP 1
3 WESWD52A3118 BIGINNER CAP 1
4 WESWD52A3128 FAST CAP 1
5 WESWD72W1068 EPILATION HEAD FOR LEGS/ARMS 1
6 WESWD51L9397 TAPPING SCREW 3 (K2-5)
7 WESWD52W3368 MOUNTING BASE B 1
8 WESWD92H3278 HEAD RELEASE BUTTON 1
9 WES2047S9707 SCREW 1 (K2-8)
10 WER504L0966 O-RING 2 (2PCS/PK)
11 WES701S9706 SCREW 1 (K2-12)
12 WESWD62A3058 HOUSING 1
13 WESWD92W3378 SIDE PANEL 1
14 WES331B9257 TAPPING SCREW 2 (K2-8)
15 WESWD92L0498 MOUNTING BASE A 1
16 WES2067L0997 HOUSING O-RING 1
17 WESWD94L1008 MOTOR ASSEMBLY 1
18 WESWD70L2508 RECHARGEABLE BATTERY 1 Li-ion TYPE
19 WESWD92L2108 MODULE 1
20 WESWD51L2157 PLUG CHASSIS 1
21 WES2047L0327 O-RING A 2 (2PCS/PK)
22 WESWD70X7158 PROTECTION CAP 1
23 WESWD72W3128 EPILATION HEAD FRAME 1
24 WESWD92W1078 EPILATION HEAD FOR UNDERARMS 1
25 WESWD71W7674 POWER ADAPTOR 1 BF-3 PLUG
26 WES2047H6767 CLEANING BRUSH 1
27 WESWD70S7008 SOFT CASE 1
- WESWD62A8008 INDIVIDUAL PACKAGE 1
- WESWD62A8108 OPERATING INSTRUCTIONS 1
7
3.5. Exploded View for ES-WD42
8
3.6. Replacement Parts List for ES-WD42
Safety Ref. No. Part No. Part Name & Description Quantity Remarks
1 WESWD51X7157 PROTECTION CAP 1
2 WESWD92G3108 GENTLE CAP 1
3 WESWD92G3118 BEGINNER CAP 1
4 WESWD92G3128 FAST CAP 1
5 WESWD92W1068 EPILATION HEAD FOR LEGS/ARMS 1
6 WESWD51L9397 TAPPING SCREW 3 (K2-5)
7 WESWD42W3368 MOUNTING BASE B 1
8 WESWD92H3278 HEAD RELEASE BUTTON 1
9 WES2047S9707 SCREW 1 (K2-8)
10 WER504L0966 O-RING 2 (2PCS/PK)
11 WES701S9706 SCREW 1 (K2-12)
12 WESWD42G3059 HOUSING 1
13 WESWD92W3378 SIDE PANEL 1
14 WES331B9257 TAPPING SCREW 2 (K2-8)
15 WESWD92L0498 MOUNTING BASE A 1
16 WES2067L0997 HOUSING O-RING 1
17 WESWD92L1008 MOTOR ASSEMBLY 1
18 WESWD72L2508 RECHARGEABLE BATTERY 1 Li-ion TYPE
19 WESWD92L2108 MODULE 1
20 WESWD51L2157 PLUG CHASSIS 1
21 WES2047L0327 O-RING A 2 (2PCS/PK)
22 WESWD92X7158 PROTECTION CAP 1
23 WESWD92W3138 FOOT CARE HEAD FRAME 1
24 WESWD92H7178 FILE 1
25 WESWD92W4068 FILE HEAD 1
26 WESWD71W7674 POWER ADAPTOR 1 BF-3 PLUG
27 WES2047H6767 CLEANING BRUSH 1
- WESWD42G8000 INDIVIDUAL PACKAGE 1
- WESWD42G8100 OPERATING INSTRUCTIONS 1
