Panasonic ES-ED92 User manual

ing and distribution is a violation of law.

Order Number PCD1510E60AE

Epilator

Model No. ES-ED92

ES-ED22

EUROPE

TABLE OF CONTENTS

PAGE PAGE

1 EXPLODED VIEW & REPLACEMENT PARTS LIST ---- 2

Please file and use this manual together with the service manual for Model No.ES-ED90/ES-ED70/ES-

ED50/ES-ED20, Order No.PCD1301X30CE.

1 EXPLODED VIEW & REPLACEMENT PARTS LIST

1.1. EXPLODED VIEW for ES-ED92

1.2. REPLACEMENT PARTS LIST for ES-ED92

Safety Ref. No. Part No. Part Name & Description Quantity Remarks

1 WESED90X7158 PROTECTION CAP 1

2 WESED92R3128 FAST CAP 1

3 WESED92R3108 GENTLE CAP 1

4 WESED92W1068 EPILATION HEAD FOR LEGS/ARMS 1

5 WESWD51L9397 TAPPING SCREW 2 K2-5

6 WESED94W3368 MOUNTING BASE B 1

7 WESED90W3278 HEAD RELEASE BUTTON 1

8 WESED92S9707 SCREW 1

9 WER504L0966 O-RING 2 2PCS/PK

10 WES701S9706 SCREW 1 K2-12

11 WESWD94L6118 WASHER 1

12 WESED92W3058 HOUSING 1

13 WESED92R3378 FRONT PANEL 1

14 WES331B9257 TAPPING SCREW 2 K2-8

15 WESED90L0498 MOUNTING BASE A 1

16 WES2067L0997 HOUSING O-RING 1

17 WESED90L1009 MOTOR ASSEMBLY 1

18 WESED94L2508 RECHARGEABLE BATTERY 1 LI-ION TYPE

19 WESED92L2108 MODULE 1

20 WESED90L2158 PLUG CHASSIS 1

21 WES2047L0327 O-RING A 2 2PCS/PK

22 WESED90X7168 PROTECTION CAP 1

23 WESED90W3128 EPILATION HEAD FRAME 1

24 WESED90W1078 EPILATION HEAD FOR UNDERARMS 1

25 WESED90X3557 BIKINI COMB 1

26 WESED90W4038 FOIL FRAME 1

27 WES9753E OUTER FOIL 1

28 WES9752E INNER BLADE 1

29 WESED90W0788 SHAVER HEAD 1

30 WESWD90X7158 PROTECTION CAP 1

31 WESWD90W3138 FOOT CARE HEAD FRAME 1

32 WESWD90H7178 FILE 1

33 WESED90W4068 FILE HEAD 1

34 WESED90W7664 POWER ADAPTOR 1 C-2 PLUG

35 WES2047H6767 CLEANING BRUSH 1

36 WESED90W7008 SOFT CASE 1

- WESED92S8008 INDIVIDUAL BOX 1

- WESED92S8108 OPERATING INSTRUCTIONS 1

1.3. EXPLODED VIEW for ES-ED22

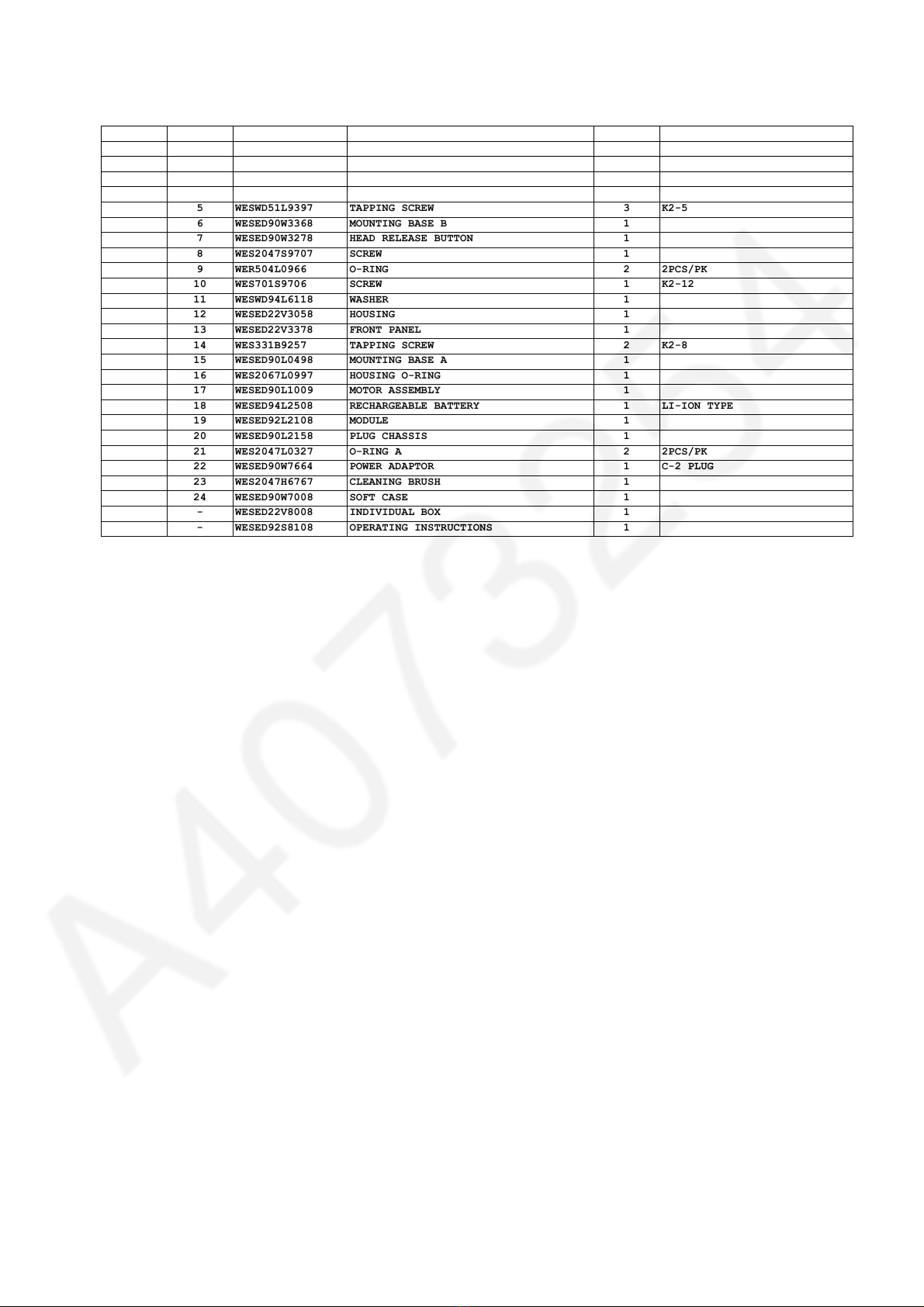

1.4. REPLACEMENT PARTS LIST for ES-ED22

Safety Ref. No. Part No. Part Name & Description Quantity Remarks

1 WESED90X7158 PROTECTION CAP 1

2 WESED20V3128 FAST CAP 1

3 WESED22V3108 GENTLE CAP 1

4 WESED22W1068 EPILATION HEAD FOR LEGS/ARMS 1

5 WESWD51L9397 TAPPING SCREW 3 K2-5

6 WESED90W3368 MOUNTING BASE B 1

7 WESED90W3278 HEAD RELEASE BUTTON 1

8 WES2047S9707 SCREW 1

9 WER504L0966 O-RING 2 2PCS/PK

10 WES701S9706 SCREW 1 K2-12

11 WESWD94L6118 WASHER 1

12 WESED22V3058 HOUSING 1

13 WESED22V3378 FRONT PANEL 1

14 WES331B9257 TAPPING SCREW 2 K2-8

15 WESED90L0498 MOUNTING BASE A 1

16 WES2067L0997 HOUSING O-RING 1

17 WESED90L1009 MOTOR ASSEMBLY 1

18 WESED94L2508 RECHARGEABLE BATTERY 1 LI-ION TYPE

19 WESED92L2108 MODULE 1

20 WESED90L2158 PLUG CHASSIS 1

21 WES2047L0327 O-RING A 2 2PCS/PK

22 WESED90W7664 POWER ADAPTOR 1 C-2 PLUG

23 WES2047H6767 CLEANING BRUSH 1

24 WESED90W7008 SOFT CASE 1

- WESED22V8008 INDIVIDUAL BOX 1

- WESED92S8108 OPERATING INSTRUCTIONS 1
