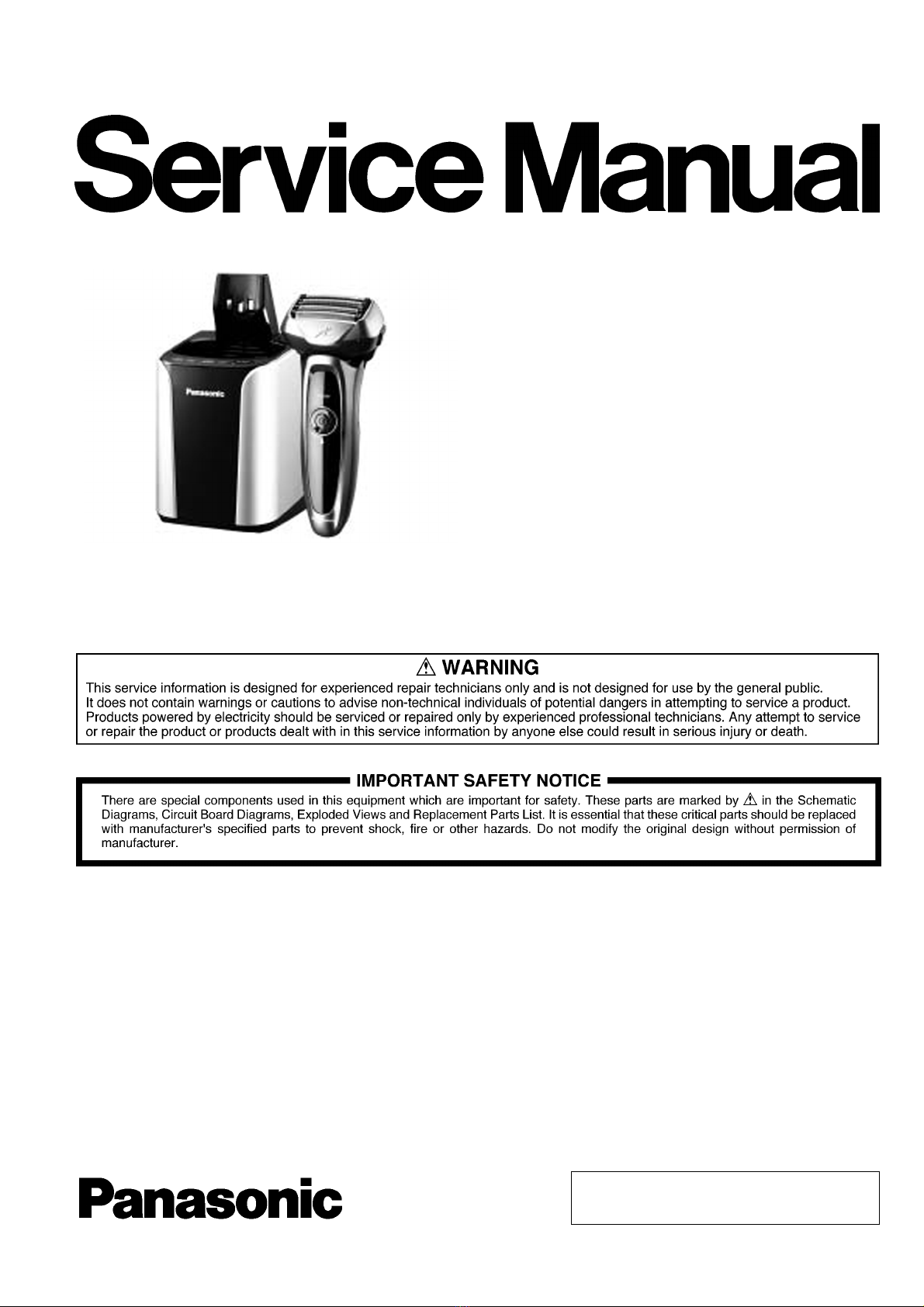

Panasonic ES-LV54 User manual
© Panasonic Corporation, 2013.
All rights reserved. Unauthorized copying and distri-
bution is a violation of law.
Order Number SD1309A37CE
Rechargeable Shaver
Model No. ES-LV95
Model No. ES-LV94
Model No. ES-LV65
Model No. ES-LV54
Asia
China
Middle East
TABLE OF CONTENTS
PAGE PAGE
1 Warning -------------------------------------------------------------- 2
2 Specifications ----------------------------------------------------- 2
3 Troubleshooting Guide ----------------------------------------- 3
4 Disassembly and Assembly Instructions ---------------- 8
5 Schematic Diagram ---------------------------------------------13
6 Exploded View and Replacement Parts List -----------14
2
1Warning
Caution:
• Pb free solder has a higher melting point that standard solder; Typically the melting point is 50 - 70°F (30 - 40°C) higher. Please
use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder-
ing iron, please be careful not to heat too long.
• Pb free solder will tend to splash when heated too high (about 1100°F / 600°C).
2 Specifications
3

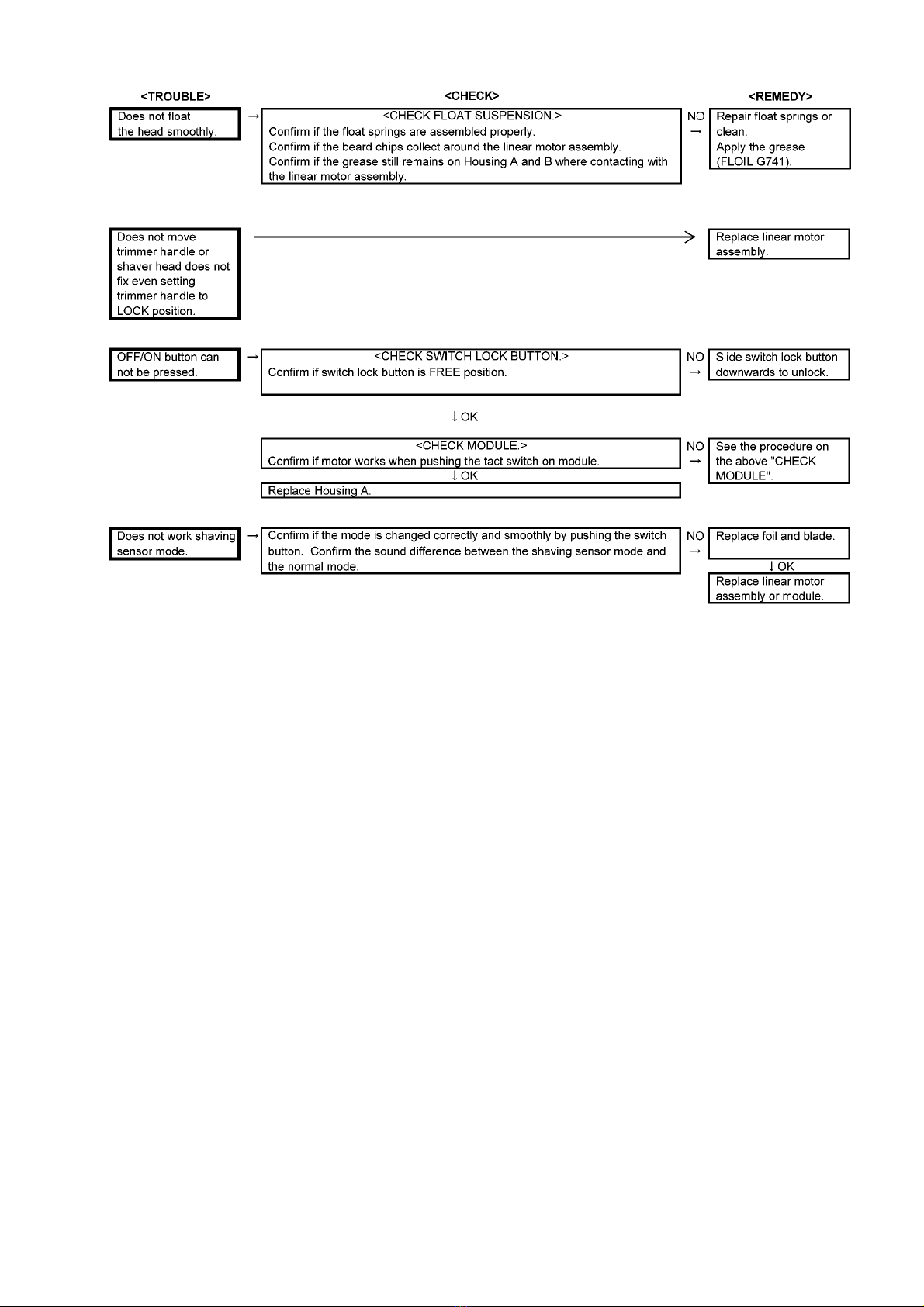

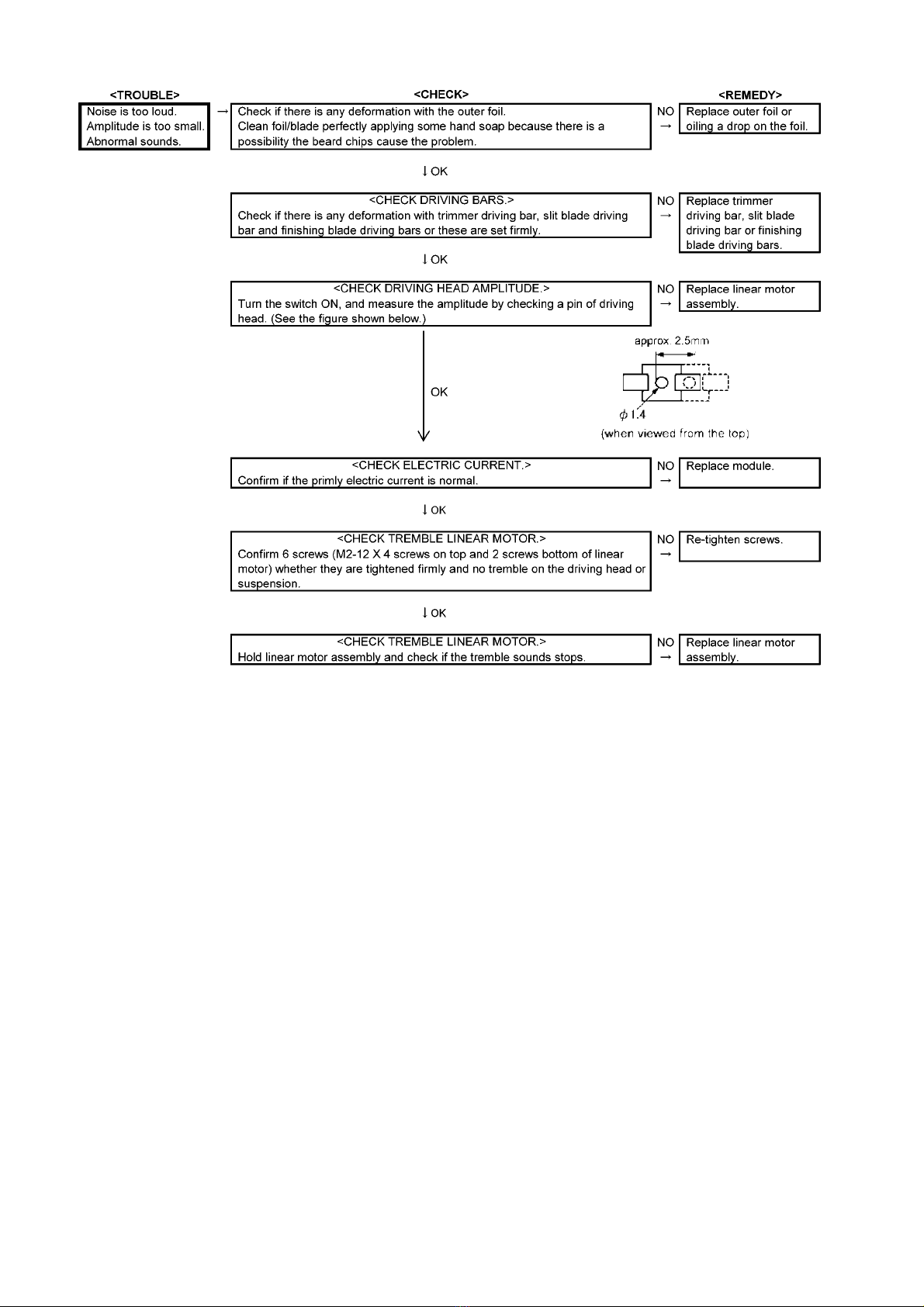

3 Troubleshooting Guide

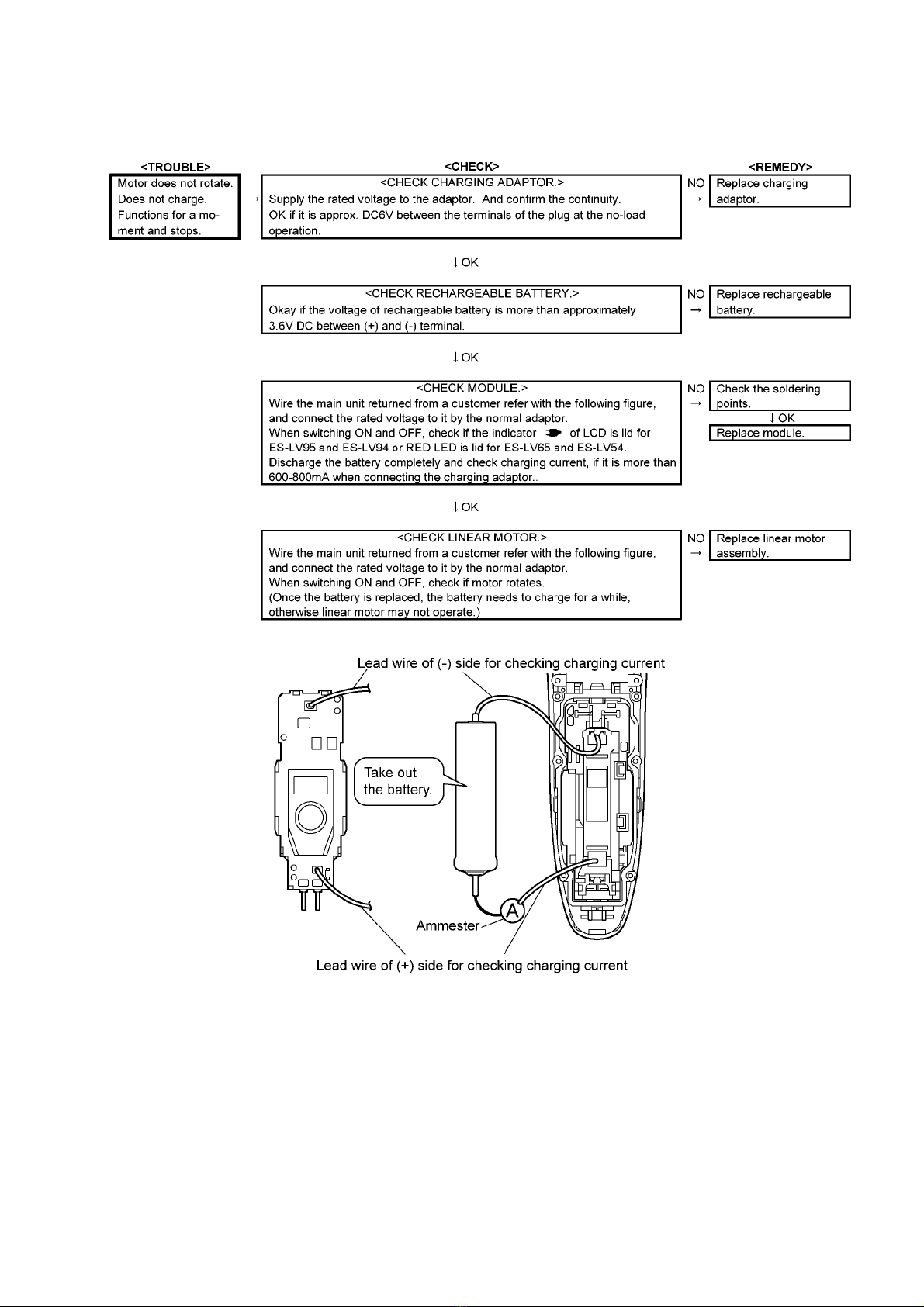

3.1. Main unit and charging adaptor
NOTE:
Once taking the battery out, the shaver is RESET. The shaver must be charged for several seconds first.
NOTE:
Completely discharge and then fully charge before returning the shaver to the customer.
4
5
8
4 Disassembly and Assembly Instructions

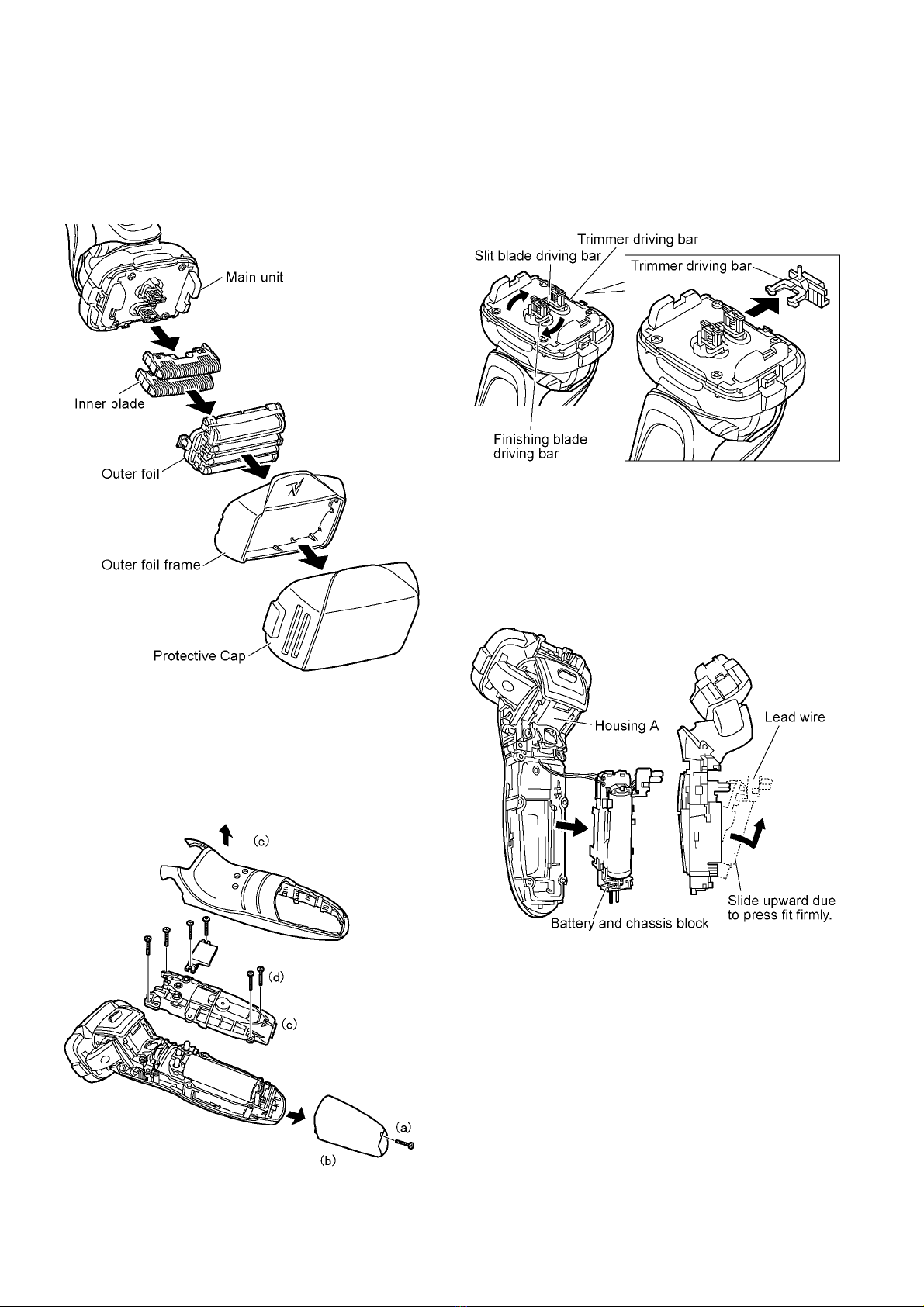

4.1. Disassembly instructions
Follow the procedure below to disassemble the main unit.
1. Remove the cap, the outer foil with outer foil frame and
the inner blades.
2. How to disassemble the housing A and B.
a) Loosen a screw.
b) Remove the bottom cover.
c) Remove the rear panel.
d) Loosen 6 screws.
e) Remove the housing B.
3. To remove the trimmer driving bar, finishing blade driving
bar or the slit blade driving bar, press bars outward.
4. Pull up the battery and chassis block from the linear
motor side first. Then, slide it upward and take it out from
the housing A.
NOTE:
Do not pull the battery and chassis block forcefully
due to connecting the linear motor by the lead wires.
9
5. Take out the battery from the chassis.
6. Unsolder the lead wires from the module.
7. Loosen two screws.
8. Move gently the linear motor assembly down and unhook
it and remove the float springs from housing A.
10
4.2. Caution in assembly
NOTE:
When reassembling, replace the new waterproof seal.
Make sure whether there is NO foreign substance sticking
around a part covered with waterproof seal.

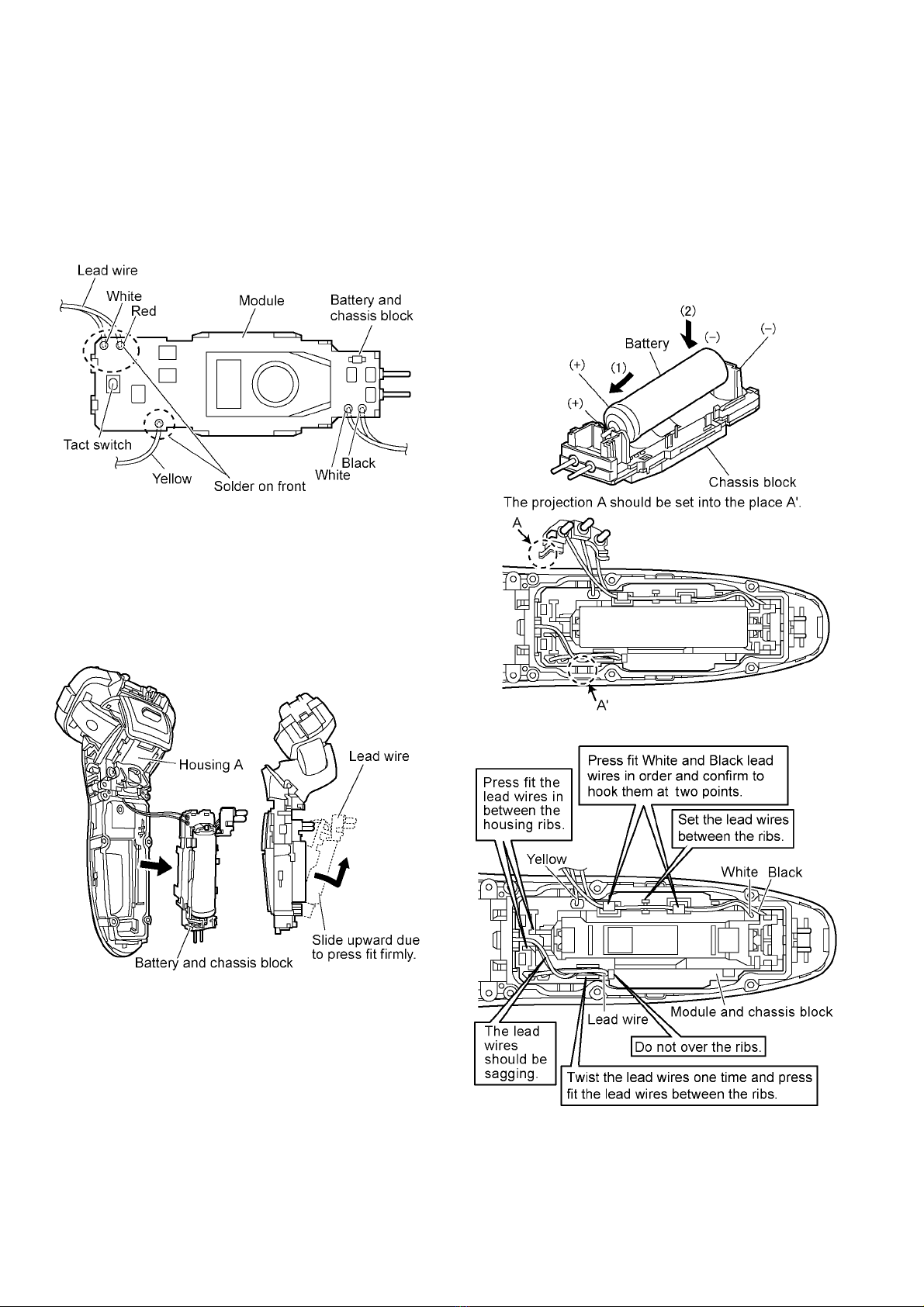

1. Solder the lead wires with the module.
NOTE:
Make sure of the color of lead wires.
2. Attach the tube holder. Tighten two screws between the
linear motor assembly and the housing A.
3. When inserting the module and chassis block into the
housing A, confirm if the module does not get any dam-
age or deformation.
4. Make sure that the lead wires set in position to avoid
abnormal noise. Install (+) terminal of battery into the ter-
minal plate at the bottom cover side and firmly set the bat-
tery sliding the direction of arrow. Attach (-) terminal of
battery.
NOTE:
Once taking the battery out, the shaver is RESET.
The shaver must be charged for about 10 seconds
first.
NOTE:
Completely discharge and then fully charge before
returning the shaver to the customer.
11

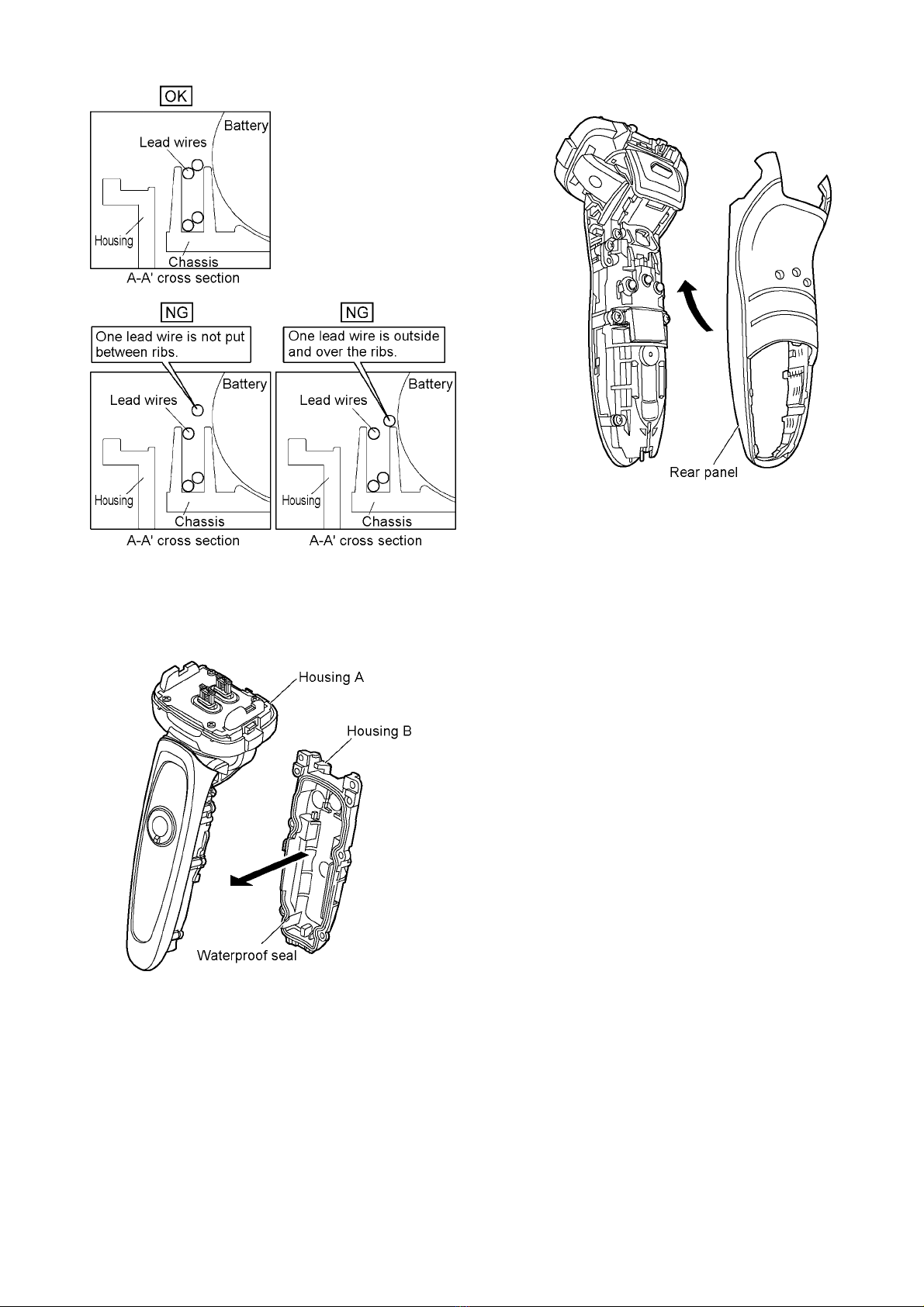

5. When putting the housing A and the housing B together,
make sure if the waterproof seal must be fitted properly
and no foreign substance sticking around.
6. Tighten six screws and attach the rear panel firmly.
12

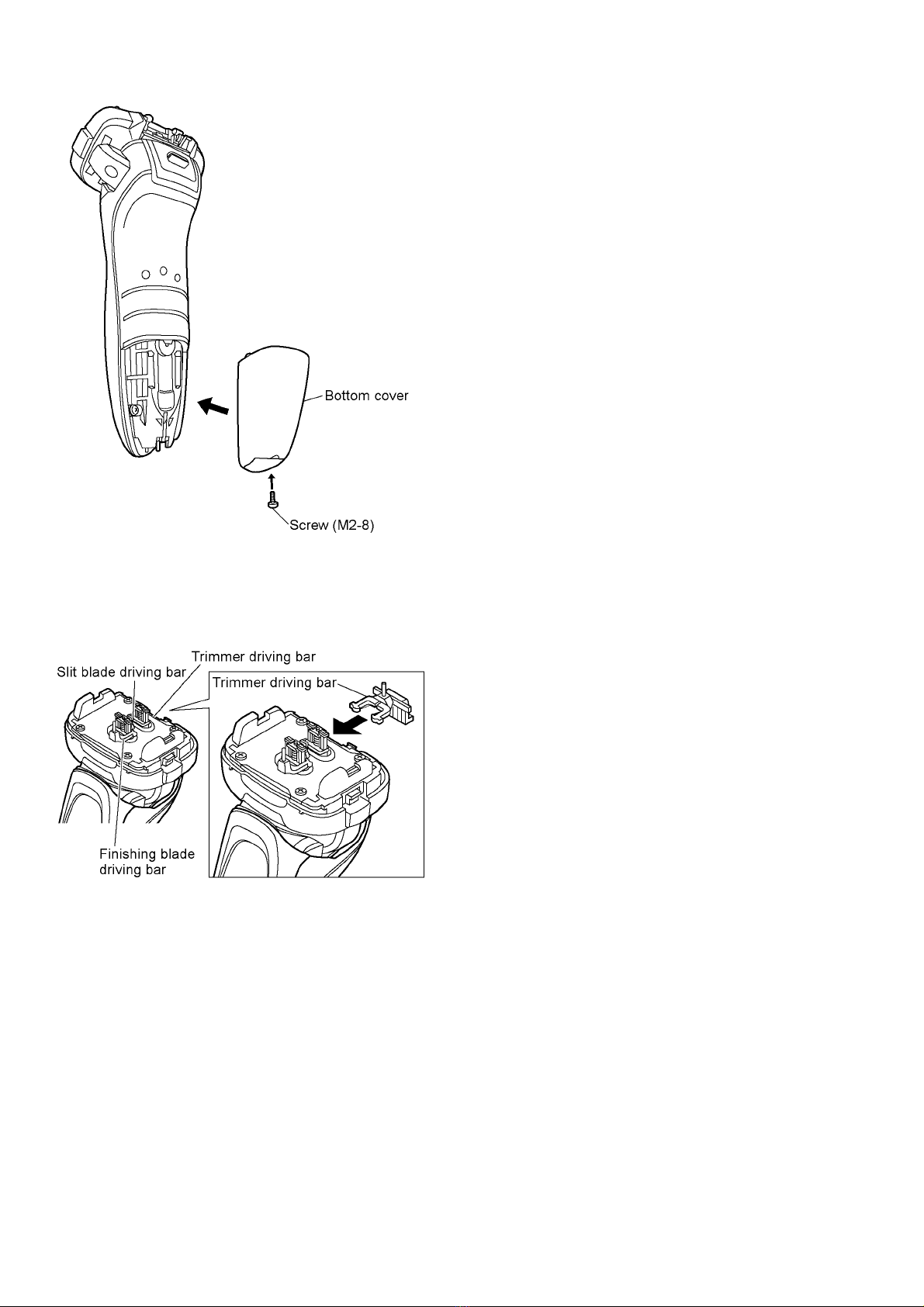

7. Attach the bottom cover and tighten a screw.
8. Set the trimmer driving bar, the finishing blade driving bar
and the slit blade driving bar.
