Panasonic ES-LF50 User manual

bution is a violation of law.

Order Number SD1105A65AE

AC/Rechargeable Shaver

Model No. ES-LF50

Asia

TABLE OF CONTENTS PAGE PAGE

1 Warning-------------------------------------------------------------- 2

2 Specifications ----------------------------------------------------- 2

3 Disassembly and Assembly Instructions ---------------- 3

4 Schematic Diagram---------------------------------------------- 4

5 Exploded View and Replacement Parts List ------------ 5

Please file and use this manual together with the service manual for Model No. ES-LA92/ES-LA62, Order

No.SD0906A65CE.

1Warning

Caution:

• Pb free solder has a higher melting point that standard solder; Typically the melting point is 50 - 70°F (30 - 40°C) higher. Please

use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder-

ing iron, please be careful not to heat too long.

• Pb free solder will tend to splash when heated too high (about 1100°F / 600°C).

2 Specifications

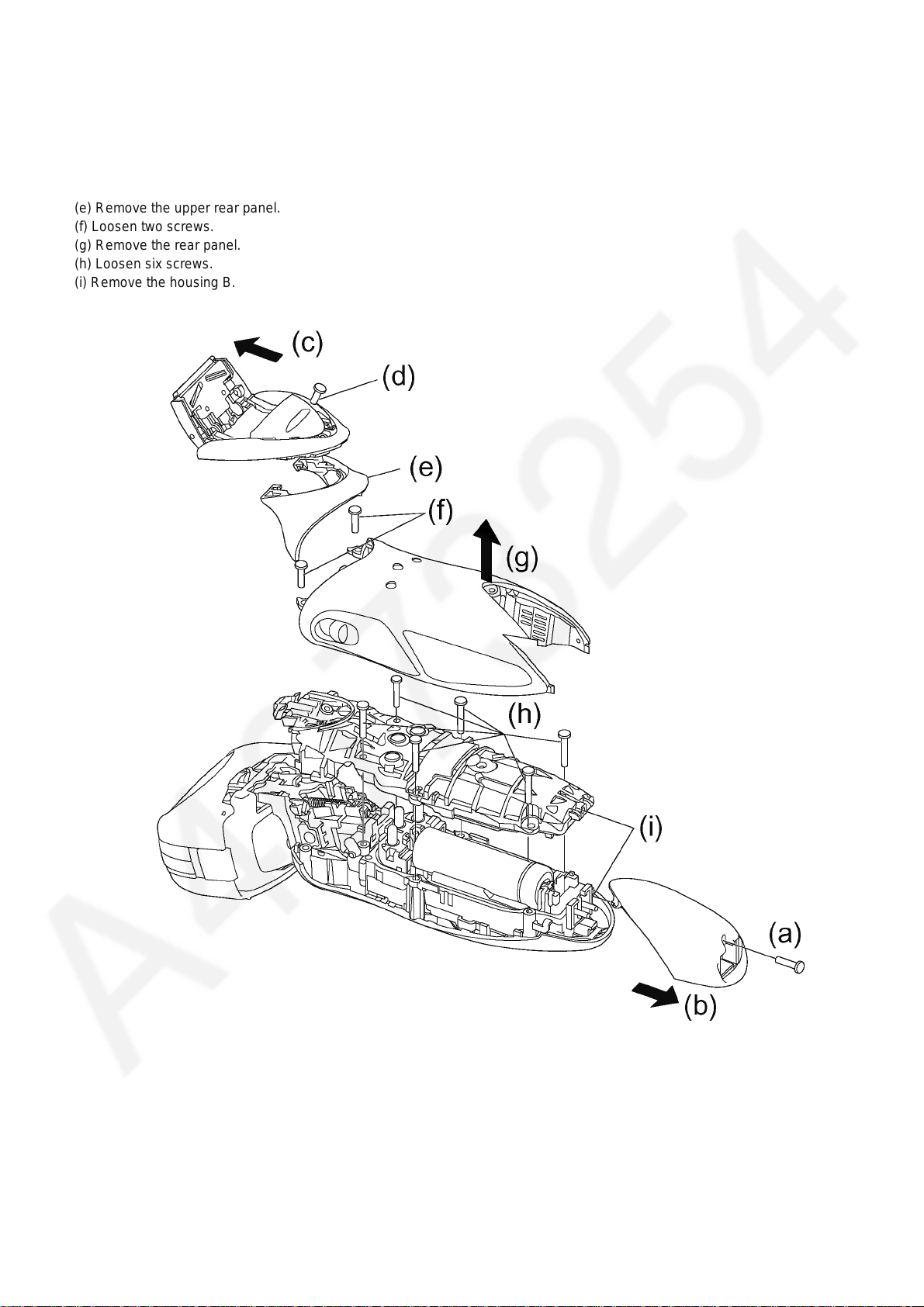

3 Disassembly Instructions

Follow the procedure below to disassemble the main body.

(a) Loosen a screw.

(b) Remove the bottom cover

(d) Loosen a screw.

(e) Remove the upper rear panel.

(f) Loosen two screws.

(g) Remove the rear panel.

(h) Loosen six screws.

(i) Remove the housing B.

4 Schematic Diagram

Model No. : ES-LF50 Exploded View

5 Exploded View and Replacement Parts List

Model No. : ES-LF50 Parts List

Safety

Ref.

No. Part No. Part Name & Description Q'ty Remarks

1 WESLF70X7158 PROTECTIVE CAP 1

2 WESLF50S0048 OUTER FOIL FRAME 1

3 WES9167E OUTER FOIL 1

4 WES9068E INNER BLADE 1ST

5 WESLF50L1008 LINEAR MOTOR ASSEMBLY 1

6 WES8258L1087 TRIMMER DRIVING BAR 1

7 WES8258L1077 SLIT BLADE DRIVING BAR 1

8 WES8258L1177 FINISHING BLADE DRIVING BAR 1

9 WES8258L0327 WATERPROOF RUBBER 1

10 WESLF70K3267 FOIL RELEASE BUTTON 2

11 WES8258L0537 TUBE HOLDER 1

12 WESLF50K3058 HOUSING A 1

13 WES8258H3067 HOUSING B 1

14 WES8255L0497 REAR COVER 1

15 WES8176L6007 P TIGHT SCREW 6 (M2-12)

16 WESLF50L2128 MODULE 1

17 WES8176L2508 RECHARGEABLE BATTERY 1 (LI-ION TYPE)

18 WESLF70S1507 TRIMMER 1

19 WES8238L6007 P TIGHT SCREW 1 (M2-6)

20 WESLF50K3858 REAR PANEL (UPPER) 1

21 WESLF70K3367 REAR PANEL 1

22 WESLF50K3129 BOTTOM COVER 1

22 WESLF50K3120 BOTTOM COVER 1 (ONLY TAIWAN)

23 WES8176L6057 TAPPING SCREW 3 (M2-8)

24 WESLF50K3039 BODY BLOCK 1

24 WESLF50K3030 BODY BLOCK 1 (ONLY TAIWAN)

25 WESLV90K7663 CHARGING ADAPTOR 1 (C-2 PLUG)

25 WESLV90K7662 CHARGING ADAPTOR 1 (A-2 PLUG)

26 WES8259K7018 SOFT CASE 1

27 WES8093H7057 CLEANING BRUSH 1

28 WES8196X7918 OIL 1

- WESLF50K8009 INDIVIDUAL BOX 1

- WESLF50K8000 INDIVIDUAL BOX 1 (ONLY TAIWAN)

- WESLF50K8109 OPERATING INSTRUCTIONS 1

- WESLF50K8100 OPERATING INSTRUCTIONS 1 (ONLY TAIWAN)
