Panasonic ES-GA20 User manual

© Panasonic Electric Works Co., Ltd. 2008.

All rights reserved. Unauthorized copying and distri-

bution is a violation of law.

Order Number SD0810A44AE

AC/Rechargeable Shaver

Model No. ES-GA20

Asia

TABLE OF CONTENTS

PAGE PAGE

1 Warning -------------------------------------------------------------- 2

2 Specifications ----------------------------------------------------- 2

3 Disassembly and Assembly Instructions ---------------- 3

4 Exploded View and Replacement Parts List ------------ 4

Please file and use this manual together with the service manual for Model No. ES8113, Order No.

SD0708A46CE.

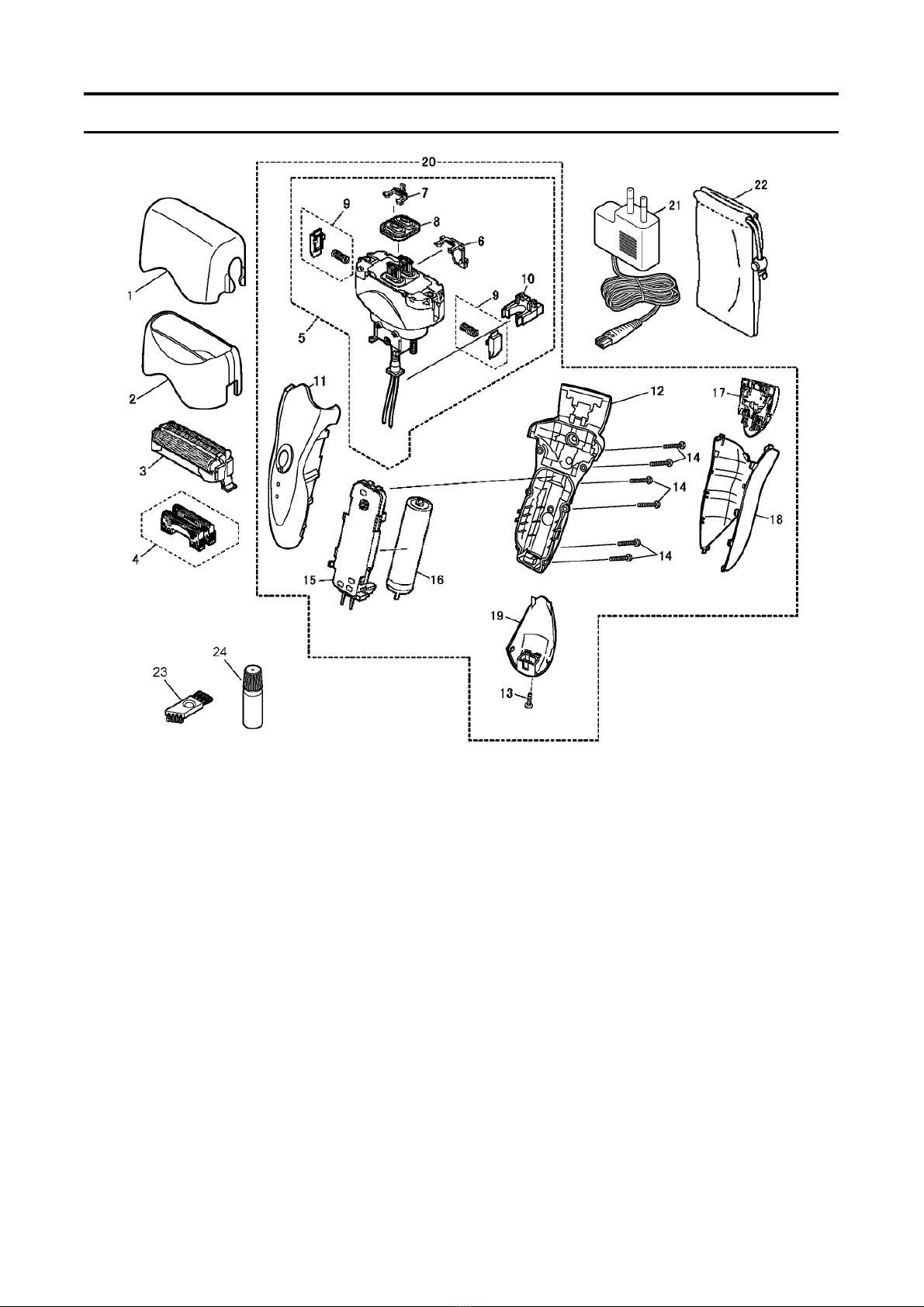

Model No. : ES-GA20 Exploded View

4 Exploded View and Replacement Parts List

Model No. : ES-GA20 Parts List

Safety

Ref.

No. Part No. Part Name & Description Q'ty Remarks

1 WESGA20X7158 PROTECTIVE CAP 1

2 WESGA20K0049 OUTER FOIL FRAME 1 (for ES-GA20S)

2 WESGA20W0048 OUTER FOIL FRAME 1 (for ES-GA20W)

3 WES9087E OUTER FOIL 1

4 WES9068E INNER BLADE 1ST

5 WESGA20K1008 LINEAR MOTOR ASSEMBLY 1 (for ES-GA20S)

5 WESGA20W1008 LINEAR MOTOR ASSEMBLY 1 (for ES-GA20W)

6 WES8119L1087 TRIMMER DRIVING BAR 1

7 WES8176L1077 SLIT BLADE DRIVING BAR 1

8 WES8196L0328 WATERPROOF RUBBER 1

9 WESGA20K3268 FOIL RELEASE BUTTON 2 (2PCS/PK)

10 WESGA20L0538 TUBE HOLDER 1

11 WESGA20S3058 HOUSING A 1 (for ES-GA20S)

11 WESGA20W3058 HOUSING A 1 (for ES-GA20W)

12 WESGA20K3068 HOUSING B 1 (for ES-GA20S)

12 WESGA20W3068 HOUSING B 1 (for ES-GA20W)

13 WES8176L6057 TAPPING SCREW 1 (M2-8)

14 WES8176L6007 P TIGHT SCREW 6 (M2-12)

15 WESGA20L2128 MODULE 1

16 WES8176L2508 RECHARGEABLE BATTERY 1 (LM-ION TYPE)

17 WES8119K1507 TRIMMER 1 (for ES-GA20S)

17 WESGA20W1508 TRIMMER 1 (for ES-GA20W)

18 WESGA20K3368 REAR PANEL 1 (for ES-GA20S)

18 WESGA20W3368 REAR PANEL 1 (for ES-GA20W)

19 WESGA20K3129 BOTTOM COVER 1 (for ES-GA20S)

19 WESGA20W3128 BOTTOM COVER 1 (for ES-GA20W)

20 WESGA20S3038 BODY BLOCK 1 (for ES-GA20S)

20 WESGA20W3038 BODY BLOCK 1 (for ES-GA20W)

21 WESLA90K7674 CHARGING ADAPTOR 1 (B-2 PLUG）

21 WESGA20K7671 CHARGING ADAPTOR 1 (KS-PLUG）

22 WES8016K7007 SOFT CASE 1

23 WES8093H7057 CLEANING BRUSH 1

24 WES8196X7918 OIL 1

- WESGA20S8008 INDIVIDUAL BOX 1 (for ES-GA20S)

- WESGA20W8008 INDIVIDUAL BOX 1 (for ES-GA20W)

- WESGA20W8009 INDIVIDUAL BOX 1 (for ES-GA20W KOREA only)

- WESGA20W8108 OPERATING INSTRUCTIONS 1 (for KOREA only)

- WESGA20S8108 OPERATING INSTRUCTIONS 1
