Panasonic MALT062HG User manual

Zener Diodes

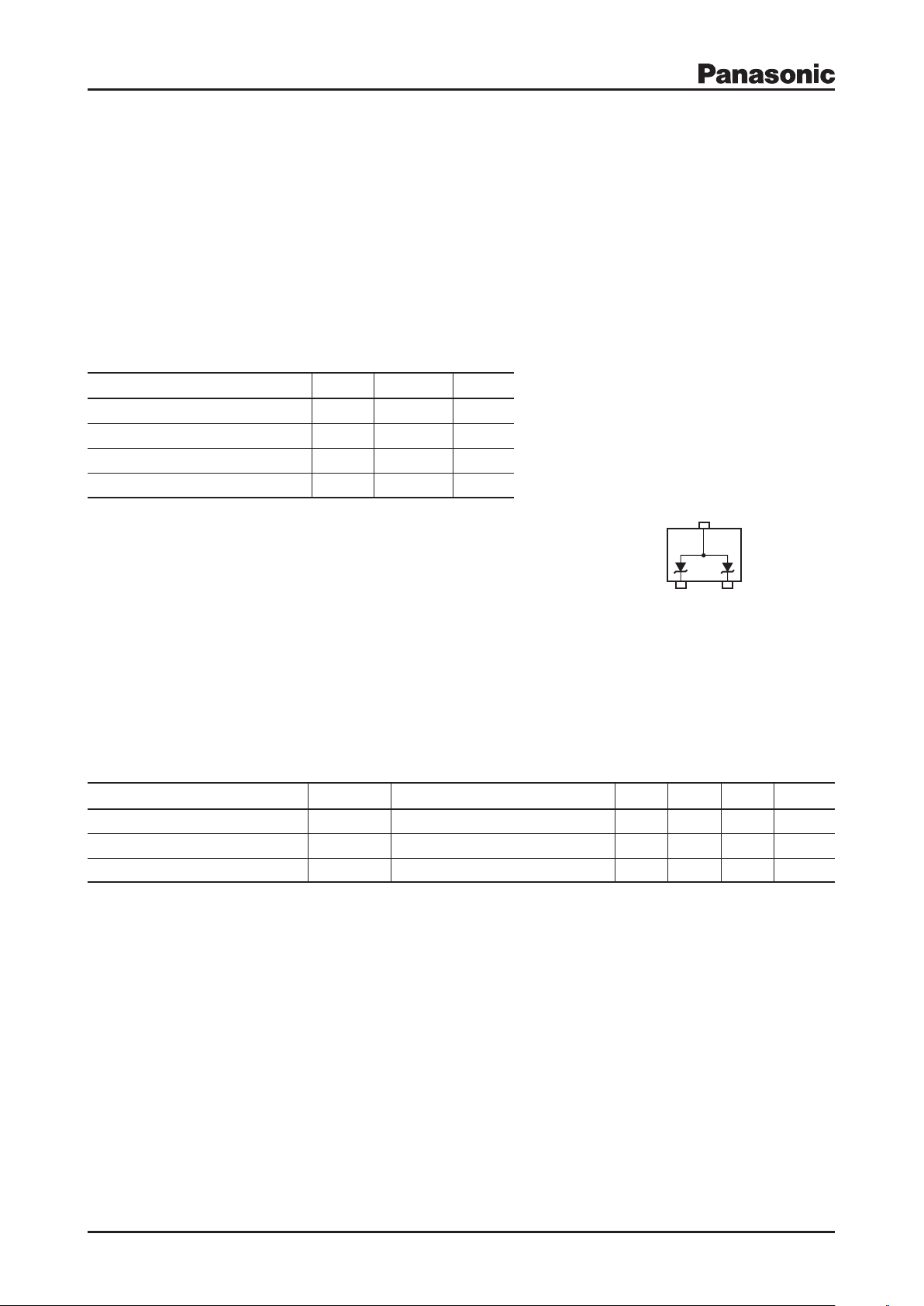

Publication date: October 2007 SKE00037AED 1

MALT062HG

Silicon planar type

For ESD protection

Features

Electrostatic discharge ESD: ±30 kV

Four elements anode-common type

Absolute Maximum Ratings Ta= 25°C

Parameter Symbol Rating Unit

Total power dissipation *1PD150 mW

Electrostatic discharge *2ESD ±30 kV

Junction temperature Tj150 °C

Storage temperature Tstg –55 to +150 °C

Note) *1: PD= 150 mW achieved with a printed circuit board.

*2: Test method: IEC61000-4-2

(C = 150 pF, R = 330 W, Contact discharge: 10 times)

Electrical Characteristics Ta= 25°C±3°C

Parameter Symbol Conditions Min Typ Max Unit

Breakdown voltage *VBR IR= 1 mA 5.8 6.2 6.6 V

Reverse current IRVR= 4.0 V 1.0 mA

Terminal capacitance CtVR= 0 V, f = 1 MHz 55 pF

Note) 1. Measuring methods are based on JAPANESE INDUSTRIAL STANDARD JIS C 7031 measuring methods for diodes.

2. The temperature must be controlled 25°C for VBR mesurement.

VBR value measured at other temperature must be adjusted to VBR (25°C)

3. *: VBR guaranted 20 ms after current ﬂow.

Package

Code

SSMini3-F3

Pin Name

1: Cathode 1

2: Cathode 2

3: Anode 1, 2

Marking Symbol: 6.2E

Internal Connection

MALT062HG

2SKE00037AED

IFVFIRVRIZVZ

CtVRRZIZ

10−2

0.4 0.6 0.8 1.0

10−1

102

Forward current IF(mA)

Ta=25°C

MALT062H_IF-VF

Forward voltage VF(V)

0−4−8−12

−40

−80

UNR91AHG_IC-VCE

IB= −1.0 mA

−0.3 mA

−0.2 mA

−0.1 mA

−0.4 mA

−0.5 mA

−0.6 mA

−0.7 mA

−0.8 mA

−0.9 mA

Ta= 25°C

Collector current IC(mA)

Collector-emitter voltage VCE (V)

10−1

0 2 4 86 10

102

Zener current IZ(mA)

Ta=25°C

f =1 MHz

MALT062H_IZ-VZ

Zener voltage VZ(V)

10 1 2 543 6

102

103

Terminal capacitance Ct(pF)

Ta=25°C

f =1 MHz

MALT062H_Ct-VR

Reverse voltage VR(V)

10−1

10−11 10 102

102

103

Zener operating resistance RZ(Ω)

=25°C

MALT062H_RZ-IZ

Zener current IZ(mA)

MALT062HG

SKE00037AED 3

SSMini3-F3 Unit: mm

1.00 ±0.05

(0.50) (0.50)

1.60 +0.05

−0.03

0.26 +0.05

−0.02

1 2

0.85 +0.05

−0.03

1.60 ±0.05

0.70 +0.05

−0.03

0 to 0.10

(5°)

(0.45)

0.13 +0.05

−0.02

0.375 ±0.05

(5°)

Request for your special attention and precautions in using the technical information and

semiconductors described in this book

(1)If any of the products or technical information described in this book is to be exported or provided to non-residents, the laws and

regulations of the exporting country, especially, those with regard to security export control, must be observed.

(2)The technical information described in this book is intended only to show the main characteristics and application circuit examples

of the products, and no license is granted under any intellectual property right or other right owned by our company or any other

company. Therefore, no responsibility is assumed by our company as to the infringement upon any such right owned by any other

company which may arise as a result of the use of technical information described in this book.

(3)The products described in this book are intended to be used for standard applications or general electronic equipment (such as office

equipment, communications equipment, measuring instruments and household appliances).

Consult our sales staff in advance for information on the following applications:

–Special applications (such as for airplanes, aerospace, automobiles, traffic control equipment, combustion equipment, life support

systems and safety devices) in which exceptional quality and reliability are required, or if the failure or malfunction of the prod-

ucts may directly jeopardize life or harm the human body.

–Any applications other than the standard applications intended.

(4)The products and product specifications described in this book are subject to change without notice for modification and/or im-

provement. At the final stage of your design, purchasing, or use of the products, therefore, ask for the most up-to-date Product

Standards in advance to make sure that the latest specifications satisfy your requirements.

(5)When designing your equipment, comply with the range of absolute maximum rating and the guaranteed operating conditions

(operating power supply voltage and operating environment etc.). Especially, please be careful not to exceed the range of absolute

maximum rating on the transient state, such as power-on, power-off and mode-switching. Otherwise, we will not be liable for any

defect which may arise later in your equipment.

 Even when the products are used within the guaranteed values, take into the consideration of incidence of break down and failure

mode, possible to occur to semiconductor products. Measures on the systems such as redundant design, arresting the spread of fire

or preventing glitch are recommended in order to prevent physical injury, fire, social damages, for example, by using the products.

(6)Comply with the instructions for use in order to prevent breakdown and characteristics change due to external factors (ESD, EOS,

thermal stress and mechanical stress) at the time of handling, mounting or at customer's process. When using products for which

damp-proof packing is required, satisfy the conditions, such as shelf life and the elapsed time since first opening the packages.

(7)This book may be not reprinted or reproduced whether wholly or partially, without the prior written permission of Matsushita

Electric Industrial Co., Ltd.
