Panasonic 2SC1318A User manual
Transistors
1
Publication date: March 2003 SJC00101BED

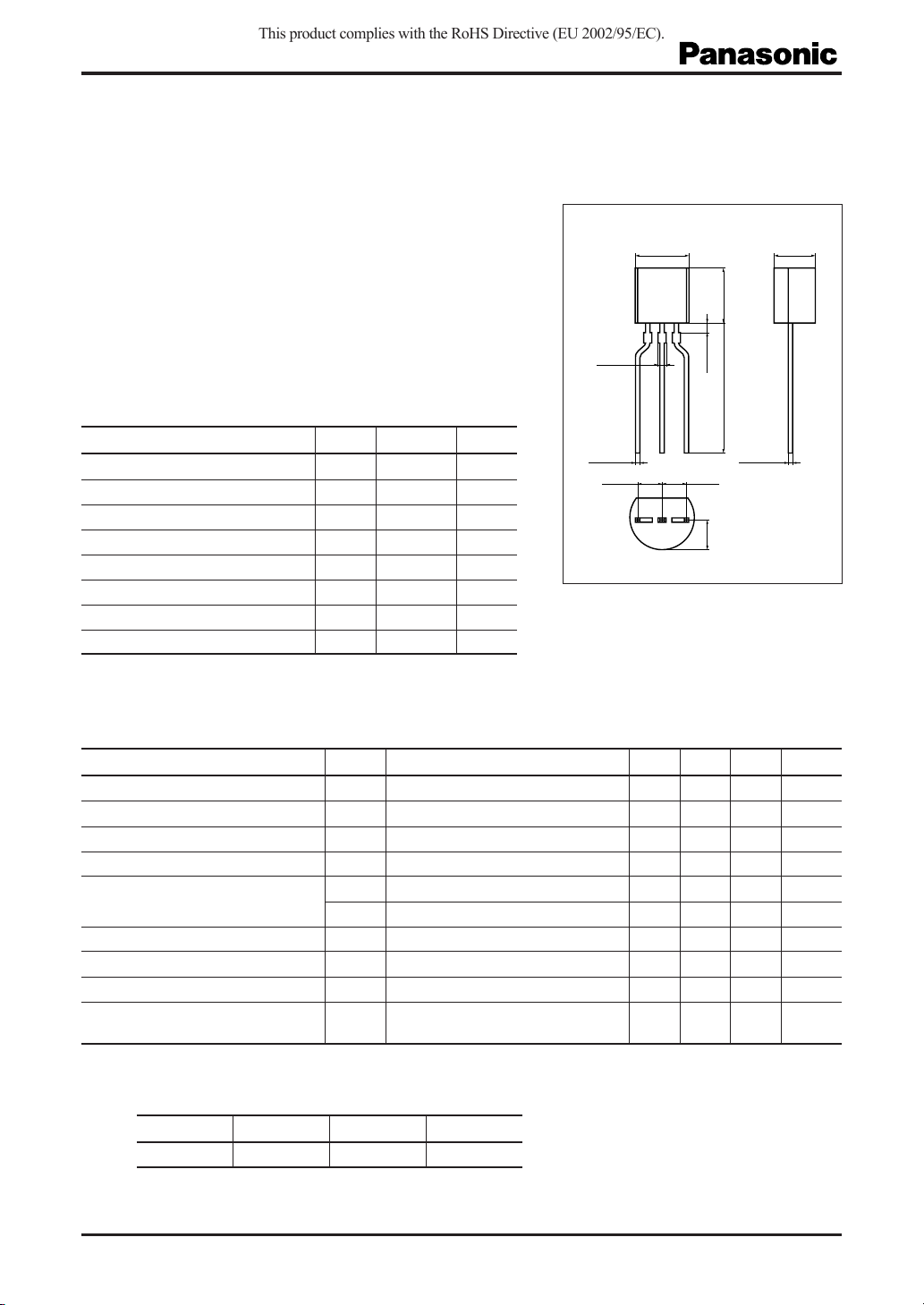

2SC1318A
Silicon NPN epitaxial planar type
For low-frequency driver amplification
Complementary to 2SA0720A
■Features
•High collector-emitter voltage (Base open) VCEO
•Optimum for the driver stage of a low-frequency and 25 W to 30
W output amplifier
■Absolute Maximum Ratings Ta=25°C
Parameter Symbol Rating Unit
Collector-base voltage (Emitter open) VCBO 80 V
Collector-emitter voltage (Base open) VCEO 70 V
Emitter-base voltage (Collector open) VEBO 5V
Collector current IC0.5 A
Peak collector current ICP 1A
Collector power dissipation PC750 mW
Junction temperature Tj150 °C
Storage temperature Tstg −55 to +150 °C
Parameter Symbol Conditions Min Typ Max Unit
Collector-base voltage (Emitter open) VCBO IC=10 µA, IE=080V
Collector-emitter voltage (Base open) VCEO IC=2 mA, IB=070V
Emitter-base voltage (Collector open) VEBO IE=10 µA, IC=05V
Collector-base cutoff current (Emitter open)
ICBO VCB =20 V, IE=0 0.1 µA
Forward current transfer ratio *1hFE1 *2VCE =10 V, IC=150 mA 85 340
hFE2 VCE =10 V, IC=500 mA 40
Collector-emitter saturation voltage VCE(sat) IC=300 mA, IB=30 mA 0.2 0.6 V
Base-emitter saturation voltage VBE(sat) IC=300 mA, IB=30 mA 0.85 1.50 V
Transition frequency fTVCB =10 V, IE=−50 mA, f =200 MHz 120 MHz
Collector output capacitance Cob VCB =10 V, IE=0, f =1 MHz 11 20 pF
(Common base, input open circuited)
■Electrical Characteristics Ta=25°C ±3°C
5.0
±0.2
0.7
±0.1
0.45
+0.15
–0.1
2.5
+0.6
–0.2
0.45
+0.15
–0.1
2.5
123
+0.6
–0.2
4.0
±0.2
5.1
±0.2
12.9
±0.5
2.3
±0.2
0.7
±0.2
Unit: mm
1: Emitter
2: Collector
3: Base
TO-92-B1 Package
Note) 1. Measuring methods are based on JAPANESE INDUSTRIAL STANDARD JIS C 7030 measuring methods for transistors.
2. *1: Pulse measurement
*2: Rank classification
Rank Q R S
hFE1 85 to 170 120 to 240 170 to 340
This product complies with the RoHS Directive (EU 2002/95/EC).
2SC1318A
2SJC00101BED

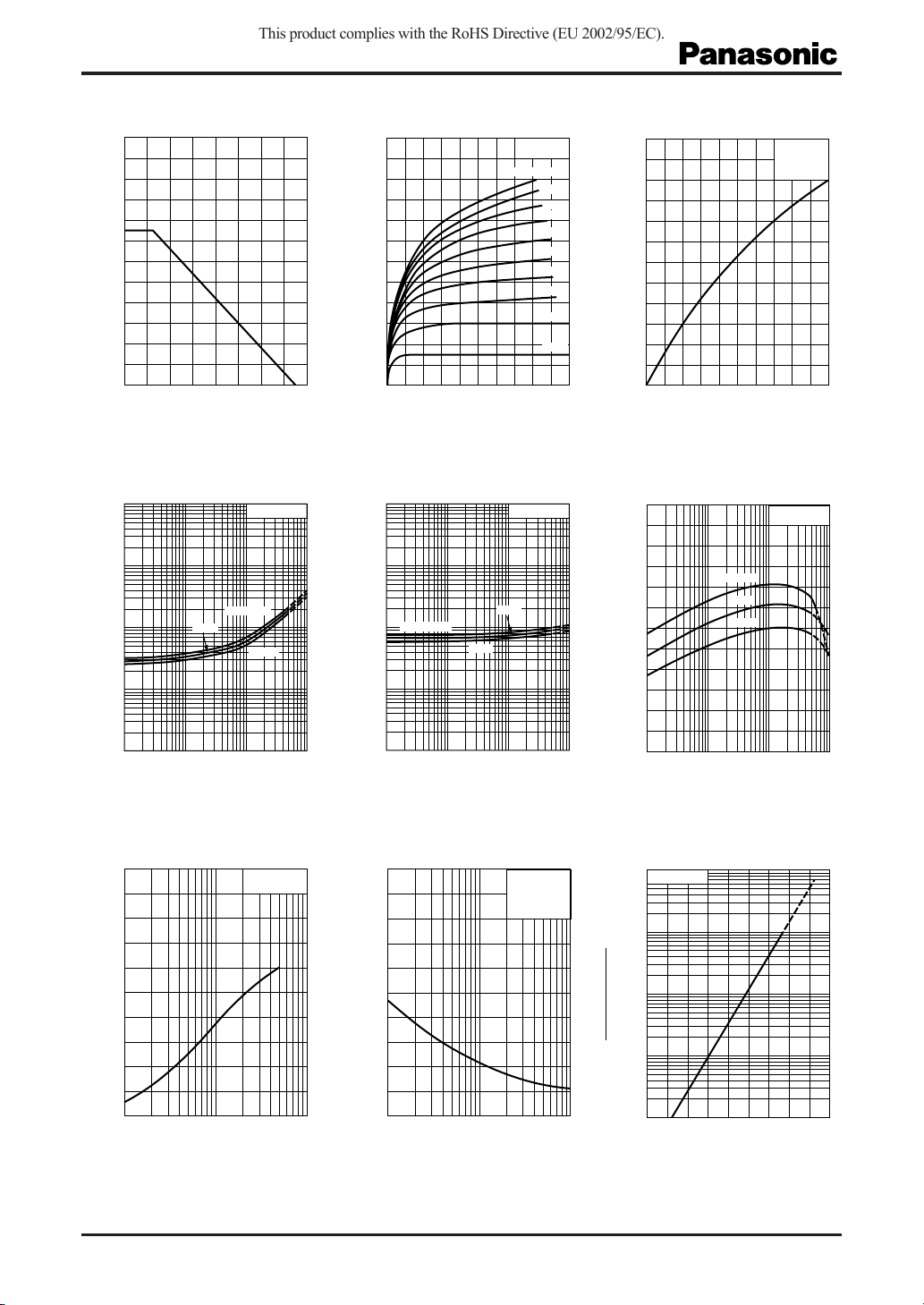

VCE(sat) ICVBE(sat) IChFE IC
PCTaICVCE ICIB
fTIECob VCB ICBO Ta
0 16040 12080
0
1.2
1.0
0.8
0.6
0.4
0.2
Collector power dissipation P
C
(W)
Ambient temperature T
a
(°C)
0108264
0
1.2
1.0
0.8
0.6
0.4
0.2
I
B
=10 mA
9 mA
8 mA
7 mA
6 mA
5 mA
4 mA
3 mA
2 mA
1 mA
T
a
=25°C
Collector current I
C
(A)
Collector-emitter voltage V
CE
(V)
0108264
0
1.2
1.0
0.8
0.6
0.4
0.2
VCE =10 V
Ta=25°C
Base current IB(mA)
Collector current IC(A)
1 10 100 1 000
0.001
0.01
0.1
1
10 I
C
/ I
B
=10
T
a
=75°C
25°C
−25°C
Collector-emitter saturation voltage V
CE(sat)
(V)
Collector current I
C
(mA)
1 10 100 1 000
0.01
0.1
1
10
100 I
C
/ I
B
=10
T
a
=−25°C
25°C
75°C
Base-emitter saturation voltage VBE(sat) (V)
Collector current IC(mA)
1 10 100 1 000
0
300
250
200
150
100
50
VCE =10 V
Ta=75°C
25°C
−25°C
Forward current transfer ratio hFE
Collector current IC(mA)
−1−10 −100
0
200
160
120
80
40
V
CB
=10 V
T
a
=25°C
Transition frequency f
T
(MHz)
Emitter current I
E
(mA)
1 10 100
0
50
40
30
20
10
I
E
=0
f =1 MHz
T
a
=25°C
Collector-base voltage VCB (V)
Collector output capacitance
(Common base, input open circuited) Cob (pF)
0 12080 16040
1
10
10
2
10
3
10
4
V
CB
=20 V
Ambient temperature Ta(°C)
I
CBO
(T
a
)
I
CBO
(T
a
=25°C)
This product complies with the RoHS Directive (EU 2002/95/EC).
2SC1318A
3
SJC00101BED

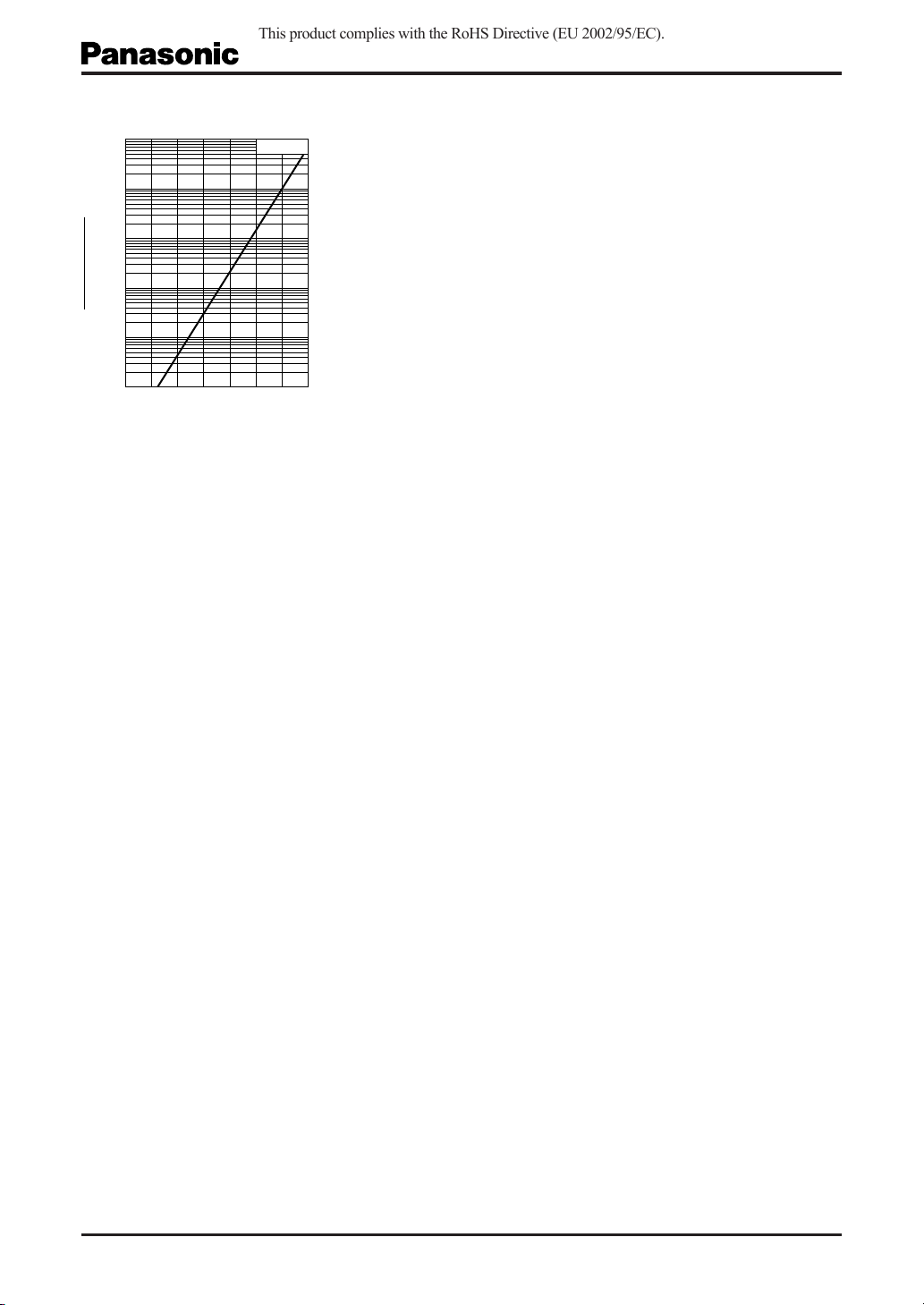

ICEO Ta
0 80 12040
1
10
102
103
105
104
VCE =10 V
Ambient temperature Ta(°C)
ICEO (Ta)
ICEO (Ta=25°C)
This product complies with the RoHS Directive (EU 2002/95/EC).
Request for your special attention and precautions in using the technical information and
semiconductors described in this book
(1)If any of the products or technical information described in this book is to be exported or provided to non-residents, the laws and
regulations of the exporting country, especially, those with regard to security export control, must be observed.
(2)The technical information described in this book is intended only to show the main characteristics and application circuit examples
of the products, and no license is granted under any intellectual property right or other right owned by our company or any other
company. Therefore, no responsibility is assumed by our company as to the infringement upon any such right owned by any other
company which may arise as a result of the use of technical information described in this book.
(3)The products described in this book are intended to be used for standard applications or general electronic equipment (such as office
equipment, communications equipment, measuring instruments and household appliances).
Consult our sales staff in advance for information on the following applications:
–Special applications (such as for airplanes, aerospace, automobiles, traffic control equipment, combustion equipment, life support
systems and safety devices) in which exceptional quality and reliability are required, or if the failure or malfunction of the prod-
ucts may directly jeopardize life or harm the human body.
–Any applications other than the standard applications intended.
(4)The products and product specifications described in this book are subject to change without notice for modification and/or im-
provement. At the final stage of your design, purchasing, or use of the products, therefore, ask for the most up-to-date Product
Standards in advance to make sure that the latest specifications satisfy your requirements.
(5)When designing your equipment, comply with the range of absolute maximum rating and the guaranteed operating conditions
(operating power supply voltage and operating environment etc.). Especially, please be careful not to exceed the range of absolute
maximum rating on the transient state, such as power-on, power-off and mode-switching. Otherwise, we will not be liable for any
defect which may arise later in your equipment.
Even when the products are used within the guaranteed values, take into the consideration of incidence of break down and failure
mode, possible to occur to semiconductor products. Measures on the systems such as redundant design, arresting the spread of fire
or preventing glitch are recommended in order to prevent physical injury, fire, social damages, for example, by using the products.
(6)Comply with the instructions for use in order to prevent breakdown and characteristics change due to external factors (ESD, EOS,
thermal stress and mechanical stress) at the time of handling, mounting or at customer's process. When using products for which
damp-proof packing is required, satisfy the conditions, such as shelf life and the elapsed time since first opening the packages.
(7)This book may be not reprinted or reproduced whether wholly or partially, without the prior written permission of Matsushita
Electric Industrial Co., Ltd.
