Panasonic 2SA1532G User manual
Transistors
1
Publication date: July 2007 SJC00346BED
This product complies with the RoHS Directive (EU 2002/95/EC).
2SA1532G
Silicon PNP epitaxial planar type
For low-frequency amplification
Complementary to 2SC3930G
■Features
•High transition frequency fT
•S-Mini type package, allowing downsizing of the equipment and
automatic insertion through the tape packing and the magazine
packing
■Absolute Maximum Ratings Ta=25°C
Parameter Symbol Rating Unit
Collector-base voltage (Emitter open) VCBO −30 V
Collector-emitter voltage (Base open) VCEO −20 V
Emitter-base voltage (Collector open) VEBO −5V
Collector current IC−30 mA
Collector power dissipation PC150 mW
Junction temperature Tj150 °C
Storage temperature Tstg −55 to +150 °C
Parameter Symbol Conditions Min Typ Max Unit
Base-emitter saturation voltage VBE VCE =−10 µA, IC=−1 mA −0.7 V
Collector-base cutoff current (Emitter open)
ICBO VCB =−10 V, IE=0 −0.1 µA
Collector-emitter cutoff current (Base open)
ICEO VCE =−20 V, IB=0 −100 µA
Emitter-base cutoff current (Collector open)
IEBO VEB =−5 V, IC=0 −10 µA
Forward current transfer ratio *hFE VCE =−10 V, IC=1 mA 70 220
Collector-emitter saturation voltage VCE(sat) IC=−10 mA, IB=−1 mA −0.1 V
Transition frequency fTVCB =−10 V, IE=1 mA, f =200 MHz 150 300 MHz
Noise figure NF VCB =−10 V, IE=1 mA, f =5 MHz 2.8 4.0 dB
Reverse transfer impedance Zrb VCB =−10 V, IE=1 mA, f =2 MHz 22 60 Ω
Common-emitter reverse transfer capacitance
Cre VCB =−10 V, IE=1 mA, f =10.7 MHz 1.2 2.0 pF
■Electrical Characteristics Ta=25°C ±3°C
Note) 1. Measuring methods are based on JAPANESE INDUSTRIAL STANDARD JIS C 7030 measuring methods for transistors.
2. *: Rank classification
Rank B C
hFE 70 to 140 110 to 220
■Package
•Code
SMini3-F2
•Marking Symbol: E
•Pin Name
1. Base
2. Emitter
3. Collector
2SA1532G
2SJC00346BED
This product complies with the RoHS Directive (EU 2002/95/EC).

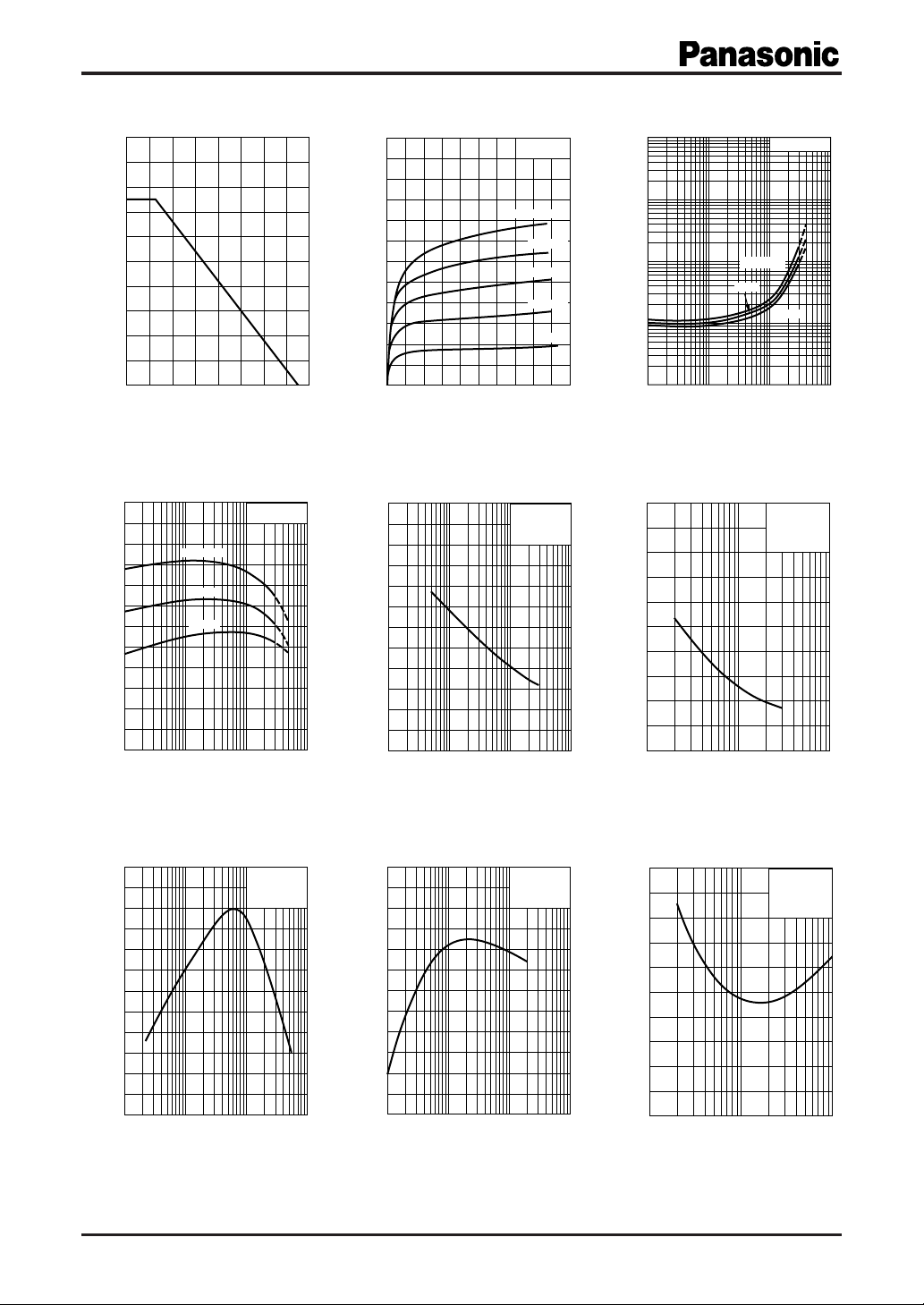

hFE ICCob VCB Cre VCE
PCTaICVCE VCE(sat) IC
fTIEGPICNF IE
0 16040 12080 14020 10060
0
200
160
120
80
40
180
140
100
60
20
Collector power dissipation PC(mW)
Ambient temperature Ta(°C)
0−10−8−2−6−4
0
−30
−25
−20
−15
−10
−5
T
a
=25°C
I
B
=−250 µA
−200 µA
−150 µA
−100 µA
−50 µA
Collector current I
C
(mA)
Collector-emitter voltage V
CE
(V)
−0.1 −1−10 −100
−0.01
−0.1
−1
−10
−100 I
C
/ I
B
=10
T
a
=75°C
25°C
−25°C
Collector-emitter saturation voltage VCE(sat) (V)
Collector current IC(mA)
−0.1 −1−10 −100
0
120
100
80
60
40
20
V
CE
=−10 V
T
a
=75°C
25°C
−25°C
Forward current transfer ratio h
FE
Collector current I
C
(mA)
−0.1 −1−10 −100
0
6
5
4
3
2
1
f =1 MHz
I
E
=0
T
a
=25°C
Collector-base voltage VCB (V)
Collector output capacitance
(Common base, input open circuited) C
ob
(pF)
−1−10 −100
0
5
4
3
2
1
I
C
=−1 mA
f =10.7 MHz
T
a
=25°C
Collector-emitter voltage VCE (V)
Common emitter reverse transfer capacitance C
re
(pF)
0.1 1 10 100
0
600
500
400
300
200
100
VCB =−10 V
Ta=25°C
Transition frequency fT(MHz)
Emitter current IE(mA)
−0.1 −1−10 −100
0
24
20
16
12
8
4
V
CE
=−10 V
f =100 MHz
T
a
=25°C
Power gain G
P
(dB)
Collector current I
C
(mA)
0.1 1 10
0
5
4
3
2
1
V
CB
=−10 V
f =100 MHz
T
a
=25°C
Noise figure NF (dB)
Emitter current I
E
(mA)
This product complies with the RoHS Directive (EU 2002/95/EC).

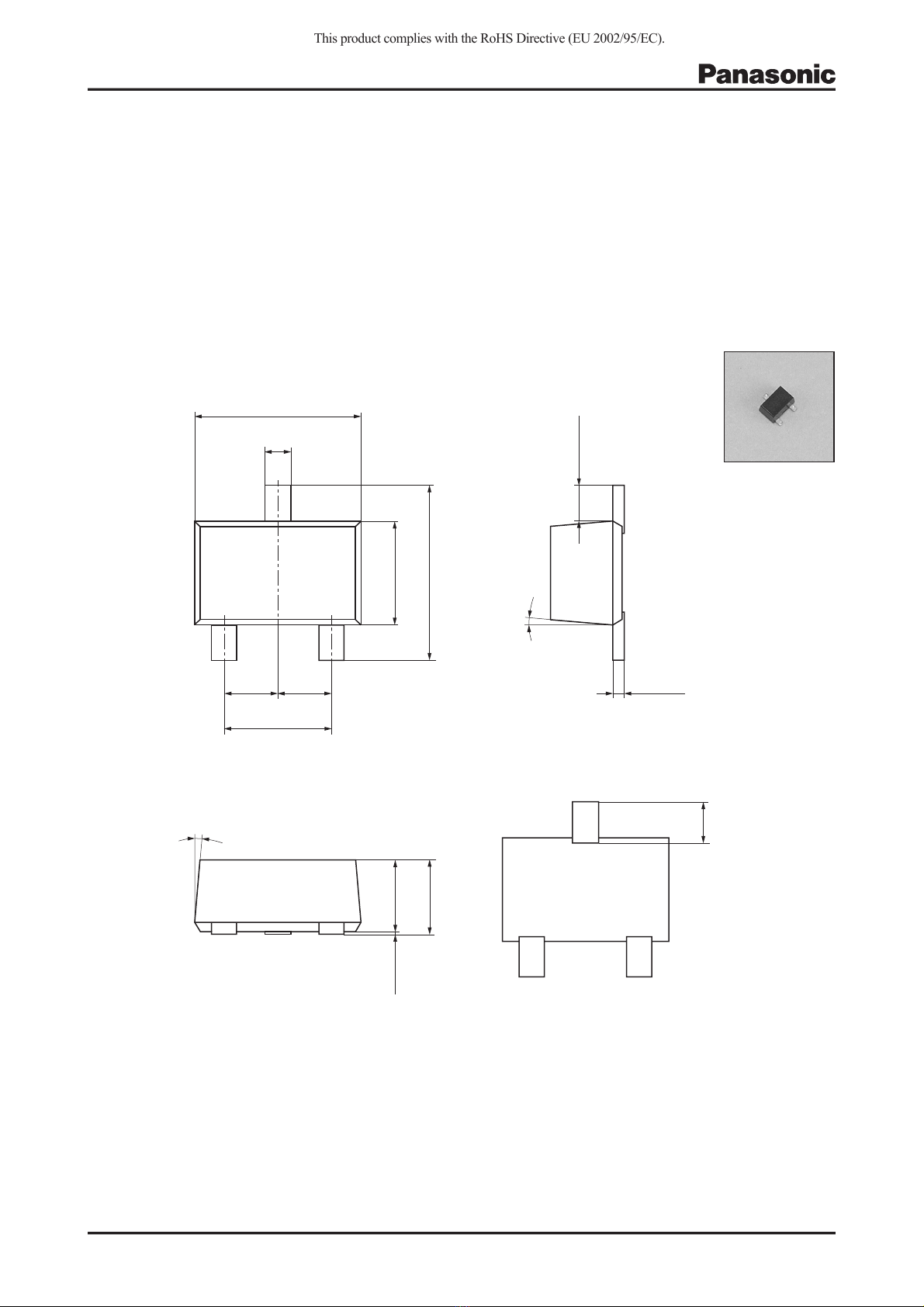

SMini3-F2 Unit: mm
0.30 +0.05
−0.02
0.13 +0.05
−0.02
2.00 ±0.20
(0.89)
0.90 ±0.10
(0.65)(0.65)
1.30 ±0.10
1.25 ±0.10
2.10 ±0.10
0.425 ±0.050
(0.49)
0 to 0.10
(5°)
(5°)
3
12
Request for your special attention and precautions in using the technical information and
semiconductors described in this book
(1)If any of the products or technical information described in this book is to be exported or provided to non-residents, the laws and
regulations of the exporting country, especially, those with regard to security export control, must be observed.
(2)The technical information described in this book is intended only to show the main characteristics and application circuit examples
of the products, and no license is granted under any intellectual property right or other right owned by our company or any other
company. Therefore, no responsibility is assumed by our company as to the infringement upon any such right owned by any other
company which may arise as a result of the use of technical information described in this book.
(3)The products described in this book are intended to be used for standard applications or general electronic equipment (such as office
equipment, communications equipment, measuring instruments and household appliances).
Consult our sales staff in advance for information on the following applications:
–Special applications (such as for airplanes, aerospace, automobiles, traffic control equipment, combustion equipment, life support
systems and safety devices) in which exceptional quality and reliability are required, or if the failure or malfunction of the prod-
ucts may directly jeopardize life or harm the human body.
–Any applications other than the standard applications intended.
(4)The products and product specifications described in this book are subject to change without notice for modification and/or im-
provement. At the final stage of your design, purchasing, or use of the products, therefore, ask for the most up-to-date Product
Standards in advance to make sure that the latest specifications satisfy your requirements.
(5)When designing your equipment, comply with the range of absolute maximum rating and the guaranteed operating conditions
(operating power supply voltage and operating environment etc.). Especially, please be careful not to exceed the range of absolute
maximum rating on the transient state, such as power-on, power-off and mode-switching. Otherwise, we will not be liable for any
defect which may arise later in your equipment.
Even when the products are used within the guaranteed values, take into the consideration of incidence of break down and failure
mode, possible to occur to semiconductor products. Measures on the systems such as redundant design, arresting the spread of fire
or preventing glitch are recommended in order to prevent physical injury, fire, social damages, for example, by using the products.
(6)Comply with the instructions for use in order to prevent breakdown and characteristics change due to external factors (ESD, EOS,
thermal stress and mechanical stress) at the time of handling, mounting or at customer's process. When using products for which
damp-proof packing is required, satisfy the conditions, such as shelf life and the elapsed time since first opening the packages.
(7)This book may be not reprinted or reproduced whether wholly or partially, without the prior written permission of Matsushita
Electric Industrial Co., Ltd.
