Service Manual

PESMX2110001CE

Version:2101

CONTENTS

1.Specification

2.Parts Identification

3.Wiring Section & Diagram

PAGE

2, 3

Air Purifier

1

4,5

WARNING

This service information is designed for experienced repair technicians only and is not designed for use by

the general public. It does not contain warnings or cautions to advise non-technical individuals of potential

dangers in attempting to service a product. Products powered by electricity should be serviced or repaired

only by experienced professional technicians. Any attempt to service or repair the product or products dealt

with in this service information by anyone else could result in serious injury or death.

IMPORTANT SAFETY NOTICE

There are special components used in this equipment which are important for safety. These parts are

marked by in the Schematic Diagrams, Exploded Views and Replacement Parts List. It is essential

that these critical parts should be replaced with manufacturer's specified parts to prevent shock, fire

or other hazards. Do not modify the original design without the manufacturer’s approval.

.Please have a static electricity depletion process in place before handling these components.

. Please use gloves when handling PCB parts during the repair process.

FV-01VCN1

4.Parts List 6

(North AmericaMarket)

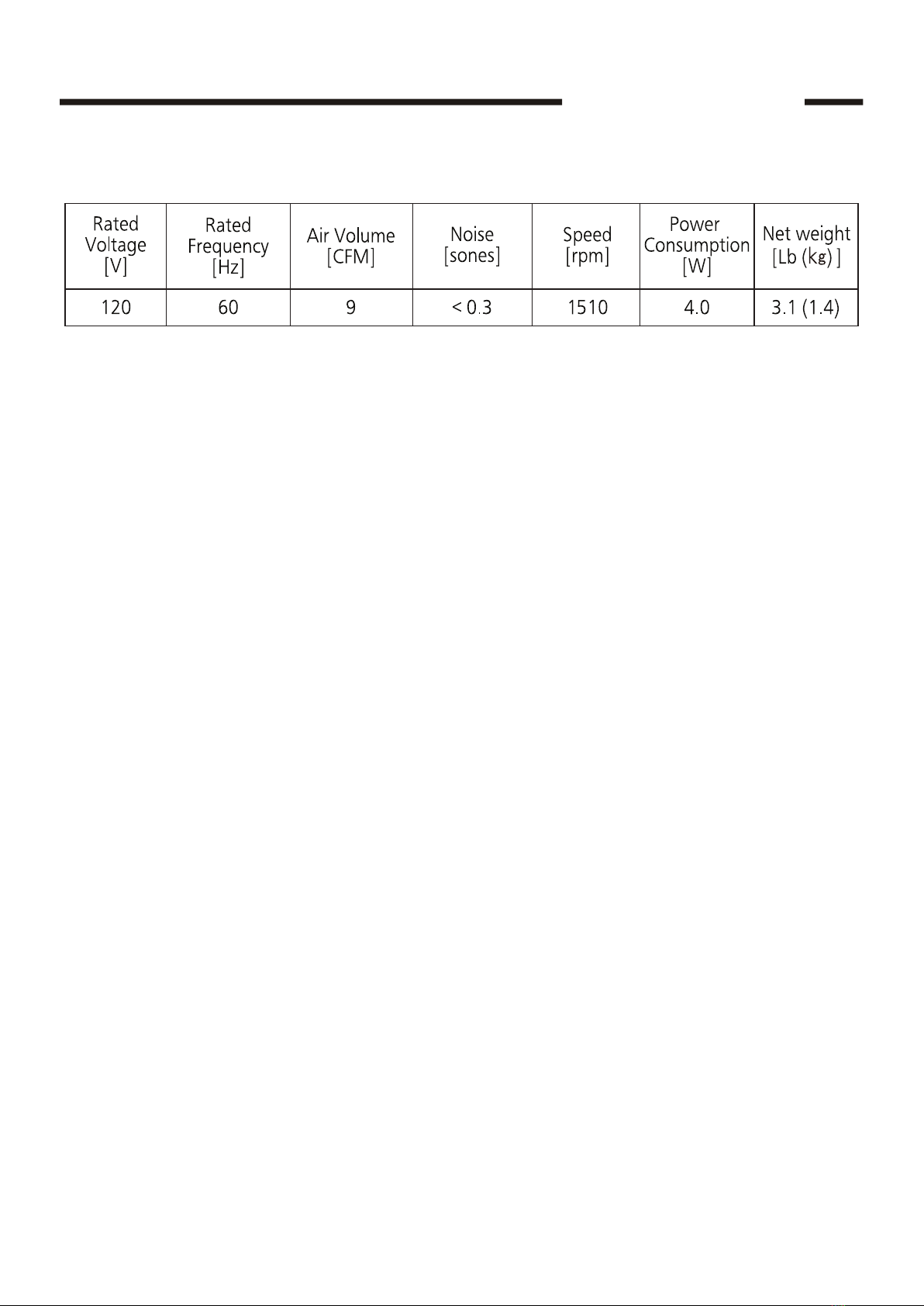

1. Specification

1

FV-01VCN1

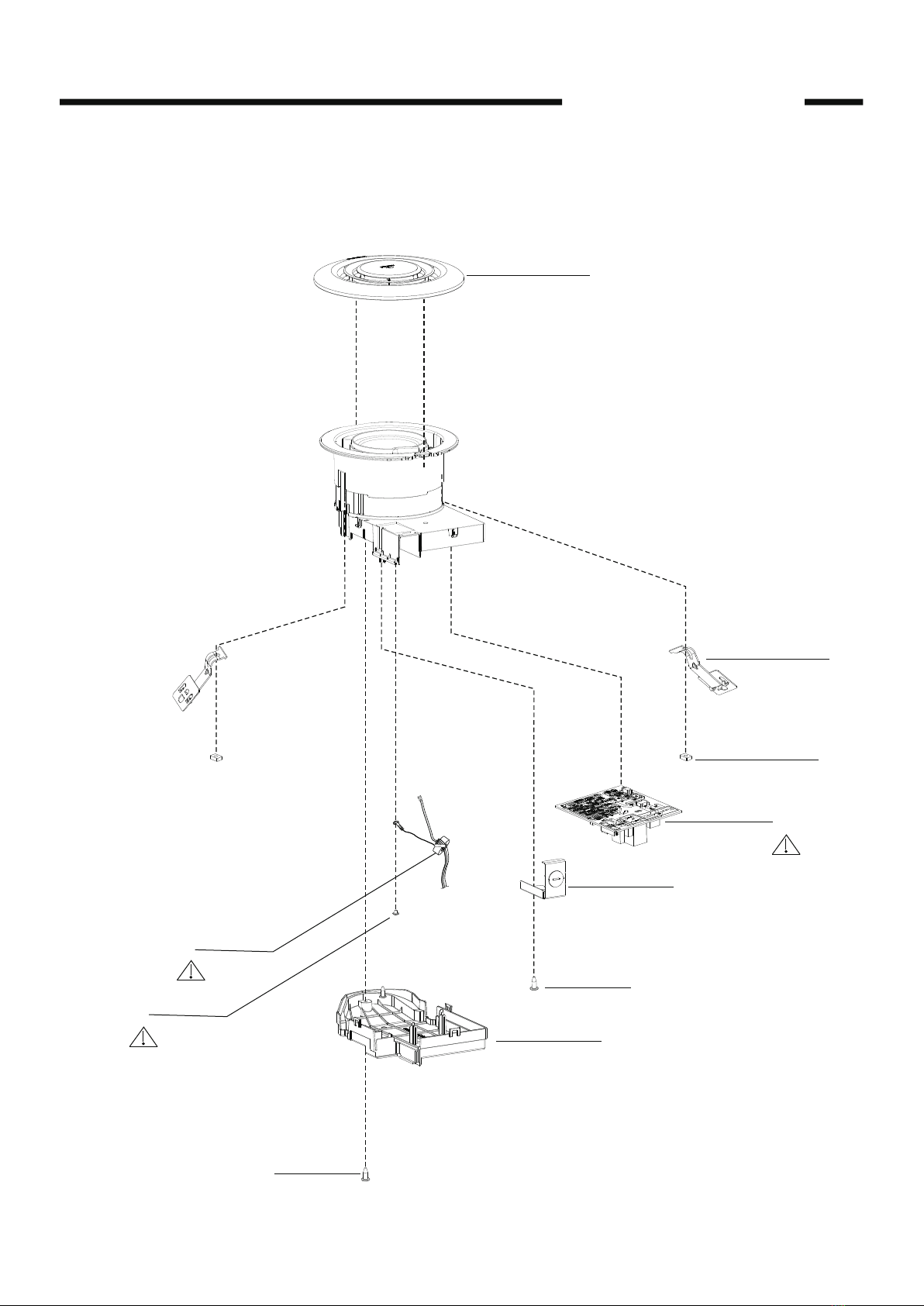

2. Parts Identification

Main Body Section

FV-01VCN1

A

1

2

(2 pcs)

3

(2 pcs)

4

5

6

A

7

B

2

3

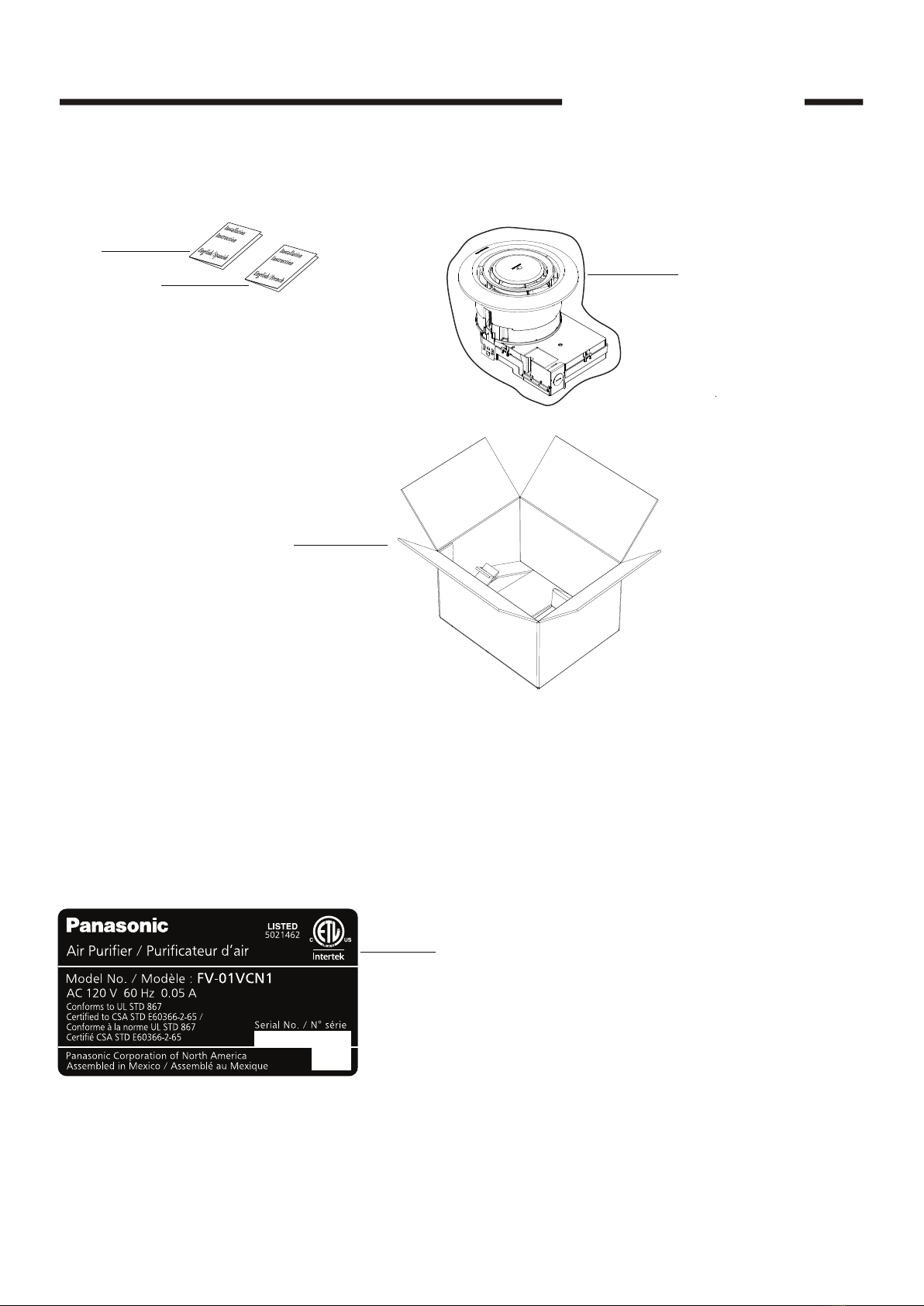

2. Parts Identification

FV-01VCN1

Packing Section

Main Label

8

9 10

11

12

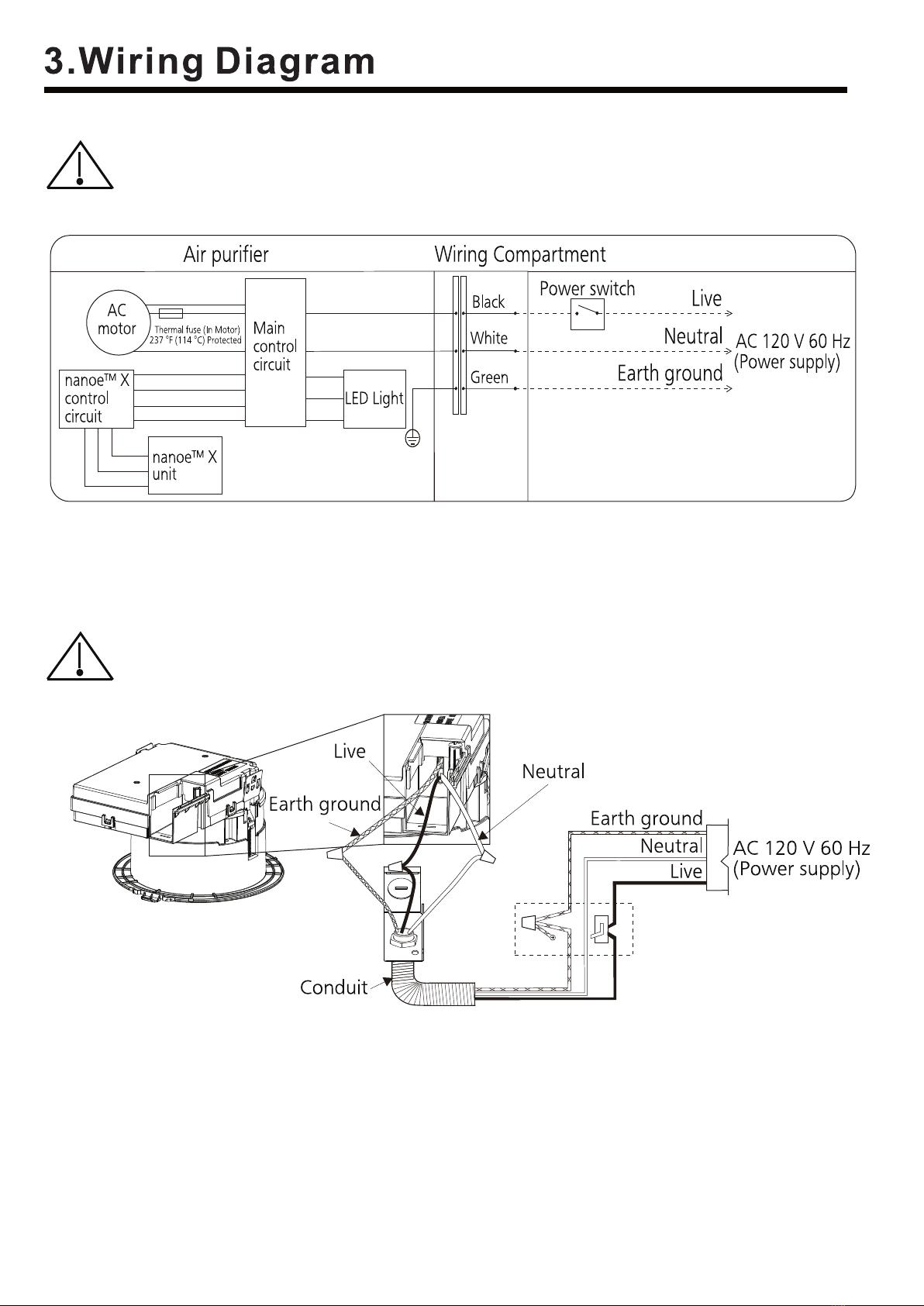

3.Wiring Section

FV-01VCN1

LED Lead Assy

High Voltage Lead Assy

Peltier Lead Assy

Nanoe Lead Assy

Power Lead Assy

MOTOR Lead Assy

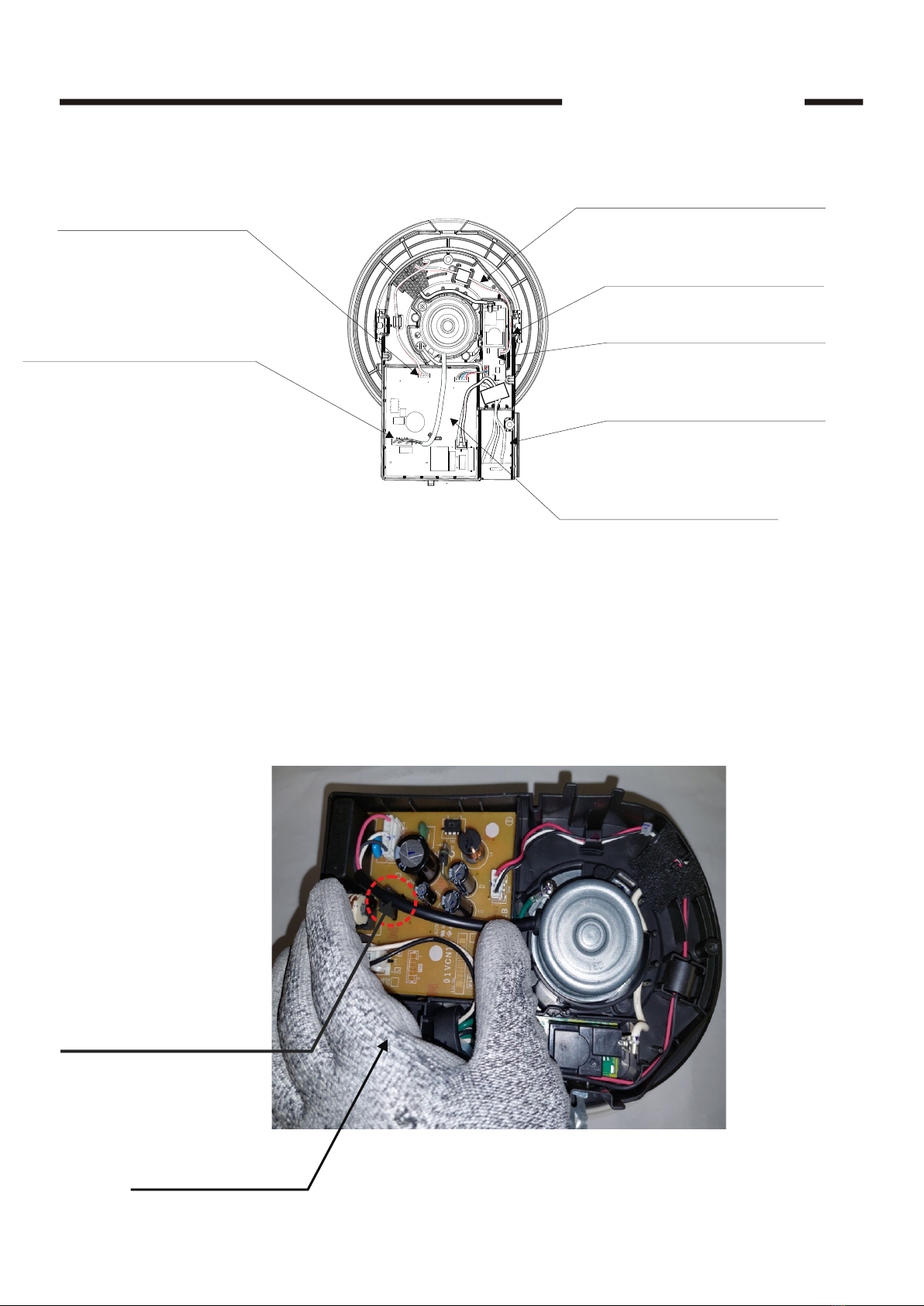

When replacing the Lead Wire or Main PCB, please be sure to hold the Main PCB

in place before pulling out the lead wire. Otherwise the PCB may be deformed or

damaged because it does not have screws.

Always take measures to prevent electrostatic discharge when handling these parts.

4

Main PCB Assembly

Insert Motor lead

into Y Shaped slot.

Antistatic

Gloves

5

6

4. Parts List

FV-01VCN1

Main Body Section

No. Part No. Part Name Q'ty Remark

1FFV01VCN1932 GRILL ASSEMBLY 1

2FFV01VCN1920 INSTALL PLATE ASSY 1

3FFV01VCN1923 INSTALL NUT 1

4FFV00001VCN1 MAIN PCB ASSEMBLY 1

5FFV01VCN1911 JUNCTION COVER 1

6FFV01VCN1126 POWER LEAD ASSY 1

7FFV01VCN1532 ELECTRICAL CASE COVER 1

8FFV01VCN1420 INSTALLATION INST. (ES) 1English & Spanish

9FFV01VCN1421 INSTALLATION INST. (EF) 1English & French

10 FFV4650016S POLY COVER 1

11 FFV01VCN1400 PACKING CASE ASSEMBLY 1

12 FFV01VCN1050 NAME PLATE 1

AFFV7000089S TRUSS TAP SCREW 2

BFFVXYM4DC8BN SCREW W/WASHER(M4-12) 1
