Panasonic F-VXF70A User manual

Service Manual

Version:1101

Humidifying Air Purifier

CONTENTS

2. Parts Identification

4. Parts List

3. Wiring Diagram

PAGE

2~4

6~8

1. Specifications

PEG1106019CE

WARNING

This service information is designed for experienced repair technicians only and is not designed for use by

the general public. It does not contain warnings or cautions to advise non-technical individuals of potential

dangers in attempting to service a product. Products powered by electricity should be serviced or repaired

only by experienced professional technicians. Any attempt to service or repair the product or products dealt

with in this service information by anyone else could result in serious injury or death.

IMPORTANT SAFETY NOTICE

There are special components used in this equipment which are important for safety. These parts are

marked by in the Schematic Diagrams, Exploded Views and Replacement Parts List. It is essential

that these critical parts should be replaced with manufacturer's specified parts to prevent shock, fire

or other hazards. Do not modify the original design without permission of manufacture.

We suggest to handle such parts after the static electricity prevention.

It is forbidden to touch the PCB parts by bare hands during the repairing process.

OverSea Market

F-VXF70A

nanoe

Panasonic

F-VXF70A

1. Specifications

Model number

Power supply

Operation mode

Air Volume settings Hi Med Lo Hi Med Lo

PowerConsumption(W)7010650128

Humidifying amount (mL/h) — — — 600 300 150

Air Volume (m3/min) 6.8 2.8 1.2 6.0 2.8 1.2

Floor area capacity

Capacity of the tank

Power cord length

Product dimensions

Product weight 10.2kg

390mmx [295mm+(Foot:20mm)]x608mm(WXDXH)

2.0m

※1 The power consumption is about 0.9 W when the operation is set to "Off".(With the power plug inserted)

※2 The humidifying amount may vary with the indoor temperature and humidity.(Please refer to operating Instructions P.22)

※3 If there is water in the tank, the unit uses its water to humidify a little.(The water in the tank will be reduced little)

Up to 28m in a standard household room

F-VXF70A

220V~ 50Hz / 240V~ 50Hz

Clean Air Clean/Humid.

Up to 52m in a standard household room

About3.4L

※1

※2

※3

F-VXF70A

2. Parts Identification

Main Body Section

Remark: The double same letter which displayed behind the Lead Assy. Means they were linked together.

nanoe

Panasonic

F-VXF70A

aaaaaaaaaaaaaaaaaa

aaaaaaaaaaaaaaaaaaa

aaaaaaaaa

aaaaaaaaaa

aaaaaaaa

aaaaaaaaaaa

aaaaa

aaaaaaaa

aaaa

aaaaaaaaaa

aaaaaaaaaaaaaaaaaaaaaaaa

(2pcs)

(6pcs)

(2pcs)

(3pcs)

(4pcs)

(3pcs)

(2pcs)

(4pcs)

(6pcs)

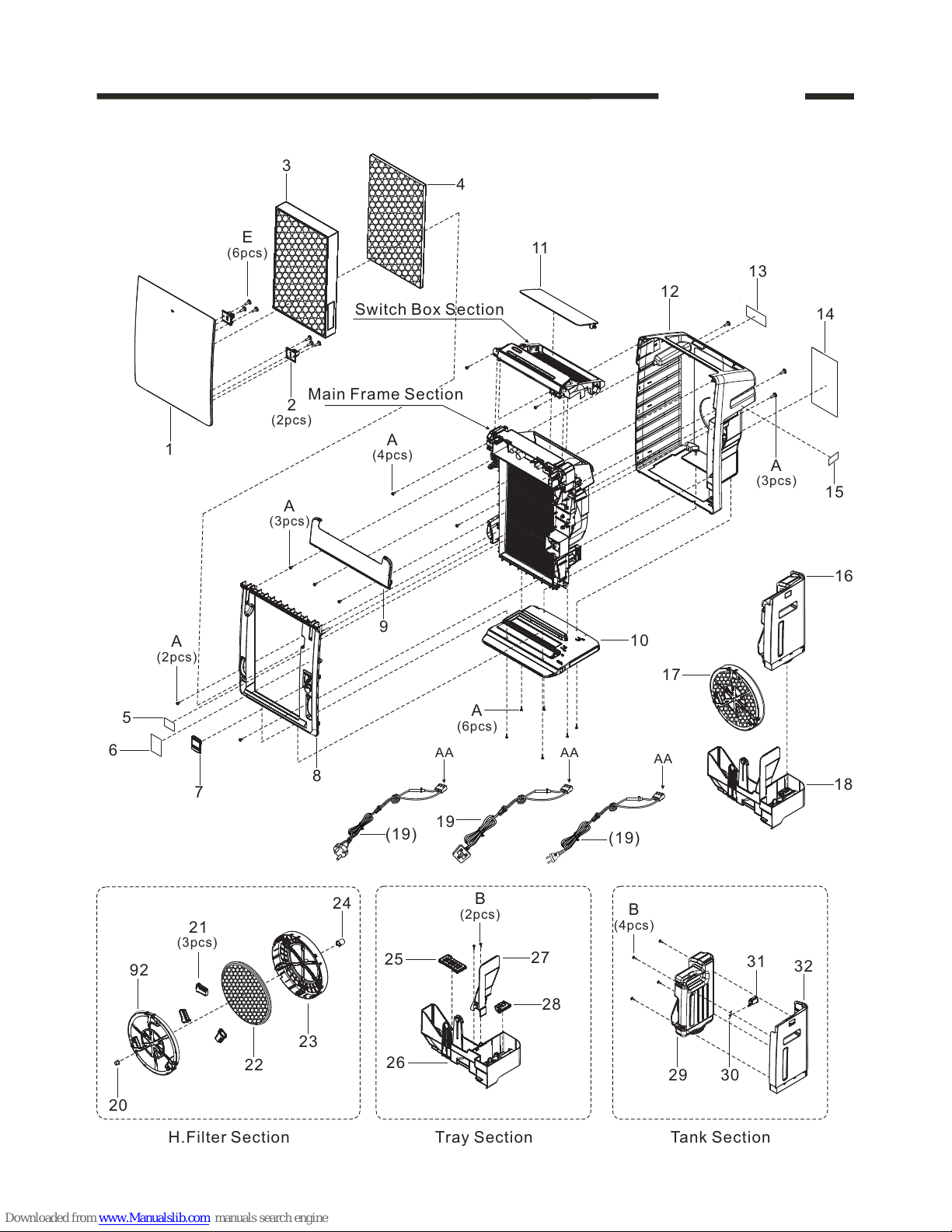

Main Frame Section

H.Filter Section Tray Section Tank Section

(19)

Switch Box Section

2. Parts Identification

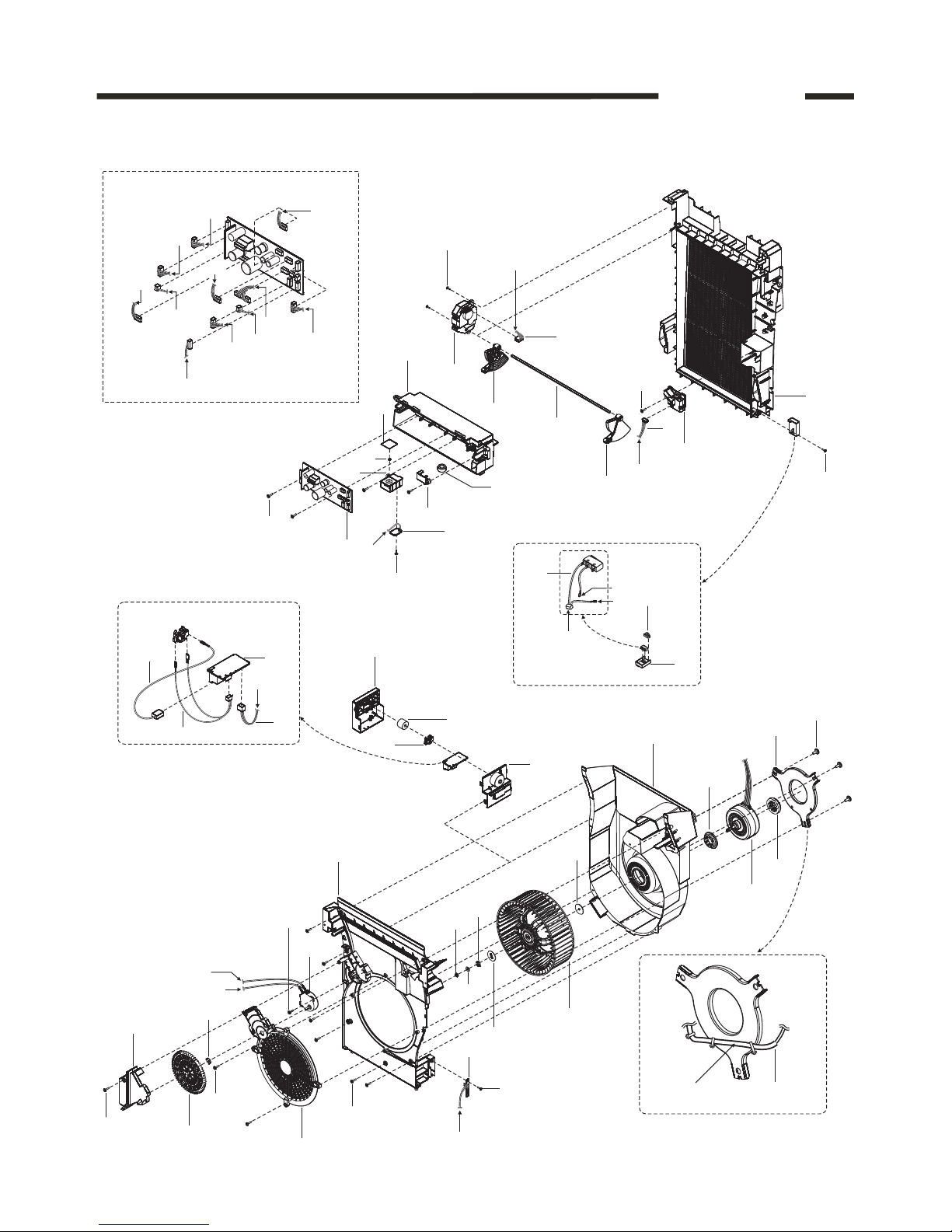

Main Frame Section

F-VXF70A

Remark: The double same letter which displayed behind the Lead Assy. Means they were linked together.

A36

59 60

FF GG

(2pcs)

(3pcs)

(47)

(2pcs)

A(3pcs)

(4pcs)

(6pcs)

63 65

(3pcs)

(2pcs)

Main Circuit Wiring Section

Mirco Switch Section

Nanoe Wiring Section

Power Cord(Fuse) Fixing Place

Fuse (19)

2. Parts Identification

F-VXF70A

Remark: The double same letter which displayed behind the Lead Assy. Means they were linked together.

aaaaaaaaaaaaaaaaaaa

(47)

(5pcs)

(2pcs)

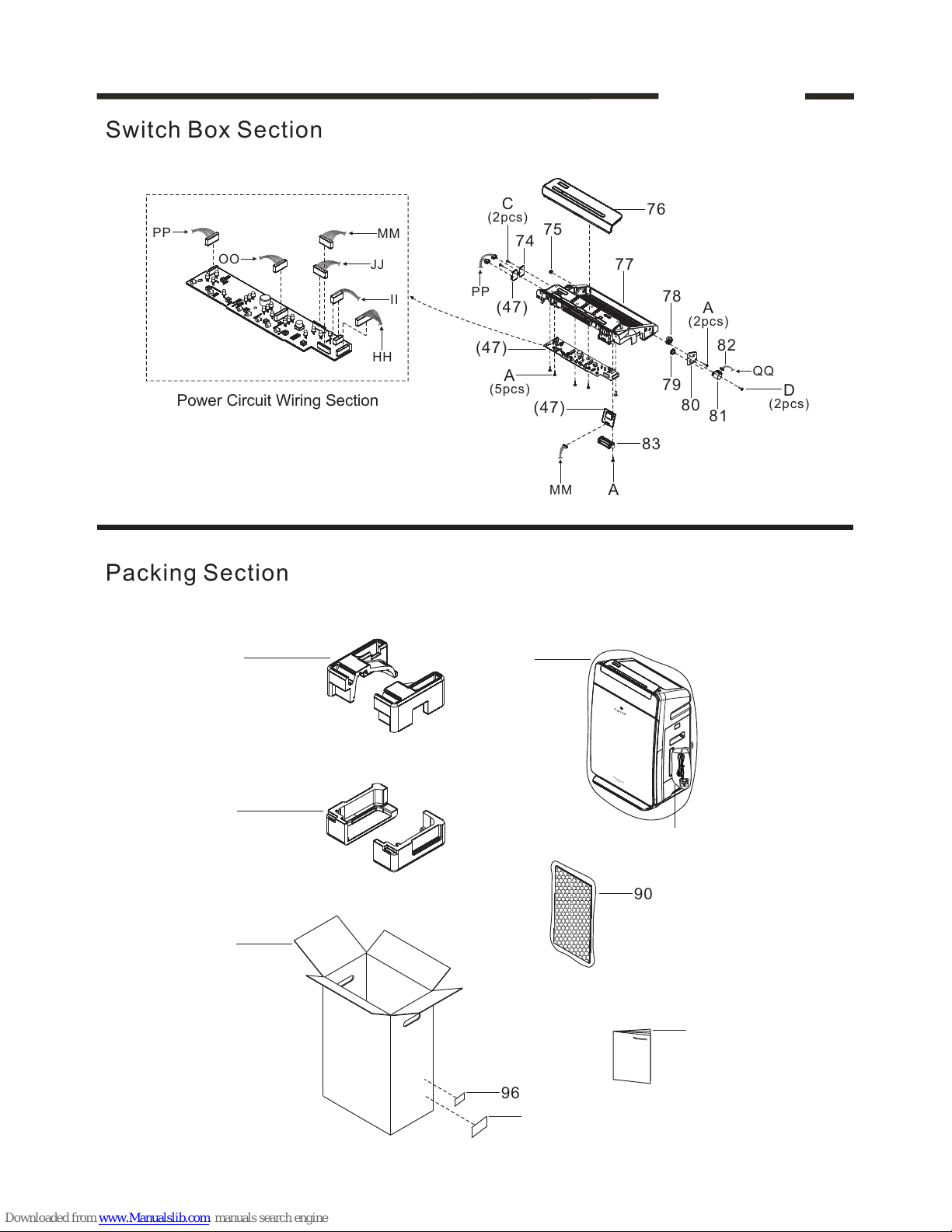

Switch Box Section

Packing Section

Power Circuit Wiring Section

nanoe

Panasonic

F-VXF70A

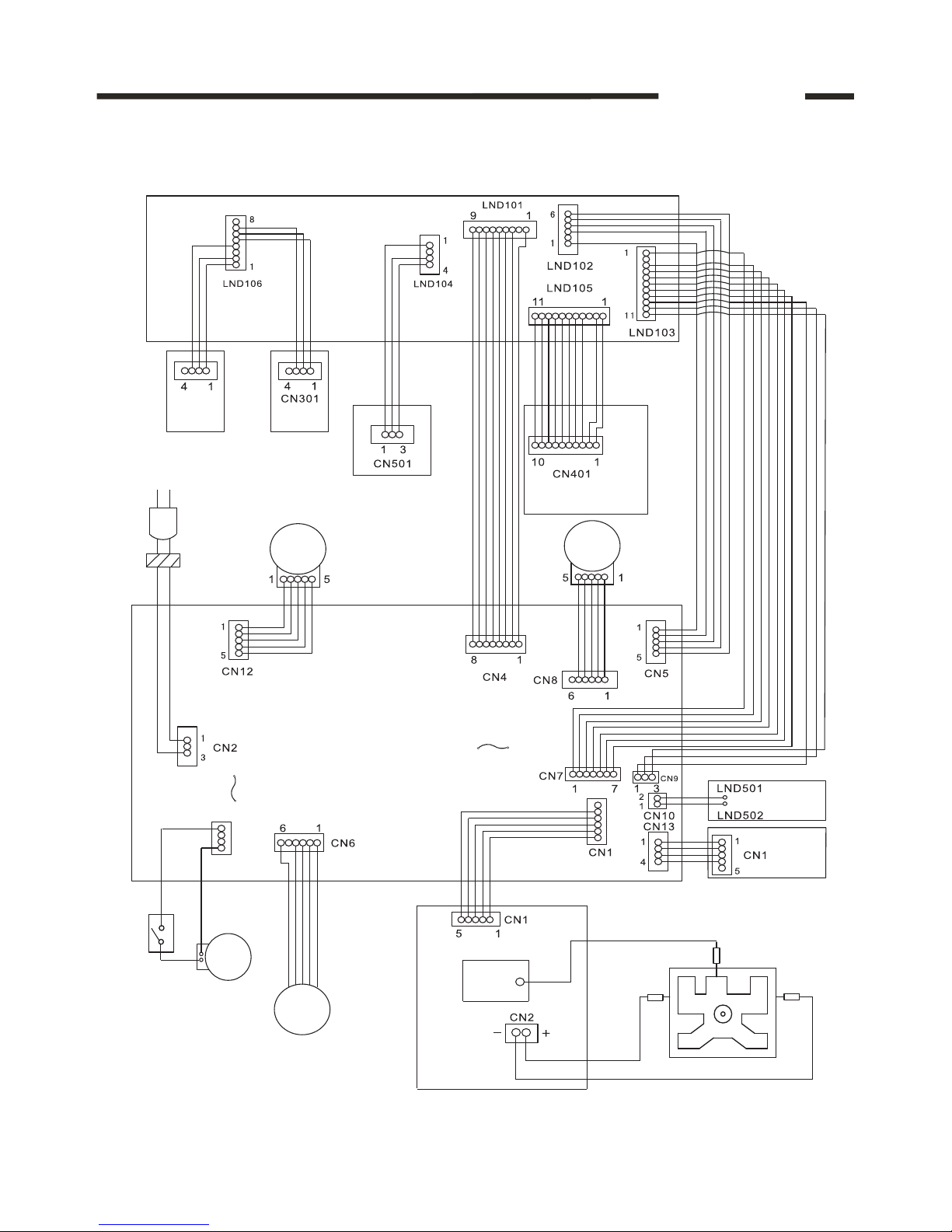

3. Wiring Diagram

F-VXF70A

FUSE

3.15A

FUSE

630mA

POWER CIRCUIT ASSY

MAIN CIRCUIT ASSY

HUMIDITY

SENSOR

GAS

SENSOR

HALL PCB

MAGNET

CORE

TIMING

MOTOR MOTOR

ASSY

REED PCB

DISPLAY PCB

MOTOR

NANOE UNIT

NANOE PCB ASSY

WHITE BLACK

HOKORI SENSOR

MOTOR

CN3

4. Parts List

F-VXF70A

No. Part No. Part Name Q'ty Remark

1 FFE01031102S Front Panel Print 1

2 FFE03031101S Fixed Arm 2

3 FFE41801102S C.Filter Assy 1

4 FFE41701102S D.Filter Assy 1

5 FFE00791106S Brand Label 1

6 FFE00601102S Filter Label 1 For MALAYSIA Market

(6) FFE00611102S Filter Label 1 For INDONESIA Market

(6) FFE00621101S Filter Label 1 For THAILAND Market

7 FFE36400801S D.Sensor Cover 1

8 FFE01161101S Front Case Assy 1

9 FFE01151101S Top Cover Assy 1

10 FFE01081101S Stand Painting 1

11 FFE04061101S Top Louver 1

12 FFE01141102S Rear Case Assy 1

13 FFE00751105S Warning Label 1 For MALAYSIA Market

(13) FFE00761105S Warning Label 1 For INDONESIA Market

(13) FFE00771105S Warning Label 1 For THAILAND Market

14 FFE00501106S Name Plate 1 For MALAYSIA Market

(14) FFE00511104S Name Plate 1 For INDONESIA Market

(14) FFE00521104S Name Plate 1 For THAILAND Market

15 FFE00801103S Tank Label 1 For MALAYSIA Market

(15) FFE00811104S Tank Label 1 For INDONESIA Market

(15) FFE00821103S Tank Label 1 For THAILAND Market

16 FFE00001103S Tank Section 1

17 FFE00001104S H.Filter Section 1

18 FFE00001105S Tray Section 1

19 FFE16001102S Cord Assy 1For MALAYSIA Market

(19) FFE16001104S Cord Assy 1For INDONESIA Market

(19) FFE16101102S Cord Assy 1For THAILAND Market

20 FFE06051101S Cap(A) 1

21 FFE06041101S Waterwheel 3

22 FFE06101101S H.Filter Assy 1

23 FFE06021101S H.Filter Case 1

24 FFE06061101S Cap(B) 1

25 FFE05551101S Germproof Set 1

26 FFE05101101S Tray 1

27 FFE05111101S Tray Plate 1

28 FFE01181101S Float Assy 1

29 FFE05011102S Tank Unit 1

30 FFE01160801S Handle Spring 1

31 FFE06080902S Tank Hook 1

32 FFE05031102S Tank Cover 1

92 FFE06031101S H.Filter Cover 1

A XTB4+14CFJ Bind Tap Screw 24

Main Body Section

4. Parts List

F-VXF70A

No. Part No. Part Name Q'ty Remark

B XTB4+14CZ Bind Tap Screw 6

E XTN35+8CFJ Pan Tap Screw 6

No. Part No. Part Name Q'ty Remark

33 FFE01101101S Main Frame 1

34 FFE12500901S Micro Switch Cover 1

35 FFE35500501S Switch Lever 1

36 FFE12901102S Micro Switch Assy 1

37 FFE12500601S Dust Sensor 1

38 FFE09021101S Dust Sensor Lead 1

39 FFE03021101S Arm R 1

40 FFE01121102S Shaft 1

41 FFE03011101S Arm L 1

42 FFE00231101S Gear Box Set 1

43 FFE01111102S PCB Box 1

44 FFE02000801S Magnet Hold 1

45 FFE36200901S Hall Panel 1

46 FFE13011101S Hall PCB Box 1

47 FFE48001102S Circuit Assy Set 1

48 FFE02051101S Timing Motor Cover 1

49 FFE02061101S Gear 1

50 FFE21101101S Gear Stay 1

51 FFE02031101S Orifice 1

52 FFE60001101S Timing Motor 1

53 FFE02021102S Casing Cover 1

54 FFE02081102S Nanoe Cover 1

55 FFE15001101S Nanoe Unit 1

56 FFE02091101S Nanoe Silencer 1

57 FFE02071102S Nanoe Case 1

58 FFE09061102S High Voltage Lead 1

59 FFE09071102S Peltier Lead 1

60 FFE09051102S Nanoe Lead 1

61 FFE48041101S Nanoe PCB Assy 1

62 FFE49601102S Reed PCB 1

63 FFE07201101S Nut 1For Fixing Blade Assy

64 FFE06090801S Undee Washer 1For Fixing Blade Assy

65 FFE21100803S Blade Fix Ring 1For Fixing Blade Assy

66 FFE20050801S Blade Plate(A) 1

67 FFE02041101S Blade Assy 1

68 FFE20030902S Blade Plate 1For Fixing Blade Assy

69 FFE02021103S Fan Casing Assy 1

70 FFE08110801S Holder Gum(A) 1

71 FFE23001103S Motor Assy 1

Main Frame Section

Main Body Section

4. Parts List

F-VXF70A

No. Part No. Part Name Q'ty Remark

72 FFE08120801S Holder Gum(B) 1

73 FFE08010801S Motor Holder 1

93 FFE05070901S Hall IC Magnet 1

94 K3T25X12X15 Magnet Core 1

95 FFE09031101S STM Lead(GB) 1

A XTB4+14CFJ Bind Tap Screw 26

F XTN4+14CFJ Pan Tap Screw 2

No. Part No. Part Name Q'ty Remark

74 FFE49301101S Humidity Sensor 1

75 FFE21300801S Louver Bush 1

76 FFE04161101S Switch Plate Assy 1

77 FFE04011102S Switch Box 1

78 FFE04071101S Louver Gear 1

79 FFE04081101S STM Gear 1

80 FFE04091101S STM Holder 1

81 FFE24001101S ST Motor 1

82 FFE09081101S STM Lead(TP) 1

83 FFE04051101S Display PCB Cover 1

A XTB4+14CFJ Bind Tap Screw 8

C XTB3+14CFJ Bind Tap Screw 2

D XSB4+6FJ Bind Screw 2

No. Part No. Part Name Q'ty Remark

84 FFE80101102S Top Pack 1

85 FFE80201102S Bottom Pack 1

86 FFE80011106S Carton Case 1

87 FFE90001108S Pos Label 1 For MALAYSIA Market

(87) FFE90011106S Pos Label 1 For INDONESIA Market

(87) FFE90021106S Pos Label 1 For THAILAND Market

88 FFE21401101S Poly Cover 1 For Main Body Packing

89 FFE01110801S Poly Cover 1 For Cord Assy Packing

90 FFE21371101S Poly Cover 1 For D.Filter Assy Packing

91 FFE89501104S Operating Instruction 1 For MALAYSIA Market

(91) FFE89511104S Operating Instruction 1 For INDONESIA Market

(91) FFE89521103S Operating Instruction 1 For THAILAND Market

96 FFE00801102S Sub Sticker Label 1 For INDONESIA Market

Switch Box Section

Packing Section

Main Frame Section
