OVER BENCH COOKER ( WITH GAS )
USER’S MANUAL
Web : www.oztiryakiler.com e-mail: export@oztiryakiler.com.tr
MANUFACTURER :ÖZTİRYAKİLER MADENİ EŞYA SAN. VE TİC A.Ş.
-1783
TABLE OF CONTENTS
PAGE NR. TOPICS
1 COVER PAGE
2 TABLE OF CONTENTS
3 INTRODUCTION
4-5 TECHNICAL DATA
6 MAIN DIMENSIONS AND WARNING SIGNS
7-8 SAFETY DETAILS
9 TRANSPORTING AND MOVING
10-11 INSTALLATION OF THE APPLIANCES
12 CONTROL BOARD
13 OPERATION OF THE APPLIANCES
14 CLEAN-UP AND MAINTENANCE
15 CHANGING THE GAS SYSTEM
16 TERMS OF WARRANTY
2/16
INTRODUCTION
☞Please read and ensure that your operation personnel also reads this user’s
manual care fully before installing and using the appliance. If the appliance is
operated without reading the user’s manual, the appliance will not be covered
by the warranty.
☞The manual containing information about installation, usage and maintenance
of our product you purchased should be read carefully. Please ensure that
power supply connections to the appliance are already installed by qualified
personnel according to local legislation, before our authorized service
personnel arrives for the installation of the appliance.
☞If you are confused or you don’t have enough information
please get in touch with authorized service by phone.
☞Please keep in mind that, if the service personnel is delayed
at your site, related expenses and delay costs will be charged to
you on hourly basis.
☞We hope that you will get the best performance from our product…
Dear User,
Thank you for purchasing our appliance and for your reliance upon our
company. Our appliances are used in professional kitchens in 75 countries.
Our appliances are produced in compliance with international standards.
Important notice: Please read and ensure that the users read this user’s
manual in order to achieve the desired performance in line with your
expectations and to use your appliance for long years. Please take the
warnings mentioned above into consideration before calling for service...
3/16
TECHNICAL DATA
4/16
1/2’’ R
А
2+3,3=5,3
6+10=16
400X900X280
OSOG 4090
¾’’ R¾’’ R¾’’ R¾’’ R1/2’’ R1/2’’ R
GAS INLET
(inch)
АААААTYPE
1,3+3,3=4,64X3,3=13,23,3
2X2+2X3,3
=10,6
2+2=43,3+3,3=6,6
HEAT POWER
(KW) Hi
(Qmin) )
4+10=144X10=4010
2X6+2X10=32
6+6=12
10+10=20
HEAT POWER
(QN) (KW)
(COOKER+
OVEN)
800X900X280800X900X280800X900X280800X900X280400X900X280400X900X280
DIMENSIONS
(mm)
OSOG 8090 T
OSOG 8090 P
OSOG 8090 C
OSOG 8090
OSOG 4090 S
OSOG 4090 P
YOUR
PRODUCT'
S TYPE
☞
TECHNICAL DATA
5/16
¾’’ R
А
3X2+3X3,3
=15,9
3X6+3X10=48
1200X900X
280
OSOG 12090
¾’’ R¾’’ R
GAS INLET
(inch)
ААTYPE
2X2+4X3,3
=17,2
2X3,3+3,3
=9,9
HEAT POWER
(KW) Hi
(Qmin)
2X6+4X10=52
2X10+10=30
HEAT POWER
(QN) (KW)
(COOKER+
OVEN)
120X900X280
1200X900X
280
DIMENSIONS
(mm)
OSOG 12090 P
OSOG 12090 C
YOUR
PRODUCT'
S TYPE
☞
MAIN DIMENSIONS AND WARNING SIGNS
Figure 1: Main Dimensions and Warning Signs
6/16
HOT SURFACE SAMPLE LABEL

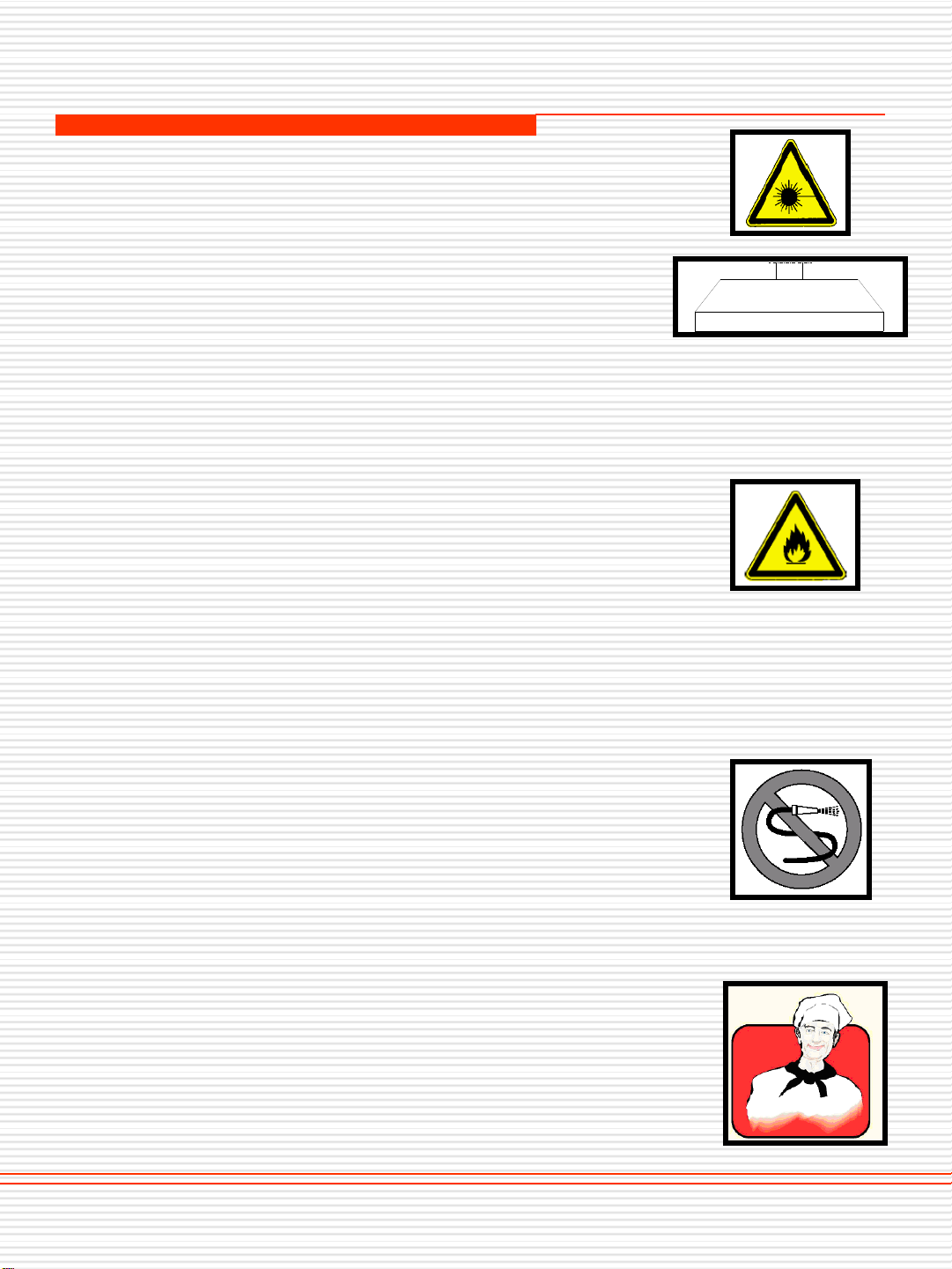

SAFETY DETAILS
☞Do not leave the appliances under direct sunlight.
☞The appliances should only be operated under a
chimney hood.
☞If the appliances is operated using a LPG gas cylinder,
the distance between the appliances and gas cylinder
should be minimum 50 cm.
☞Any kind of flammable solid and liquid material
(cloths, alcohol and derivatives, petrochemical products,
wooden and plastic materials, cutting blocks, curtains
etc.) should never be held near the appliances.
☞You can use this appliances simultaneously
together with other products of ours.
☞The appliances should not be immersed in water.
☞Do not clean up the appliances with pressure water
☞This appliances should be installed in line with
effective regulations and only be operated in well
ventilated places. Please refer to the instructions before
installing and operating the appliances.
☞This appliances is designed for industrial use and
should only be operated by personnel trained
according to this manual.
7/16
SAFETY DETAILS
☞The appliances should not be handled by
unauthorized persons except for the manufacturer or
authorized service.
☞In case of fire or flame in the area where the appliances
is operated, act without panic, close gas valves, turn off the
power switches and use a fire extinguisher. Never use water
to extinguish the fire, water will cause the fire to spread more
faster.
☞Oil spilled on the ground during use must be wiped away.
Otherwise it will cause the ground to be slippery.
☞Gas smell indicates gas leakage. In this case close
appliances valve and main gas valve, open the doors and
windows, do not use sparkling material like power switches.
Please call for our service swiftly.
8/16
TRANSPORTING AND MOVING
9/16
☞The appliances can be moved with supplementary vehicles like fork lift
☞Feet of the fork lift should be placed under the appliances.
☞If the transported distance is far, the machine should be moved slowly
and the appliances should be fixed on the palette or supported in order to
prevent jolt.
☞Do not hit or drop the products when moving.
CHANGING THE LOCATION;
Machines installed by an authorized
service CANNOT BE MOVED
ELSEWHERE, ITS CONNECTION HOSES AND
CABLES CANNOT BE EXTENDED OR
REPLACED except by an authorized service.
If this appliances located near to any wall, separation, kitchen
furniture, decorative coating etc. the distance in between should be
min. 20 cm. and if those are coated with fireproof heat insulating
material, the distance should be min. 5 cm. It is strongly recommended that fire
safety protection instructions are observed.
INSTALLATION OF THE APPLIANCES
☞The feet of the under-bench stand should be height adjusted and the
appliances should be ensured to operate in a leveled position.
☞All of the gas connections of the appliances should complying with ISO
7-1 or ISO 228-1.
☞Gas connections of the appliances should be carried out by an
authorized service personnel, only after controlling its label according
to gas type and pressure. Connections of different type and/or at
different pressure should not be done.
10/16
All of the items mentioned below in connection with the
installation of the appliances should be carried out by
authorized service personnel.
L
P
G
50
THE DISTANCE BETWEEN THE GAS CYLINDER AND THE APPLIANCES SHOULD BE MIN. 50 cm.
