OWC Mercury Elite Pro Dual mini User manual
Assembly Manual
OWC™ Mercury Elite Pro™ Dual mini
OWC Mercury Elite Pro Dual mini Table of Contents
1 INTRODUCTION
1.1 SYSTEM REQUIREMENTS
1.1.1 Mac® Requirements
1.1.2 PC Requirements
1.2 PACKAGE CONTENTS
1.3 ABOUT THIS MANUAL
1.4 PORT VIEW & CABLE CONNECTIONS
1.5 DETAILED VIEW
1.5.1 Front Activity Light View
2 SYSTEM SETUP
5 APPENDIX
6 CUSTOMER SERVICE
6.1 BEFORE CONTACTING CUSTOMER SERVICE
6.2 CONTACT INFORMATION
2.1 HARD DRIVE ASSEMBLY
2.2 RAID CONFIGURATION
2.3 CONNECTIONS TO COMPUTER
3 FORMATTING
3.1 MACINTOSH FORMATTING
3.2 REMOVING AN EXISTING GUID PARTITION
3.3 WINDOWS FORMATTING
4 TROUBLESHOOTING & TIPS
4.1 TROUBLESHOOTING
4.2 USAGE TIPS
5.1 FAQ
5.2 ABOUT DATA PROTECTION
Thank you for purchasing the OWC Mercury Elite Pro Dual mini. We’re
condent that it will provide years of high performance service for
your storage and backup needs.
This manual contains information on how to install the drives of your
choice into the enclosure, set the desired RAID level (0,1, or Span),
format and connect your new storage solution to your computer.
Should you require additional support after reading this manual along
with helpful tips and FAQs, please see the inside back page for OWC
customer support options.
OWC Mercury Elite Pro Dual mini Chapter 1 - Introduction
1 INTRODUCTION
1.1 System Requirements
1.1.1 Mac Requirements
•Minimum PowerPC® G4 CPU, 128MB RAM
•eSATA interface, Mac OS X 10.3 or later
•FireWire® interface, Mac OS X 10.2 or later
•USB 2.0 interface, Mac OS X 10.2 or later
1.1.2 PC Requirements
•Minimum 500MHz Intel® Pentium III CPU, 128MB RAM
•eSATA interface, Windows® XP / Vista® / Windows 7
•FireWire interface, Windows 2000 / XP / Vista / Windows 7
•USB 2.0 interface, Windows 2000 / XP / Vista / Windows 7
1.2 Package Contents
➀
➁➂
➄
➃
➅
➆ ➇
1.3 About This Manual
Firmware, images, and descriptions may vary slightly between this manual
and the unit shipped. Functions and features may change depending on
the rmware version. Please visit the product webpage for the most recent
specications.
Item
➀ OWC Mercury Elite Pro Dual mini
➁ 18” Flexible eSATA cable
➂ 18” USB 2.0 (A-B) cable
➃ Software CD Bundle
➄ User Guide & Owner’s Manual
➅ Screws to attach hard drives
➆ 18” FireWire 800 to 12V Power cable
➇ 18” FireWire 800 (1394B) cable
OWC Mercury Elite Pro Dual mini Chapter 1 - Introduction

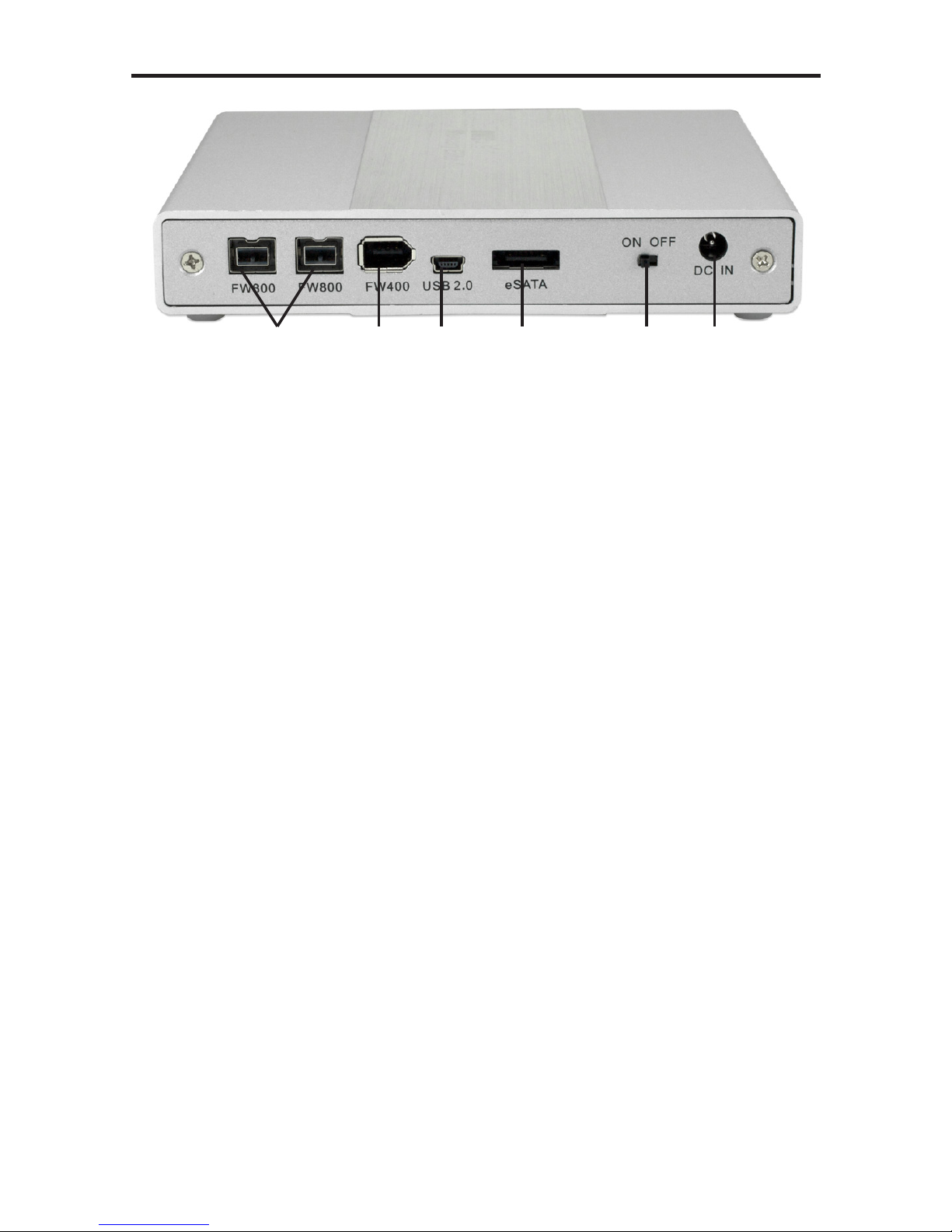

1.4 Port View & Cable Connections
➀ ➁ ➂ ➃ ➄ ➅
The OWC Mercury Elite Pro Dual mini comes equipped with multiple
connection interfaces to ensure the maximum computer compatibility
and portability.
FireWire
The Mercury Elite Pro Dual mini features two FireWire 800 ports ➀and one
FireWire 400 port ➁. FireWire 800 provides speeds up to 100 MB/sec and
FireWire 400 provides speeds up to 50 MB/sec.
The use of FireWire does not require any auxiliary power source as each port
carries enough bus power to run the Mercury Elite Pro Dual mini directly
from the computer’s FireWire port.
FireWire also has the ability to daisy-chain or connect multiple FireWire
devices together through one FireWire connection to the computer. OWC
recommends having only one bus-powered device in the chain due to the
limited amount of power a single FireWire port can provide. If a FireWire 400
device is chained with FireWire 800 devices, all devices will throttle down to
FireWire 400 speeds.
USB
The Mercury Elite Pro Dual mini features one USB mini port ➂that provides
speeds up to 60 MB/s.
The USB connection cannot carry enough power for the Mercury Elite Pro
Dual mini, so the use of the optional AC power adapter is needed to con-
nect to the DC In power port ➅.
Please see Section 4.2: Tips for information on purchasing the optional AC
power adapter.
eSATA
The fastest connection on the Mercury Elite Pro Dual mini is the eSATA
connection (4), which provides speeds up to 300 MB/sec.
eSATA is not a powered connection and requires the use of an auxiliary
power source such as the included FireWire 800 to 12V cable or the optional
AC power adapter to connect to the DC In power port ➅. While connected
via eSATA, the Mercury Elite Pro Dual mini can also be powered by utilizing
any of the FireWire 800/400 ports. In this scenario, the Mercury Elite Pro
Dual mini senses both the eSATA and FireWire connections and utilizes the
eSATA for data and the FireWire for power only.
Power Switch
It is recommended to always utilize the On/O power switch ➄to ensure
proper startup and shutdown of the Mercury Elite Pro Dual mini when
connecting and disconnecting from the computer. OWC recommends
attaching the data and power cables before switching the power on. When
disconnecting, make sure to unmount and then turn o the Mercury Elite
Pro Dual mini before disconnecting the data and power cables.
1.5 Front Activity Light View
The Mercury Elite Pro Dual mini features two multi-color LED indicator
lights. The left light corresponds to the left drive, with the right light cor-
responding to the right drive. Each LED light will illuminate red or blue in
color to indicate dierent activities.
Normal
Operation Solid blue for
power
Flashing blue for
activity
Drive 1 LED Drive 2 LED
Flashing blue for
activity
Solid blue for
power
Two Drive
Failure Solid red for
failure
Drive 2 LED
Solid red for
failure
Drive 1 LED
Drive
Failure Solid red for
failure
Drive 1 LED Drive 2 LED
Flashing blue for
activity
Solid blue for
power
(Drive 1 in this example)
Drive
Rebuild Flashing blue for
rebuild activity
Drive 1 LED Drive 2 LED
Flashing blue for
rebuild activity
OWC Mercury Elite Pro Dual mini Chapter 2 - System Setup
2 SYSTEM SETUP
This guide will get you up and running quickly, demonstrating how
to install your own 2.5” hard drives into the OWC Mercury Elite Pro
Dual mini enclosure.
Your computer is a static-sensitive device.
It is susceptible to invisible damage if not
protected during installation.
We recommend proper grounding by using
a grounding strap. Make sure to work in a
clean and static-free area, and avoid wearing
clothing that retains static charges.
For more information, please visit
http://www.macsales.com/static
Got tools? If you don’t have the tools necessary to complete
this installation, Newer Technology has a fantastic toolkit with ev-
erything you need included to perform this installation, and most
common computer hardware installations.
It’s available at:
http://www.macsales.com/tools
OWC Mercury Elite Pro Dual mini Chapter 2 - System Setup
2.1 Hard Drive Assembly & Installation
Using a Phillips P0 screwdriver, remove the 2 screws that hold the rear
backplane cover to the enclosure.
➀
➁
Once the screws are removed, the rear backplane cover will easily come o.
Set it aside to continue.
OWC Mercury Elite Pro Dual mini Chapter 2 - System Setup
2.1 Hard Drive Assembly & Installation (continued)
➂
From the rear of the enclosure, press inwards on the rear ports to slide the
inner chassis out towards the front of the enclosure.
Once the inner chassis is removed from the outer shell, you will see where
your 2.5” SATA drives will attach to the bridge card.
➃
➙
OWC Mercury Elite Pro Dual mini Chapter 2 - System Setup
2.1 Hard Drive Assembly & Installation (continued)
Place your drive mechanisms onto the bridge card, and press the drives
towards the ports to rmly ax the drives into the SATA connectors.
➄
With your ngers holding the drive mechanisms into the enclosure, ip it
over onto the top so you can see the screw holes that you will need to use
in the next step.
➅
➙
➙
OWC Mercury Elite Pro Dual mini Chapter 2 - System Setup
2.1 Hard Drive Assembly & Installation (concluded)
➆ Using the included
screws from the plastic bag,
attach the drive mechanisms
to the enclosure through the
rubber grommets using your
Phillips P0 screwdriver.
It is recommended that you
start using 2 screws in each
drive, and not fully tighten
them until all 8 screws are
started into the drive mecha-
nisms.
Once you have installed the
drive mechanisms, simply slide
the inner chassis back through the
outer shell. The outer shell can be
installed in either direction, but
there is a notch on one side that al-
lows the back plate to t properly.
If your case gets turned around
and the back plate does not t cor-
rectly, try reinstalling it from the other side.
Then, place the rear port
cover onto the back of the
enclosure, and attach it using
the 2 Phillips screws and your
Phillips P0 screwdriver you
removed to begin the process.
➇
➈
RAID Conguration Note:
Before proceeding further, look at the next page of this manual, Section 2.2
RAID Conguration and conrm that the enclosure is properly congured
for the RAID type that you wish to use.
Failure to do this step before assembling the enclosure will result in you
having to dissasemble the unit to congure the RAID.
