Outback Omega 100 User manual

Gas Ba rbecues

Assemblyand Operating Instructions for

Omega 100,Omega 200,andOmega 300 Gas Barbecues

Omega100 Omega300Omega200

Photographs are not to scale.

Specifications subj ect to change

without prior notice. 0359

WARNING

• For outdoor useonly.

• Read instructionsbeforeusing the appliance. Failure to followinstructionscould

resultin death, seriousbodilyinjury, and/or propertyloss.

• Warning: accessible parts may be very hot. Keep young children away.

• Do not move the appliance during use.

• Turn off the gas supply at the gas bottle after use.

• Any modification of the appliance, misuse, or failure to follow the instructions may

be dangerous and will invalidate your warranty. This does not affect your statutory

rights.

• Retain these instructions for future reference.

• Leak test your barbecue annually. Check the hose connections are tight and leak

test each time you reconnect the gas bottle.

FOR YOUR SAFETY

If you smell gas:

1. Shutoffgasto theappliance.

2. Extinguish any open flame.

3. Open barbecue lid or hood.

4. Ifodour continues, discontinueuse and

contact your local dealer.

FOR YOUR SAFETY

1. Do not storeor use petrol or other flammable

vapoursor liquidsin thevicinityof thisor any

other appliance.

2. Agas bottle not connected for use shall not be

stored in the vicinityofthisor anyother

appliance.

A. Parts List

Quantitiesvary according tomodel purchased. Specificationssubject to change without priornotice. Formoredetailson

hardware, please see the corresponding HardwareReference Diagram for your barbecue model.

OUTBACK® OMEGA RANGE

CODE PART QTY OMEGA 100 OMEGA 200 OMEGA 300

Body

Assembly

A1 Lava RockRack 1   

A2 Burner 1   

A3 Hood Handle 1   

A4 Hood 1   

A5 Body 1   

A6 Grease C up Holder 1   

A7 Grease C up 1   

A8 Cooking Grill 1   

A9 Lava Rock(Bagged) 1   

A10 Gasket 8   

A11 Upper Hinge Br ac ket 2   

A12 Lower Hinge Br ac ket 2   

A13 Gas Collector Box 1   

A14 Main Electrode 1   

A15 Warming Rack 1 

Upper

Trolley

B1 Control Panel 1   

B2 Igniter Button 1   

B3 Knob 2   

B4 BodyHandle 1 

B5 U-Bar 2   

B6 Hose 1   

B7 Plastic Side Shelf 2 1

B8 Side Burner Knob 1 

B9 Side Burner Grid 1 

B10 Side Burner Shelf 1 

B11 Side Burner Head 1 

B12 Side Burner Electrode 1 

Lower

Trolley

C1 Short Leg 2   

C2 Axle 1   

C3 Wheel 2   

C4 Hubcap 2   

C5 Screen 1   

C6 Long Support Rod 2   

C7 Stopper 2   

C8 Long Leg 2   

C9 Short Support Rod 2   

C10 Bottom Shelf 1  

Hardware

D1 ST4.0x10 Screw 2   

D2 M5x10 Bolt 2   

D3 M6x15 Bolt 4 

D4 M6x25 Bolt 8 

D5 M6x40 Bolt 8 

D6 M6x45 Bolt 4  

D7 M8 Locknut 2   

D8 M6 Keps Nut 4 12 12

D9 Shelf Spacer 8 

 Pre-Assembled

 Quantityand specification varies accordi ng to model purchased.

B1. Parts Diagram: Omega 100

Quantitiesvary according tomodel purchased. Specificationssubject to change without priornotice.

For more detailsonhardware, please see ‘Hardware Reference Diagram: Omega100.’

Pre-assembled bodyunitincludes

the following individual parts:

A2 A4 A5 A10 B1 B2

A11 A12 A13 A14

B5 B6

C6 C9

C4 C3

C1 C8

C2 D7

B2. Hardware Reference Diagram: Omega 100

Specificationssubject to change without priornotice.

C1. Parts Diagram: Omega 200

Quantitiesvary according tomodel purchased. Specificationssubject to change without priornotice.

For more detailsonhardware, please see ‘Hardware Reference Diagram: Omega200.’

C10

C4 C3

C5C1 C8

Pre-assembled bodyunitincludes

the following individual parts:

A2 A4 A5 A10 B1 B2

A11 A12 A13 A14

B5 B6

C6 C9

C2 D7

C2. Hardware Reference Diagram: Omega 200

Specificationssubject to change without priornotice.

D1. Parts Diagram: Omega 300

Quantitiesvary according tomodel purchased. Specificationssubject to change without priornotice.

For more detailsonhardware, please see ‘Hardware Reference Diagram: Omega300.’

C10

C4 C3 C2

Pre-assembled bodyunitincludes

the following individual parts:

A2 A4 A5 A10 B1 B2

A11 A12 A13 A14

B6 B8

B10

B11

B12

C5C1 C8

C6 C9

A15

D2. Hardware Reference Diagram: Omega 300

Specificationssubject to change without priornotice.

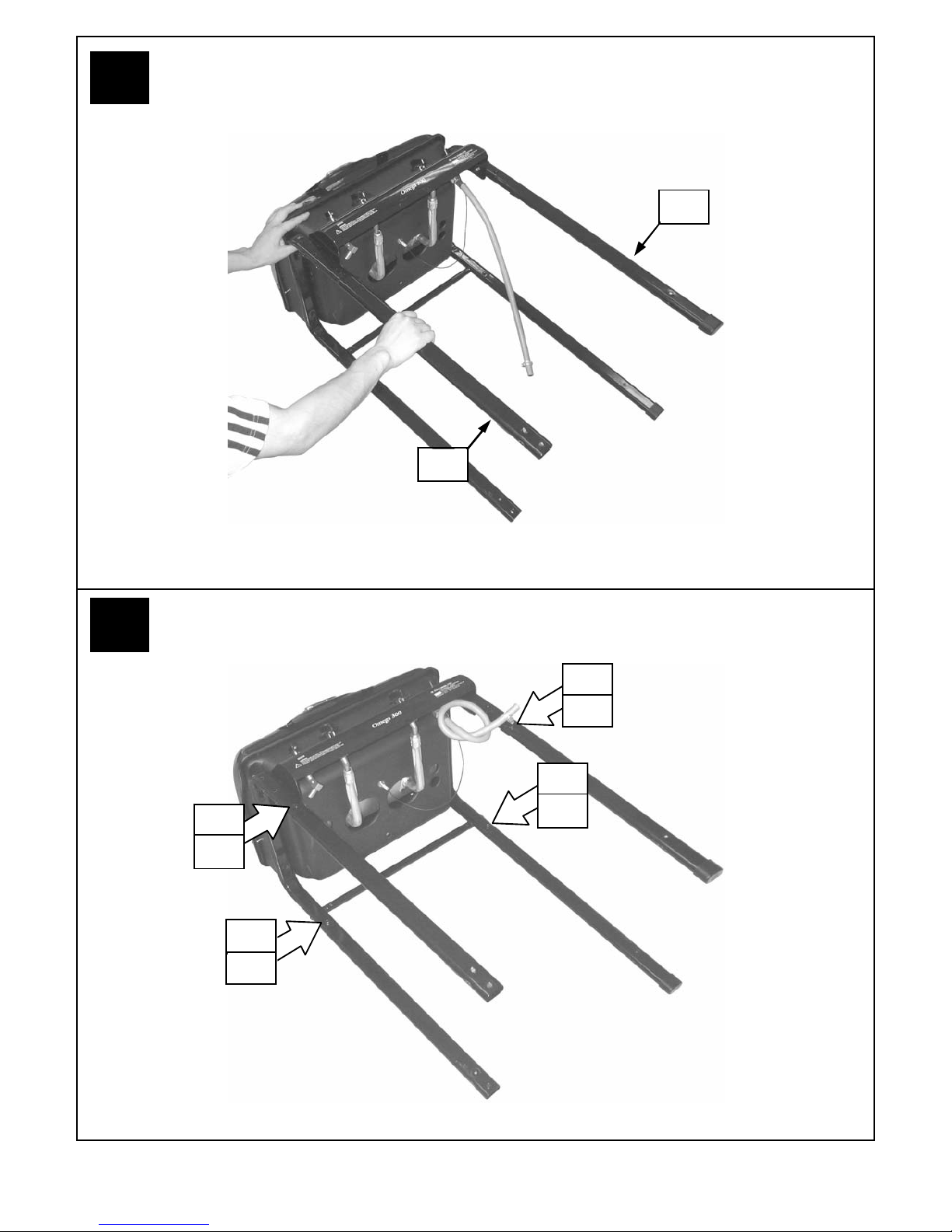

E. Assembly

TOOLS NEEDED FOR ASSEMBLY:

Medium size flat blade or Philips/crosspoint screwdriver, adjustable spanner ormetric spanner set.

Please layoutall nutsandboltsand checklengthsbefore assembling.

Whilst every careis taken in the manufacture of this product, care must be taken during assemblyin case sharp edges

are present.

 Omega 100  Omega 200  Omega 300

Warning: Care must betaken to ensure hood doesnotfall open unexpectedly.

 Omega 100  Omega 200  Omega 300

*NOTE: Take care to fix the legswith Velcro attached asshown in the illustration.
