Outback Omega 100 User manual

• For outdoor use only. Not for commercial use.

• Read instructions before using the appliance.Failure to follow instructions could

result in death, serious bodily injury, and/orproperty loss.

• Warning: accessible parts may be very hot. Keep young children away.

• Do not move the appliance during use.

• Turn off the gas supply at the gas bottle after use.

• Any modification of the appliance, misuse, or failure to follow the instructions may

be dangerous and will invalidate your warranty. This does not affect your statutory

rights.

• Retain these instructions for future reference.

• Leak test your barbecue annually. Check the hose connections are tight and leak

testeach time you reconnectthe gas bottle.

• For Flare-up control please refer to the ‘OPERATION’ section of this manual.

Gas Barbecues

Assembly and Operating Instructions for

Outback® Omega 100, Omega 200, and Omega 300 Gas Barbecues

Photographs are not to scale.

Specifications subject to change

without prior notice.

WARNING

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open barbecue lid or hood.

4. If odour continues, discontinue use and

contact your local dealer.

FOR YOUR SAFETY

1. Do not store or use petrol or other flammable

vapours or liquids in the vicinity of this or any

other appliance.

2. A gas bottle not connected for use shall not be

stored in the vicinity of this or any other appliance.

0359

EN (Europe)

Omega100 Omega300Omega200

A. Parts List

Quantities vary according to model purchased. Specifications subject to change without prior notice. For more

details on hardware, please see the corresponding Hardware Reference Diagram for your barbecue model.

OUTBACK® OMEGA RANGE

CODE PART QTY OMEGA100 OMEGA200 OMEGA300

Body

Assembly

A1 Flame Tamer 1   

A2 Burner 1   

A3 Hood Handle 1   

A4 Hood 1   

A5 Body 1   

A6 Grease Cup Holder 1   

A7 Grease Cup 1   

A8 Cooking Grill 1   

A9 Gasket 8   

A10 Upper Hinge Bracket 2   

A11 Lower Hinge Bracket 2   

A12 Gas Collector Box 1   

A13 Main Electrode 1   

A14 Warming Rack 1 

Upper

Trolley

B1 Control Panel 1   

B2 Igniter Button 1   

B3 Knob 2   

B4 Body Handle 1 

B5 U-Bar 2   

B6 Hose (if supplied) 

B7 Plastic Side Shelf 2 1

B8 Side Burner Knob 1 

B9 Side Burner Grid 1 

B10 Side Burner Shelf 1 

B11 Side Burner Head 1 

B12 Side Burner Electrode 1 

Lower

Trolley

C1 Short Leg 2   

C2 Axle 2   

C3 Wheel 2   

C4 Hubcap 2

  

C5 Screen 1   

C6 Long Support Rod 2 

C7 Stopper 2   

C8 Long Leg 2   

C9 Short Support Rod 2 

C10 Bottom Shelf 1  

Hardware

D1 ST4.0x10 Screw 2   

D2 M5x10 Bolt 2   

D3 M6x15 Bolt 4 

D4 M6x25 Bolt 4   

D5 M6x30 Bolt 4   

D6 M6x40 Bolt 8 

D7 M6x50 Bolt 4   

D8 Axle-Clip 2   

D9 M6 Keps Nut 4 20 20

D10 Shelf Spacer 8 

 Pre-Assembled

 Quantity and specification varies according to modelpurchased.

B1. Parts Diagram: Omega 100

Quantities vary according to model purchased. Specifications subject to change without prior notice.

For more details on hardware, please see ‘Hardware Reference Diagram: Omega 100.’

Pre-assembled body unit includes

the following individual parts:

A2 A4 A5 A10 B1 B2

A11 A12 A13 A14

B5 B6

C6 C9

C4 C3

C1 C8

B2. Hardware Reference Diagram: Omega 100

Specifications subject to change without prior notice.

D3 D7

D4, D9

C1. Parts Diagram: Omega 200

Quantities vary according to model purchased. Specifications subject to change without prior notice.

For more details on hardware, please see ‘Hardware Reference Diagram: Omega 200.’

C10

C5C1 C8

Pre-assembled body unit includes

the following individual parts:

A2 A4 A5 A10 B1 B2

A11 A12 A13 A14

B5 B6

C4 C3 C2

C2. Hardware Reference Diagram: Omega 200

Specifications subject to change without prior notice.

D4, D9

D5, D9

D6, D9, D10

D7, D9

D1. Parts Diagram: Omega 300

Quantities vary according to model purchased. Specifications subject to change without prior notice.

For more details on hardware, please see ‘Hardware Reference Diagram: Omega 300.’

C10

Pre-assembled body unit includes

the following individual parts:

A2 A4 A5 A10 B1 B2

A11 A12 A13 A14

B6 B8

B10

B11

B12

C5C1 C8

A15

C4 C3 C2

D2. Hardware Reference Diagram: Omega 300

Specifications subject to change without prior notice.

D4, D9

D5, D9

D6, D9, D10

D7, D9

E. Assembly

TOOLS NEEDED FOR ASSEMBLY:

Medium size flat blade or Philips/crosspoint screwdriver, adjustable spanner or metric spanner set

Please lay out all nuts and bolts and check lengths before assembling.

Whilst every care is taken in the manufacture of this product, care must be taken during assembly in case sharp

edges are present.

Warning: Care must be taken to ensure hood does not fall open unexpectedly.

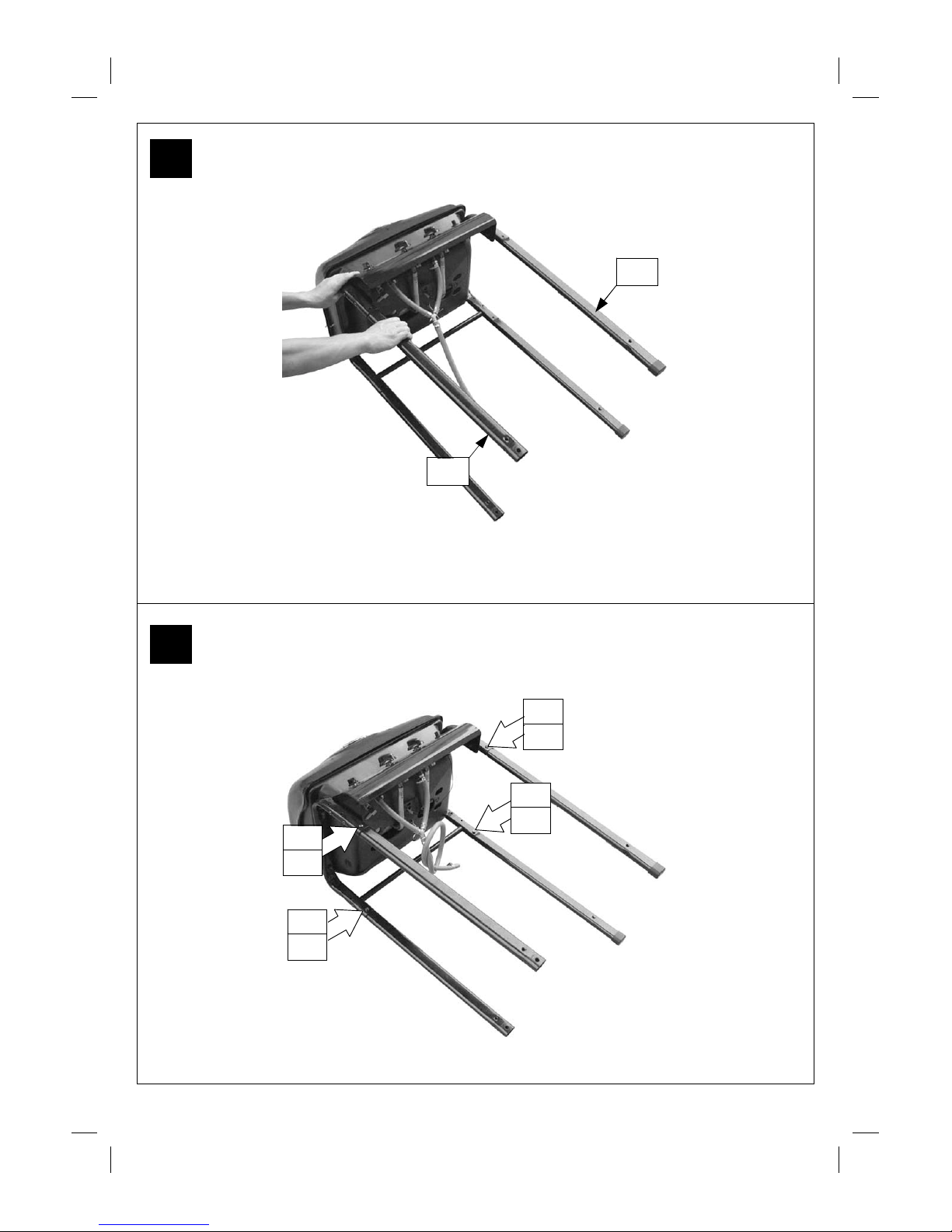

1  Omega 100  Omega 200  Omega 300

 Omega 100  Omega 200  Omega 300

NOTE: Ensure that the legs with the Velcro attached to them are at the front of the

barbecue.

 Omega 100  Omega 200  Omega 300
