Oregon Scientific RGR122 User manual

REMOTE RAIN GAUGE

MODEL:RGR122

USER’SMANUAL

INTRODUCTION

Congratulations on your purchasing the RGR122 Remote Rain

Guage. The rain guage is equipped with the following functions:

-Daily and total rainfall display

-Nine-day rainfall history

-Rainfall alarm

-Indoor temperature display

-Maximum and minimum temperatures

-Real-time calendar clock

-Daily alarm

-300-feet transmission range

The RGR122 operates at 433MHz. No wire installation is required.

MAIN FEATURES: MAIN UNIT

A. FOUR-LINEDISPLAY

-For displaying the total rainfall, current rainfall or rainfall

history, indoor temperature and calendar clock

B. RAIN RESET/SINCE BUTTON

-Displays the start day for total rainfall

-Presses and hold to clear the total and current rainfall

-Press and hold to reset the date stamp

C. RAIN SEARCH BUTTON

-Enforces a search for the rain guage sensor

D. MODE BUTTON

-Changes among the clock, calendar and daily alarm in normal

mode

-Presses and hold to enter the setting mode

E. TEMPMEM BUTTON [ ]

-Changes among the maximum, minimum and current indoor

temperatures in normal mode

-Presses and hold to clear the temperature memory in normal

mode

-Decreases a value in setting mode

F. RAIN HIST BUTTON [ ]

-Displays the rainfall history in normal mode

-Increases a value in setting mode

G. RAIN ALARM[ ] BUTTON

-Displays the rain alarm setting

-Presses and hold to enter the rain alarm setting mode

H. ANTENNA

-Receives radio signal from rain collector

I. [°C/°F] SWITCH

-Selects between degree Centigrade (°C) and Fahrenheit (°F)

J. [in/mm] SWITCH

-Selects between inch and millimeter

K. RAIN AL ON/OFF SWITCH

-Turns on or off the rainfall alarm

L. RESET BUTTON

-Returns all settings to their default values

M. CLOCK AL ON/OFF SWITCH

-Turns on or off the daily alarm

N. BATTERYCOMPARTMENT

-Accommodates two UM-3 or AA-sized batteries

O. REMOVABLE TABLE STAND

-For securing the main unit on a flat surface

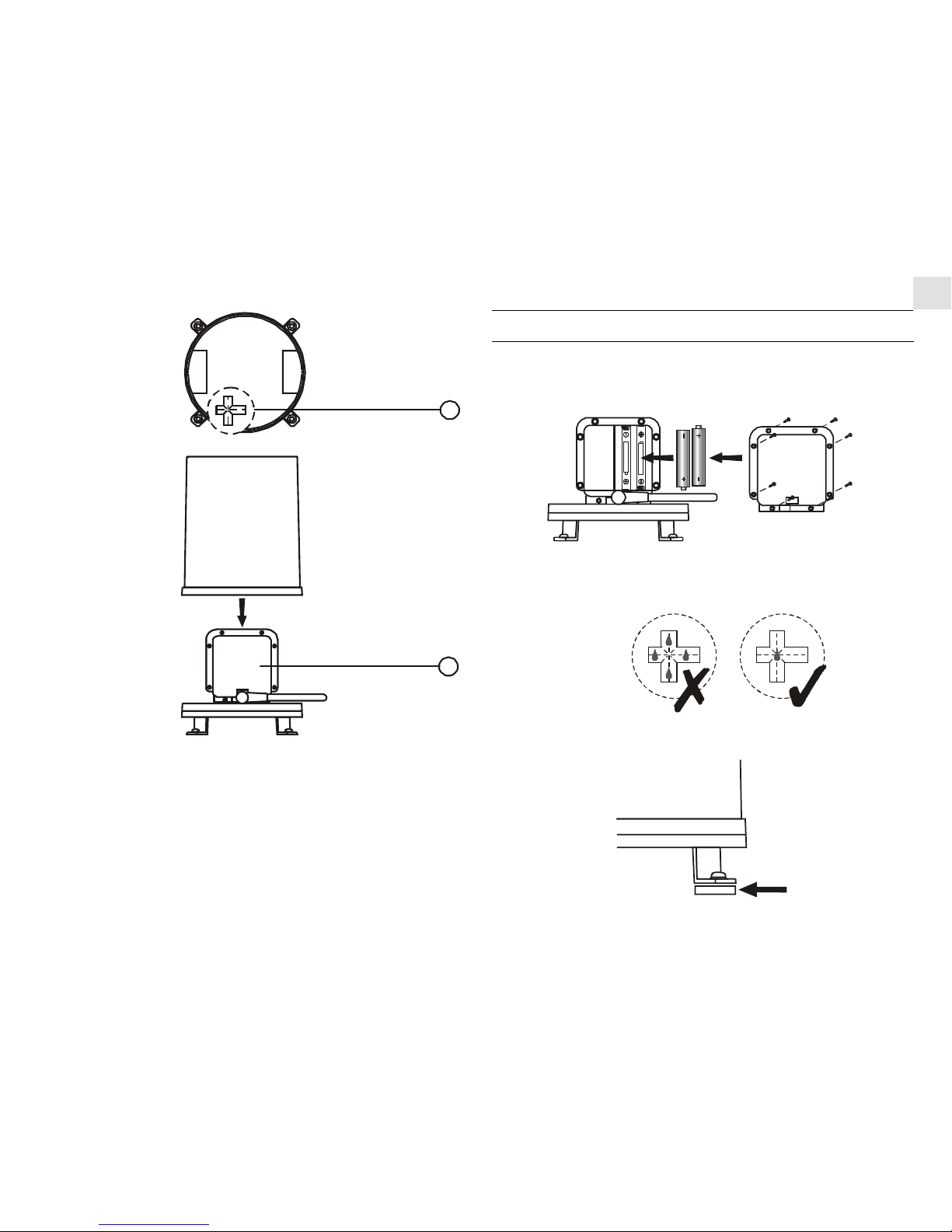

MAIN FEATURE: RAIN COLLECTOR

P. ANTENNA

-Transmits radio signal to main unit

Q. CROSS

-Checks the leveling of the rain collector

R. BATTERYCOMPARTMENT

-Accommodates two UM-3 or AA-sized batteries

INSTALLATION

1. Position the main unit and rain collector within effective

range (300 feet).

2. a) Insert batteries into the rain collector.

b)Mount the rain collector on a level surface

c) Put drops of water on the cross at the base to check the

leveling

d)Use the metal ring to adjust the leveling of the rain collector

TOPVIEW



Water stay at

position 1 - 4

meansthegauge

is not leveled

"AA" UM3 1.5V

METAL RING

3. Remove the fiber tape from around the bucket assemblies.

4. Insert batteries into the main unit.

5. Press the [RESET] button on the main unit to initiate operation.

6. Set the calendar and clock.

7. Press [RAIN RESET / SINCE] to display the date stamp. Press

and hold to reset the date stamp to current date.

LOW BATTERY WARNING

There are two low-battery indicators, one appears on the total

rainfall display section and one on the indoor temperature display

section. The former represents the batteries of the remote rain

collector, the latter those of the main unit. Replace the batteries

immediately when the respective indicator lights up.

Note : Every time the battery in the main unit is changed, repeat

installation step 4 to 7 before use.

TOTAL RAINFALL

The total rainfall is displayed on the top line of the LCD display.

Use the [IN/MM] switch to select between inch and millimeter.

Todisplaythecommencingdateoftherecord,press [RAINRESET/

SINCE] once.Thedatewillappearonthebottomlineofthedisplay.

To clear the record, hold [RAIN RESET/SINCE] for two seconds.

Note that this will also clear the current (Day 0) rainfall.

RAINFALL HISTORY

The rainfall history is displayed on the second line of the LCD

display. The main unit can record up to nine days of rainfall.

Use[RAINHIST/ ]todisplaytherecordforaparticularday.The

day of the record will be displayed with a minus (-) sign. Zero (0)

means the record is for the current day.

Toclearthecurrentdayrainfall,hold [RAINRESET/SINCE] fortwo

seconds. Note that this will also clear the total rainfall record.

RAINFALL ALARM

To set the rainfall alarm,

1. Press and hold [RAIN ALARM]. The alarm will be activated

automatically. The rain alarm indicator will light up.

2. Use [RAIN HIST / ] to increase the setting or [TEMP MEM /

] to decrease the setting.

MO DE L NO. RG R1 22

RESE T

RAIN CLOCK

"AA" UM3 1.5V

The alarm will go off for one minute when the rainfall reaches the

presetvalueand therain alarm indicatorwill flash. Areminder beep

willbeemitted every minute.Oncethe rain alarmis on the indicator

will not stop flashing unless [RAIN AL] switch is turned off or the

rain alarm value is reset or normally pass to next day. To stop the

alarmand reminderbeep, pressany buttonor resettherainfallalarm

value.

Todeactivatethealarmalltogether,turnoffthe [RAINAL] switch.

DISCONNECTED SIGNALS

If without obvious reason the display for the main unit goes blank,

press[RAINSEARCH] to enforce animmediate search.

If that fails, check:

-The remote rain collector is still in place.

-The batteries of the main unit and rain collector are still good.

Replace them if necessary.

-The transmission is within range and path is clear of obstacles

and interference. Shorten the distance if necessary.

Thenpress [RAINSEARCH] again.

INDOOR TEMPERATURE

The indoor temperature is displayed on the third line of the LCD

display.Usethe [°C/°F]switchto select betweendegree Centigrade

and Fahrenheit.

Use [TEMP MEM] to display the maximum and minimum

temperatures in record. The reading will go from maximum to

minimum to current and back. To clear the memory, press and hold

[TEMPMEM]fortwoseconds.

CALENDAR CLOCK

The calendar clock is displayed on the bottom line of the display.

Use [MODE] tochange amongthe clock,calendar anddailyalarm.

To set the clock,

1. Press [MODE] to display the clock or calendar.

2. Press and hold [MODE] for two seconds.

3. Use[RAINHIST / ]or[TEMP MEM/ ]to setthe desired

value.

4. Press [MODE] and repeat from Step 3 to complete all settings.

5. Press[MODE]toconfirm.

To set the daily alarm,

1. Press[MODE]todisplaythedailyalarm.Thedailyalarmwillbe

activated automatically. The daily alarm indicator will light up.

2. Press and hold [MODE] for two seconds.

3. Use[RAINHIST / ]or[TEMP MEM/] toset the desired

value.

4. Press [MODE] and repeat from Step 3 to complete all settings.

When active, the daily alarm will go off for one minute at the set

time and the daily alarm indicator will flash. Press any button to

stopthealarm. The alarm isstill active and willgo off at theset time

the following day.

To deactivate the function all together, turn off the [CLOCK AL]

switch.

THE RESET BUTTON

This button is used only when the unit is operating in an

unfavorable way. Use a blunt stylus to hold down the button. All

settings will return to their default values.

PRECAUTIONS

This product is engineered to give you years of satisfactory service

if you handle it carefully. Here are a few precautions:

1. Do not immerse the unit in water.

2. Do not clean the unit with abrasive or corrosive materials. They

may scratch the plastic parts and corrode the electronic circuit.

3. Do not subject the unit to excessive force, shock, dust,

temperature or humidity, which may result in malfunction,

shorter electronic life span, damaged battery and distorted

parts.

4. Do not tamper with the unit’s internal components. Doing so

will invalidate the warranty on the unit and may cause

unnecessary damage. The unit contains no user-serviceable

parts.

5. Only use fresh batteries as specified in the user’s manual. Do

not mix new and old batteries as the old ones may leak.

6. Always read the user’s manual thoroughly before operating the

unit.

SPECIFICATIONS

Mainunit

Display rainfall range (total) : 0 - 999.99 inches

(0 – 25,400 mm)

Display rainfall range : 0 - 99.99 inches

(history / daily) (0 – 2,540 mm)

Rainfall resolution : 0.04 inches (1 mm)

Display temperature range : 23.0°F to 122.0°F

(-5.0°C to +50.0°C )

Proposed operating range : 23.0°F to 122.0°F

(-5.0°C to +50.0°C )

Temperature resolution : (0.1°C) to 0.2°F

RemoteRainCollector

Proposed operating range: : 33.8° F to 140.0°F

(1.0° C to 60.0°C )

General

RF Transmission Frequency : 433 MHz

RF Transmission Range : 300 feet (100 meters)

Temperature sensing cycle : around 30 seconds

Power

Main unit : 2pcs UM-3 or“AA” 1.5V

battery

Remote sensing unit : 2pcs UM-3or“AA” 1.5V

alkaline battery

Weight

Main unit : 6.10 ounces (173 gm)

Remote sensing unit : 9.17 ounces (260 gm)

Dimensions

Main unit : 5.24 x 3.54 x 0.98 inches

(133 x 90 x 25mm)

Remote sensing unit : Dia 5.51x5.71 inches

(140 x 145mm)

NOTE ON COMPLIANCE

ThisdevicecomplieswithPart15oftheFCCRules.Operation

is subject to the following two conditions: (1) This device

may not cause harmful interference, and (2) This device must

accept any interference received, including interference that

may cause undesired operations.

Warning: Changes or modifications to this unit not

expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

FCC :

NOTE: Thisequipment hasbeentested andfound tocomply

with the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and

can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful

interference to radio communications.

However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by

one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increasetheseparationbetweentheequipmentandreceiver.

- Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

- Consult the dealer of an experienced radio/TV technician

CUSTOMER ASSISTANCE

Should you require assistance regarding this product and its

operation, please contact our customer care department at

800-853-8883 or via email at [email protected].

WARRANTY

This product is warranted to be free of manufacturing defects for a

period of 3 months from date of retail purchase. Defective product

should be directed to the place of retail purchase for exchange.

Should this not be possible, contact our customer care department

for assistance and a return material authorization. No returns may

be made without a return authorization. Please retain your retail

receipt as you may be asked to provide a copy of it for proof of date

purchased.

This warranty does not cover product subjected to abuse, misuse,

accidental damage or tampering.

CAUTION

— The content of this manual is subject to change without

further notice.

— Due to printing limitation, the displays shown in this

manual may differ from the actual display.

— The contents of this manual may not be reproduced

without the permission of the manufacturer.

Instruction Manual

****

Mode D'emploi

****

Bedienungsanleitung

****

Manuale di Istruzioni

****

Instrucciones de Funcionamiento

MODEL: RGR122

REMOTE RAIN GAUGE

for help.

CompanyName:OregonScientific,Inc.

Address: 19861 SW 95th Place, Tualatin, Oregon 97062, USA

Telephone Number: 1-800-853-8883

Other manuals for RGR122

Table of contents

Other Oregon Scientific Accessories manuals

Oregon Scientific

Oregon Scientific 91VX User manual

Oregon Scientific

Oregon Scientific HWI0003 User manual

Oregon Scientific

Oregon Scientific HWI0002 User manual

Oregon Scientific

Oregon Scientific THR238NF User manual

Oregon Scientific

Oregon Scientific WTGR800 User manual

Oregon Scientific

Oregon Scientific HWI0005 User manual

Oregon Scientific

Oregon Scientific THN122N User manual

Oregon Scientific

Oregon Scientific THGR328NH User manual

Oregon Scientific

Oregon Scientific THGN122N User manual

Oregon Scientific

Oregon Scientific WS903 User manual

Oregon Scientific

Oregon Scientific GP123 User manual

Oregon Scientific

Oregon Scientific Wireless Outdoor Temperature and Humidity Sensor THGR 238... User manual

Oregon Scientific

Oregon Scientific THWR288A User manual

Oregon Scientific

Oregon Scientific WS909 User manual

Oregon Scientific

Oregon Scientific ST228 User manual

Oregon Scientific

Oregon Scientific UVN800 User manual

Oregon Scientific

Oregon Scientific UVN800 User manual

Oregon Scientific

Oregon Scientific UVN800 User manual

Oregon Scientific

Oregon Scientific THGR122NX User manual

Oregon Scientific

Oregon Scientific RTGN129 User manual

Oregon Scientific

Oregon Scientific Weather+ Basic Installation guide

Oregon Scientific

Oregon Scientific THWR288 User manual

Oregon Scientific

Oregon Scientific THGR810 User manual

Oregon Scientific

Oregon Scientific THR238N User manual

Popular Accessories manuals by other brands

Hillco

Hillco 2810 Operator's manual

Siemens

Siemens QSA2700D Basic documentation

Contours

Contours ZY024 manual

Saivod

Saivod VS621 manual

Virtuox

Virtuox VirtuCLEAN 2.0 user manual

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS user manual

Z-Wave

Z-Wave HSD-200Z user manual

turck

turck FMX-IM-2UPLI63FX quick start guide

Decagon Devices

Decagon Devices 10HS manual

UPPAbaby

UPPAbaby Cup Holder user manual

Elko

Elko SmartSensor Leakage Wireless manual

Grizzly

Grizzly H8371 instructions

Panasonic

Panasonic HG-T Series user manual

IFM Electronic

IFM Electronic Efector 250 Series Brief instructions

DigiDesign

DigiDesign 888/24 I/O installation guide

PROZIS

PROZIS QUAY user manual

patagonia

patagonia PSI Vest user manual

SFC Energy

SFC Energy EFOY GO! manual
