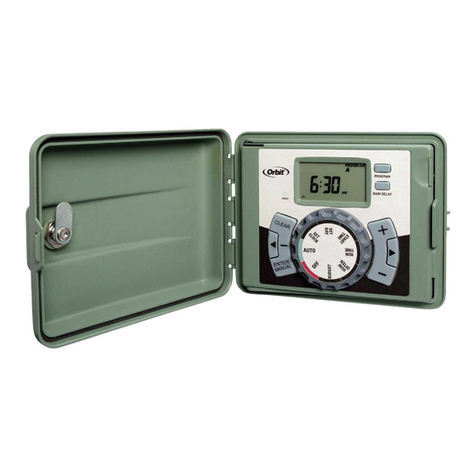

Orbit B-hyve User manual

Quick

Start

Guide

WIFI SPRINKLER TIMER

SMART WIFI SPRINKLER TIMER

English.............2

Deutsche..........10

Français...........19

Español ...........28

Italiano............37

Polskie ............46

Português .........55

bhyve.orbitonline.com

Welcome to

SMART WIFI SPRINKLER TIMER

Contents in the Box

WiFi Sprinkler Timer

Screwdriver

Installation Hardware

Keys

Quick Start Guide

*Plug varies by country

Install the B-hyve™ app on

your smart device

You will need a smart device to connect the

timer to WiFi.

Note: The app will guide you through initial

set up of your sprinkler timer. In addition,

there are help icons throughout the app

with more information and useful tips.

Timer Connected

Symbol

Rain Delay

Calendar

Programs

Remote Control

or Home Button Zone List

Settings

Next Zone

Stop Watering

Running Status⁄

Messaging

Weather⁄

Temp.

The B-hyve™ App

English

Timer Installation

Select a location

Choose a location near power and away

from direct sunlight, if possible. Make sure

to leave room for the timer door to open

completely.

This location should also have a good WiFi

signal. You can check this using a smart

phone. (Find a location that has a minimum

of two bars)

Note: If replacing a timer, it is helpful

to take a photo of the wires before you

remove them from the old timer.

Mount the timer

Install a screw (included) into the wall.

Use the expanding anchors (included) for

plaster, masonry or drywall installations.

Hang the timer on the installed screw using

the keyhole slot. Level the timer and use

the second screw in one of the preformed

mounting holes to secure the timer.

Minimum Signal

Keyhole

Mounting Holes

⁄" (mm)

No. Screw

Wall

Prepare wire

Strip ⁄"( mm) of insulation from each

wire.

Connect wires

Attach one wire from each valve to a

“Common” (COM) wire and the other wires

to a numbered terminal (only one wire per

terminal.)

Small hole—for running  or 

strand wire straight into the box

⁄", ⁄ " and " ( mm,  mm and  mm)

knock-outs for larger systems with more wire bundles

Knock-out for hardwired installations

Bottom View

Strip Wire

Push In

Loosen Screw

Tighten Screw

Note: We recommend you consult an

electrician for hardwired installations.

Connect Valve Wires

English

FOROPTIMUMTIMER

PERFORMANCE, CONNECT

TOWIFITORECEIVETHE

LATESTTIMERUPDATES.

Timer Installation—Connecting to WiFi

Plug in your Orbit® B-hyve™ timer

Once your B-hyve™ timer is plugged into

the power source, it will automatically

look to pair with your smart device. In the

top left corner of the timer screen the

“Bluetooth” icon will flash with a graduated

blinking sequence. This indicates that your

timer is ready to pair with a smart device.

Connect to your Orbit® B-hyve™ timer

Open your B-hyve™ app, create an account

or login, and follow the step-by-step process

to add and set up your device. The B-hyve™

app will connect to your device and you will,

then, be guided to connect to your home

Wi-Fi network.

Connect to your Wi-Fi network

Select your network from the list and enter

the password for the network to connect

your timer to your Wi-Fi signal. When

connected, the Wi-Fi icon on the timer will

stop blinking and show solid lines, indicating

your signal strength.

ABCD

Note: If you do not see your network name

in the list, tap the refresh button in the

app. If your network name still does not

appear, tap “Advanced” in the app and enter

your network name and password. This

device will only connect through . GHz

Wi-Fi networks. . GHz networks are not

supported and will not appear in your app.

Simple Controls

Programming the timer

You can set your timer up with the app. But,

if you don’t have Wi-Fi or just want to make

an adjustment while you are outside, you

can do it at the timer. Timer changes will be

reflected in the app, and app changes will

be reflected at the timer.

It allows the gardener who left their phone

inside to run a manual cycle, or adjust

programming as needed and keep dirty

hands away from the phone.

Note: The app has help screens and video

to assist you with Wi-Fi connections,

programming, smart watering and other

general questions you may have.

Buttons Function

Scroll up or down, left or right and

push to make a selection

CLEAR To clear a setting

PROG ABCD To move to different programs: A, B, C, and D

BACK To go back a step

RAIN DELAY To pause operation for  to  days

due to rain or other factors

ABCD

English

Rated input:

Australia—V AC ⁄Hz . A

Europe—V AC ⁄Hz .A

USA—V AC Hz .A

Max load:

AUS & EU - V AC Amp ⁄ Cycle

USA—V AC  mA Hz

Temperature Operating Range:

Operating: -° F (-°C)

Storage & transport: -°F (-° C)

Humidity Operating Range:

Operating: –%

Storage & transport: –%

Altitude: ,' (, meters)

IPX Rating

Installation Class II

Over Voltage Category II

Battery Specifications

Timer requires a CR Lithium battery

(included)

To remove, lift on the edge of the coin

cell battery. (Illustration) DO NOT use a

screwdriver or other metal object.

Insert the new battery at an angle and press

to click the battery into place. The plus (+)

sign on the battery must face upwards.

WARNING: Risk of Fire, Explosion, and

Electric Shock. Replace battery with Hitachi

Maxell Ltd, Type CR only. Use of a

different battery has the potential for a risk

of fire, explosion, and electric shock.

WARNING: Battery must be removed from

the timer before it is scrapped.

WARNING: The timer must be

disconnected from the supply mains when

removing the battery.

Help

Europe & South Africa

Email: info@orbiteurope.com

South America

Phone: +  

Email: fbenavides@sercoriego.cl

www.orbitonline.com |bhyve.orbitonline.com

Specifications

Acts as a hub for other

B-hyve™ products

This device complies with Part  of the FCC

Rules. Operation is subject to the following

two conditions:

() This device may not cause harmful

interference, and () this device must

accept any interference received, including

interference that may cause undesired

operation.

FCC Warning: Any changes or modifications

not expressly approved by the party

responsible for compliance could void the

user’s authority to operate this equipment.

This device meets the FCC and IC

requirements for RF exposure in public or

controlled environments.

The end user is advised to maintain a

distance of 20cm from the controller and

any personnel to ensure compliance with RF

exposure regulations.

English

WIFI SPRINKLER TIMER

SMART WIFI SPRINKLER TIMER

Willkommen bei

SMART WIFI SPRINKLER TIMER [Zeitschaltuhr]

Schnell-

startanlei-

tung
