Optoma BM-5001U Guide
Description Qty. Part #
A
main plate 1 055-1939
Bextension bracket 4 055-1940
Cprecision gear projector mount 1 055-KPRGU-B-3
D10-32 x 3/8" socket pin serrated washer head screw 2520-1151
E10-32 x 1/4" socket pin with lock patch 1 520-1196
F4 mm security allen wrench 1560-9646
G6.5 ID x 17.8 OD x 1.6 mm flat washer 2540-1078
H#14 x 2.5 hex phillips wood screw 2 5S1-015-C03
Ialligator anchor 2 590-0097
J2 mm security allen wrench 1560-1097
K#4 flat washer 8 540-1049
L.219 ID x .5 OD x .125 spacer 6540-1032
M.219 ID x .5 OD x .25 spacer 4540-9413
N#8 flat washer 8540-1001
OM3 x 12 mm socket pin serrated washer head screw 4 510-1003
PM4 x 16 mm socket pin serrated washer head screw 4510-1087
QM4 x 8 mm socket pin serrated washer head screw 4510-1005
RM6 x 16 mm socket pin screw 4520-1132
AA connection block 1580-1065
Parts List
ISSUED: 04-20-09 SHEET #: 056-9019-7 09-07-10
Installation and Assembly:
Optoma Universal Projector Mount By Peerless
B
C
A
DE
H
F
IJ
KL
NOTE: The following pages show the attachment points and hardware required to attach main plate
to projectors.
NOTE: Before installation review the directory on page 2 to nd projector conguration.
MNO P Q R
3215 W. North Ave. • Melrose Park, IL 60160 • (800) 729-0307 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com
G
Model: BM-5001U This product is intended for use with UL
Listed products and must be installed by a
qualied professional installer.
Max Load Capacity: 50 lb (22.6 kg)
AA
Locate Projector Model, Corresponding Page
ISSUED: 04-20-09 SHEET #: 056-9019-7 09-07-10
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112 or 708-865-8870.
2 of 11
1
Projector Config. Page Screw Projector Config. Page Screw Projector Config. Page Screw Projector Config. Page Screw
DS611 F 7 4 EP1691 D 6 4 HD200X A 4 3 TW775 I 8 6
DS316 A 4 3 EP7155 D 6 4 HD640 A 4 3 TW1692 D 6 4
DS317 F 7 4 ES520 F 7 4 HD700X A 4 3 TWR1693 J 9 3
DV11 A 4 3 ES522 F 7 4 HD710 A 4 3 TX532 F 7 4
DX606V A 4 3 ES526 A 4 3 HD803 E 6 4 TX536 A 4 3
DX607 J 9 3 ET700XE A 4 3 HD806 E 6 4 TX542 A 4 3
DX608 B 5 3 EW536 A 4 3 HD808 I 8 6 TX612 A 4 3
DX609V A 4 3 EW1610 A 4 3 HD930 E 6 4 TX615 A 4 3
DX612 F 7 4 EX530 F 7 4 HD980 E 6 4 TX727 A 4 3
DX617 F 7 4 EX525S
T
H 8 4 HD2200A 4 3 TX728 A 4 3
DX619 A 4 3 EX532 F 7 4 HD6800 B 5 3 TX735 F 7 4
EP620 A 4 3 EX536 A 4 3 HD7000 A 4 3 TX761 A 4 3
EP721 A 4 3 EX542 A 4 3 HD7200 E 6 4 TX763 A 4 3
EP726S A 4 3 EX612 A 4 3 HD8000 E 6 4 TX765W G 7 4
EP727 A 4 3 EX615 A 4 3 HD8000‐L
V
E 6 4 TX770 A 4 3
EP728 A 4 3 GT700 A 4 3 HD8200 I 8 6 TX771 J 9 3
EP738 A 4 3 GT720 A 4 3 HD806ISF E 6 4 TX773 B 5 3
EP741 A 4 3 HC815 E 6 4 HD8600 I 8 6 TX774 J 9 3
EP751 C5 3 HD20 A 4 3 HT720 A 4 3 TX775 J 9 3
EP758 C 5 3 HD22 A 4 3 HT108
0
E 6 4 TX778W G 7 4
EP759 C 5 3 HD32 A 4 3 HT120
0
E 6 4 TX779 K 10 4
EP761 A 4 3 HD65 A 4 3 PRO150S A 4 3 TX780 C 5 3
EP763 A 4 3 HD66 A 4 3 PRO350
W
A 4 3 TX785 I 8 6
EP747 B 5 3 HD70 A 4 3 PRO450W A 4 3 TX782W G 7 4
EP770 A 4 3 HD71 A 4 3 PRO520X A 4 3 TX1080 E 6 4
EP771 J 9 3 HD72 B 5 3 TH106
0
K 10 4 TX7155 D 6 4
EP772 J 9 3 HD80 E 6 4 TS526 A 4 3 TX7156 D 6 4
EP774 J 9 3 HD80‐LV E 6 4 TS721 A 4 3 TXR774 J 9 3
EP780 C 5 3 HD82I 8 6 TS725 F 7 4
EP910 E 6 4 HD86 I 8 6 TW536 A 4 3
EP1690 B 5 3 HD180 A 4 3 TW766
W
G 7 4
ProjectorModelDirectory
Place projector mount assembly (C) on ceiling as a template and mark the center of the two mounting holes. Make
sure that the mounting holes are in the center of the wood joist. Drill two 5/32” (4 mm) dia. holes to a minimum
depth of 2.5” (64 mm). Attach projector mount assembly (C) with two #14 x 2.5” (6 mm x 65 mm) wood screws (H)
and two 1/4” at washers (G) as shown in gure 2.1 or gure 2.2 depending on joist orientation.
Note: Mounting slots on projector mount assembly (C) allow for 30° (±15°) of swivel adjustment before fully
securing wood screws.
Tighten wood screws (H) using 3/8” (10 mm) socket wrench, phillips screwdriver or 10 mm open end wrench until
projector mount assembly (C) is rmly attached.
Installation To Wood Joist Ceilings
HH
GG
2
• Installer must verify that the supporting surface will safely support the combined load of the equipment and all
attached hardware and components.
• Tighten wood screws so that projector mount assembly is rmly attached, but do not overtighten. Overtightening
can damage the screws, greatly reducing their holding power.
• Never tighten in excess of 80 in. • lb (9 N.M.).
• Make sure that mounting screws are anchored into the center of the stud. The use of an “edge to edge” stud nder
is highly recommended.
• Hardware provided is for attachment of mount through standard thickness drywall or plaster into wood studs. Install-
ers are responsible to provide hardware for other types of mounting situations.
WARNING
ISSUED: 04-20-09 SHEET #: 056-9019-7 09-07-10
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112 or 708-865-8870.
3 of 11
FRONT OF
MOUNT
ARROW ON TOP OF PRO-
JECTOR MOUNT ASSEM-
BLY INDICATES FRONT
OF MOUNT
WOOD JOIST
WOOD JOIST
CC
g. 2.1 g. 2.2
Note: Refer to to the Projector Mount Directory for projector mounting pattern and fasteners.
SHOULDER
FRONT OF
PROJECTOR
1Attach plate (A) to projector using three
M3 x 12 mm socket pin serrated washer head
screws (O), #4 at washers (K) and spacers (L).
2
CONFIGURATION A
ISSUED: 04-20-09 SHEET #: 056-9019-7 09-07-10
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112 or 708-865-8870.
4 of 11
LA
O
K
LD

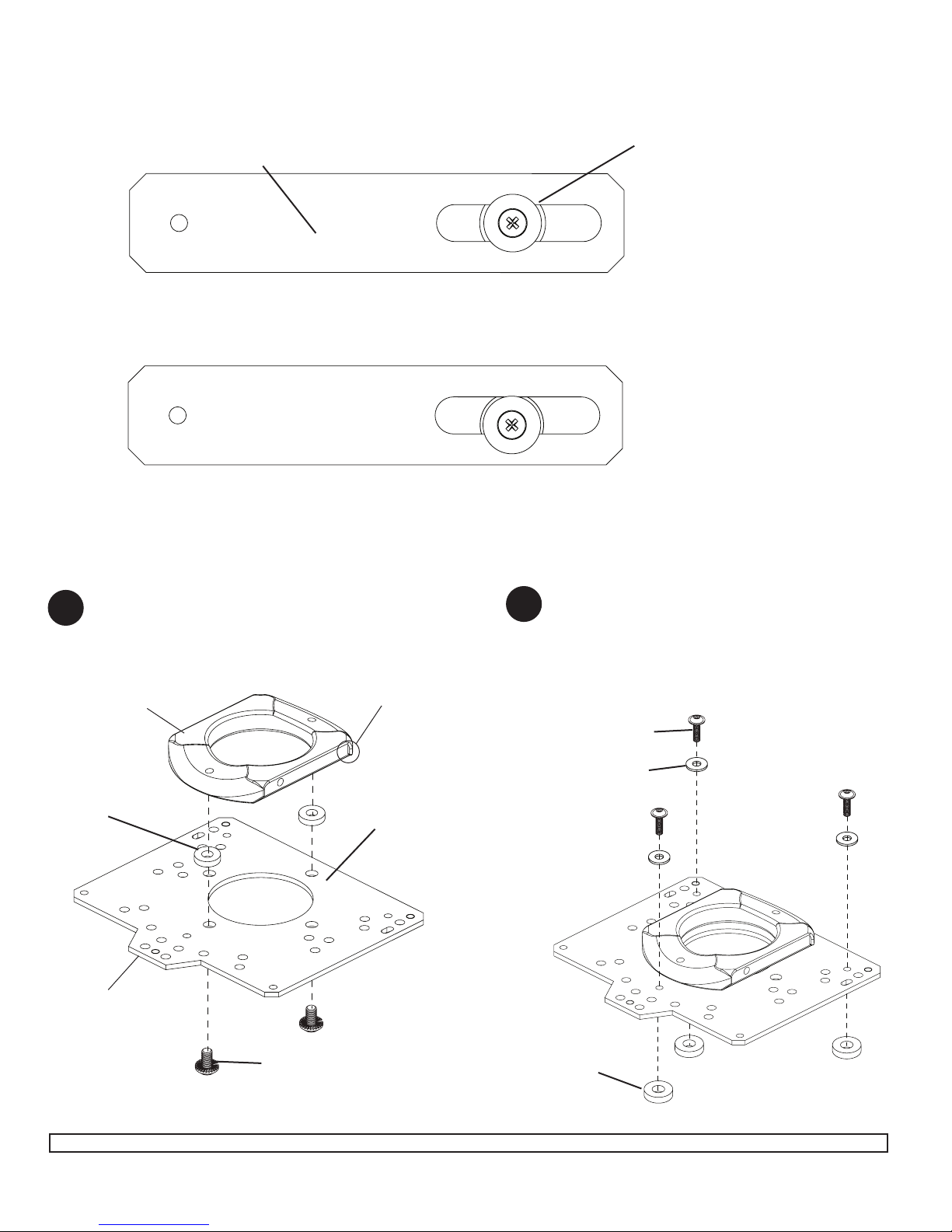

Note: When attaching extension brackets (B) be sure to keep fasteners in the center of the slot.
POSITION SCREW,
SPACER AND WASHER
IN CENTER OF SLOT
B
CORRECT
INCORRECT
Attach connection block (AA) to plate (A) using
two #10-32 x 3/8” serrated socket pin screws (D)
(used in PRG) and .219 ID x .5 OD x .125 spac-
ers (L).
AA
12
2
1
CONFIGURATION B
CONFIGURATION C
ISSUED: 04-20-09 SHEET #: 056-9019-7 09-07-10
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112 or 708-865-8870.
5 of 11
SHOULDER
FRONT OF
PROJECTOR
A
L
SHOULDER
FRONT OF
PROJECTOR
C
LA
O
K
L
O
K
L
D
D

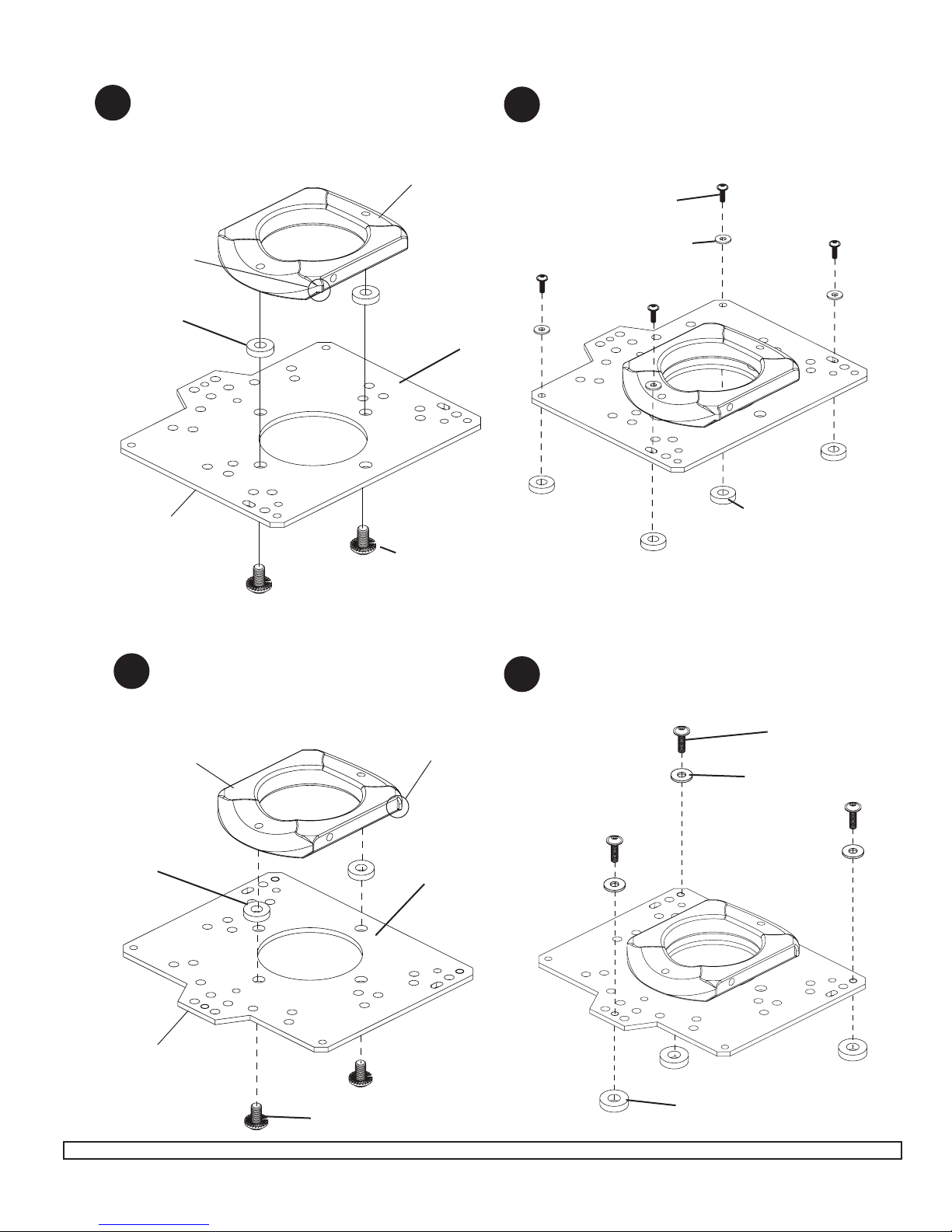

Attach plate (A) to projector using four
M3 x 12 mm socket pin serrated washer head
screws (O), #4 at washers (K) and spacers (L).
Attach plate (A) to projector using three
M3 x 12 mm socket pin serrated washer head
screws (O), #4 at washers (K) and spacers (L).
CORRECT
INCORRECT
Attach connection block (AA) to plate (A) using
two #10-32 x 3/8” serrated socket pin screws (D)
and .219 ID x .5 OD x .125
spacers (L).
Attach connection block (AA) to plate (A) using
two #10-32 x 3/8” serrated socket pin screws (D)
and .219 ID x .5 OD x .125
spacers (L).
AA
AA
2
1
12
CONFIGURATION D
CONFIGURATION E
ISSUED: 04-20-09 SHEET #: 056-9019-7 09-07-10
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112 or 708-865-8870.
6 of 11
SHOULDER
LA
SHOULDER
FRONT OF
PROJECTOR
LA
FRONT OF
PROJECTOR
P
M
O
K
L
Q
D
D
B

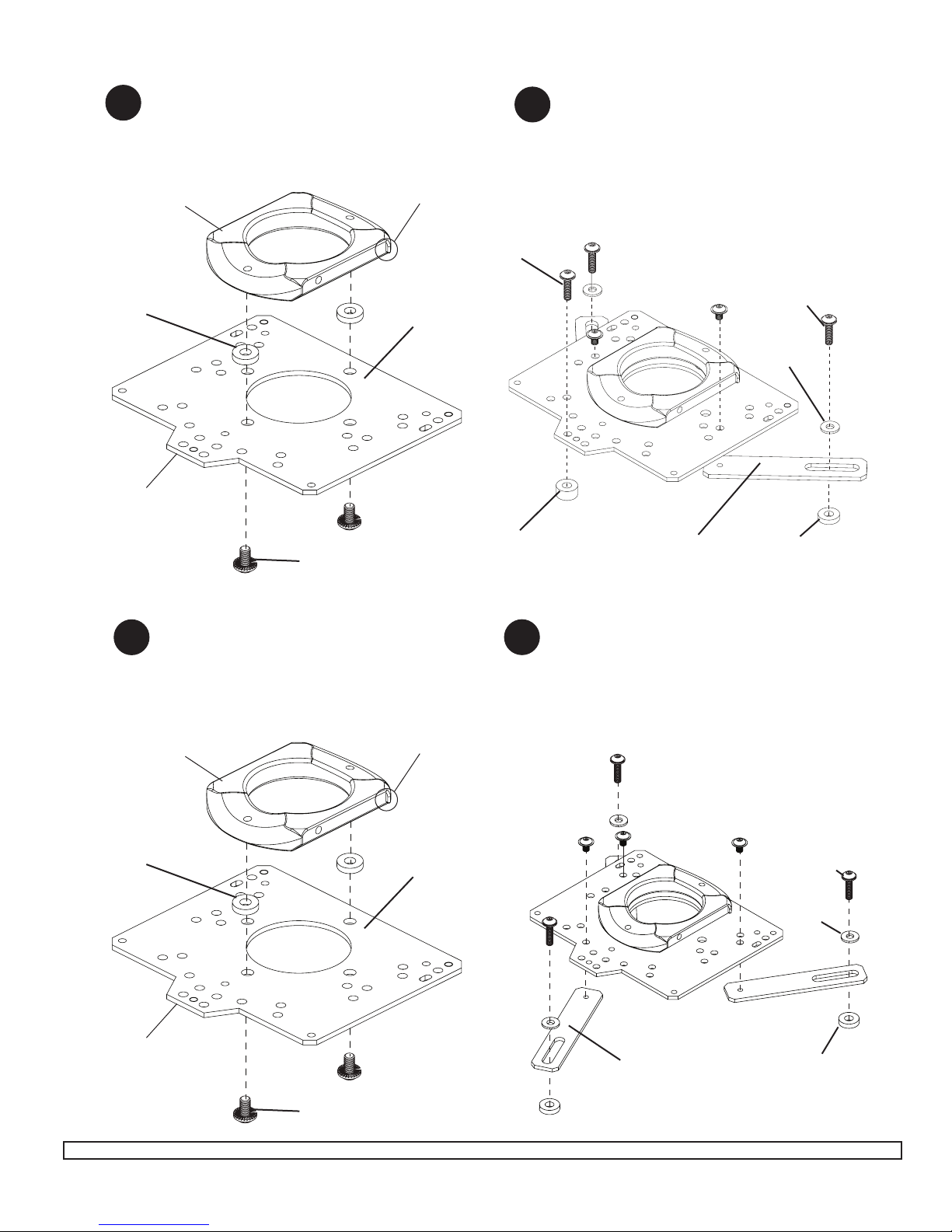

Attach plate (A) to projector using three
M4 x 16 mm socket pin serrated washer head
screws (P), and spacer (M).

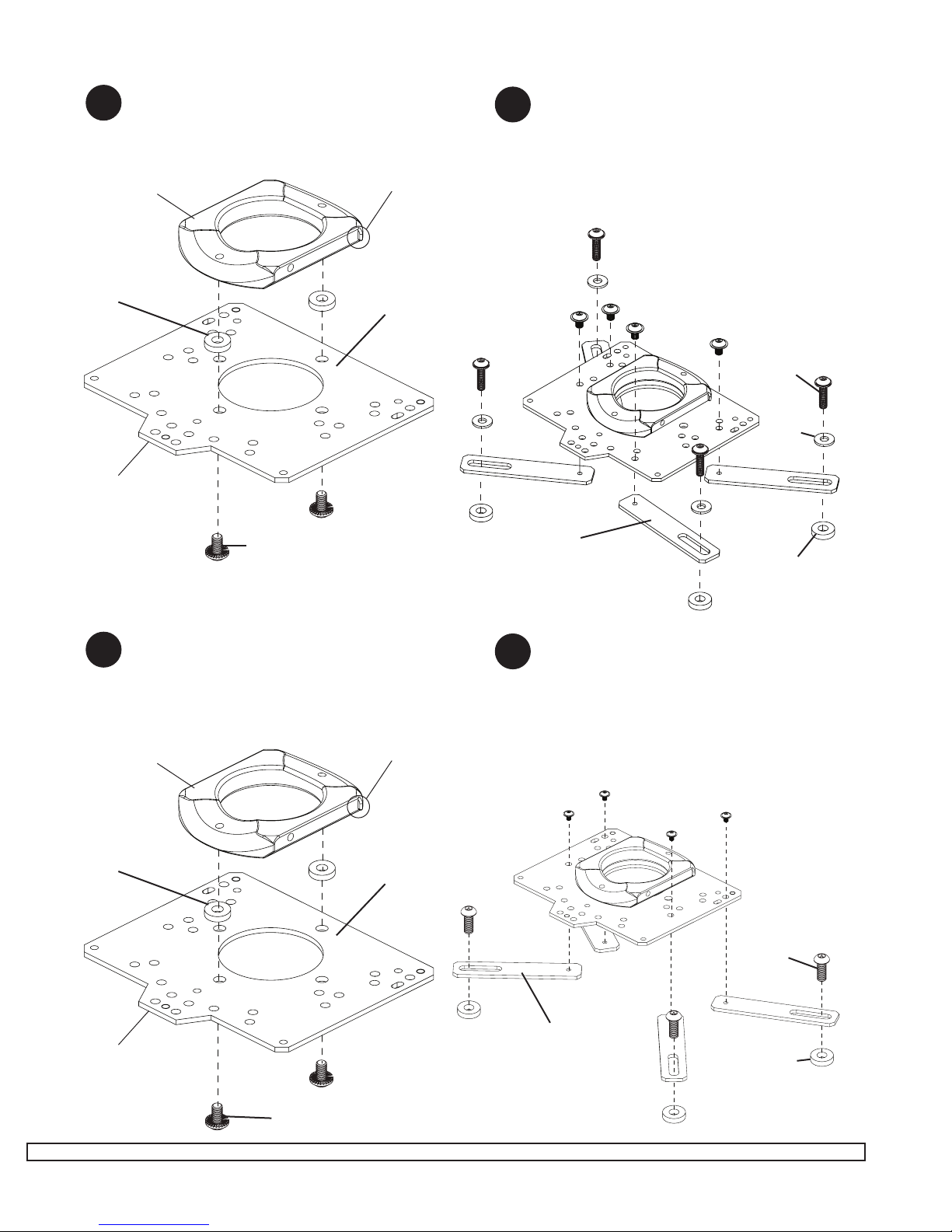

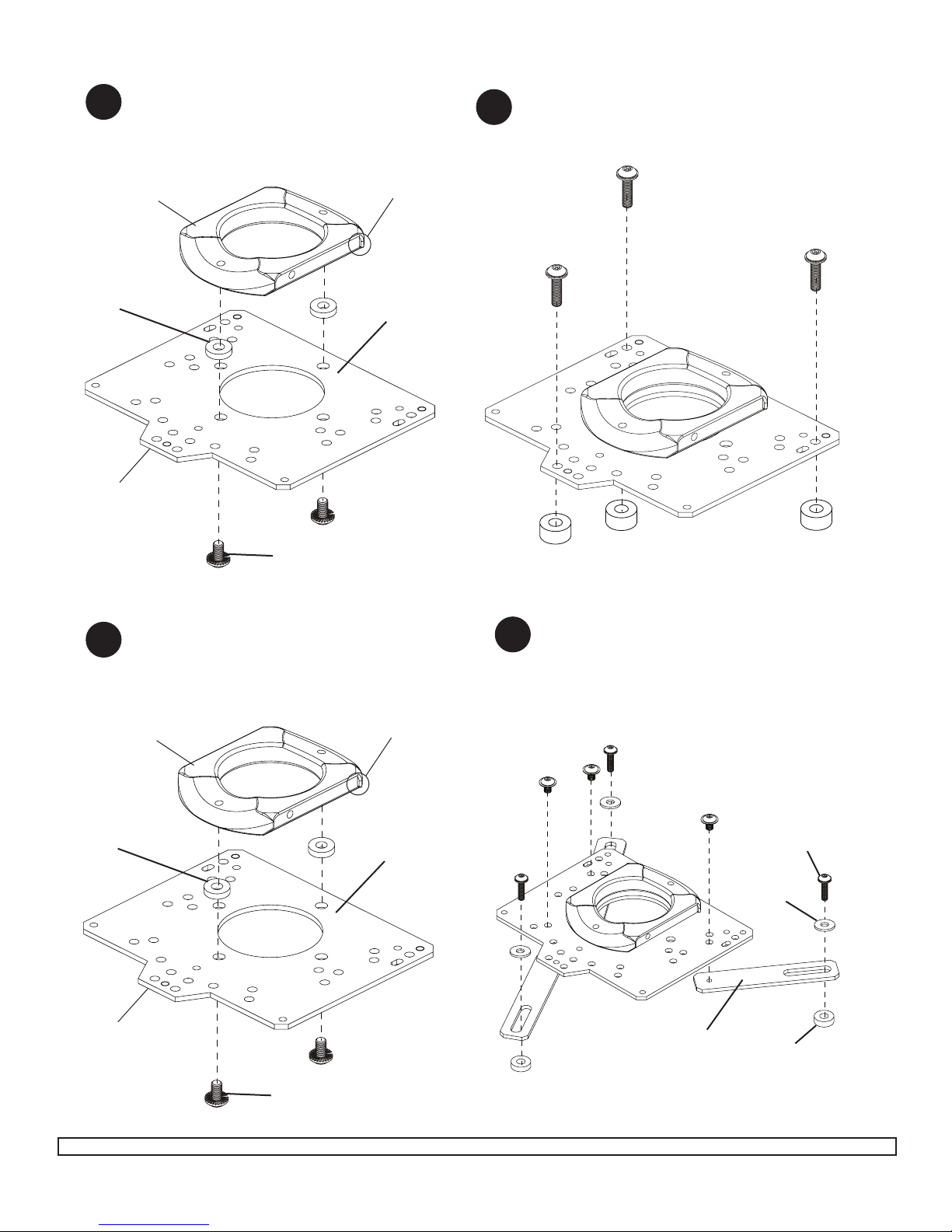

Attach three extension brackets (B) to plate
(A) using three M4 x 8 mm serrated socket pin
screws (Q). Attach extension brackets (B) to
projector using three .125” spacers (L), #4 at
washers (K), and three M3 x 12 mm socket pin
serrated washer head screws (O).
Attach connection block (AA) to plate (A) using
two #10-32 x 3/8” serrated socket pin screws (D)
and .219 ID x .5 OD x .125
spacers (L).
Attach connection block (AA) to plate (A) using
two #10-32 x 3/8” serrated socket pin screws (D)
and .219 ID x .5 OD x .125
spacers (L).
AA
AA
1Attach two extension brackets (B) to plate
(A) using two M4 x 8 mm serrated socket pin
screws (Q). Attach plate (A) to projector using
one .25” spacer (M), and one M3 x 12 mm
screw (O). Attach extension brackets (B) to
projector using two M3 x 12 mm screws (O),
at washers (K), and .125” spacers (L).
2
2
1
CONFIGURATION F
CONFIGURATION G
ISSUED: 04-20-09 SHEET #: 056-9019-7 09-07-10
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112 or 708-865-8870.
7 of 11
SHOULDER
FRONT OF
PROJECTOR
LA
SHOULDER
FRONT OF
PROJECTOR
LAO
K
L
Q
O
K
L
Q
D
D
B
B
M
Attach three extension brackets (B) to plate
(A) using three M4 x 8 mm serrated socket pin
screws (Q). Attach extension brackets (B) to
projector using three .125” spacers (L), #4 at
washers (K), and three M3 x 12 mm socket pin
serrated washer head screws (O).
Attach connection block (AA) to plate (A) using
two #10-32 x 3/8” serrated socket pin screws (D)
and .219 ID x .5 OD x .125
spacers (L).
Attach connection block (AA) to plate (A) using
two #10-32 x 3/8” serrated socket pin screws (D)
and .219 ID x .5 OD x .125
spacers (L).
O
AA
AA
12
12
CONFIGURATION H
CONFIGURATION I
ISSUED: 04-20-09 SHEET #: 056-9019-7 09-07-10
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112 or 708-865-8870.
8 of 11
SHOULDER
FRONT OF
PROJECTOR
LA
SHOULDER
FRONT OF
PROJECTOR
LA
O
K
L
Q
R
L
Q
D
D
B
B
Attach four extension brackets (B) to plate
(A) using four M4 x 8 mm serrated socket pin
screws (Q). Attach extension brackets (B) to
projector using four .125” spacers (L), #4 at
washers (K), and four M3 x 12 mm socket pin
serrated washer head screws (O).
Attach four extension brackets (B) to plate
(A) using four M4 x 8 mm serrated socket pin
screws (Q). Attach extension brackets (B) to
projector using four .125” spacers (L), and four
M6 x 16 mm socket pin serrated washer head
screws (R).
Attach connection block (AA) to plate (A) using
two #10-32 x 3/8” serrated socket pin screws (D)
and .219 ID x .5 OD x .125
spacers (L).
Attach connection block (AA) to plate (A)
using two #10-32 x 3/8” serrated socket pin
screws (D) and .219 ID x .5 OD x .125 spac-
ers (L).
AA
AA
12
CONFIGURATION J
ISSUED: 04-20-09 SHEET #: 056-9019-7 09-07-10
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112 or 708-865-8870.
9 of 11
SHOULDER
FRONT OF
PROJECTOR
LA
O
K
L
L
DBL
K
N
O
O
Q
Attach one extension bracket (B) to plate (A)
using one M4 x 8 mm serrated socket pin
screw (Q). Attach plate (A) to projector using
two .125” spacers (L), one #4 at washer (K),
one #8 at washer (N) and two M3 x 12 mm
screws (O). Attach extension bracket (B) to
projector using one M3 x 12 mm screw (O),
at washers (K), and .125” spacers (L).
Attach connection block (AA) to plate (A)
using two #10-32 x 3/8” serrated socket
pin screws (D) and .219 ID x .5 OD x .125
spacers (L).
Q
B
TOP VIEW
FRONT OF PROJECTOR
AA
1Attach two extension brackets (B) to plate
(A) using two M4 x 8 mm serrated socket pin
screws (Q). Attach plate (A) to projector using
one .25” spacer (M), and one M4 x 16 mm
screw (P). Attach extension brackets (B) to
projector using two M4 x 16 mm screws (P),
at washers (K), and .125” spacers (L).
2
CONFIGURATION K
SHOULDER
FRONT OF
PROJECTOR
LAP
K
L
Q
DB
M
Attach connection block (AA) to plate (A) using
two #10-32 x 3/8” serrated socket pin screws (D)
and .219 ID x .5 OD x .125
spacers (L).
P
AA
ISSUED: 04-20-09 SHEET #: 056-9019-7 09-07-10
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112 or 708-865-8870.
10 of 11
Table of contents
Other Optoma Projector Accessories manuals
Optoma
Optoma UHDCast Pro Quick manual
Optoma
Optoma Projector User manual
Optoma
Optoma CM-E75X User manual
Optoma
Optoma TX778W User manual
Optoma
Optoma PCT-101 User manual
Optoma
Optoma BX-AL133B User manual
Optoma
Optoma ZF2100 Glasses User manual
Optoma
Optoma OWM3000 User manual
Optoma
Optoma BM-3300ST User manual
Optoma
Optoma 3D-XL User manual
Optoma
Optoma 3D-XL Technical manual
Optoma
Optoma A16 UST Series User manual
Optoma
Optoma DS-9106MGA Manual
Optoma
Optoma ALR100 Installation guide
Optoma
Optoma AKPro User manual
Optoma
Optoma BX-AL133B User manual
Optoma
Optoma BM-9005U User manual
Optoma
Optoma WS-9211G User manual
Optoma
Optoma EP731 User manual
Optoma
Optoma BX-AL133 User manual
