One Forall URC-7540 User manual

Retain For Future Reference

USER GUIDE & CODE BOOK

Universal Remote

URC-7540

QUICK SET-UP

QUICK SEARCH

INSTALLING THE BATTERIES

THE KEYPAD

INSTALLATION

Direct Set-Up 7

The Search Method 8

SET-UP CODES

Quick Code Reference 10

Televisions 11

Video Recorders 16

Satellite Receivers 18

Cable Converters 21

ADVANCED FEATURES

Controlling Colour and Brightness 22

Punch-Through 22

Teletext and Fastext 23

Menu 24

Sleeptimer 25

Scan 27

The AUX Key 28

Changing the Device Keys 29

TROUBLE-SHOOTING

Helpful Hints 30

Consumer Help-Line 31

Table of Contents

About Your ONE FOR ALL 4

Your ONE FOR ALL 4 Package contains:

Your ONE FOR ALL 4 Remote

Your ONE FOR ALL 4 Manual

Your manual is divided into two parts: set-up instructions and

device codes. You may need this guide again in the

future, so please be sure to keep it.

Your ONE FOR ALL 4 needs 2 new “AA/LR03” batteries.

Your ONE FOR ALL 4 can operate four devices: a Television,

a Video Recorder, a Satellite Receiver and a second Television,

Video or Satellite Receiver. Your ONE FOR ALL 4 can also

operate Cable Converters.

Device

Keys

Volume-/

Menu Left

Rewind/

Text on

TV/VCR/Red Record/Yellow

Stop/Green

Pause/Hold

Fast Forward/

Expand

Programme-/

Menu down

Programme+/

Menu up

Power

LEDs

Number

Keys

Teletext Keys

Slow/Blue

Play/Text off

Volume+/

Menu Right

Mute/OK

Magic

Quick Set-Up

The instructions below and on the next page

can be used to quickly install your new ONE

FOR ALL.

You can use the Quick Set-Up below with the

codes listed on pages 11-21. If this doesn’t

work, try the Quick Search on the next page.

The Quick Search can also be used even if

your brand is not listed at all.

Press device key:

Press and hold

until the red light blinks

twice. Then release.

Enter

(4-digit code). See pages

11-21. The red light will

blink twice.

Aim remote at your

device and press

(or PLAY).

NOTES:

- Make sure your device is switched on.

- The instructions above are a “Quick”

set-up guide. For further explanation,

please refer to the pages within.

- Make sure you write your Set-Up codes

in the boxes provided inside the

battery compartment for easy future

reference.

or or or

____

Quick Search

Aim your ONE FOR ALL at

your device and press

device key:

Press and hold

until the red light blinks

twice.

Press

Alternate between the

device key ( )

and until your

device turns off.

When device turns off,

press . The red

light will blink twice.

Your device is Set Up.

NOTES:

- Make sure your device is switched on.

- Make sure you aim your ONE FOR ALL

at your device during “Quick Search”.

- During step 4, you may have to press

these keys many times, so please be

patient.

- If your Video’s original remote control

does not have a power key, press PLAY

instead of POWER during step 4.

ie:

or or or

Your ONE FOR ALL 4 needs 2 new “AA/LR03” alkaline batteries.

Remove the battery cover from the

back of your ONE FOR ALL 4 by

pressing down on the tab.

Match the batteries to the + and -

marks inside the battery case, then

insert the batteries.

Press the battery cover back into

place.

Installing the Batteries

Important notes:

- In order to avoid having to reprogram your ONE FOR ALL 4

after you remove the batteries, you will need to insert new

batteries within 5 minutes. Also it is best that you do not use

rechargable batteries.

- On the inside of the battery compartment door you will find a

label on which to write your Set-Up codes after your ONE FOR

ALL 4 is set up for your device. Please write down your codes

for easy, future reference.

Key Function

LEDs LEDs

The LEDs (Light Emitting Diode) flash red to

show the remote is working. Over each

device key (TV, VCR, SAT, AUX) there is a

LED. During operation of the ONE FOR ALL

these LEDS will indicate the mode you are

using.

MAGIC Key

The MAGIC key is used to set up your ONE

FOR ALL 4 and to access special functions.

The Menu key controls the same function as

it did on your original remote.

Power

The Power key controls the same function as

it did on your original remote.

Device Keys

The TV, VCR, SAT and AUX keys select the

home entertainment device to be

controlled. For example pressing the TV key

allows the remote to control the functions

of your Television, after pressing VCR you

can operate your Video Cassette Recorder

and the SAT key operates your Satellite

Receiver or Cable Box. The AUX key

operates a second television, video recorder

or satellite.

Volume, Programme

The Volume and Programme keys control

the two most frequently used functions of

your Television and Satellite Receiver. They

operate just as those on your original remote.

These keys are also used to operate the menu

feature of your device. See page 24 for

more details.

Mute

The Mute key operates the same function it

did on your orginal remote control. It is also

used to activate the Scan feature (see page

27). Also, if your original remote control

required that you press an “OK” key during

Menu operation, the Mute key can be used

for this function.

The Keypad

Key Function

Number Keys

The Number keys (0-9, 10, 20) provide

functions just like your original remote, such

as direct access programme selection. If your

original remote uses one/two digit input

switching (-/-- symbol), this function can be

obtained by pressing the -/-- key, which is the

same as the 10 key. If your original remote

has an AV, key this function can also be

found under the 20 key.

Video Recorder Keys

After pressing the VCR key, the Video

Recorder keys operate the functions of your

Video Recorder. To prevent accidental

recording, the Record key must be pressed

twice to start recording.

Teletext Keys

After pressing the TV key, the top row of

the VCR keys are used to operate the main

teletext functions. The symbols below the

keys are for teletext. The text keys are used

to access the teletext functions of your

Television. Of course, your Television must be

teletext capable. For an explanation of the

teletext symbols, please refer to page 23 of this

manual. For a detailed explanation on how

teletext works, please refer to the manual

of your Television set.

After pressing the TV key, the bottom row

of the Video Recorder keys marked red,

green, yellow and blue, allow you to access

the fastext functions of your television.

Again, your television must be fastext

capable to operate these functions. For a

more detailed explanation of teletext and

fastext, please refer to the manual of your

television set.

The Keypad

(red)

(on)

(off)

(expand)

(hold)

(blue)

(yellow)

(green)

-/--

Direct Set-Up

Setting Up Your Devices

To set up the ONE FOR ALL 4 for your TV, VCR, Satellite and

Cable Box, follow the instructions below.

To set up your TV:

Find your Television code in the

Set-Up Code section (starting on page

11). Codes are listed by brand name. The

most popular code is listed first. Make

sure your Television is switched on.

Press and release your ONE FOR ALL 4’s

TV key, then press and hold down the

MAGIC key until the red light blinks

twice (the light will blink once then

twice).

Enter your four-digit TV code using the

number keys. The red light will blink

twice.

Now, aim the ONE FOR ALL 4 at your

Television and press POWER. If your

Television switches off, your ONE FOR

ALL 4 should be ready to run your

Television.

Turn your device back on and try all the

remote’s functions to ensure they are

working properly. If the functions do not

work properly, repeat steps 1-5 using

another code listed under your brand.

Write your code in the four boxes provided in the battery

compartment and on page 10 for easy future reference.

ONE FOR ALL

Acura

Admiral

Adyson

Agazi

AGB

Agef

Aiko

0009

0087, 0093, 0363, 041

0217, 0216

0264

0516

0087

0216, 0009, 0037, 0

0037, 0274

0361, 0208, 0371,

Installation

Important notes:

- To set up your Video Recorder or Satellite, follow the same

instructions above, only press the VCR or SAT key during step 2.

- To set up your Cable Box, follow the instructions above only

press the SAT key during step 2.

- Some codes are quite similar. If your device does not respond or

is not functioning properly with one of the codes, try another

code listed under your brand.

- If your Television, Video or Satellite does not respond, follow

steps 1 through 5 with each code listed for your brand. If none

of the codes listed for your brand operate your device, try the

search method described on page 8, even if your brand is not

listed at all.

- If you change programmes on your Television through your

Video Recorder, press VCR and not TV, before you use the

programme keys.

- Remember, to control your device after the ONE FOR ALL is set

up, you must press the device key first (TV, VCR, SAT).

- Write the codes for your devices in the boxes provided on page

10 and in the battery compartment for easy future reference.

____

The Search Method

If your Television, Video Recorder, Satellite Receiver or Cable

Box does not respond to the ONE FOR ALL 4 after you have

tried all the codes listed for your brand, try searching for your

code. The Search Method may also work if your brand is not

listed at all.

Let's say you cannot get your ONE FOR ALL 4 to control your

Television.

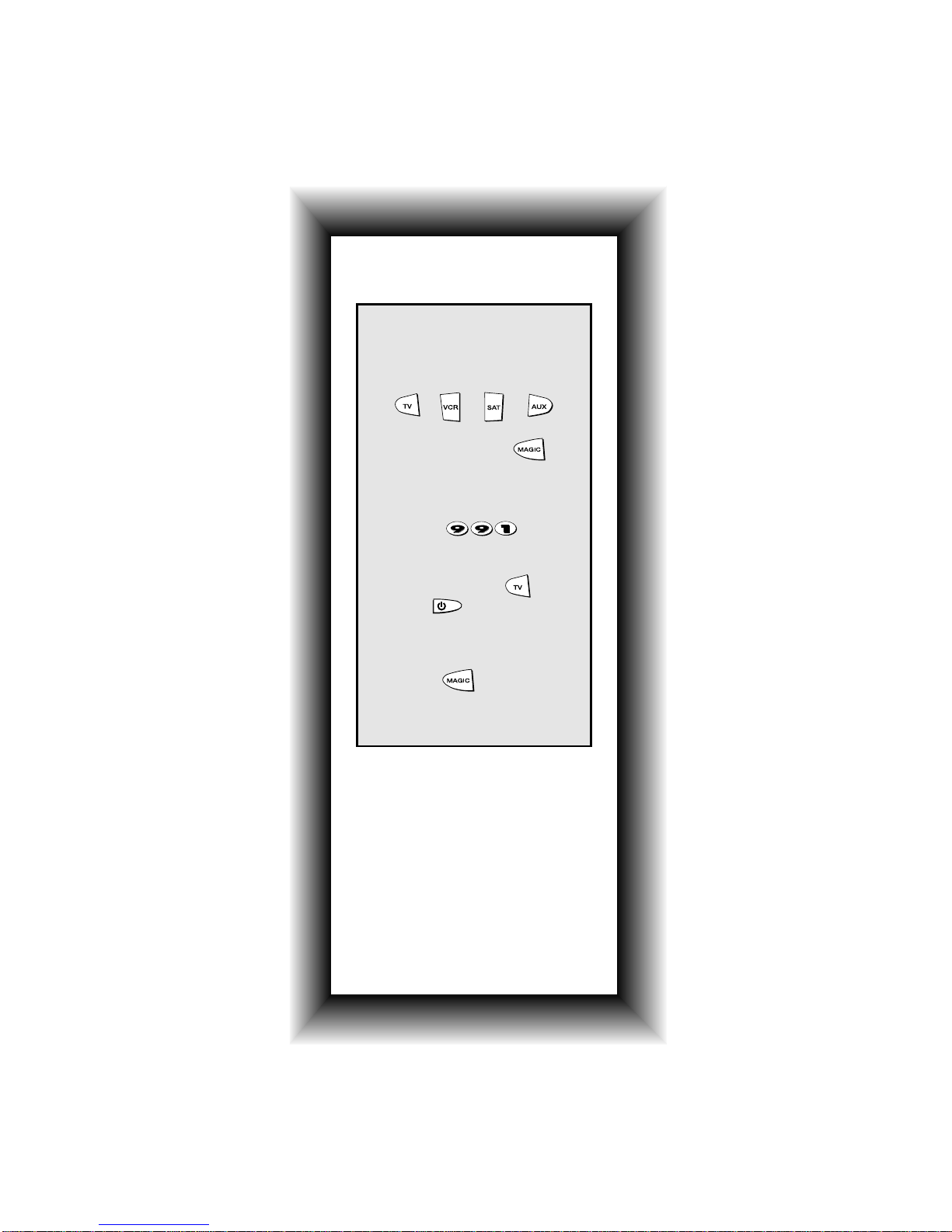

To search for your TV code:

Switch your Television on.

Press the TV key on your ONE FOR ALL 4.

Aim the ONE FOR ALL 4 at your

Television. Press and hold down

MAGIC until the ONE FOR ALL 4’s red

light blinks twice. Then, press 9 9 1.

The red light will blink twice.

Now, alternate between TV and POWER,

over and over, until your Television turns

off. You may have to press these keys

many times, so please be patient.

Remember to keep pointing the ONE

FOR ALL 4 at your Television when you

press the POWER and TV keys.

When your Television turns off, press

MAGIC. Don't forget, press MAGIC as

soon as your Television turns off.

The ONE FOR ALL remote should now be

ready to operate your device. Turn your

device back on and try all the remote’s

functions to ensure they are working

properly. If some of the ONE FOR ALL’s

commands are not operating correctly,

try the search method again. You may be

using the wrong code.

Installation

Important notes:

- To search for the code for your Video or Satellite follow the

instructions above only press VCR or SAT during steps 2 and 4.

To search for the code for your Cable Box, press SAT during step

2 and 4.

- If your Video's original remote control does not have a power

key, press PLAY instead of POWER when searching for your code.

- During step 4, you may have to press these keys many times (up

to 150!) so be patient. Remember you must aim the ONE FOR

ALL at your device the entire time you are searching for your

code.

This manual suits for next models

Table of contents

Other One Forall Universal Remote manuals

One Forall

One Forall URC6810 User manual

One Forall

One Forall OARC05G User manual

One Forall

One Forall URC-6230 User manual

One Forall

One Forall URC 3050 User manual

One Forall

One Forall URC-7940 User manual

One Forall

One Forall URC-7510 User manual

One Forall

One Forall URC-4220 Installation and operation manual

One Forall

One Forall SMART CONTROL PRO User manual

One Forall

One Forall KAMELEON 5 URC-8305 User manual

One Forall

One Forall SmartControl URC-7960 User manual

One Forall

One Forall URC-9966 User manual

One Forall

One Forall URC-7562 User manual

One Forall

One Forall 8L User manual

One Forall

One Forall URC-3300 User manual

One Forall

One Forall KAMELEON URC-8308 User manual

One Forall

One Forall URC-7711 Quick start guide

One Forall

One Forall SO EASY URC-2530 User manual

One Forall

One Forall 3 Zapper User manual

One Forall

One Forall OFA Kameleon URC-6690 User manual

One Forall

One Forall KAMELEON 5 User manual

One Forall

One Forall 705016 User manual

One Forall

One Forall Topline User manual

One Forall

One Forall URC-1031 User manual

One Forall

One Forall SPORT User manual

Popular Universal Remote manuals by other brands

Pronto

Pronto Peel quick start guide

GE 24929 instruction manual

Radio Shack

Radio Shack Wireless Remote Control System owner's manual

AUVIO

AUVIO Universal Home Theater Remote user guide

Philips

Philips Icon SRU4106 Specifications

THOMSON

THOMSON ROC4309 Operating instruction

Philips

Philips pm625S instruction manual

GE RM94931 instruction manual

RCA

RCA RCU600WMS - Universal Remote Control user manual

Blackweb

Blackweb BWB17AV002 user guide

Marmitek

Marmitek DoorGuard 300 user manual

Chunghop

Chunghop RM-L618 user manual

GE RM24965 instruction manual

Anderic

Anderic KTN828 operating manual

Sunwave Tech.

Sunwave Tech. Touch Screen Remote Control brochure

Medion

Medion E74023 instruction manual

intensity

intensity RM02A Operation manual

GE RM24950 instruction manual
