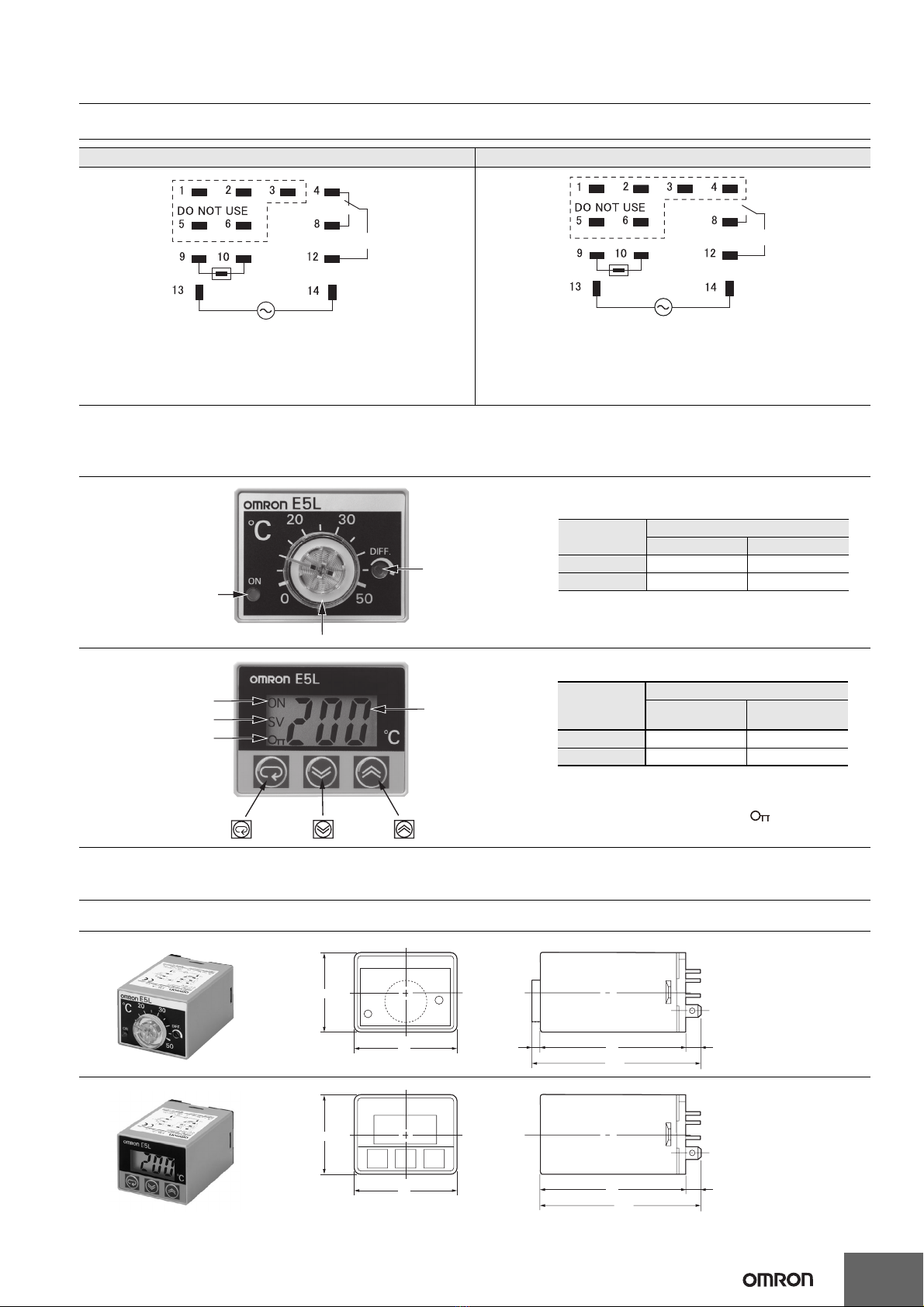

E5L
7
Safety Precautions
Do not touch the terminals while power is being supplied.
Doing so may occasionally result in minor injury due to
electric shock.
Do not allow pieces of metal, wire clippings, or fine metallic
shavings or filings from installation to enter the Product.
Doing so may occasionally result in electric shock, fire, or
malfunction.
Do not use the Product where subject to flammable or
explosive gas. Otherwise, minor injury from explosion may
occasionally occur.
Never disassemble, modify, or repair the Product or touch
any of the internal parts. Minor electric shock, fire, or
malfunction may occasionally occur.
If the output relays are used past their life expectancy,
contact fusing or burning may occasionally occur. Always
consider the application conditions and use the output
relays within their rated load and electrical life expectancy.
The life expectancy of output relays varies considerably
with the output load and switching conditions.
Tighten the terminal screws to between 0.74 and 0.90 N·m.
Loose screws may occasionally result in fire.
Set the parameters and wiring of the Product so that they
are suitable for the system being controlled. Unexpected
operation may occasionally result in property damage or
accidents.
A malfunction in the Product may occasionally make
control operations impossible or prevent alarm outputs,
resulting in property damage. To maintain safety in the
event of malfunction of the Product, take appropriate safety
measures, such as installing a monitoring device on a
separate line.
Be sure to observe the following precautions to prevent failure to
operate, malfunction, or adverse effects on the performance and
functions of the Thermostat. Not doing so may occasionally result in
unexpected events.
1. The Product is designed for indoor use only.
Do not use the Product outdoors or in any of the following
locations.
•Locations directly subject to heat radiated from heating
equipment
•Locations subject to water or oil
•Locations subject to direct sunlight
•Locations subject to dust or corrosive gas (in particular, sulfide
gas and ammonia gas)
•Locations subject to sudden or extreme temperature changes
•Locations subject to icing or condensation
•Locations subject to vibration or shock
2. Use and store the Product within the rated temperature and
humidity ranges. Provide forced cooling if required.
3. To allow heat to escape, do not block the area around the
Product.
4. Be sure to wire the Product properly with the correct terminal
polarity.
5. Use the specified size of crimped terminals for wiring (M3.5, width
of 6.8 mm or less). To connect bare wires to the terminals, use
copper wires with a gauge of AWG24 to AWG14 (equal to a
cross-sectional area of 0.205 to 2.081 mm2). (The stripping length
is 5 to 6 mm.) Do not connect more than two wires or two crimp
terminals to one terminal. When connecting two wires, they must
be of the same size and type.
6. Do not connect anything to terminals that are not used.
7. Allow as much space as possible between the Thermostat and
devices that generate powerful high frequencies or surges.
Separate the wiring to the Thermostat from high-voltage or high-
current lines, and do not place the wiring to the Thermostat in
parallel with or in the same wiring paths as power lines.
8. Use this Product within the rated load and power supply
specifications.
9. Turn ON the power supply at least 30 minutes prior to starting
control operations.
10. A switch or circuit breaker must be provided close to the
Thermostat. The switch or circuit breaker must be within easy
reach of the operator, and must be marked as a disconnecting
means for the Thermostat.
11. Do not use paint thinner or similar solvents to clean the
Thermostat. Use standard grade alcohol.
12. Design the system (e.g., the control panel) considering the 2.5
second of delay between turning ON the Thermostat and
stabilization of the Thermostat's output.
CAUTION Precautions for Safe Use
