Omron FQ SHORT User manual

ZX-T Series

Cat. No. Z306-E1-02A

Vision Sensor

SHORT MANUAL

Cat. No. Z306-E1-02A Note: Speciﬁcations subject to change without notice.

Authorized Distributor:

Printed in Europe

Cat. No. Z306-E1-02A Vision Sensor FQ SHORT MANUAL

FQ Short Manual 1

Table of Contents

1. Introduction

1-1 FQ-series Vision Sensors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1-2 Measurement Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1-3 Startup Display and Display Elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1-4 Basic Operational Flow. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2. Installation and Connections

2-1 System Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2-2 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2-3 Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2-4 Setting Up Ethernet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

3. Taking Images

3-1 Selecting a Sensor for Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

3-2 Adjusting Image Quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

3-3 Adjusting the Object Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

4. Setting Up Inspections

4-1 Inspection Item Selection Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

4-2 Setup Procedure for Inspection Items . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

4-3 Inspecting with the Search Inspection Item . . . . . . . . . . . . . . . . . . . . . . . 36

4-4 Inspecting with the Edge Position Inspection Item . . . . . . . . . . . . . . . . . 38

4-5 Inspecting with the Edge Width Inspection Item . . . . . . . . . . . . . . . . . . . 40

4-6 Inspecting with the Area Inspection Item . . . . . . . . . . . . . . . . . . . . . . . . . 42

4-7 Inspecting with Color Data Inspection Item . . . . . . . . . . . . . . . . . . . . . . . 44

5. Testing and Saving Settings

5-1 Performing Test Measurements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

5-2 Adjusting the Judgement Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

5-3 Checking a List of All Inspection Item Results . . . . . . . . . . . . . . . . . . . . 51

5-4 Saving Data to the Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

2FQ Short Manual

6. Operation

6-1 Starting Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

6-2 Configuring the Run Mode Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

6-3 Adjusting Judgement Parameters during Operation. . . . . . . . . . . . . . . . 58

7. Communications with External Devices

7-1 Operation with Default Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

7-2 Setting the Measurement Trigger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

7-3 Setting the Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

7-4 Controlling the Sensor from an External Device . . . . . . . . . . . . . . . . . . . 68

Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

1 Introduction

Introduction

1-1 FQ-series Vision Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

1-2 Measurement Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

1-3 Startup Display and Display Elements . . . . . . . . . . . . . . . . . . . . . . . . . .6

1-4 Basic Operational Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

FQ-series Vision Sensors

4FQ Short Manual

1-1 FQ-series Vision Sensors

FQ-series Vision Sensors are real-color Vision Sensors with integrated processing. Once configured, they are

used stand-alone for quality inspection of presence, position, and other product characteristics. To set up or

monitor the sensors, either the touch screen based console 'Touch Finder' or a 'PC Tool' can be used.

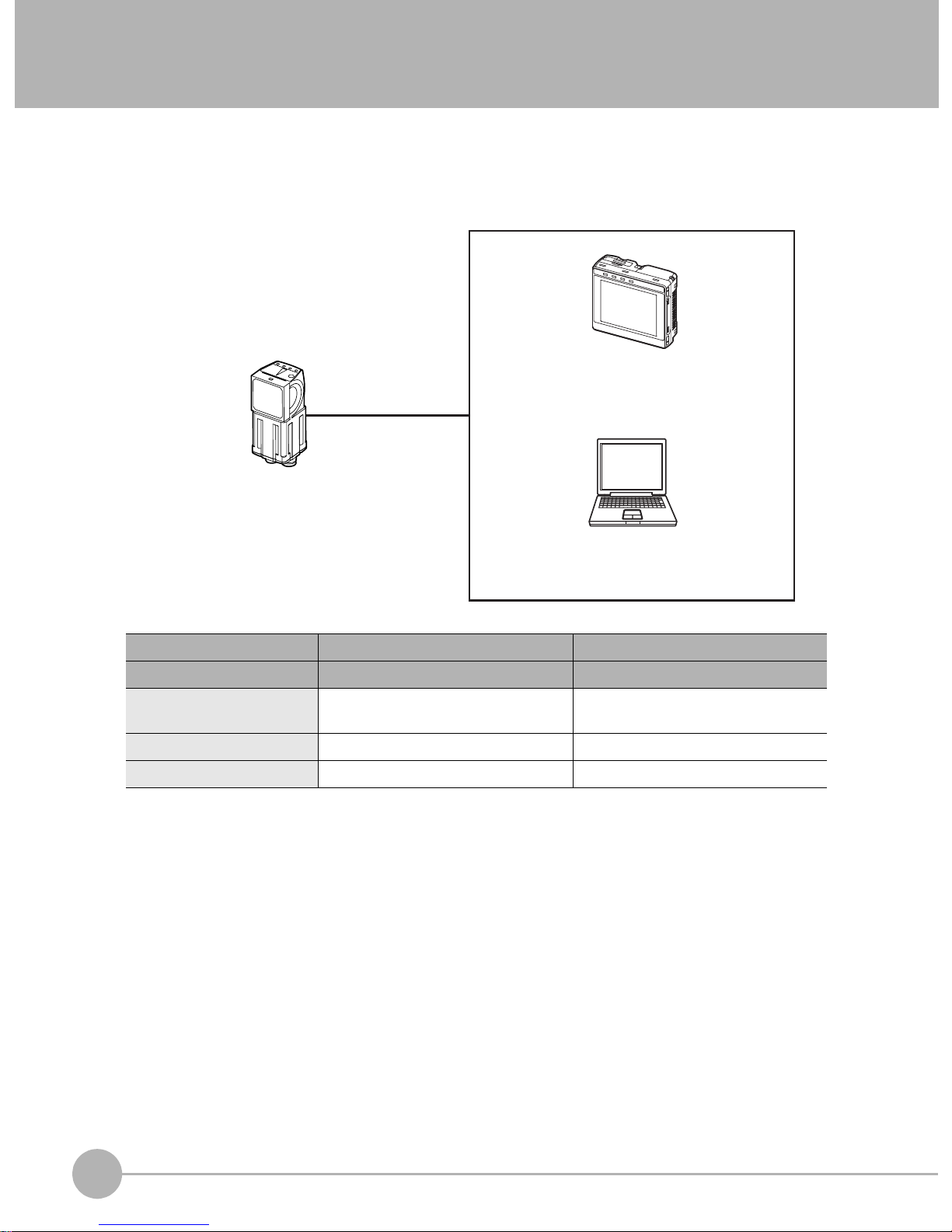

FQ-series Vision Sensors are available in two different models. The differences are given in the following table.

Model Standard model Single-function model

Model number FQ-S2@@@@@ FQ-S1@@@@@

Number of simultaneous

measurements

32 1

Number of registered scenes 32 8

Position compensation Supported Not supported

The same functions as those that are provided

by the Touch Finder can be performed from a

computer. The PC Tool is available free of

charge.

Includes the camera, lighting, measurement

processor, and I/O functions.

After the Sensor has been set up, it can be

operated alone to perform measurements

without the Touch Finder or PC Tool.

PC Tool

Used to check images and set the judgement

parameters. It can also be used to save

measurement results and check status during

operation.

FQ Vision Sensor

Touch Finder

Setup, Image Confirmation, and Logging Tools

Measurement Process

FQ Short Manual 5

1 Introduction

1-2 Measurement Process

This section describes the basic flow of the measurement process.

• The measurement is started by inputting a trigger signal from an external

device.

• Images are taken according to the trigger.

• The image is measured to see if it matches the configured settings.

• The overall judgement of all inspection items are output using OR logic.

• Measurement data and image data can be logged in memory in the Sensor or

in an SD card.

Trigger input

Take image

Measurement

Overall judgement

output

Logging

Startup Display and Display Elements

6FQ Short Manual

1-3 Startup Display and Display Elements

Startup Display

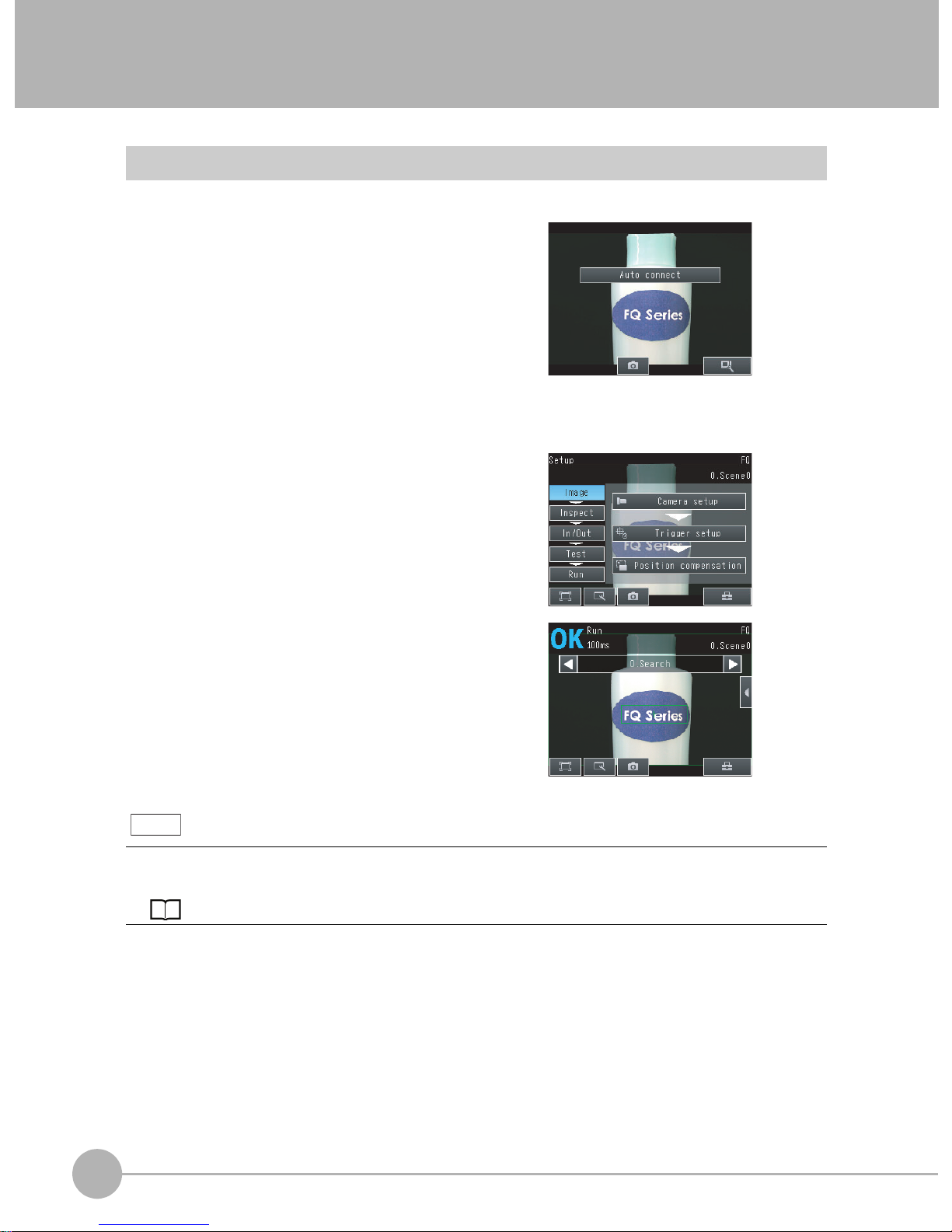

1The Sensor is automatically detected by the Touch

Finder when power supply to the Sensor and Touch

Finder is turned ON.

The Auto Connect Display will appear if the Sensor can-

not be detected. Check that cables are connected cor-

rectly to the Sensor and Touch Finder, and then press

[Auto connect].

2When the Sensor is detected, the following display will appear.

• The Setup Mode will appear if a Sensor that has not been

set up is connected.

• The Run Mode will appear if a Sensor that has been set

up is connected.

When the Touch Finder is started, IP addresses are automatically set for each Sensor.

To allocate specific IP addresses, set the IP address of each Sensor and the Touch Finder.

Setting Up Ethernet: p. 20

Note

Startup Display and Display Elements

FQ Short Manual 7

1 Introduction

Display Elements

This Sensor has a Setup Mode and a Run Mode.

Setup Mode

In Setup Mode, you can set the image conditions, judgement parameters, and I/O settings for the Sensor.

Run Mode

In Run Mode, measurements are performed, and measurement results are output.

p. 53

The Display Button can be used to switch between the following images.

• Live: The live image is displayed.

• Freeze: The image that was taken last is displayed.

• Log: An image saved in internal memory is displayed.

• File: An image saved on an SD card is displayed.

Tool Button: Used to call functions, such as saving data or select scenes.

Capture Button: Used to capture the current screen to the SD card.

This button menu is always displayed.

[Image]: Used to adjust the image.

[In/Out]: Used to set the I/O.

[Run]: Used to switch to Run Mode.

[Test]: Used to test and adjust the set measurements.

[Inspect]: Used to set the inspection items.

The setup flow is shown by these five tabs.

•If the [ ] Button appears, pressing it will display the

sub-menu or commands.

•Buttons will appear on the right according to the mode.

The menu changes according to the selected tab page.

The selected scene number is displayed.

The name of the Sensor being set up is displayed.

Only-image Button: Used to select either displaying the camera image and messages, or

only the camera image.

Display Button: Used to select the source of the image or to zoom the image.

The name of the mode or the

menu hierarchy is displayed.

Note

Basic Operational Flow

8FQ Short Manual

1-4 Basic Operational Flow

The following flow shows the basic operation of FQ-series Vision Sensors.

*1: In Setup Mode, the Sensor can be set up and adjusted, but it does not output signals on the I/O lines.

*2: In Run Mode, the Sensor performs measurements and outputs signals on the I/O lines.

Operation*2 Starting Operation (Run Mode)

Saving the Settings

Adjusting Judgement

Parameters

Test Measurement and

Results Verification

Testing ([Test] Tab Page)

Output Settings

([In/Out] Tab Page)

Setup Evaluation*1

Setting Judgement

Parameters

Inspection Setup

([Inspect] Tab Page)

Teaching

Registering

Inspection Items

Image Setup

([Image] Tab Page)

Starting the Sensor

Connections and Wiring Section 2 Installation

and Connections

Section 1

1-3 Startup Display

and Display Elements

Section 3 Taking

Images

Section 4 Setting Up

Inspections

Section 7

Communications with

External Devices

Section 5 Testing and

Saving Settings

Section 6 Operation

This manual suits for next models

Table of contents
