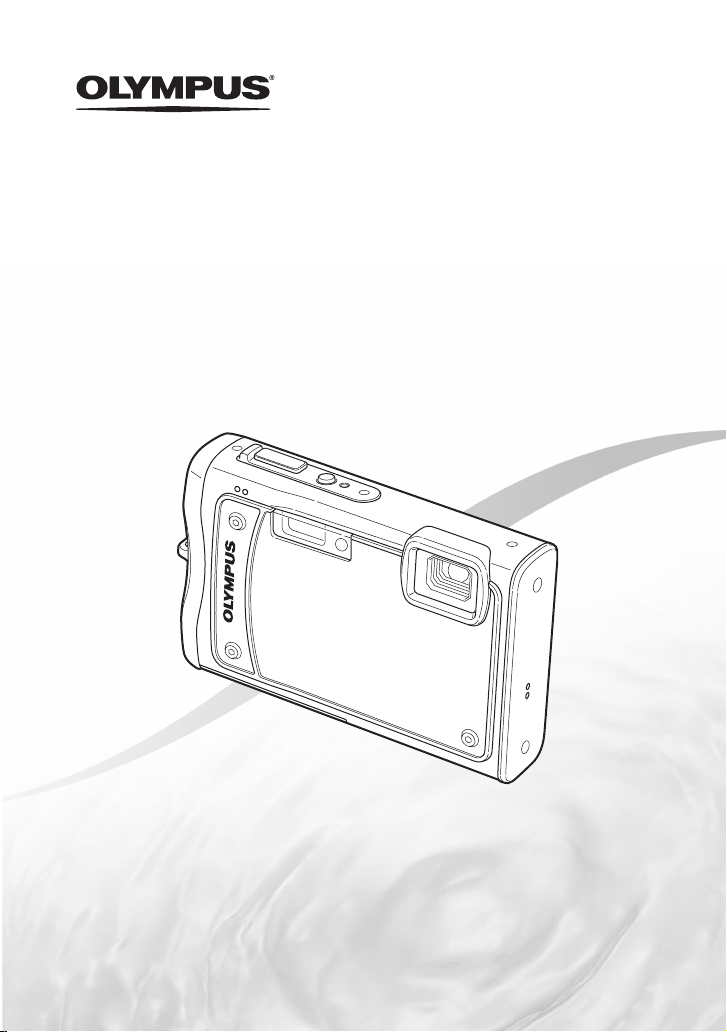

Olympus STYLUS TOUGH-8000 User manual

DIGITAL CAMERA

STYLUS TOUGH-8000 /

TOUGH-8000

●Thank you for purchasing an Olympus digital camera. Before you start to

use your new camera, please read these instructions carefully to enjoy

optimum performance and a longer service life. Keep this manual in a

safe place for future reference.

●We recommend that you take test shots to get accustomed to your

camera before taking important photographs.

●In the interest of continually improving products, Olympus reserves the

right to update or modify information contained in this manual.

●The screen and camera illustrations shown in this manual were produced

during the development stages and may differ from the actual product.

Instruction Manual

Step 5

Step 2

Step 4

Step 3

How to Use the Camera

“Four Types of Setting Operations” (p. 3)

Printing

“Direct printing (PictBridge)” (p. 51)

“Print Reservations (DPOF)” (p. 54)

Shooting and Playing Back Images

“Shooting, Viewing, and Erasing” (p. 16)

Preparing the Camera

“Preparing the Camera” (p. 10)

Step 1

Checking the contents of the box

Digital camera

Strap LI-50B Lithium Ion

Battery

AC adaptor (F-1AC)

USB cable AV cable OLYMPUS Master 2 CD-ROM microSD Attachment

Other accessories not shown: Instruction Manual (this manual), warranty card

Contents may vary depending on purchase location.

ContentsContents

Names of Parts ......................................6

Preparing the Camera .........................10

Shooting, Viewing, and Erasing .........16

Using Shooting Modes........................19

Using Shooting Functions..................22

Using Playback Features ....................27

Menus for Shooting Functions...........29

Menus for Playback, Editing, and

Printing Functions...............................37

Menus for Other Camera Settings .....42

Printing .................................................51

Using OLYMPUS Master 2...................57

Usage Tips ...........................................59

Appendix ..............................................64

Index .....................................................82

Printed in China VN049601

DIGITAL CAMERA

STYLUS TOUGH-8000 /

TOUGH-8000

●Thank you for purchasing an Olympus digital camera. Before you start to

use your new camera, please read these instructions carefully to enjoy

optimum performance and a longer service life. Keep this manual in a

safe place for future reference.

●We recommend that you take test shots to get accustomed to your

camera before taking important photographs.

●In the interest of continually improving products, Olympus reserves the

right to update or modify information contained in this manual.

●The screen and camera illustrations shown in this manual were produced

during the development stages and may differ from the actual product.

Instruction Manual

Step 5

Step 2

Step 4

Step 3

How to Use the Camera

“Four Types of Setting Operations” (p. 3)

Printing

“Direct printing (PictBridge)” (p. 51)

“Print Reservations (DPOF)” (p. 54)

Shooting and Playing Back Images

“Shooting, Viewing, and Erasing” (p. 16)

Preparing the Camera

“Preparing the Camera” (p. 10)

Step 1

Checking the contents of the box

Digital camera

Strap LI-50B Lithium Ion

Battery

AC adaptor (F-1AC)

USB cable AV cable OLYMPUS Master 2 CD-ROM microSD Attachment

Other accessories not shown: Instruction Manual (this manual), warranty card

Contents may vary depending on purchase location.

ContentsContents

Names of Parts ......................................6

Preparing the Camera .........................10

Shooting, Viewing, and Erasing .........16

Using Shooting Modes........................19

Using Shooting Functions..................22

Using Playback Features ....................27

Menus for Shooting Functions...........29

Menus for Playback, Editing, and

Printing Functions...............................37

Menus for Other Camera Settings .....42

Printing .................................................51

Using OLYMPUS Master 2...................57

Usage Tips ...........................................59

Appendix ..............................................64

Index .....................................................82

Printed in China VN049601

MEMO

1Set the mode dial to a position other

than A.

The symbol in “Menu

Settings” (p. 29 to 50)

indicates available shooting

modes.

2Press the button.

This example describes how to set the

[DIGITAL ZOOM].

EXIT SET

CAMERA MENU

Shooting mode top menu

3Use EFGH to select the desired

menu, and press the button.

Pressing and

holding the E

button displays

an explanation

(menu guide) of the

selected option.

ISO

OFF

CAMERA MENU

SET

AUTO

FINE ZOOM

DIGITAL ZOOM

DRIVE

AUTOWB

EXIT

Submenu 1

●

Please read “Menu Settings” (p. 29 to 50) while referring to this page.

button

Arrow pad

button

Buttons in use

4Use EF to select the desired

Submenu 1, and press the button.

ISO

OFF

CAMERA MENU

AUTO

FINE ZOOM

DIGITAL ZOOM

DRIVE

AUTOWB

EXIT SET

ISO

OFF

CAMERA MENU

AUTO

FINE ZOOM

DIGITAL ZOOM

DRIVE

AUTOWB

SET

BACK

DIGITAL ZOOM

OFF

Page tab Submenu 2

To quickly move to the desired submenu,

press Gto highlight the page tab, and then

use EF to move the page tab. Press Hto

return to the Submenu 1.

Some menus include submenus that appear

by pressing the button.

5Use EF to select the Submenu 2,

and press the button.

Once a setting is adjusted, the display returns to

the previous screen.

There may be

additional operations.

“Menu Settings” (p. 29

to 50)

6Press the button to complete the

setting.

●

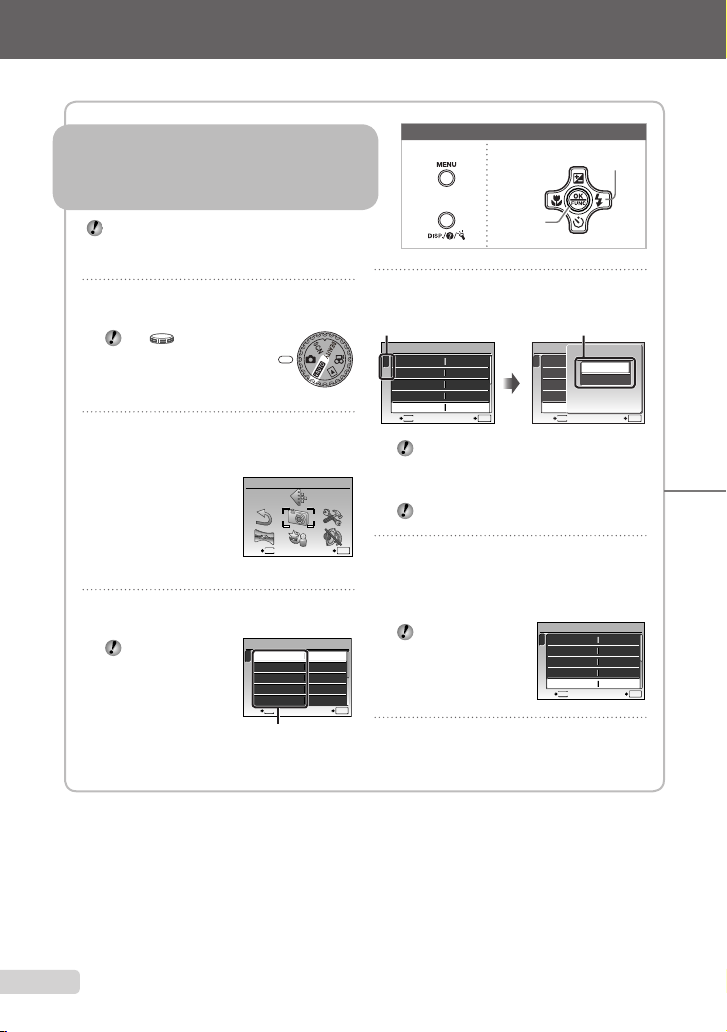

Four Types of Setting Operations

Ebutton

Using the MenuUsing the Menu

Various camera settings can be accessed through the

menus, including functions used during shooting and

playback and the date/time and screen display.

There may be unavailable menus depending on the

other related settings or the selected mode

(p. 33).

2ISO

OFF

CAMERA MENU

AUTO

FINE ZOOM

DIGITAL ZOOM

DRIVE

AUTOWB

EXIT SET

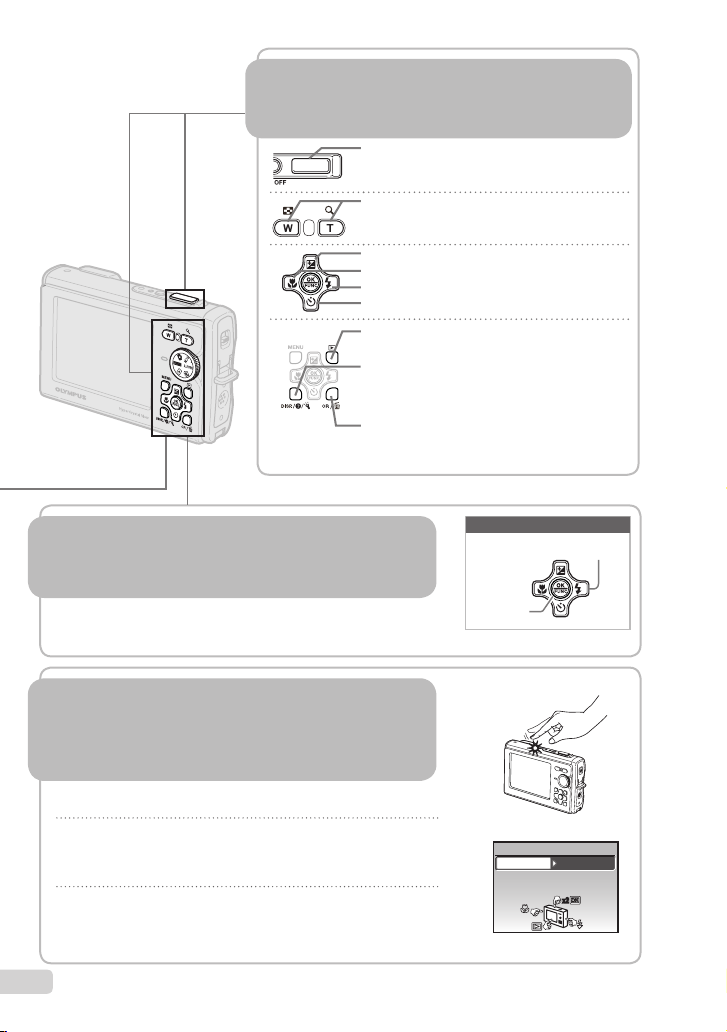

Using the FUNC Menu (p. 25)Using the FUNC Menu (p. 25)

Frequently used shooting menu functions can be set with less

steps using the FUNC menu.

Using the Direct ButtonsUsing the Direct Buttons

Frequently used shooting functions can be accessed using the direct

buttons.

Shutter button (p. 15)

Zoom button (p. 22, p. 27)

Fbutton (exposure compensation) (p. 23)

&button (macro) (p. 23)

#button (ash) (p. 22)

Ybutton (self-timer) (p. 24)

qbutton (playback) (p. 17)

g/E/Ybutton (information display

change/menu guide/date and time check/LED

illuminator) (p. 3, p. 14, p. 24)

o/button (panorama/tap control/

Shadow Adjustment Technology/multi window/

erase) (p. 18, p. 26)

button (p. 3, p. 25)

Arrow pad

button

Buttons in use

Operating the camera by tapping theOperating the camera by tapping the

bodybody (p. 49)(p. 49)

You can operate the camera by tapping the body when [TAP CONTROL]

is [ON].

To set [TAP CONTROL] to [ON]

1Tap the top surface of the camera twice.

The [TAP CONTROL] settings screen displays.

2Tap the top surface of the camera twice.

The setting is conrmed.

●

ONOFF

TAP CONTROL

Tap the camera body to operate

the camera.

MEMO

1Set the mode dial to a position other

than A.

The symbol in “Menu

Settings” (p. 29 to 50)

indicates available shooting

modes.

2Press the button.

This example describes how to set the

[DIGITAL ZOOM].

EXIT SET

CAMERA MENU

Shooting mode top menu

3Use EFGH to select the desired

menu, and press the button.

Pressing and

holding the E

button displays

an explanation

(menu guide) of the

selected option.

ISO

OFF

CAMERA MENU

SET

AUTO

FINE ZOOM

DIGITAL ZOOM

DRIVE

AUTOWB

EXIT

Submenu 1

●

Please read “Menu Settings” (p. 29 to 50) while referring to this page.

button

Arrow pad

button

Buttons in use

4Use EF to select the desired

Submenu 1, and press the button.

ISO

OFF

CAMERA MENU

AUTO

FINE ZOOM

DIGITAL ZOOM

DRIVE

AUTOWB

EXIT SET

ISO

OFF

CAMERA MENU

AUTO

FINE ZOOM

DIGITAL ZOOM

DRIVE

AUTOWB

SET

BACK

DIGITAL ZOOM

OFF

Page tab Submenu 2

To quickly move to the desired submenu,

press Gto highlight the page tab, and then

use EF to move the page tab. Press Hto

return to the Submenu 1.

Some menus include submenus that appear

by pressing the button.

5Use EF to select the Submenu 2,

and press the button.

Once a setting is adjusted, the display returns to

the previous screen.

There may be

additional operations.

“Menu Settings” (p. 29

to 50)

6Press the button to complete the

setting.

●

Four Types of Setting Operations

Ebutton

Using the MenuUsing the Menu

Various camera settings can be accessed through the

menus, including functions used during shooting and

playback and the date/time and screen display.

There may be unavailable menus depending on the

other related settings or the selected mode

(p. 33).

2ISO

OFF

CAMERA MENU

AUTO

FINE ZOOM

DIGITAL ZOOM

DRIVE

AUTOWB

EXIT SET

Using the FUNC Menu (p. 25)Using the FUNC Menu (p. 25)

Frequently used shooting menu functions can be set with less

steps using the FUNC menu.

Using the Direct ButtonsUsing the Direct Buttons

Frequently used shooting functions can be accessed using the direct

buttons.

Shutter button (p. 15)

Zoom button (p. 22, p. 27)

Fbutton (exposure compensation) (p. 23)

&button (macro) (p. 23)

#button (ash) (p. 22)

Ybutton (self-timer) (p. 24)

qbutton (playback) (p. 17)

g/E/Ybutton (information display

change/menu guide/date and time check/LED

illuminator) (p. 3, p. 14, p. 24)

o/button (panorama/tap control/

Shadow Adjustment Technology/multi window/

erase) (p. 18, p. 26)

button (p. 3, p. 25)

Arrow pad

button

Buttons in use

Operating the camera by tapping theOperating the camera by tapping the

bodybody (p. 49)(p. 49)

You can operate the camera by tapping the body when [TAP CONTROL]

is [ON].

To set [TAP CONTROL] to [ON]

1Tap the top surface of the camera twice.

The [TAP CONTROL] settings screen displays.

2Tap the top surface of the camera twice.

The setting is conrmed.

●

ONOFF

TAP CONTROL

Tap the camera body to operate

the camera.

1GSLIDESHOW ............... p.37

2HPERFECT FIX ............. p.37

3MBEAUTY FIX................ p.37

4IEDIT

Q(Resize) ................ p.38

P(Crop) .................... p.38

COLOR EDIT............... p.38

Menus for Playback, Editing, and Printing Functions

When the mode dial is set to the qposition, settings can be

adjusted.

EXIT SET

PLAYBACK MENU

Playback mode top menu

CALENDAR................. p.39

INDEX.......................... p.39

5JPLAYBACK MENU

0(Protect) ............... p.39

y(Rotate)................... p.40

R(Add sound to still

images) .................... p.40

6KERASE......................... p.40

7LPRINT ORDER ............ p.41

8ESETUP*

*Same as “Menus for

Shooting Functions”

9FSILENT MODE ............ p.50

1AIMAGE QUALITY......... p.29

2BCAMERA MENU

WB............................... p.30

ISO .............................. p.30

DRIVE.......................... p.31

FINE ZOOM................. p.31

DIGITAL ZOOM ........... p.31

ESP/n....................... p.32

AF MODE .................... p.32

R(Sound recording) .... p.32

IMAGE STABILIZER

(Still images)/

DIS MOVIE MODE

(Movies) ................... p.32

SHADOW ADJ............. p.33

3 OSCENE MODE............. p.33

4NPANORAMA................. p.34

4PMOVIE ......................... p.36

5DRESET......................... p.36

6 ESETUP

MEMORY FORMAT/

FORMAT .................. p.42

BACKUP...................... p.42

W(Language)........ p.42

PW ON SETUP ........... p.43

MENU COLOR ............ p.43

SOUND SETTINGS..... p.44

REC VIEW................... p.44

FILE NAME.................. p.45

PIXEL MAPPING......... p.45

s(Monitor) ............... p.46

X(Date/time)............ p.46

DUALTIME................... p.46

VIDEO OUT................. p.47

POWER SAVE............. p.48

LED ILLUMINATOR..... p.48

MANOMETER ............. p.48

m/ft............................... p.48

TAP CONTROL ........... p.49

7FSILENT MODE ............ p.50

Menu Index

Menus for Shooting Functions

When the mode dial is set to a shooting mode position

(AKsbn), settings can be adjusted.

EXIT SET

CAMERA MENU

3 7

Shooting mode top menu

Only for Pmode

Names of Parts

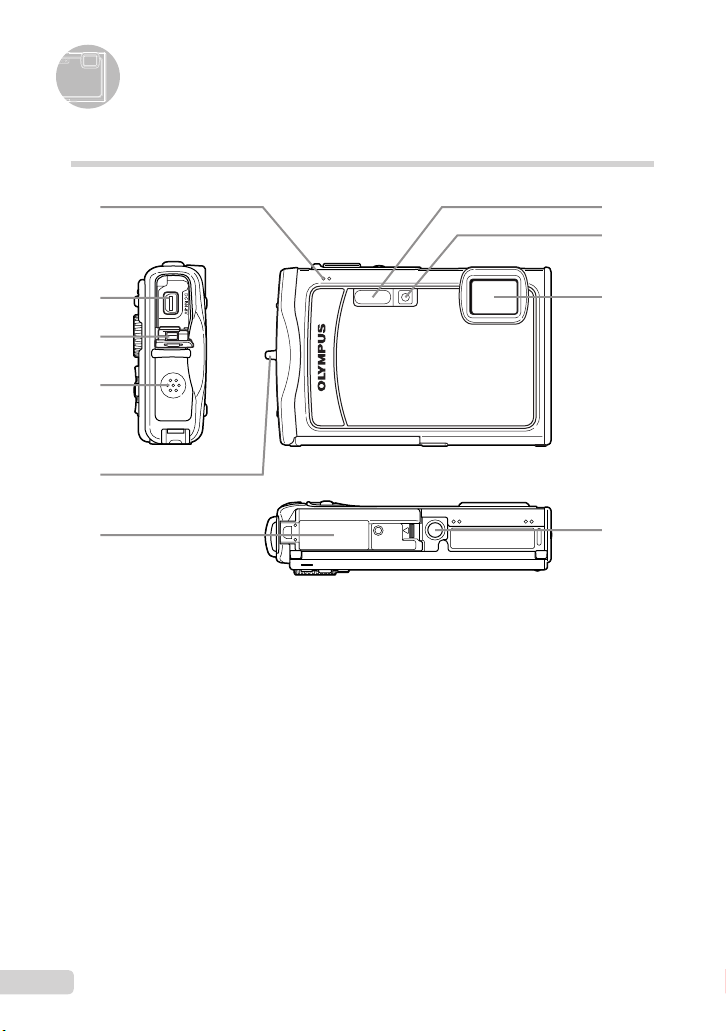

1Microphone ............................ p.32, 40

2Multi-connector ................ p.47, 51, 57

3Connector cover ........ p.47, 51, 57, 70

4 Speaker .......................................... —

5Strap eyelet.................................. p.10

6Battery/card compartment cover

......................................... p.10, 60, 70

Camera unit

7 Flash ............................................ p.22

8Self-timer lamp/LED illuminator

............................................... p.24, 48

9Lens ............................................. p.64

10 Tripod socket .................................. —

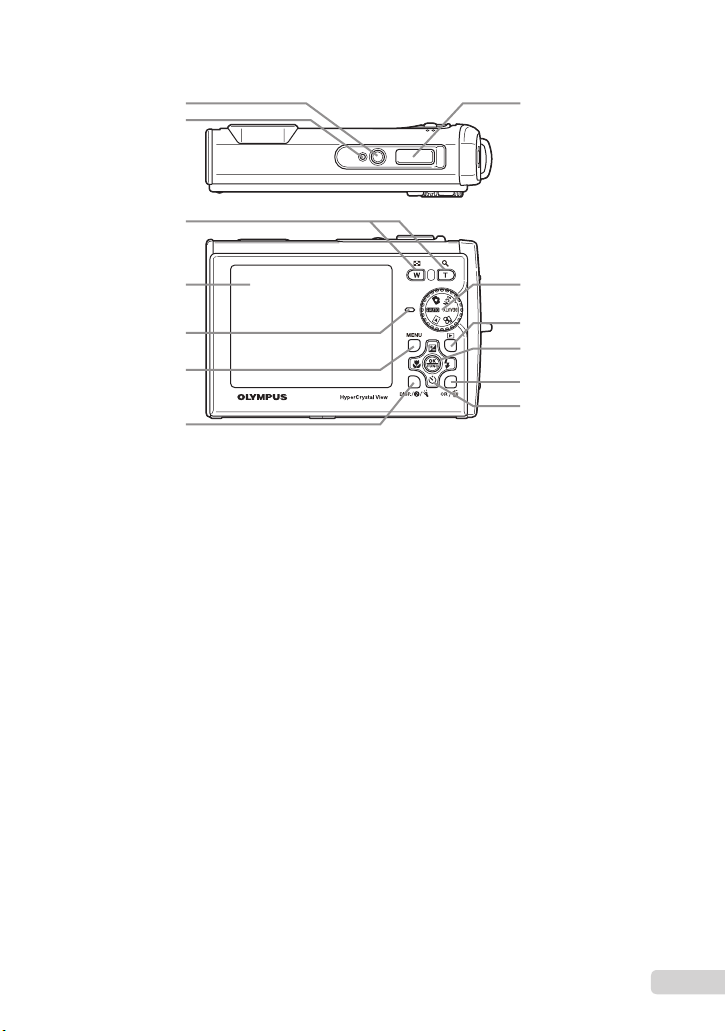

1nbutton .............................p.14

2Underwater sensor .......... p.19, 26, 30

3Zoom button........................... p.22, 27

4Monitor......................... p.8, 16, 46, 59

5Card access lamp/

charging indicator ................ p.66/p.12

6mbutton.............................. p.3, 5

7DISP./E/Ybutton

(information display change/

menu guide/date and time check/

LED illuminator) ................. p.3, 14, 24

8Shutter button ........................ p.16, 59

9Mode dial ................. p.3, 5, 16, 17, 19

10 qbutton (playback) ................... p.17

11 obutton (OK/FUNC).............. p.3, 25

12 o/Dbutton (panorama/tap control/

Shadow Adjustment Technology/

multi window/erase) ............... p.18, 26

13 Arrow pad ............................ p.3, 4, 13

Fbutton

(exposure compensation)........ p.23

&button (macro) .................... p.23

Ybutton (self-timer) ............... p.24

#button (ﬂash).......................p.22

Monitor

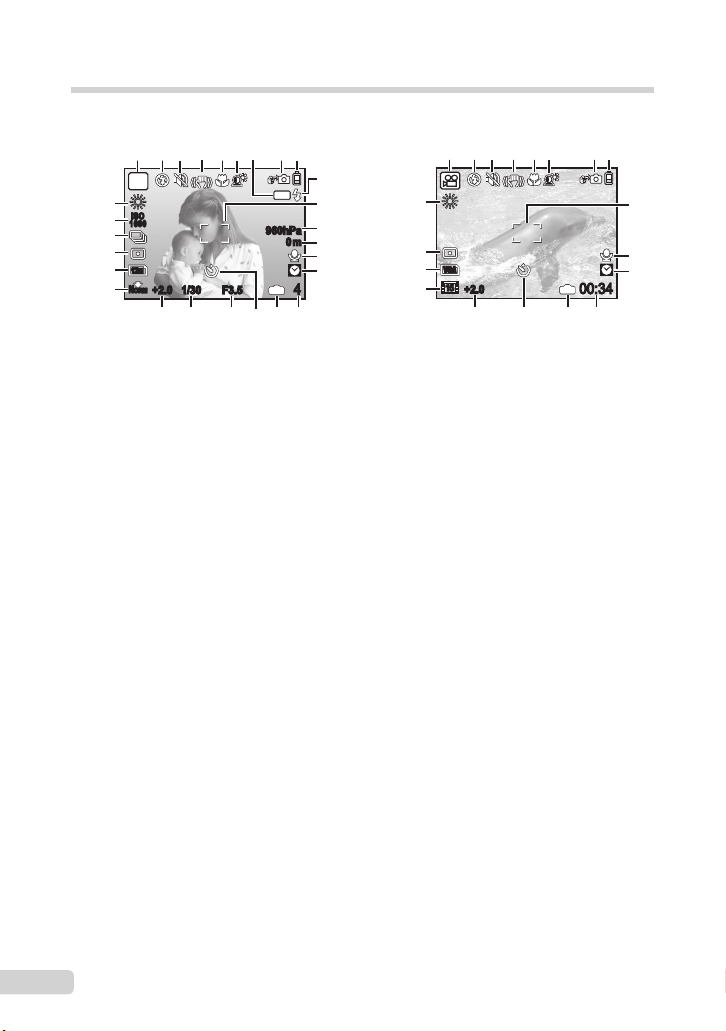

Shooting mode display

+2.0 1/30 F3.5

ISO

1600

AFL

ORM

17192021 1618

2 5 98763

+2.0

00:34

VGA

17 161821

2 544 983 6

960hPa

Still image Movie

1Shooting mode....................... p.19, 21

2Flash mode .................................. p.22

3Silent mode.................................. p.50

4Image stabilization (still images)/

Digital image stabilization (movies)

..................................................... p.32

5Macro/super macro/

S-macro LED mode ..................... p.23

Shadow Adjustment Technology

... p.33

7AF lock......................................... p.19

8Tap control ......................... p.4, 34, 49

9Battery check ......................... p.12, 60

10 Flash standby/camera shake warning/

ﬂash charge ................................. p.59

11 AF target mark ............................. p.16

12 Atmospheric/

hydraulic pressure ....................... p.48

13 Altitude/water depth ..................... p.48

14 Sound record ......................... p.21, 32

15 Dual time...................................... p.46

16 Number of storable still pictures/

remaining recording time

......................................... p.16, 21, 67

17 Current memory........................... p.66

18 Self-timer .....................................p.24

19 Aperture value ............................. p.16

20 Shutter speed .............................. p.16

21 Exposure compensation .............. p.23

22 Compression/Frame rate ............. p.29

23 Image size ................................... p.29

24 Metering....................................... p.32

25 Drive ............................................p.31

26 ISO............................................... p.30

27 White balance .............................. p.30

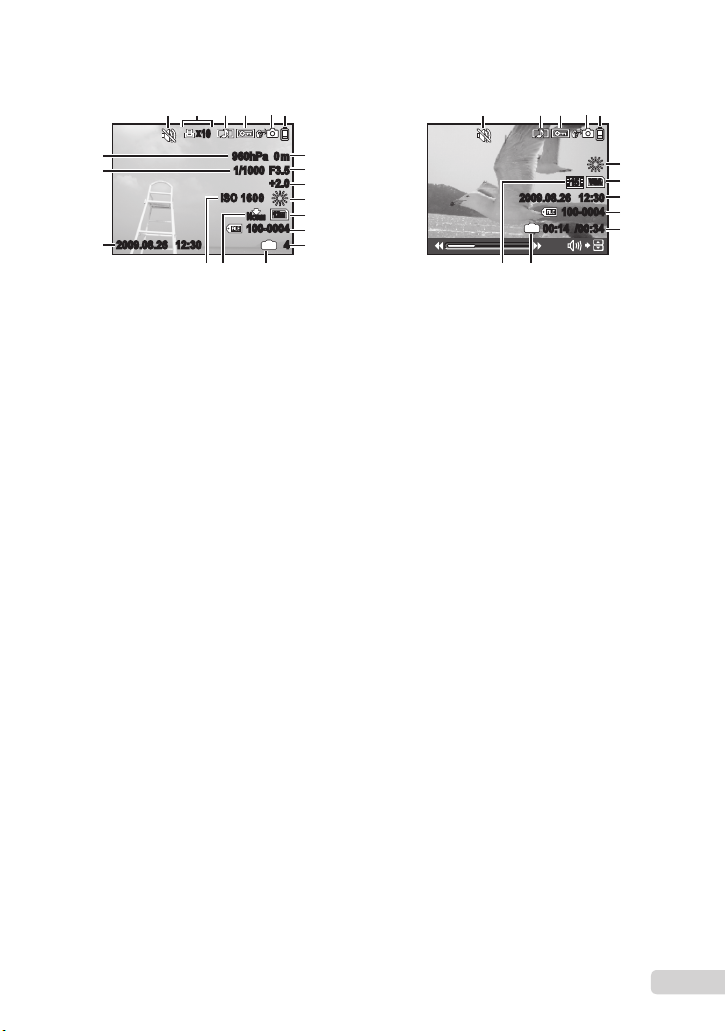

Playback mode display

2009.08.26 12:30 4

+2.0

F3.5

100-0004

ORM

1/1000

ISO 1

600

34 61

141516

2009.08.26 12:30

100-0004

00:14

00:34

VGA

34 61

1415

5 5

960hPa 0m 7

Still image Movie

1Silent mode.................................. p.50

2Print reservation/

number of prints................... p.54/p.53

3Sound record ............. p.21, 32, 40, 63

4Protect .........................................p.39

5Tap control ......................... p.4, 34, 49

6Battery check ......................... p.12, 59

7 Altitude/water depth ..................... p.48

8Aperture value ............................. p.16

9Exposure compensation .............. p.23

10 White balance .............................. p.30

11 Image size ................................... p.29

12 File number.................................. p.45

13 Frame number

Elapsed time/total recording time

..................................................... p.18

14 Current memory........................... p.66

15 Compression/Frame rate ............. p.29

16 ISO............................................... p.30

17 Date and time ........................ p.14, 46

18 Shutter speed .............................. p.16

19 Atmospheric/

hydraulic pressure ....................... p.48

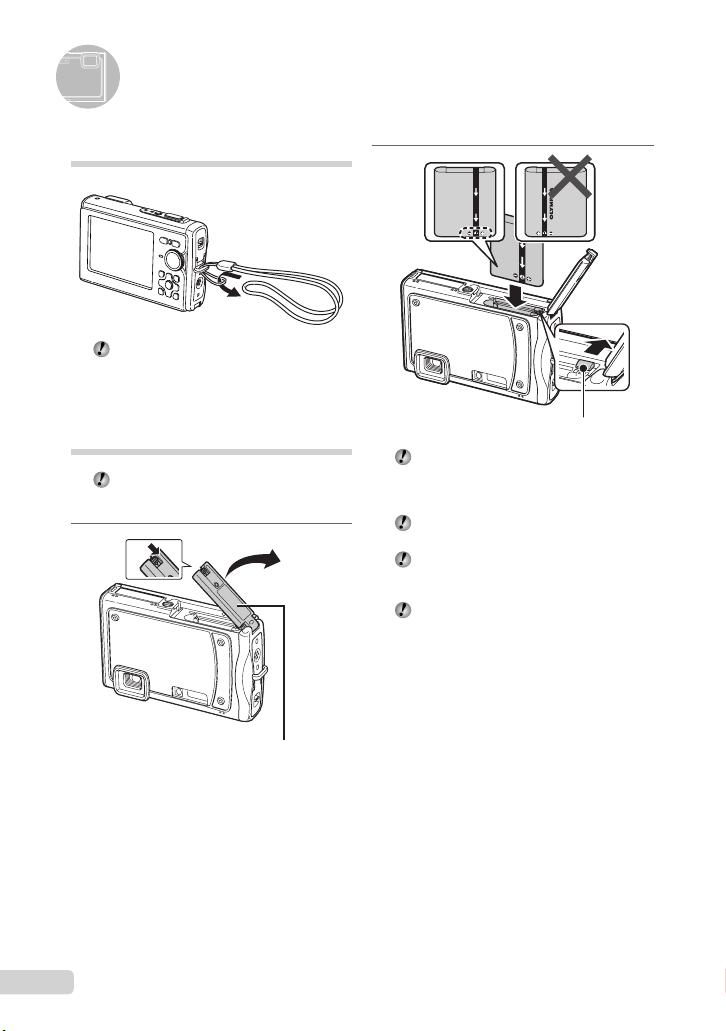

Preparing the Camera

Battery lock knob

The battery has front side and back side.

Insert the battery in the correct direction

as illustrated. If the battery is not inserted

correctly, the camera does not operate.

Insert the battery while sliding the battery

lock knob in the direction of the arrow.

Sliding the battery lock knob in the direction

of the arrow to unlock, and then remove the

battery.

Be sure to turn off the camera when you

open or close the battery/card compartment

cover.

Attaching the camera strap

Pull the strap tight so that it does not come

loose.

Loading the battery and

the xD-Picture Card™ (sold

separately) into the camera

Do not insert anything other than an

xD-Picture Card or the microSD Attachment

into the camera.

112

Battery/card compartment cover

Other manuals for STYLUS TOUGH-8000

This manual suits for next models

Table of contents

Other Olympus Digital Camera manuals

Olympus

Olympus EVOLT E-330 User manual

Olympus

Olympus TG-830 User manual

Olympus

Olympus 262090 User manual

Olympus

Olympus Camedia E-20P Installation guide

Olympus

Olympus STYLUS TG-870 User manual

Olympus

Olympus MJU-1000 Installation guide

Olympus

Olympus E-20 - Dual Monaural Earphones Quick start guide

Olympus

Olympus XZ-10 User manual

Olympus

Olympus DP12 User manual

Olympus

Olympus CAMEDIA C-2020 Zoom User manual

Olympus

Olympus STYLUS 9000 User manual

Olympus

Olympus E-P2 - PEN 12.3 MP Micro Four Thirds Interchangeable Lens Digital... User manual

Olympus

Olympus E300 - 14-54mm f/2.8-3.5 Zuiko ED Digital SLR... Installation guide

Olympus

Olympus CAMEDIA C-760 Ultra Zoom User manual

Olympus

Olympus CAMEDIA C-3030ZOOM Installation guide

Olympus

Olympus CAMEDIA C-450 Zoom User manual

Olympus

Olympus FE-4000 User manual

Olympus

Olympus C-2000 - Zoom 2.1MP Digital Camera Operating instructions

Olympus

Olympus FE-360/X-S7S/C-S70 User manual

Olympus

Olympus CAMEDIA C-450 Zoom User manual

Olympus

Olympus E-10 - 4MP Digital Camera User manual

Olympus

Olympus E420 - Evolt 10MP Digital SLR Camera User manual

Olympus

Olympus SH-50 User manual

Olympus

Olympus Stylus 830 User manual

Popular Digital Camera manuals by other brands

Mercury

Mercury 350K user manual

Pentax

Pentax Optio LS 465 operating manual

Sanyo

Sanyo VPC-S1085 instruction manual

GE SMART A1255 user manual

Point Grey

Point Grey Gazelle Getting started

Nikon

Nikon COOLPIX A Reference manual

Pentax

Pentax P-5 manual

BlazeVideo

BlazeVideo A280 instruction manual

Sony

Sony MCA-20 manual

Sony

Sony Alpha DSLR-A290 instruction manual

ATIK Cameras

ATIK Cameras One user manual

CohuHD Costar

CohuHD Costar 3930 Series Installation and operation manual

Leica

Leica M10-R quick start guide

FujiFilm

FujiFilm FinePix A700 owner's manual

Lorex

Lorex LNZ81P25 Series quick start guide

GE J1470S user manual

Sony

Sony A6700 Startup guide

Canon

Canon EOS ELAN7 instructions
