Olympus STYLUS 9000 User manual

DIGITAL CAMERA

STYLUS-9000 /

-9000

●Thank you for purchasing an Olympus digital camera. Before you start to

use your new camera, please read these instructions carefully to enjoy

optimum performance and a longer service life. Keep this manual in a

safe place for future reference.

●We recommend that you take test shots to get accustomed to your

camera before taking important photographs.

●In the interest of continually improving products, Olympus reserves the

right to update or modify information contained in this manual.

●The screen and camera illustrations shown in this manual were produced

during the development stages and may differ from the actual product.

Instruction Manual

Step 5

Step 2

Step 4

Step 3

How to Use the Camera

“Three Types of Setting Operations” (p. 3)

Printing

“Direct printing (PictBridge)” (p. 46)

“Print Reservations (DPOF)” (p. 49)

Shooting and Playing Back Images

“Shooting, Viewing, and Erasing” (p. 15)

Preparing the Camera

“Preparing the Camera” (p. 10)

Names of Parts ......................................6

Preparing the Camera .........................10

Shooting, Viewing, and Erasing .........15

Using Shooting Modes........................18

Using Shooting Functions..................20

Using Playback Features ....................24

Menus for Shooting Functions...........26

Menus for Playback, Editing, and

Printing Functions...............................34

Menus for Other Camera Settings .....39

Printing .................................................46

Using OLYMPUS Master 2...................52

Usage Tips ...........................................54

Appendix ..............................................59

Index .....................................................73

ContentsContents

Step 1

Checking the contents of the box

Digital camera

Strap LI-50B Lithium Ion Battery LI-50C Battery Charger

USB cable

CB-USB6

AV cable

CB-AVC3

OLYMPUS Master 2 CD-ROM microSD Attachment

Other accessories not shown: Instruction Manual (this manual), warranty card

Contents may vary depending on purchase location.

Printed in China VN061201

DIGITAL CAMERA

STYLUS-9000 /

-9000

●Thank you for purchasing an Olympus digital camera. Before you start to

use your new camera, please read these instructions carefully to enjoy

optimum performance and a longer service life. Keep this manual in a

safe place for future reference.

●We recommend that you take test shots to get accustomed to your

camera before taking important photographs.

●In the interest of continually improving products, Olympus reserves the

right to update or modify information contained in this manual.

●The screen and camera illustrations shown in this manual were produced

during the development stages and may differ from the actual product.

Instruction Manual

Step 5

Step 2

Step 4

Step 3

How to Use the Camera

“Three Types of Setting Operations” (p. 3)

Printing

“Direct printing (PictBridge)” (p. 46)

“Print Reservations (DPOF)” (p. 49)

Shooting and Playing Back Images

“Shooting, Viewing, and Erasing” (p. 15)

Preparing the Camera

“Preparing the Camera” (p. 10)

Names of Parts ......................................6

Preparing the Camera .........................10

Shooting, Viewing, and Erasing .........15

Using Shooting Modes........................18

Using Shooting Functions..................20

Using Playback Features ....................24

Menus for Shooting Functions...........26

Menus for Playback, Editing, and

Printing Functions...............................34

Menus for Other Camera Settings .....39

Printing .................................................46

Using OLYMPUS Master 2...................52

Usage Tips ...........................................54

Appendix ..............................................59

Index .....................................................73

ContentsContents

Step 1

Checking the contents of the box

Digital camera

Strap LI-50B Lithium Ion Battery LI-50C Battery Charger

USB cable

CB-USB6

AV cable

CB-AVC3

OLYMPUS Master 2 CD-ROM microSD Attachment

Other accessories not shown: Instruction Manual (this manual), warranty card

Contents may vary depending on purchase location.

Printed in China VN061201

MEMO

1Set the mode dial to a position other

than A.

The symbol in “Menu

Settings” (p. 26 to 45)

indicates available shooting

modes.

2Press the button.

This example describes how to set the

[DIGITAL ZOOM].

EXIT SET

CAMERA MENU

Shooting mode top menu

3Use klmn to select the desired

menu, and press the !button.

Pressing and

holding the E

button displays

an explanation

(menu guide) of the

selected option.

ISO

OFF

CAMERA MENU

SET

AUTO

FINE ZOOM

DIGITAL ZOOM

DRIVE

AUTOWB

EXIT

Submenu 1

●

Please read “Menu Settings” (p. 26 to 45) while referring to this page.

button

Arrow pad

!button

Buttons in use

4Use kl to select the desired

Submenu 1, and press the !button.

ISO

OFF

CAMERA MENU

AUTO

FINE ZOOM

DIGITAL ZOOM

DRIVE

AUTOWB

EXIT SET

ISO

OFF

CAMERA MENU

AUTO

FINE ZOOM

DIGITAL ZOOM

DRIVE

AUTOWB

SET

BACK

DIGITAL ZOOM

OFF

Page tab Submenu 2

To quickly move to the desired submenu,

press mto highlight the page tab, and then

use kl to move the page tab. Press nto

return to the Submenu 1.

Some menus include submenus that appear

by pressing the !button.

5Use kl to select the Submenu 2,

and press the !button.

Once a setting is adjusted, the display returns to

the previous screen.

There may be

additional operations.

“Menu Settings” (p. 26

to 45)

6Press the button to complete the

setting.

●

Three Types of Setting Operations

Ebutton

Using the MenuUsing the Menu

Various camera settings can be accessed through the

menus, including functions used during shooting and

playback and the date/time and screen display.

There may be unavailable menus depending on the

other related settings or the selected mode

(p. 30).

2ISO

OFF

CAMERA MENU

AUTO

FINE ZOOM

DIGITAL ZOOM

DRIVE

AUTOWB

EXIT SET

Using the FUNC Menu (p. 23)Using the FUNC Menu (p. 23)

Frequently used shooting menu functions can be set with less

steps using the FUNC menu.

Using the Direct ButtonsUsing the Direct Buttons

Frequently used shooting functions can be accessed using the direct

buttons.

Shutter button (p. 15)

Zoom lever (p. 20, p. 24)

Fbutton (exposure compensation) (p. 21)

&button (macro) (p. 21)

#button (ash) (p. 20)

Ybutton (self-timer) (p. 22)

qbutton (playback) (p. 16)

g/Ebutton (information display change/

menu guide/date and time check) (p. 3, p. 14,

p. 22)

o/button (panorama/Shadow Adjustment

Technology/multi window/erase) (p. 17, p. 23)

!button (p. 3, p. 23)

Arrow pad

!button

Buttons in use

MEMO

1Set the mode dial to a position other

than A.

The symbol in “Menu

Settings” (p. 26 to 45)

indicates available shooting

modes.

2Press the button.

This example describes how to set the

[DIGITAL ZOOM].

EXIT SET

CAMERA MENU

Shooting mode top menu

3Use klmn to select the desired

menu, and press the !button.

Pressing and

holding the E

button displays

an explanation

(menu guide) of the

selected option.

ISO

OFF

CAMERA MENU

SET

AUTO

FINE ZOOM

DIGITAL ZOOM

DRIVE

AUTOWB

EXIT

Submenu 1

●

Please read “Menu Settings” (p. 26 to 45) while referring to this page.

button

Arrow pad

!button

Buttons in use

4Use kl to select the desired

Submenu 1, and press the !button.

ISO

OFF

CAMERA MENU

AUTO

FINE ZOOM

DIGITAL ZOOM

DRIVE

AUTOWB

EXIT SET

ISO

OFF

CAMERA MENU

AUTO

FINE ZOOM

DIGITAL ZOOM

DRIVE

AUTOWB

SET

BACK

DIGITAL ZOOM

OFF

Page tab Submenu 2

To quickly move to the desired submenu,

press mto highlight the page tab, and then

use kl to move the page tab. Press nto

return to the Submenu 1.

Some menus include submenus that appear

by pressing the !button.

5Use kl to select the Submenu 2,

and press the !button.

Once a setting is adjusted, the display returns to

the previous screen.

There may be

additional operations.

“Menu Settings” (p. 26

to 45)

6Press the button to complete the

setting.

●

Three Types of Setting Operations

Ebutton

Using the MenuUsing the Menu

Various camera settings can be accessed through the

menus, including functions used during shooting and

playback and the date/time and screen display.

There may be unavailable menus depending on the

other related settings or the selected mode

(p. 30).

2ISO

OFF

CAMERA MENU

AUTO

FINE ZOOM

DIGITAL ZOOM

DRIVE

AUTOWB

EXIT SET

Using the FUNC Menu (p. 23)Using the FUNC Menu (p. 23)

Frequently used shooting menu functions can be set with less

steps using the FUNC menu.

Using the Direct ButtonsUsing the Direct Buttons

Frequently used shooting functions can be accessed using the direct

buttons.

Shutter button (p. 15)

Zoom lever (p. 20, p. 24)

Fbutton (exposure compensation) (p. 21)

&button (macro) (p. 21)

#button (ash) (p. 20)

Ybutton (self-timer) (p. 22)

qbutton (playback) (p. 16)

g/Ebutton (information display change/

menu guide/date and time check) (p. 3, p. 14,

p. 22)

o/button (panorama/Shadow Adjustment

Technology/multi window/erase) (p. 17, p. 23)

!button (p. 3, p. 23)

Arrow pad

!button

Buttons in use

1GSLIDESHOW ............... p.34

2HPERFECT FIX ............. p.34

3MBEAUTY FIX................ p.34

4IEDIT

Q(Resize) ................ p.35

P(Crop) .................... p.35

COLOR EDIT............... p.35

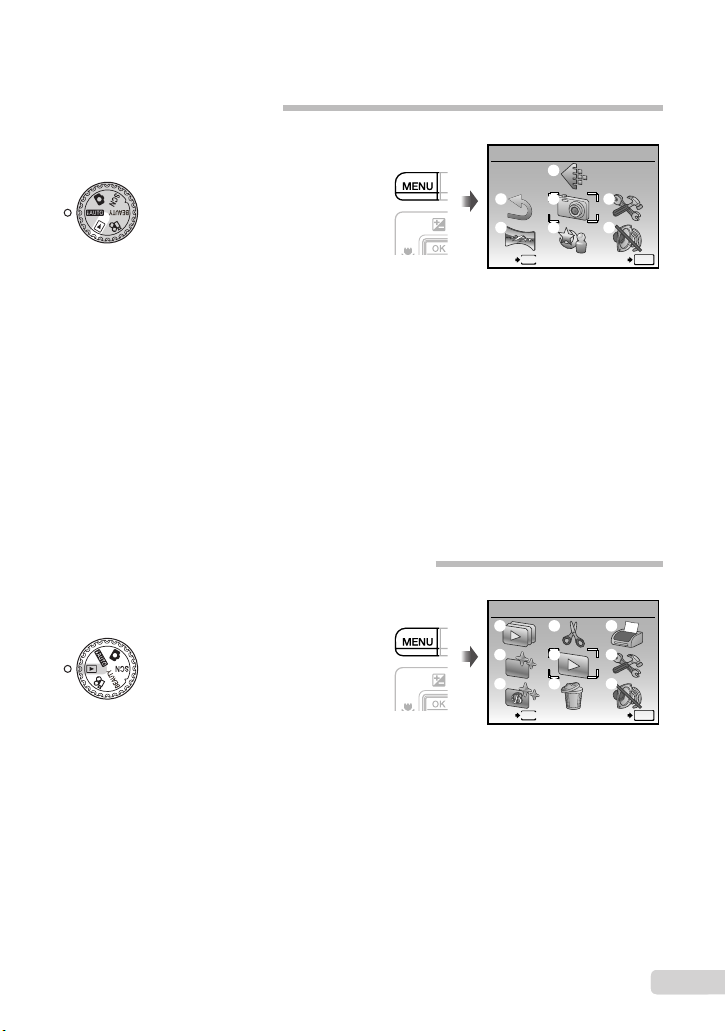

Menus for Playback, Editing, and Printing Functions

When the mode dial is set to the qposition, settings can

be adjusted.

EXIT SET

PLAYBACK MENU

Playback mode top menu

CALENDAR................. p.36

INDEX.......................... p.36

5JPLAYBACK MENU

0(Protect) ............... p.36

y(Rotate)................... p.37

R(Add sound to still

images) .................... p.37

6KERASE......................... p.37

7LPRINT ORDER ............ p.38

8ESETUP*

*Same as “Menus for

Shooting Functions”

9FSILENT MODE ............ p.45

1AIMAGE QUALITY......... p.26

2BCAMERA MENU

WB............................... p.27

ISO .............................. p.27

DRIVE.......................... p.27

FINE ZOOM................. p.28

DIGITAL ZOOM ........... p.28

ESP/n....................... p.28

AF MODE .................... p.28

R(Sound recording) .... p.29

IMAGE STABILIZER

(Still images)/

DIS MOVIE MODE

(Movies) ................... p.29

SHADOW ADJ............. p.29

3 OSCENE MODE............. p.30

4NPANORAMA................. p.31

5DRESET......................... p.33

6 ESETUP

MEMORY FORMAT/

FORMAT .................. p.39

BACKUP...................... p.39

W(Language)........ p.39

PW ON SETUP ........... p.40

MENU COLOR ............ p.40

SOUND SETTINGS..... p.41

REC VIEW................... p.41

FILE NAME.................. p.42

PIXEL MAPPING......... p.42

s(Monitor) ............... p.43

X(Date/time)............ p.43

DUALTIME................... p.43

VIDEO OUT................. p.44

POWER SAVE............. p.45

7FSILENT MODE ............ p.45

Menu Index

Menus for Shooting Functions

When the mode dial is set to a shooting mode position

(AKsbn), settings can be adjusted.

EXIT SET

CAMERA MENU

3 7

Shooting mode top menu

Names of Parts

1Self-timer lamp............................. p.22

2 Flash ............................................ p.20

3Multi-connector ................p.44, 46, 52

4Connector cover ..............p.44, 46, 52

5Strap eyelet.................................. p.10

Camera unit

6Microphone ............................ p.29, 37

7Lens ............................................. p.59

8Battery/card compartment cover

............................................... p.11, 55

9 Tripod socket .................................. —

1Shutter button ........................p.15, 54

2nbutton .............................p.13

3Zoom lever............................. p.20, 24

4Card access lamp ........................p.61

5 Speaker .......................................... —

6Monitor......................... p.8, 15, 43, 54

7mbutton.............................. p.3, 5

8DISP./Ebutton

(information display change/

menu guide/date and time check)

........................................... p.3, 14, 22

9Mode dial .................p.3, 5, 15, 16, 18

10 qbutton (playback) ................... p.16

11 button (OK/FUNC)..............p.3, 23

12 Arrow pad ............................p.3, 4, 13

Fbutton

(exposure compensation)........ p.21

&button (macro) .................... p.21

Ybutton (self-timer) ...............p.22

#button (ﬂash)....................... p.20

13 o/Dbutton (panorama/

Shadow Adjustment Technology/

multi window/erase) ...............p.17, 23

Monitor

Shooting mode display

+2.0 1/30 F3.2

ISO

1600

ORM

13151617 1214

2 54 763

+2.0

00:34

VGA

13 121417

2 54 73 6

Still image Movie

1Shooting mode....................... p.18, 19

2Flash mode .................................. p.20

3Silent mode.................................. p.45

4Image stabilization (still images)/

Digital image stabilization (movies)

..................................................... p.29

5Macro/super macro...................... p.21

Shadow Adjustment Technology

... p.29

7Battery check .........................p.10, 55

8Flash standby/camera shake warning/

ﬂash charge .................................p.54

9AF target mark .............................p.15

10 Sound record ...................p.19, 29, 37

11 Dual time...................................... p.43

12 Number of storable still pictures/

remaining recording time

......................................... p.15, 19, 61

13 Current memory........................... p.60

14 Self-timer .....................................p.22

15 Aperture value .............................p.15

16 Shutter speed ..............................p.15

17 Exposure compensation ..............p.21

18 Compression/Frame rate ............. p.26

19 Image size ...................................p.26

20 Metering....................................... p.28

21 Drive ............................................p.27

22 ISO............................................... p.27

23 White balance .............................. p.27

Playback mode display

2009.08.26 12:30 4

+2.0

F3.2

100-0004

ORM

1/1000

ISO 1

600

34 51

121314

2009.08.26 12:30

100-0004

00:14

00:34

VGA

34 51

1213

Still image Movie

1Silent mode.................................. p.45

2Print reservation/

number of prints................... p.49/p.48

3Sound record .............p.19, 29, 37, 58

4Protect .........................................p.36

5Battery check .........................p.10, 55

6Aperture value .............................p.15

7Exposure compensation ..............p.21

8White balance .............................. p.27

9Image size ...................................p.26

10 File number.................................. p.42

11 Frame number

Elapsed time/total recording time

..................................................... p.17

12 Current memory........................... p.60

13 Compression/Frame rate ............. p.26

14 ISO............................................... p.27

15 Date and time ........................p.13, 43

16 Shutter speed ..............................p.15

Preparing the Camera

Battery comes partially charged. Before

use, be sure to charge the battery until the

charging indicator goes off

(for approx. 2 hours).

If the charge indicator does not light or

it blinks, the battery may not be inserted

correctly or the battery or the charger may

be broken.

For details on the battery and the charger,

see “Battery and charger” (p. 59).

When to charge the battery

Charge the battery when the error message

shown below appears.

BATTERY EMPTY

Monitor top right Error message

Flashes in red

Attaching the camera strap

Pull the strap tight so that it does not come

loose.

Charging the battery

The included battery charger (AC cable type

or plug-in type) differs depending on the

region where you purchased the camera. If

you received a plug-in type battery charger,

plug it directly into an AC outlet.

Example: AC cable type battery

charger

AC outlet

AC cable

Lithium ion

battery

Battery charger

Charging indicator

Lights: Charging

Off: Charged

Other manuals for STYLUS 9000

This manual suits for next models

Table of contents

Other Olympus Digital Camera manuals

Olympus

Olympus E-20 - Dual Monaural Earphones User manual

Olympus

Olympus STYLUS VERVE S Installation guide

Olympus

Olympus CAMEDIA C-8080 Wide Zoom User manual

Olympus

Olympus Stylus Verve - Stylus Verve 4MP Digital... User manual

Olympus

Olympus CAMEDIA C-2100 Ultra Zoom User manual

Olympus

Olympus Camedia D-230 User manual

Olympus

Olympus CAMEDIA C-5060 Wide Zoom User manual

Olympus

Olympus FE-35/X-30 User manual

Olympus

Olympus STYLUS-7030 User manual

Olympus

Olympus IR-500 Installation guide

Olympus

Olympus E620 - Evolt 12.3MP Live MOS Digital SLR... User manual

Olympus

Olympus FE-26 - Digital Camera - Compact Instruction Manual

Olympus

Olympus D-600L D-500L User manual

Olympus

Olympus X-750 User manual

Olympus

Olympus 80 - Stylus 80 Quartz Date 35mm Camera Assembly instructions

Olympus

Olympus Stylus 720 SW Installation guide

Olympus

Olympus Stylus 1040 User manual

Olympus

Olympus X-715 Setup guide

Olympus

Olympus SP-700 User manual

Olympus

Olympus STYLUS 1s User manual

Olympus

Olympus E-500 - EVOLT Digital Camera User manual

Olympus

Olympus Stylus 850 SW User manual

Olympus

Olympus FE220 - 7.1 MP Digital Camera User manual

Olympus

Olympus Tough 6000 - Stylus 10 MP Waterproof Digital... Mounting instructions

Popular Digital Camera manuals by other brands

Mercury

Mercury 350K user manual

Pentax

Pentax Optio LS 465 operating manual

Sanyo

Sanyo VPC-S1085 instruction manual

GE SMART A1255 user manual

Point Grey

Point Grey Gazelle Getting started

Nikon

Nikon COOLPIX A Reference manual

Pentax

Pentax P-5 manual

BlazeVideo

BlazeVideo A280 instruction manual

Sony

Sony MCA-20 manual

Sony

Sony Alpha DSLR-A290 instruction manual

ATIK Cameras

ATIK Cameras One user manual

CohuHD Costar

CohuHD Costar 3930 Series Installation and operation manual

Leica

Leica M10-R quick start guide

FujiFilm

FujiFilm FinePix A700 owner's manual

Lorex

Lorex LNZ81P25 Series quick start guide

GE J1470S user manual

Sony

Sony A6700 Startup guide

Canon

Canon EOS ELAN7 instructions
