Oki ES3640eMFP User manual

Finisher Unit Installation Guide

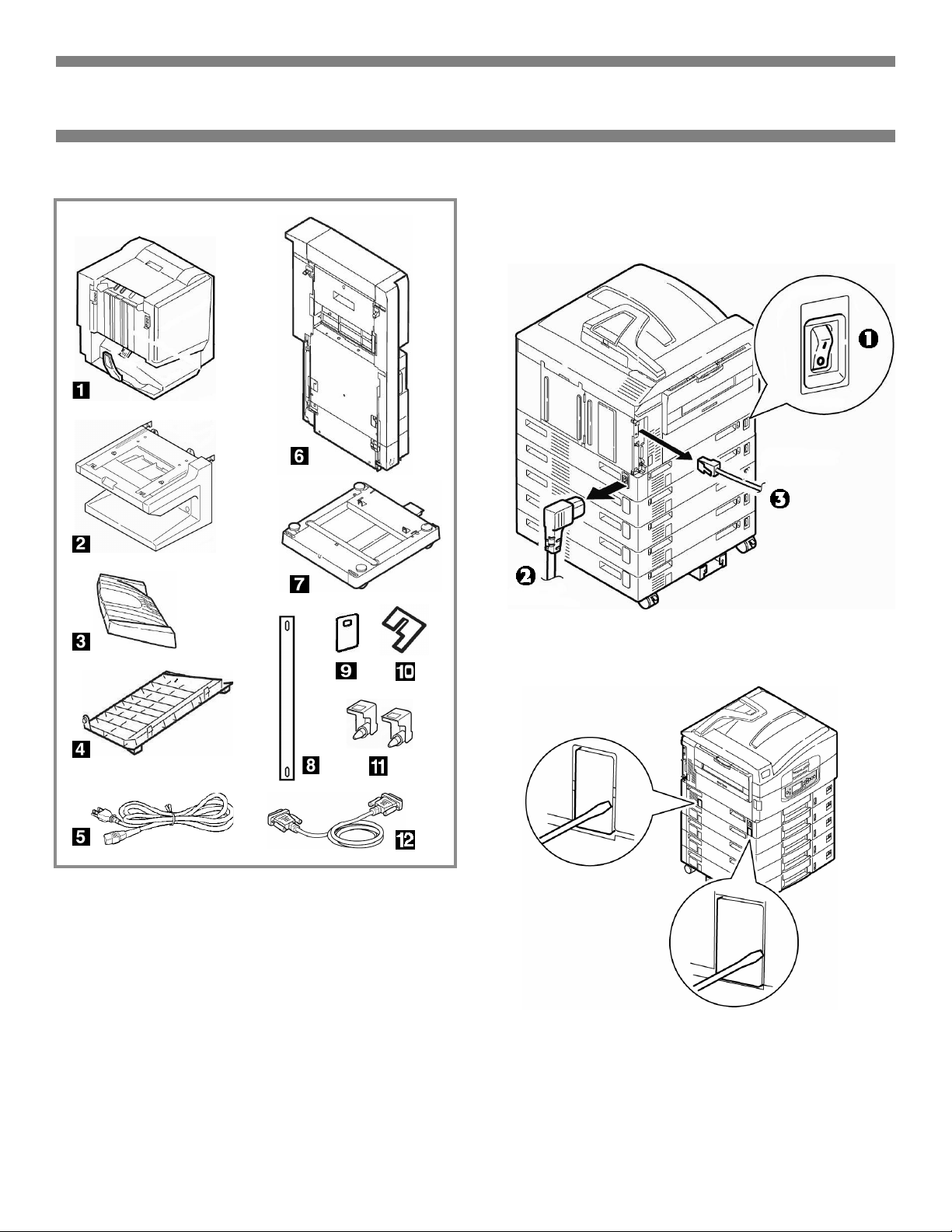

Components

Finisher Unit

Inverter Stand

Finisher stand

Clear Band

Finisher Stacker

Band Stopper, Small

Finisher Cover

Band Stopper, Large

Power Cord

Metal Brackets

Inverter Unit

Cable (inverter to printer)

Not illustrated: Screws

Step 1: Prepare the Printer

1. Turn the printer off (

) and disconnect the

power cord (

) and interface cable (

2. Using a screwdriver, remove the breakout

panels on the side of the printer.

3. Install the metal brackets where the

breakout panels were.

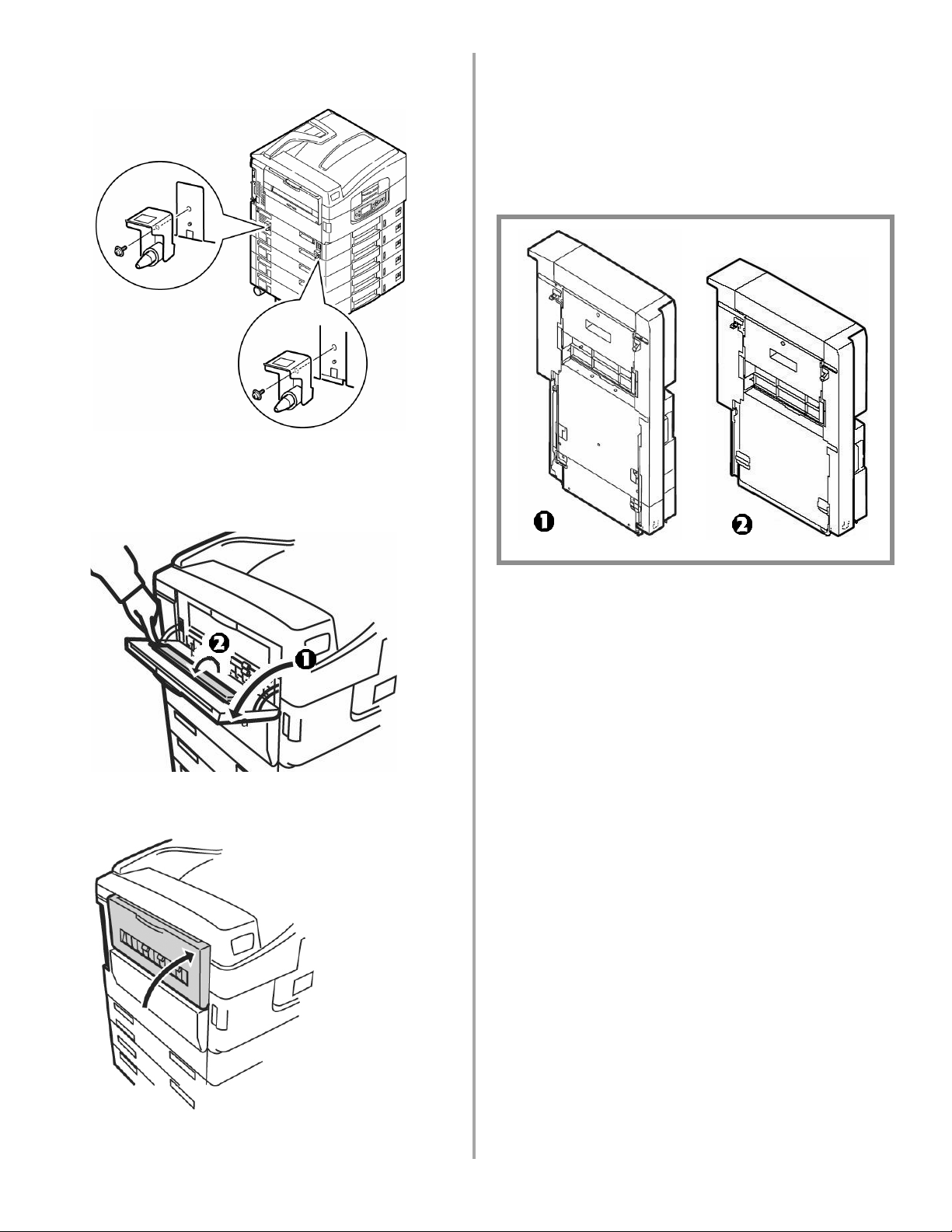

4. Open the face-up stacker (

), then open

the flap and press it onto the stacker surface

(

5. Close the stacker.

Step 2: Prepare the Inverter

Before assembling the finisher, you must adjust the

height of the inverter unit to match the finisher:

Inverter as supplied

Inverter changed for use with 4-tray

finisher.

1. Unpack the inverter and remove any packing

materials.

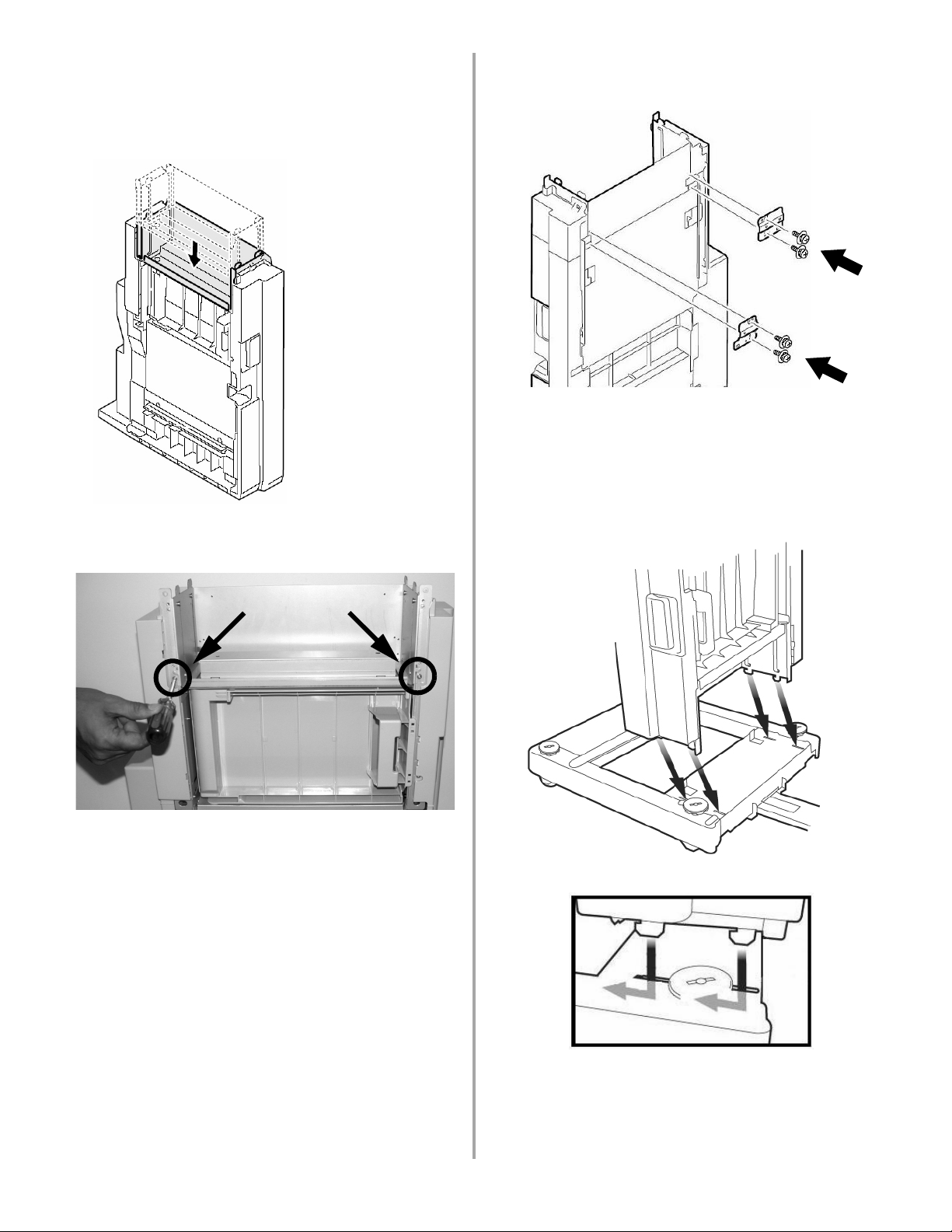

2. Remove the two bottom caps:

a. Turn the inverter over.

b. Remove the two screws securing the bottom

caps on either side of the inverter.

c. Remove the end caps and store them along

with the four screws in case you ever need

to convert the unit back.

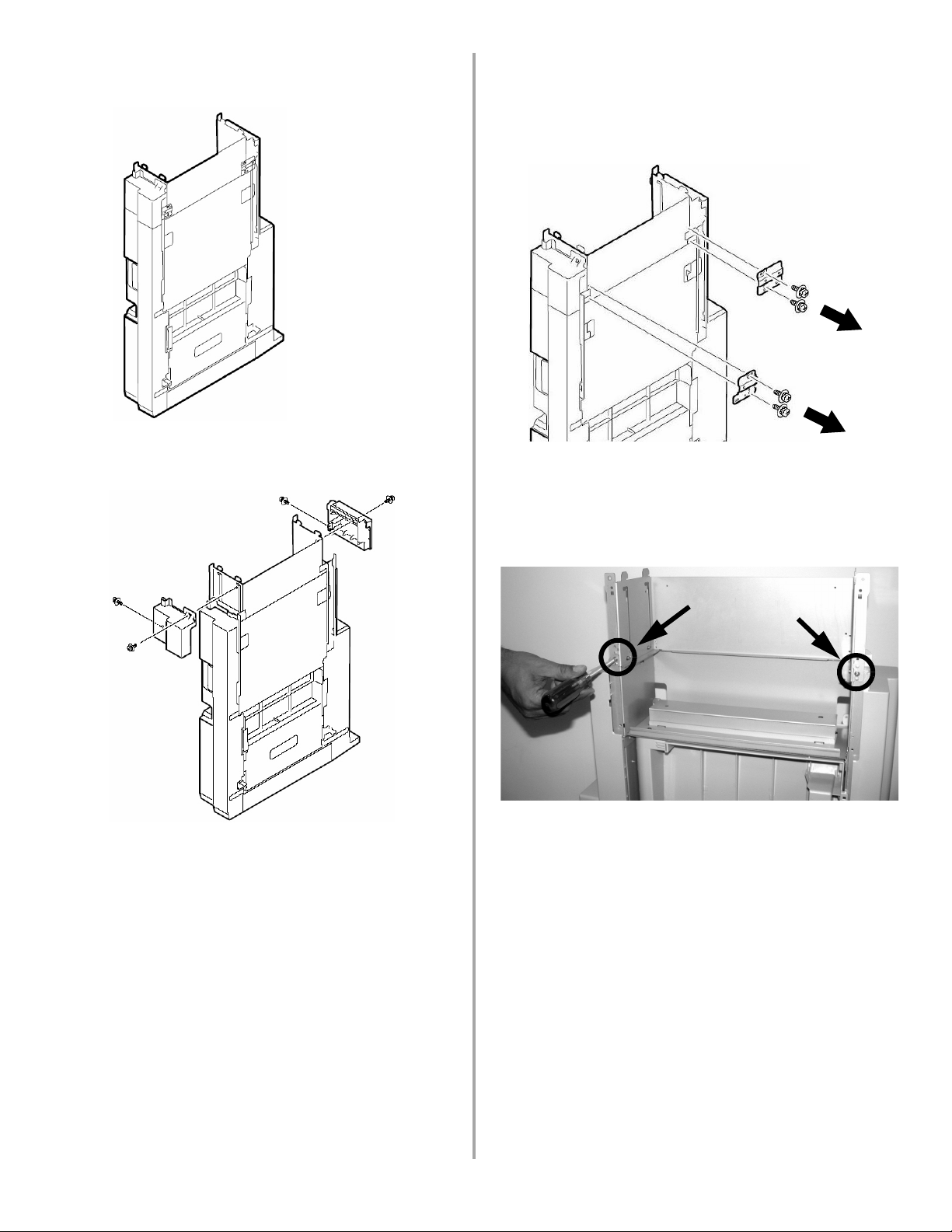

3. Turn the inverter around and remove the

screws holding the metal brackets in place.

Keep the screws and brackets handy: they are

used to help secure the extension plate once it

is repositioned.

4. Turn the inverter around and remove the

two screws holding the extension plate.

Keep them handy to reattach the plate once

it is repositioned.

5. Pull forward on the extension plate to

disengage the pins from the top channel stops,

then slide it down into the inverter and push

back to engage the pins on the bottom channel

stops.

6. Reattach the extension plate using the

screws you removed earlier.

7. Turn the inverter around and reinstall the

brackets.

Step 3: Assemble the Inverter

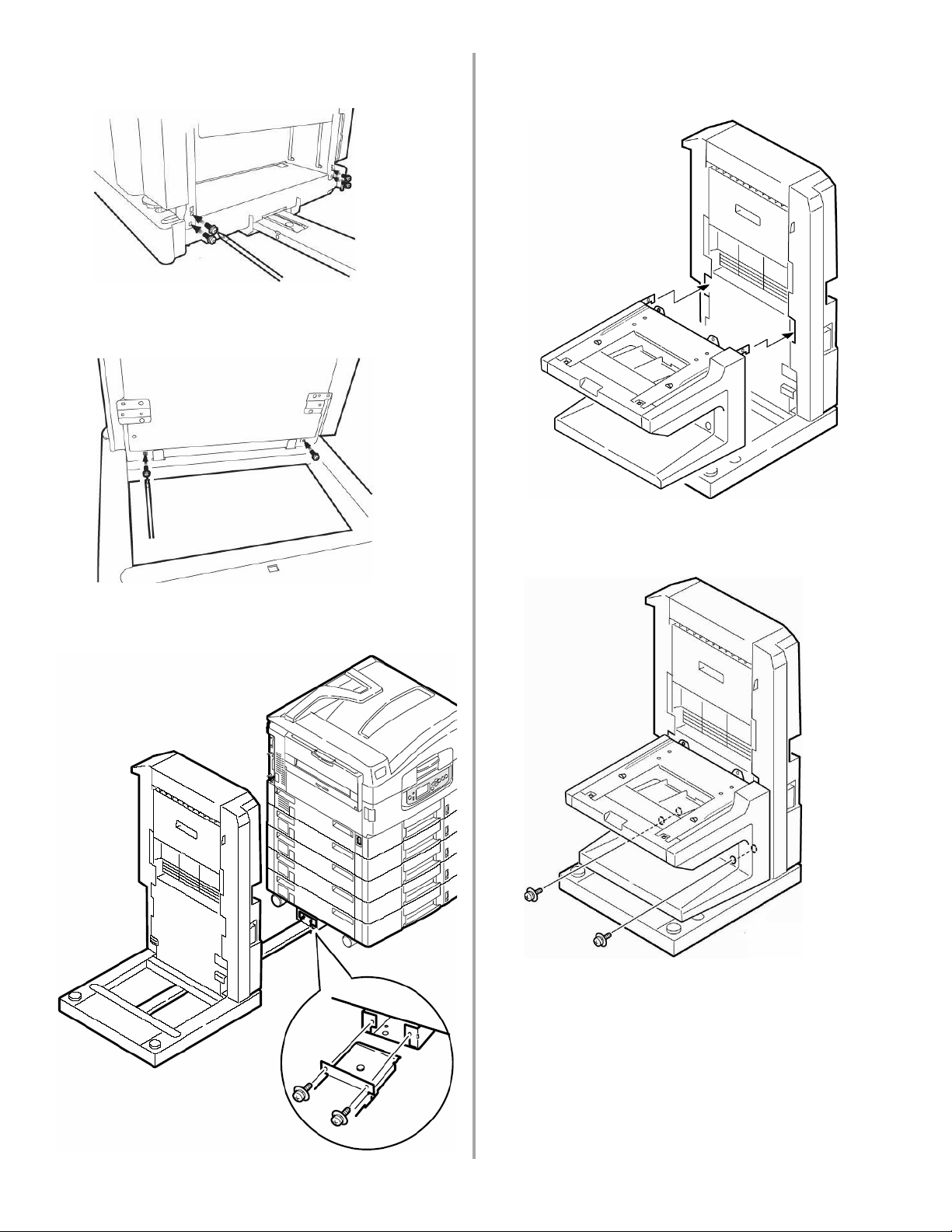

1. Place the hooks on the bottom of the

inverter into the slots on the inverter stand,

then slide the inverter to lock the hooks in

place.

2. Attach the front of the inverter to the stand

using two screws on either side.

3. Attach the back of the inverter to the stand

using one screw on either side.

4. Attach the guard rail on the inverter stand to

the printer using 2 screws.

Step 4: Assemble the Finisher

1. Hook the finisher stand onto the inverter.

2. Attach the finisher stand to the inverter with

2 screws.

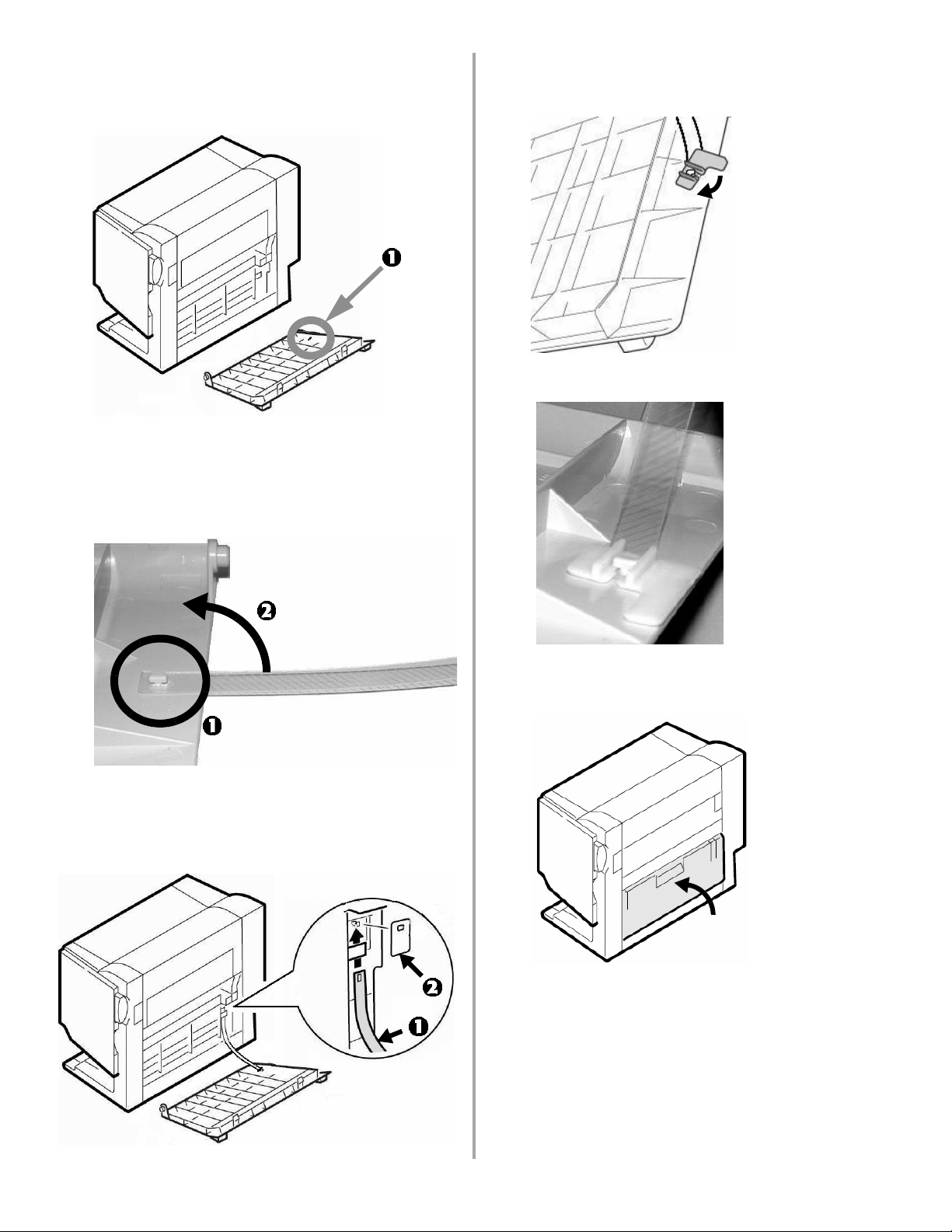

3. Place the finisher cover near the back of the

finisher. Locate the tab (

) on the right side of

the cover.

4. Hold the clear band perpendicular to the cover

and slip one end over the tab (

), then pivot

the band 90 degrees (

) so that it is aimed

toward the finisher:

5. Slip the other end of the band (

) through

the retainer on the finisher and secure it

with the small stopper (

6. Place the large stopper over the tab on the

cover and turn it to lock it in position.

7. Attach the cover to the finisher and close it.

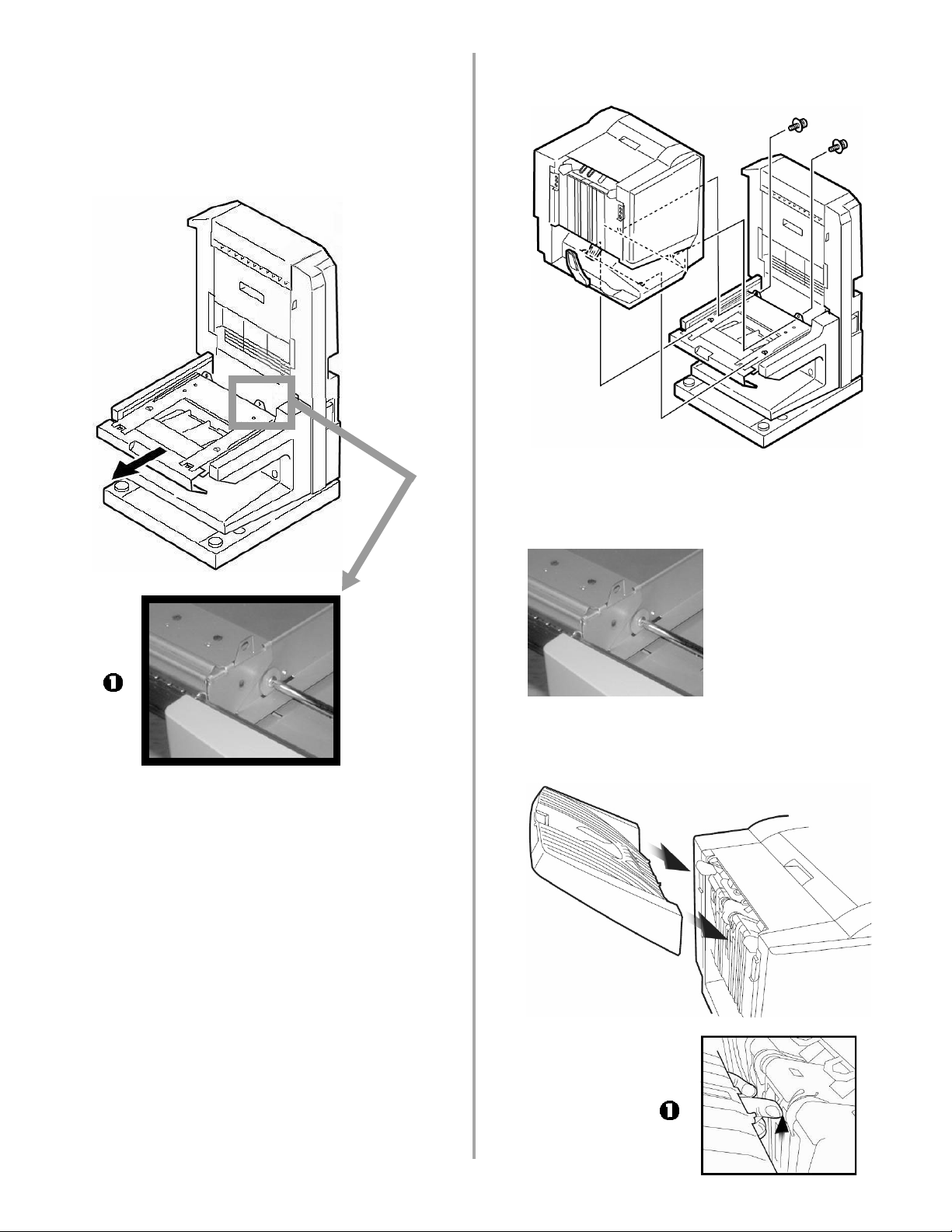

8. Pull the finisher platform about half way out,

then loosen the screw on the locking piece (

viewed from the opposite direction) so that it

drops through the slot below it. This keeps the

platform from moving while you attach the

finisher to it.

9. Position the finisher on the stand and attach

it with two screws from the back.

10. Lift the locking piece back up and tighten the

screw firmly. Be sure it’s out of the way and

the screw is tight—otherwise the platform

will not move freely.

11. Install the stacker, making sure the hooks

are firmly engaged and that the lever on the

finisher is positioned above the stacker (

12. Secure the stacker with four screws.

13. Push the finisher against the printer until the

prongs on the printer brackets fit into the

holes in the finisher.

Note:

If you need to, turn the levellers (

) on

either side of the finisher to raise or

lower it so the holes and prongs align

properly. Make sure the finisher is level.

Step 5: Make Connections

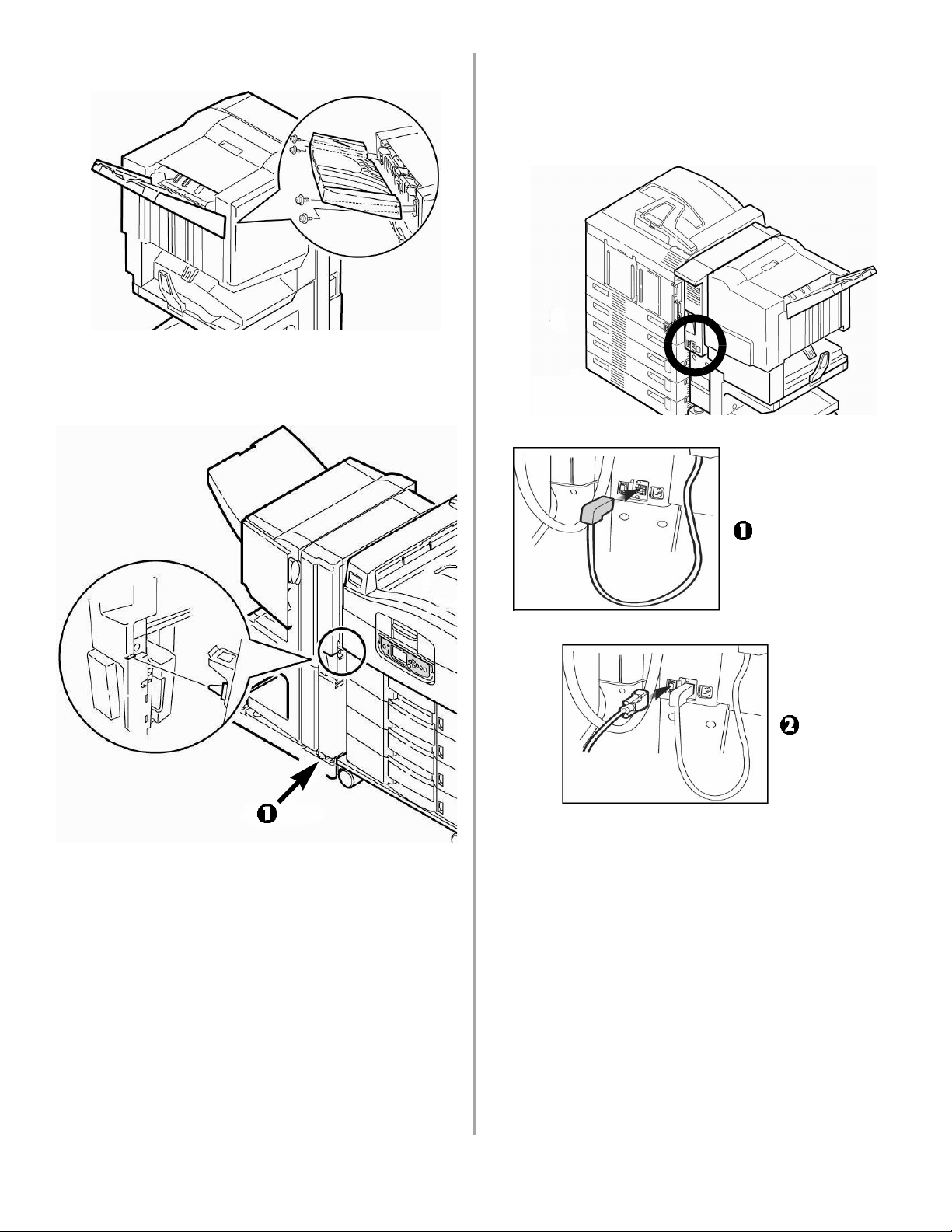

1. Connect the finisher’s cable to the inverter

(

). Use the cable supplied to connect the

inverter to the printer (

2. Plug the power cord supplied into the

inverter, then connect it to a suitable

grounded outlet.

3. Reconnect the printer’s interface cable.

4. Plug in the printer’s power cord and turn on

the printer.

Note:

When the printer is turned on, power

is supplied to both the printer and the

finisher.
