OHAUS PX Series User manual

PX Series Balances

User Guide

Please download the user manual from www.ohaus.com.

Scan QR Code with your WebCam for

downloading the user instruction manual.

EN-1

1. SAFETY INFORMATION

This manual contains installation, operation and maintenance instructions for PX Series balance.

Please read this manual completely before installation and operation.

Definition of Signal Warnings and Symbols

Safety notes are marked with signal words and warning symbols. These show safety issues and

warnings. Ignoring the safety notes may lead to personal injury, damage to the instrument,

malfunctions and false results.

WARNING

For a hazardous situation with medium risk, possibly resulting in injuries or

death if not avoided.

CAUTION

For a hazardous situation with low risk, resulting in damage to the device or

the property or in loss of data, or injuries if not avoided.

Attention

For important information about the product

Note

For useful information about the product

Warning Symbols

General Hazard

Electrical Shock Hazard

Alternating Current

Direct Current

Safety Precautions

CAUTION: Read all safety warnings before installing, making connections, or servicing

this equipment. Failure to comply with these warnings could result in personal injury

and/or property damage. Retain all instructions for future reference.

Verify that the AC adapter’s input voltage range and plug type are compatible with the

local AC main power supply.

Make sure that the power cord does not pose a potential obstacle or tripping hazard.

Do not position the balance such that it is difficult to reach the power connection.

The balance is for indoor use only. Do not operate the equipment in hazardous or

unstable environments.

Operate the equipment only under ambient conditions specified in these instructions.

Do not drop loads on the pan.

Use the balance only in dry locations.

Disconnect the equipment from the power supply when cleaning.

Use only approved accessories and peripherals.

Service should only be performed by authorized personnel.

Intended Use

Use the instrument exclusively for weighing as described in the operating instructions. Any other

type of use and operation beyond the limits of technical specifications without written consent from

OHAUS, is considered as not intended.

This instrument complies with current industry standards and the recognized safety regulations;

however, it can constitute a hazard in use.

If the instrument is not used according to these operating instructions, the intended protection of the

instrument may be compromised and OHAUS assumes no liability.

EN-2

2. INSTALLATION

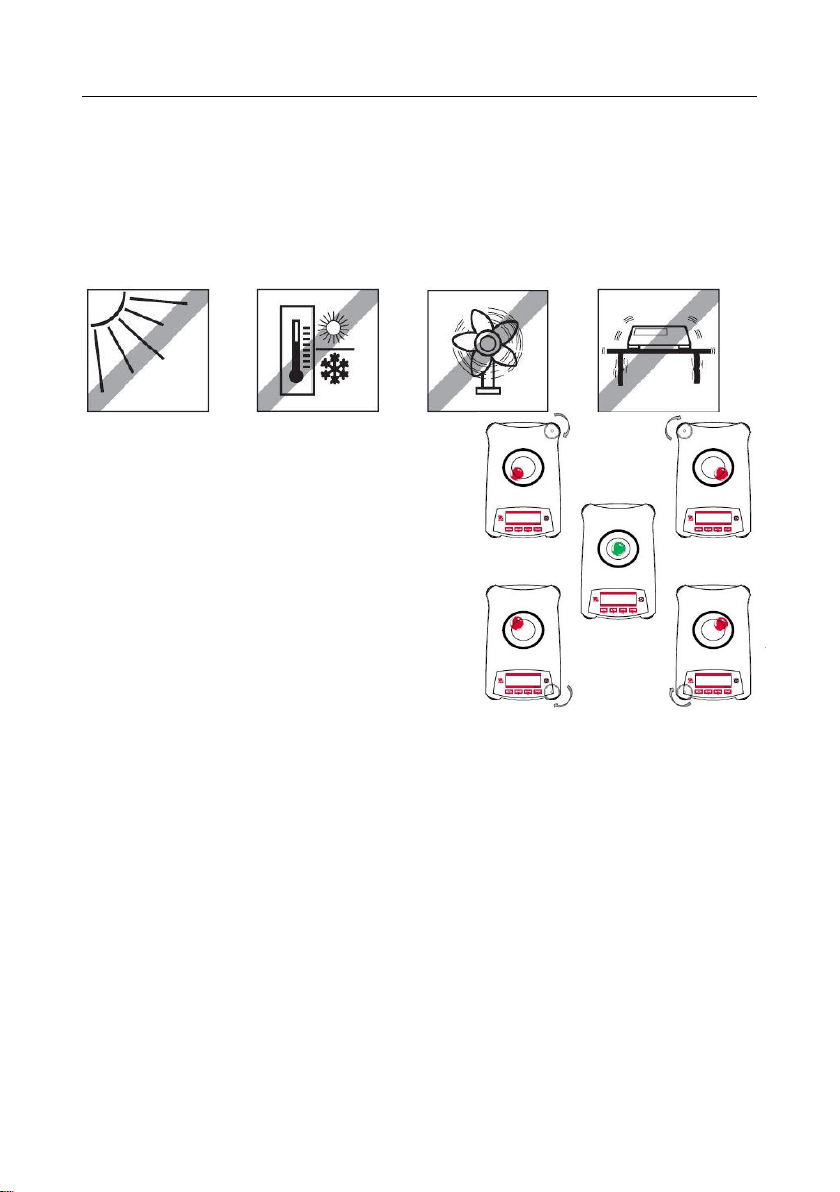

2.1 Select the Location

Avoid heat sources, rapid temperature changes, air current or excessive vibrations. Allow sufficient

space.

2.2 Leveling

Be sure the balance is level before it is used or after its

location is changed.

The PX balance has a level bubble in a small round

window beside the display.

To level the balance, adjust the 4 leveling feet until the

bubble is centered in the circle.

Please refer to the right figure for leveling.

2.3 Connecting Power and Acclimatising the Balance

Connect the DC output connector to the power receptacle on the rear of the balance. Then connect

the AC adapter plug to a suitable electrical outlet.

Acclimatising

It is suggested that the balance should not be used until it has been connected to power and

acclimatised to the environment for a certain period of time. In the case of a balance with the

precision above 0.1 mg, the acclimatisation time should be 1.5 hours; in the case of balance with the

precision of 0.01 mg, the acclimatisation time should be more than 4 hours.

2.4 Connecting the Interface

The PX balance has two data interfaces, RS232 and USB.

Use the RS-232 port to connect either to a computer or a printer with a standard (straight-through)

serial cable. Use the USB port to connect to a computer with a USB 2.0 Type A to Type B cable.

Interface connections on the rear of the balance

USB RS232

EN-3

USB: Used to connect to PC only

RS232: Used to connect to PC or Printer

Note: For Connecting, Configuring and Testing the Printer / Computer Interface, see the Printing

section.

2.5 Initial Calibration

For best results, the instrument's calibration should be checked prior to first use. If adjustment is

needed, refer to the Calibration section of the instruction manual.

3. OPERATION

3.1 Overview of Controls and Display

The PX balance has a 2-line backlit display.

CONTROLS

CONTROL FUNCTIONS

Button

Primary

Function

(Short

Press)

On / Zero

If the balance is Off,

turns on the balance.

If the balance is On,

sets zero.

Sends the current

displayed value to

the serial interface.

Function

Operation is

dependent on the

application mode.

Tare

Performs tare

operation.

Secondary

Function

(Press and

Hold)

(Extended

Press)

Off

Zeros the current

value.

None

Unit

Changes weighing

units.

None

Mode

Changes

application mode.

None

Menu-Cal

Enters the main

menu. Calibration

is the first sub-

menu.

Views the preset

Tare value.

EN-4

Button

Function

(Short

Press)

Yes

Accepts the current

(blinking) setting on

the display.

Rejects the current

(blinking) setting on

the display.

Increments a value

being entered.

Back

Reverts back to

previous menu

item.

Decrements a value

being entered.

Exit

Immediately exits

the sub-menu.

Aborts a

calibration in

progress.

DISPLAY

3.2 Principal Functions

Zeroing:

Press Zero to zero the balance.

Taring:

With no load on the pan, press Zero to set the display to zero. Place an

empty container on the pan and press Tare. Add material to the container

and its net weight is displayed. After the container and the objects are

removed, the tare value will be displayed as a negative number. Press Tare

to clear.

Weighing:

First press Zero to set the display to zero. Place an object on the pan. The

display indicates the gross weight.

Dot-matrix

Display:

The relevant data in the specific application mode are shown in the dot-

matrix display area.

4. MAINTENANCE

4.1 Cleaning

WARNING: Disconnect the balance from the power supply before cleaning.

Make sure that no liquid enters the interior of the balance.

Clean the balance at regular intervals.

Housing surfaces may be cleaned with a lint-free cloth slightly dampened with water or a

mild cleaning agent.

Glass surfaces may be cleaned with a commercial glass cleaner.

Attention: Do not use solvents, harsh chemicals, ammonia or abrasive cleaning agents.

4.2 Troubleshooting

If the troubleshooting section does not resolve your problem, contact an Authorized Ohaus Service

Agent. Please visit our website www.ohaus.com to locate the Ohaus office nearest you.

Net (NET)

Stability (*)

Negative (-)

Centre of Zero (>0<)

Preset tare (PT)

Instructional Messages

Result Field:

Information varies by

application

Unit

EN-5

5. TECHNICAL DATA

The technical data is valid under the following conditions:

Indoor use only

Powered by external approved LPS AC/DC adaptor

Altitude: Up to 2000 m

Operating temperature range: 5 °C to 40 °C

Specified Temperature range: 10°C to 30°C

Humidity: maximum relative humidity 80% for temperatures up to 30°C, decreasing linearly to

50% relative humidity at 40°C

Mains supply voltage fluctuations: up to ±10% of the nominal voltage

Installation category II

Pollution degree: 2

Model

PX85

PX225D

PX84

PX124

PX224

PX163

PX323

PX84/E

PX124/E

PX224/E

PX163/E

PX323/E

Capacity (g)

82/220

120

220

160

320

Readability d (g)

0.00001

0.00001/0.0001

0.0001

0.001

Repeatability

(std. dev.) (g)

0.00002

0.00002/0.0001

0.0001

0.001

Linearity (g)

±0.0001

±0.0002

±0.002

Power Supply

Power input: 100-240V ~ 200mA 50-60Hz 12-18VA

Power output: 12 VDC 0.5A

Model

PX523

PX1602

PX2202

PX3202

PX4202

PX2201

PX4201

PX523/E

PX1602/E

PX2202/E

PX3202/E

PX4202/E

PX2201/E

PX4201/E

Capacity (g)

520

1600

2200

3200

4200

2200

4200

Readability d

(g)

0.001

0.01

0.1

Repeatability

(std. dev.)

(g)

0.001

0.01

0.1

Linearity (g)

±0.002

±0.02

±0.2

Power

Supply

Power input: 100-240V ~ 200mA 50-60Hz 12-18VA

Power output: 12 VDC 0.5A

EN-6

6. COMPLIANCE

Compliance to the following standards is indicated by the corresponding mark on the product.

Mark

Standard

This product complies with the EU Directives 2011/65/EU (RoHS), 2014/30/EU

(EMC) and 2014/35/EU (LVD). The EU Declaration of Conformity is available online

at www.ohaus.com/ce.

This product complies with the EU Directive 2012/19/EU (WEEE). Please dispose

of this product in accordance with local regulations at the collecting point specified

for electrical and electronic equipment.

For disposal instructions in Europe, refer to www.ohaus.com/weee.

EN 61326-1

CAN/CSA-C22.2 No. 61010-1

UL Std. No. 61010-1

Note: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates, uses

and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

- Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void

the user’s authority to operate the equipment.

ES-1

1. INFORMACIÓN SOBRE SEGURIDAD

Este manual contiene instrucciones relativas a la instalación, operación y mantenimiento de la

Básculas Serie PX. Por favor, lea el manual entero antes de proceder a la instalación y operación

del equipo.

Definición de las señales y símbolos de advertencia

Los consejos de seguridad están marcados con palabras y símbolos de advertencia. Estos

muestran advertencias y problemas de seguridad. Hacer caso omiso de las indicaciones de

seguridad puede llevar a lesiones personales, daños al dispositivo, fallos de funcionamiento y

resultados falsos.

ADVERTENCIA

Situaciones peligrosas con riesgo medio, que pueden provocar la

muerte o lesiones graves si no se evitan.

PRECAUCIÓN

Situaciones peligrosas con riesgo bajo, que pueden provocar daños en el

dispositivo o a la propiedad, perdida de datos, o lesiones graves si no

se evitan.

Atención

Información importante sobre el producto.

Nota

Información útil sobre el producto.

Símbolos de advertencia

Peligro general

Peligro descarga eléctrica

Corriente alterna

Corriente continua

Precauciones de seguridad

PRECAUCIÓN: lea todas las advertencias de seguridad antes de instalar, hacer

conexiones o realizar el mantenimiento de este equipo. El incumplimiento de las

instrucciones podría resultar en lesiones personales y/o daños materiales. Conserve

todas las instrucciones para futura referencia.

•Compruebe que el rango de voltaje de entrada del adaptador de CA y el tipo de enchufe son

compatibles con la red eléctrica de corriente alterna local.

•Asegúrese de que el cable de alimentación no represente un posible obstáculo o riesgo de

tropezarse.

•No coloque la báscula de tal manera que sea difícil llegar a la conexión eléctrica.

•Utilice la báscula solo en interiores. no utilice la unidad en entornos peligrosos o en lugares

inestables.

•Opere la unidad solamente bajo las condiciones ambientales especificadas en estas instrucciones.

•No deje caer cargas sobre el plato.

•Utilice la báscula solo en lugares secos.

•Desconecte el equipo de la fuente de alimentación durante su limpieza.

•Utilice accesorios y periféricos aprobados.

•Cualquier reparación y servicio debe ser realizado solo por personal autorizado.

Uso Apropiado

Utilice el equipo exclusivamente para los fines de pesaje descritos en el manual. Cualquier otro tipo

de uso y/o funcionamiento, que exceda los límites de las especificaciones técnicas sin el

consentimiento por escrito de OHAUS, se considera como Uso Inapropiado.

Este equipo cumple con los estándares de la industria y las normas actuales de seguridad

reconocidas;

ES-2

sin embargo, puede constituir un peligro en su uso.

Si el equipo no se utiliza de acuerdo al manual de instrucciones, su seguridad puede verse afectada,

por lo que OHAUS no asume ninguna responsabilidad.

2. INSTALACIÓN

2.1 Seleccionar la ubicación

Evite fuentes de calor, cambios rápidos de temperatura, corrientes de aire o vibraciones excesivas.

Deje espacio suficiente.

2.2 Nivelación

Asegúrese de que la báscula está nivelada antes

de su uso o después de cambiar su ubicación.

La báscula PX tiene un nivel de burbuja en una

pequeña ventana redonda junto a la pantalla.

Para nivelar la báscula, ajuste los 4 pies de

nivelación hasta que la burbuja estécentrada en el

círculo.

Consulte el dibujo de la derecha para ajustar la

nivelación.

2.3 Conexión de la alimentación y aclimatación de la báscula

Conecte el conector de salida de CC a la toma de corriente en la parte posterior de la

báscula. A continuación, conecte el enchufe del adaptador de CA a una toma de corriente

adecuada.

Aclimatación

Se recomienda no utilizar la báscula hasta que la unidad estéconectada y se haya aclimatado al

entorno durante un determinado período de tiempo. En el caso de básculas con precisión por

encima de 0,1 mg, el tiempo de aclimatación debe ser de 1,5 horas; en el caso de básculas con una

precisión de 0,01 mg, el tiempo de aclimatación debe ser de un mínimo de 4 horas.

2.4 Conexión de la interfaz

La báscula PX cuenta con dos interfaces de datos, RS232 y USB.

Utilice el puerto RS-232 para conectar con un ordenador o una impresora mediante un cable serie

estándar (directo). Utilice el puerto USB para conectar a un ordenador mediante un cable USB 2.0

de tipo A a tipo B.

Other manuals for PX Series

This manual suits for next models

Table of contents

Languages:

Other OHAUS Scale manuals

OHAUS

OHAUS Explorer E1F110 User manual

OHAUS

OHAUS Defender 3000 Series User manual

OHAUS

OHAUS Adventurer AX224N User manual

OHAUS

OHAUS Dial-O-Gram User manual

OHAUS

OHAUS a-AB33PH User manual

OHAUS

OHAUS CS 2000 User manual

OHAUS

OHAUS Scout pro Installation guide

OHAUS

OHAUS Ranger Count 3000 Series User manual

OHAUS

OHAUS Navigator NV212 User manual

OHAUS

OHAUS Pioneer PJX Series User manual

OHAUS

OHAUS Courier 1000 User manual

OHAUS

OHAUS Ranger Count RC41M3 User manual

OHAUS

OHAUS Valor 1000 User manual

OHAUS

OHAUS 700 Metric Series User manual

OHAUS

OHAUS Navigator Rechargeable Battery User manual

OHAUS

OHAUS Courier 1000 User manual

OHAUS

OHAUS Adventurer Pro Balances User manual

OHAUS

OHAUS Navigator NV212 User manual

OHAUS

OHAUS Defender 3000 Series User manual

OHAUS

OHAUS Compass CX Series User manual

OHAUS

OHAUS SD Series User manual

OHAUS

OHAUS JE 120 User manual

OHAUS

OHAUS Scout Pro Balance User manual

OHAUS

OHAUS SJX323 User manual

Popular Scale manuals by other brands

AWS

AWS ZEO-50 user manual

Gima

Gima Glass Body Fat Analyzer Use and maintenance book

Seca

Seca 374 user manual

TEC

TEC TEC SL59 SERIES owner's manual

Axis

Axis B/E Series user manual

Alecto

Alecto ACW-40 user manual

Rice Lake

Rice Lake MSI-4260 IS Technical manual

IKA

IKA RCT basic safety control operating instructions

ADE

ADE M20011 operating manual

Duronic

Duronic KS3000 manual

Digi

Digi SM-720 Service manual

Cardinal

Cardinal CS Series Operation manual

Korona

Korona Kastella Instructions for use

A&D

A&D FC-50Ki instruction manual

BDA

BDA CAMARGUE installation guide

Tanita

Tanita HD-357 Instructions for use

Leifheit

Leifheit 03173 quick start guide

Lumme

Lumme LU-1340 user manual
