Oasis PCPD10EBQ User manual

FREE STANDING CONTACTLESS OUTDOOR

BOTTLE FILLER WITH QUASAR UV-C LED

Installation Instructions For:

UNFILTERED:

PCPD10EBQ

OASIS International

222 East Campus View Blvd.

Columbus, OH 43235

614-861-1350

www.oasiscoolers.com 1

INDEX

1. PRODUCT SPECIFICATIONS

2. IMPORTANT REQUIREMENTS

3. SAFETY WARNINGS

4. QUASAR UV-C LED OPERATION

5. GETTING STARTED

6. PROPER QUICK CONNECT FITTING CONNECTION INSTRUCTIONS

7. INSTALLATION

8. SET-UP GUIDE FOR DISPENSER PCB ELECTRONICS

9. AIR FILTER CARE & USE

1. PRODUCT SPECIFICATIONS

Dimensions:

Depth 13.35”(339.0 mm)

Width 12” (304.8 mm)

Height 49.7” (1262.4 mm)

Refrigerant: R-134a

Input Voltage: 115 VAC, 60 HZ–See Data Plate

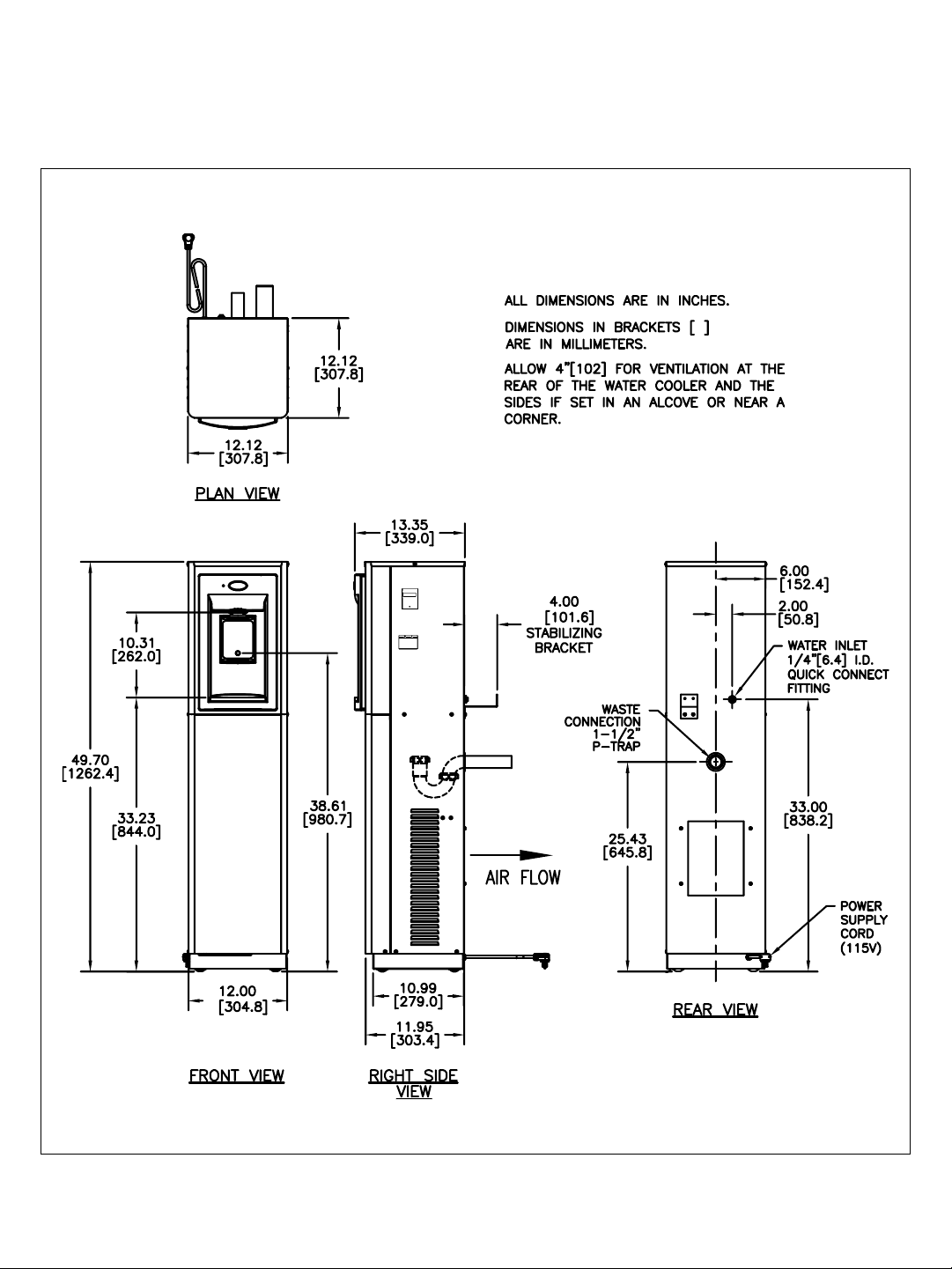

ROUGHING-IN AND DIMENSIONAL DRAWING

•Use only original and new parts to guarantee the reliability, optimization, and

performance of the OASIS water machine.

•Always wear proper protection when performing any type of service or

maintenance.

•When cleaning the unit, do not use corrosive acidic products, or metal

brushes.

•Do not wash the unit using high-pressure water.

•Connect to a water supply with a pressure of 45 PSI minimum to 100 PSI

maximum.

•WARNING: DO NOT USE WITH WATER THAT IS MICROBIOLOGICALLY UNSAFE

OR OF UNKNOWN QUALITY.

•ATTENTION: IT IS IMPORTANT TO MAKE PROPER CONNECTIONS TO THE

QUICK CONNECT FITTINGS TO AVOID LEAKS. SEE SECTION 6.

•CAUTION: DO NOT PLACE UNDUE STRESS OR SIDE LOAD ON ANY OF THE

PLASTIC FITTINGS.

•CAUTION: DO NOT ACTIVATE ELECTRICAL EYE SENSOR WITHOUT RUNNING

WATER THROUGH THE UV-C MODULE. DOING SO WILL DAMAGE THE UV-C

LEDS. SEE SECTION 7, STEPS 10 THROUGH 18.

2. IMPORTANT REQUIREMENTS

BEFORE YOU START USING THIS WATER DISPENSER, PLEASE READ THE

FOLLOWING INSTRUCTIONS CAREFULLY.

•The unit must be connected to a 115 VAC GFCI power supply as listed on the

equipment data label.

•The unit must be protected by a properly installed 20 amp circuit breaker.

Verify that the electrical current is correct for the power of this unit, which is

listed on the machine data label.

•To avoid electrical shock always unplug the unit from the electrical outlet

before servicing.

•If the power supply cord is damaged, it must be replaced by a special cord or

assembly available from the manufacturer or its service agent.

•This appliance must be earthed.

•Children should be supervised to ensure that they do not play with this

appliance.

3. SAFETY WARNINGS:

4. QUASAR UV-C LED OPERATION

DIAGRAM 8

Indicator Light

BLUE=operating normally

RED/YELLOW=QUASAR

failure and water will not

dispense.

1. QUASAR is a form of dispense point water treatment that utilizes UV-C

LED’s to inactivate pathogens.

2. Operation:

a. The QUASAR activation is automatic. The UV-C LED’s turn ON when

water is dispensed and OFF when the dispense stops.

b. During non-use periods the QUASAR automatically cycles ON for

ten seconds every ten minutes. This keeps the dispense point more

sanitary between use.

c. When the QUASAR is ON, the LED light on the front of the alcove

near the top will turn ON. The LED will be BLUE when the QUASAR

is working properly.

d. If QUASAR is not working properly, then the LED light on the front

of the alcove near the top will be RED or YELLOW. The light will

remain ON and the system will not allow water to be dispensed

until the problem is resolved.

e. IMPORTANT: Never operate the QUASAR without water connected

to the system. Lack of water can cause the QUASAR to overheat. If it

is necessary to activate QUASAR to purge the system of air, then do

not activate the QUASAR dry for more than 4-5 seconds at a time.

Wait 60 seconds to allow the QUASAR to “cool” before the next

“dry” activation. Dry activations normally occur during initial setup

or during filter changes.

5. GETTING STARTED:

What’s Included:

a. OUTDOOR BOTTLE FILLER

b. MOUNTING BRACKET

c. IR SENSOR GUARD

d. AIR FILTER MOUNTING BRACKET

e. DURAFLOW AIR FILTER

Duraflow Air

Filter 2X

OUTDOOR

BOTTLE FILLER

Mounting Bracket 2X

Air Filter Mounting

Bracket 6X

IR Sensor Guard

Quick-Connect Fittings

•If you need to cut the plastic tubing, be sure to cut tube ends square

and straight. Do not deform the tube (i.e., cause tube to compress its

diameter so it is no longer round, or it may result in a water leak at the

fitting).

•Make sure the outer surface of the tube is clear of marks or scratches

for a length equal to twice the tube diameter. This allows the “O” ring

to seat properly against the tube (See figure below).

•Avoid sharp changes in direction when routing the tubing. Sharp turns

could cause the tubing to kink, which reduces its flow capacity and or

stops it completely.

•Fittings consist of two parts: a body and a collet. (See figure below).

•To install a tube, push it through the collet until it seats firmly at the

bottom of the fitting.

•To remove a tube, push and hold the collet against the body while

pulling the tube out. Pushing the tube into the body before pushing the

collet in will aid in the removal of the tube.

6. PROPER QUICK CONNECT FITTING CONNECTION

INSTRUCTIONS:

Push tube through

Collet into Body

Tube must seat firmly

At bottom of fitting

Push Collet against

Body to release tube

STEP 1 & 2:

1. Carefully unpack Air filter mounting brackets, IR

Sensor Guard, and pallet mounting brackets

2. Install using included Torx Screws (quantity 18) See

Diagram 1&2.

7. INSTALLATION:

DIAGRAM 2

INSTALL USING

T15 TORX SCREWS

QTY. 18

DIAGRAM 1

STEPS 3 through 5 (for optional filters)

3. Unpack the VersaFilter III and remove the sanitary cap.

4. Looking at the filter top, orient the filter so that the rectangular lug, on top

of the filter faces forward.

5. Push the filter up into the filter housing and rotate the filter one-quarter

turn to the right until it stops turning. Refer to Diagram 3

7. INSTALLATION:

DIAGRAM 3

Remedi Filter –

VERSAFILTER III

Lug IMPORTANT: When

replacing filter

cartridge, turn OFF

water supply.

Depressurize water

lines prior to removal

of filter housing from

the quarter turn

filter head assembly.

STEP 6:

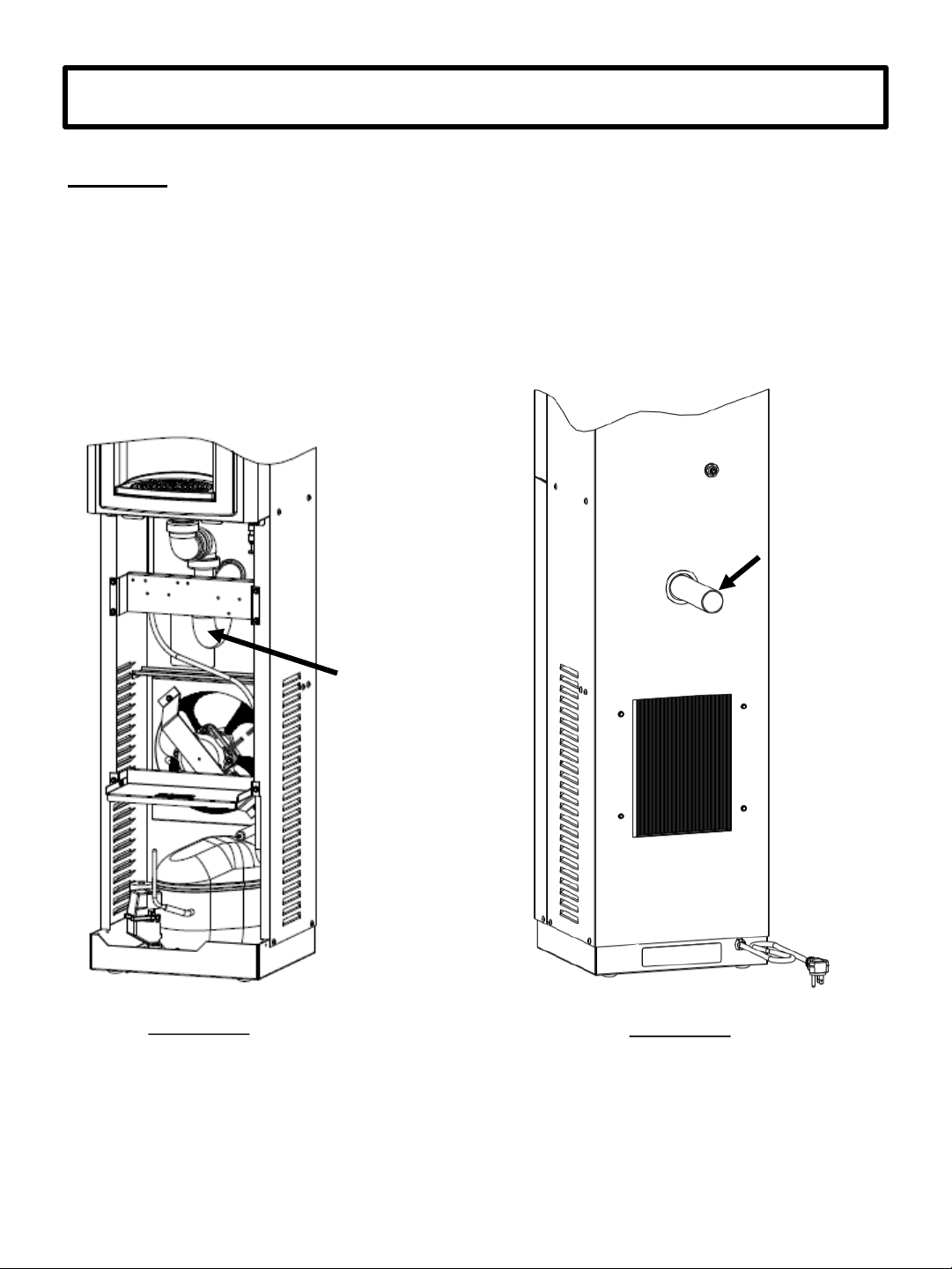

6. Locate the snap bushing in the back of the cabinet and feed 1-1/2” OD Drain

Pipe through the hole. See Diagram 4 & 5.

7. INSTALLATION:

DIAGRAM 4

Front View

DIAGRAM 5

Rear View

P-Trap Located

behind the

filter mounting

bracket

Drain Pipe –

shown after

completing

Step 6.
