Ntron NTSFP-LX-40 Installation and operating instructions

(Revised 2011-09-28)

1000 Series

Gigabit Media Converter &

Industrial Gigabit Ethernet Switch

User Manual &

Installation

Guide

(Revised 2011-09-28)

Industrial Gigabit Ethernet Switch Installation Guide

1002MC-SX 1000BaseSX multimode fiber media converter

1002MC-LX-YY 1000BaseLX singlemode fiber media converter

1003GX2-SX 1000BaseSX multimode fiber switch

1003GX2-LX-YY 1000BaseLX singlemode fiber switch

1003GX2-B Custom mix and match 1003GX2 switch

1005TX 5 port gigabit Ethernet switch

Where "YY" is: 10 for 10km max. fiber segment length

40 for 40km max. fiber segment length

80 for 80km max. fiber segment length

1003GX2-B SFP (Mini-GBIC) Fiber Transceivers:

NTSFP-SX (LC Style Connector, up to 550m)

NTSFP-LX-10 (LC Style Connector, up to 10km)

NTSFP-LX-40 (LC Style Connector, up to 40km)

NTSFP-LX-80 (LC Style Connector, up to 80km)

(Revised 2011-09-28)

820 S. University Blvd., Suite 4E

Mobile, AL USA 36609

Corp. is prohibited, except as allowed under copyright laws.

Ethernet is a registered trademark of Xerox Corporation. All other product names, company names, logos

or other designations mentioned herein are trademarks of their respective owners.

The information contained in this document is subject to change without notice. N-TRON Corp. makes no

warranty of any kind with regard to this material, including, but not limited to, the implied warranties of

merchantability or fitness for a particular purpose. In no event shall N-TRON Corp. be liable for any

incidental, special, indirect or consequential damages whatsoever included but not limited to lost profits

arising out of errors or omissions in this manual or the information contained herein.

Contact Information :

N-TRON Corp.

820 South University Blvd.

Suite 4E

Mobile, AL 36609

TEL: (251) 342-2164

FAX: (251) 342-6353

Website: www.n-tron.com

Email: [email protected]

(Revised 2011-09-28)

ELECTRICAL SAFETY WARNINGS

This equipment is suitable for use in Class I, Division 2, Groups A, B, C, and D or non-hazardous locations

only.

This equipment must be used with a Listed UL Industrial Power Supply.

A Recognized or Listed fuse, rated maximum 3A, minimum 30VDC, must be installed on the line side of the

device.

WARNING –Explosion Hazard –Substitution of components may impair suitability for Class I, Division 2.

WARNING –Explosion Hazard –Do not disconnect while circuit is live unless area is known to be non-

hazardous.

WARNING –Explosion Hazard –Do not replace the device unless power has been switched off or the area is

known to be non-hazardous.

Use 110°C or higher rated copper wire, (0.22Nm) 2 lb/in tightening torque for field installed conductors.

WARNING: Do not operate the equipment in the presence of flammable gasses or fumes. Operating

electrical equipment in such an environment constitutes a definite safety hazard.

WARNING: If the equipment is used in the manner not specified by N-TRON Corp., the protection provided

by the equipment may be impaired.

WARNING: Do not perform any services on the unit unless qualified to do so. Do not substitute

unauthorized parts or make unauthorized modifications to the unit.

WARNING: Do not operate the unit with the end plates removed, as this could create a shock or fire

hazard.

WARNING: Properly ground the unit before connecting anything else to the unit. Units not properly grounded

may result in a safety risk and could be hazardous and may void the warranty. See the grounding technique

section of this user manual for proper ways to ground the unit.

WARNING: Do not operate the equipment in a manner not specified by this manual.

WARNING: Do not work on equipment or cables during periods of lightning activity.

WARNING: Observe proper DC Voltage polarity when installing power input cables. Reversing voltage

polarity can cause permanent damage to the unit and void the warranty.

WARNING: Install only in accordance with Local & National Codes of Authorities Having Jurisdiction.

(Revised 2011-09-28)

LASER SAFETY (1002MC and 1003GX2 Models)

CAUTION: CLASS 1 LASER PRODUCT. Do not stare into the laser!)

(Revised 2011-09-28)

ENVIRONMENTAL SAFETY WARNINGS

WARNING: Disconnect the power and allow to cool 5 minutes before touching.

1000 Series Industrial Gigabit Ethernet Switches

The 1000 Series Unmanaged Industrial Gigabit Ethernet Switches support high speed layer 2 switching

between ports. This series of switches are housed in a ruggedized aluminum enclosure, and provide

Category-5 compliant 10/100/1000Base-T connections for high performance network design, and

hub/repeater upgrades.

All fiber products utilize the IEEE compliant LC duplex connectors for fiber optic communications in a

convenient SFP modular design. All 10/100/1000Base-T ports utilize the RJ45 shielded connectors.

The 1002MC/MCE is a two port unmanaged media converter that converts 10/100/1000Base-T copper to

1000BaseSX/LX full duplex fiber.

The 1003GX2/GXE2 is a three port unmanaged switch that offers one 10/100/1000Base-T copper port and

two 1000BaseT/SX/LX full duplex copper/fiber ports.

The 1005TX is a five port unmanaged switch that offers five 10/100/1000Base-T copper ports.

Key Features

Compact Space Saving Package

Full IEEE 802.3 Compliance

Unmanaged Operation

Jumbo Frame Support

Extended Environmental Specifications

-40°C to 85°C Operating and Storage Temperature

Supports Full/Half Duplex Operation

Up to 10.0 Gb/s Maximum Throughput

MDIX Auto Sensing Cable

Auto Sensing Speed and Flow Control

Full Wire Speed Communication

Store-and-forward Technology

Redundant Power Inputs (10-30 VDC)

LED Link/Activity Status Indication

Hardened Metal Enclosure

Industry Standard 35mm DIN Rail Mounted Enclosure

(Revised 2011-09-28)

PACKAGE CONTENTS

Please make sure the package contains the following items:

1. 1000 Series Media Converter or Ethernet Switch

2. Product CD

Contact your carrier if any items are damaged.

UNPACKING

Remove all the equipment from the packaging, and store the packaging in a safe place. File any damage

claims with the carrier.

CLEANING

Clean only with a damp cloth.

INSTALLATION

Read the following warning before beginning the installation:

WARNING

Never install or work on electrical equipment or cabling during periods of lightning activity. Never connect

or disconnect power when hazardous gasses are present.

(Revised 2011-09-28)

DIN-Rail Mounting

Install the unit in a standard DIN rail. Recess the unit to allow at least 2” of horizontal clearance for CAT5e

cable bend radius or 5” of horizontal clearance for Fiber Optic cable bend radius.

To install the unit to 35mm industrial DIN rail,

place the top edge of the included mounting

bracket on the back of the unit against the DIN

rail at a 15° angle as shown. Rotate the bottom of

the unit to the back (away from you) until it

snaps into place.

To remove the unit from the 35mm industrial

DIN rail, pull forward on the unit until it

disengages from the bottom of the DIN rail.

Rotate the bottom of the unit towards you and up

at an approximate 15° upward angle to

completely remove the unit.

URMK 1000-PM

Most N-Tron™ products are designed to be mounted on industry standard 35mm DIN rail. However, DIN rail

mounting may not be suitable for all applications. Our Universal Rack Mount Kit (P/N: URMK) may be used to

mount the 1000 Series enclosures to standard 19" racks, and our Panel Mount Assembly (P/N: 1000-PM) may

be used to mount the 1000 Series enclosures to a panel or any other flat surface.

(Revised 2011-09-28)

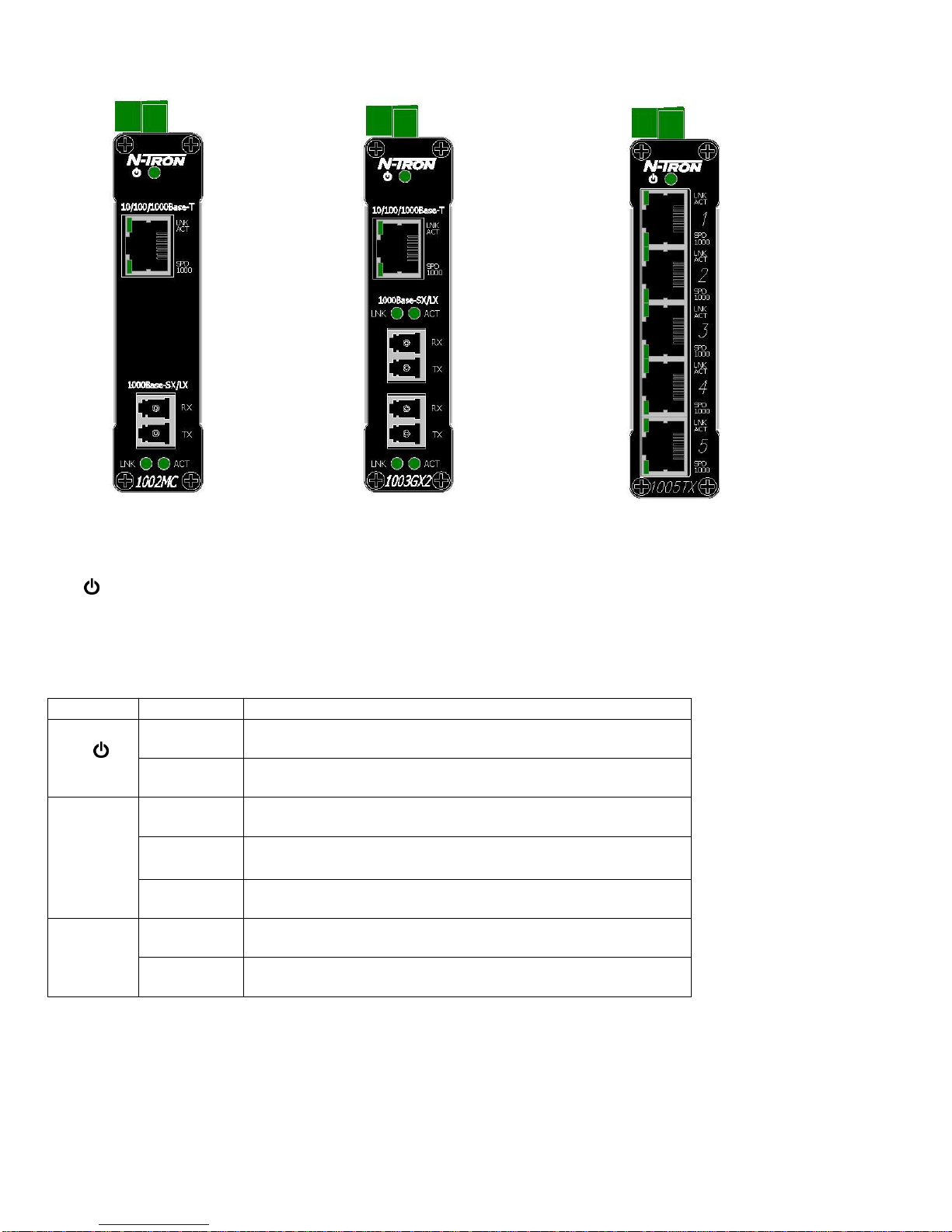

FRONT PANEL

From Top to Bottom:

Green LED lights when Power is connected

LNK/ACT Link/Activity LED

SPD1000 1000 Speed LED

LEDs: The table below describes the operating modes:

LED

Color

Description

Power is Applied.

OFF

Power is OFF.

LNK/ACT

Link established, no Activity on cable.

BLINKING

Link established, Activity on cable

OFF

No link activity on cable.

SPD1000

Link is 1000Mbps.

OFF

Link is 10/100Mbs.

(Revised 2011-09-28)

APPLYING POWER (Top View)

Unscrew & Remove the DC Voltage Input Plug from the top header.

Install the DC Power Cables into the Plug (observing polarity on unit).

Plug the Voltage Input Plug back into the top header.

Tightening torque for the terminal block power plug is 0.5 Nm/0.368 Pound Foot.

All LEDs will flash ON Momentarily.

Verify the Power LED stays ON (GREEN).

Note: Either V1or V2can be connected to power for minimal operation. For redundant power

operation, V1and V2plugs must be connected to separate DC Voltage sources. Use wire sizes of 12-24

gauge. The power cord should be limited to less than 10 meters in order to ensure optimum

performance.

Recommended 24V DC Power Supplies, similar to:

100-240VAC:

N-Tron NTPS-24-1.3, DC 24V/1.3A
