NordicTrack GX2.0 User manual

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

Serial Number Decal

(under frame)

Model No. NTEX02309.2

Serial No.

Write the serial number in the

space above for future reference.

USER'S MANUAL

QUESTIONS?

f you have questions, or if parts are

damaged or missing, DO NOT

CONTACT THE STORE; please

contact Customer Care.

IMPORTANT: Please register this

product (see the limited warranty

on the back cover of this manual)

before contacting Customer Care.

CALL TOLL-FREE:

1-888-825-2588

Mon.–Fri., 6 a.m.–6 p.m. MT

Sat. 8 a.m.–4 p.m. MT

ON THE WEB:

www.nordictrackservice.com

www.nordictrack.com

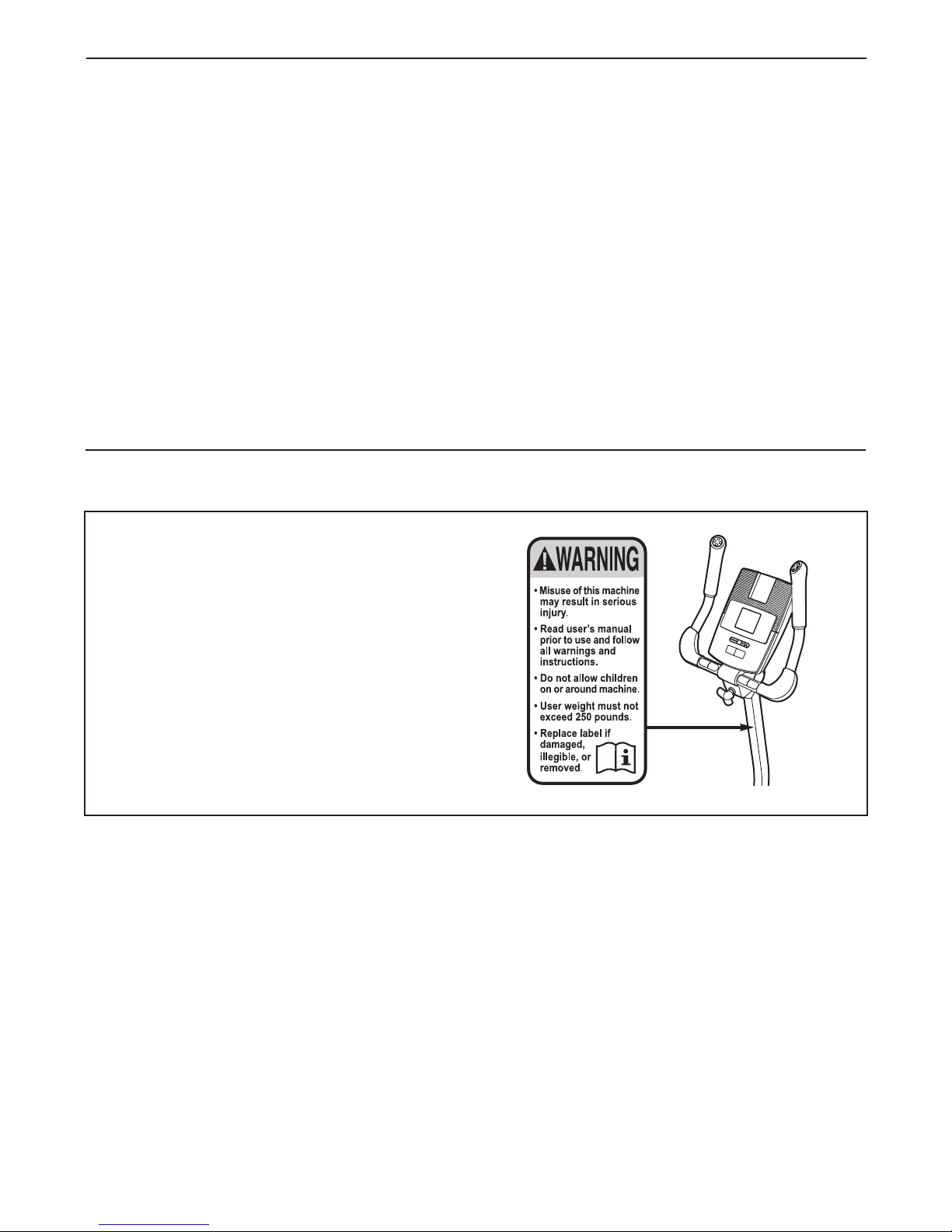

WARNING DECAL PLACEMENT

This drawing shows the location(s) of the warning

decal(s). If a decal is missing or illegible, see

the front cover of this manual and request a

free replacement decal. Apply the decal in the

location shown. Note: The decal(s) may not be

shown at actual size.

TABLE OF CONTENTS

WARNNGDECALPLACEMENT ..............................................................2

MPORTANTPRECAUTONS ................................................................3

BEFOREYOUBEGN ......................................................................4

ASSEMBLY ...............................................................................5

HOWTOUSETHEEXERCSECYCLE........................................................11

MANTENANCEANDTROUBLESHOOTNG ...................................................22

EXERCSEGUDELNES ...................................................................24

PARTLST ..............................................................................26

EXPLODEDDRAWNG ....................................................................27

ORDERNGREPLACEMENTPARTS ..................................................BackCover

LMTEDWARRANTY ..............................................................BackCover

NordicTrack is a registered trademark of CON P, nc.

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your exercise cycle before using your exercise

cycle. ICON assumes no responsibility for personal injury or property damage sustained by or

through the use of this product.

1. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or per-

sons with pre-existing health problems.

2. Use the exercise cycle only as described in

this manual.

3. It is the responsibility of the owner to ensure

that all users of the exercise cycle are ade-

quately informed of all precautions.

4. The exercise cycle is intended for home use

only. Do not use the exercise cycle in a com-

mercial, rental, or institutional setting.

5. Keep the exercise cycle indoors, away from

moisture and dust. Place the exercise cycle

on a level surface, with a mat beneath it to

protect the floor or carpet. Make sure that

there is at least 2 ft. (0.6 m) of clearance

around your exercise cycle.

6. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

7. Keep children under age 12 and pets away

from the exercise cycle at all times.

8. Wear appropriate clothes while exercising;

do not wear loose clothes that could become

caught on the exercise cycle. Always wear

athletic shoes for foot protection.

9. The exercise cycle should not be used by

persons weighing more than 250 lbs.

(113 kg).

10. The pulse sensor is not a medical device.

Various factors, including the user's move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

11. Always keep your back straight while using

the exercise cycle; do not arch your back.

12. Over exercising may result in serious injury

or death. If you feel faint or if you experience

pain while exercising, stop immediately and

cool down.

IMPORTANT PRECAUTIONS

Handgrip Pulse Sensor

Game Grip

Seat

Seat Post

Seat Adjustment Knob

Leveling Foot

Leveling Knob

Wheel

Pedal/Strap

Console

Handlebar

Seat Post Knob

Adjustment Knob

BEFORE YOU BEGIN

Thank you for selecting the revolutionary NordicTrack®

GX 2.0 exercise cycle. Cycling is an effective exercise

for increasing cardiovascular fitness, building

endurance, and toning the body. The GX 2.0 exercise

cycle provides an impressive selection of features

designed to make your workouts at home more effec-

tive and enjoyable.

For your benefit, read this manual carefully before

you use the exercise cycle. f you have questions

after reading this manual, please see the front cover

of this manual. To help us assist you, note the product

model number and serial number before contacting

us. The model number and the location of the serial

number decal are shown on the front cover of this

manual.

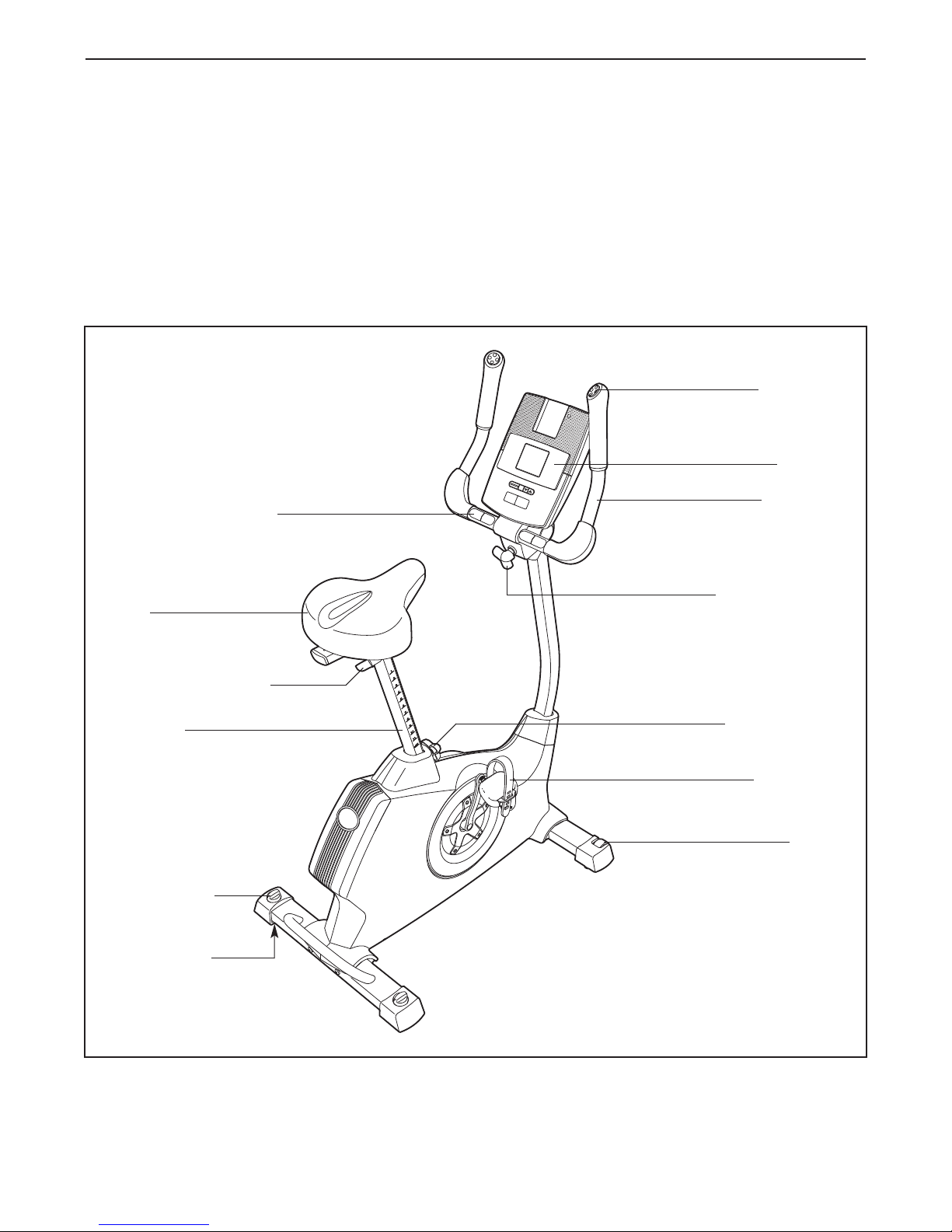

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

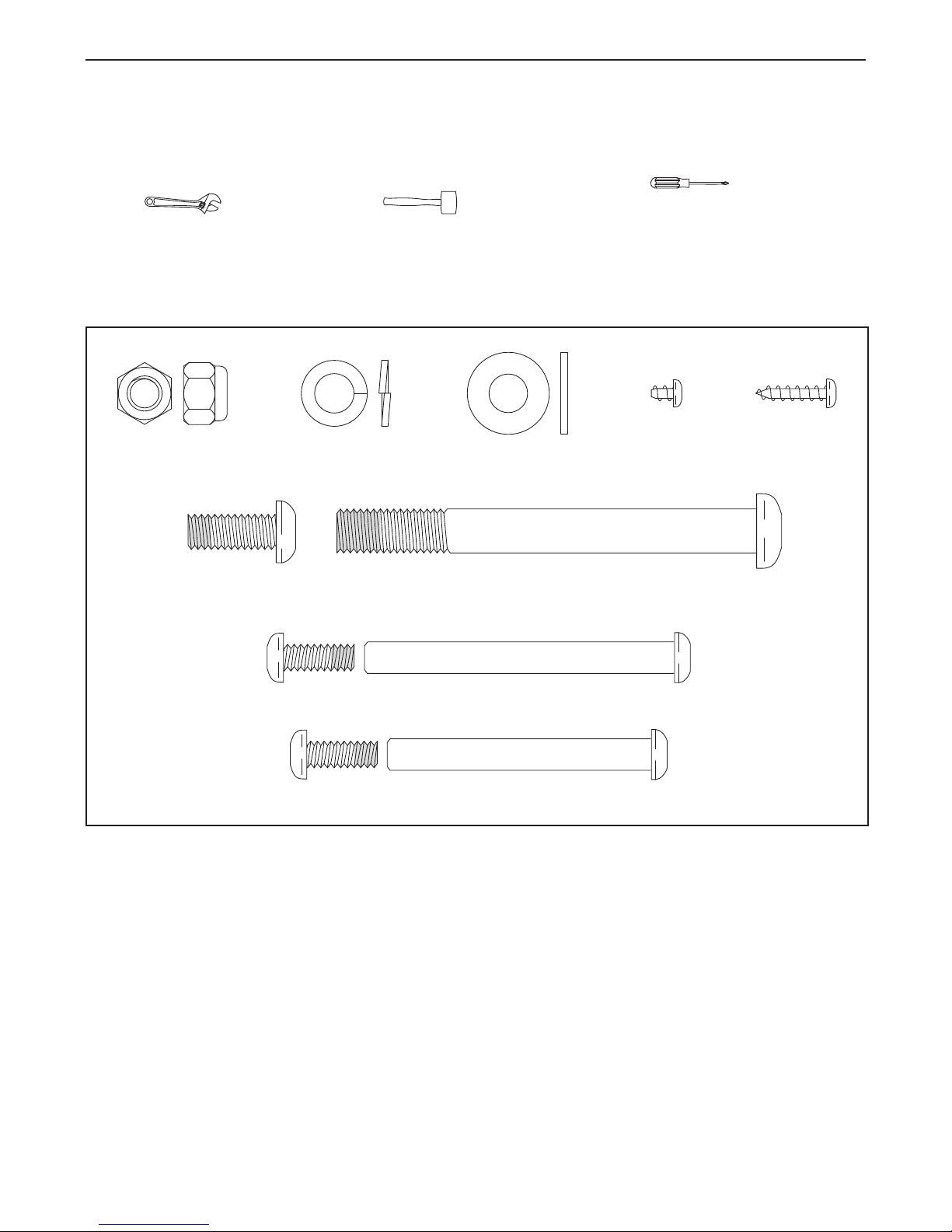

M4 x 16mm

Screw (90)–8

M4 x 5mm

Bright Screw

(91)–1

M10 x 95mm Patch

Screw (76)–4

M8 x 20mm

Patch Screw

(74)–4

M8 Split

Washer (75)–8

M8 Washer

(43)–2

M8 Locknut

(72)–4

M6 x 60mm Bolt Set (51)–1

M6 x 70mm Bolt Set (50)–1

ASSEMBLY

Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the pack-

ing materials. Do not dispose of the packing materials until assembly is completed.

In addition to the included tool(s), assembly requires a Phillips screwdriver , an adjustable

wrench , and a rubber mallet .

As you assemble the exercise cycle, use the drawings below to identify small parts. The number in parentheses

below each drawing is the key number of the part, from the PART L ST near the end of this manual. The number

following the parentheses is the quantity needed for assembly. Note: If a part is not in the hardware kit,

check to see if it has been preassembled.

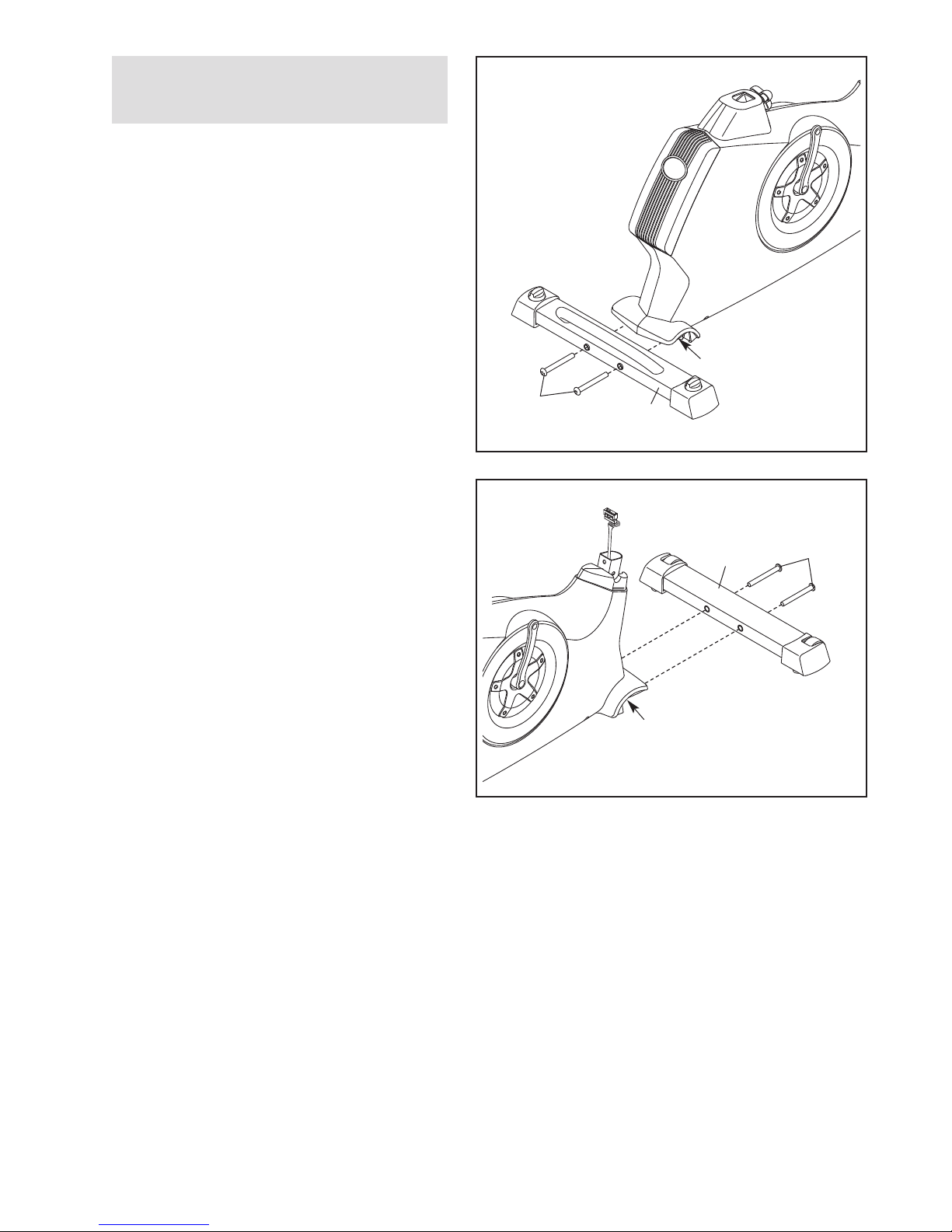

Attach the Rear Stabilizer (3) to the Frame (1)

with two M10 x 95mm Patch Screws (76).

2. Attach the Front Stabilizer (2) to the Frame (1)

with two M10 x 95mm Patch Screws (76).

To make assembly easier, read the

information on page 5 before you begin.

Adjustment

Holes

91 6

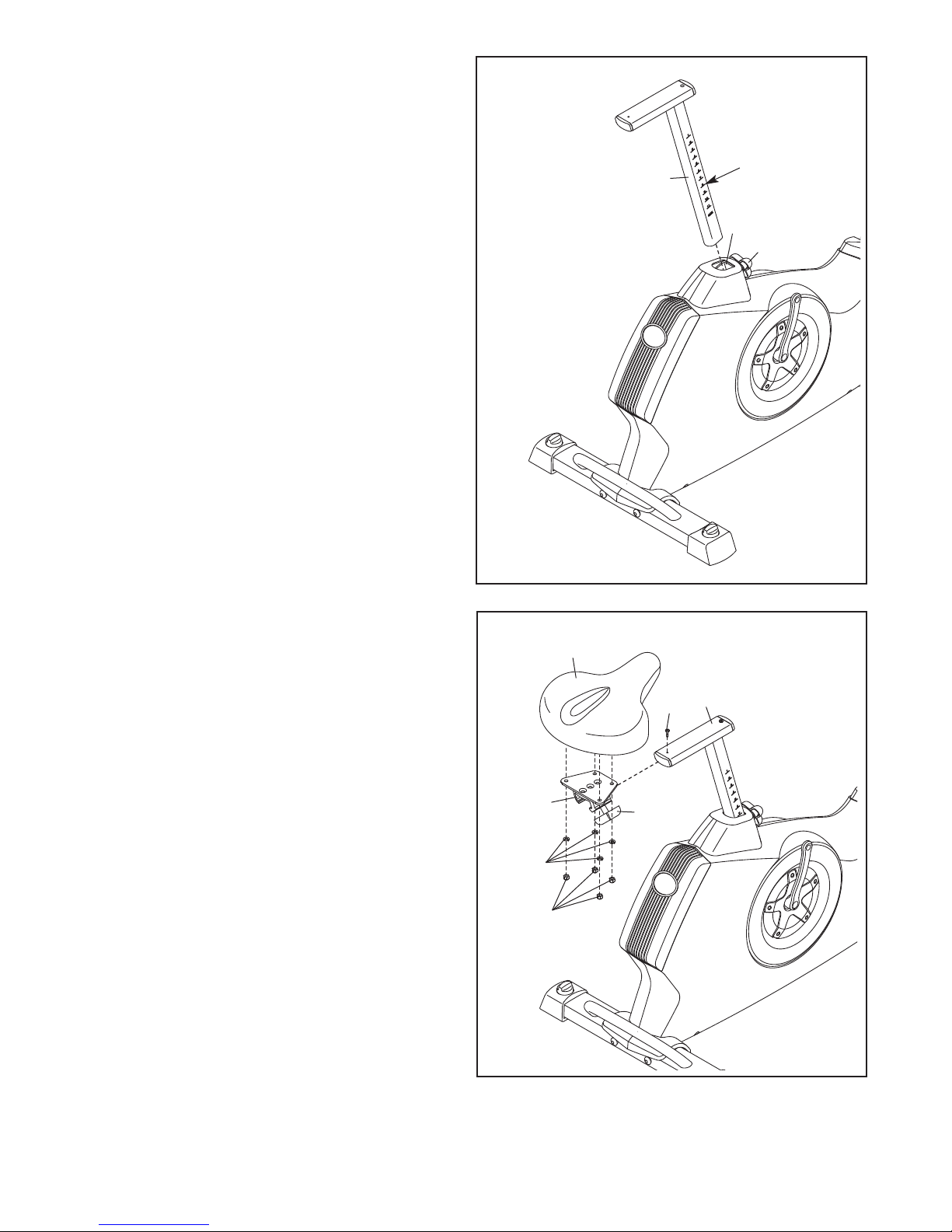

3. Loosen the Adjustment Knob (27) in the Frame

(1) a few turns.

Orient the Seat Post (6) as shown. Then, pull

the Adjustment Knob (27) outward and insert

the Seat Post into the Frame (1).

Slide the Seat Post (6) upward or downward to

the desired position, and release the

Adjustment Knob (27).

Move the Seat Post (6) upward or downward

slightly to make sure that the Adjustment

Knob (27) is engaged in one of the adjust-

ment holes in the Seat Post. Then, tighten the

Adjustment Knob.

4. Orient the Seat (23) and the Seat Carriage (24)

as shown.

Attach the Seat (23) to the Seat Carriage (24)

with four M8 Locknuts (72) and four M8 Split

Washers (75).

Slide the Seat Carriage (24) onto the Seat Post

(6). Then, slide the Seat Carriage all the way

forward and tighten the Seat Adjustment Knob

(26).

Attach an M4 x 5mm Bright Screw (91) to the

rear of the Seat Post (6).

5. Apply some of the included grease to an M6 x

70mm Bolt Set (50).

Orient the Handlebar (5) and the Upright (4) as

shown.

While a second person holds the Handlebar (5)

near the Upright (4), insert the Extension Wire

(59) upward through the Handlebar.

Tip: Avoid pinching the Extension Wire (59).

Attach the Handlebar (5) to the Upright (4) with

the M6 x 70mm Bolt Set (50) and two M8

Washers (43).

Then, attach an M6 x 60mm Bolt Set (51)

through the lower bracket on the Handlebar (5).

Grease

Avoid pinching the

Extension Wire (59)

6. The Console (13) can use four D batteries (not

included); alkaline batteries are recommended.

IMPORTANT: If the Console has been

exposed to cold temperatures, allow it to

warm to room temperature before inserting

batteries. Otherwise, you may damage the

console displays or other electronic compo-

nents. Remove the screw, remove the battery

cover, insert the batteries into the battery com-

partment, and reattach the battery cover. Make

sure to orient the batteries as shown by the

diagram inside the battery compartment.

To purchase an optional AC adapter, call the

telephone number on the cover of this man-

ual. To avoid damaging the console, use

only a manufacturer-supplied AC adapter.

Plug one end of the AC adapter into the jack on

the console; plug the other end into an outlet

installed in accordance with all local codes and

ordinances.

Batteries

Screw

Battery

Cover

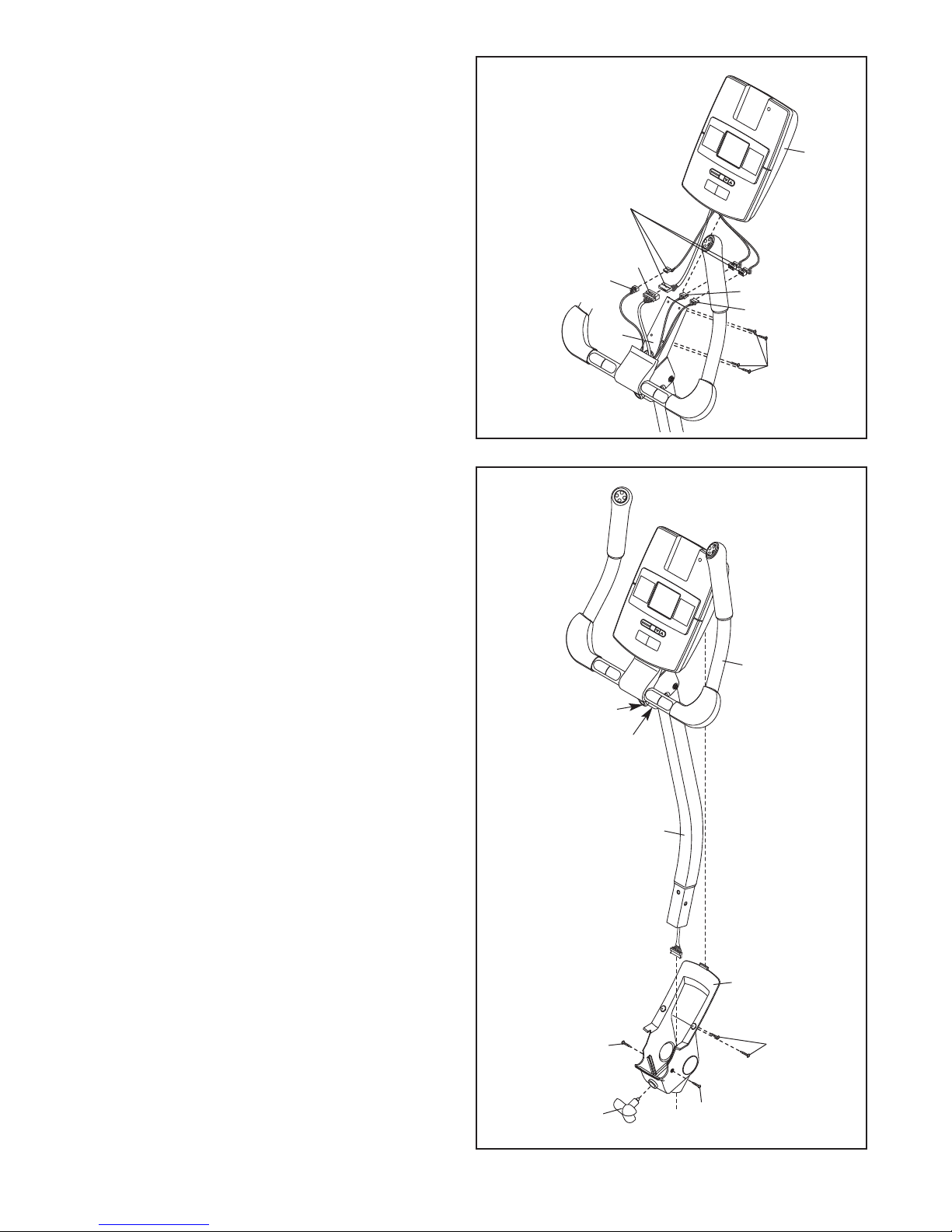

7. While another person holds the Console (13)

near the Handlebar (5), connect the console

wires to the Extension Wire (59), the Pulse Wire

(61), the Left Controller Wire (66), and the Right

Controller Wire (67). Look at the tags on the

wires and make sure that the Left and Right

Game Wires are connected to the correct

wires on the console.

nsert the excess wire downward into the

Handlebar (5) or upward into the Console (13).

Tip: Avoid pinching the wires. Attach the

Console (13) to the Handlebar (5) with four M4

x 16mm Screws (90).

Avoid pinching

the wires

Console

Wires

8. Orient the Upright (4) assembly and the Pivot

Cover (12) as shown.

Slide the Pivot Cover (12) upward to the

Handlebar (5). Tip: Bend and flex the Pivot

Cover slightly to slide it over the Handlebar.

Attach the Pivot Cover (12) to the Handlebar (5)

with four M4 x 16mm Screws (90).

Pivot the Handlebar (5) until the hole in the

Handlebar is aligned with an adjustment hole in

the Upright (4).

Tighten an Adjustment Knob (27) into the

Handlebar (5) and an adjustment hole in the

Upright (4). Make sure that the Adjustment

Knob is engaged in one of the adjustment

holes.

Hole

Adjustment

Holes

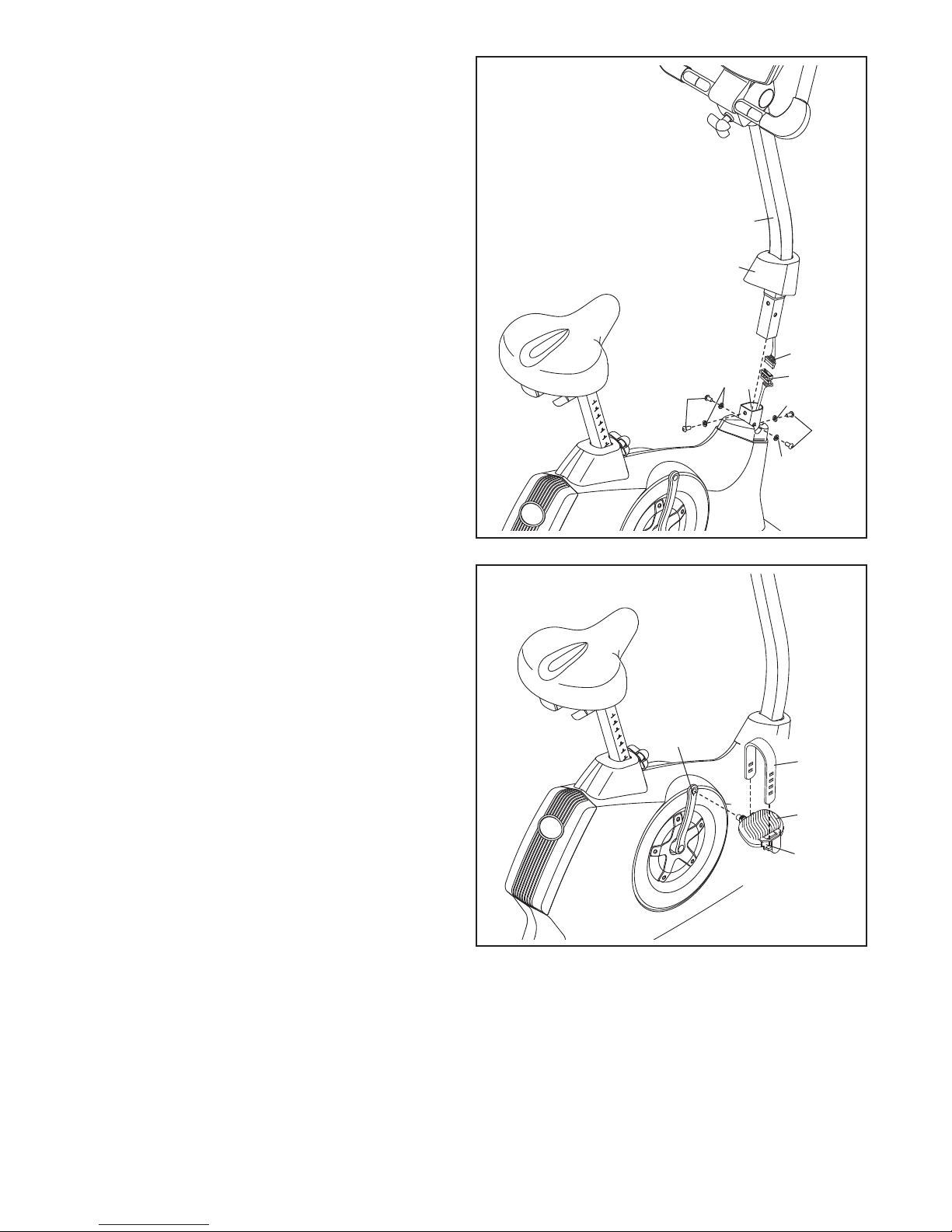

9. Slide the Front Shield Cover (7) upward onto

the Upright (4).

While another person holds the Upright (4) near

the Frame (1), connect the Extension Wire (59)

to the Wire Harness (58).

nsert the Upright (4) into the Frame (1).

Tip: Avoid pinching the wires. Attach the

Upright (4) with four M8 x 20mm Patch Screws

(74) and four M8 Split Washers (75).

Slide the Front Shield Cover (7) downward to

the Frame (1) and press it into place.

Avoid pinching

the wires

10. dentify the Right Pedal (21), which is marked

with an “R.”

Using an adjustable wrench, firmly tighten the

Right Pedal (21) clockwise into the Right Crank

Arm (19).

Tighten the Left Pedal (not shown) counter-

clockwise into the Left Crank Arm (not shown).

IMPORTANT: Tighten both pedals as firmly

as possible. After using the exercise cycle

for one week, retighten the pedals. For best

performance, keep the pedals tightened.

Adjust the strap on the Right Pedal (21) to the

desired position, and press the ends of the

straps onto the tabs on the Right Pedal. Adjust

the strap on the Left Pedal (not shown) in

the same way.

Strap

Tab

11. Make sure that all parts are properly tightened before you use the exercise cycle. Note: Some hard-

ware may be left over after assembly is completed. Place a mat under the exercise cycle to protect the

floor or carpet.

Other manuals for GX2.0

This manual suits for next models

Table of contents

Other NordicTrack Exercise Bike manuals

NordicTrack

NordicTrack 831.21977.2 User manual

NordicTrack

NordicTrack Gx 4.5 Bike User manual

NordicTrack

NordicTrack Sl 728contour Plus Bike User manual

NordicTrack

NordicTrack E125 Bench User manual

NordicTrack

NordicTrack Gx 3.1 Bike Configuration guide

NordicTrack

NordicTrack AudioStrider R400 NTEX4196.1 User manual

NordicTrack

NordicTrack NTCCEX04900 User manual

NordicTrack

NordicTrack NTC4015.0 User manual

NordicTrack

NordicTrack SRe User manual

NordicTrack

NordicTrack SL 710 User manual

NordicTrack

NordicTrack E200 Bench System manual

NordicTrack

NordicTrack CEX22523 User manual

NordicTrack

NordicTrack Gx 2.7 Bike User manual

NordicTrack

NordicTrack Gxr 4.2 Bike User manual

NordicTrack

NordicTrack Sl850 Bike User manual

NordicTrack

NordicTrack VX550 User manual

NordicTrack

NordicTrack NTIVEX59016.0 User manual

NordicTrack

NordicTrack GX4.0 NTCCEX03810.1 User manual

NordicTrack

NordicTrack C7 Zl Bike User manual

NordicTrack

NordicTrack Gx 3.0 Gw Bike User manual

NordicTrack

NordicTrack Gx 3.1 Bike User guide

NordicTrack

NordicTrack Sl850 Bike Operating and maintenance manual

NordicTrack

NordicTrack Gx 3.0 Gw Bike Operating and maintenance manual

NordicTrack

NordicTrack NTEX71415.2 User manual

Popular Exercise Bike manuals by other brands

Weslo

Weslo Vector 302 Bedienungsanleitung

TOORX

TOORX BRX85 Instruction

Matrix

Matrix KranKcycle user manual

Matrix

Matrix IC3 manual

Sunny Health & Fitness

Sunny Health & Fitness SF-B121021 user manual

Monark

Monark 827E instruction manual

Stamina

Stamina 1310 owner's manual

American Fitness

American Fitness SPR-BK1072A owner's manual

Cateye

Cateye CS-1000 (CYCLO SIMULATOR) Service manual

BH FITNESS

BH FITNESS H9158H Instructions for assembly and use

Body Sculpture

Body Sculpture BC-7220G manual

Cateye

Cateye EC-2300 manual

FYTTER

FYTTER RACER RC MSR user manual

Kikos

Kikos HM-9090M user manual

Pro-Form

Pro-Form 345 Zlx Bike Manual Del Usuario

Fuel Fitness

Fuel Fitness SU135-40 owner's manual

Vision Fitness

Vision Fitness U70 Service manual

Stamina

Stamina 15-0340A owner's manual
