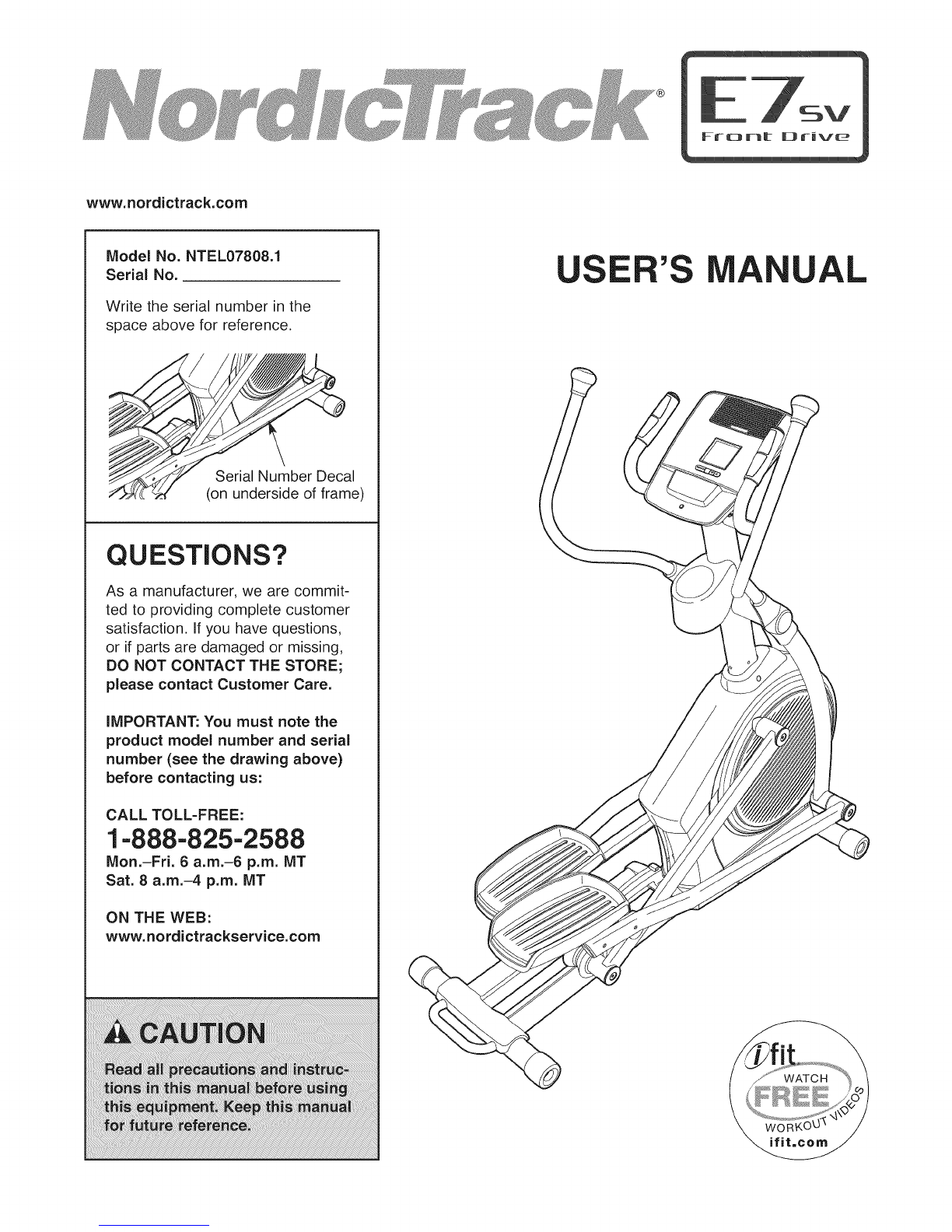

NordicTrack NTEL07808.1 User manual

www.nordictrack.com

ModelNo.NTEL07808.1

Serial No.

Write the serial number in the

space above for reference.

@_-uz7 (Se_iad eNrU_dbeerfDeamle)

QUESTIONS?

As a manufacturer, we are commit-

ted to providing complete customer

satisfaction. If you have questions,

or if parts are damaged or missing,

DO NOT CONTACT THE STORE;

please contact Customer Care.

iMPORTANT: You must note the

product model number and serial

number (see the drawing above)

before contacting us:

CALL TOLL-FREE:

1-888-825-2588

Mon.-Fri. 6 a.m.-6 p.m. MT

Sat. 8 a.m.-4 p.m. MT

ON THE WEB:

www.nordictrackservice.com

Ff_rlt E_fiv_

AUAL

TABLE OF CONTENTS

WARNING DECAL PLACEMENT .............................................................. 2

IMPORTANT PRECAUTIONS ................................................................ 3

BEFORE YOU BEGIN ...................................................................... 4

ASSEMBLY ............................................................................... 5

HOW TO USE THE ELLIPTICAL EXERCISER .................................................. 12

MAINTENANCE AND TROUBLESHOOTING ................................................... 21

EXERCISE GUIDELINES ................................................................... 22

PART LIST .............................................................................. 23

EXPLODED DRAWING .................................................................... 25

ORDERING REPLACEMENT PARTS .................................................. Back Cover

LIMITED WARRANTY .............................................................. Back Cover

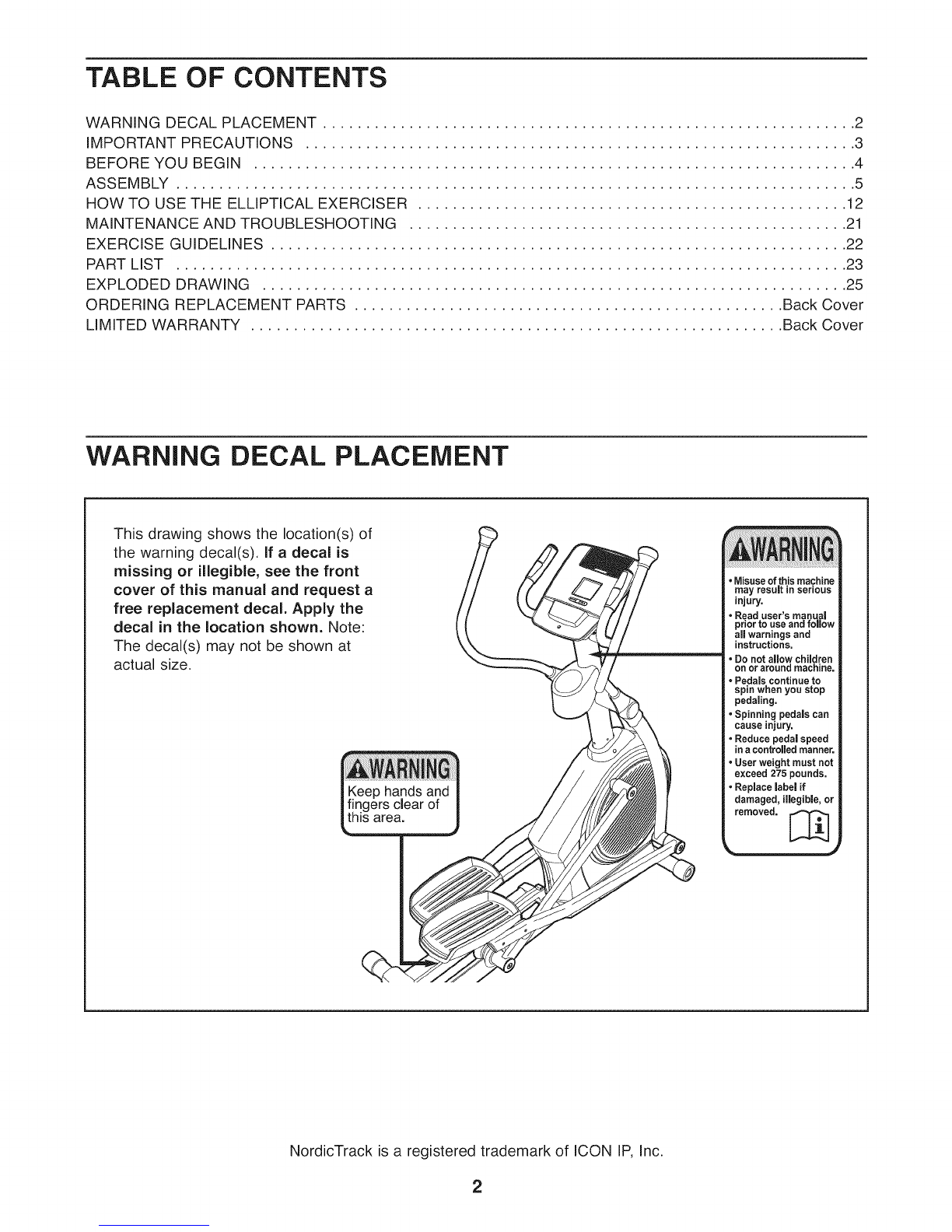

WARNING DECAL PLACEMENT

This drawing shows the location(s) of

the warning decal(s). If a decal is

missing or illegible, see the front

cover of this manual and request a

free replacement decal. Apply the

decal in the location shown. Note:

The decal(s) may not be shown at

actual size.

•Misuse ofthis machine

may result in serious

injury.

• Read user's manual

priorto use and follow

all warnings and

instructions.

,Donot allow children

on or around machine.

•Pedals continue to

spin when you stop

pedaling.

•Spinning pedals can

cause injury.

, Reduce pedal speed

in a controlled manner.

User weight must not

exceed 275 pounds.

• Replace label if

damaged, illegible, or

removed. [_

NordicTrack is a registered trademark of ICON IP, Inc.

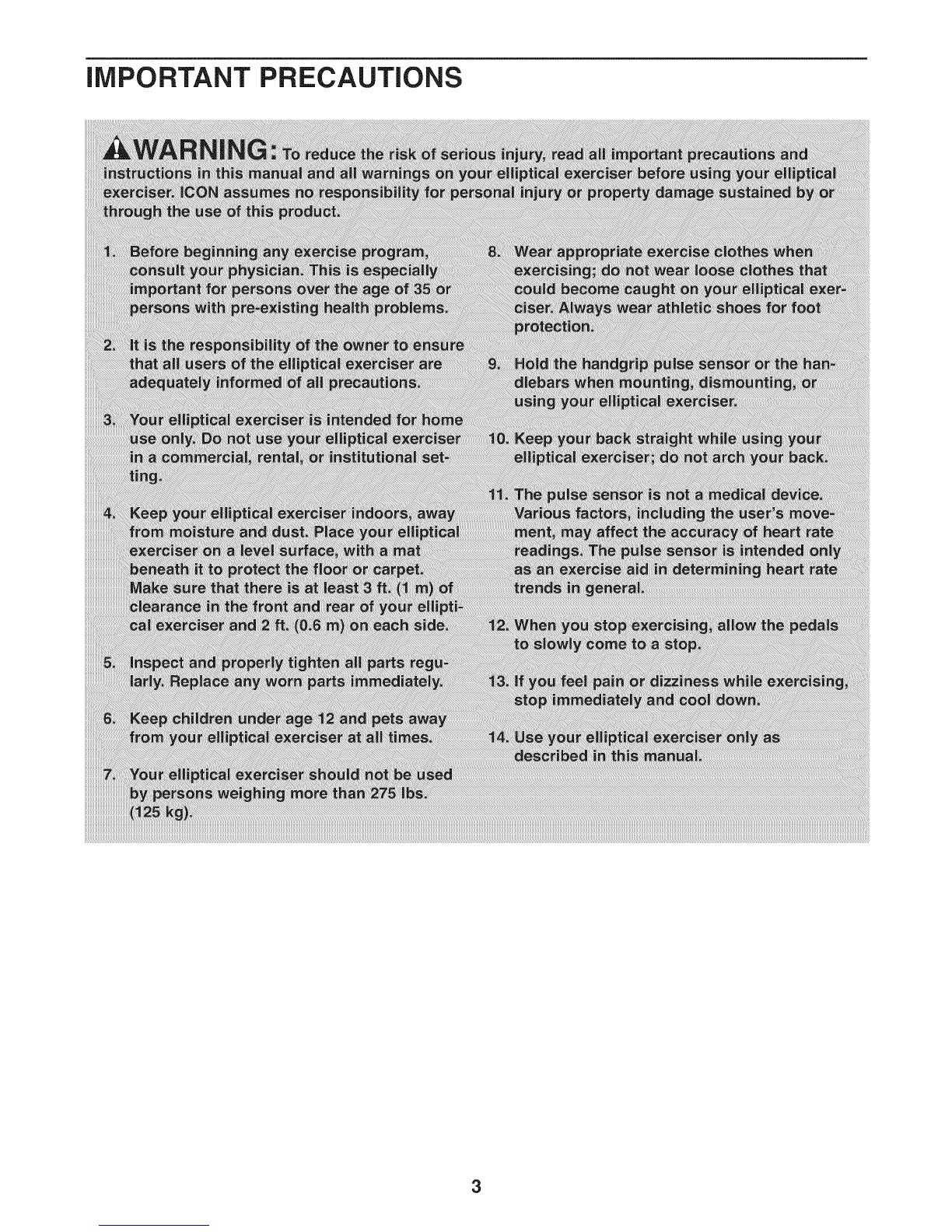

iMPORTANT PRECAUTIONS

BEFORE YOU BEGIN

Thank you for selecting the new NordicTrack ®E7 SV

FRONT DRIVE elliptical exerciser. The E7 SV FRONT

DRIVE elliptical exerciser provides a wide array of fea-

tures designed to make your workouts at home more

effective and enjoyable.

For your benefit, read this manual carefully before

you use the elliptical exerciser. If you have ques-

tions after reading this manual, please see the front

cover of this manual. To help us assist you, note the

product model number and serial number before con-

tacting us. The model number and the location of the

serial number decal are shown on the front cover of

this manual.

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Console Handgrip Pulse Sensor

Handlebar

Water Bottle Holder*

Ramp Handle

Pedal Wheel

Ramp

Handle

Roller

*Water bottle is not included

ASSEMBLY

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the

packing materials. Do not dispose of the packing materials until assembly is completed.

in addition to the included tool(s), assembly requires aPhillips screwdriver _C_===_, two adjustable

wrenches __, and a rubber mallet _.

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parenthe-

ses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The

number following the parentheses is the quantity needed for assembly. Note: Some small parts may have

been preassembled. If a part is not in the hardware kit, check to see if it has been preassembled.

16mm Wave

M8 Split

Washer (83)-9 Washer (54)-2

M8 Locknut

(1O2)-8 M10 Locknut

(92)-2

19mm Wave

Washer (66)-4

M4 x 16mm

Screw (104)-10

M8 x 80mm Patch

Screw (84)-2

M10 Washer

(95)-2 1

M8 x 25mm

Washer (98)-6

M8 x 19mm Patch

Screw (82)-15 M8 x 38mm

Bolt (96)-8

M10 x 45mm Patch

Screw (99)-4

M10 x 60mm

Bolt (100)-2

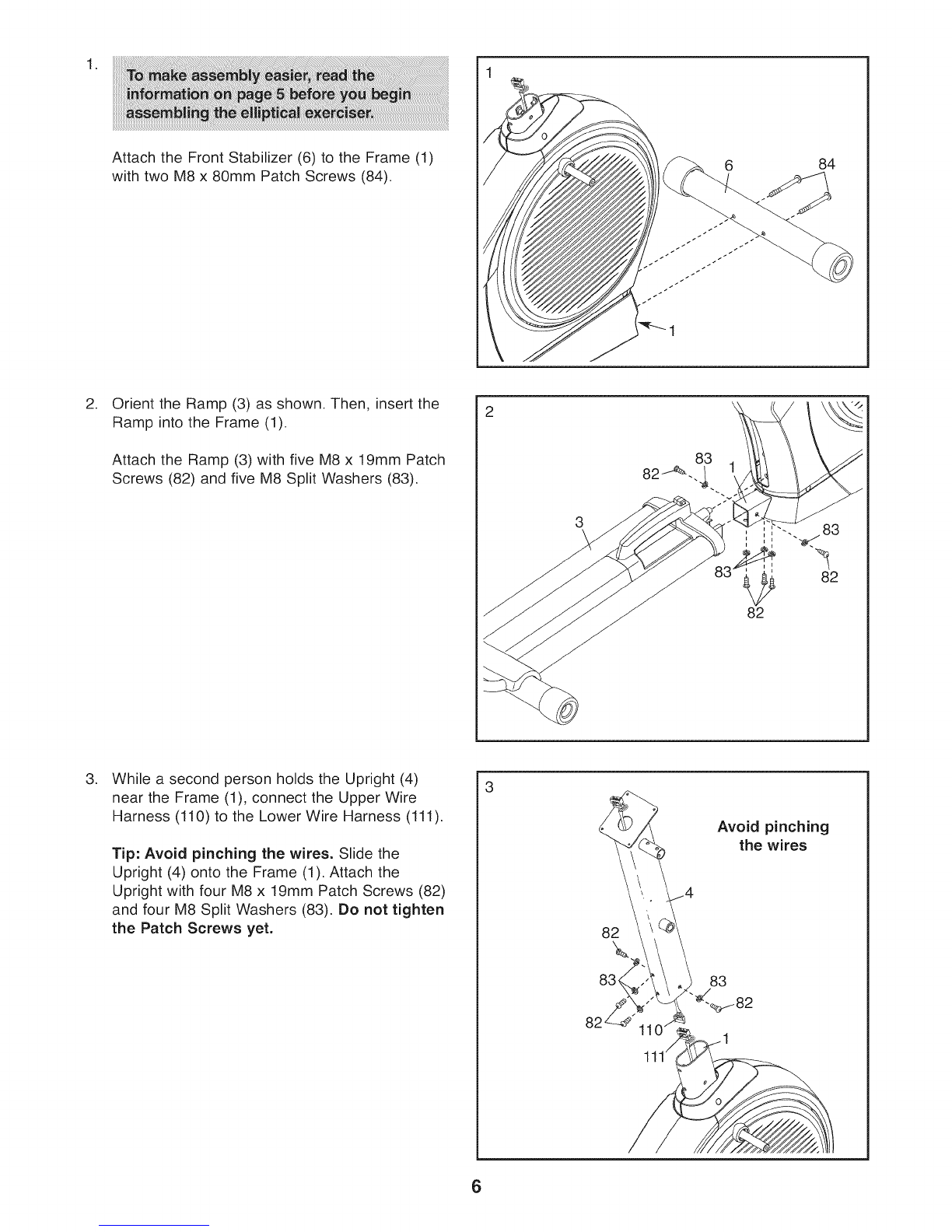

Attach the Front Stabilizer (6) to the Frame (1)

with two M8 x 80mm Patch Screws (84). 84

,Orient the Ramp (3) as shown. Then, insert the

Ramp into the Frame (1).

Attach the Ramp (3) with five M8 x 19mm Patch

Screws (82) and five M8 Split Washers (83).

,While a second person holds the Upright (4)

near the Frame (1), connect the Upper Wire

Harness (110) to the Lower Wire Harness (111).

Tip: Avoid pinching the wires. Slide the

Upright (4) onto the Frame (1). Attach the

Upright with four M8 x 19mm Patch Screws (82)

and four M8 Split Washers (83). Do not tighten

the Patch Screws yet. 82

83.

Avoid pinching

the wires

Apply a small amount of the included grease to

the right Crank Arm (20) and to a 19mm Wave

Washer (66).

Slide a Crank Arm Spacer (55) and the 19mm

Wave Washer (66) onto the right Crank Arm

(20).

Identify the Right Roller Arm (59), which is

marked with a "Right" sticker, and orient it as

shown.

Slide the Right Roller Arm (59) onto the right

Crank Arm (20). Attach the Right Roller Arm

with an M8 x 19mm Patch Screw (82), an Axle

Cover (53), and an M8 x 25mm Washer (98); to

avoid breaking the Axle Cover, do not over=

tighten the Patch Screw.

Repeat this step for the Left Roller Arm (not

shown).

Grease

.Identify the Right Pedal Bracket (64), which is

marked with a "Right" sticker.

Apply a small amount of grease to the inside of

the tube on the Right Roller Arm (59) and to the

barrel of an M10 x 60mm Bolt (100).

Attach the Right Pedal Bracket (64) to the Right

Roller Arm (59) with the M10 x 60mm Bolt

(100), an M10 Washer (95), and an M10

Locknut (92). Do not overtighten the Locknut;

the Right Pedal Bracket must pivot freely.

Repeat this step for the Left Pedal Bracket

(48).

100

Grease

6. 6

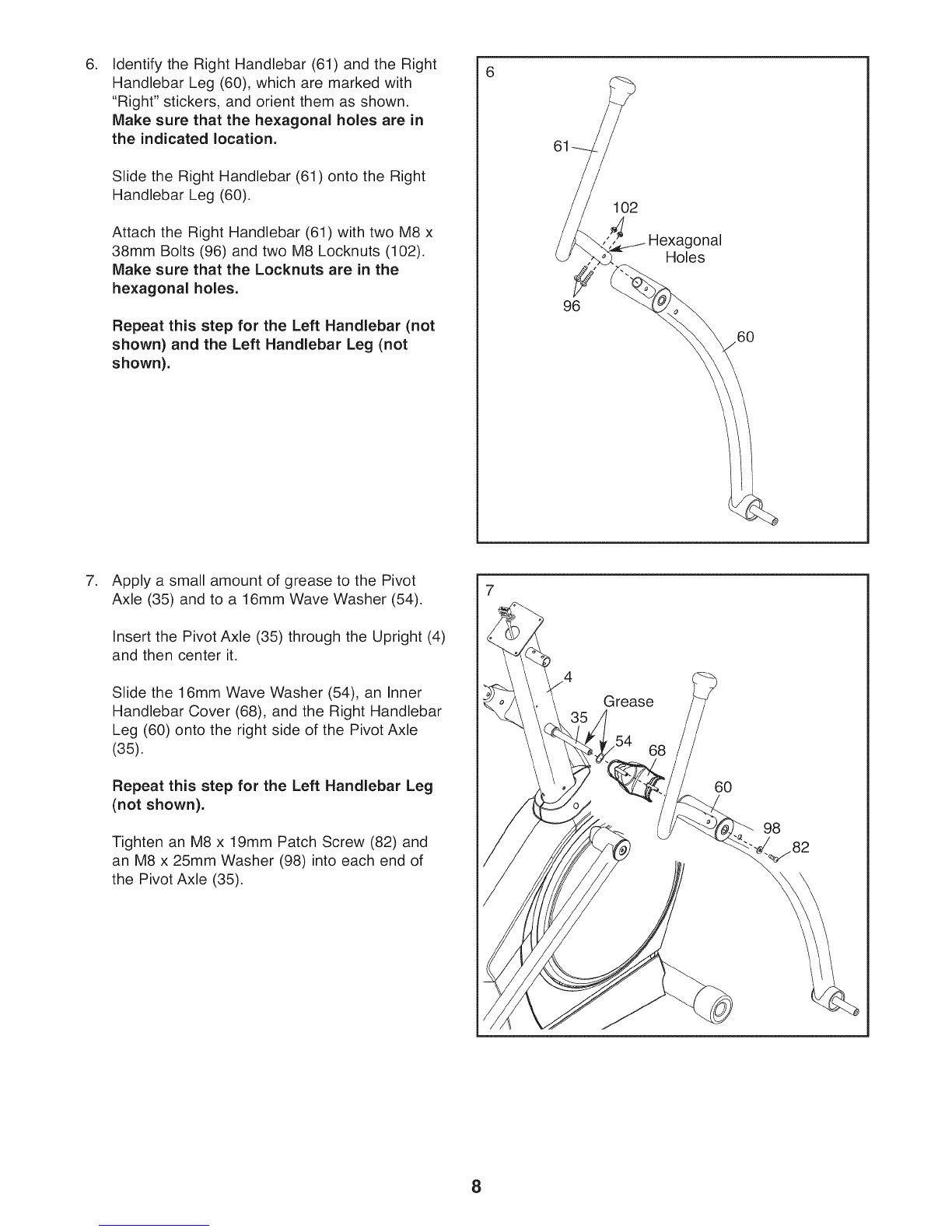

Identify the Right Handlebar (61) and the Right

Handlebar Leg (60), which are marked with

"Right" stickers, and orient them as shown.

Make sure that the hexagonal holes are in

the indicated location.

Slide the Right Handlebar (61) onto the Right

Handlebar Leg (60).

Attach the Right Handlebar (61) with two M8 x

38mm Bolts (96) and two M8 Locknuts (102).

Make sure that the Locknuts are in the

hexagonal holes.

Repeat this step for the Left Handlebar (not

shown) and the Left Handlebar Leg (not

shown).

102

Hexagonal

Holes

.Apply a small amount of grease to the Pivot

Axle (35) and to a 16mm Wave Washer (54).

Insert the Pivot Axle (35) through the Upright (4)

and then center it.

Slide the 16mm Wave Washer (54), an Inner

Handlebar Cover (68), and the Right Handlebar

Leg (60) onto the right side of the Pivot Axle

(35).

Repeat this step for the Left Handlebar Leg

(not shown).

Tighten an M8 x 19mm Patch Screw (82) and

an M8 x 25mm Washer (98) into each end of

the Pivot Axle (35).

Grease

8. 8

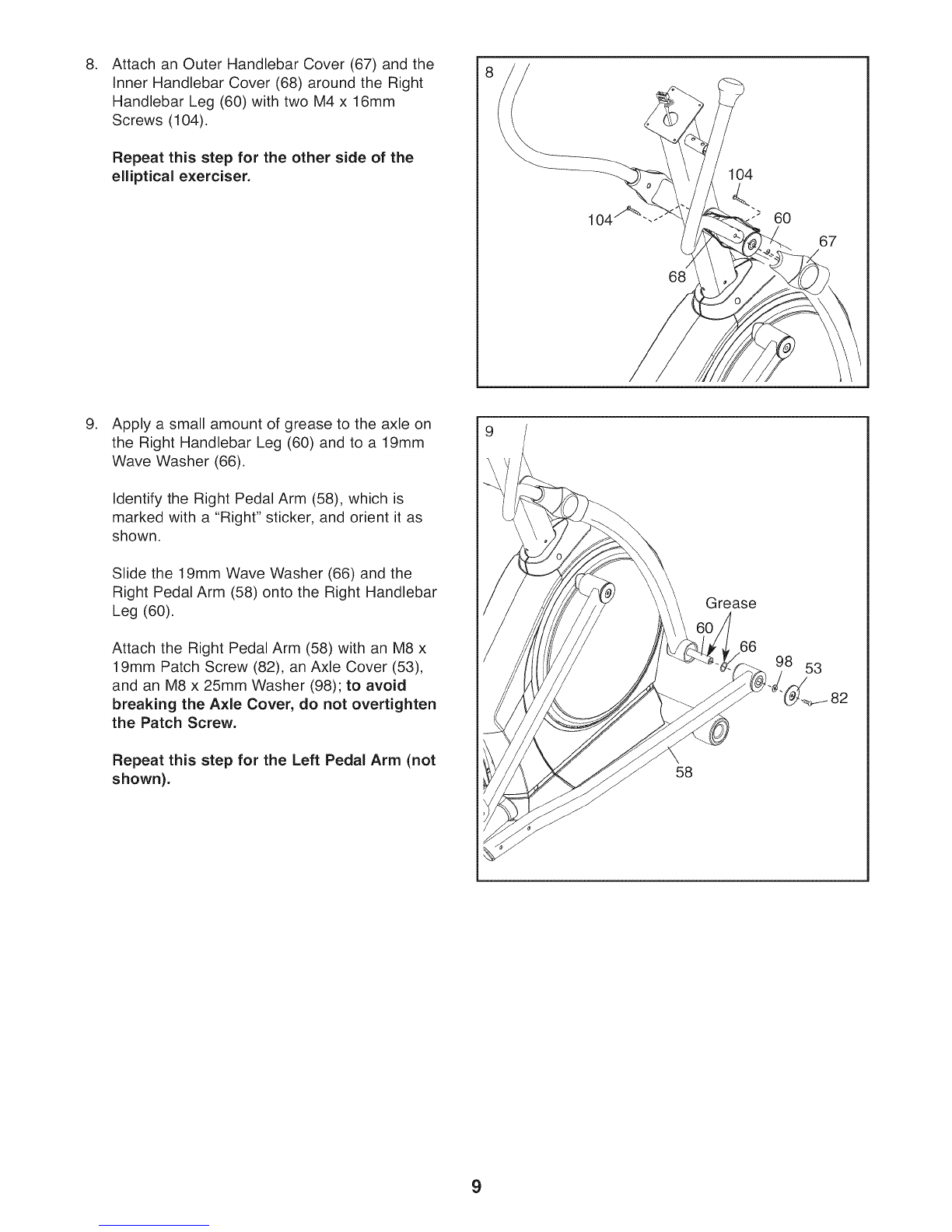

Attach an Outer Handlebar Cover (67) and the

Inner Handlebar Cover (68) around the Right

Handlebar Leg (60) with two M4 x 16mm

Screws (104).

Repeat this step for the other side of the

elliptical exerciser.

104

.Apply a small amount of grease to the axle on

the Right Handlebar Leg (60) and to a 19mm

Wave Washer (66).

Identify the Right Pedal Arm (58), which is

marked with a "Right" sticker, and orient it as

shown.

Slide the 19mm Wave Washer (66) and the

Right Pedal Arm (58) onto the Right Handlebar

Leg (60).

Attach the Right Pedal Arm (58) with an M8 x

19mm Patch Screw (82), an Axle Cover (53),

and an M8 x 25mm Washer (98); to avoid

breaking the Axle Cover, do not overtighten

the Patch Screw.

Repeat this step for the Left Pedal Arm (not

shown).

Grease

8 53

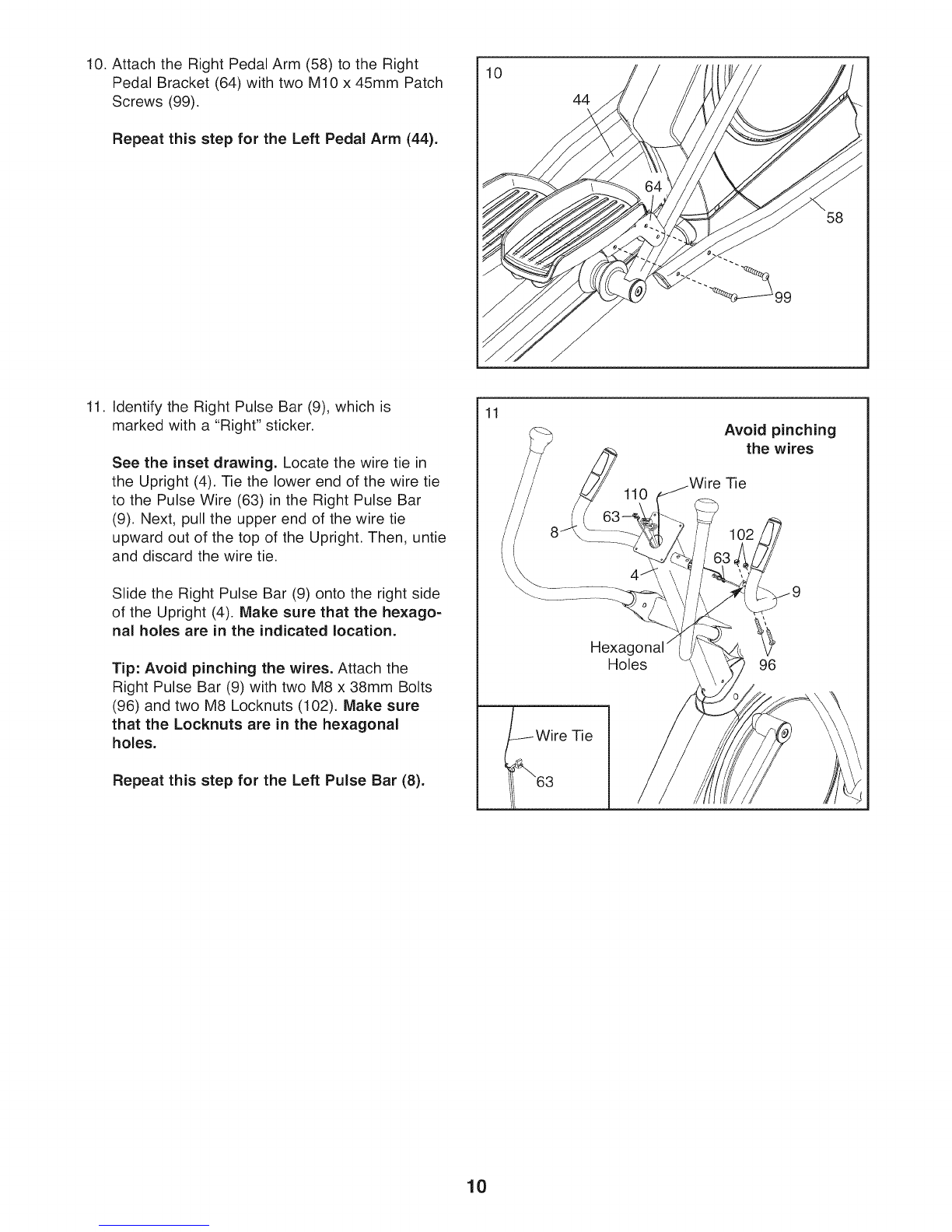

10. Attach the Right Pedal Arm (58) to the Right

Pedal Bracket (64) with two M10 x 45mm Patch

Screws (99).

Repeat this step for the Left Pedal Arm (44).

11. Identify the Right Pulse Bar (9), which is

marked with a "Right" sticker.

See the inset drawing. Locate the wire tie in

the Upright (4). Tie the lower end of the wire tie

to the Pulse Wire (63) in the Right Pulse Bar

(9). Next, pull the upper end of the wire tie

upward out of the top of the Upright. Then, untie

and discard the wire tie.

Slide the Right Pulse Bar (9) onto the right side

of the Upright (4). Make sure that the hexago-

nal holes are in the indicated location.

Tip: Avoid pinching the wires. Attach the

Right Pulse Bar (9) with two M8 x 38mm Bolts

(96) and two M8 Locknuts (102). Make sure

that the Locknuts are in the hexagonal

holes.

Repeat this step for the Left Pulse Bar (8).

Wire Tie

110

Hexagonal

Holes

Avoid pinching

the wires

Tie
