NordicTrack 831.23665.2 User manual

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

Serial

Number

Decal

Model No. 831.23665.2

Serial No.

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete

customer satisfaction. If you

have questions, or if parts are

damaged or missing, PLEASE

CONTACT OUR CUSTOMER

SERVICE DEPARTMENT

DIRECTLY.

CALL TOLL-FREE:

1-888-825-2588

Mon.–Fri., 6 a.m.–6 p.m. MST

Sat. 8 a.m.–5 p.m. MST

ON THE WEB:

www.nordictrackservice.com

Visit our website at

www.nordictrack.com

new products, prizes,

fitness tips, and much more!

USERʼS MANUAL

TABLE OF CONTENTS

IMPORTANTPRECAUTIONS ................................................................3

BEFOREYOUBEGIN ......................................................................4

ASSEMBLY ...............................................................................5

OWTOUSET EELLIPTICALEXERCISER ..................................................12

MAINTENANCEANDTROUBLES OOTING ...................................................20

CONDITIONINGGUIDELINES...............................................................21

PARTLIST ..............................................................................24

EXPLODEDDRAWING ....................................................................26

ORDERINGREPLACEMENTPARTS ..................................................BackCover

LIMITEDWARRANTY ..............................................................BackCover

NordicTrack is a registered trademark of ICON IP, Inc.

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of serious injury, read the following important precau-

tions before using the elliptical exerciser.

1. Read all instructions in this manual and all

warnings on the elliptical exerciser before

using the elliptical exerciser. Use the ellipti-

cal exercise only as described in this

manual.

2. It is the responsibility of the owner to ensure

that all users of the elliptical exerciser are

adequately informed of all precautions.

3. The elliptical exerciser is intended for

home use only. Do not use the elliptical

exerciser in a commercial, rental, or institu-

tional setting.

4. Keep the elliptical exerciser indoors, away

from moisture and dust. Place the elliptical

exerciser on a level surface, with a mat

beneath it to protect the floor or carpet.

Make sure that there is enough clearance

around the elliptical exerciser to mount, dis-

mount, and use it.

5. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

6. Keep children under age 12 and pets away

from the elliptical exerciser at all times.

7. The elliptical exerciser should not be used

by persons weighing more than 275 lbs.

(124 kg).

8. Wear appropriate exercise clothes while

using the elliptical exerciser. Always wear

athletic shoes for foot protection while exer-

cising.

9. Hold the handgrip pulse sensor or the upper

body arms when mounting, dismounting, or

using the elliptical exerciser.

10. The pulse sensor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The pulse sensor is

intended only as an exercise aid in determin-

ing heart rate trends in general.

11. Keep your back straight while using the ellip-

tical exerciser; do not arch your back.

12. If you feel pain or dizziness while exercising,

stop immediately and cool down.

13. When you stop exercising, allow the pedals

to slowly come to a stop.

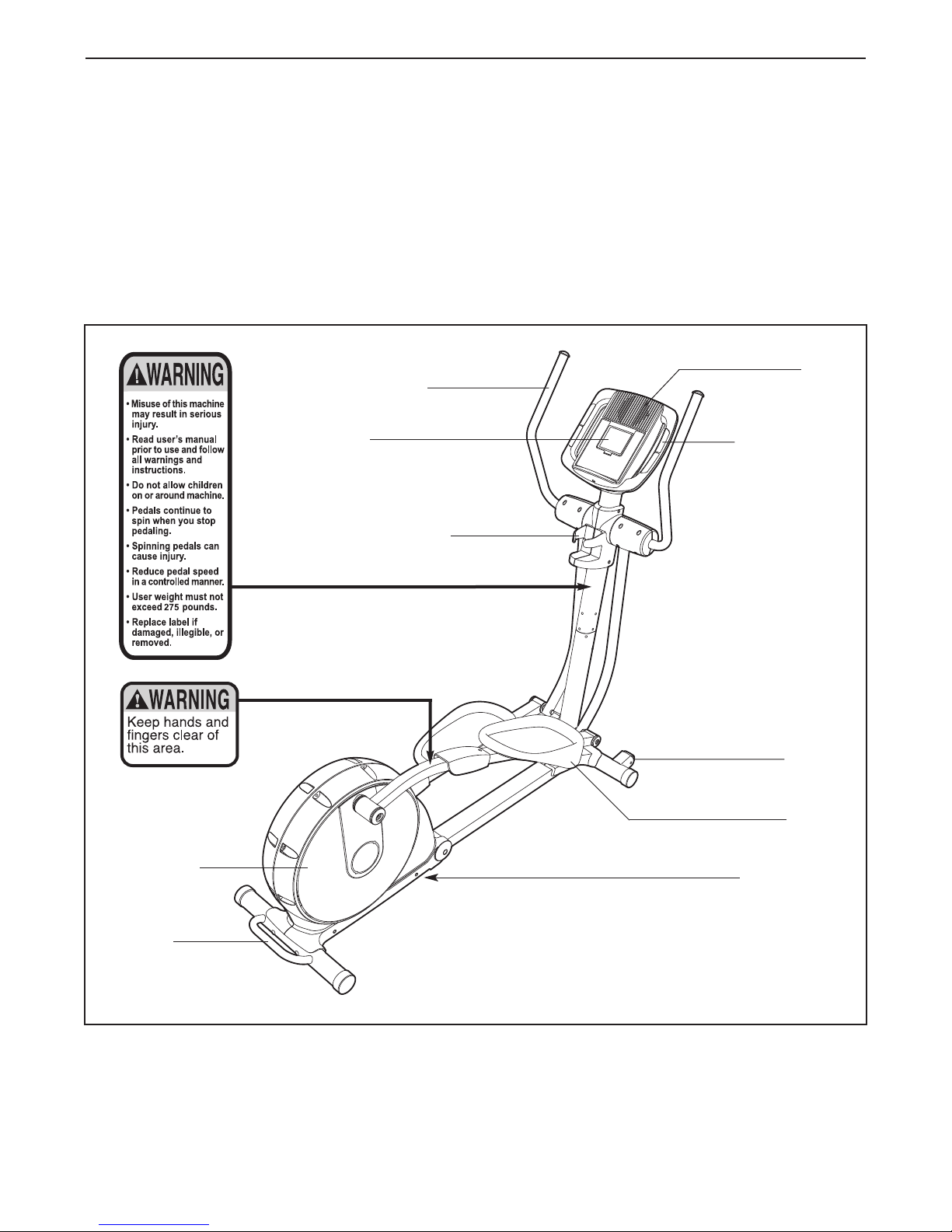

14. The warning decals shown on page 4 have

been placed on the elliptical exerciser in the

locations shown. If a decal is missing or

illegible, call the toll-free telephone number

on the front cover of this manual and order

a free replacement decal. Apply the decal in

the location shown.

WARNING: Before beginning this or any exercise program, consult your physician.

This is especially important for persons over the age of 35 or persons with pre-existing health prob-

lems. Read all instructions before using. ICON assumes no responsibility for personal injury or

property damage sustained by or through the use of this product.

BEFORE YOU BEGIN

Congratulations for selecting the advanced

NordicTrack®AUDIOSTRIDER 600 elliptical exerciser.

The AUDIOSTRIDER 600 elliptical exerciser provides

a wide array of features designed to make your work-

outs at home more effective and enjoyable—and

when youʼre not exercising, the unique elliptical exer-

ciser can be folded out of the way.

For your benefit, read this manual carefully before

you use the elliptical exerciser. If you have ques-

tions after reading this manual, please see the front

cover of this manual. To help us assist you, note the

product model number and serial number before con-

tacting us. The model number is 831.23665.2. The

serial number can be found on a decal attached to the

elliptical exerciser (see the front cover of this manual

for the location of the decal).

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Pulse Sensor

Upper Body Arm

Pedal Disc

Wheel

Pedal

Water Bottle older*

Console

andle

Latch Button

FRONT

RIGHT SIDE

REAR

Fan

*No water bottle is included

ASSEMBLY

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the

packing materials. Do not dispose of the packing materials until assembly is completed.

Assembly requires the included hex keys and your own phillips screwdriver ,

adjustable wrench , and rubber mallet .

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses

below each drawing is the key number of the part, from the PART LIST on pages 24 and 25. The number follow-

ing the parentheses is the quantity needed for assembly. Note: Some small parts may have been preassem-

bled. If a part is not in the parts bag, check to see if it has been preassembled.

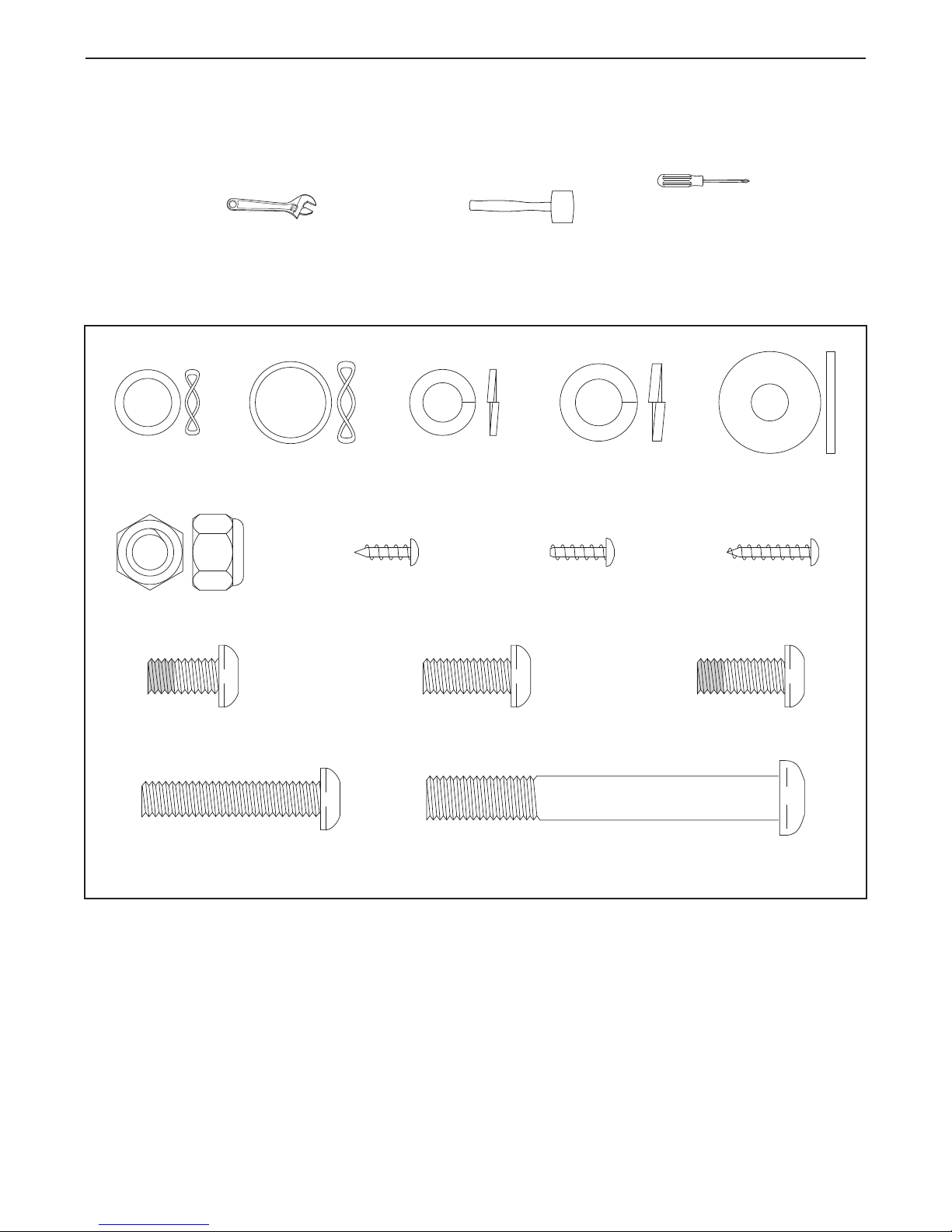

M8 Split

Washer (97)–10

Wave Washer

(80)–2

M10 Nylon

Locknut (82)–2

#8 x 1/2"

Screw (81)–2

M10 Split

Washer (99)–4

M10 x 80mm Button Screw (93)–4

Large Wave

Washer (89)–4

M8 x 40mm Button

Screw (90)–6

M8 x 20mm Patch

Screw (86)–6

M8 x 20mm Button

Screw (85)–4

M8 x 16mm Patch

Screw (84)–6

M8 x 23mm

Washer (31)–18

#8 x 1/2" Blunt

Screw (92)–9

#8 x 3/4"

Screw (78)–16

2. Attach the Left and Right Frame Covers (36, 37)

around the Frame (1) with four #8 x 1/2" Blunt

Screws (92).

3. With the help of another person, carefully tip

the elliptical exerciser onto its side. Attach the

Center Foot (40) to the Frame (1) with two

#8 x 1/2" Screws (81). Then, return the elliptical

exerciser to the upright position.

Orient the Rear Stabilizer (3) as shown. While

another person lifts the Folding Frame (2),

attach the Rear Stabilizer to the Folding Frame

with two M10 x 80mm Button Screws (93) and

two M10 Washers (99).

40 2

See HOW TO FOLD AND UNFOLD THE

ELLIPTICAL EXERCISER on page 11 and

unfold the elliptical exerciser.

While another person lifts the front of the

Frame (1), attach the Front Stabilizer (4) to the

Frame with two M10 x 80mm Button Screws

(93), two M10 Split Washers (99), and two M10

Nylon Locknuts (82).

To make assembly easier, read the

information on page 5 before you begin

assembling the elliptical exerciser.

5. Orient the Left and Right Upright Covers (19, 20)

as shown. Attach the Upright Covers around the

Upright (10) with five #8 x 1/2" Blunt Screws (92).

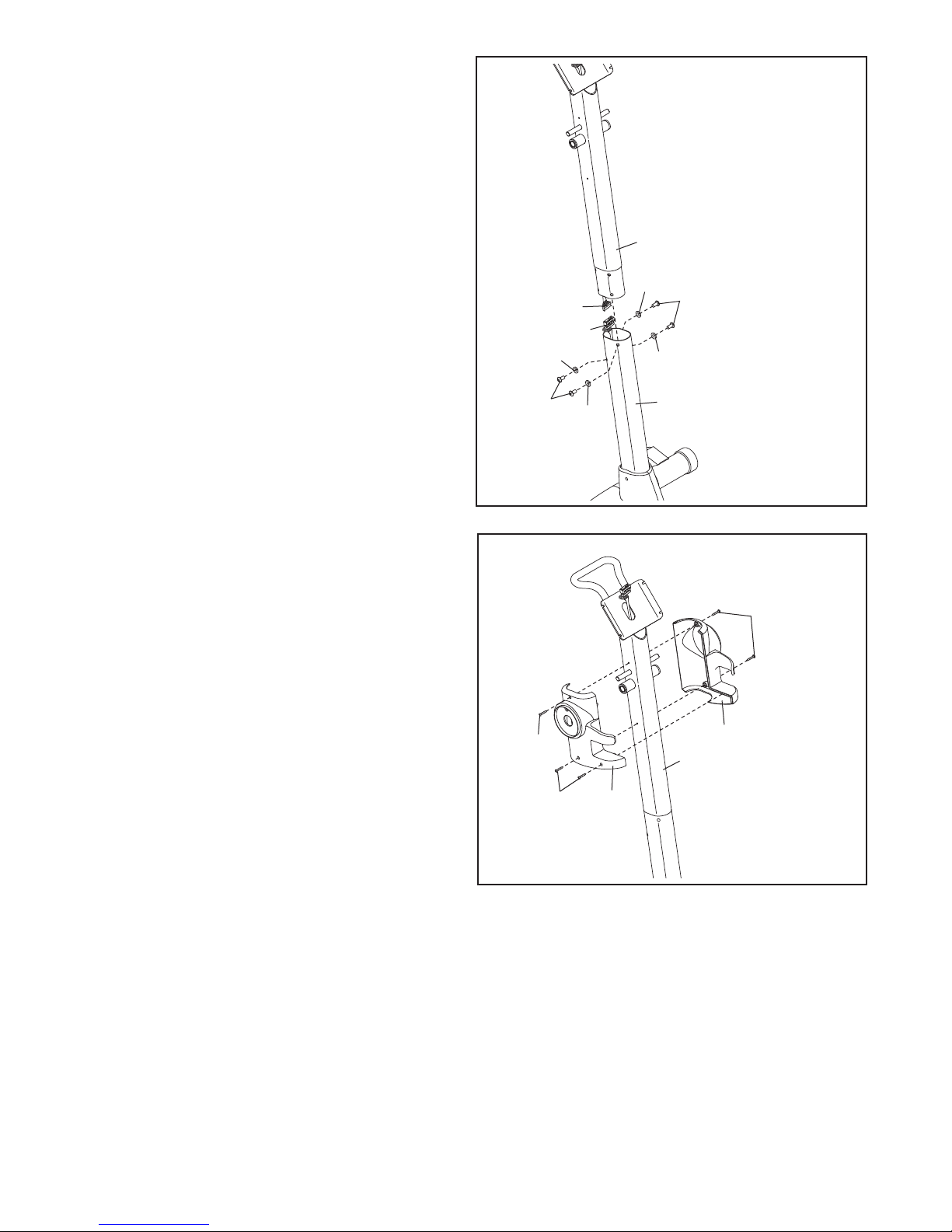

4. While another person holds the Upright (10)

near the Frame (1), connect the Upper Wire

arness (65) to the Lower Wire arness (64).

Then, insert the Upright (10) into the Frame (1).

Attach the Upright with four M8 x 20mm Button

Screws (85) and four M8 Split Washers (97). Do

not tighten the Button Screws yet.

Avoid pinching the Wire Harnesses (64, 65)

during this step. 10

Avoid pinching the

Wire Harnesses (64, 65)

during this step

7. Attach the Left Upper Body Arm (22) to the Left

Upper Body Leg (24) with three M8 x 16mm

Patch Screws (84) and three M8 x 23mm

Washers (31); start all three Patch Screws

and then tighten them.

Attach the Right Upper Body Arm (23) in the

same way. 22

6. Apply a generous amount of the included grease

to the Upper Body Axle (71). Insert the Upper

Body Axle into the Upright (10). Be careful not

to damage the Upper Wire Harness (65).

Apply a small amount of grease to a Wave

Washer (80). Slide the Wave Washer onto the left

end of the Upper Body Axle (71).

Identify the Left Upper Body Leg (24), which is

marked with a sticker, and orient it as shown.

Slide the Left Upper Body Leg onto the left side

of the Upper Body Axle (71).

Attach the Left Upper Body Leg (24) to the Upper

Body Axle (71) with an M8 x 20mm Patch Screw

(86) and an M8 x 23mm Washer (31).

Repeat this step for the Right Upper Body

Leg (72).

Grease

8. ave another person hold the Left Rear Upper

Body Cover (26) and the Left Front Upper Body

Cover (27) around the Left Upper Body Leg

(24).

Attach the Left Rear Upper Body Cover (26)

with a #8 x 3/4" Screw (78). Then, attach the

Left Front Upper Body Cover (27) with four

#8 x 3/4" Screws (78).

Attach the Right Rear Upper Body Cover (28)

and the Right Front Upper Body Cover (29)

in the same way. 24

9. The Console (11) can be operated with four 1.5V

“D” batteries (not included); alkaline batteries are

recommended. IMPORTANT: If the ellipical

exerciser has been exposed to cold tempera-

tures, allow it to warm to room temperature

before inserting batteries into the Console. If

you do not do this, the console displays or

other electronic components may become

damaged.Remove the battery cover and insert

four batteries into the Console. Make sure that

the batteries are oriented as shown by the

diagram inside the Console. Then, reattach the

battery cover.

Note: The Console (11) can also be operated

with a regulated 6-volt DC 2-amp power supply

(not included). To purchase a power supply,

call your local Sears store. To avoid damag-

ing the console, use only a manufacturer-

supplied power supply. Plug one end of the

power supply into the jack on the console; plug

the other end into an outlet installed in accor-

dance with all local codes and ordinances.

Battery

Cover

Batteries

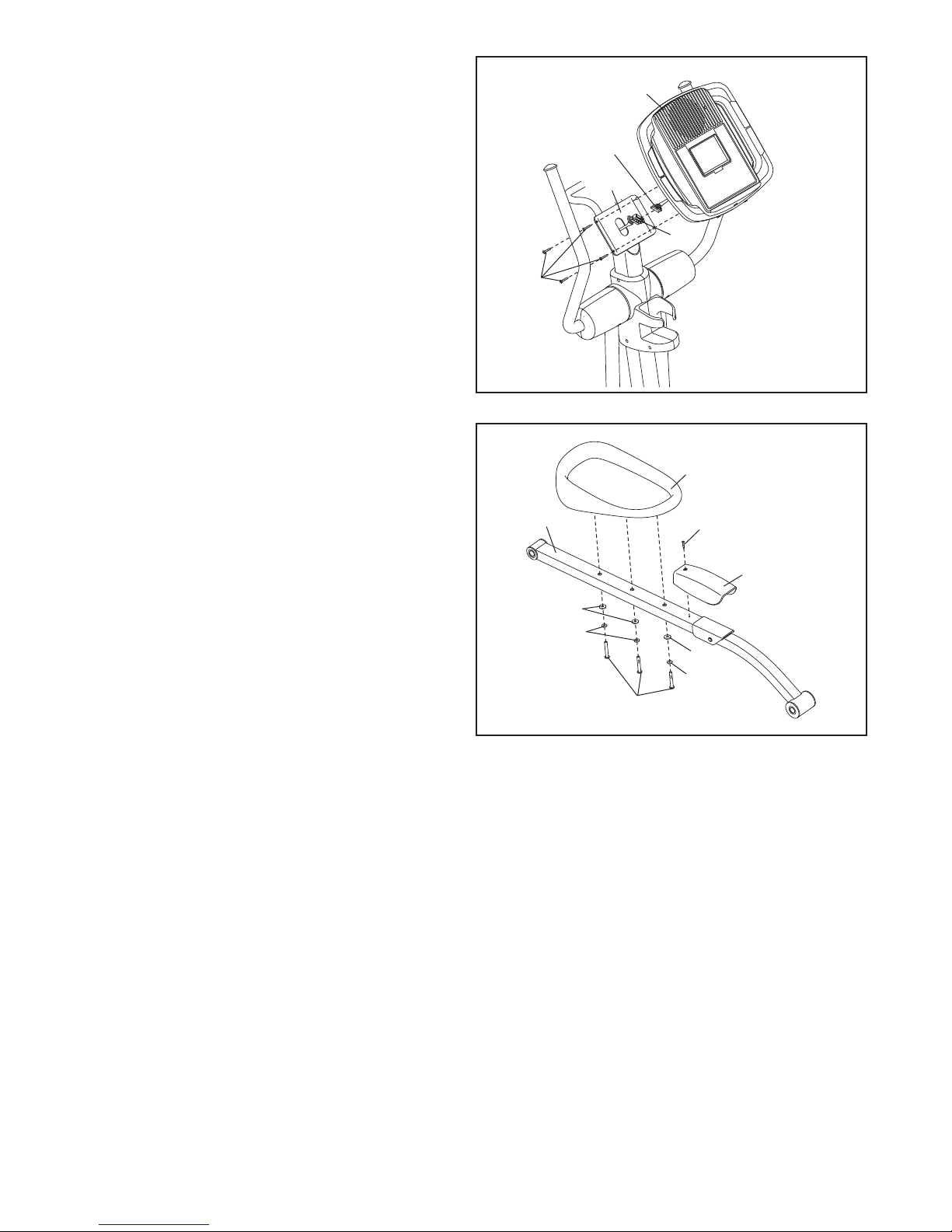

11. Orient a Pedal Arm (32) as shown. Attach the

Left Pedal (34) to the Pedal Arm with three M8 x

40mm Button Screws (90), three M8 Split

Washers (97), and three M8 x 23mm Washers

(31).

Next, attach a Pedal Arm Cover (39) to the Pedal

Arm (32) with a #8 x 3/4" Screw (78).

Repeat this step for the Right Pedal (not

shown) and the other Pedal Arm (not shown).

10. While another person holds the Console (11)

near the Upright (10), connect the console wire

harness to the Upper Wire arness (65).

Attach the Console (11) to the Upright (10) with

four #8 x 3/4" Screws (78); start all four

Screws and then tighten them. Avoid pinch-

ing the wire harnesses during this step.

Console Wire

arness

Avoid pinching the

wire harnesses

during this step

Other manuals for 831.23665.2

This manual suits for next models

Other NordicTrack Elliptical Trainer manuals

NordicTrack

NordicTrack Cxt 1200 Elliptical Operating and maintenance manual

NordicTrack

NordicTrack E7.0 Elliptical User manual

NordicTrack

NordicTrack E10 Rear Drive Elliptical User guide

NordicTrack

NordicTrack Cx 1055 Elliptical Exerciser User manual

NordicTrack

NordicTrack E4.1 Elliptical Reference guide

NordicTrack

NordicTrack E4.2 Elliptical Operating and maintenance manual

NordicTrack

NordicTrack E4.0 Elliptical User guide

NordicTrack

NordicTrack Audiostrider Cx650 Elliptical Operating and maintenance manual

NordicTrack

NordicTrack Vgr 940 User manual

NordicTrack

NordicTrack E 4.1 NTEVEL75012.0 User manual

NordicTrack

NordicTrack Audiostrider 990 Pro Elliptical User manual

NordicTrack

NordicTrack NTEL00907.0 User manual

NordicTrack

NordicTrack SpaceSaver Plus User manual

NordicTrack

NordicTrack CX 985 NTE1192.1 User manual

NordicTrack

NordicTrack PathFinder User manual

NordicTrack

NordicTrack E 7.2 Elliptical User manual

NordicTrack

NordicTrack E 9.2 Elliptical Operating and maintenance manual

NordicTrack

NordicTrack CX 938 NEL5095.1 User manual

NordicTrack

NordicTrack Freestride Trainer FS7i User manual

NordicTrack

NordicTrack AUDIOSTRIDER NTEL7906.1 User manual

NordicTrack

NordicTrack A.C.T. Commercial Plus User manual

NordicTrack

NordicTrack Cx 1600 Elliptical User manual

NordicTrack

NordicTrack NTEL08991 User manual

NordicTrack

NordicTrack Cxt 1200 Elliptical User guide

Popular Elliptical Trainer manuals by other brands

Weslo

Weslo Momentum 4.0 Elliptical Manuale d'istruzioni

Progear Fitness

Progear Fitness Air elliptical pro 1307 owner's manual

Torque Fitness

Torque Fitness XPLLP owner's manual

Octane Fitness

Octane Fitness PRO3700C Operation manual

Xterra

Xterra FS5.8e owner's manual

Bodyguard

Bodyguard E-40 user manual

Bonn Germany

Bonn Germany Concept 2.2 user manual

Precor

Precor Resolute RSL 620 Assembly guide

Vision Fitness

Vision Fitness X6600iNetTV Assembly guide

Matrix

Matrix MX-A5x owner's manual

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 owner's manual

Sears

Sears FREE SPIRIT C249 30737 0 owner's manual

True

True FS-64 Assembly manual

Sport-thieme

Sport-thieme ST 310 manual

VIRTUFIT

VIRTUFIT CTR 1.1 user manual

Kettler

Kettler GIRO C 1 manual

CIRCLE FITNESS

CIRCLE FITNESS E7 owner's manual

Reebok

Reebok 1000 Zx Elliptical Manuel de l'utilisateur
