Nokia BH 103 - Headset - In-ear ear-bud User manual

Nokia Bluetooth Stereo

Headset BH-103 User Guide

Issue 1

DECLARATION OF CONFORMITY

Hereby, NOKIA CORPORATION declares that this HS-121W product

is in compliance with the essential requirements and other relevant

provisions of Directive 1999/5/EC. A copy of the Declaration of

Conformity can be found at http://www.nokia.com/phones/

declaration_of_conformity/.

Nokia, Nokia Connecting People and the Nokia Original Accessories

logo are registered trademarks of Nokia Corporation. Other product

and company names mentioned herein may be trademarks or

tradenames of their respective owners.

Reproduction, transfer, distribution, or storage of part or all of the

contents in this document in any form without the prior written

permission of Nokia is prohibited.

Bluetooth is a registered trademark of Bluetooth SIG, Inc.

Nokia operates a policy of ongoing development. Nokia reserves the

right to make changes and improvements to any of the products

described in this document without prior notice.

To the maximum extent permitted by applicable law, under no

circumstances shall Nokia or any of its licensors be responsible for

any loss of data or income or any special, incidental, consequential

or indirect damages howsoever caused.

The contents of this document are provided "as is". Except as

required by applicable law, no warranties of any kind, either express

or implied, including, but not limited to, the implied warranties of

merchantability and fitness for a particular purpose, are made in

relation to the accuracy, reliability or contents of this document.

Nokia reserves the right to revise this document or withdraw it at

any time without prior notice.

The availability of particular products may vary by region. Please

check with your Nokia dealer for details.

Export controls

This device may contain commodities, technology or software

subject to export laws and regulations from the US and other

countries. Diversion contrary to law is prohibited.

Issue 1

Contents

1. Introduction .............................................................. 5

Bluetooth wireless technology............................................................... 6

2. Get started................................................................. 7

Keys and parts............................................................................................. 7

Chargers........................................................................................................ 8

Charge the battery..................................................................................... 8

Switch on or off.......................................................................................... 9

Pair the headset....................................................................................... 10

3. Basic use .................................................................. 12

Wear the headset.................................................................................... 12

Calls............................................................................................................. 13

Listen to music......................................................................................... 14

Clear settings or reset............................................................................ 14

Troubleshooting....................................................................................... 14

4. Battery information ................................................ 15

Care and maintenance ................................................ 17

Introduction

1. Introduction

With the Nokia Bluetooth Stereo Headset BH-103, you can

make and answer calls with your compatible mobile phone

and listen to music from a compatible music device.

Read this user guide carefully before using the headset.

Also, read the user guide for the device that you connect to

the headset.

See www.nokia-asia.com/support or your local Nokia

website for the latest version of the user guide and

additional information related to your Nokia product.

This product may contain small parts. Keep them out of the

reach of small children.

Introduction

■Bluetooth wireless technology

Bluetooth wireless technology

allows you to connect

compatible devices without

cables. The headset and the other

device do not need to be in line

of sight, but the maximum

distance between the devices

should be 10 metres (33 feet).

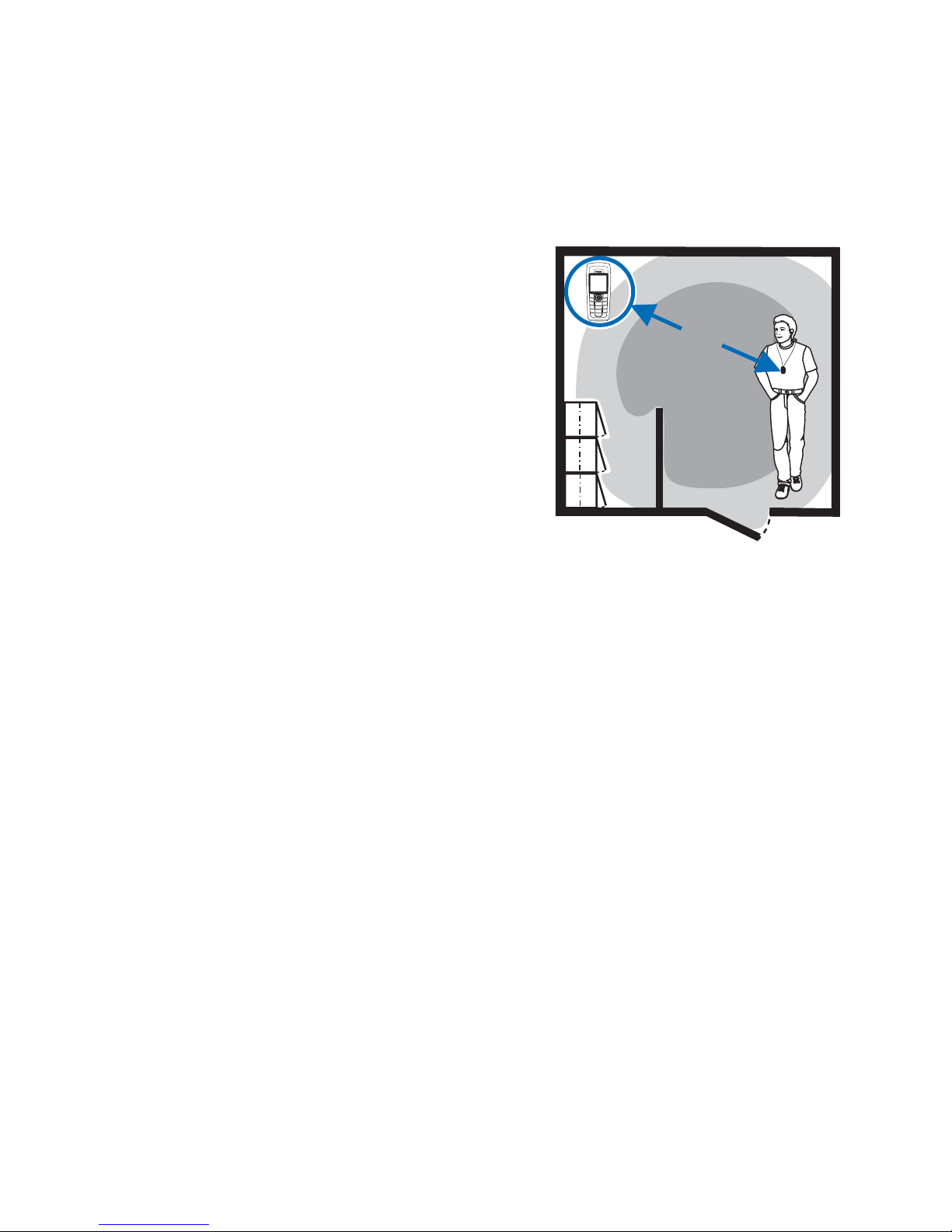

The closer the headset and the

other device are to each other, the better is the

performance. The optimal operating range is shown in dark

grey in the picture. The connection is subject to interference

from distance and obstructions (shown in light grey) or

other electronic devices.

The headset complies with the Bluetooth Specification 2.1

+ EDR that supports the following profiles: Headset Profile

1.1, Hands-Free Profile (HFP) 1.5, and Advanced Audio

Distribution Profile (A2DP) 1.2. Check with the

manufacturers of other devices to determine their

compatibility with this device.

<10m

Get started

2. Get started

■Keys and parts

The headset contains the following parts:

1. Earphones

2. Strap lock

3. Microphone

4. Multifunction key

5. Charger

connector

6. Indicator light

7. Volume key

Before using the headset, you must charge the battery and

pair the headset with a compatible device.

Parts of the device are magnetic. Metallic materials may be

attracted to the device. Do not place credit cards or other

magnetic storage media near the device, because

information stored on them may be erased.

Get started

■Chargers

This device is intended for use when supplied with power

from the following chargers: AC-3 and DC-4.

Warning: Use only chargers approved by Nokia for

use with this particular enhancement. The use of

any other types may invalidate any approval or

warranty, and may be dangerous.

When you disconnect the power cord of any enhancement,

grasp and pull the plug, not the cord.

■Charge the battery

Before charging the battery, carefully read “Battery

information,” p. 15.

1. Connect the charger to a wall outlet.

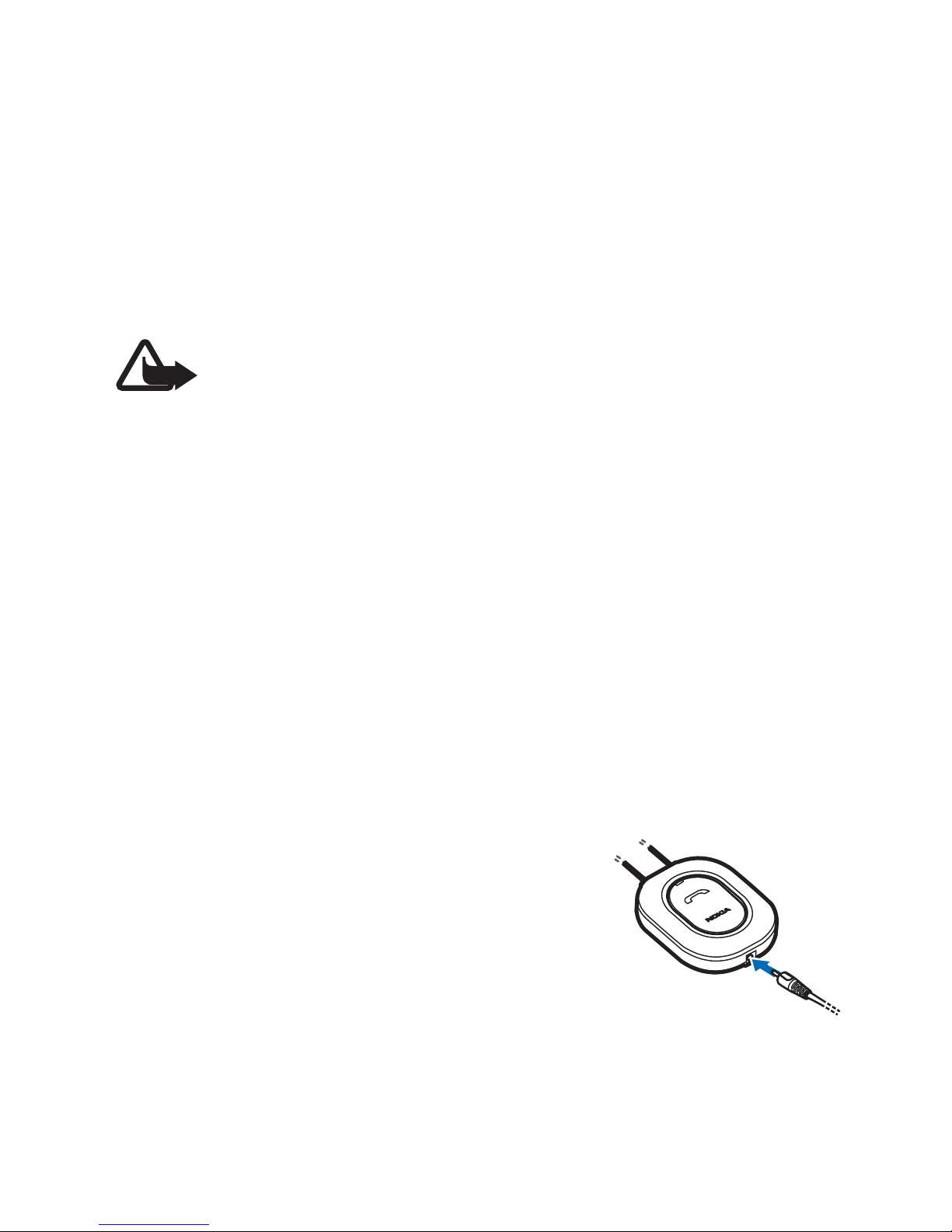

2. Connect the charger cable to the

charger connector. The red

indicator light is displayed during

charging. Charging the battery

fully may take up to 1 hour 40

minutes.

Get started

3. When the battery is fully charged, the green indicator

light is displayed. Disconnect the charger from the

headset and the wall outlet.

The fully charged battery has power for up to 7 hours of talk

time, up to 150 hours of standby time, or up to 6 hours of

music playing time.

To check the battery charge, briefly press the multifunction

key when no call is in progress. If the indicator light is

green, the charge level is sufficient. If the light is yellow,

you may need to recharge the battery soon. If the light is

red, recharge the battery.

When the battery is discharged, the headset beeps about

every 5 minutes.

■Switch on or off

To switch on, press and hold the multifunction key for about

2 seconds. The headset beeps, and the green indicator light

is displayed. The headset tries to connect to the last used

phone and music device, if any.

Get started

To switch off, press and hold the multifunction key for

about 4 seconds. The headset beeps, and the red indicator

light is briefly displayed.

■Pair the headset

If your phone supports the A2DP Bluetooth profile and has a

music player feature, you can use the phone to make and

receive calls, and to play music with the headset.

1. Ensure that your phone or music device is on and the

headset is off.

2. Press and hold the multifunction key (for about 4

seconds) until the green indicator light starts to flash

quickly.

3. Activate the Bluetooth feature on your phone or music

player, and set it to search for Bluetooth devices.

4. Select the headset from the list of found devices on your

phone or music player.

5. Enter the passcode 0000 to pair and connect the

headset to your device. If your device does not have a

keypad, it may use this passcode by default.
