Nokia X2-05 User manual

Nokia X2-05 User Guide

Issue 1.1

Contents

Safety 4

Get started 5

Keys and parts 5

Insert a SIM card and battery 6

Insert a memory card 7

Charge the battery 8

Switch the phone on or off 9

GSM antenna 10

Attach a strap 10

Basic use 10

Access codes 10

Lock the keys 11

Indicators 11

Copy contacts or pictures from your

old phone 12

Change the volume of a call, song, or

video 12

Use your phone offline 13

Calls 13

Make a call 13

Call the last dialled number 13

View your missed calls 13

Contacts 14

Save a name and phone number 14

Use speed dial 14

Send your contact information 15

Write text 15

Switch between text input modes 15

Write using traditional text input 15

Use predictive text input 16

Messaging 16

Send a message 16

Listen to voice messages 17

Send an audio message 17

Personalise your phone 18

About the home screen 18

Personalise the home screen 18

Personalise your phone tones 19

Connectivity 19

Bluetooth 19

USB data cable 20

Clock 20

Change the time and date 20

Alarm clock 21

Music and audio 21

Media player 21

FM radio 23

Mail and Chat 24

About Mail 24

Send a mail 25

Read and reply to mail 25

About Chat 25

Chat with your friends 25

Browse the web 26

About the web browser 26

Browse the web 26

Add a bookmark 27

Fit a web page to your phone display 27

Save on data costs 27

Clear your browsing history 28

Nokia services 28

Nokia Services 28

Availability and costs of Nokia

Services 28

Access Nokia Services 28

Pictures and videos 29

Take a picture 29

2Contents

Record a video 29

Send a picture or video 29

Find help 30

Support 30

Subscribe to the Tips and Offers

service 30

Keep your phone up to date 30

Protect the environment 32

Save energy 32

Recycle 33

Product and safety information 33

Index 39

Contents 3

Safety

Read these simple guidelines. Not following them may be dangerous or illegal. For

further information, read the complete user guide.

SWITCH OFF IN RESTRICTED AREAS

Switch the device off when mobile phone use is not allowed or when it may

cause interference or danger, for example, in aircraft, in hospitals or near

medical equipment, fuel, chemicals, or blasting areas. Obey all instructions

in restricted areas.

ROAD SAFETY COMES FIRST

Obey all local laws. Always keep your hands free to operate the vehicle while

driving. Your first consideration while driving should be road safety.

INTERFERENCE

All wireless devices may be susceptible to interference, which could affect

performance.

QUALIFIED SERVICE

Only qualified personnel may install or repair this product.

KEEP YOUR DEVICE DRY

Your device is not water-resistant. Keep it dry.

PROTECT YOUR HEARING

Listen to a headset at a moderate level, and do not hold the device near

your ear when the loudspeaker is in use.

4Safety

Get started

Keys and parts

1Headset connector/Nokia AV connector (3.5 mm)

2Earpiece

3Screen

4Selection keys

5Call key

6Keypad

7Wrist strap hole

8Micro-USB connector

9Charger connector

10 End/Power key

11 Scroll key

Get started 5

12 Camera lens

13 Loudspeaker

14 Memory card slot

Insert a SIM card and battery

Note: Switch the device off and disconnect the charger and any other device

before removing any covers. Avoid touching electronic components while changing

any covers. Always store and use the device with any covers attached.

Important: This device is designed to be used with a standard SIM card (see

figure) only. Use of incompatible SIM cards may damage the card or the device, and

may corrupt data stored on the card. Please consult your mobile operator for the use

of a SIM card that has a mini-UICC cutout.

Important: To prevent damage to the SIM card, always remove the battery

before you insert or remove the card.

This phone is intended for use with a BL-5CB battery. Always use original Nokia

batteries.

1 Place your finger in the recess at the bottom of the phone, and carefully lift and

remove the back cover (1). If the battery is inserted, lift it out.

6 Get started

2 Open the SIM card holder (2), and insert the SIM card (3). Make sure the contact

area of the card is facing down.

3 Line up the contacts of the battery and the battery compartment, and insert the

battery (4). To replace the back cover, direct the top locking catches towards their

slots (5), and press down until the cover locks into place (6).

Insert a memory card

Use only compatible memory cards approved by Nokia for use with this device.

Incompatible cards may damage the card and the device and corrupt data stored on

the card.

Your phone supports memory cards with a capacity of up to 32 GB.

Get started 7

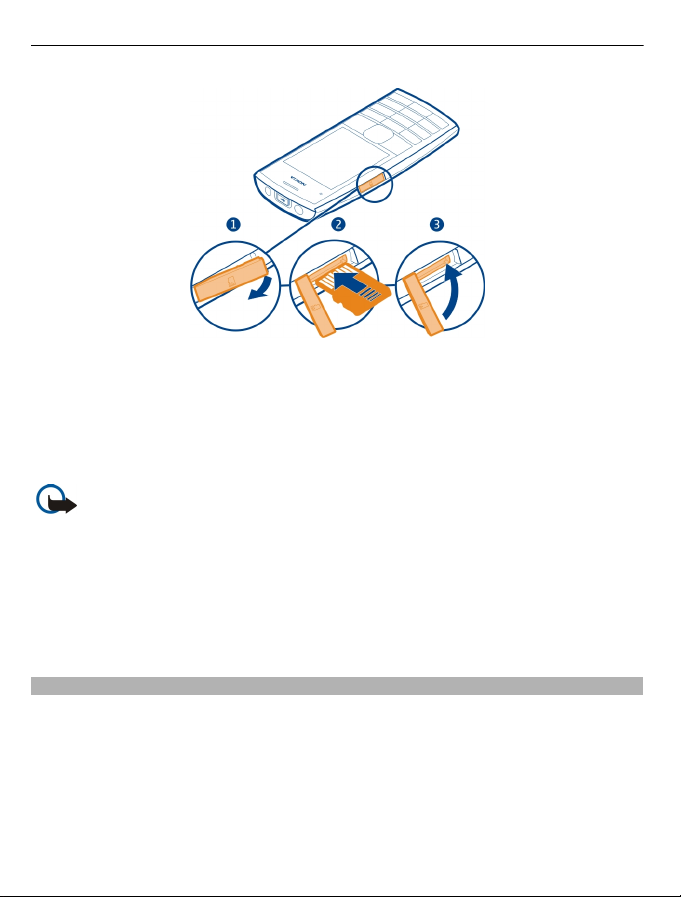

1 Open the memory card slot cover.

2 Make sure the contact area of the card is facing up. Push the card in, until it locks

into place.

3Closethecover.

Remove the memory card

Important: Do not remove the memory card when an application is using it.

Doing so may damage the memory card and the device and corrupt data stored on

the card.

You can remove or replace the memory card without switching the phone off.

1 Open the memory card slot cover.

2 Push the card in, until it is released, and pull the card out.

3Closethecover.

Charge the battery

Your battery has been partially charged at the factory, but you may need to recharge

it before you can switch on your phone for the first time. If the phone indicates a low

charge, do the following:

8 Get started

1 Connect the charger to a wall outlet.

2 Connect the charger to the phone.

3 When the phone indicates a full charge, disconnect the charger from the phone,

then from the wall outlet.

You do not need to charge the battery for a specific length of time, and you can use

the phone while it is charging.

If the battery is completely discharged, it may take several minutes before the

charging indicator is displayed or before any calls can be made.

If the battery has not been used for a long time, to begin charging, you may need to

connect the charger, then disconnect and reconnect it.

Switch the phone on or off

Press and hold the power key .

You may be prompted to get the configuration settings from your service provider

(network service). For more information, contact your service provider.

Get started 9

GSM antenna

The antenna area is highlighted.

Avoid touching the antenna area while the antenna is in use. Contact with antennas

affects the communication quality and may reduce battery life due to higher power

level during operation.

Attach a strap

1 Remove the back cover.

2 Thread the wrist strap, and tighten it.

Basic use

Access codes

The security code helps to protect your phone against unauthorised use. You can

create and change the code, and set the phone to request the code. Keep the code

secret and in a safe place separate from your phone. If you forget the code and your

10 Basic use
